Shipping containers 40 feet high cube/ Used 40ft & 20 ft Containers

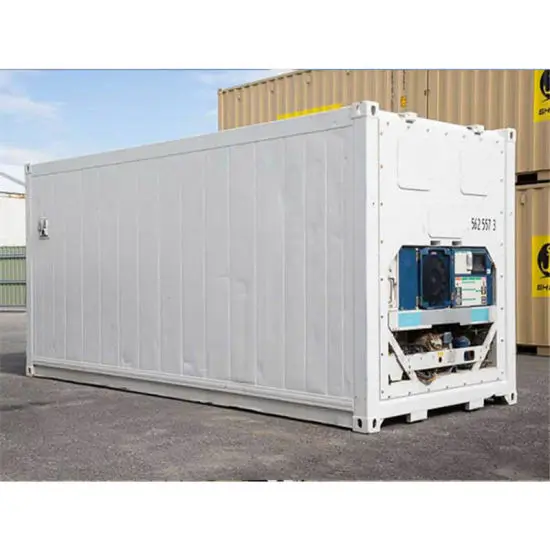

20' REFRIGERATED CONTAINER SPECIFICATIONS







Refrigeraton Unit

  • Carrier Thinline, Carrier Primeline, Thermo King Magnum Plus


Door Configuration

  • Single set of cargo doors on one end.


Exterior Dimensions

  • Length - 19' 10 1/2"  Height - 8'6"  Width - 8'


Interior Dimensions

  • Length - 18' 8 37/64"  Height - 7' 5 31/64"  Width - 7' 6 5/16"


Door Opening Dimensions

  • Height - 7' 5 9/64"  Width - 7' 6 5/32"


20' Refrigerated Container Capacity

  • Cubic Capacity - 1,018 cu. ft.  Tare Wt. - 6,370 lbs.  Max Gross - 67,200



40' HIGH CUBE REFRIGERATED CONTAINER SPECIFICATIONS







Refrigeration Unit

  • Carrier Thinline, Carrier Primeline, Thermo King Magnum Plus


Door Configuration

  • Single set of cargo doors on one end.


Exterior Dimensions

  • Length - 40'  Height - 9'6"  Width - 8'


Interior Dimensions

  • Length - 38' 3/4"  Height - 8' 3 5/8"  Width - 7' 7 5/8"


Door Opening Dimensions

  • Height - 8' 6 1/2"  Width - 7' 5 5/8"


Roof Opening Dimensions

  • Length - 38' 10 21/32"  Width - 7' 3 23/32"


40' Open Top ISO Container Capacity

  • Cubic Capacity - 2,350 cu. ft.  Tare Wt. - 9,150 lbs.  Max Gross - 67,200

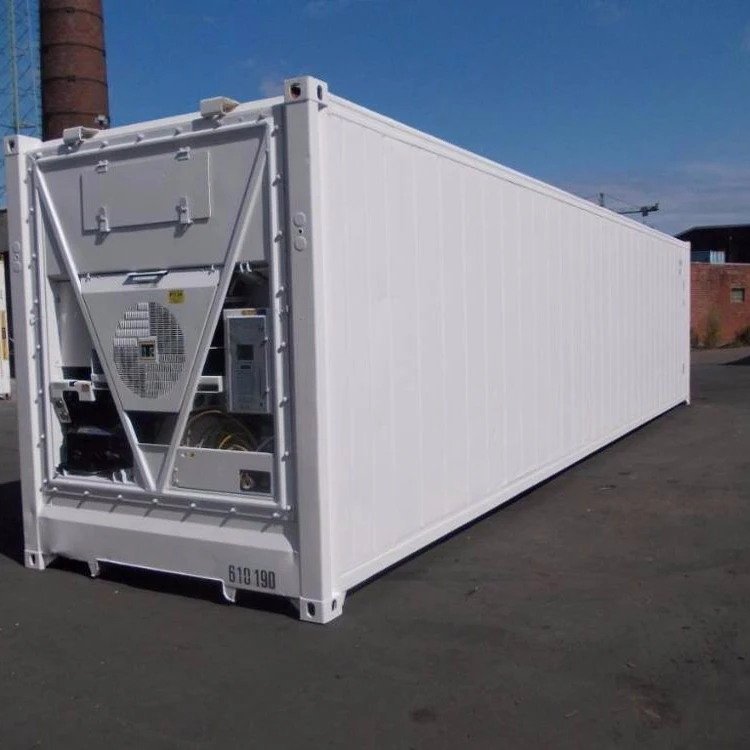

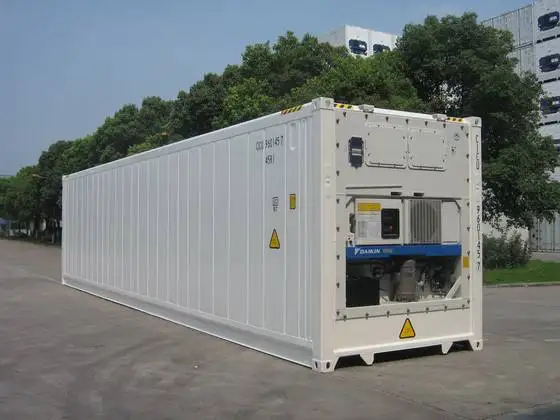

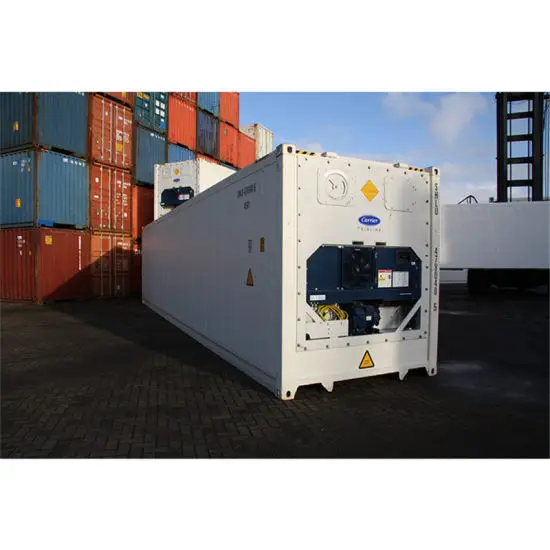

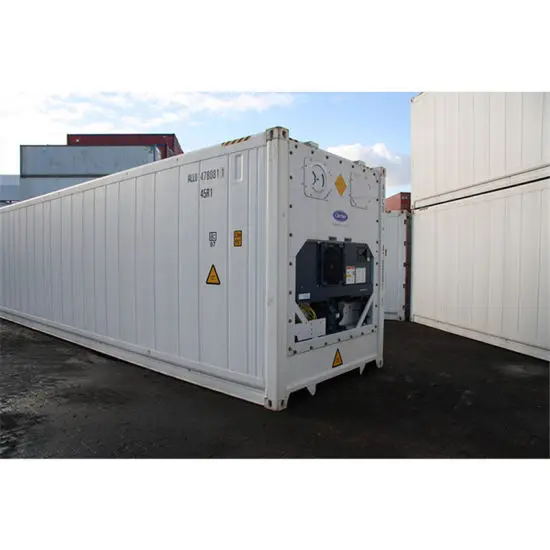

40 Feet Refrigerated Container
High cube containers is the best solution for your storage problems, especially when your cargo is too large to fit into a standard general purpose container. High cube containers are designed and constructed to meet the harsh demands of sea travel, so you know they will last as they are strong and secure for whatever purpose needed. We supply both 20 ft and 40 ft high cube containers.





Ready Stock Available


BSL ISO Refrigerated Containers have 3 standard sizes: 10ft, 20ft and 40ft


All reefer units are new build in China, and fitted with new
Carrier ThinLINE Machinery.


Color : RAL 9003


We have stock units available in China. Please contact us for quotation.













































  40'x8'x9'6"
ExteriorLength12,192mm
 Width2,438mm
 Height2,896mm
InternalLength11,584mm
 Width2,2292mm
 Height2,546mm
CubicCapacity2,387













































carrierCONTAINER REFRIGERATION UNIT SPECIFICATIONS
Model: THINLINE 69NT40-541
Net R-134a Refrigeration Cooling Capacity

At 38°C (100°F) ambient temperature and 60 Hz Power Supply:


Air to EvaporatorCooling CapacityPower
-29 °C (-20°F)3,100 Watt5.0 kW
-18 °C (0°F)6,010 Watt6.4 kW
2°C (35°F)10,250 Watt10.8 kW
To download the detailed technical specifications, please click here



































carrierCONTAINER REFRIGERATION UNIT SPECIFICATIONS
Model: PRIMELINE 69NT40-561
Net R-134a Refrigeration Cooling Capacity

At 38°C (100°F) ambient temperature and 60 Hz Power Supply:


Air to EvaporatorCooling CapacityPower
-29 °C (-20°F)4,400 Watt4.9 kW
-18 °C (0°F)6,600 Watt5.8 kW
2°C (35°F)12,000 Watt8.9 kW




40 Feet Standard Container.
We provide 40 Feet Container for supply storage. We pride ourselves on being able to deliver high quality storage container products at competitive prices. We have new and used storage containers for sale available and ready for delivery.

20 Feet Standard Container.
We are a highly spirited supplier of Marine Containers. Our Marine Containers are demanded by quality conscious clients at a very large scale. The Marine Cargo Containers supplied by us are long lasting. We have tie up with many renowned manufacturers of best quality Marine Containers. These Marine Containers are available with us in various capacities. Our marine containers are made up of the rugged steel with hardwood floors. They can be easily transported and popular for their safe storage. We have earned immense reputation amongst leading Marine Shipping Containers suppliers in South Africa.


20 Feet Open Top Container.
We offer 20 ft refrigerated containers for industrial use.If you're after a refrigerated storage container for sale then we have the right unit for you. Refrigerated storage containers are ideal for storing and transporting perishable goods.





NEW 20GP/20HC/40GP/40HC Container with certificate, can be used for loading goods to overseas.





Specification as below table:











































































Specification







External (mm)



Internal (mm)



M3



Type



Length



Width



Height



Length



Width



Height



Int.Volume



20GP



6058



2438



2591



5898



2352



2393



33.2



20HC



6058



2438



2896



5898



2352



2698



37.4



40GP



12192



2438



2591



12032



2352



2393



67.7



40HC



12192



2438



2896



12032



2352



2698



76.4



45HC



13716



2438



2896



13556



2352



2698



86
