We will test the switches before shipping. All the switches are new and original

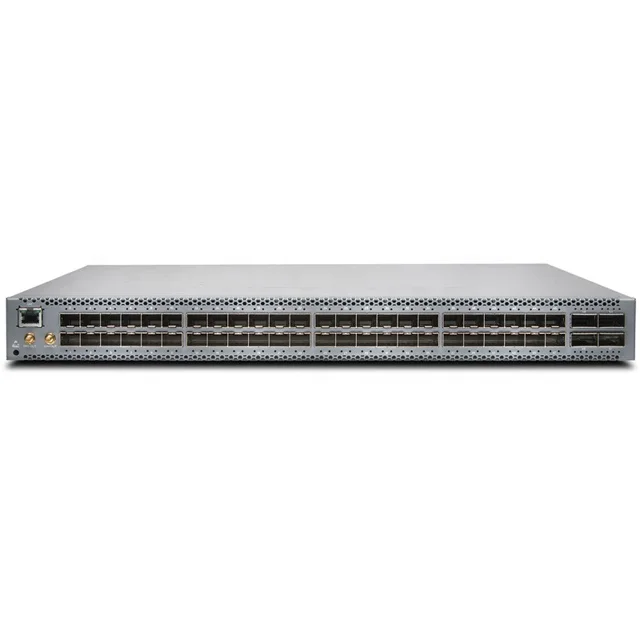

QFX5110-48S-AFI industrial network switch with 48*SFP+ and 4*QSFP28 Data Center Switches | |
Dimensions (H x W x D) | 1.72 x17.36 x 20.48 in (4.37 x 44.09 x 52.02 cm) |
Switching Capacity | 1.76 Tbps/1.32 Bpps |
Power Consumption | Max load: 300 W, Typical load: 195 W, Idle load: 150 W |
Interface Options | * 1GbE SFP: 48 (24 copper 1GbE) * 10GbE SFP+: 48/64 (with breakout cable) * 40GbE QSFP+: 4 * 100GbE QSFP28: 4 |
Power Supply and Fan Modules | * Dual redundant (1+1) and hot-pluggable power supplies * 110-240 V single phase AC power * -36 to -72 V DC power * Redundant (N+1) and hot-pluggable fan modules for frontto-back and back-to-front airflow |
MAC addresses per system | 288,000 |
VLAN IDs | 4,093 |
Operating temperature | 32° to 104° F (0° to 40° C) |
Storage temperature | -40° to 158° F (-40° to 70° C) |
Operating altitude | Up to 2,000 (610 m) |
Relative humidity operating | 5% to 90% (noncondensing) |
Relative humidity non-operating | 0% to 95% (noncondensing) |
QFX5110-48S-AFI industrial network switch with 48*SFP+ and 4*QSFP28 Data Center Switches
Featuring L3 gateway capabilities for bridging between virtualized and bare-metal servers, the QFX5110 is designed for extremely agile data centers that demand support for overlay/underlay network architectures. The high-density 10GbE, 40GbE, and 100GbE ports also make the QFX5110 ideally suited for use in data center spine and leaf topologies and campus distribution.
QFX5110 access and aggregation switches deliver low latency, rich Layer 2 and Layer 3 features, VXLAN overlay deployments, and 100GbE uplinks, making it the industry’s most nimble line of switches.
Featuring L3 gateway capabilities for bridging between virtualized and bare-metal servers, the QFX5110 is designed for extremely agile data centers that demand support for overlay/underlay network architectures. The high-density 10GbE, 40GbE, and 100GbE ports also make the QFX5110 ideally suited for use in data center spine and leaf topologies and campus distribution.
Product Selling Points
Automation
The QFX5110 switches support a number of features for network automation and plug-and-play operations. Features include zero touch provisioning, operations and event scripts, automatic rollback, and Python scripting. The switch also supports integration with
VMware NSX Layer 2 Gateway Services, and OpenStack.
The QFX5110 switches support a number of features for network automation and plug-and-play operations. Features include zero touch provisioning, operations and event scripts, automatic rollback, and Python scripting. The switch also supports integration with
VMware NSX Layer 2 Gateway Services, and OpenStack.
MPLS
QFX5110 switches support a broad set of MPLS features, including L3 VPN, IPv6 provider edge router (6PE), RSVP traffic
engineering, and LDP to allow standards-based network segmentation and virtualization. This enables the QFX5110 to be deployed as a low-latency MPLS label-switching router (LSR).
QFX5110 switches support a broad set of MPLS features, including L3 VPN, IPv6 provider edge router (6PE), RSVP traffic
engineering, and LDP to allow standards-based network segmentation and virtualization. This enables the QFX5110 to be deployed as a low-latency MPLS label-switching router (LSR).
Intelligent Buffer Management
The QFX5110 switches have a total of 16 MB shared buffers. While 25% of the total buffer space is dedicated, the rest is shared among all ports and is user configurable. The intelligent buffer mechanism in the QFX5110
effectively absorbs traffic bursts while providing deterministic performance, significantly increasing performance over static
allocation.
The QFX5110 switches have a total of 16 MB shared buffers. While 25% of the total buffer space is dedicated, the rest is shared among all ports and is user configurable. The intelligent buffer mechanism in the QFX5110
effectively absorbs traffic bursts while providing deterministic performance, significantly increasing performance over static
allocation.
