Product Description
Item | Specification | Quantity | Item | Specification | Quanlity | ||||

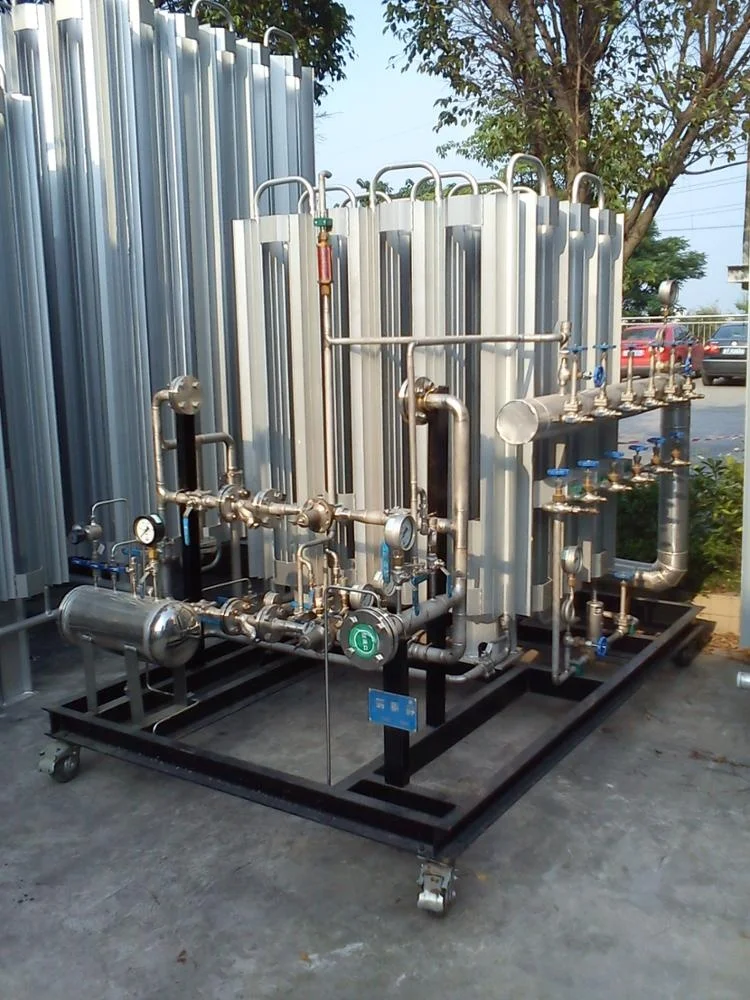

Air Vaporizer System | Pressure Regulating System | ||||||||
Air Vaporizer | 200~1000Nm3/h | 2 | Pressure regulating valve | DN80 | 2 | ||||
Cryogenic Shut-off valve | DN50 PN16 | 2 | Ball Valve | DN100 | 5 | ||||
Ball valve | DN100 PN16 | 2 | / | / | / | ||||
Metering system | Safety release system | ||||||||
Flow meter | 200Nm3/h | 1 | cryogenic safty valve | DN25 | 5 | ||||
Ball Valve | DN100 | 3 | safty valve | DN50 | 3 | ||||
Emergency shut-off system | Automatic scenting system | ||||||||
Emergency shut-off valve | DN 50 | 2 | Automatic scenting device | 1 | |||||
Oxygen sytem | DN 50 | 1 | / | / | / | ||||

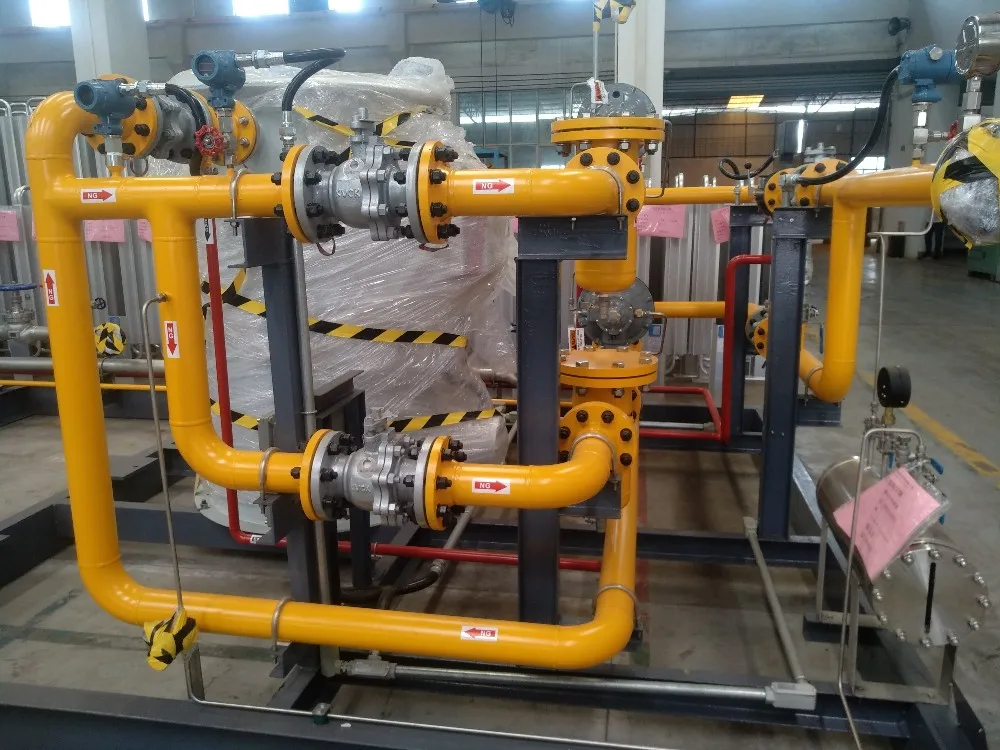

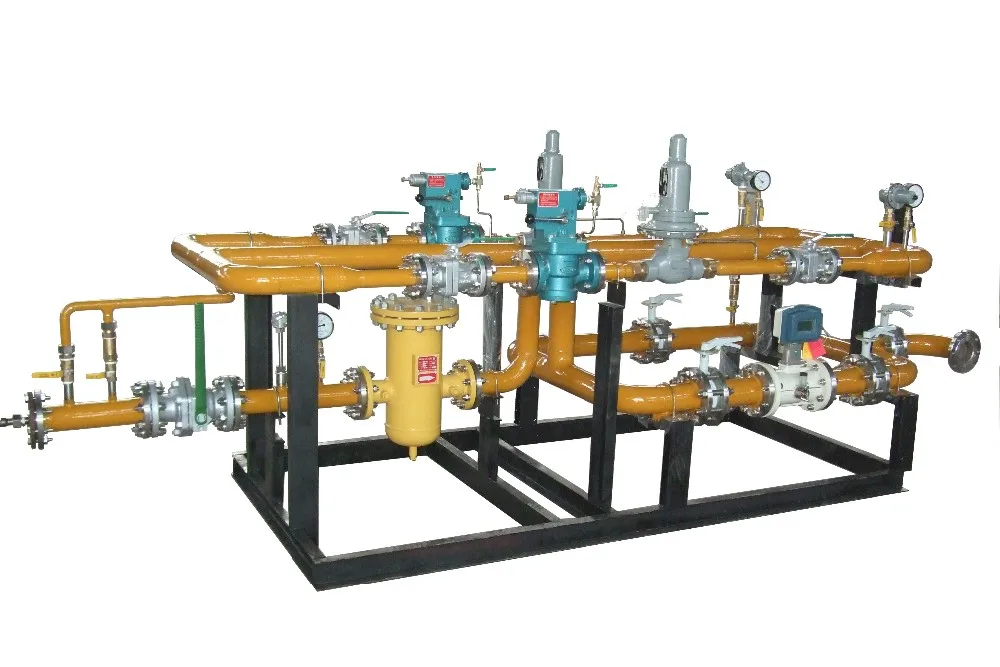

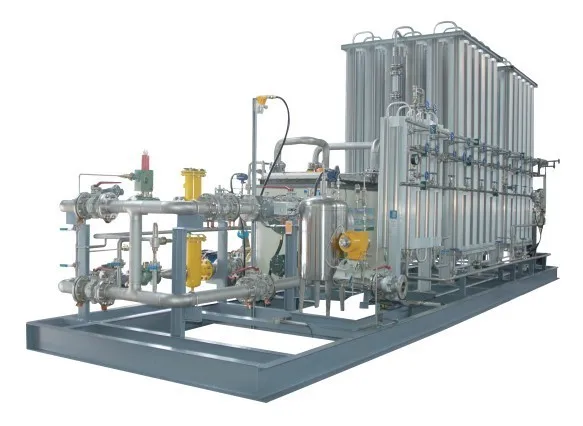

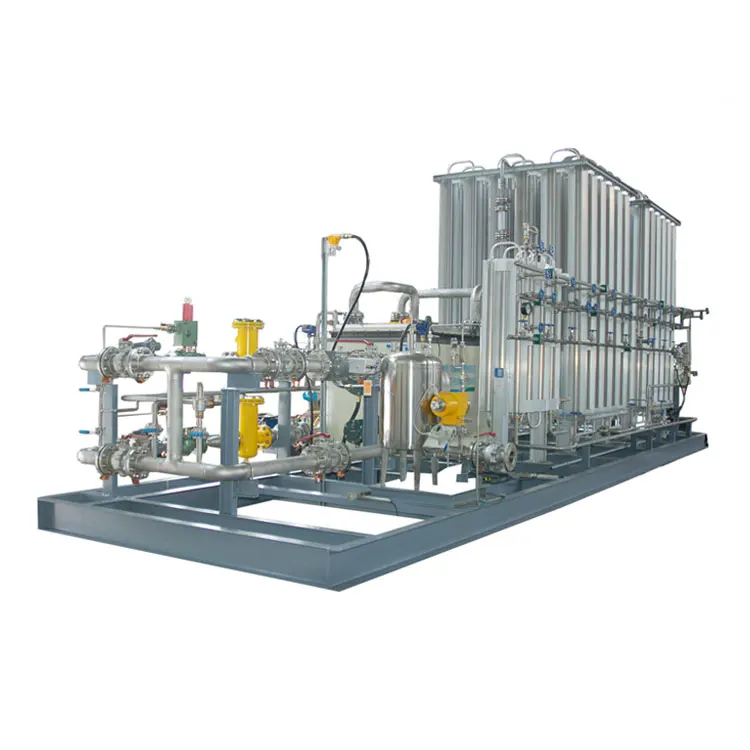

Skid Mounted Type Natural Gas Pressure Reducing Mobile system is a type of gas pressure regulating equipment, s used for matching with gas pipeline transmission network. As the pressure regulating device, it is widely used in gas supply systems, such as communities, public services, direct combustion equipment, gas boilers, and industrial furnaces. It is also essential in large-scale places, such as hotels, bathes, kitchens, hotels, and manufactories etc.where huge energy consumption is needed.
During the gas pressure regulating process, it can provide natural gas temperature control and 1st stage discharge pressure protection control (overpressure cut-off valve and safety relief valve). After gas regulation, the compressed natural gas is measured and added odorant then it is qualified to use.
Main Safety-Performance components:
1.With cryogenic liquid phase safety valve, gas phase safety valve and safety relief valve
2.With cryogenic liquid emergency cut-off valve
3.With gas phase over pressure emergency cut-off valve
4.With electrostatic grounding function
5.All wiring of the meter is summarized in the explosion-proof terminal box
6.With electro-thermal water-bath heating device, to protect the normal operation at the extremely low temperature situation.
7.Pressure, temperature, liquid level, current and voltage signals are all linked with the monitoring system, to ensure the safety of the station area;
8. Explosion-proof grade: ExdIIBT4, ExdiaIIBT4
3.With gas phase over pressure emergency cut-off valve
4.With electrostatic grounding function
5.All wiring of the meter is summarized in the explosion-proof terminal box
6.With electro-thermal water-bath heating device, to protect the normal operation at the extremely low temperature situation.
7.Pressure, temperature, liquid level, current and voltage signals are all linked with the monitoring system, to ensure the safety of the station area;
8. Explosion-proof grade: ExdIIBT4, ExdiaIIBT4
Features:
1. Integrated with pressure regulation, measuring, filter, safety cut off and safety relief.
2. Stable operation, safe and reliable, easy maintenance.
3. Reasonable structure design, easy installation and commissioning, attractive appearance, small area occupation, environmentally friendly, suitable for indoor and outdoor installation.
4. Good expansibility, it can add gas alarm, data collection and heat preservation and warming system according to users' requirements.

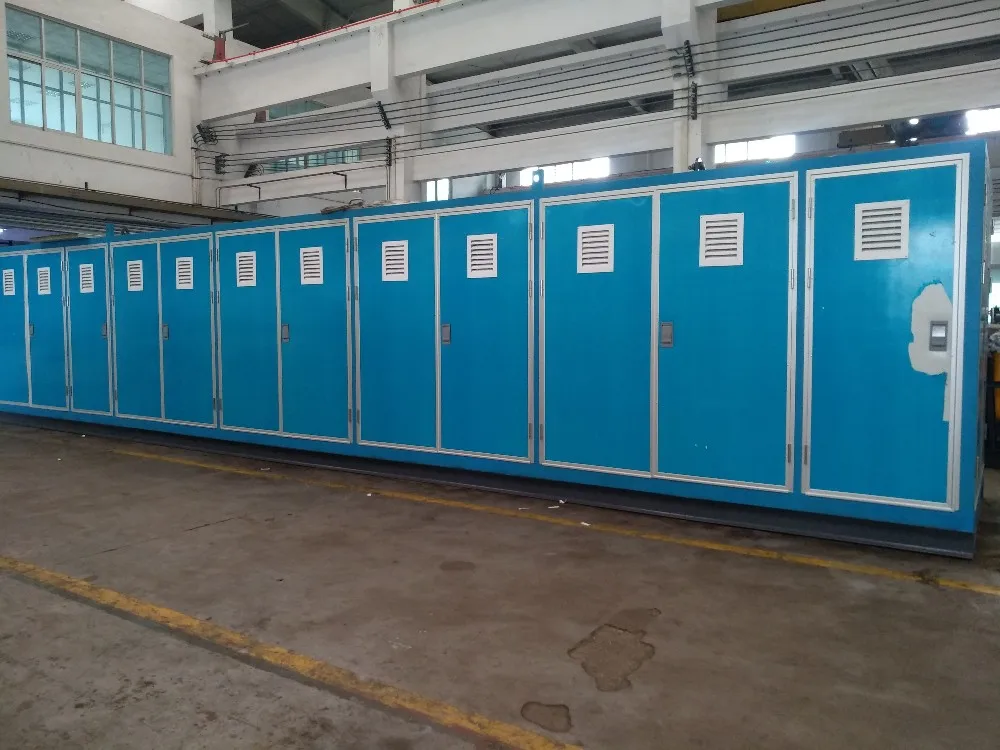

5. Cabinet body material: steel plate plastic spraying casing, stainless steel casing, color steel plate heat preservation casing, which can meet different environmental requirements.
6. Suitable for natural gas, manufactured gas, coke oven gas, liquefied petroleum gas, methane gas and other gases.
2. Stable operation, safe and reliable, easy maintenance.
3. Reasonable structure design, easy installation and commissioning, attractive appearance, small area occupation, environmentally friendly, suitable for indoor and outdoor installation.
4. Good expansibility, it can add gas alarm, data collection and heat preservation and warming system according to users' requirements.
5. Cabinet body material: steel plate plastic spraying casing, stainless steel casing, color steel plate heat preservation casing, which can meet different environmental requirements.
6. Suitable for natural gas, manufactured gas, coke oven gas, liquefied petroleum gas, methane gas and other gases.

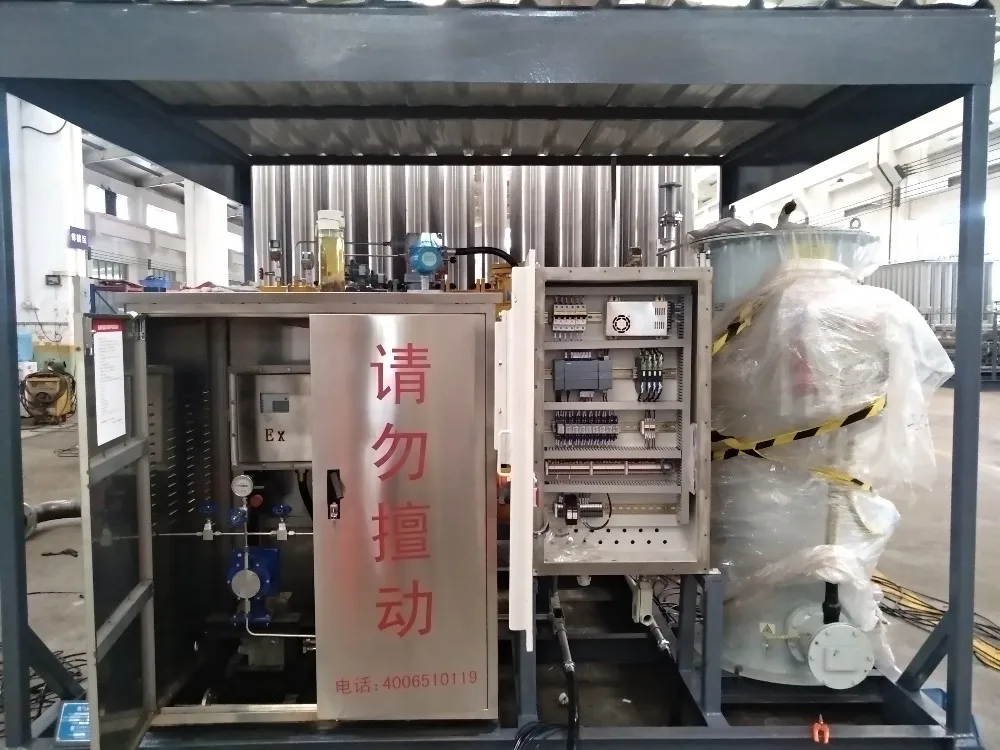

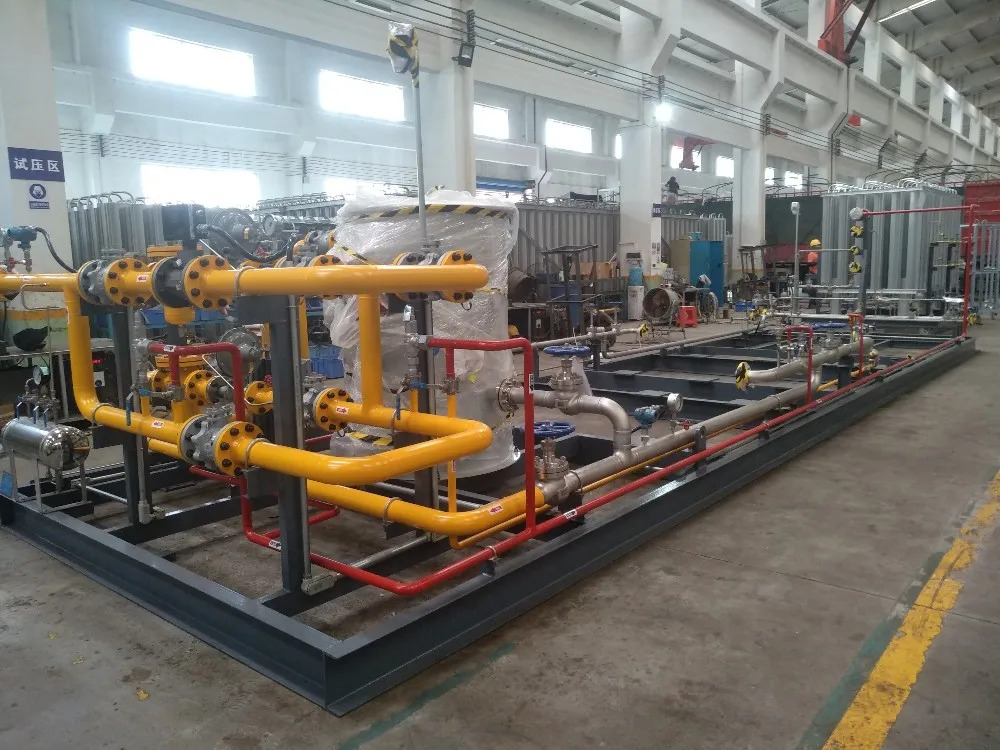

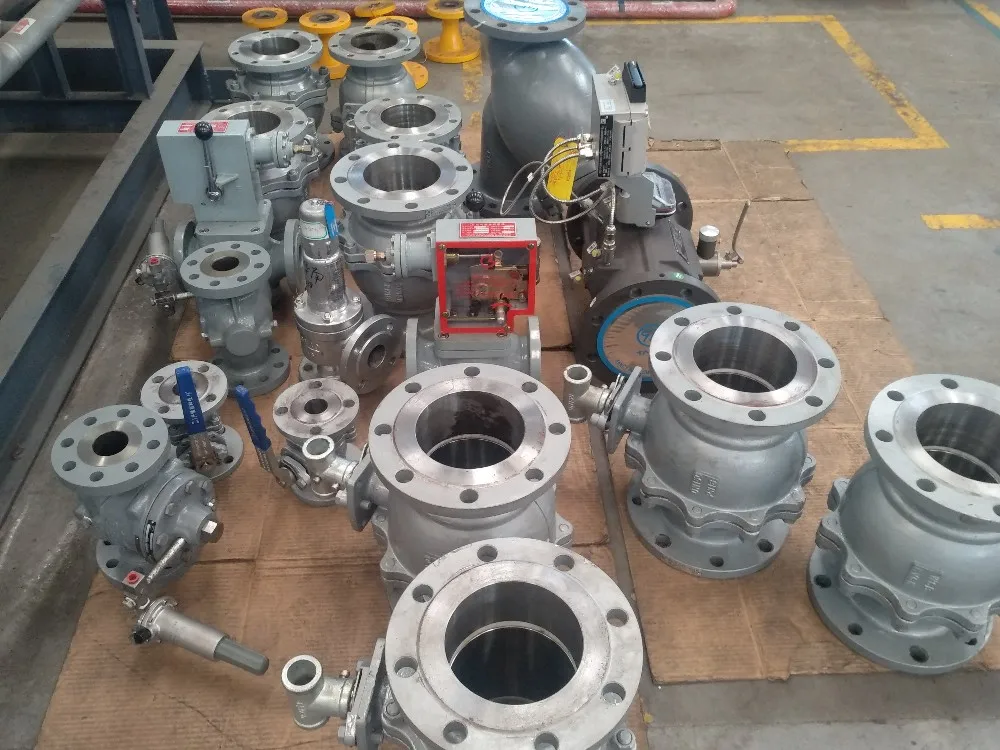

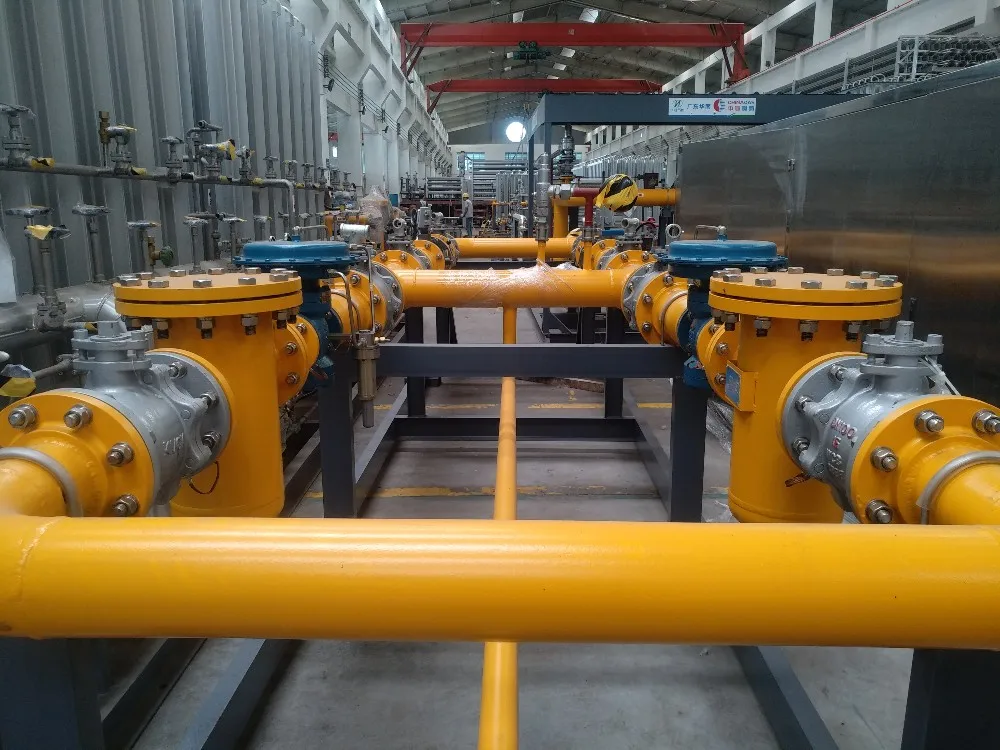

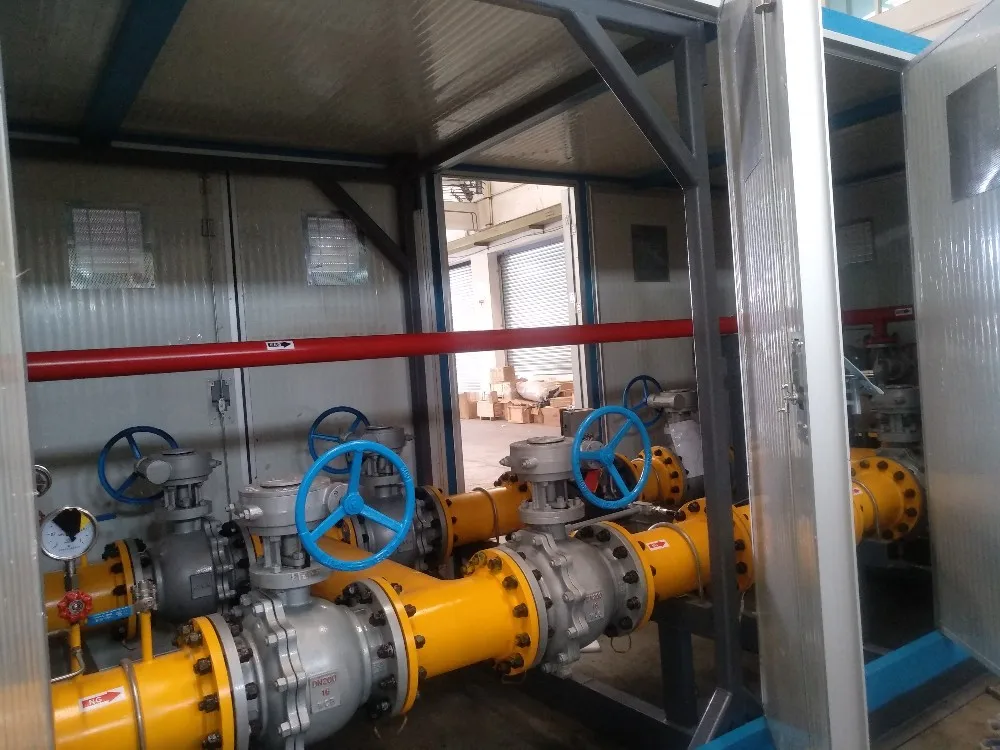

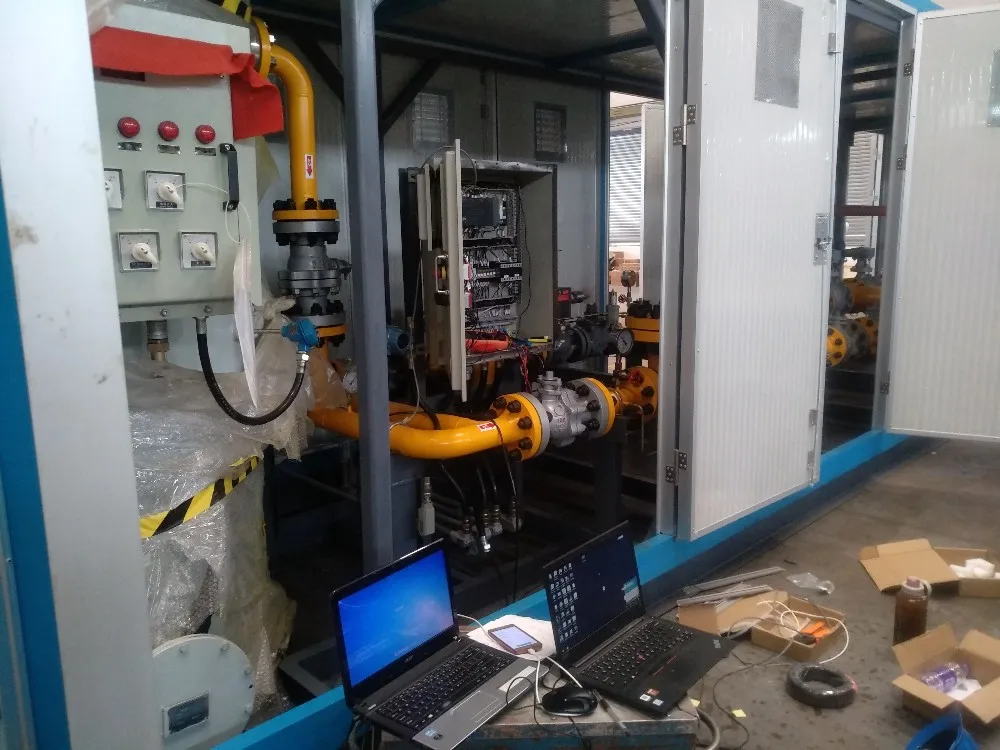

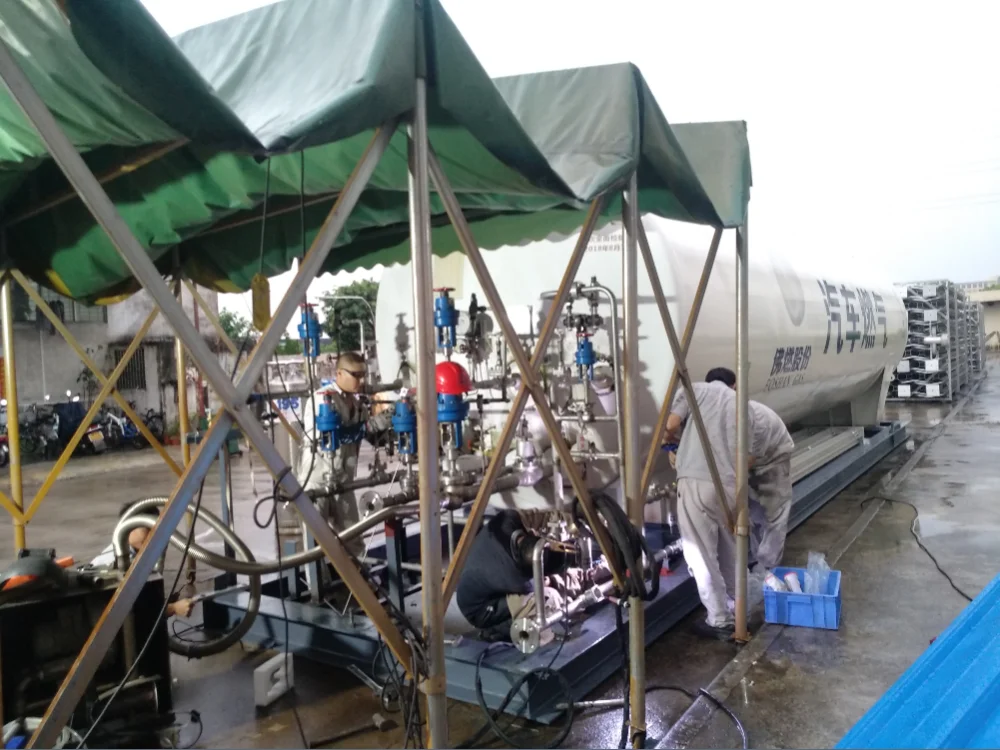

Detailed Images
