SML Top Quality PDC Cutter Good Abrasive Resistance For Oil Drilling Water Well
PDC (Polycrystalline Diamond Compact) Cutters are made from tungsten carbide substrate and synthetic diamond grit.

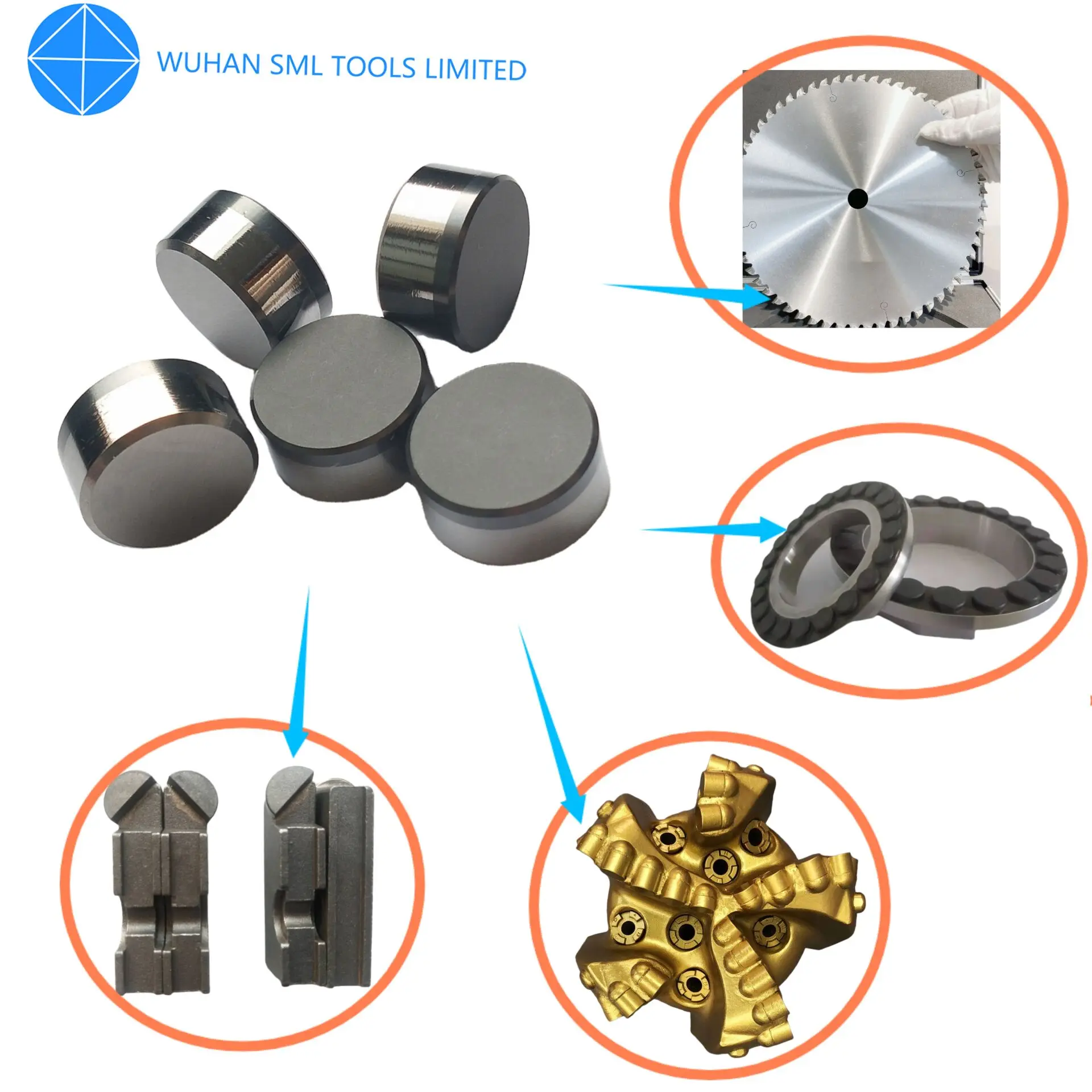

They are widely used in geothermal energy drilling, mining, water well and natural gas drilling and oil well drilling.

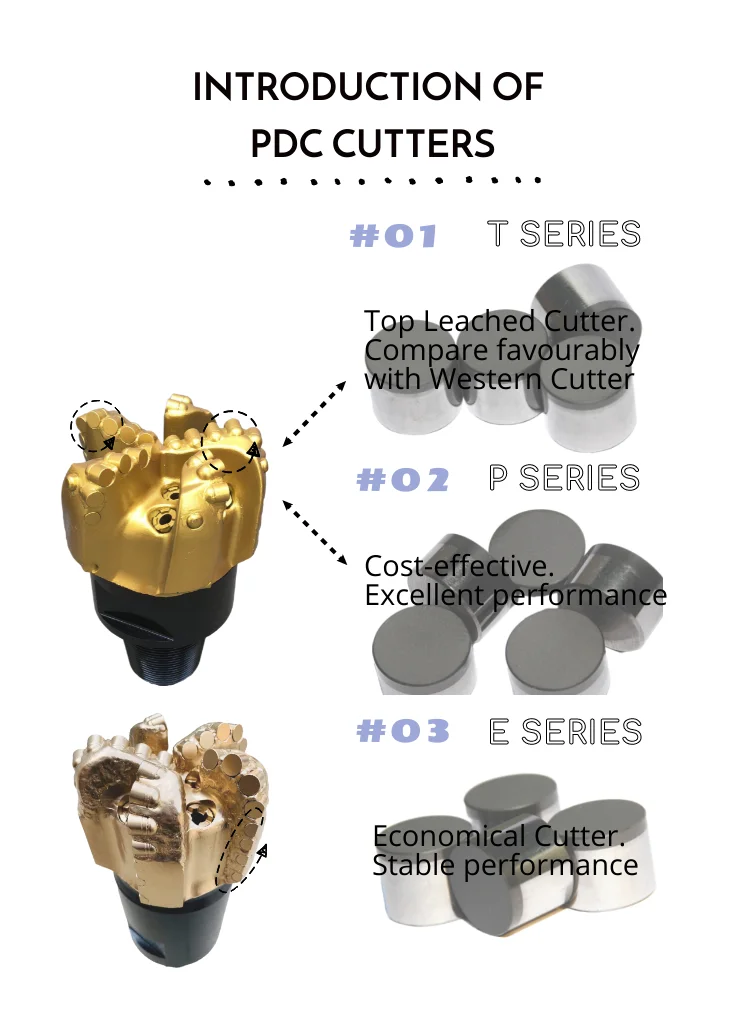

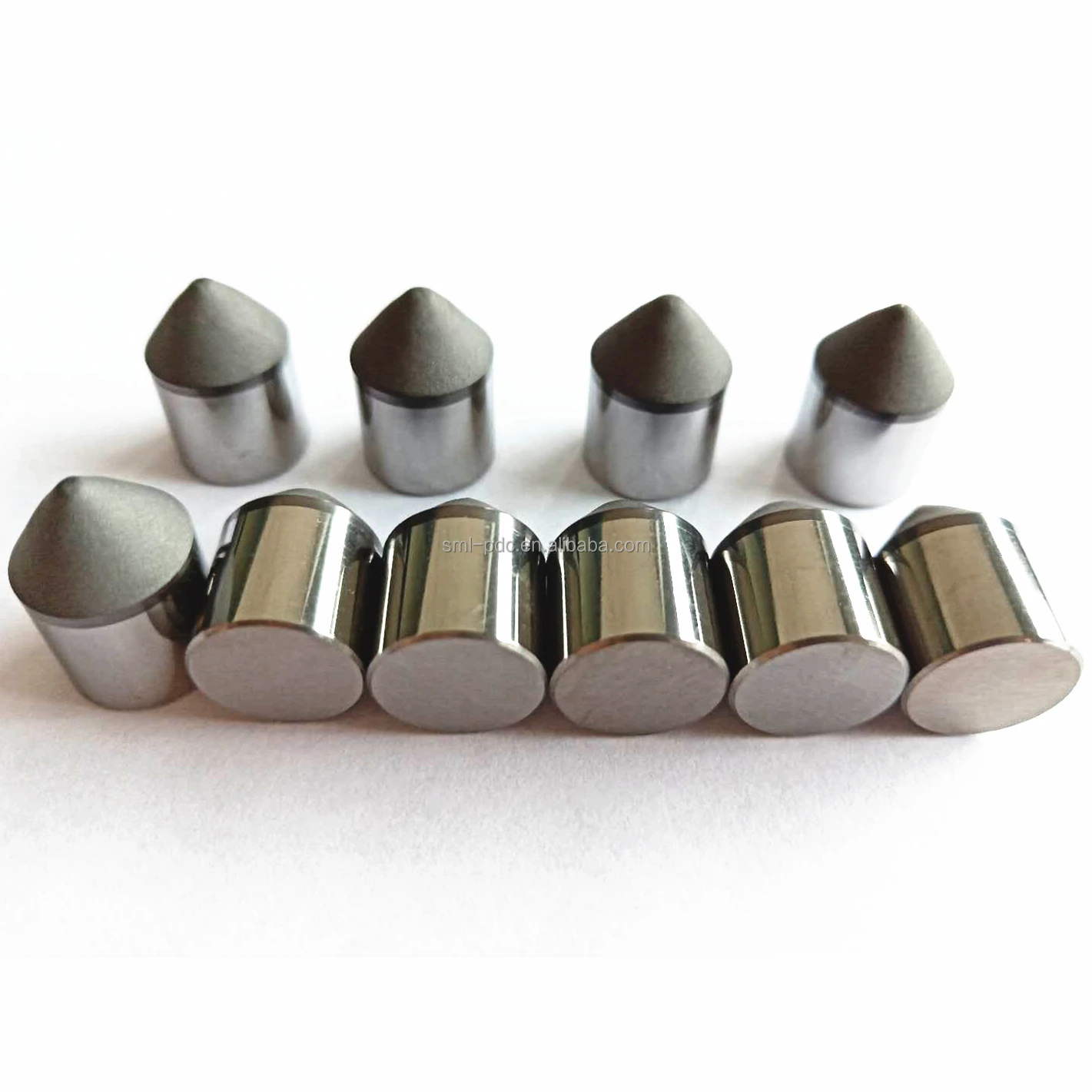

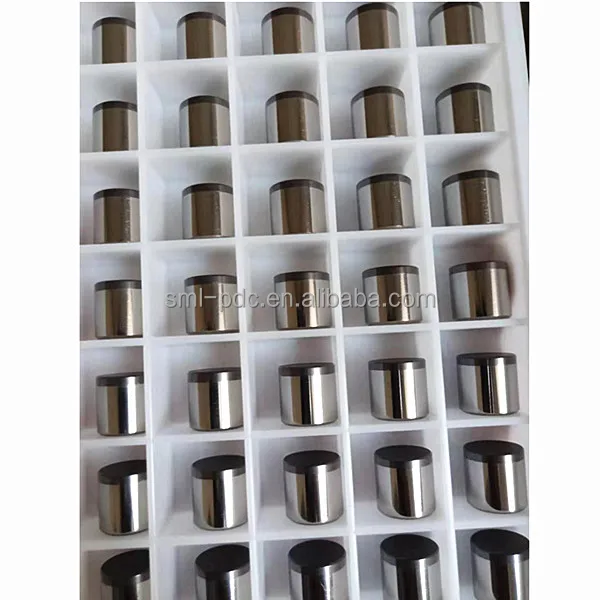

PDC Cutter

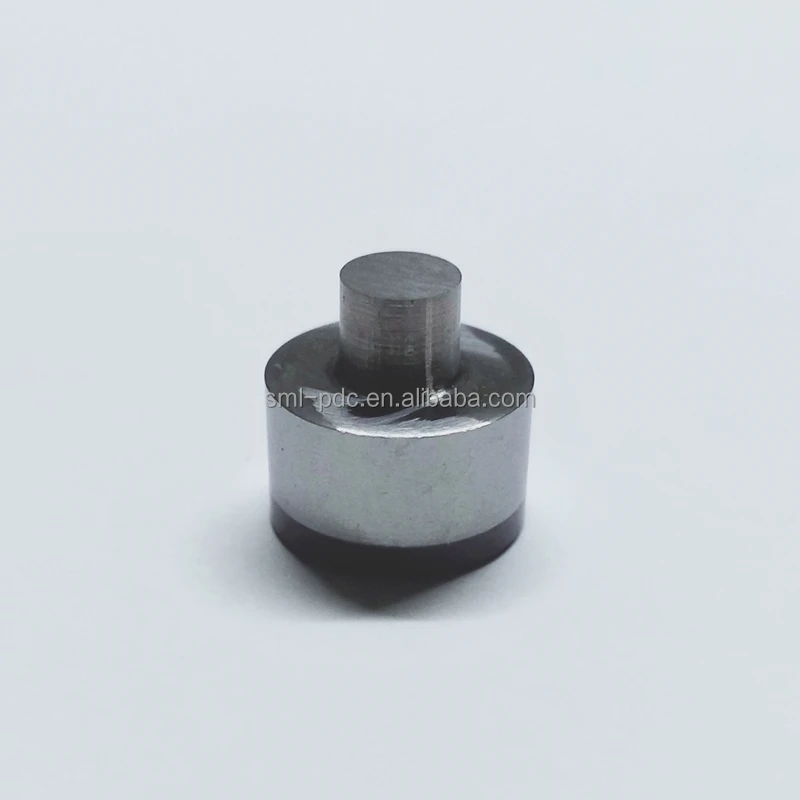

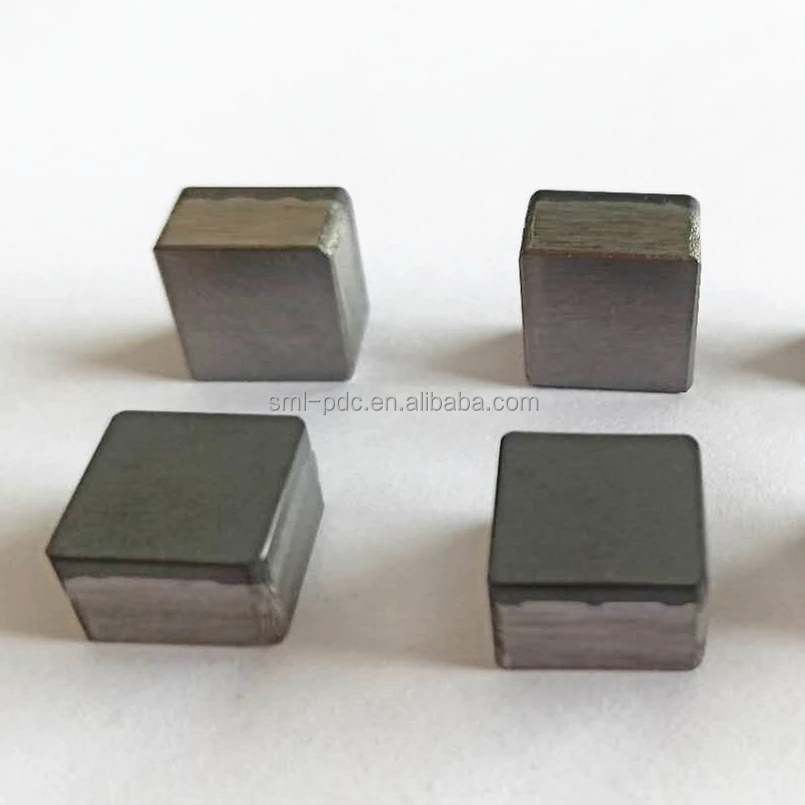

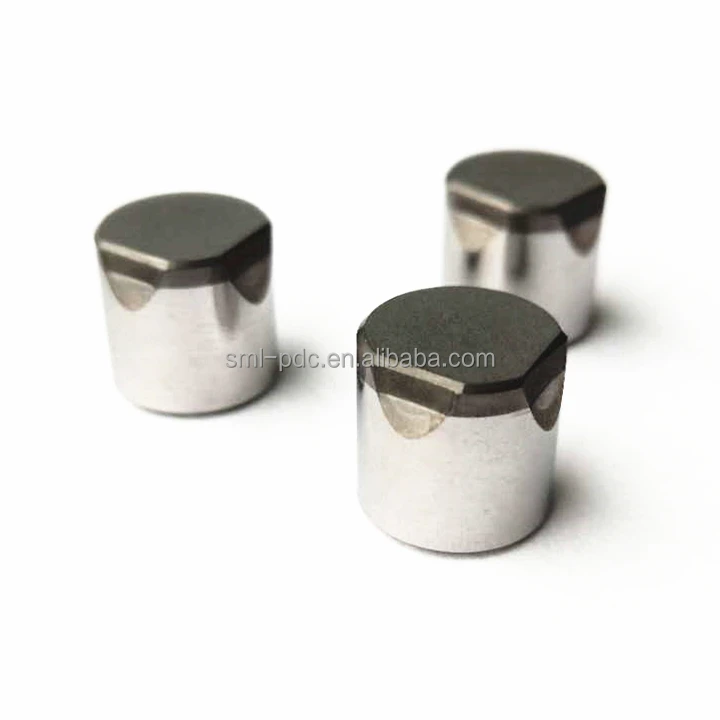

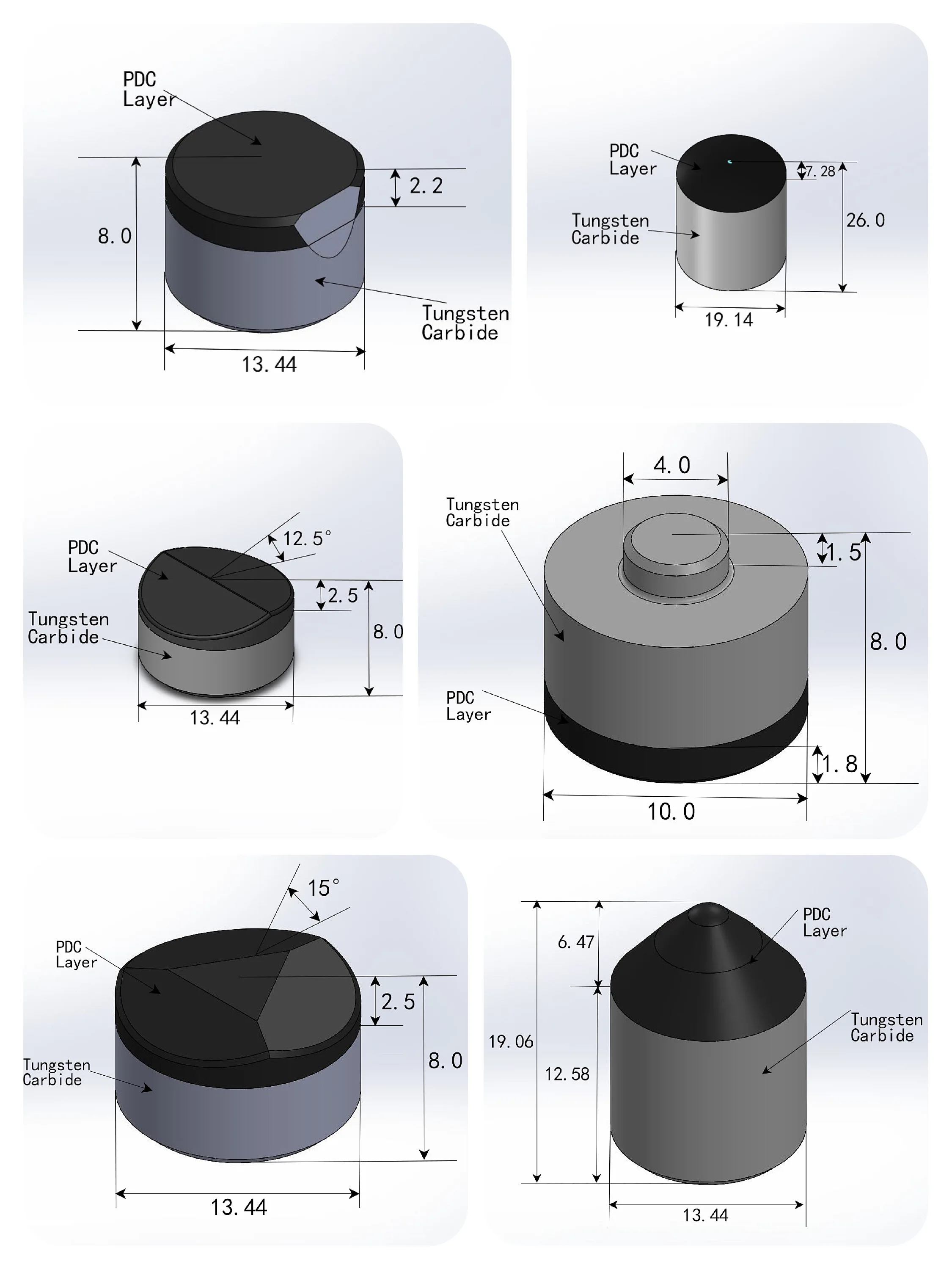

Shaped PDC Cutter
We have been offering PDC cutters with different grade of quality since 2008, and the pricing is most favorable throughout China. Our PDC cutters are very popular in USA, UK, Germany, Poland, Australia, Russia, Kazakhstan and Ukraine etc.. They work perfectly as feedback. We are very glad to offer you suitable PDC cutters to meet your drilling needs in different formations. We are looking forward to your inquiry.

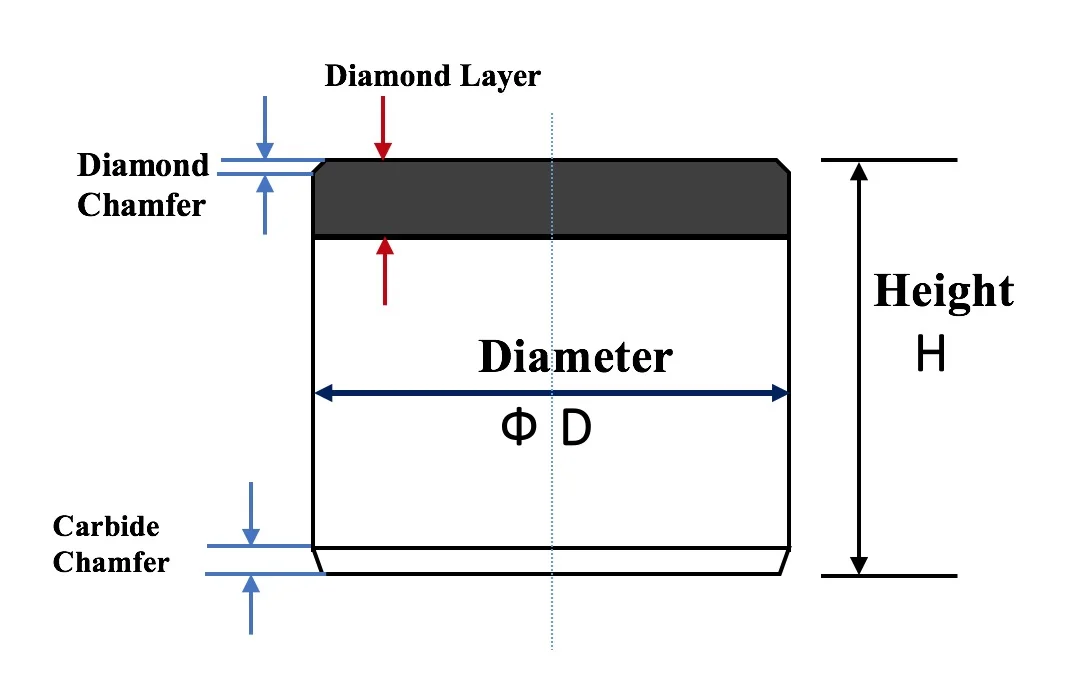

Available Size:
| Description | Diameter(mm) | Height(mm) | PCD Layer Thickness |
| 0804 | 8.20 | 4.5 | 1.8±0.2 |
| 0808 | 8.20 | 8.00 | 2.0±0.2 |
| 1008 | 10.00 | 8.00 | 2.0±0.2 |
| 1304 | 13.30 | 4.50 | 2.0±0.2 |
| 1308 | 13.30 | 8.00 | 2.0±0.2 |
| 1313 | 13.30 | 13.20 | 2.0±0.2 |
| 1613 | 16.00 | 13.20 | 2.0±0.2 |
| 1616 | 16.00 | 16.00 | 2.0±0.2 |
| 1908 | 19.05 | 8.00 | 2.0±0.2 |
| 1913 | 19.05 | 13.20 | 2.0±0.2 |
| 1916 | 19.05 | 16.00 | 2.0±0.2 |
| 1919 | 19.05 | 19.00 | 2.0±0.2 |
Notes:
1. The sizes of the above are standard.
2.Non-standard products can be customized according to cumtomer's requirements.
