5 функций деревообрабатывающий Комбинированный Универсальный Настольный пильный станок, станок для резки, формовочный станок, бурильная машина
- Категория товара: Other Woodworking Machinery >>>
- Поставщик (Оптовый магазин): Qingdao,Excel,Luck,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

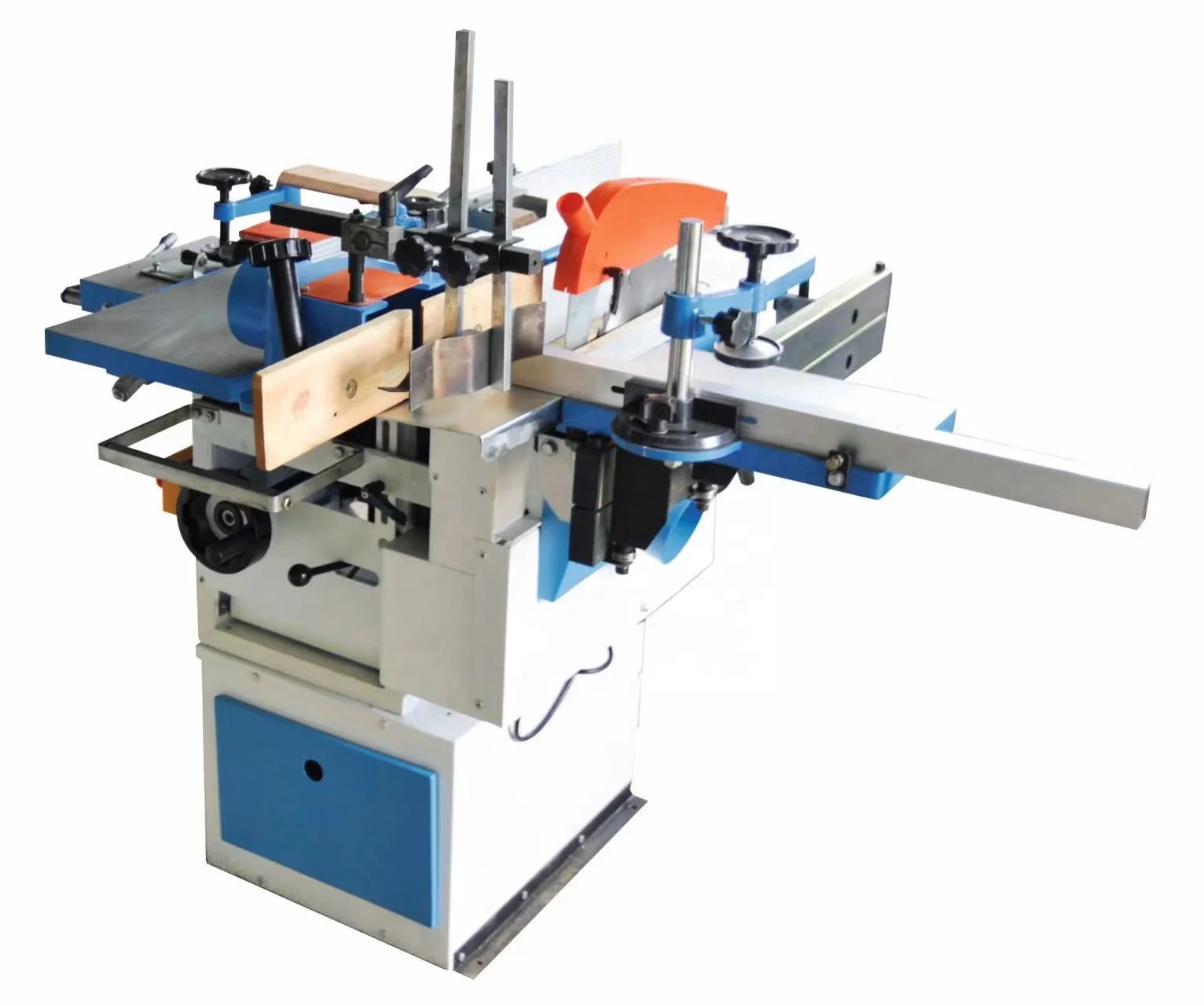

5 Functions Woodworking wood combined universal table saw mortiser planer moulder tenoner shaper driller machine
Having five functions: 1. Saw 2. Milling 3. Mortiser 4. Surface planer 5. Thicknesser
Parameter
1.1 Surface planer | |
Max. planing width | 250mm |
Arbor dia | 72mm |
Arbor speed | 4000r /min |
Knives specification | 260×30×3mm |
Total length of tables | 960mm |
Max. removal: | 3mm |
Incline of surfacing guide | 0~45° |
1.2 Thickness planer | |
Max. planing width | 250mm |
Planable thickness | 6~120mm |
Min. processing length | 150mm |
Feeding speed | 6.5m /min |
1.3 Circular saw | |
Blade specification | 250×3.2×30mm |
Max. sawing thickness | 70mm |
Sawing arbor speed | 3500r /min |
Max. crosscut width | 300mm |
Indexing ruler angle | ±45° |
1.4 Milling | |
Milling cutter dia | 70~104mm |
Milling thickness | 6~40mm |
Max. milling width | 40mm |
Mill arbor | Φ20mm/30mm |
1.5 Drilling | |
Max. drilling dia | 12mm |
Max. drilling depth | 90mm |
1.6 Others | |
Motor power | 220V(380V)1.5kW/2.2kW |
Net weight: | 200kg |
Overall dimensions (L×B×H. cm) | 106×150×108cm |
