Вешалка для гальванического покрытия Feiyide
US $50.00-$400.00
Энергосберегающий высокочастотный выпрямитель для гальванического покрытия, 12 В, 1000 А
- Категория товара: Metal Electroplating Machinery >>>
- Поставщик (Оптовый магазин): Chengdu,Xingtongli,Power,Supply,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
12V 1000A energy saving high frequency rectifier for electroplating
Application
12V 1000A energy saving high frequency rectifier for electroplating is 5th generation electroplating rectifier. High efficiency, high stability and energy saving. Especially, energy saving more than 15%. It can be used to electroplate gold, silver, copper, zinc and chrome and so on.
Other applications of 12V 1000A energy saving high frequency rectifier for electroplating as followed
Product Description

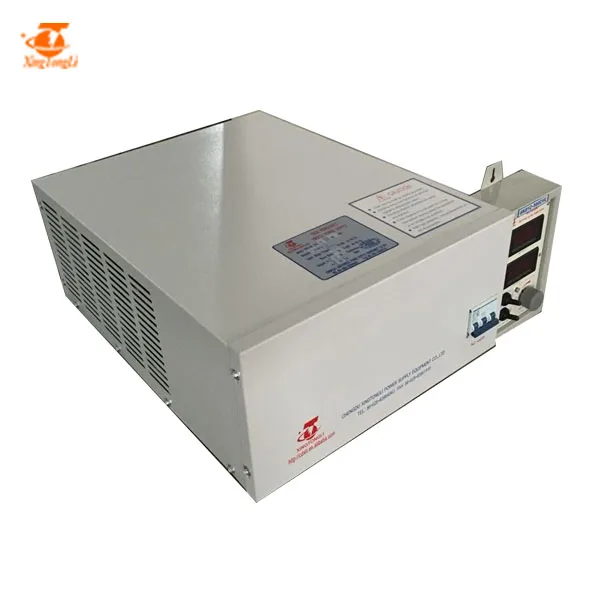

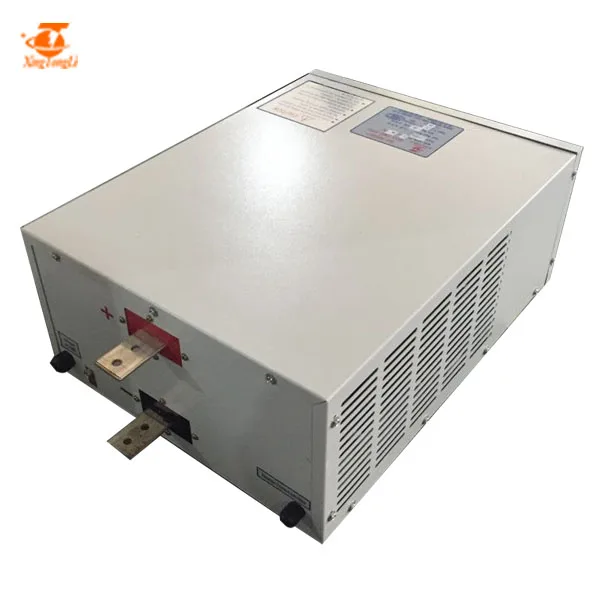

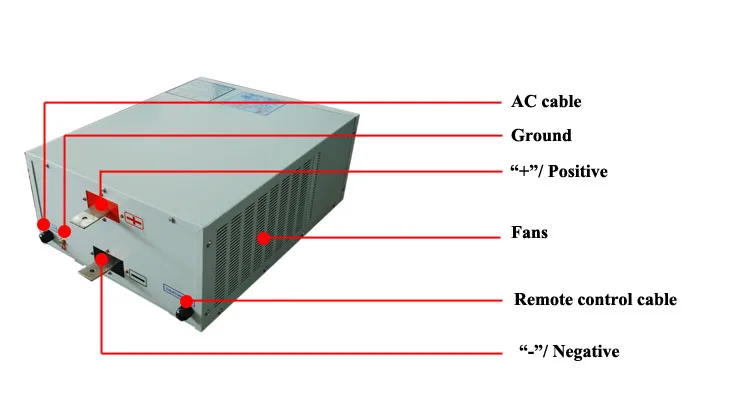

Appearance display of 12V 1000A energy saving high frequency rectifier for electroplating
Specification
| SPECIFICATIONS FOR GKD(M)(H)12-1000CVC | |||
| Input AC | 220V/380V±10% | 3phase | 50/60Hz |
| Output DC | Volt | 0~12V Adjustable | |
| Current | 0~1000A Adjustable | ||
| Power | 0~12KW | ||
| Efficiency | ≥85% | ||
| Display precision | 0.1 | ||
| Protection | Short circuit protection Overheating protection Phase lack protection Input over/low voltage protection | ||
| Working Condition (Temperature) | -10℃~50℃ | Control mode | Panel control Remote control |
| Weight | 40kg ( N/W ) | Working mode | Constant Voltage(CV) Constant Current(CC) |
| Dimension | 565*485*270mm | Cooling way | Air cooling |
Features
1. Small size, light weight, electricity-saving, high accuracy
2. 0~10V, 4~20mA and PLC can be provided
3. Timer, Ampere-minute/hour counter and alarm can be provided
4. HMI can be provided

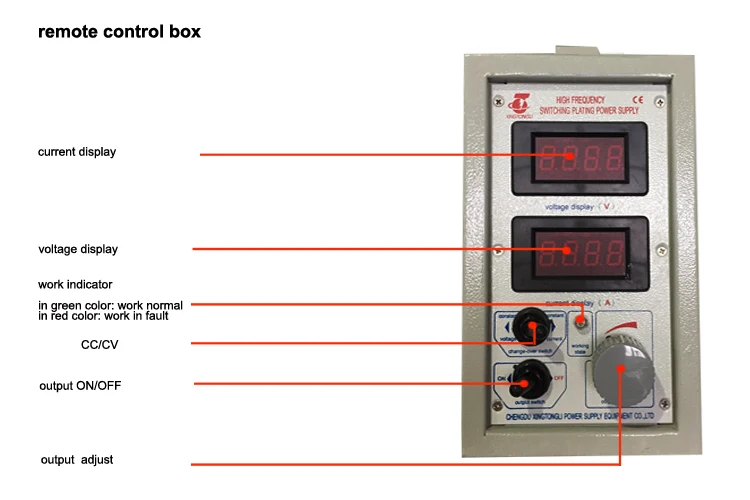

5. Control mode: Local control or Remote control(the length of cable is determined by customers)
6. Japan IGBT(the default choice) or Germany IGBT are adopted
7. After being phosphated, galvanized and plastic sprayed, the chassis has excellent corrosion resistence function
8. Easy to operate and repaire
Production Process
From the beginning of the raw material to the selection, to the assembly, and finally commissioning. We will enforce the standards strictly. Before package, 12V 1000A energy saving high frequency rectifier for electroplating will be check again to ensure that it works normally.
Packaging & Shipping
The first step is to wrap the 12V 1000A energy saving high frequency rectifier for electroplating with plastic film,
The second step is to fix 12V 1000A energy saving high frequency rectifier for electroplating with the wooden block to prevent the sloshing
Then, to fill the gap with foam to prevent sloshing

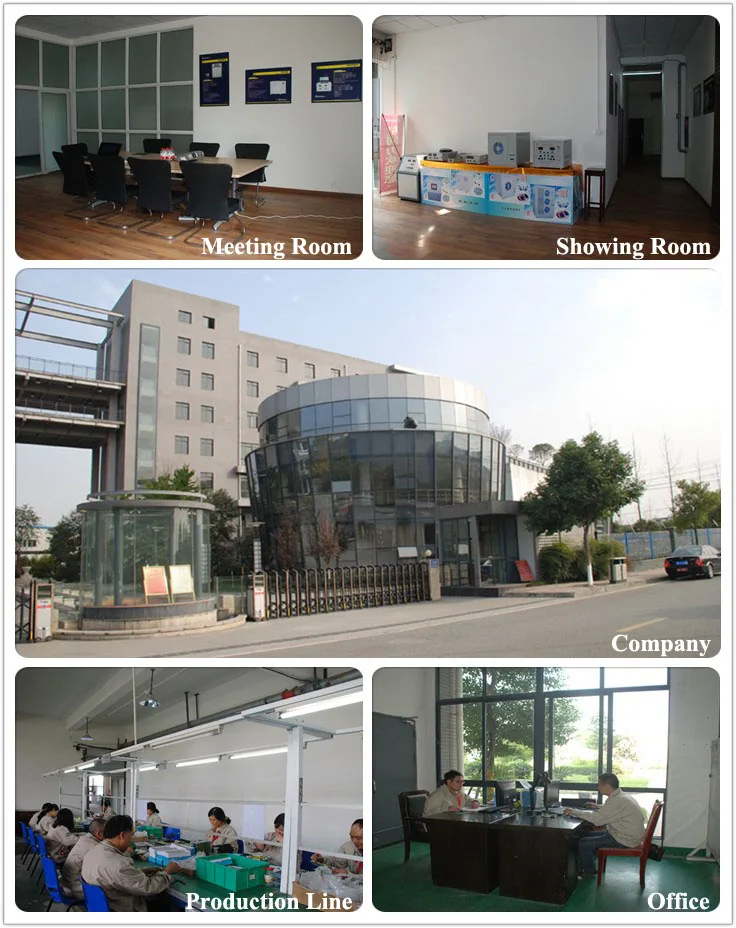

Company Information
CDXTL Power Supply Equipment Co., Ltd. was set up in 1995. We are a high technology company dedicating to the design and manufacture of switched-mode electroplating rectifier. We are experienced in the field of power electronics, energy transforming technology and industry control system. The performance of electroplating rectifier we designed is excellent. It is safe, green and reliable. With these advantages, our products are widely used in aerospace, military industry, railway transportation, electric power industry, automobile manufacturing, shipbuilding, petroleum industry and some other industries. Now we have already held a big market share of the electroplating rectifier in metal surface finishing field. We are one of the main vendors of electroplating rectifier in China.
Company advantage
- The rectifier is designed and developed by ourselves, patents approve
High quality, quality control follows ISO9001:2008 and Chinese military standard.
- Full load testing ability
- Technical service available before sale and after sale
Our quality assurance
- Long history proved high reliability and high quality by foreign and domestic applications
- ISO9001:2008 international quality standard, military standard quality control
- Strong technical ability ensures reasonable, professional and safe design
- Good quality components are used
- Full load testing before shipment
- Military application proved high reliability
We are making great efforts to develop new products to meet different requirements. Adhering to the business principle of mutual benefits, we have built up a good reputation among our customers due to our perfect services, quality products and competitive prices. We warmly welcome customers from at home and abroad to cooperate with us for common success.
FAQ
1. Q: Are u factory or tranding company?
A: We are factory can offer more cheaper price but the same good quality.
2. Q: Where are ur company?
A: Our company is located in Chengdu City which is one of the fastest growing city in China.
3. Q: If I want to visit your factory, how can I go to there?
A: You just need to tell us when do come to our company, we will pick u up at the airport.
4. Q: How can I do a payment?
A: You can choose T/T, L/C, D/A, D/P and other payments .
5. Q: How can I get my goods?
A: Now we have shipping, Air, DHL, FeDex and UPS five transportanting ways. If u ordered big rectifiers and it's not urgent, shipping is the best way. If u ordered small or it's urgent, Air, DHL and FeDex are recommended. What's more, if u want to receive your goods at your home, pls choose DHL or FeDex or UPS. If there is no transporting way you want to choose, plz contact me without hesitation.
6. Q: If problems of my rectifiers occured, what should I do?
A: Firstly pls resolve the problems by yourself according to User's Manual. There are solutions in it if they're common troubles. Secondly, if User's Manual can't resolve your problems, pls contact me immediatly. Our engineers are on standby.
