2 дюйма малоуглеродистой стали agriculturelay скрученная форма прямоугольная труба делая машину
- Категория товара: Tube Mill Line >>>
- Поставщик (Оптовый магазин): Hebei,Tubo,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Company Introduction
2 inch Mild Steel Agriculturelay Roll Form rectangular pipe Making Machine

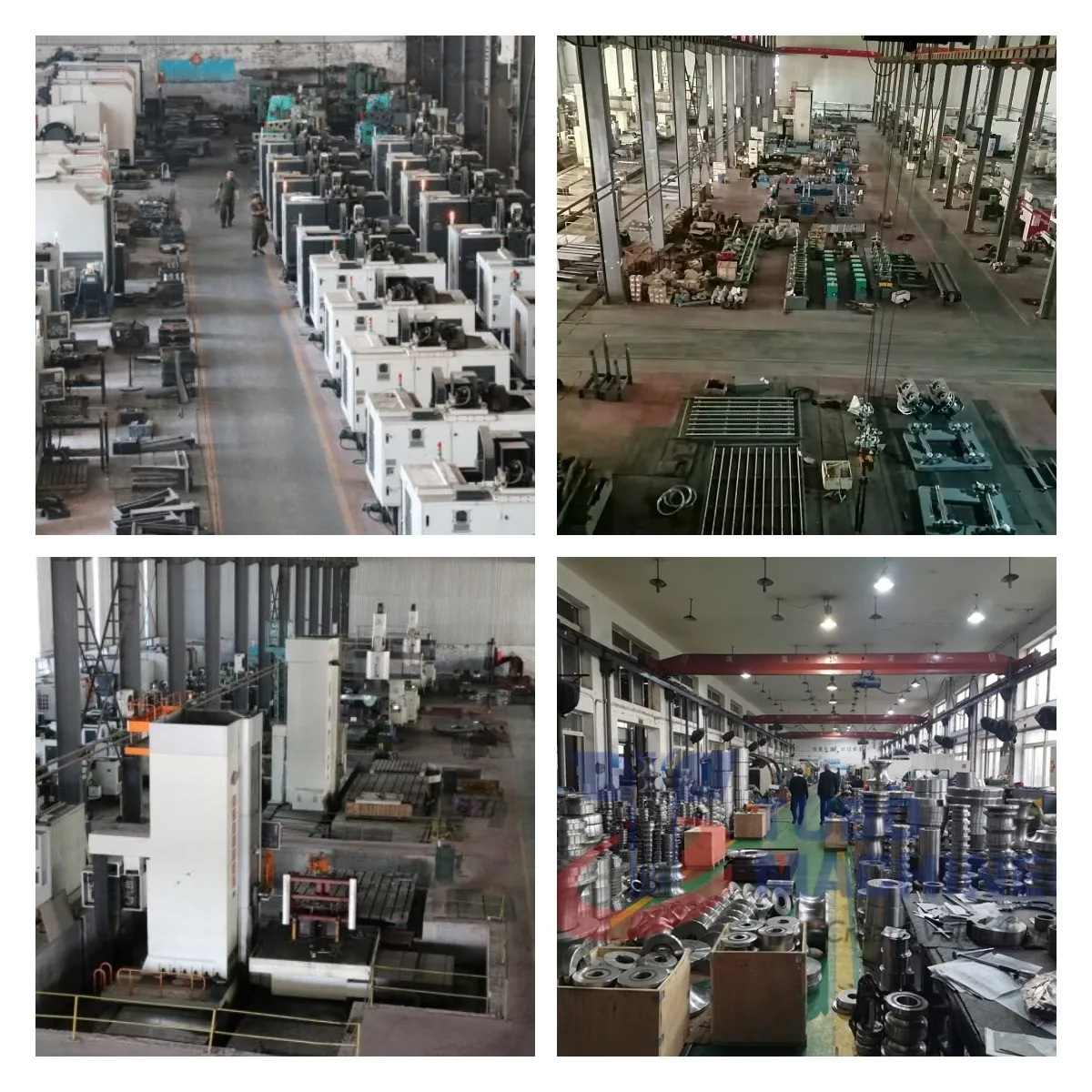

With modren design software and more than 130 sets all types of CNC machining equipments, TUBO Machinery has been continuously developing and reinforcing its know-how in the field in time.

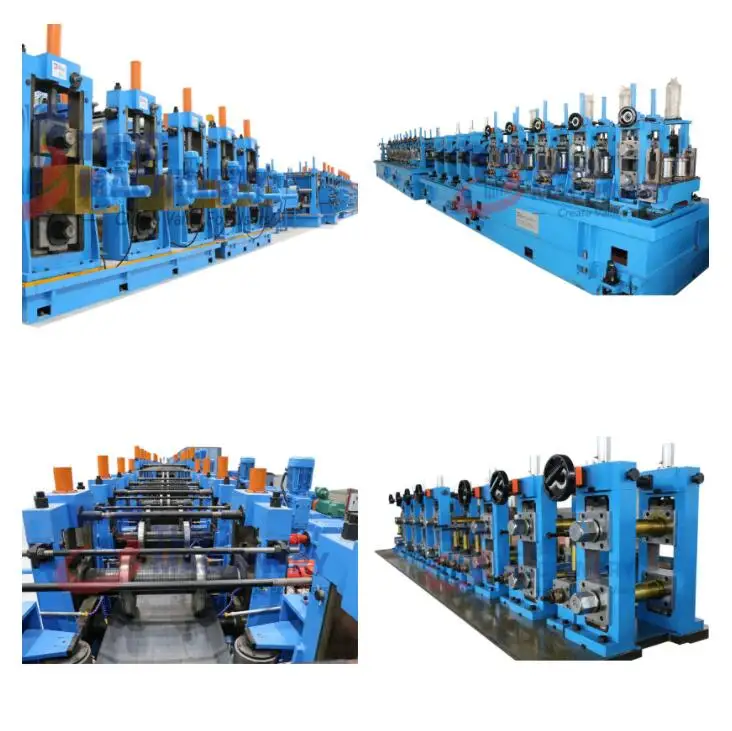

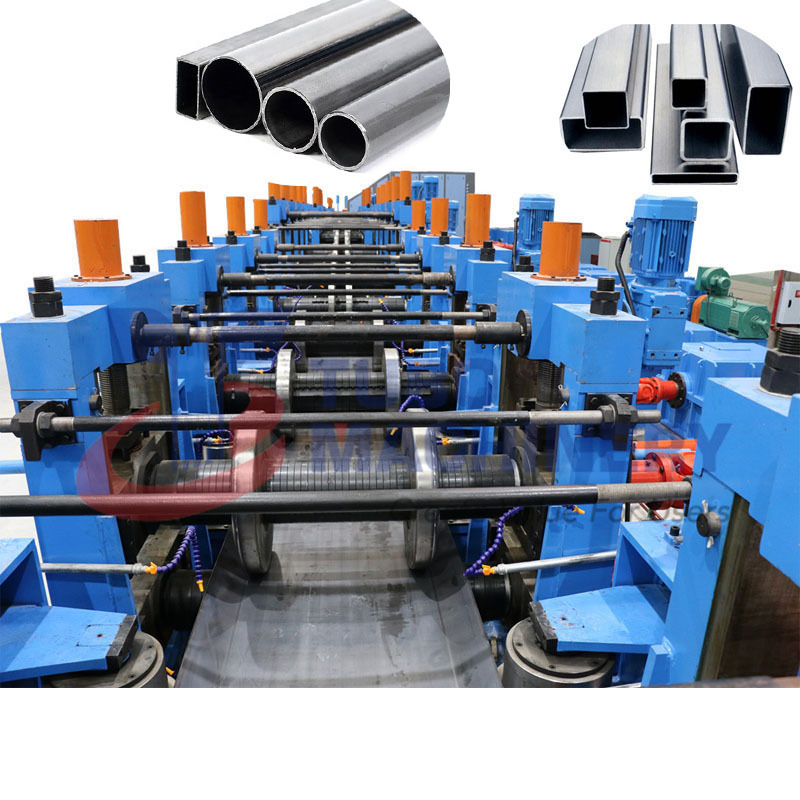

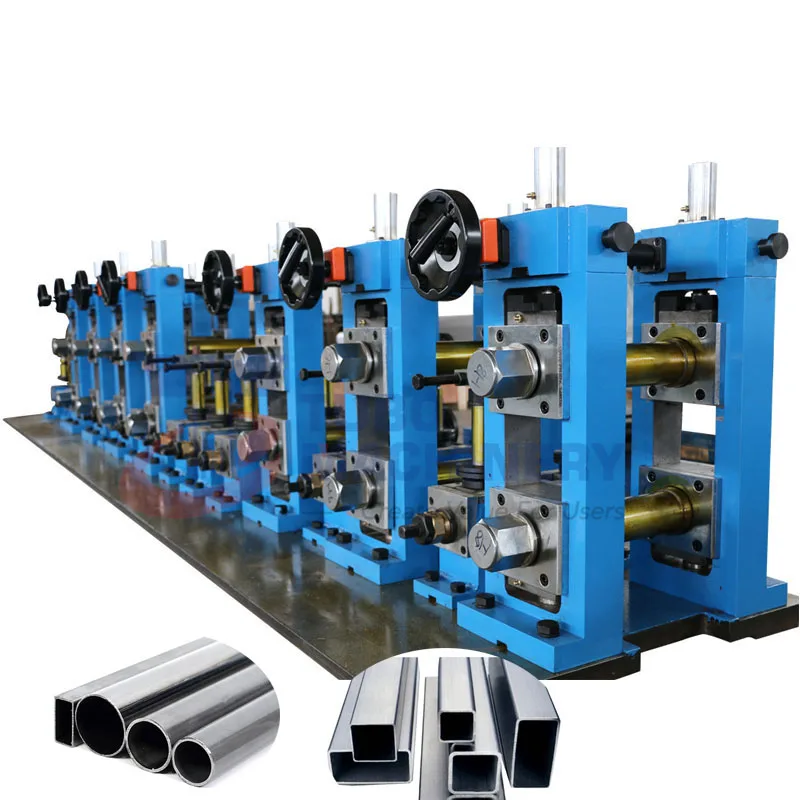

2 inch Mild Steel Agriculturelay Roll Form rectangular pipe Making Machine
This equipment is specially used for producing high-frequency straight seam welded pipe and corresponding square pipe and special-shaped pipe. The composition of equipment is from uncoiler to fixed length cutting saw .Rolling speed can be adjusted correspondingly within suitable range of pipe diameter and wall thickness.We can also customized according to customer’s requirements.
We can also customized according to customer’s requirements.
Raw Material | Coil Material | Low Carbon Steel, Q235, Q195 | |
Width | φ450-φ520mm | ||
Thickness | 0.8 - 3.0mm | ||
Coil ID | φ450-φ520mm | ||
Coil OD | Max φ1500mm | ||
Coil Weight | Max.1~2.0 Ton | ||
Round Pipe | 20mm - 50mm | ||
Square & Rectangular Pipe | 15*15mm - 40*40mm | ||
0.8~3.0mm (Round Pipe) 0.8~2.0mm(Square Pipe) | |||
Speed | Max. 120m/min | ||
Pipe Length | 4~12m | ||
380V, 3-phase, 50Hz (depends on local facilities) | |||
Control Power | 220V, single-phase, 50 Hz | ||
Forming Method | Conventional Forming, FFX Forming | ||
Welder | Solid State H.F Welder 600 KW | ||
Size of the whole line | 100m X 9m （L*W）Also can design the size based on your warehouse. | ||
Hydraulic De-coiler
Shearing&Welding machine
Horizontal accumulator
Main Mill
Solid State H.F Induction Welder
.
Flying Cold Saw
1. Q : Are you manufacturer ?
A: Yes, We are manufacturer . More than 15 years R&D and Manufacturing Experience. We use more than 130 CNC machining equipments to guarantee our products perfect.
2. Q: What payment terms do you accept?
A: We are flexible on payment terms, please contact us for details.
3. Q:What information do you need to supply a quotation?
A: 1. Maximum Yield Strength of the material,
2.All pipe sizes needed (in mm),
3. Wall thickness (min-max)
4. Q: What is your advantages?
A: 1. Advanced mould share-use technology (FFX, Direct Forming Square). It saves a lot of invest amount.
2. Latest quick change technology to increase the output and reduce labor intensity.
3. More than 15 years R&D and Manufacturing Experience.
4. 130 CNC machining equipments to guarantee our products perfect.
5. Customized According to Customer Requirements.
5. Q: Do you have after sales support?
A: Yes,we have. We have a 10-person -professional and strong installation team.
6.Q: How about your service?
A:(1) One year’s warranty.
(2) Providing spare parts for life time at cost price.
(3) Providing Video technical support, Field installation, commissioning and training, online support, Engineers available to
service machinery overseas.
(4) Provide technical service for facility reforming, refurbishment.
A: Yes, We are manufacturer . More than 15 years R&D and Manufacturing Experience. We use more than 130 CNC machining equipments to guarantee our products perfect.
2. Q: What payment terms do you accept?
A: We are flexible on payment terms, please contact us for details.
3. Q:What information do you need to supply a quotation?
A: 1. Maximum Yield Strength of the material,
2.All pipe sizes needed (in mm),
3. Wall thickness (min-max)
4. Q: What is your advantages?
A: 1. Advanced mould share-use technology (FFX, Direct Forming Square). It saves a lot of invest amount.
2. Latest quick change technology to increase the output and reduce labor intensity.
3. More than 15 years R&D and Manufacturing Experience.
4. 130 CNC machining equipments to guarantee our products perfect.
5. Customized According to Customer Requirements.
5. Q: Do you have after sales support?
A: Yes,we have. We have a 10-person -professional and strong installation team.
6.Q: How about your service?
A:(1) One year’s warranty.
(2) Providing spare parts for life time at cost price.
(3) Providing Video technical support, Field installation, commissioning and training, online support, Engineers available to
service machinery overseas.
(4) Provide technical service for facility reforming, refurbishment.
