30A DC 12 мм 3 позиции 3-полосная стойка для NKK heavy duty пониженной тумблер

Описание и отзывы

Характеристики

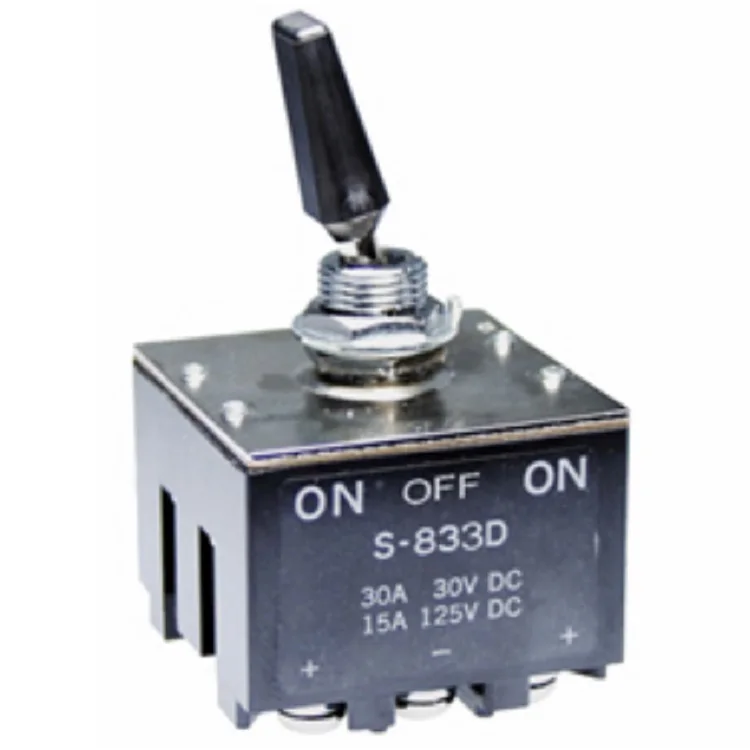

30A DC 12mm 3 position 3-way pole NKK heavy duty DC Flatted toggle switch S-833D
high capacity models with ratings ranging 30A @ 48V DC.30A @ 30V DC. 125 VDC
S833D Sturdy construction with high torque bushings and zinc plated steel covers.
The 12mm bushing is designed for panel mount applications;
mounting hardware is included with each switch.
Circuit : 3PDT ;
Switch function : ON-OFF-ON
Contact Resistance : ≤10 mΩ
rated voltage : DC30V
rated current : 30A
Insulation Resistance : ≥ 1,000 MΩ @ 500V DC
Dielectric Strength: 2,000V AC minimum for 1 minute minimum for S800s & S800Ds
Mechanical Life: 50,000 operations minimum
Electrical Life: 10,000 operations minimum for S800Ds
25,000 operations minimum for S800s & S732
Materials & Finishes
Toggle: Brass with nickel plating for S732
Brass with chrome plating for S800s & S800Ds
Bushing: Brass with chrome plating
Case: Phenolic resin for S732; melamine phenol for S800s
Case Cover: Steel with chromate plating over zinc plating
Movable Contactor Plate: Copper with silver plating
Movable & Stationary Contacts: Silver alloy capped on copper with silver plating
Common Terminals: Brass
Contact Terminals: Brass with silver or nickel plating
Environmental Data
Operating Temp Range: -10°C ~ +70°C (+14°F through +158°F)
Installation
Mounting Torque: 2.94Nm (26 lb in) for double nut
panel cut : 12.5 mm dia
Maximum Panel Thickness : 4.5mm
Case of heat resistant resin meets UL 94V-0 flammability standard
provides high arc and insulation resistance.
Varied design of contact mechanisms in these models assures long life.

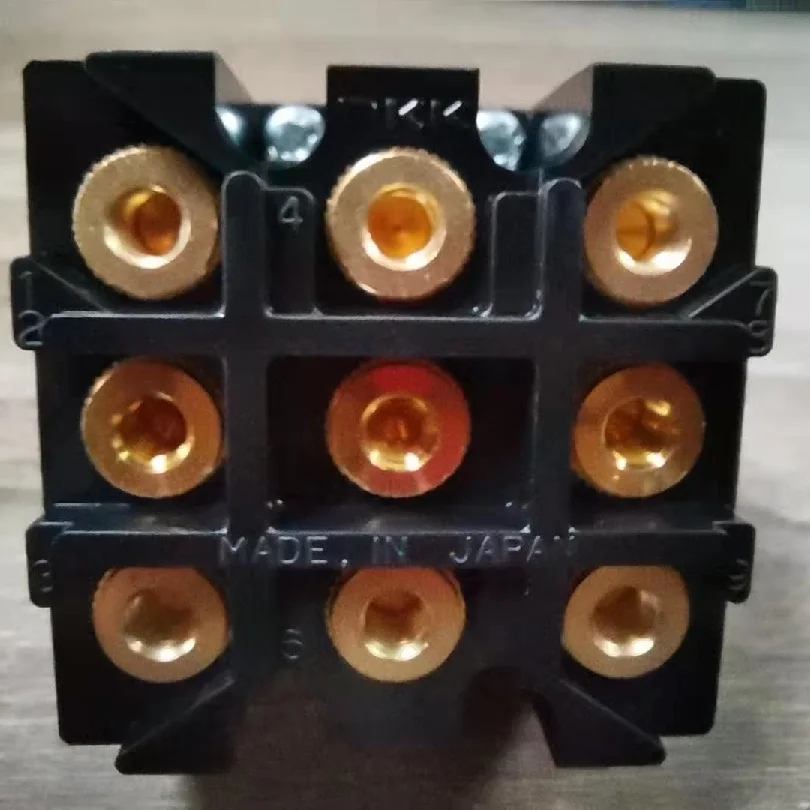

screw lug terminals.
Standards & Approvals : CSA,UL
