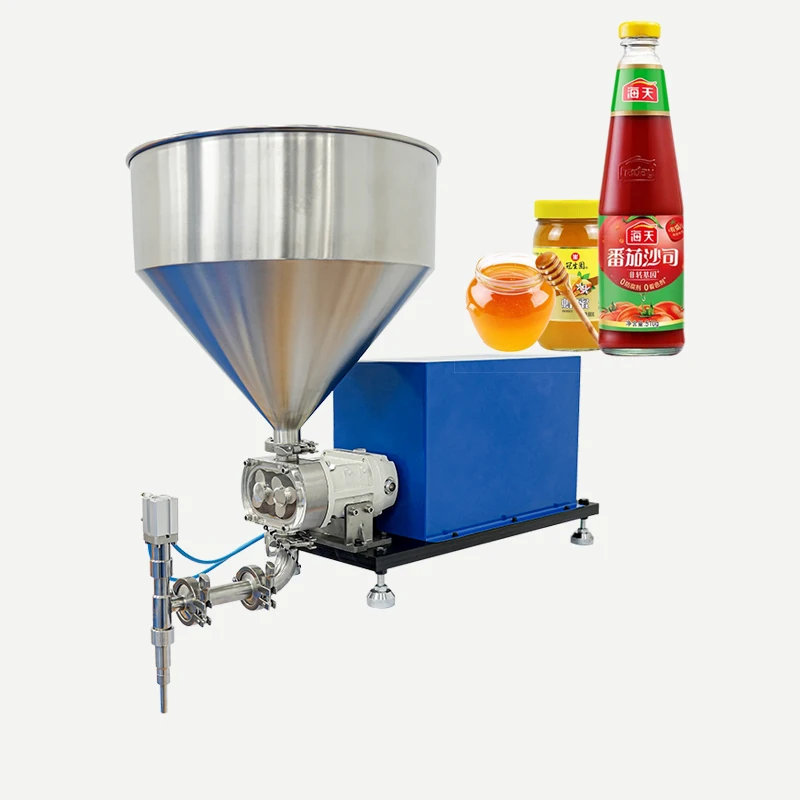

Бутылка для приправ неаккуратно Джо соус мороженого с широким горлышком стеклянная бутылка вязкая жидкость разливочная машина производственная линия
- Категория товара: Packaging Machines >>>
- Поставщик (Оптовый магазин): Hephis,Intelligence,Technology(Fujian),Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
HF-series filling system use gear pump or rotor pump as the fluid driver and can meet the requirements of precision filling of liquid, viscous fluid and high viscosity fluid with particles.
HF-series filling system have many kinds of flow rate and materials of pump head for selection.
HF-series can be used for fluids with different viscosity in beverages, chemicals, cosmetics, food, paints, etc.

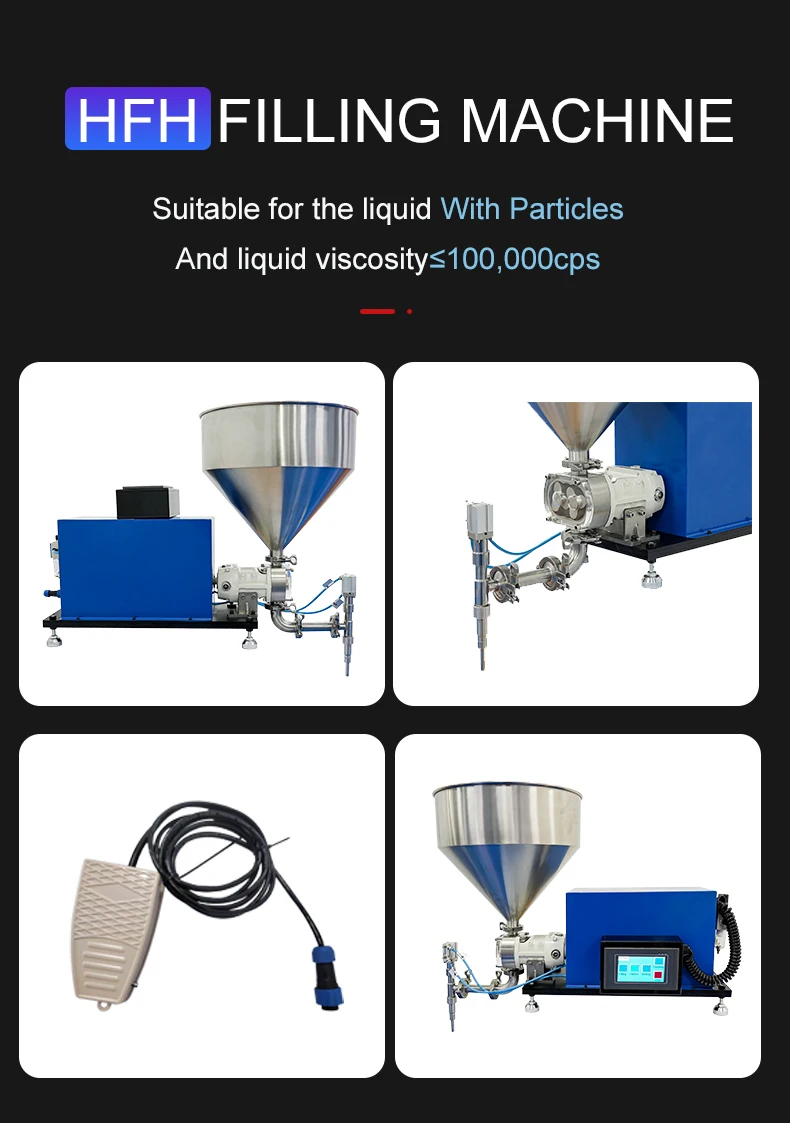

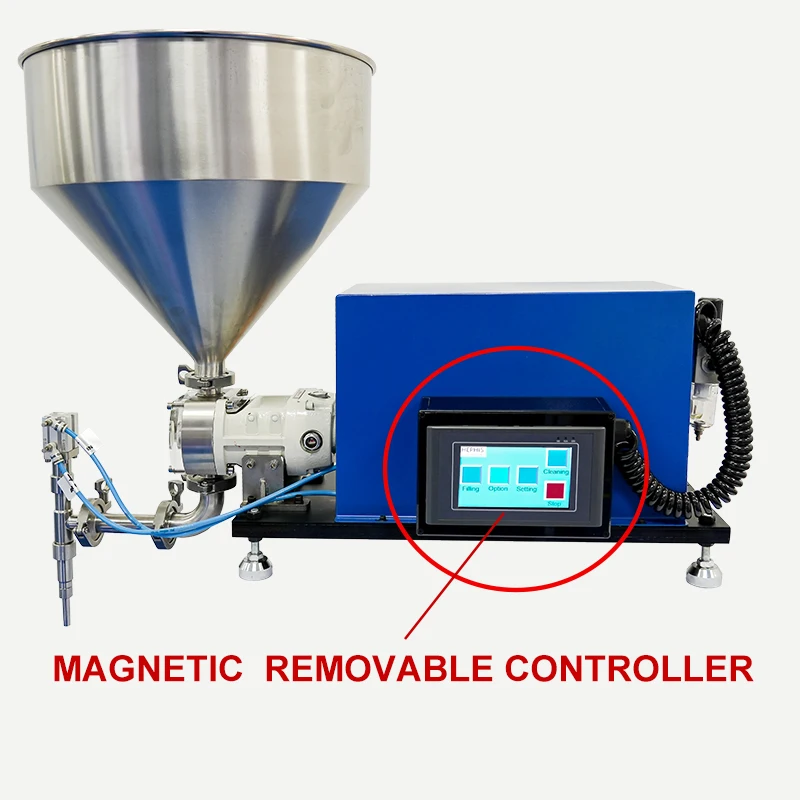

HEPHIS HFH -series Filling Machines Are Specially Designed For The Filling of High Viscosity Fluids.

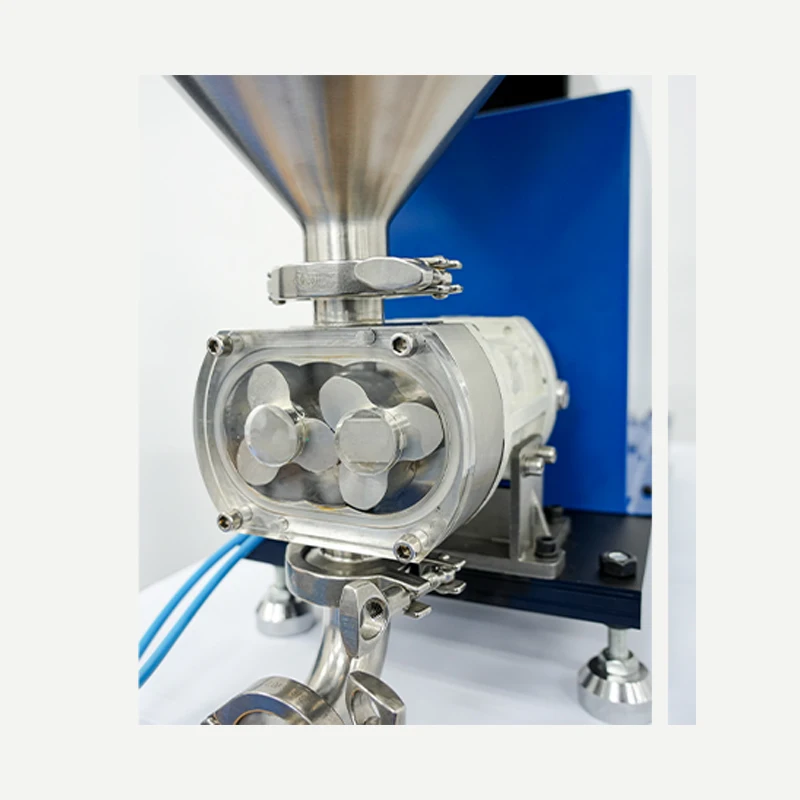

They use Servo Motor + Servo Controller + ROTOR Pump + PLC&HMI Control System, Which Can Fill Fluids with Maximum Viscosity of 100000cps With particles.
The Filling Battle can be 5ml-50000ml.
They are High Precision Filling Machine, The Minimum Precision is ±0.5ml/±0.5g.
The Filling Battle can be 5ml-50000ml.
They are High Precision Filling Machine, The Minimum Precision is ±0.5ml/±0.5g.

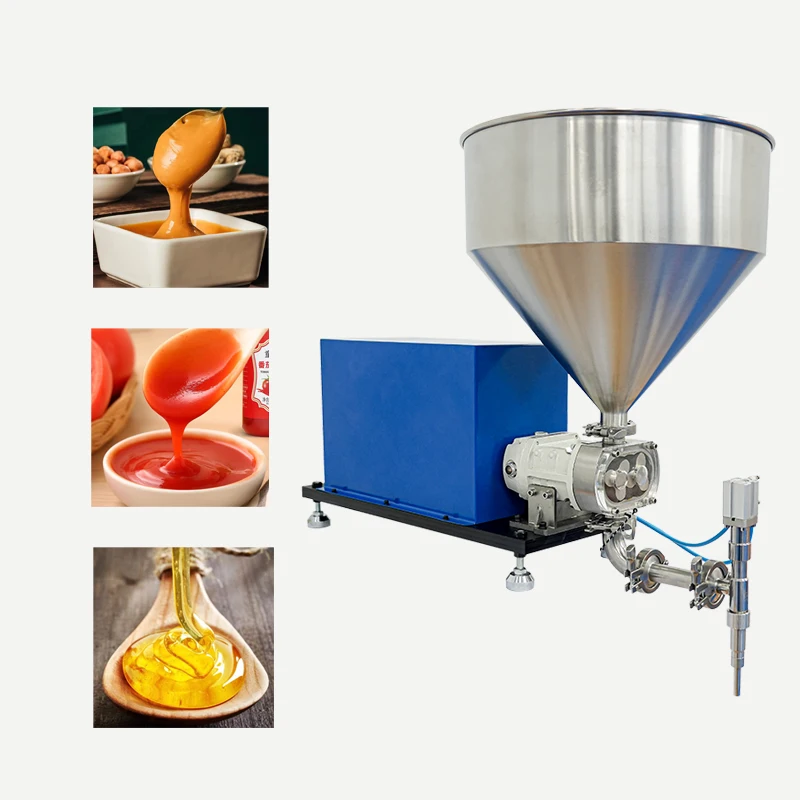

HFH-series filling/bottling machines can be used for food filling, such as ketchup, chili sauce, mashed potatoes, honey, oil, etc.

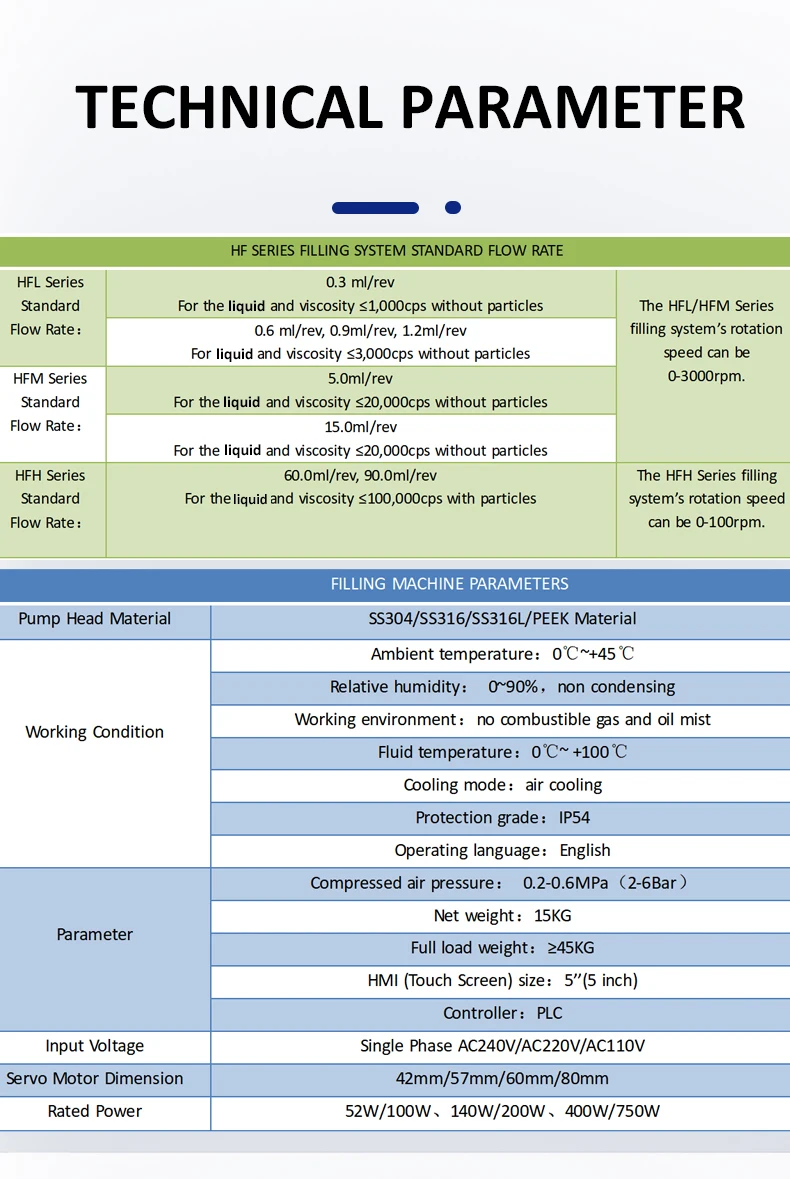

HF SERIES FILLING MACHINE STANDARD FLOW RATE | ||||

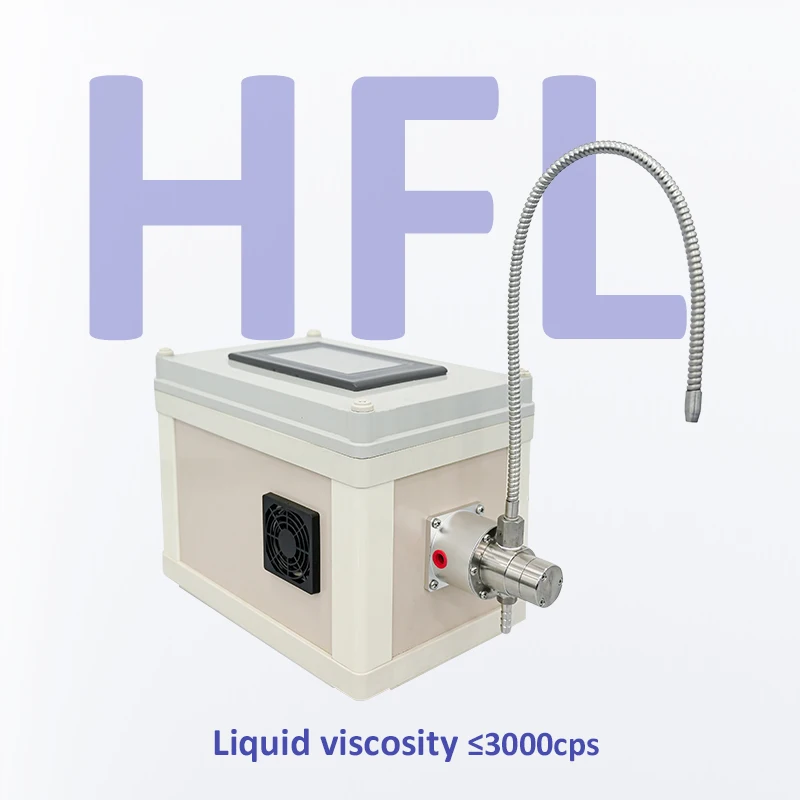

HFL SERIES | 0.3 ml/rev for the liquid and viscosity<=1000cps without particles | The rotation speed of HFL/HFM series filling machine can be 0-3000rpm | ||
0.6 ml/rev,0.9ml/rev,1.2ml/rev for the liquid and viscosity<=3000cps without particles | ||||
5.0 ml/rev for the liquid and viscosity<=20000cps with particles | ||||
15.0 ml/rev for the liquid and viscosity<=40000cps with particles | ||||
60.0 ml/rev,90.0ml/rev for the liquid and viscosity<=100000cps with particles | The rotation speed of HFH series filling machine can be 0-400rpm | |||

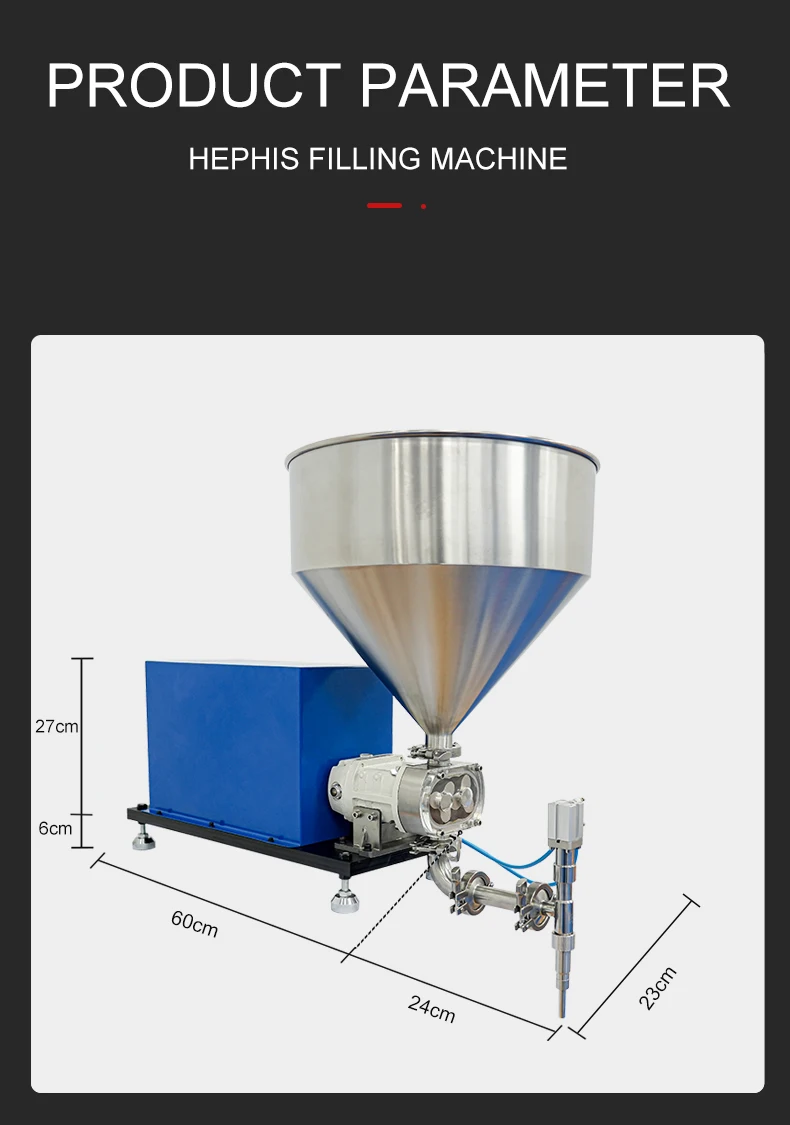

PRODUCT PARAMETER | PRODUCT PARAMETER | |
Pump Head Material | SS304/SS316/SS316L/PEEK | |
Working condition | Ambient temperature: 0-45 ℃ | |
Relative humidity: 0-90% , non condensing | ||
Working environment: no combustible gas and oil mist | ||
Fluid temperature: 0-100℃ | ||
Cooling model: air cooling | ||
Protection grade: IP54 | ||
Operating language: English | ||
Parameter | Compressed air pressure: 0.2-0.6Mpa | |
Weight: 30kg for net weight; 65kg with packing | ||
HMI size: 5" | ||
Controller: PLC | ||
Input voltage | Single phase AC240V/AC220V/AC110V | |
Servo motor dimension | 42mm/57mm/60mm/80mm | |
Rated power | 52W /100W/140W/200W/400W/750W | |

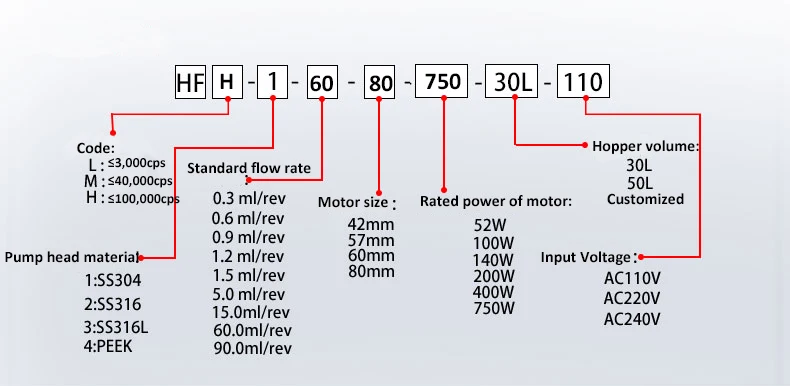

HOW TO CHOOSE THE MODEL?
HMI Interfaces

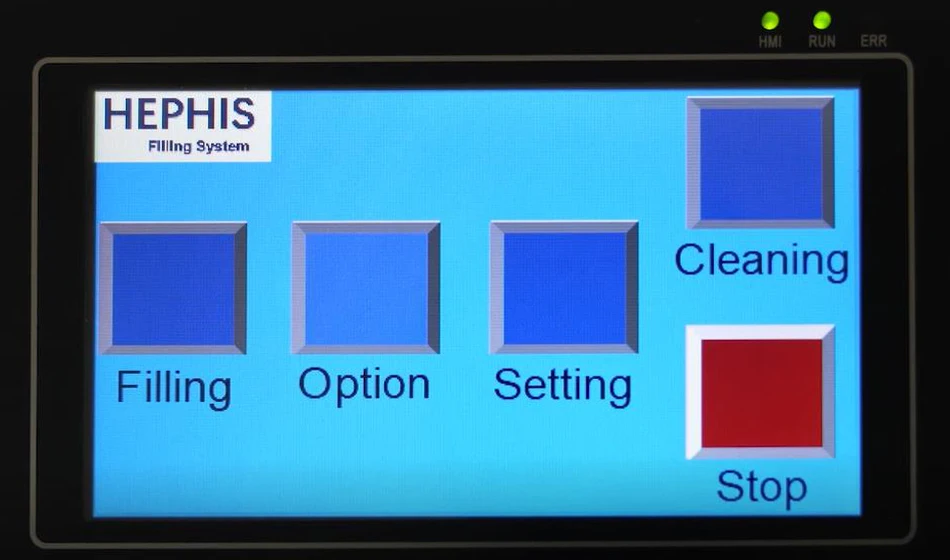

Home Screen

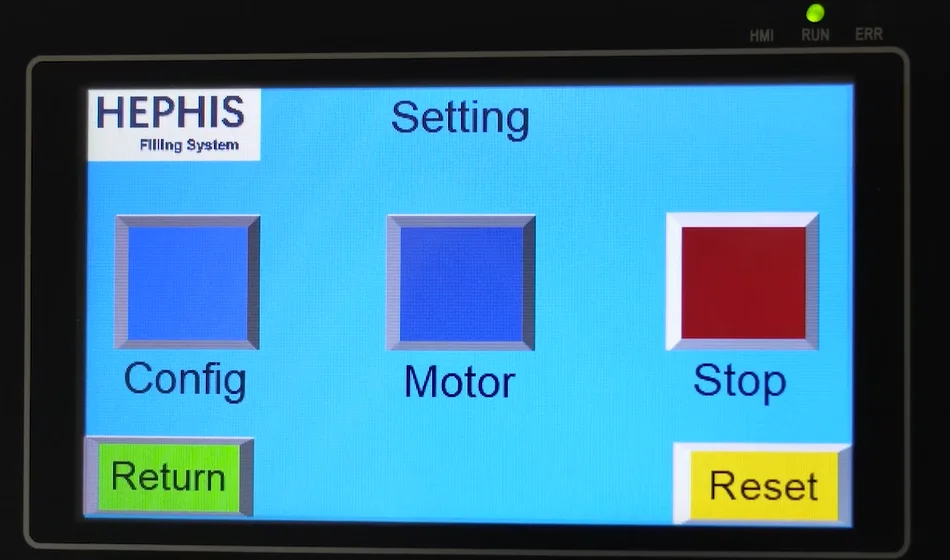

Setting

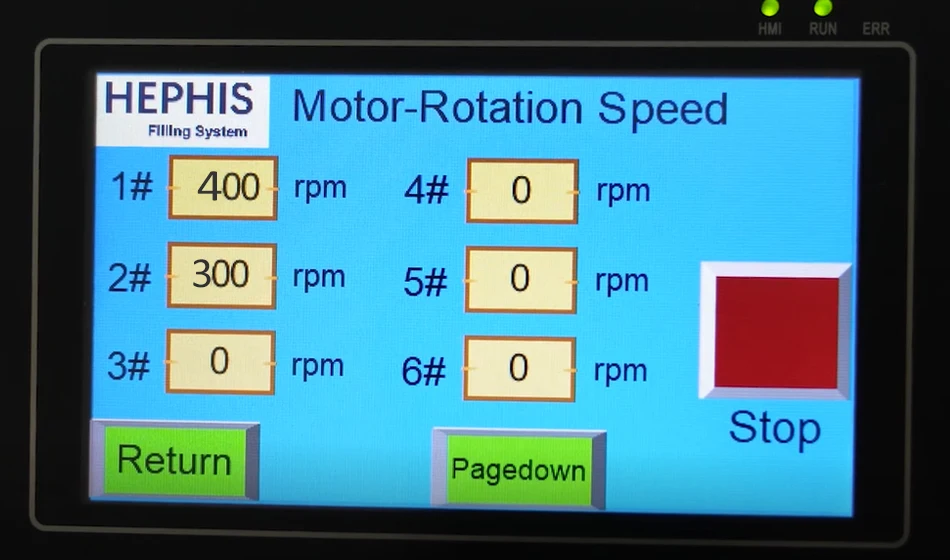

Rotation speed setting
222
Filling interval setting

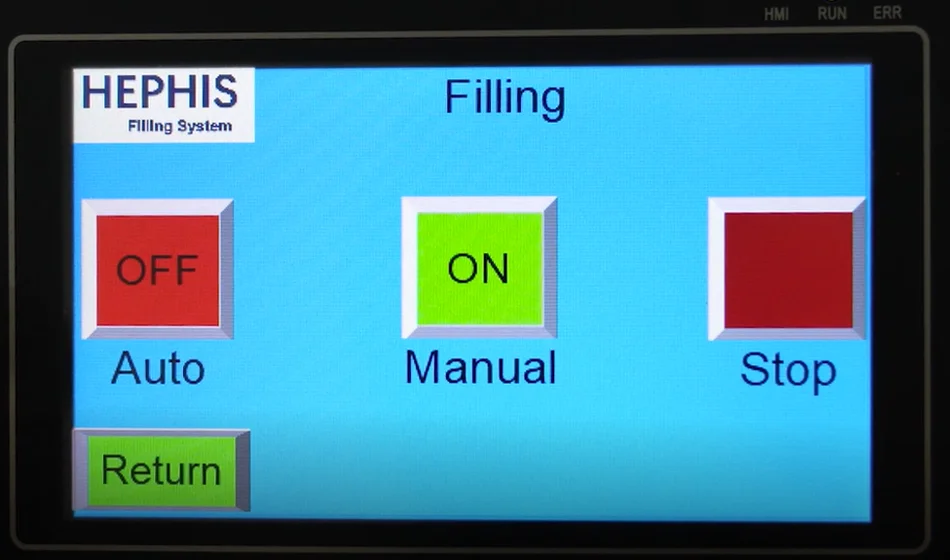

Filling model setting--Auto OR Manual
Company Information
The Ordering Process
1. Please tell me your requirements, including: Fluid Viscosity, Temperature, Bottle Volume, Filling Speed, Pump Head Material,Power etc.
2. Quotation.
3. Quotation confirmed.
4. Negotiation details.
5. Place the order and pay.
6. Drawing the picture and production.
6. Drawing the picture and production.
Certificates
FAQ
1. What if I don't know the viscosity of my fluid??
Please tell me what your fluid is and we will assist you.

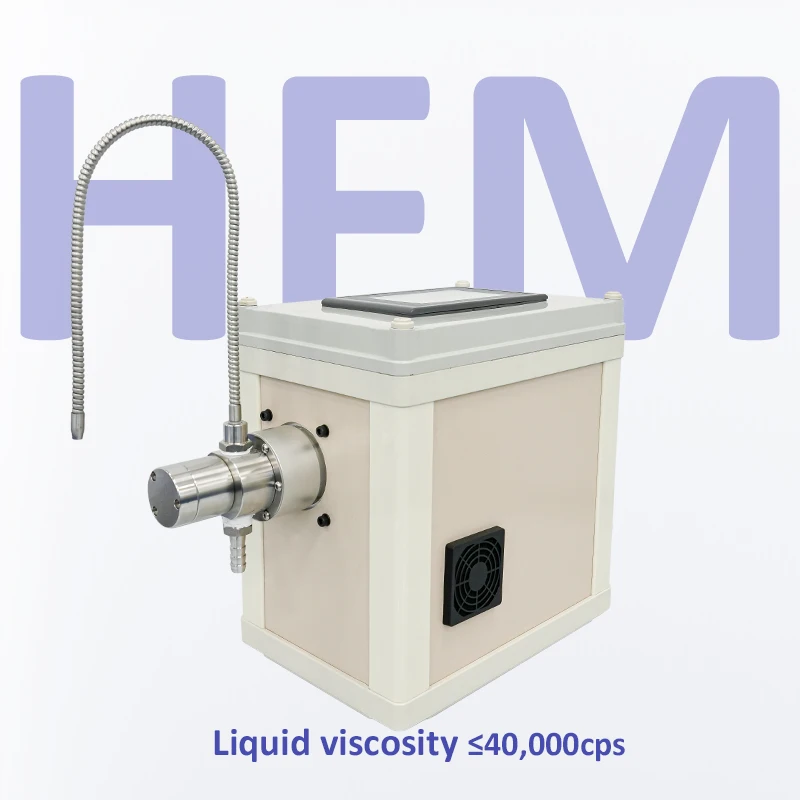

2.How does the HFM-series filling machine work??
It is semi-automatic, it has a foot switch, step on it to do one action, it will finish filling once..
3.Can it be fully automated?
Yes,We can provide you with automatic transmission production line + infrared detection device to achieve full automation. .
4.HFM-series filling machines use electric or pneumatic.?
It is powered by electricity and the compressed air it needs is just for the pneumatic anti-drip valve.
5.What type of pump does the HFM-series filling machine use.?
We use stainless steel gear pumps.
6. What is the maximum fluid viscosity that the HFM-series filling machine can accommodate??
40,000cps is without the solid.
7. Can fluids containing particles be used??
NO.
8. Are you a manufacturer or trading company?
HEPHIS has 40+ years of fluid experience, we have perfect automatic factory and R&D teams.
9. Do HEPHIS provide detailed design drawings?
Yes, we will provide you with detailed design and installation drawings.
2.How does the HFM-series filling machine work??
It is semi-automatic, it has a foot switch, step on it to do one action, it will finish filling once..
3.Can it be fully automated?
Yes,We can provide you with automatic transmission production line + infrared detection device to achieve full automation. .
4.HFM-series filling machines use electric or pneumatic.?
It is powered by electricity and the compressed air it needs is just for the pneumatic anti-drip valve.
5.What type of pump does the HFM-series filling machine use.?
We use stainless steel gear pumps.
6. What is the maximum fluid viscosity that the HFM-series filling machine can accommodate??
40,000cps is without the solid.
7. Can fluids containing particles be used??
NO.
8. Are you a manufacturer or trading company?
HEPHIS has 40+ years of fluid experience, we have perfect automatic factory and R&D teams.
9. Do HEPHIS provide detailed design drawings?
Yes, we will provide you with detailed design and installation drawings.

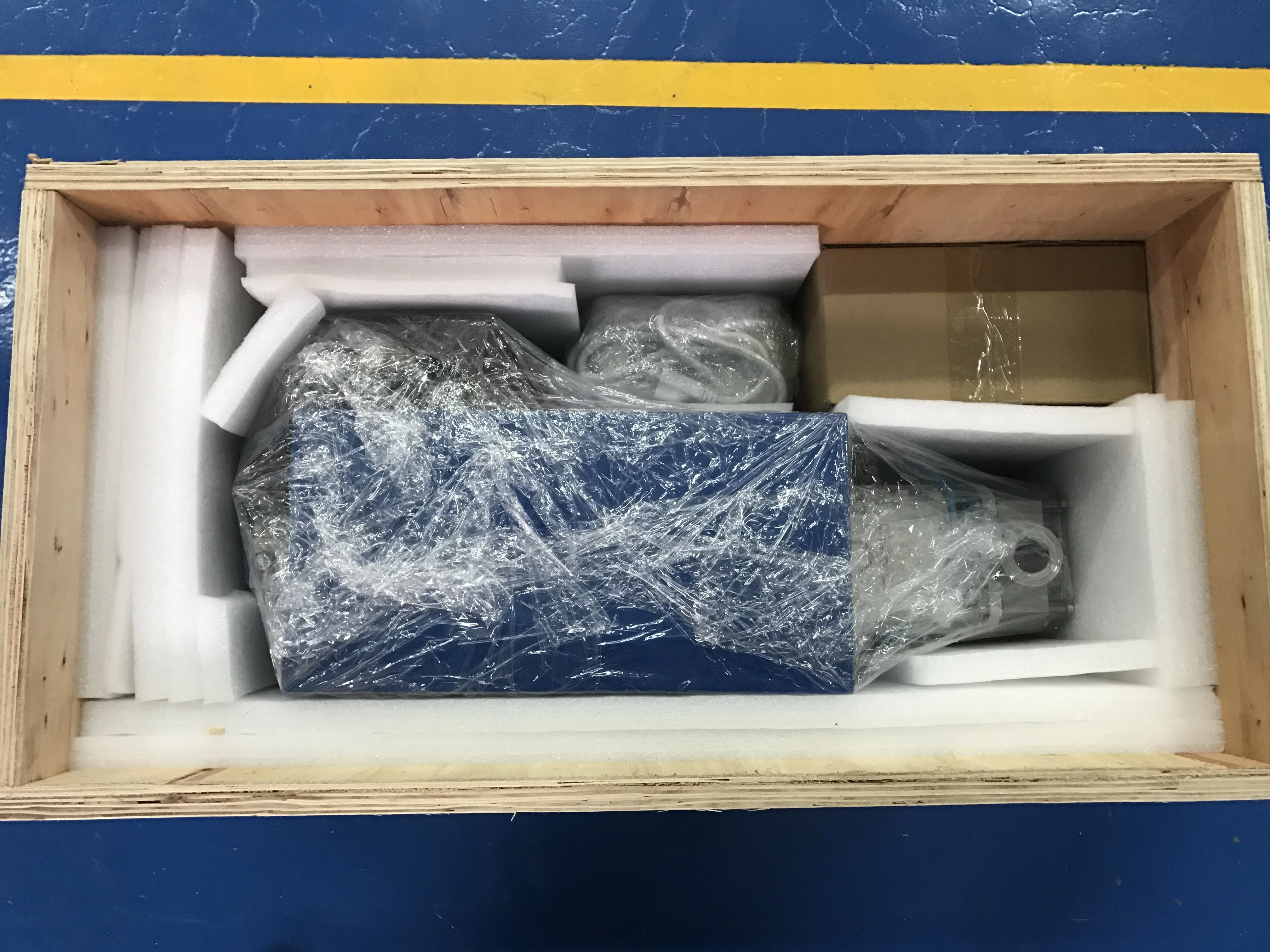

Product packaging
