Products Description

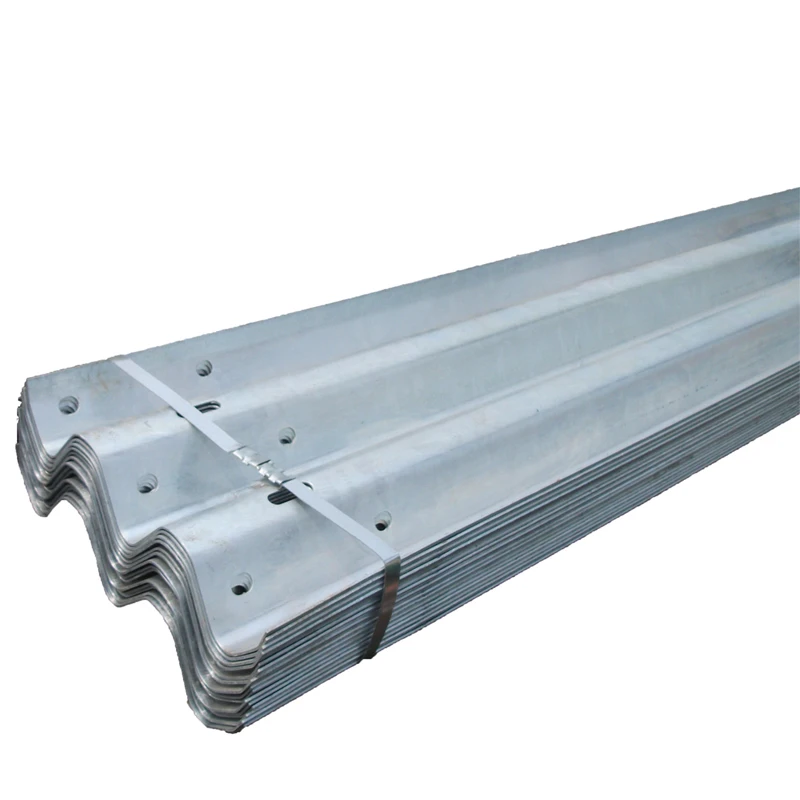

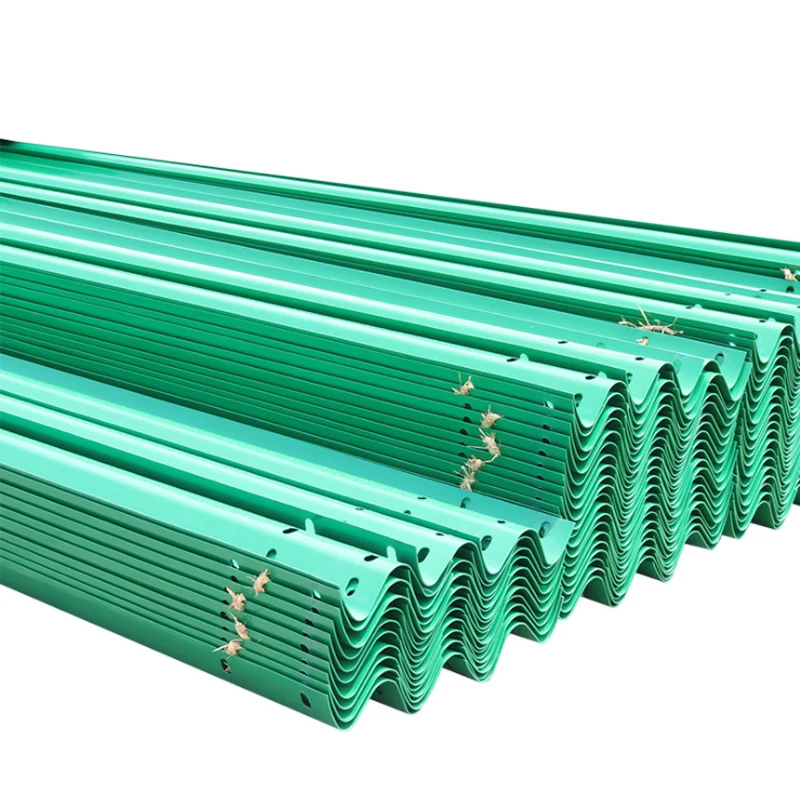

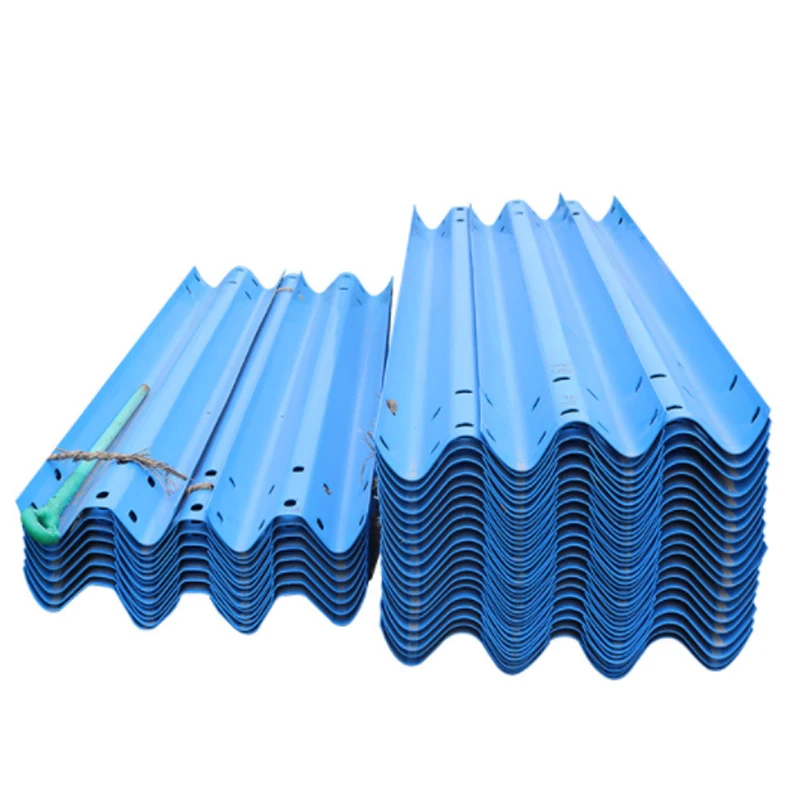

Galvanized Steel Highway Guardrail
Guardrail is a kind of road crash barrier used for securing highway safety by preventing errant vehicles from sliding out of the roads and impacting the roadside buildings or other objects. So it is most commonly fixed on the side of the highways, dock areas, aisles, especially on curves and slopes for protection against run-off-road collisions.
There are mainly two specifications of steel guardrail: W-Beam guardrail and Thrie-Beam guardrail, They are manufactured from Q235B or Q345B grade steel in 2.5-4mm base metal thickness as supplied by China Steel Limited.All products are hot dipped galvanized or powder coated after fabrication to meet the requirements of Chinese National Standards ,AASHTO M180 Standard, SANA 1350 Standard and etc.
There are mainly two specifications of steel guardrail: W-Beam guardrail and Thrie-Beam guardrail, They are manufactured from Q235B or Q345B grade steel in 2.5-4mm base metal thickness as supplied by China Steel Limited.All products are hot dipped galvanized or powder coated after fabrication to meet the requirements of Chinese National Standards ,AASHTO M180 Standard, SANA 1350 Standard and etc.

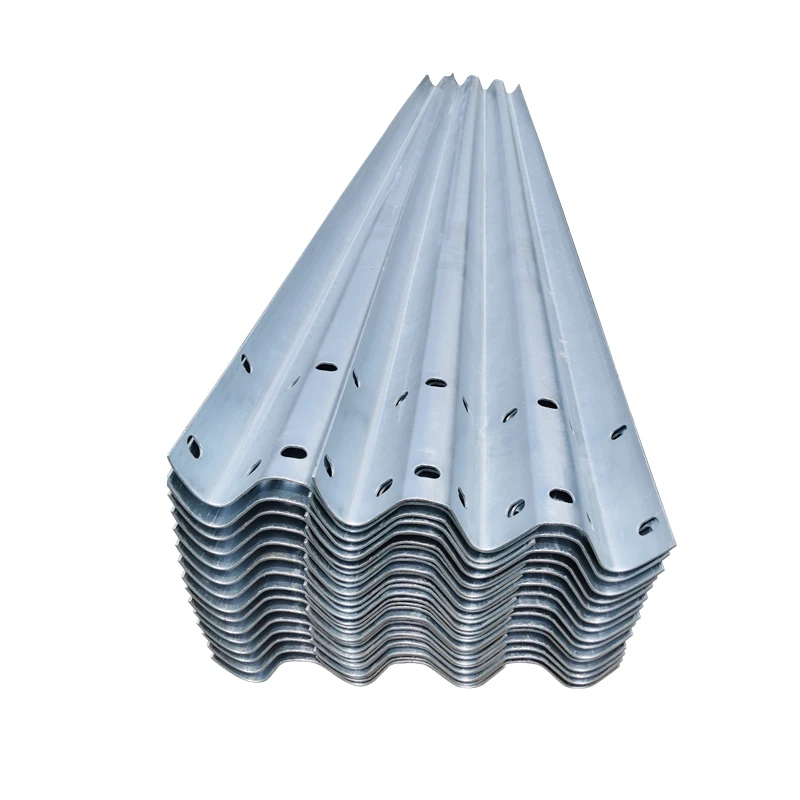

Drawing for Two Wave Form Guardrail (W-beam guardrail)
Features:
1. The barriers ensure minimum damage to the vehicle and its occupants.
2. During collision, the beam absorbs maximum energy by flattening out laterally and restrains the vehicle from veering over.
3. Preventing vehicles from skidding back onto the carriageway by controlling exit angles through gradual deceleration and effective redirection of the vehicle back on to the road.
4. To enable quick repairs in case of accidents.
2. During collision, the beam absorbs maximum energy by flattening out laterally and restrains the vehicle from veering over.
3. Preventing vehicles from skidding back onto the carriageway by controlling exit angles through gradual deceleration and effective redirection of the vehicle back on to the road.
4. To enable quick repairs in case of accidents.
Specification
Profile | W beam Steel Highway Guardrail | |||
Normal Size | W Beam:See the table below | |||
Materials | Steel Grade Q235B ( S235JR)Q345 (S355JR / ASTM A529M 1994) | |||
Thickness of galvanized(double sides) | 550 (80µ) / 610 (85µ) / 1100 (160µ) /1200 (170µ) g/m2 or as per your request. | |||
Technology | Cold Rolled | |||
Surface Treatment | Hot Dip Galvanized or Powder Coated | |||
Other | Other special specification as per client’srequirement or drawings. | |||
Certificate | AASHTO M180, AS3845, EN1317, GOST26804,SGS, CE, BV |
Standards | Length | Width | Height | Thickness | Zinc Coating |
GB/T 31439.1—2015 | 4320 mm | 310 mm | 85 mm | 3(4) mm | ≥ 550g/m² |
GB/T 31439.2—2015 | 4320 mm | 506 mm | 85 mm | 3(4) mm | ≥ 550g/m² |
AASHTO M – 180 | 4130 mm | 310 mm | 82 mm | 2.75nmm | ≥ 550g/m² |
EN1317 | 4170 mm | 310 mm | 82 mm | 2.6 mm | ≥ 550g/m² |
Manufacturing Technique
Recommend Products

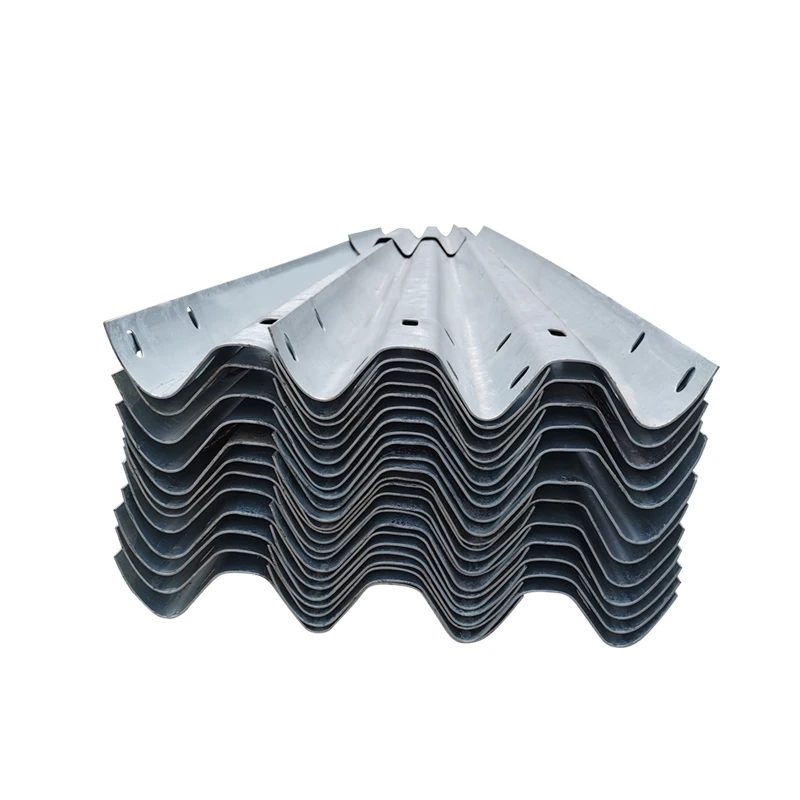

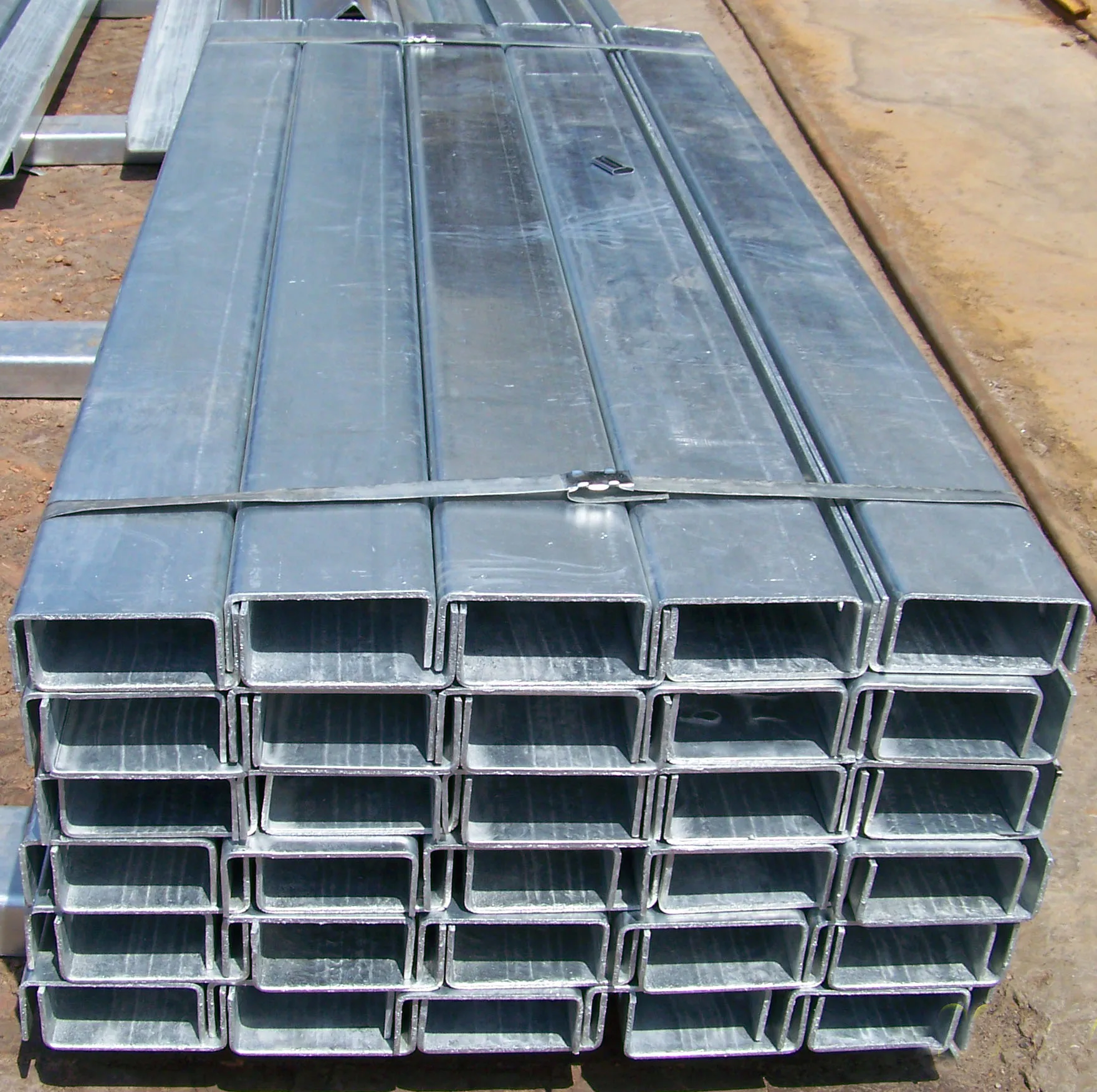

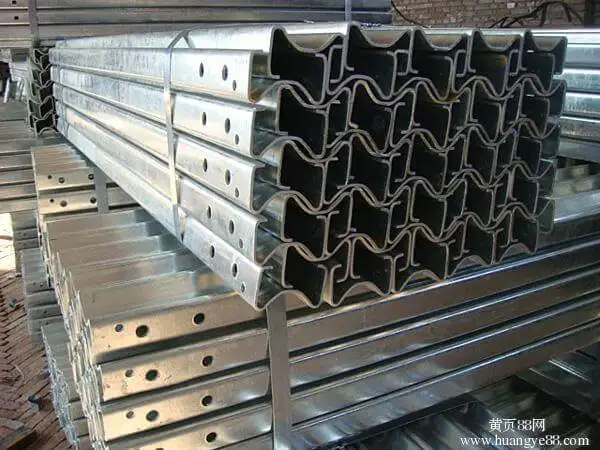

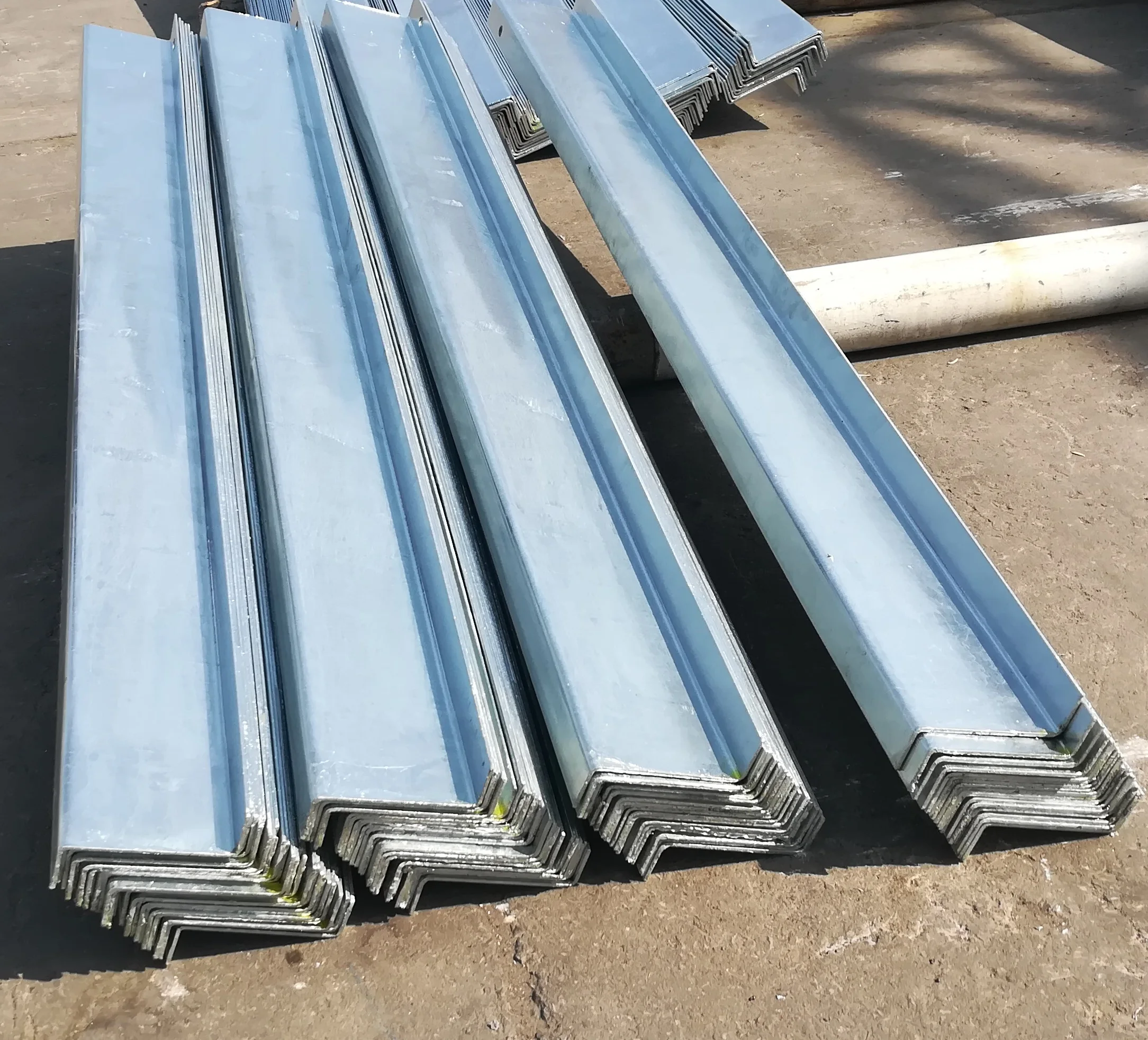

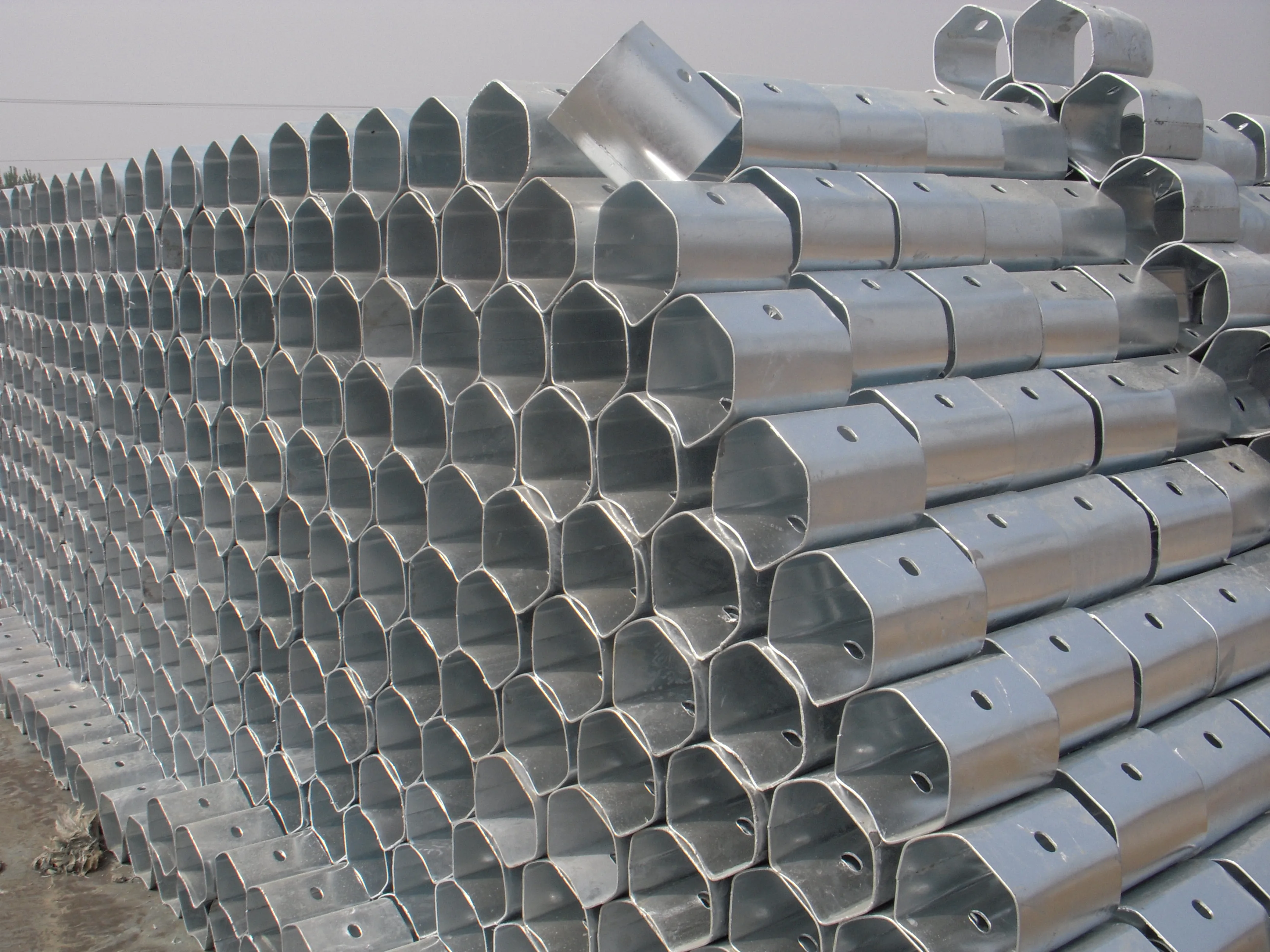

C Post Thri beam guardrail Z Post
.

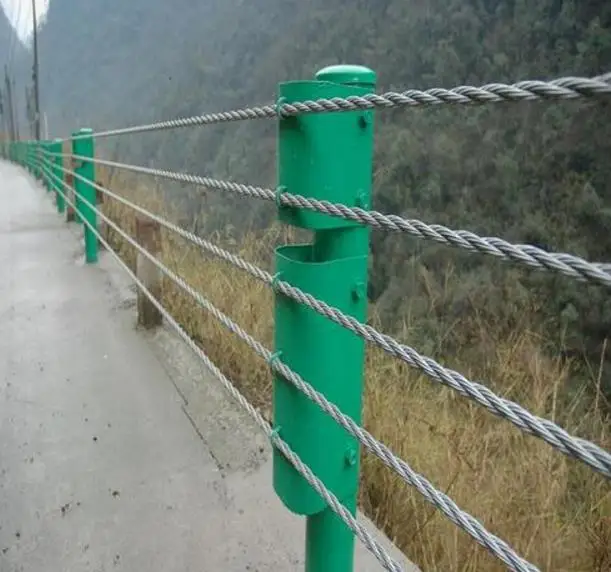

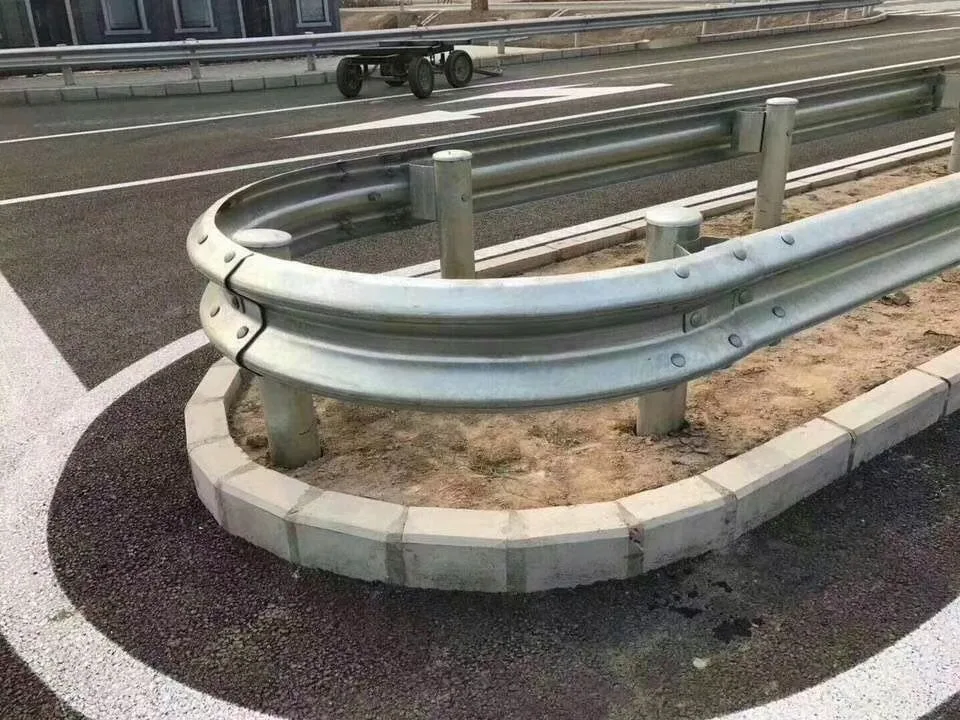

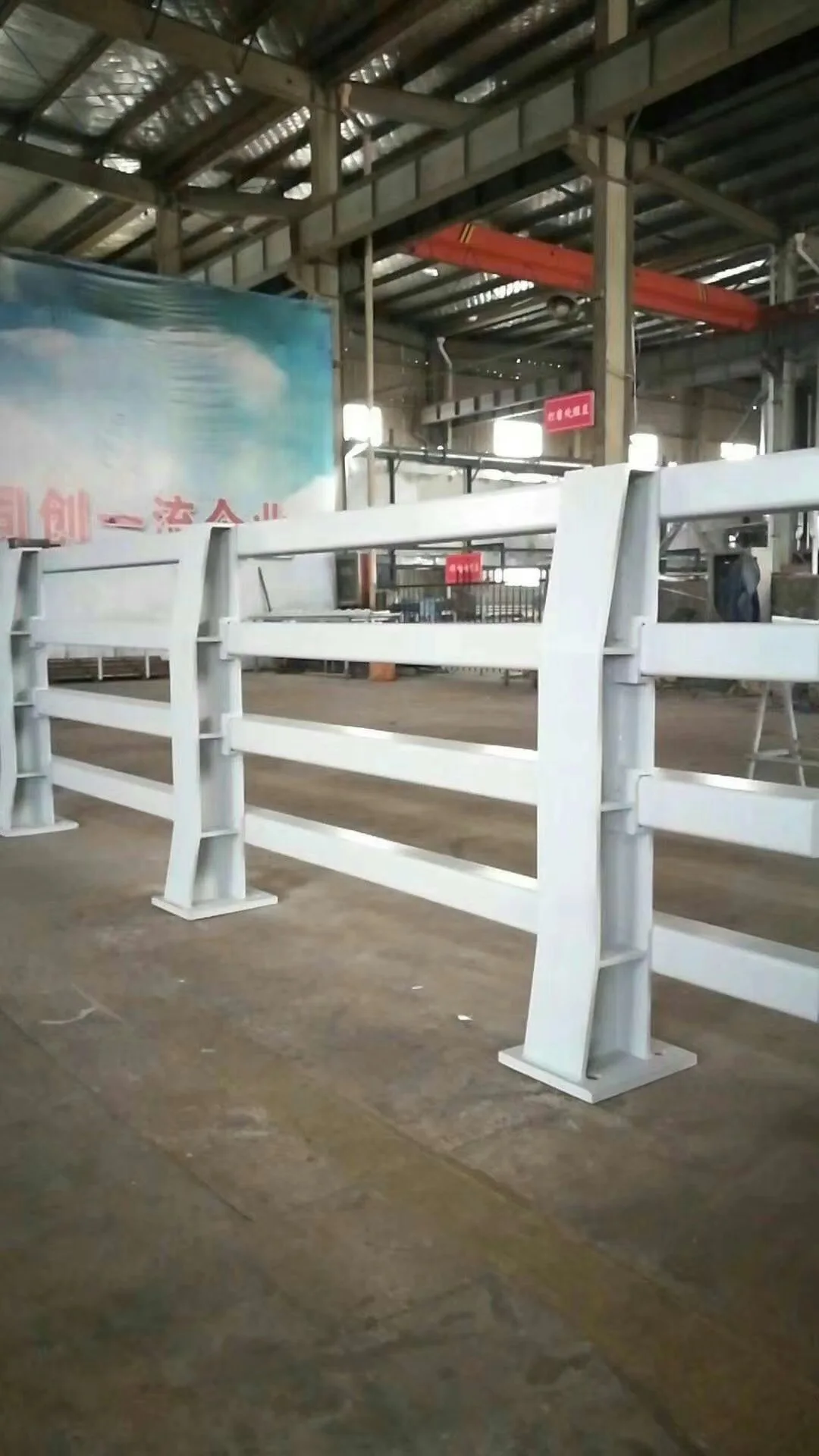

Wire Rope Traffic Barrier Bridge Guardrail Curved Guardrail

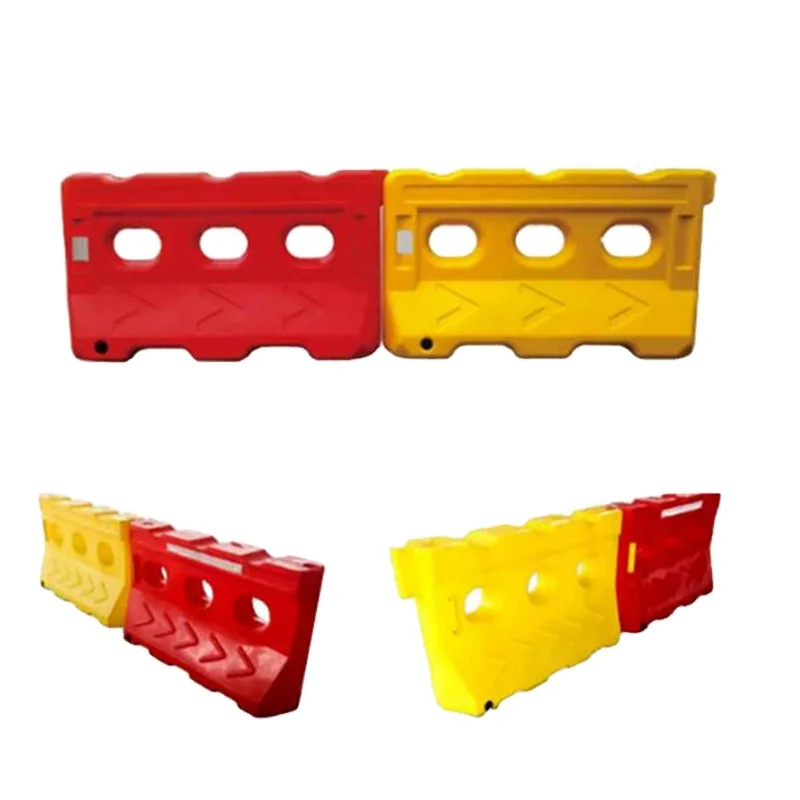

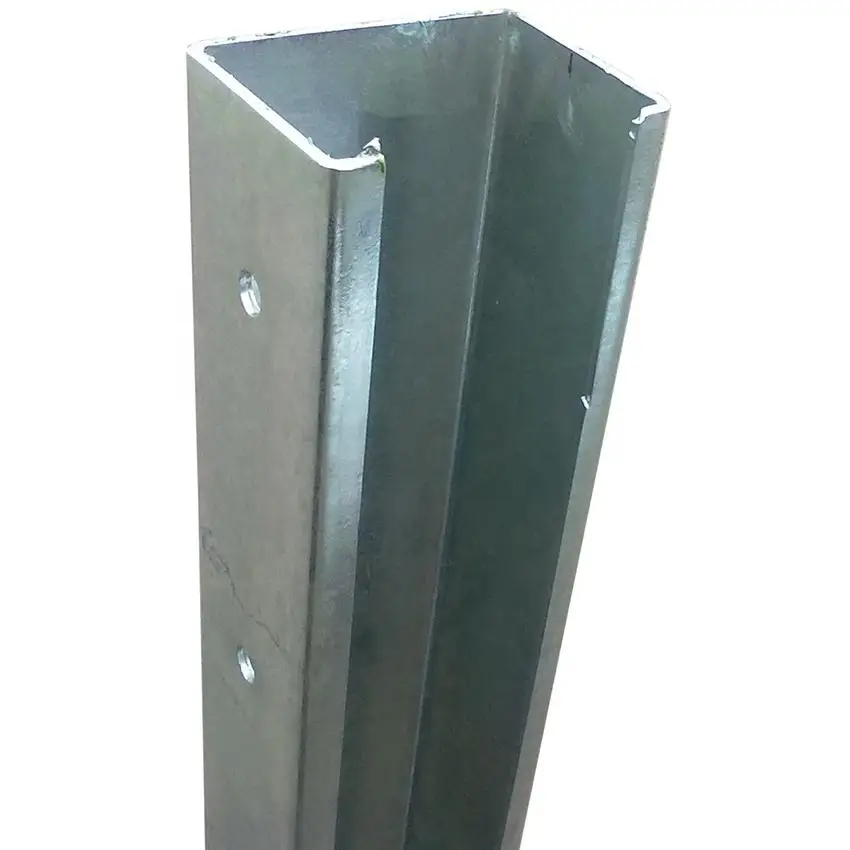

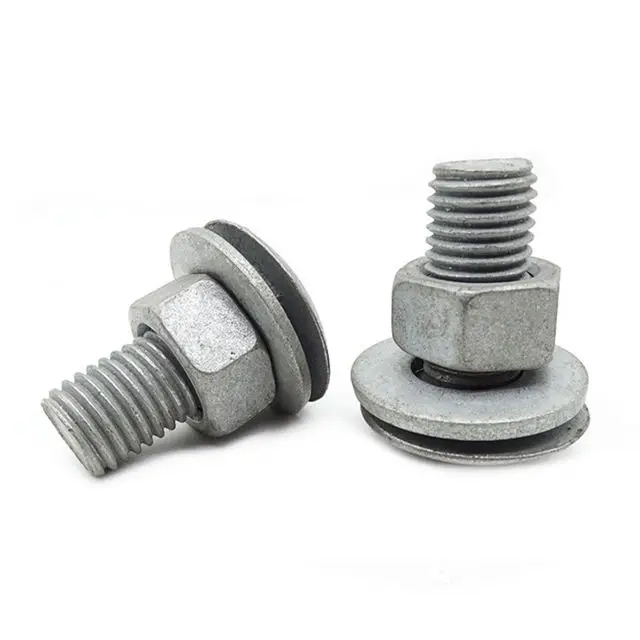

U Post Bolt and Nuts Water Filled Traffic Barrier

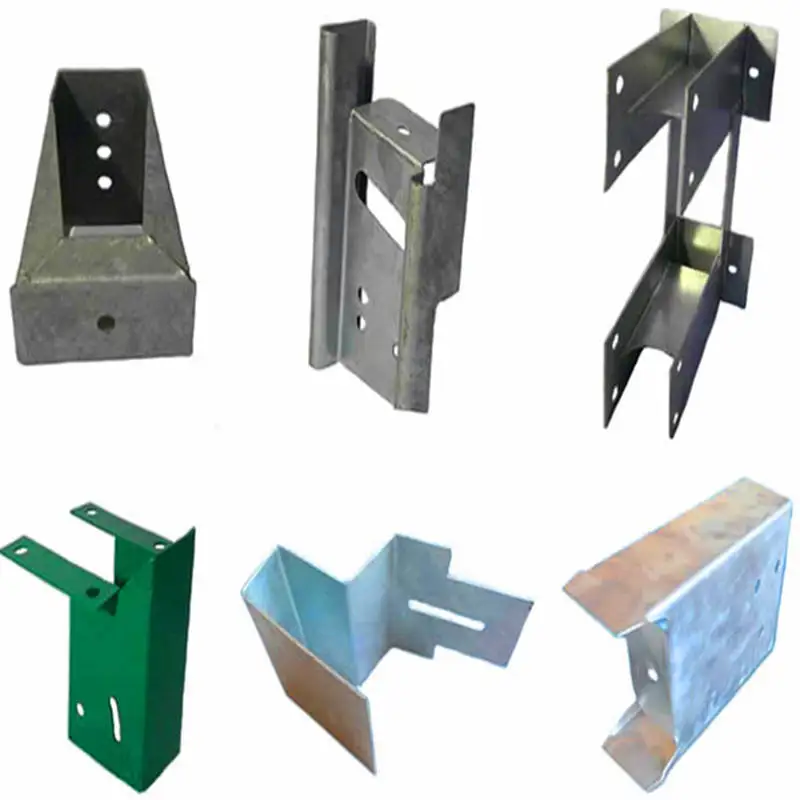

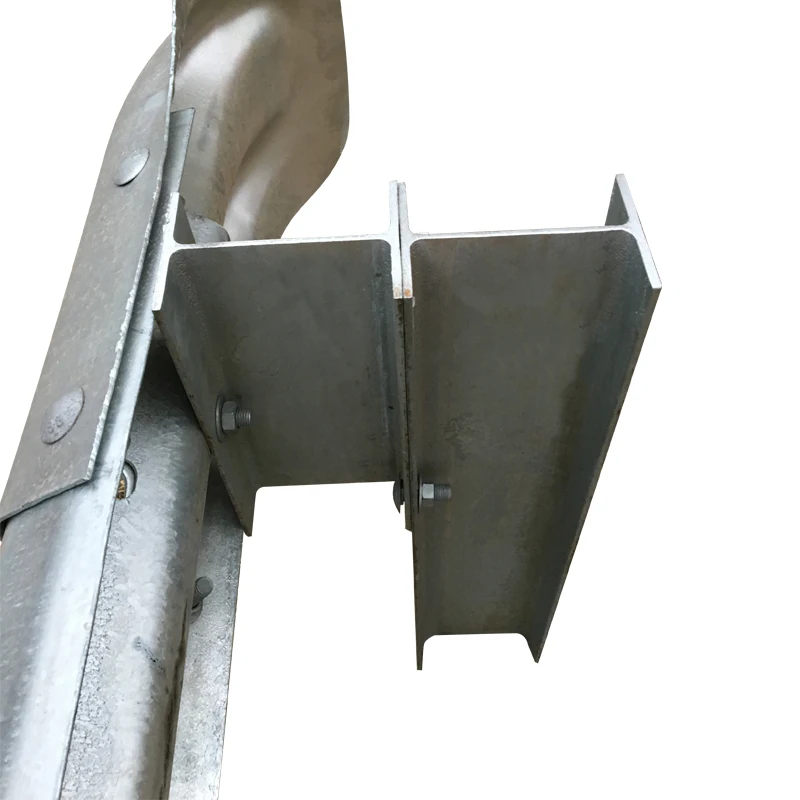

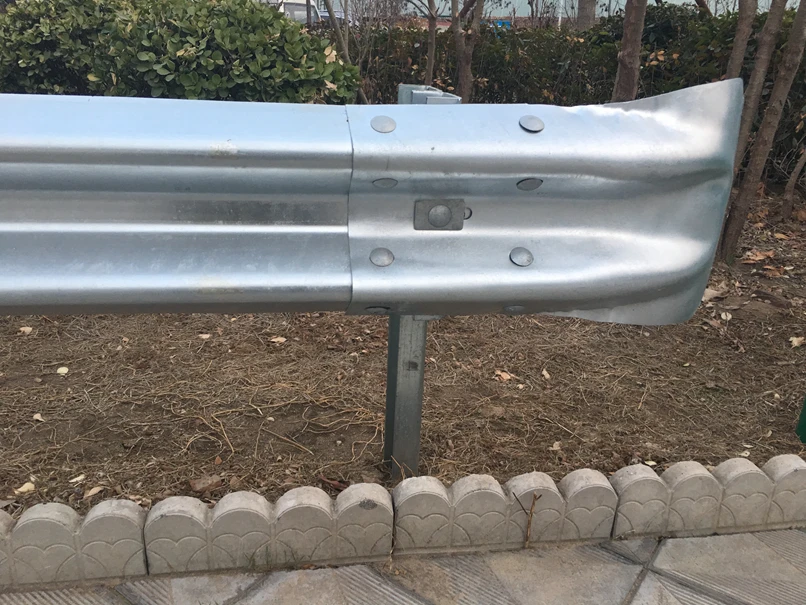

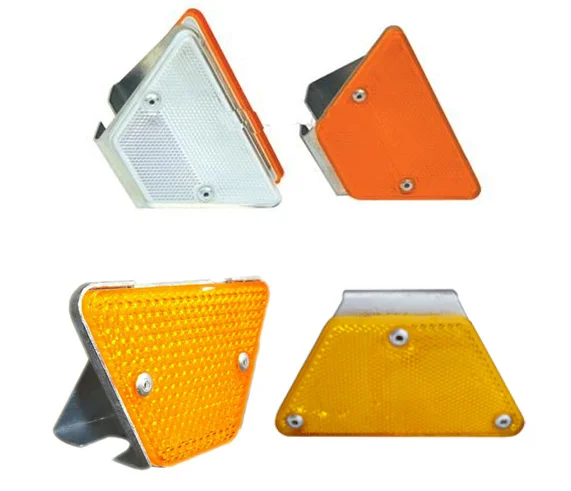

Fishtail Terminal End Guardrail Spacer Block Guardrail Delineator Reflector
Certifications
Company Profile
Established in 2015, Shandong Guanxian Huiquan Traffic Facilities Co., Ltd. is located in Guanxian New Century Industrial Zone, Shandong Province. The enterprise registered capital of 120 million CNY , covers an area about 43,290 square meters. We are one of the comprehensive entity enterprises that specializing in production, sales of hot dip galvanized guardrail.
The company now specializes in highway construction with an emphasis on guardrail. Our factory is equipped with two hot-dip galvanizing lines and two electrostatic spray painting lines, allowing us to produce 150,000 tons guardrails each year .Huiquan guardrail and accessories strictly follow international and domestic standards, such as Chinese, American, Australian , European and so on. Our extensive sales network covers more than 40 countries in Asia, Europe, South America, North America, Africa , Oceania. Meanwhile , the export volume ranks in the forefront of the country . So we are one of the most professional and the most powerful guardrail producers.
Huiquan is focusing on producing high-quality guardrail, each production process is carried out in strict accordance with ISO,CE. We have gained ISO,SGS,CE,BV and other certificates. The company is positioned to win the market and customers with high quality products and honest service. In 2017, Huiquan was designated as the supplier for the opening project of “the Belt and Road" highway project.
Huiquan transport facilities are willing to cooperate sincerely with our customers to create good results and achieve win-win goals.
Huiquan transport facilities are willing to cooperate sincerely with our customers to create good results and achieve win-win goals.
Packaging and Shipping

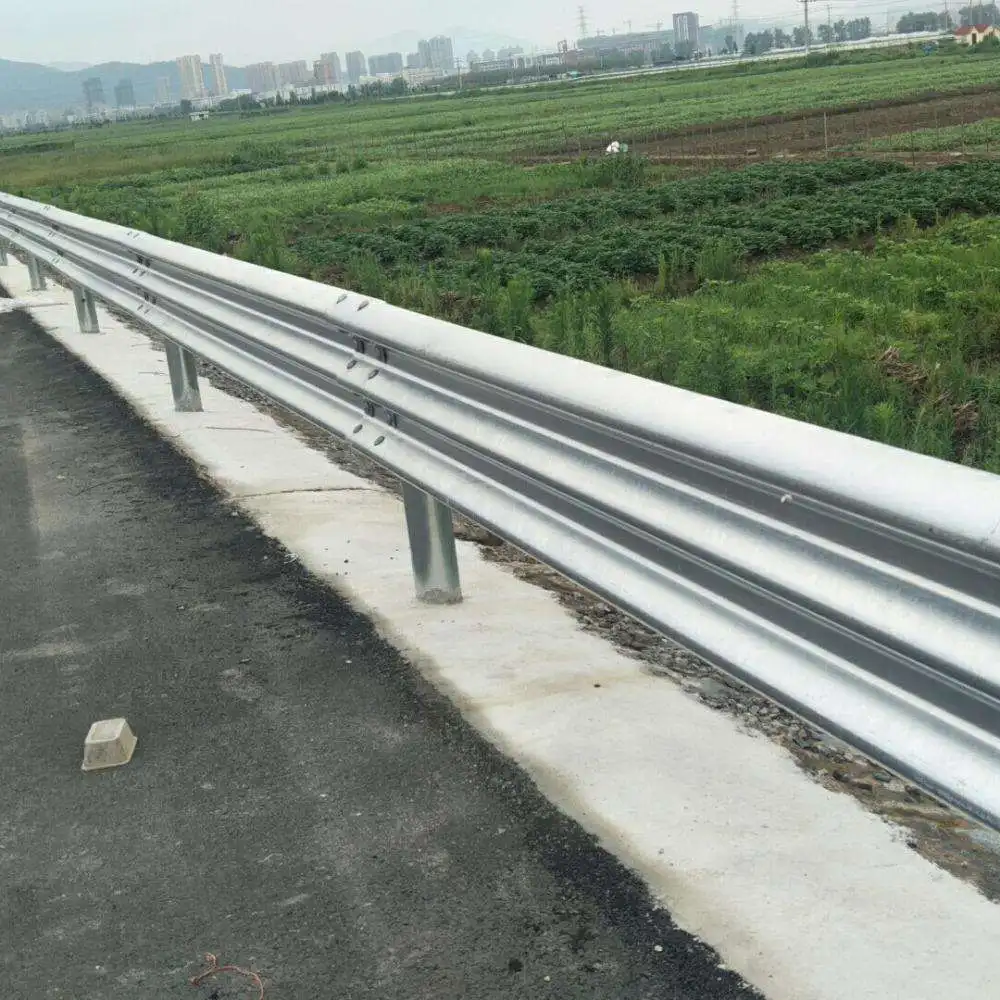

Construction Cases
Vietnam
Chile
Australia
Malaysia
Indonesia
Uganda
Italy
Mauritius
Kuwait
Why Choose Huiquan Guardrail?
1. 15+ years of highway guardrail ODM&OEM export experience
2. Huiquan Supply AASHTO M180, GB/T 31439, EN1317 etc Standard highway guardrail for contractors. Huiquan Guardrail passed crash testing according to MASH and EN1317-2. Test levels: TL1～4, N1, N2, H1～H3.
3. Factory Price! Factory Price! Factory Price!
FAQ
Q: Are you trading company or manufacturer?
A: We are Manufacturer, not a trading company.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge.
Q: What is your terms of payment ?
A: Prepay 30% of the payment, and deliver the goods after paying off 70% of the remaining payment
A: We are Manufacturer, not a trading company.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge.
Q: What is your terms of payment ?
A: Prepay 30% of the payment, and deliver the goods after paying off 70% of the remaining payment
