59R2 60R2 tram rail Baotou Steel U71Mn U75V grooved steel rail/channel for urban trams

59R2 60R2 tram rail Baotou Steel U71Mn U75V grooved steel rail/channel for urban trams

Категория товара: >>>
Поставщик (Оптовый магазин): Inner,Mongolia,Rational,Industry,LimitedInner,Limited

Цена:

Стоимость в USD:Узнать цену

Количество:

Купить

В избранное

Описание и отзывы

Характеристики

Our Main Products

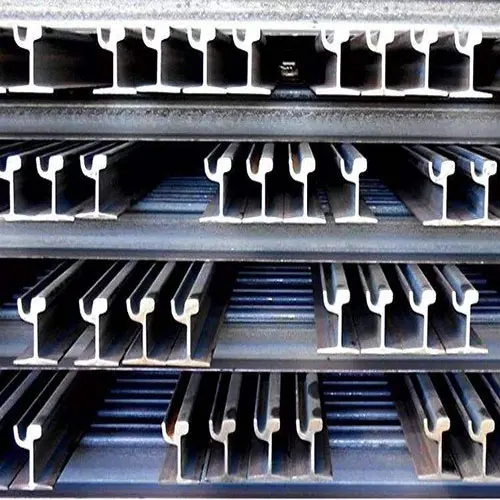

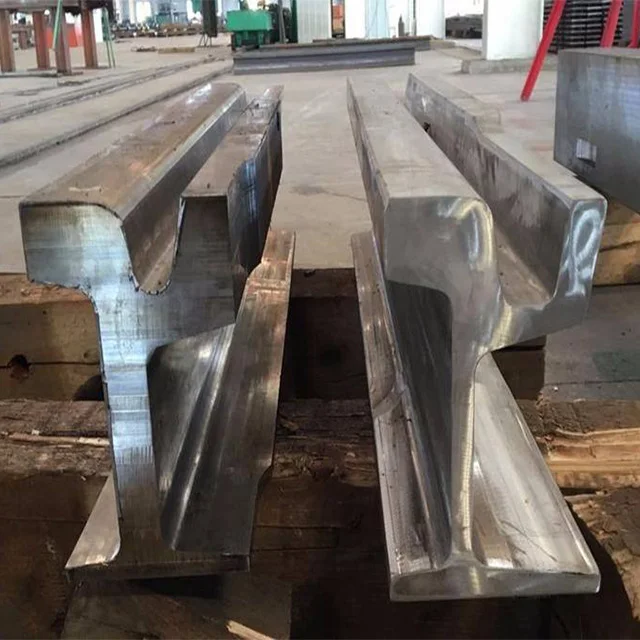

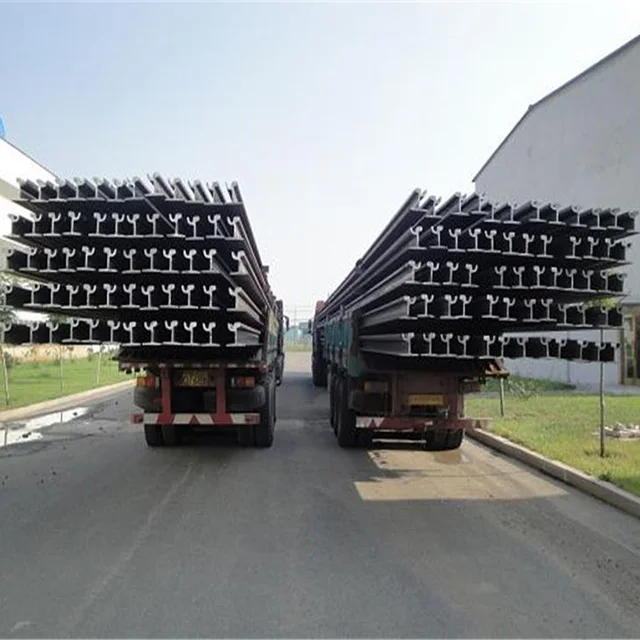

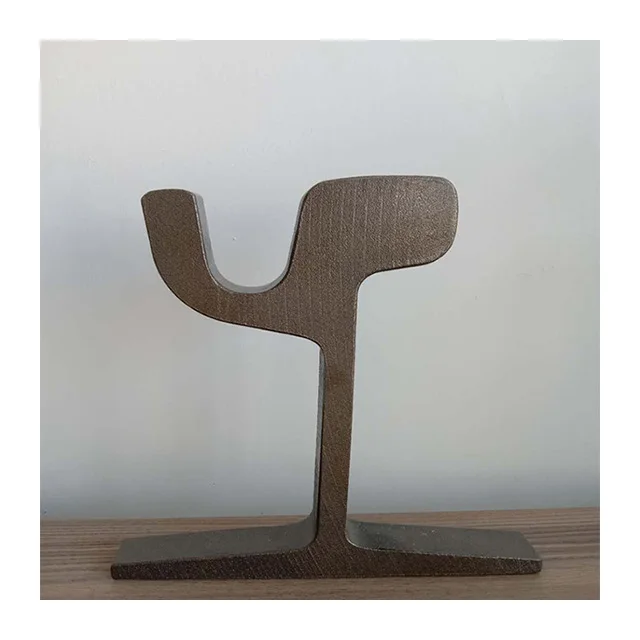

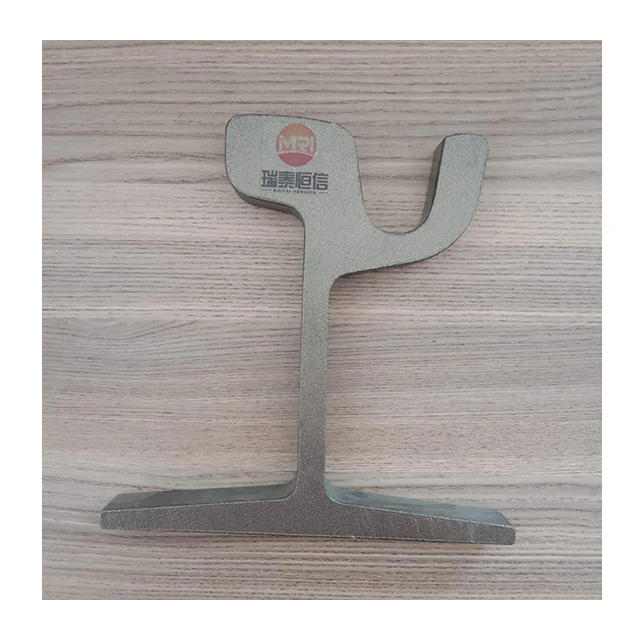

Product Show

59R2 60R2 tram rail Baotou Steel U71Mn U75V grooved steel railchannel rail for urban trams

Product Description

59R2 60R2 tram rail Baotou Steel U71Mn U75V grooved steel railchannel rail for urban trams

Channel rail is used for city ground light railway line, the top just the same height as ground, after carriages passed through it, peoples can walk on it.If you are looking for a good manufacturer for grooved steel rail,just contact IMRI.

Standard	YB/T 4653
Grade/Material	U71Mn,U75V
Model Number	59R2,60R2
Weight	Customized
Length	6m-25m
Packing	Bundling
Fastening	We can supply Joint bar,Rail anchor,spike&bolt,and other OEM products
Technique	Hot Rolled
Application	channel rail
Train speed	200km/h
Processing	Drill hole according to your requirement
Place of Origin	China
MOQ	5tons

Railway rails we produce
Varieties	Specifications	Steel grade	Standard
Rail for Railway	43kg/m,50kg/m	U71Mn,U75V,U76CrRE,U20Mn	TB/T2344-2012
	60kg/m,75kg/m	U71Mn,U75V,U76CrRE,U20Mn	TB/T3276-2011
	UIC54/UIC60	900A	Agreement
	54E1/60E1	R260	EN13674-1:2011
	115RE/136Re	SS	AREMA 2014
Switch Rail	50AT/60AT	U71Mn,U75V,U76CrRE	TB/T2635-2004
Head Hardened Rail	50kg/m,60kg/m,75kg/m	U71Mn,U75V,U76CrRE	TB/T2344-2012
	UIC54/UIC60	900A	Agreement
	54E1/60E1	R350HT	EN13674-1:2011
Crane Rail	QU80/QU100/QU120	U71Mn	YB/T5055-93
Channel Rail	59R2,60R2	U71Mn,U75V	Agreement

Grade	Chemical Composition (mass fraction) %
Grade	C	Si	Mn	V	P	S
U71Mn	0.65-0.76	0.15-0.58	0.70-1.20	—	≤0.030	≤0.025
U75V	0.71-0.80	0.50-0.80	0.75-1.05	0.04-0.12	≤0.030	≤0.025

Specification	Section Dimension (mm)				Section Area	Unit Weight
Specification	Head Width	Bottom Width	Height	Web Thickness	mm2	kg/m
59R2	113	180	180	12	7413	58.2
60R2	113	180	180	12	7611	59.75

We can supply the rails used for general speed railway track with 160km/h,high speed railway track with 250km/h and 350km/h and profile from 37kg/m-75kg/m according to customers’ requirements. At the same time,we can supply switch rail,crane rail,Z section,I beam,channel,H beam and and steel sheet pile,etc.

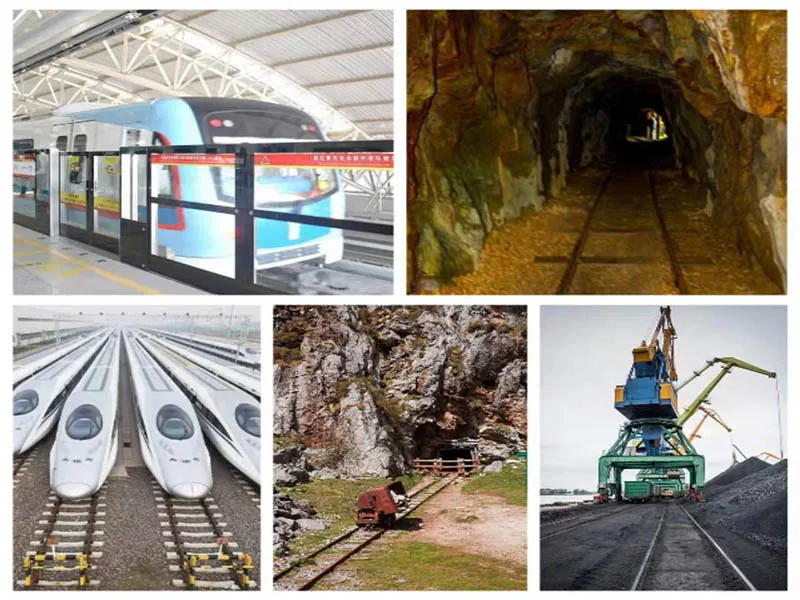

Application

More than 50 percent high speed railway rails in China are produced by Baotou Steel.Heavy rails and light rails we produce are used in mining,railway and subway construction.

Advantages

1.After over sixty years’ endeavor,Baotou Steel has grown to be the world’s largest rare earth industry base and domestic vital steel industry base.

2.Baotou Steel has the largest iron ore in the northwest part of China.

3.At present, Baotou Steel’s production capacity of iron and steel products has reached to 16.5 million tons.

Its products have been sold to over 60 countries abroad.

4. At the same time, it is the world’s most capable high speed rail production base with world’s best equipments.

Customer Visit

.jpg

Certificates

Inner Mongolia Rational Industry Limited (IMRI) is a supplier of anti-corrosion coating and seamless steel pipes. We have two production lines for external anti-corrosion coating, one production line for internal coating and one production line for insulating tubes. We mainly engage in accessory processing for Baotou Steel. At the same time, IMRI is a distributor of Baotou Steel''s steel products. We have established a long-term strategic co-operation relationship with Baotou Steel.

FAQ:

Contact Us


We can provide OEM service.If you need any kind of the steel pipes for water, oil and gas transportation ,petroleum casing & tubing,railway rails,etc. please feel free to contact us.
