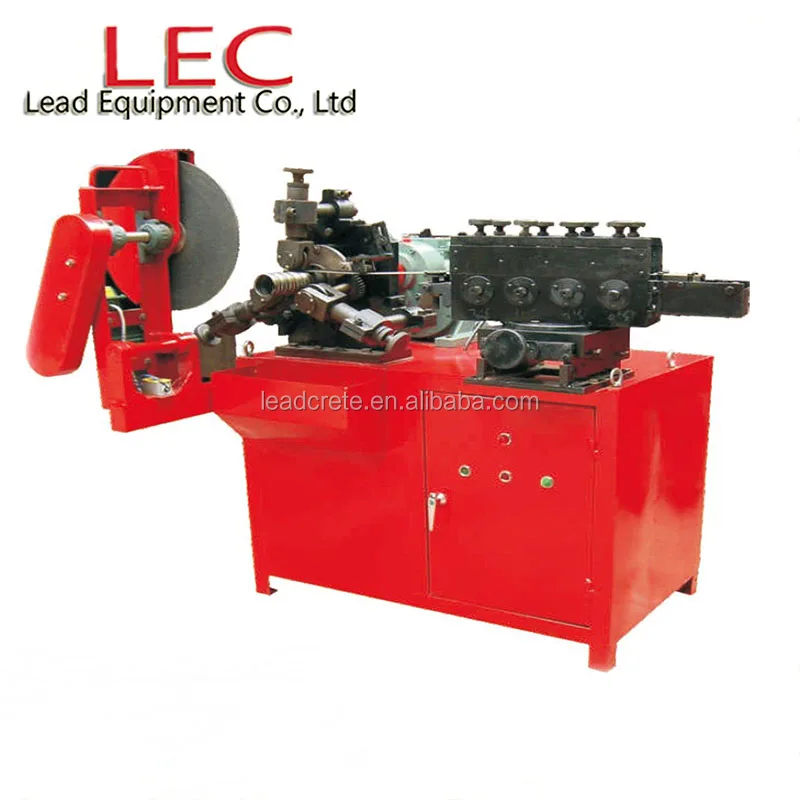

Post Tension Prestressed Corrugated Pipe Machine
Product Description
Post Tension Prestressed Corrugated Pipe Machine
Specifications:
1. Type: Round Metal Duct Making Machine and Flat Metal Duct Making Machine

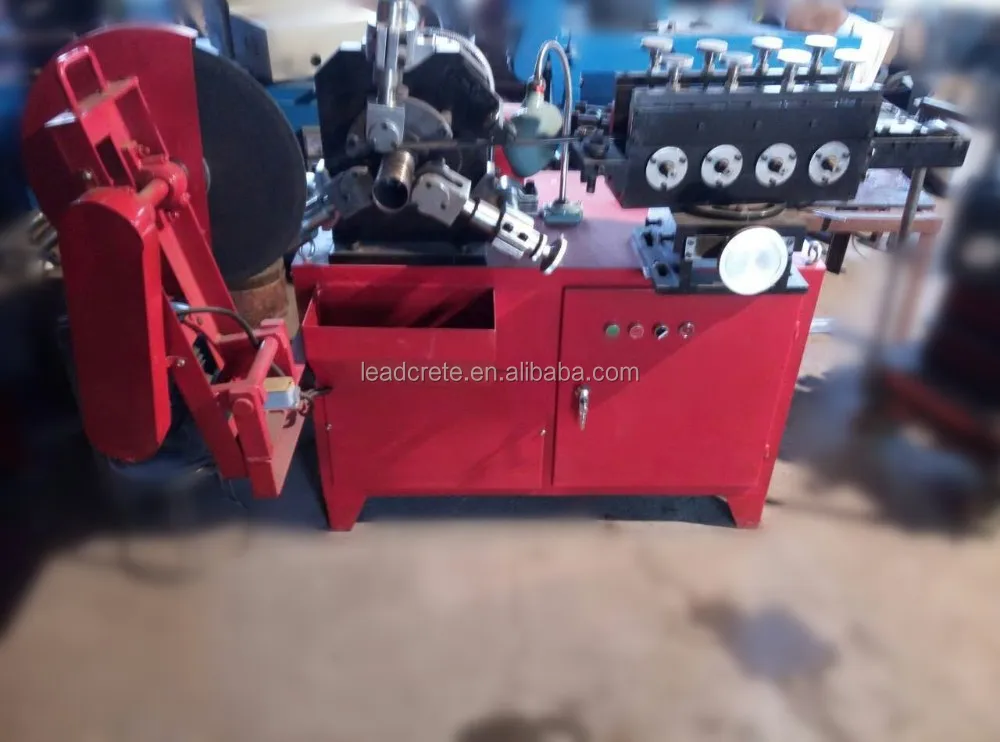

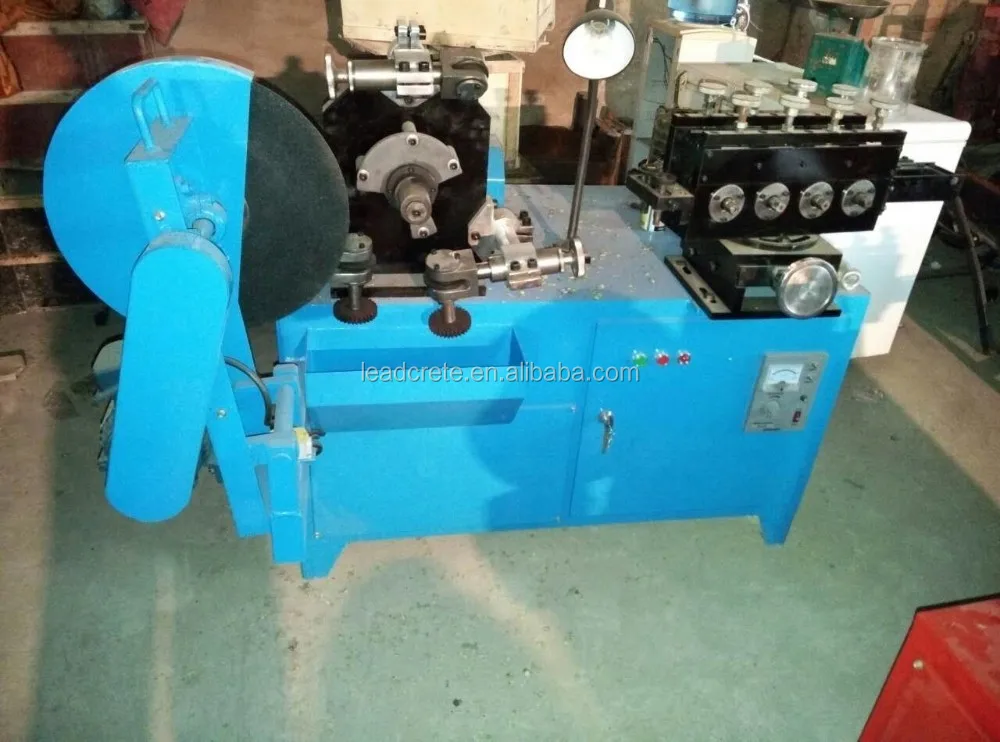

Round Metal Duct Making Machine

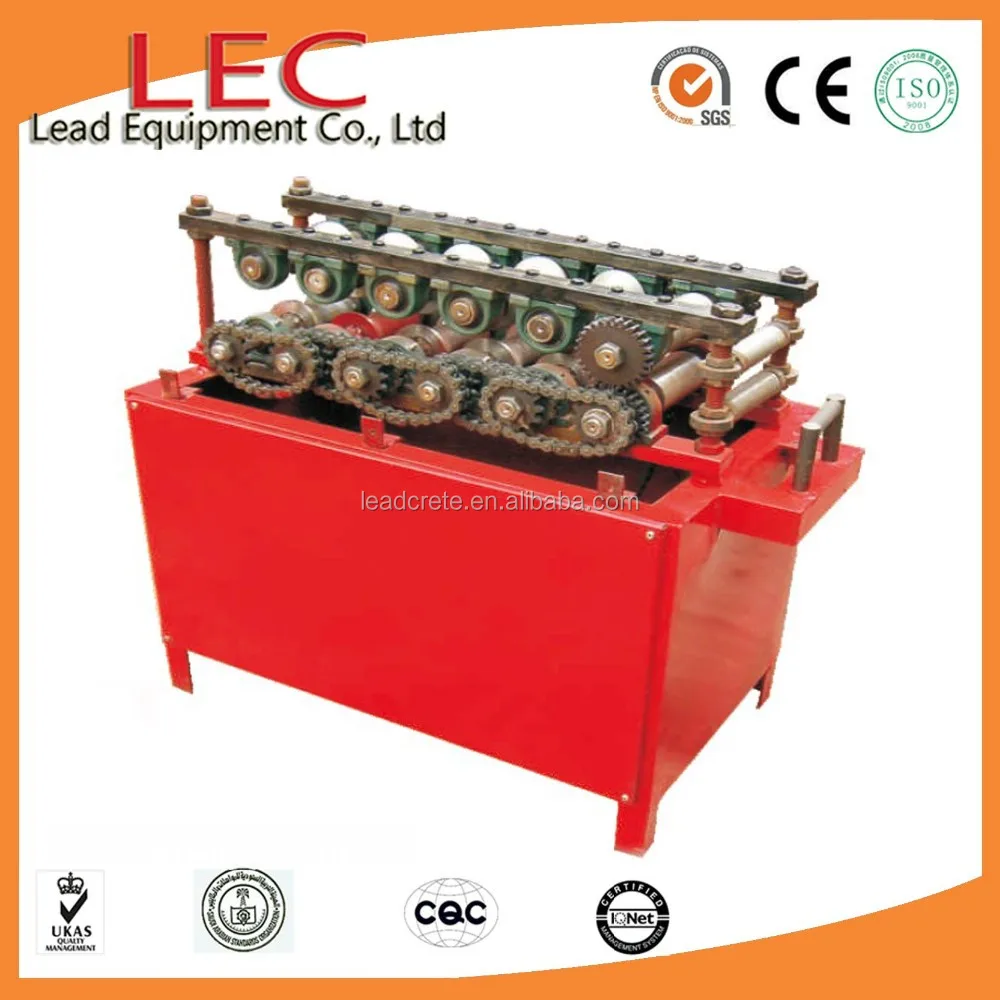

Flat Metal Duct Making Machine
2. Suitable Materials Size(steel strip): steel strip width: 36mm, thickness: 0.25-0.30mm. Such as galvanized or non-galvanized 0.25x36mm, 0.28x36mm, 0.30x36mm, 0.35x36mm.
3. Produced metal ducts diameter: from 35mm to 135mm
4. Producing speed: 4m/min for diameter of 35-57mm metal duct, 2m/min for 60-135mm diameter of metal ducts
5. Main body power: 3 KW, cutting machine power: 0.75kw
6. Professional services: 1x7 days 24 hours service online, and engineer can service oversea
7. Samples: We are free to provide you sample for your check
A: Please tell me do you need plastic(HDPE) ducts or metal ducts?
B: What is your required size and diameter?

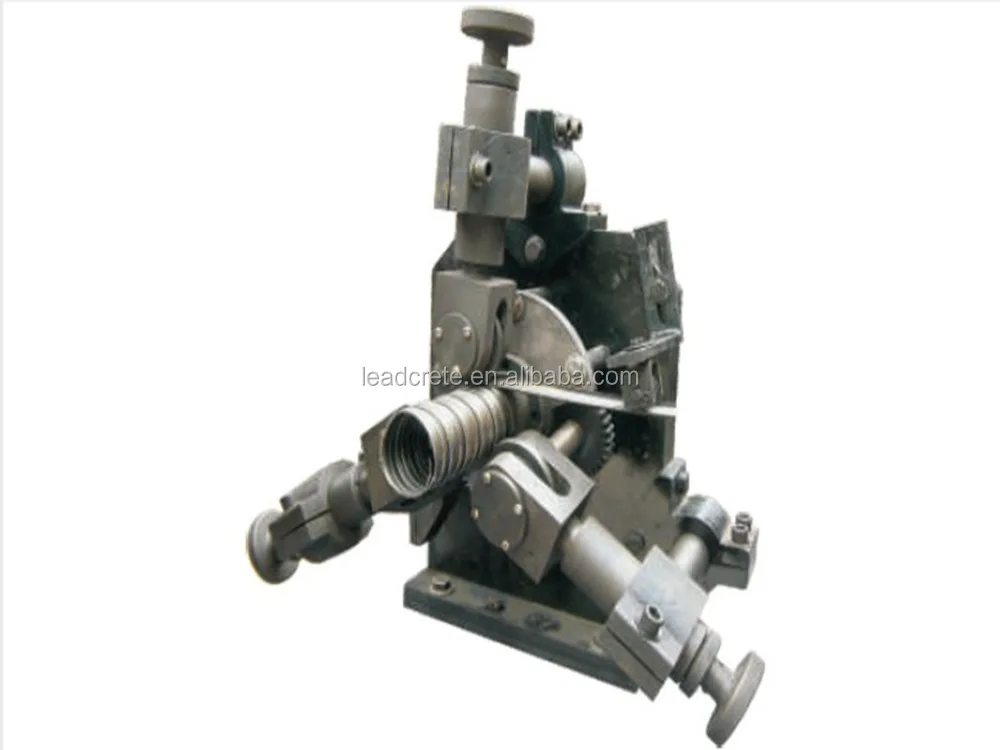

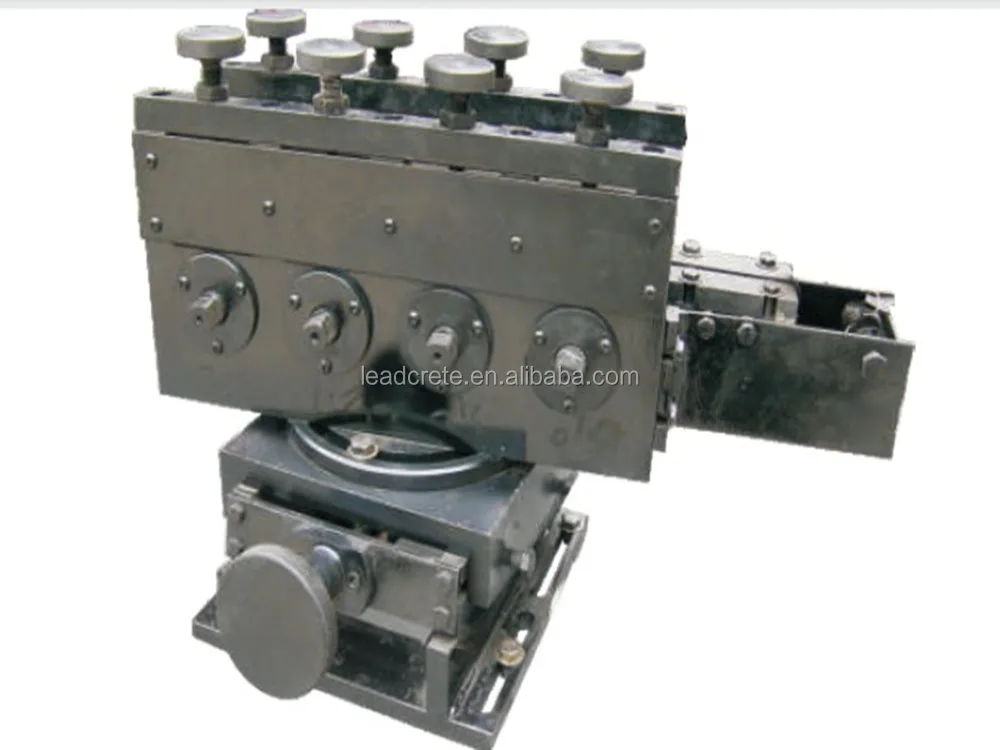

Detailed Images
Post Tension Prestressed Corrugated Pipe Machine
Technical data
Round Metal Bellow Machine
| Parameter of Metal duct making machine | ||||||||
| Item | Producing speed | Bellows pitch | Specification of steel Thickness×Width | Reel pipe scope of diameter | Power of main motor | Power of cutter | Overall dimension Weight | Weight |
| Unit | m/min | mm | mm | mm | KW | KW | m | Kg |
| Parameter | 1~4 | ≥27 | 0.25X36~0.30X36 | 35~135 | 3 | 0.75 | 1.5X1.4X1 | 450 |
The Parameter Table of Flat Pipe Machine For Anchorage
| Parameter of Flat mental bellow machine | ||||||||
| Item | Producing speed | Pipe inner diameter of width | Pipe inner diameter of height | Raw material size of pipe | Bench height | Power of main motor | Over all dimension | Weight |
| Unit | m/min | mm | mm | mm | mm | KW | m | Kg |
| Parameter | 4 | 52~90 | 19/22 | 35~135 | 600 | 3 | 1X0.5X0.85 | 180 |
Related Products
Our Advantages:
We supply full complete set anchor system and equipment for construction, please see following:
A: Mono strand anchor system: 5mm,7mm, 8.0mm, 9.0(9.52mm) anchors for steel wire
B: Multi strand anchor system: 9.52mm, 12.7mm, 12.9mm, 15.24mm, 15.7mm, 21.6mm, 22mm anchors for pc strand.
Flat anchor system
C: Steel rear anchor system: 16mm, 18mm. 22mm, 24mm, 26mm, 28mm, 32mm, ect.
D: Equipments: hydraulic jack, oil pump, metal ducts making machine, pc strand pusher machine, grout pump and mixer, vacuum pump, embosisng machine(bulding jack), extruding machine, ect.
E: Building materials: unbonded pc strand, bonded(bare) pc strand, 4mm to 10mm pc steel wire, metal ducts, plastic ducts, steel strip.
PC Strand:

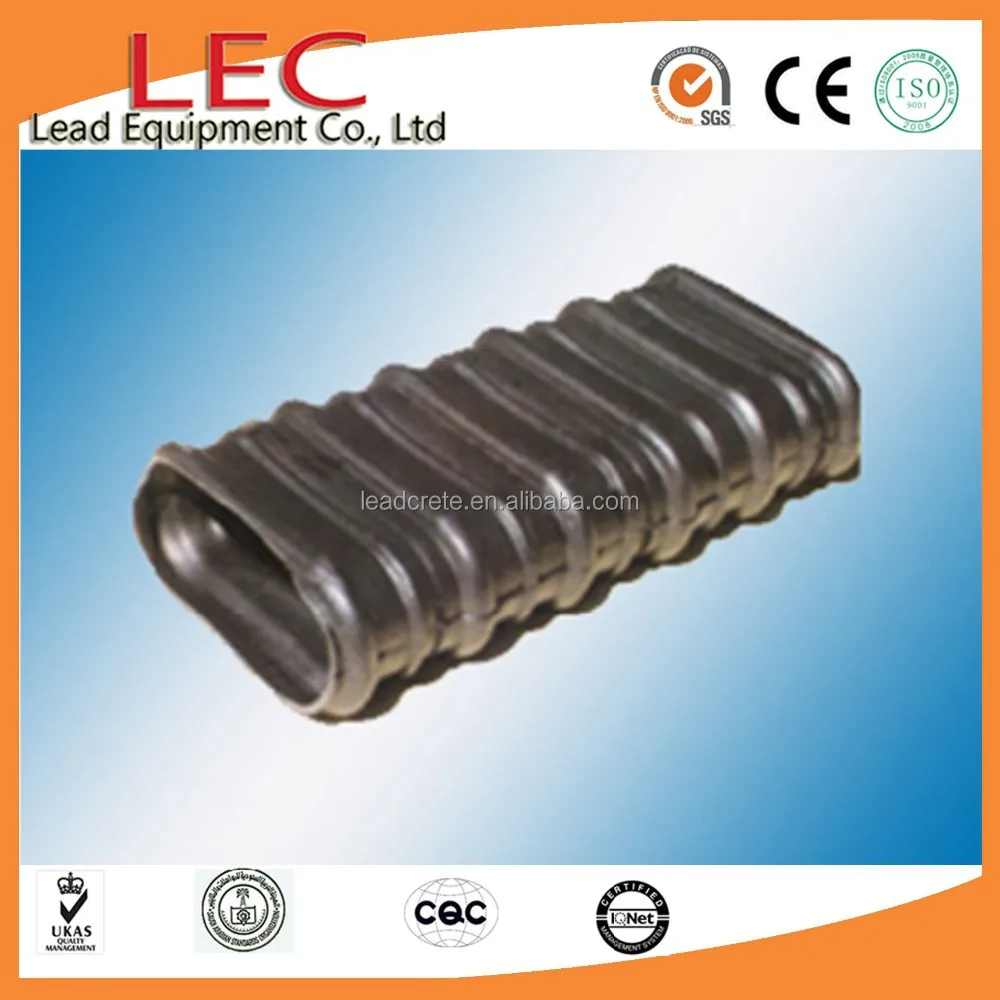

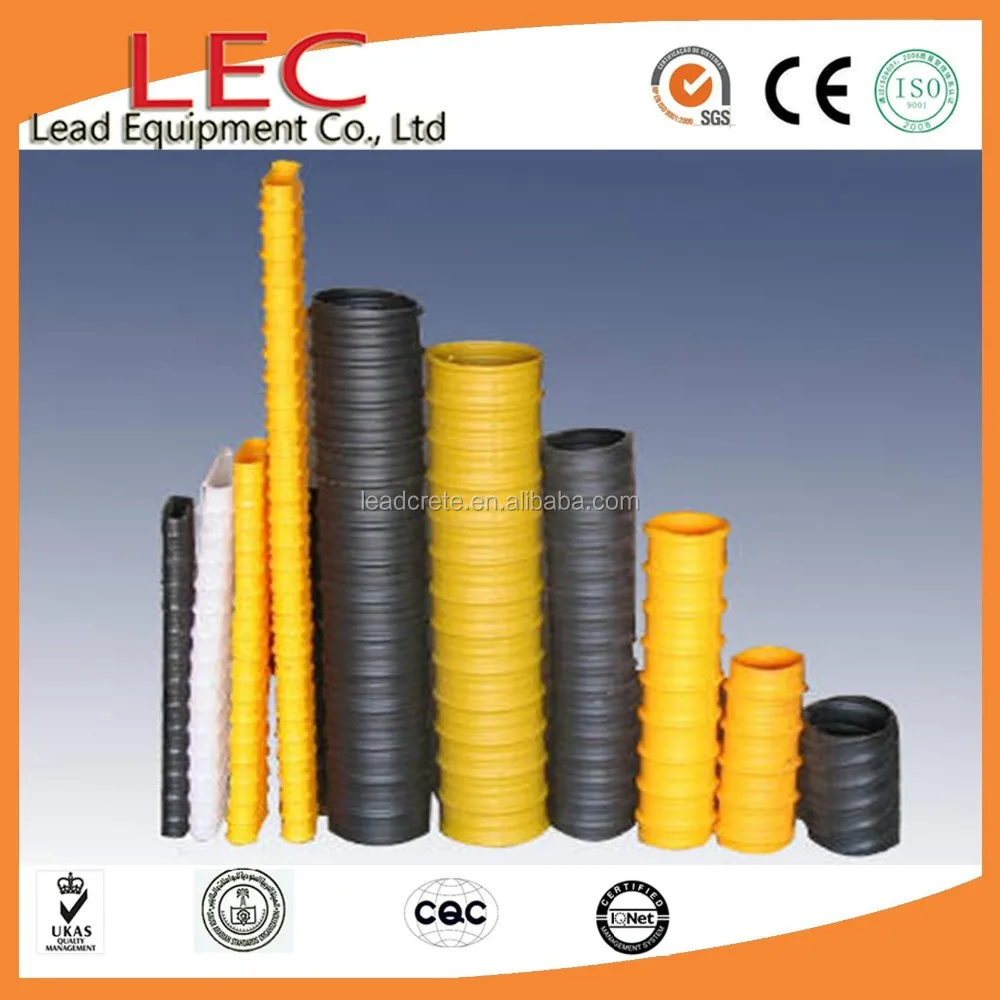

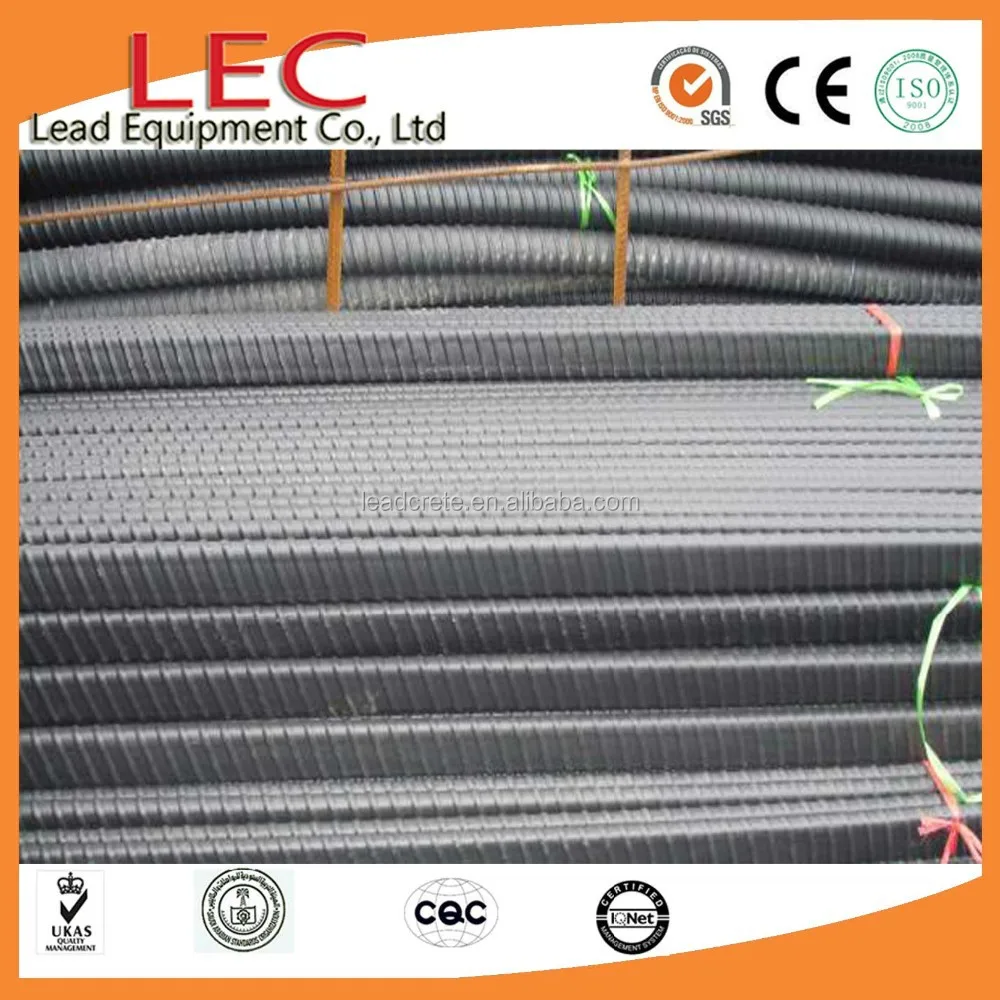

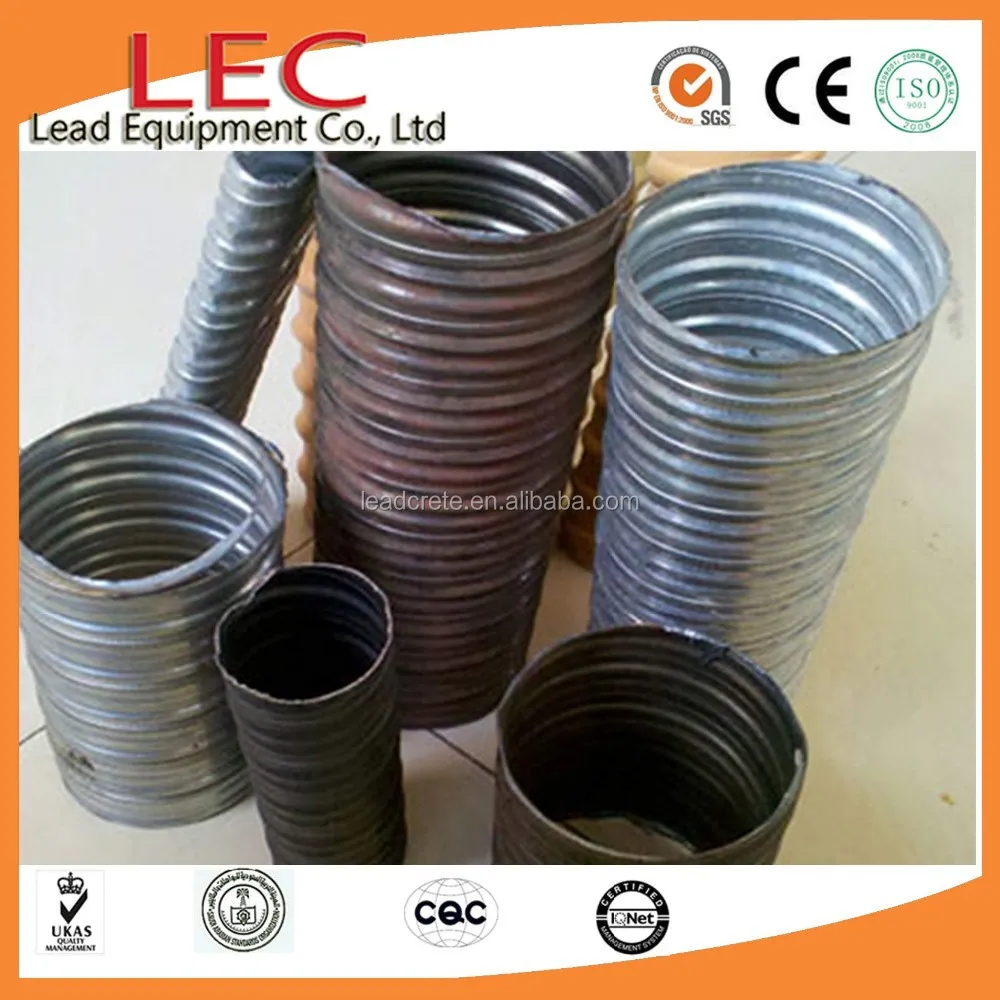

Corrugated Pipes(Ducts)
Company Information
About our company:
1. More than 10 years experience on PT and Pre-stress Concrete Construction.
2. Supply full complete set of anchor system, pc strand, pc steel wire, hydraulic jacks, electric oil pump, corrugated pipe making machine, and other equipment.
3. China top 5 PT and Pre-stress manufacturer, with CE, ISO,Ghost certificate.
4. Products market covering more than 30 countries all of the world.
5. more than 80 engineers available for oversea service, supply face to face training on buyer’s worksite.
6. Response to customer requirement 24 hours, provide full using life technical support.
Our factory

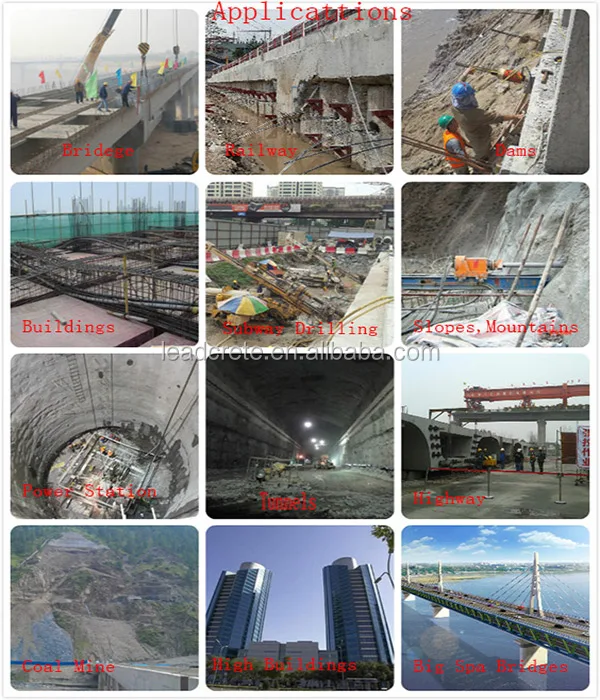

PT and Pre-stress worksite:
FAQ
Please let me know your derail required information as followings:
1. What is your required diameter for metal ducts?
2. What is your required Voltage you use in your place?
