Станок для резки алюминиевого материала с двойным лезвием 45

Поделиться:


Цена:
Стоимость в USD:Узнать цену

Количество:

Купить

Описание и отзывы


Характеристики


45 degrees Double-Blade Miter  Cut Off Saw Machine



Features:





  • Pedal control for automatic material clamping (side clampingand top pressing). The clamp is sturdy and will not deform,ensuring precise sawing angles.
  • Fitre long or short material can be sawed off.
  • Two-set four oil sprayers are equipped in the interior of the machine to provide saw blade with auto oil spraying during sawing,ensuring smooth sawed faces and extended life of the saw blade.



 Parameters:







ModelJC-350-2AS2JC-405-2AS2

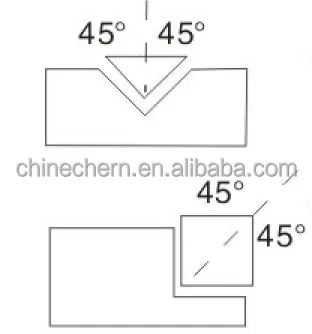

Cutting angle45°45°
Max cut width70mm100mm
Max cut height80mm150mm
Spindle speed3300RPM3300RPM

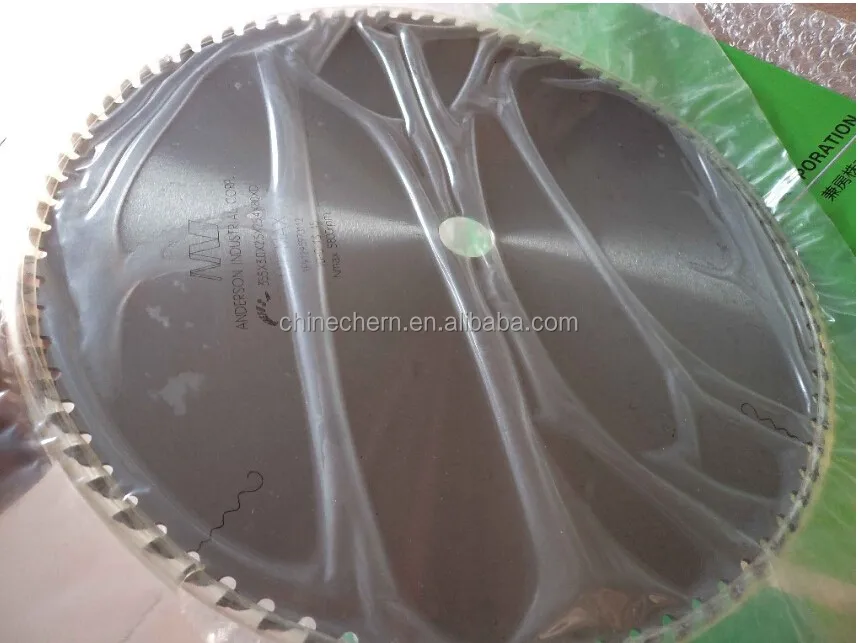

Saw blade355×25.4×3.0×120T405×25.4×3.0×120T
Worktable height800mm800mm
Motor1HP×21HP×2
Feeding Rack length870×260mm870×260mm
Out feeding length1300×670×1270mm1300×670×1270mm
Weight280/360kg280/360kg
Voltage3-phase 380V 50HZ3-phase 380V 50HZ

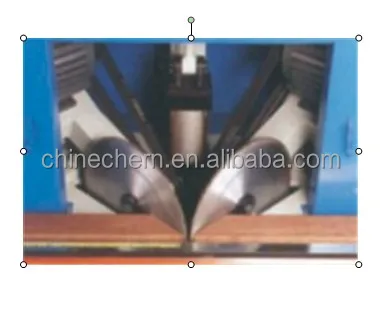

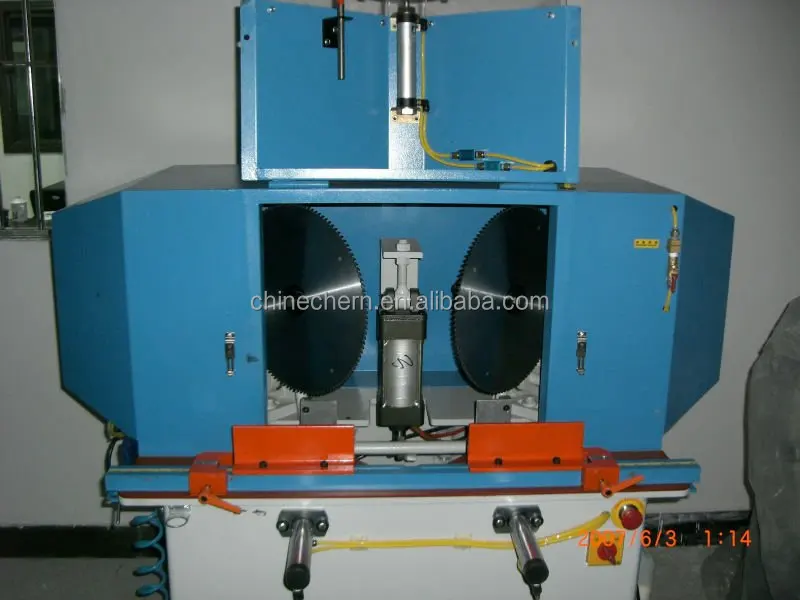

Machine Head:

Double blades aluminum cutting machine.jpg



Company Profiles :

with decades hard  work  and  accumulated  experiences,  We have  acquired  fourty  invention



patent,Utility model and appearance patent.Meanwhile, We  have  passed  ISO9001:2008 quality system certificate, Government-issued  Guangdong  Province  private technology enterprises, high-

tech  enterprises, private enterprises and other honors.



The products  include Super hard metal bar cold saw machine series, Chipless  metal pipes circular saw machine series,Copper aluminum non-ferrous high-speed precision circular saw machine series,Metal pipe/bar end chamfer machine series,Circular saw blade sharpening machine series,Automatic pipe bending and forming Machine series , Six categories eighty models , Also provide customized complex process



Machine , all kinds of circular saw blade . Wide  Application  range  contains Nautical



aviation and aerospace industry, military industry, high-speed rail and rail transportation



industry, auto industry, precision parts, medical and fitness equipment industry, mechanical and electrical and electronic industry, lighting and furniture decoration forty industries .
