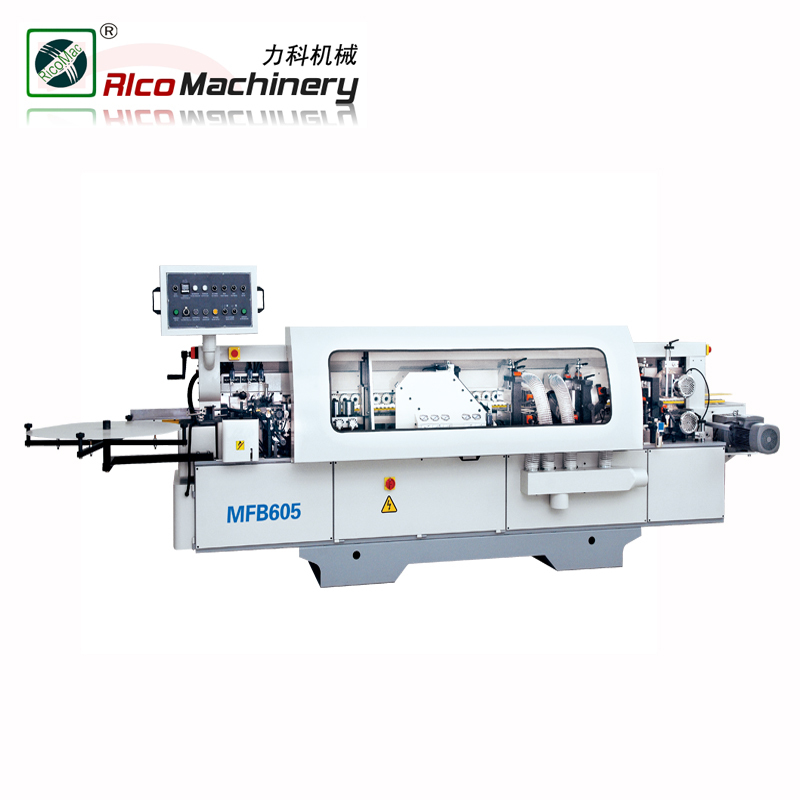

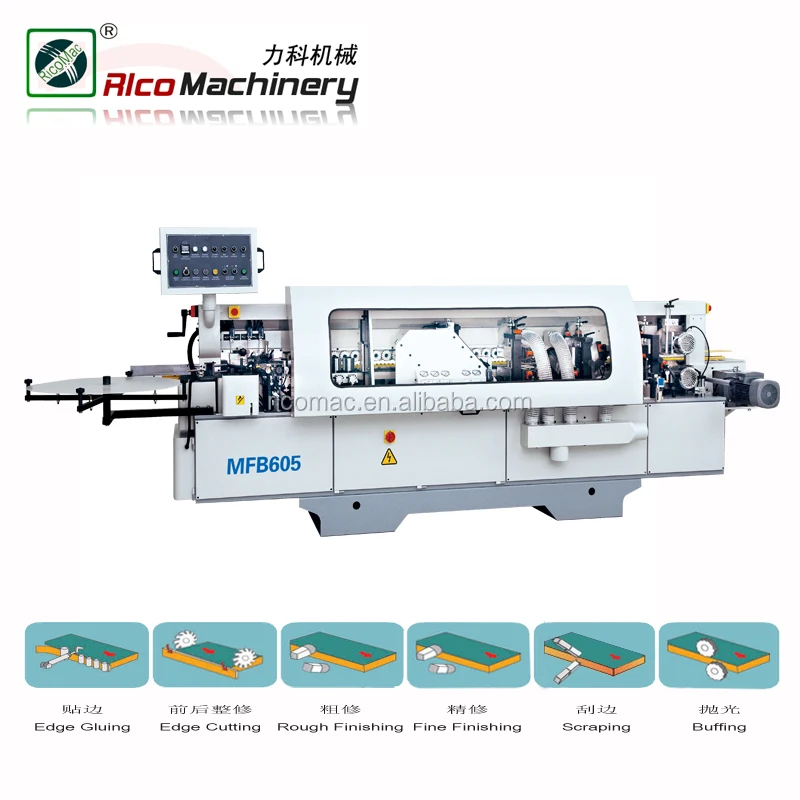

MFB605 деревообрабатывающий автоматический шлифовальный станок
- Категория товара: Wood Based Panels Machinery >>>
- Поставщик (Оптовый магазин): Weihai,Rico,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
woodworking automatic edge bander
1. Adopts to the sealing of PVC, wood plank, Melamine and veneer etc.
2. Serialized products, a wide range of selection by customers.
3. High precision and efficiency.
4. High frequency motor 100% made in Italy.
5. Electrical element 100% by SIEMENS,SCHNEIDER,COMRON,DELTA,LG international brand to provide.
6. 100% pneumatic components from Taiwan.
7. Five welt rolling system enables the workpiece stuck and more solid formation.
8. Stable performance of 18m/min high speed feeding system.
9. Board width minimum 60mm.
10. Solid edge of the maximum thickness is 15mm, the minimum thickness of 0.4mm.
11. Personalized folder system, on the edge of the thickness change operation more simple.
Model | MFB605 |
Panel length | Min.160mm |
Panel width | Min.60mm |
Panel thickness | 10-60mm |
Edging width | 15-63mm |
Edging thickness | 0.4-15mm |
Feeding speed | 10.5/15.78m/min |
In-put voltage | 380V |
In-put frequency | 50Hz |
Out-put frequency | 200Hz |
Installed power | 22kw |
Pneumatic power | 0.7Mpa |
Net weight | 1400kg |
Overall dimension | 3900*750*1400mm |
Guarantee&Aftersales service:
1.Guarantee for one year,spare parts can be change within this time, but for normal wear not human error damage
2.24 hour technical support by email or calling
3.User-friendly English manual for machine using and maintaining
4.As the improvement of the products, any change of the machines and parts should not be advised separately.
Pls send us the qty/model/size of the machine, we will contact with you within 24hours.Any problem pls let us know asap,we will carefully and committed to serve you!
