RV резервная камера VEISE сельскохозяйственное оборудование беспроводная система заднего вида для сельскохозяйственных багажников/Автобусов/прицепов
- Категория товара: Tractors >>>
- Поставщик (Оптовый магазин): Veise,(guangzhou),Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

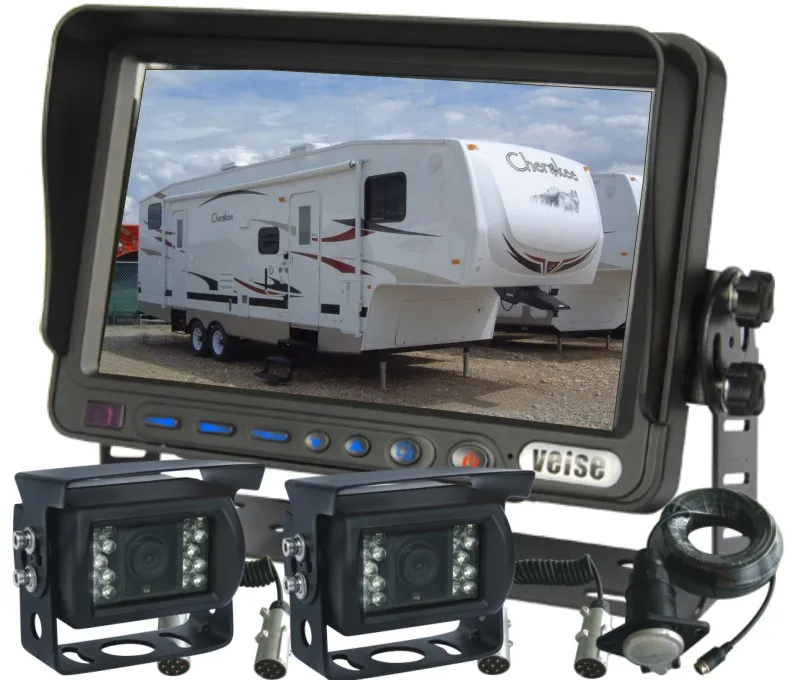

Agricultural Equipment Wireless Rearview System for Farm Trunks / Buses / Trailer
Brief introduction Reverse Camera System
Reversing Camera System
1.With more than 20 years' manufacture & sell experience,we prefer LONG-TERM COORPORATION WITH YOU!
2.Main Product Lines: Reversing Camera System
1). DVR Quad camera Monitor systems. Reversing Camera System
2). Waterproof camera Monitor systems Reversing Camera System
3). Touch screen camera Monitor systems. Reversing Camera System
4). Wireless cameras Monitor systems. Reversing Camera System
Reversing Camera System
3. Certificates:MA, IP69K, EMC, FCC, ROHS and E-mark. Reversing Camera System
Reversing Camera System
Desription Of Product

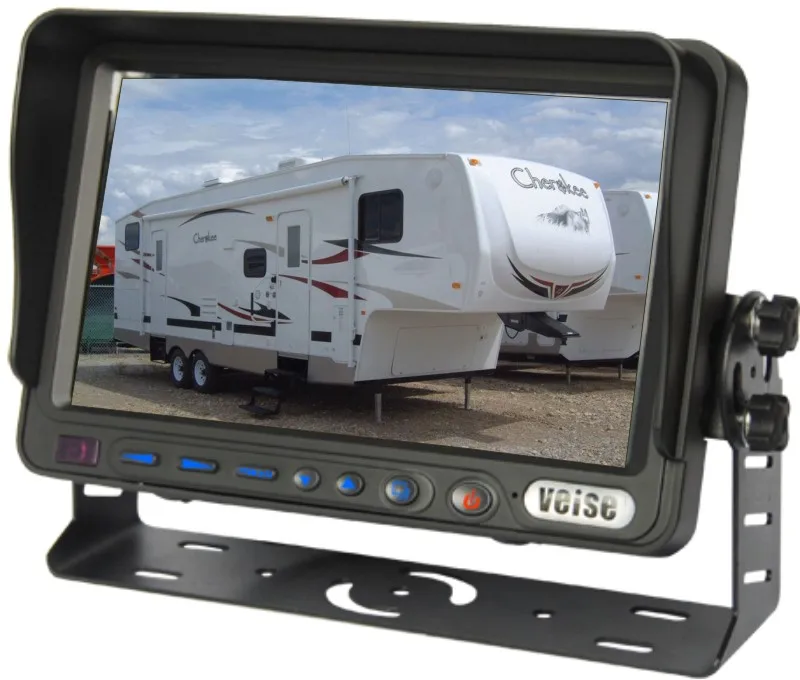

| 7 inches Digital Screen TFT LCD Color Monitor(Model:SP-727N) |
| Digital Screen TFT LCD Color Monitor with Removable Sun Visor |
| OSD MENU Separately Set Each Camera Trigger Priority |
| OSD MENU Separately Set Each Camera Reversing Image Delay Time 0-30" |
| OSD MENU Separately Set Each Camera Mirror/Normal image |
| Manual and Automatic Switch Display Mode |
| Color System:PAL/NTSC (AUTO) |
| Display Resolution: 2400(H) X 480(V) dot |
| Accepts up to 2 Cameras Video Inputs:1.0Vp-p75Ω |
| Wide view angle(CR:10):(up/ down): 50/70 (left/right): 70/70 |
| Contrast ratio: 500:1 |
Back-light : Single LED 400cd/m2 Brightness |
| Operating temperature: -20℃ to +70℃ |
| Storage temperature: -30℃ to +80℃ |
| Load Dump: DC14+67V(Td400mS) 5pulses |
| Free Operating Voltage DC8-32V |
| External dimensions:L*W*T(180X118X38)mm(without mounting) |
| Weight Approx: 379g |

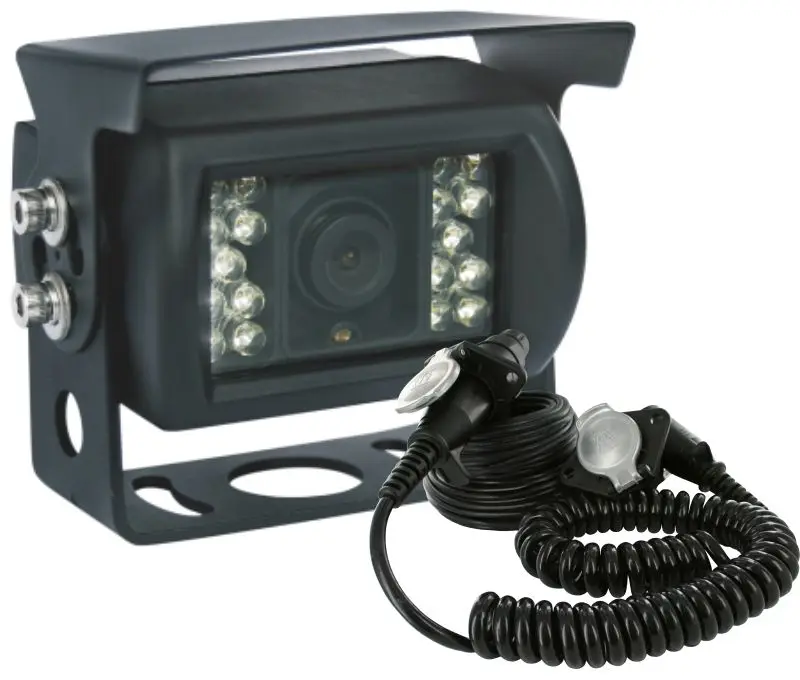

| Aluminum Shell Waterproof IR Color Camera(MODEL:DF-4103*2) |
| Image Type: 1/3 inch Color CCD |
| Horizontal Resolution:420TV Lines |
| Effective pixel:NTSC:510(H)X492(V);PAL:500(H)X582(V) |
| Usable Illumination : 0Lux ( Built in 15pcs IR for Picture Support in the Dark) |
| Free viewing angle: 130° |
| 100% Waterproof: IP69K Rating |
| Shockproof: 10G |
| Video Output:1.0Vp-p75Ω |
| Power supply:DC12V from Reversing Monitor |
| Dimensions: 69(W) x 43(H) x 38(D) mm (without mounting) |
| Product Accessories |
U- Support Bracket,Angle Adjustment Screw,Removable Sun Visor,Electrical Connecting Cable,27M cable, Auto cigarette lighter,User's Manual |
