Шаговый двигатель M660A, микрошаговый драйвер 24VAC-60VAC1.0-6A, поддержка Nema23

Описание и отзывы

Характеристики

Applications

It can be applied in a variety of small scale automation equipment and instruments, such as labeling machine, cutting machine, packing machine, drawing machine, engraving machine, CNC machine and so on. It always performs well when it is used in equipment which requires for low-vibration, low-noise, high-precision and high-velocity.

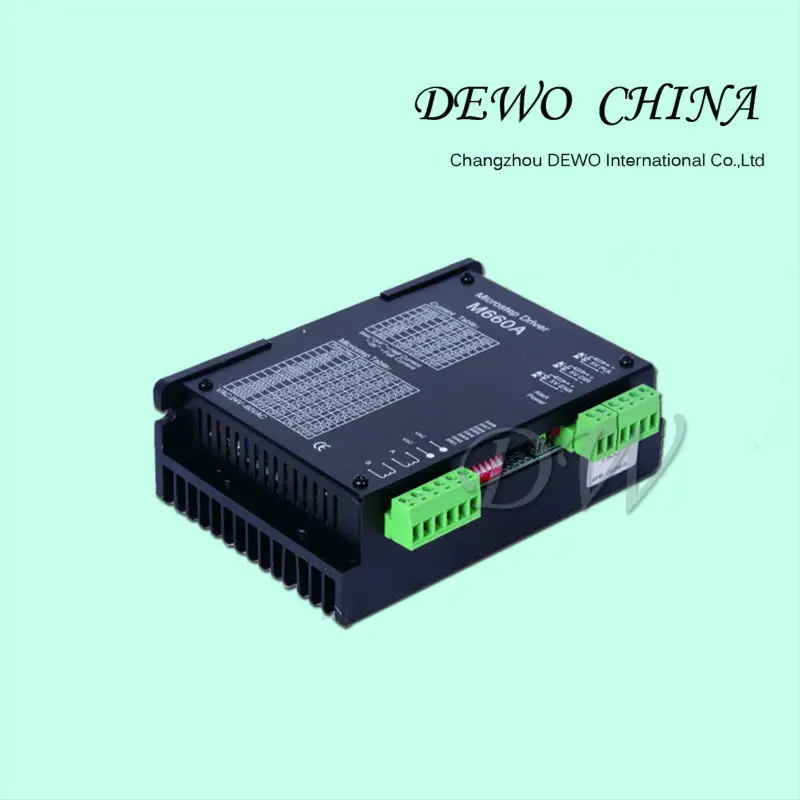

The M660A is a new generation microstep stepper motor driver which applies original imported chips. Due to the adoption of the advanced bipolar constant-current chopper driver technology, it shows stable operation, provides excellent high torque. Moreover, it significantly reduces the noises and vibration of the operating motor. The M660A has the feature of low-noise, low-vibration and low-heating. The M660A is AC24-60V power supply. It applies to 2-phase hybrid stepper motor under 6.0A current. The M660A has 14 kinds of microsteps. The maximum step number is 51200 steps/rev (microstep is 1/256). The peak operating current ranges 2.0-6.0A., and the output current has 8 stalls. The M660A has automatic semi-flow, self-test, over-voltage, under-voltage, over-current protection functions.

Signal interface details:

The internal interface circuits of the driver are isolated by the opt coupler signals, R in the figure is an external current limiting resistor. The connection is differential. And it has a good anti-jamming performance.

common cathode connection

common anode connection

Control signal and external interface:

Common indicator

Outline and installation size (unit:mm)
