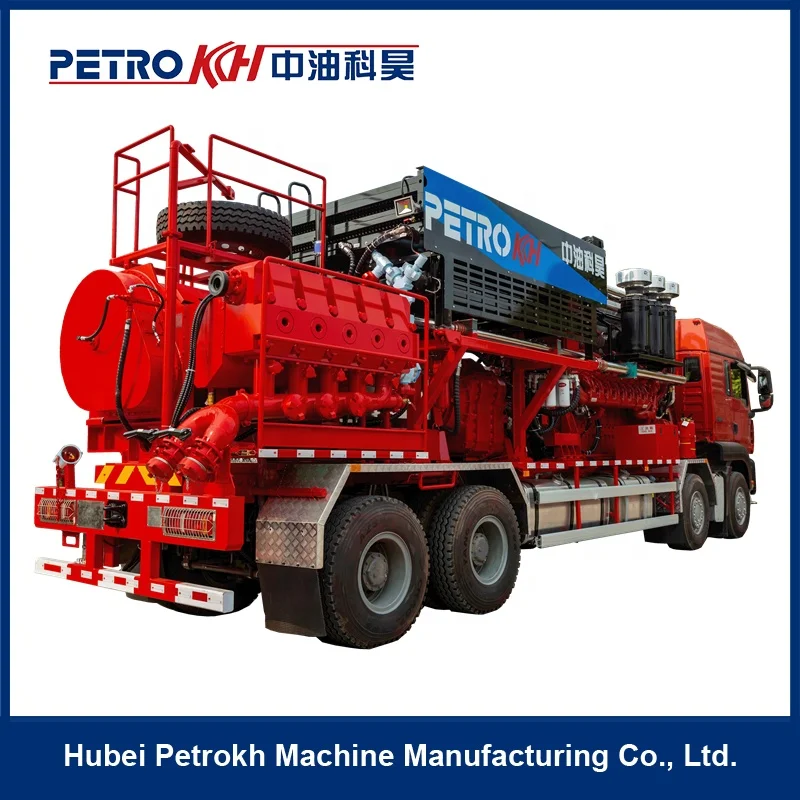

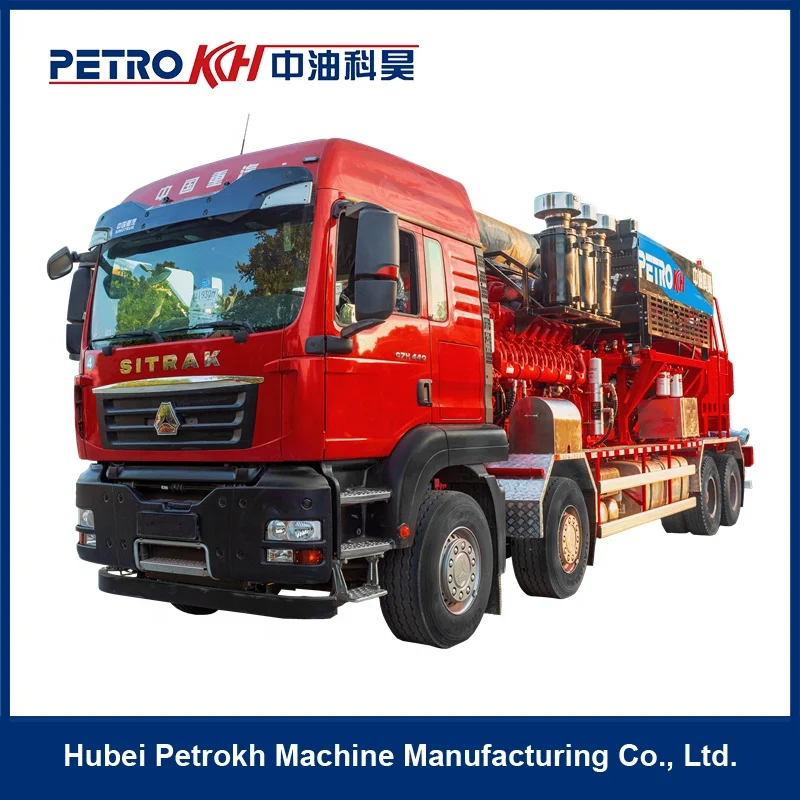

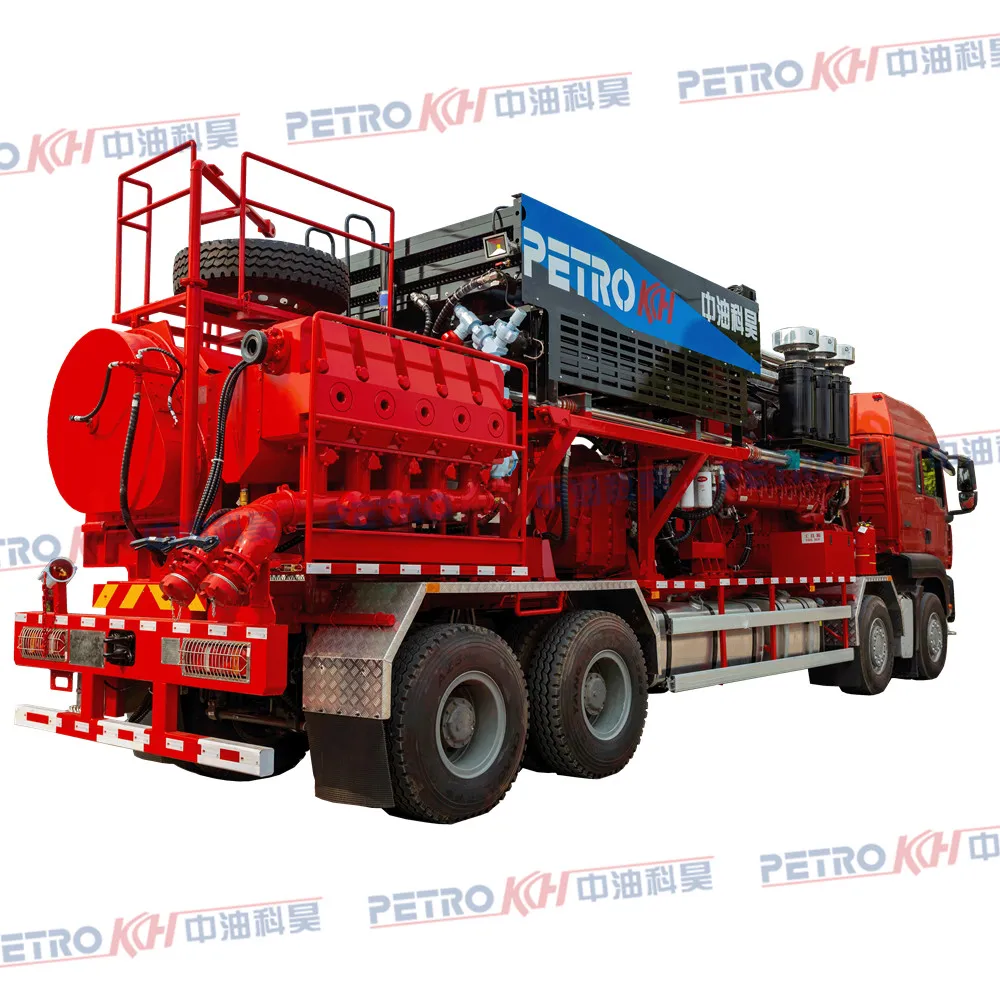

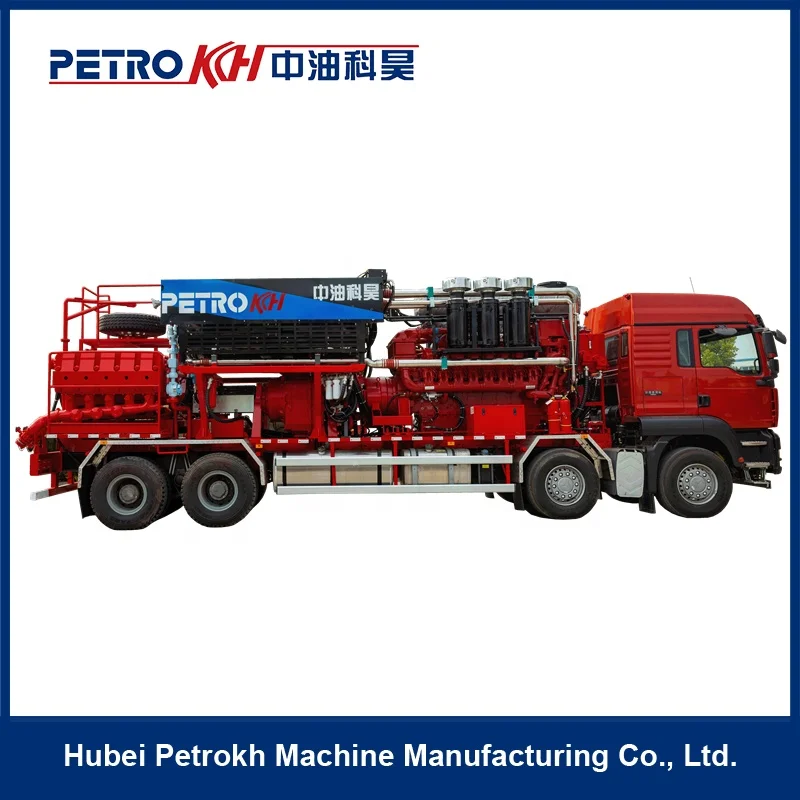

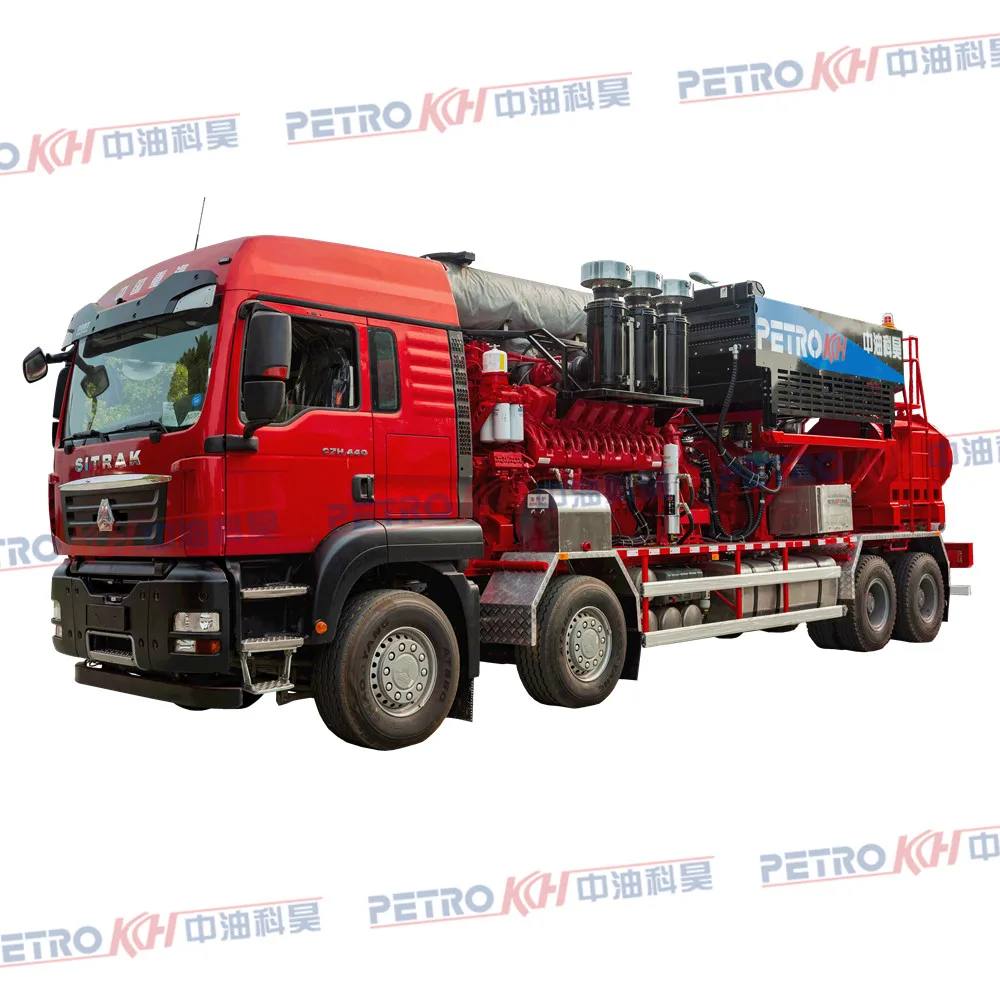

Грузовик для гидроразрыва пласта на месторождении 2800л
- Категория товара: Oil Field Equipment >>>
- Поставщик (Оптовый магазин): Hubei,Petrokh,Machine,Manufacturing,Co.,Ltd.Hubei,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
YLC140-2800HP fracturing truck Main technical parameter :
Chasis SITRAK 8*6
Diesel engine MTU 16V4000S83 ( 3000HP )
Hrydraulic transmission box TWIN DISC TA7601C
Plunger pump KH2800hp quntuplex plunger pump ( 3 ''-3/4'',4'',4.5'' )
Max working pressure 140Mpa
Rated output 2000KW
Total weight 43000KG
Diesel engine MTU 16V4000S83 ( 3000HP )
Hrydraulic transmission box TWIN DISC TA7601C
Plunger pump KH2800hp quntuplex plunger pump ( 3 ''-3/4'',4'',4.5'' )
Max working pressure 140Mpa
Rated output 2000KW
Total weight 43000KG
Hubei Petrokh Machine Manufacturing Co., Ltd. is dedicated in research & development and production of energy exploitation
machines and equipments, such as fracturing units, well drilling equipments cementing units, workover devices, etc. Our machines
have passed API (American Petroleum Institute) standards , HSE (health and safety executive) standards and ISO9001:2008.
With an area of 10,0000 square meters, Petrokh can produce 1000 dedicated trucks/trailers among the 1000 trucks and trailers,
there are 300 trucks for special operations .The drilling machine take the private oil&gas exploitation market in China , export
to USA ,Yemen, Kazakhstan, Russia, Saudi Arabia , Mexico and other 160 countries as well .
machines and equipments, such as fracturing units, well drilling equipments cementing units, workover devices, etc. Our machines
have passed API (American Petroleum Institute) standards , HSE (health and safety executive) standards and ISO9001:2008.
With an area of 10,0000 square meters, Petrokh can produce 1000 dedicated trucks/trailers among the 1000 trucks and trailers,
there are 300 trucks for special operations .The drilling machine take the private oil&gas exploitation market in China , export
to USA ,Yemen, Kazakhstan, Russia, Saudi Arabia , Mexico and other 160 countries as well .
Product name | Fracturing Truck |
Model | YLC2800A |
Place of Origin | China |
Dimension(L*W*H) | 12000X2500X4000mm |
Brand Name | PetroKH |
Weight | 43000KG |
Machine Parts

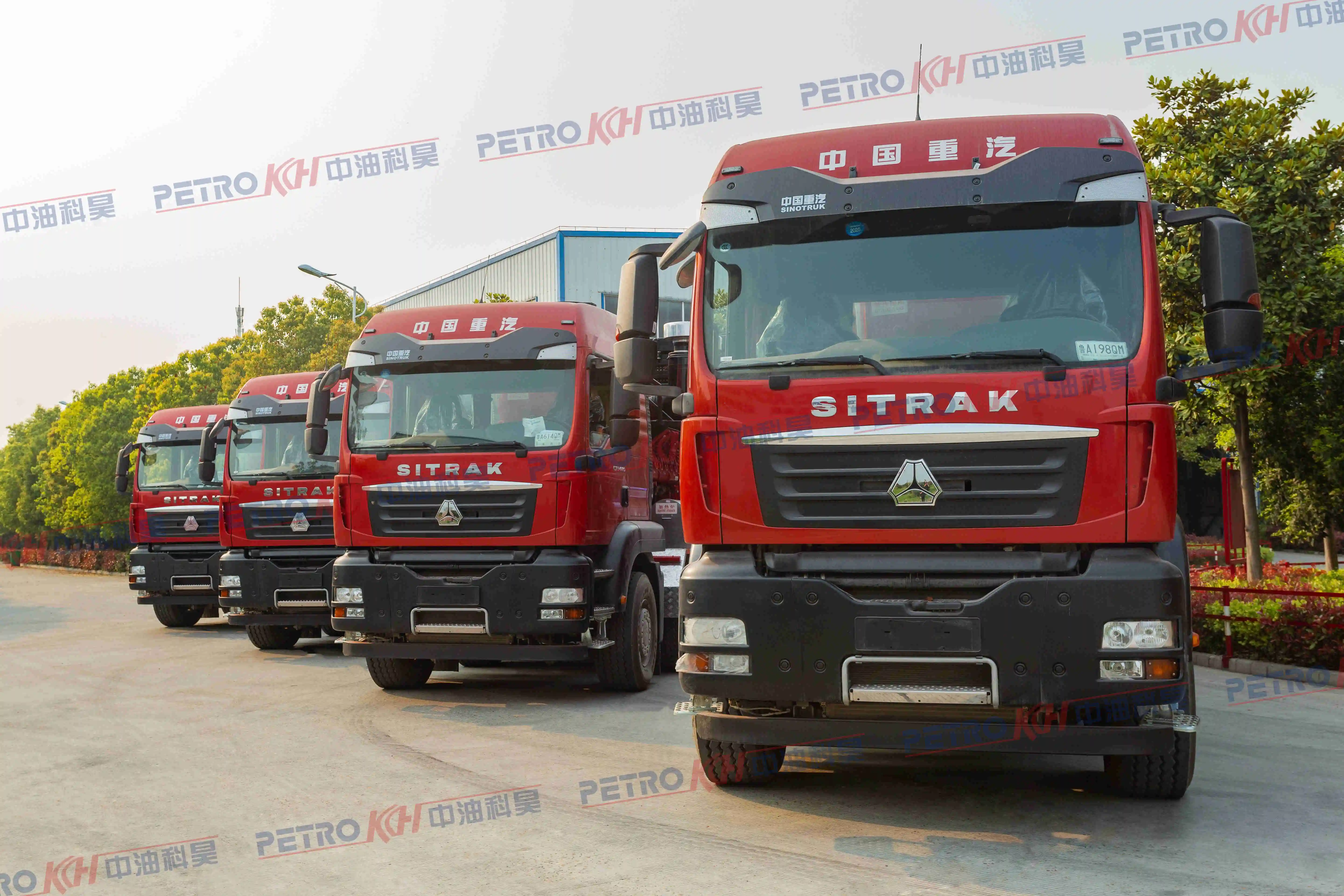

Name: Chassis
Brand: SITRAK
Original: China
Domestic famous plunger, strong driving force, low fuel consumption, high economic benefits.
Name: Chassis
Brand: SITRAK
Original: China
Domestic famous plunger, strong driving force, low fuel consumption, high economic benefits.
Main Features
Name: plunger pump
Brand: KH
Original: China
Domestic famous, strong driving force, low fuel consumption, high economic benefits.
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
1.Suitable for pumping operations for different fluids, including fracturing with prop frac fluid, acidizing, high pressure
pumping and pressure testing.
2.Remote control box, instrument van and network control technologies will ensure reliable and safety fracturing operations.
3.Equipped with double overpressure protection device.
pumping and pressure testing.
2.Remote control box, instrument van and network control technologies will ensure reliable and safety fracturing operations.
3.Equipped with double overpressure protection device.
Quality Control
Process control: process technology and process inspection shall be carried out
Hydrostatic pressure test: on high-pressure fluid components and issue test report
Running-in Test: Performance of High Pressure Plunger Pump
Conduct the combined test: on the whole vehicle (sledge)equipment (or skid unit) according to the test outline, and fill in the test outline record;
Company Introduction
Hubei Petrokh Machine Manufacturing Co., Ltd is located in Jiu Yang mechanical-electrical industries in Jingzhou Hubei province of China . We are mainly in researching, developing , manufacturing and selling the drilling units, well servicing equipments,cementing and fracturing units in gas and oil operation. Our company has more than 100000 ; machining center, general assembly workshop, paintingrooms, testing building areas and storing building areas. We own a passel of machining center and a passel of digital control equipments, gear hobbing machines, HOFLER Grind- ing machines,large Boring machines and other machine facilities with high quality,high- precision advanced , structural parts lines, trucks unit lines, assemble lines and etc. Those which could achieved 200 sets of truck units , 260 sets of plunger pumps assembly
and piston assembly , machine parts and structural parts 2600 tones per year. The cemen- -ting units and fracturing units provided by our company is all over the oil-field, shale gas field and coalbed-methane field.
and piston assembly , machine parts and structural parts 2600 tones per year. The cemen- -ting units and fracturing units provided by our company is all over the oil-field, shale gas field and coalbed-methane field.
Our Services & Strength
Our products are also getting into brine-exploitation field and geothermal- resouces exploitaton field. With 22730㎡ research-development center areas, 9700 ㎡ administrative center areas, We have over 75 intermediate- highprofessional title employees.
