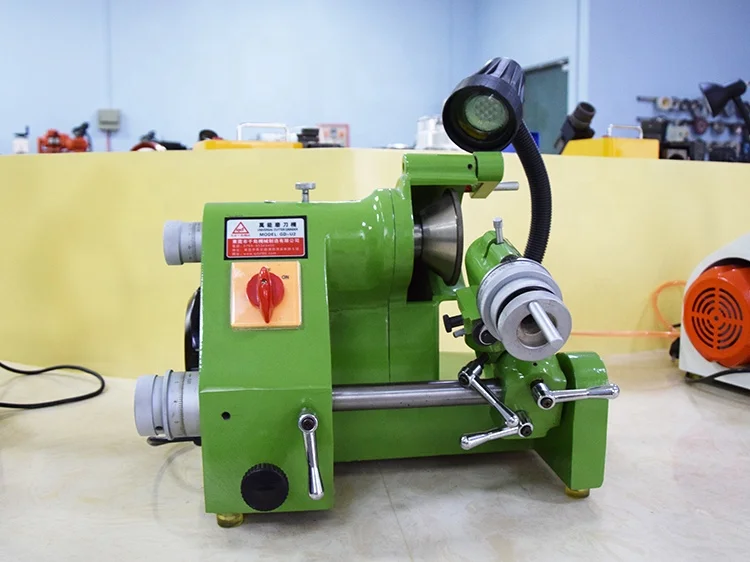

Горячая продажа GD-U2 оригинальная фабричная универсальная режущая шлифовальная машина
- Категория товара: Шлифовальный станок >>>
- Поставщик (Оптовый магазин): Dongguan,Qiandao,Precition,Machinery,Manufacture,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
universal drill and cutter grinder U2 universal manual tool cutter grinder
GD-U2 universal cutter grinder is necessary equipment for computer engraving machine and Engraving Milling machine and CNC center,it is specially designed for sharpening various diameters,angles of carving knives,straight shank cutter,engraving cutter and so on,it is with good precision,competive price,no skill request.
Specifications |
| ||
Grinding Wheel | Diameter | Φ100mm | |
Thickness | 50mm | ||
Hole diameter | Φ20mm | ||
Spindle speed | 5200rpm | ||
Max.clamping diameter | Φ3~16mm | ||
Longitudinal traver of index head carrier | 140mm | ||
Longitudinal adjustment travel of index head carrler | 18mm | ||
Spindle and wheel longltudinal adjustment travel | 6mm | ||
Taper angle range | 0~180° | ||
Negative taper angle range | 0~52° | ||
Relief angle range | 0~44° | ||
Moter | Power | 0.25kw | |
Speed | 2810rpm | ||
Voltage Three-Phase | 380V | ||
Voltage Single-Phase | 220V | ||
Frequency | 50Hz/60Hz | ||
Gross weight | 40kg | ||
Packing dimensions | 536*424*415mm | ||

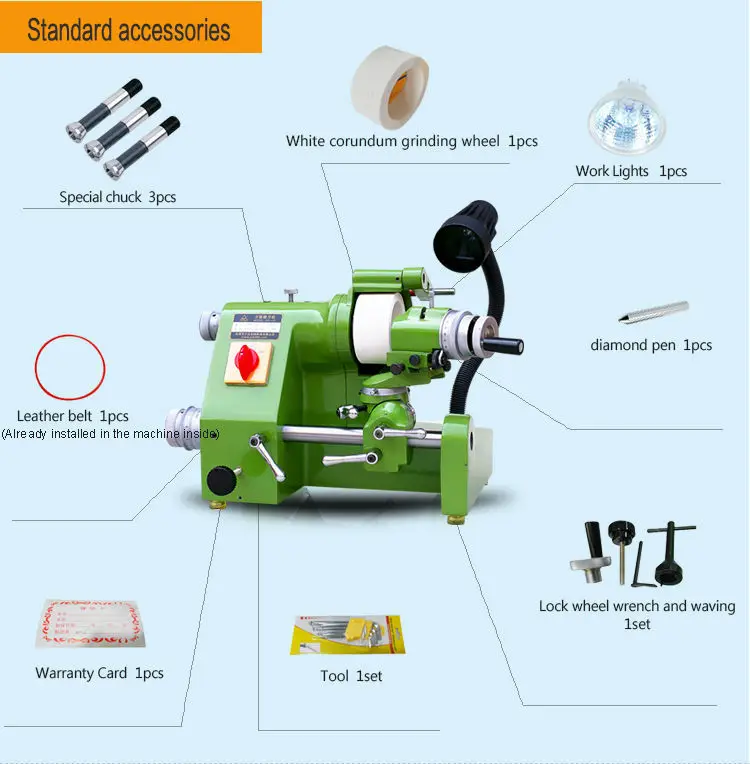

Standard Accessories | |||
Tools | 1 set | ||
Diamond Pen 0.25 karat | 1 pcs | ||
Lamp | 1 set | ||
Product features:
GD-U2 Universal Grinder is a necessary equipment for computer engraving machine and Engraving Milling machine and CNC center;
it is specially designed for sharpening various diameters,shapes,angles of carving knives,round knives,straight shank cutter,end mill,drill,lathe tool,engraving cutter and so on;
it is with good precision,competive price,on skill request.
For grinding HSS and carbide engraving cutter as well as single lip or multiple lip cutters of various
shapes such as radiused cutters or negative taper angle of cutters. The universal index head is
provided at 24 positions so that any particular angel or shape can be obtained, free 360 or 100

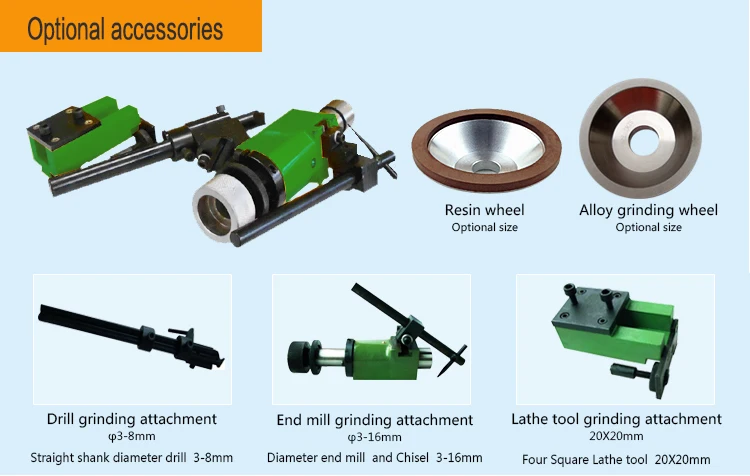

rotation is allowed for grinding End Mills. Twist Drill. Lathe Tools, only replace the attachment to
the index head without any complex setup.
Specifications | Standard Accessories |
Max. Collet Capacity Φ16mm | Adjustable diamond wheel dresser 1 set |
Taper angle fo 0°~ 180° | Wheel flange(mounted) 1pcs |
Relief angle 0°~ 45° | Grinding wheel PA100#(φ20mm) 1pcs |
Negative angle 0°~ 26° | Colletφ4,6,8 3pcs |
Wheel speed 5200 r.p.m | Drive belt 1pcs |
Cup-shaped grinding wheel size 100*50*20mm | Lock pin 1pcs |
Motor Power 0.55kw 220V/50Hz/380V | Lamp 1pcs |
Net Weight 60kgs | Tools 1set |
Machine Specification 45*40*35cm | Aligning finger &nb |
