DZ41 500C SW102 Bafang BBS01 BBS02 M500 M600 дисплей
US $25.00-$45.00
Ручка управления дроссельной заслонкой для электрического велосипеда мотоцикла ручка с ЖК-дисплеем и блокировкой кнопки питания
- Категория товара: Other Electric Bicycle Parts >>>
- Поставщик (Оптовый магазин): Yiwu,New,Trends,Im&Ex,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

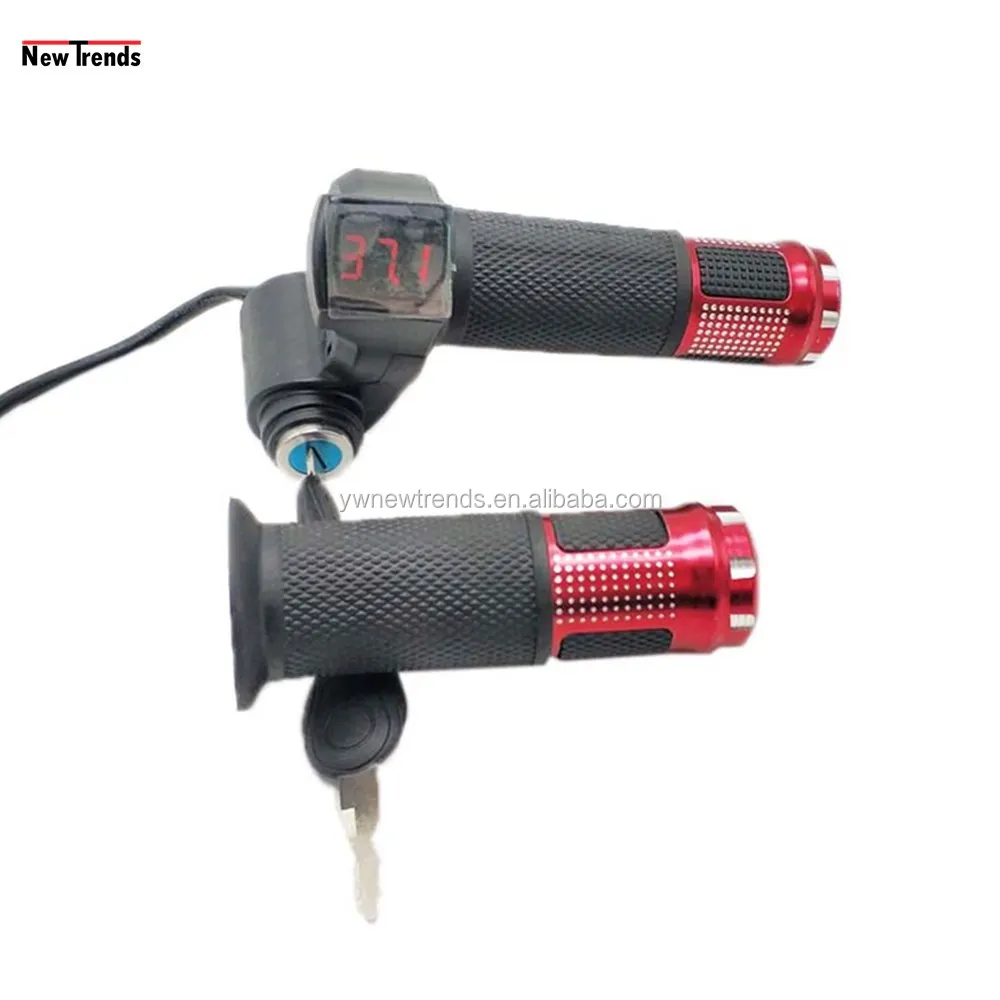

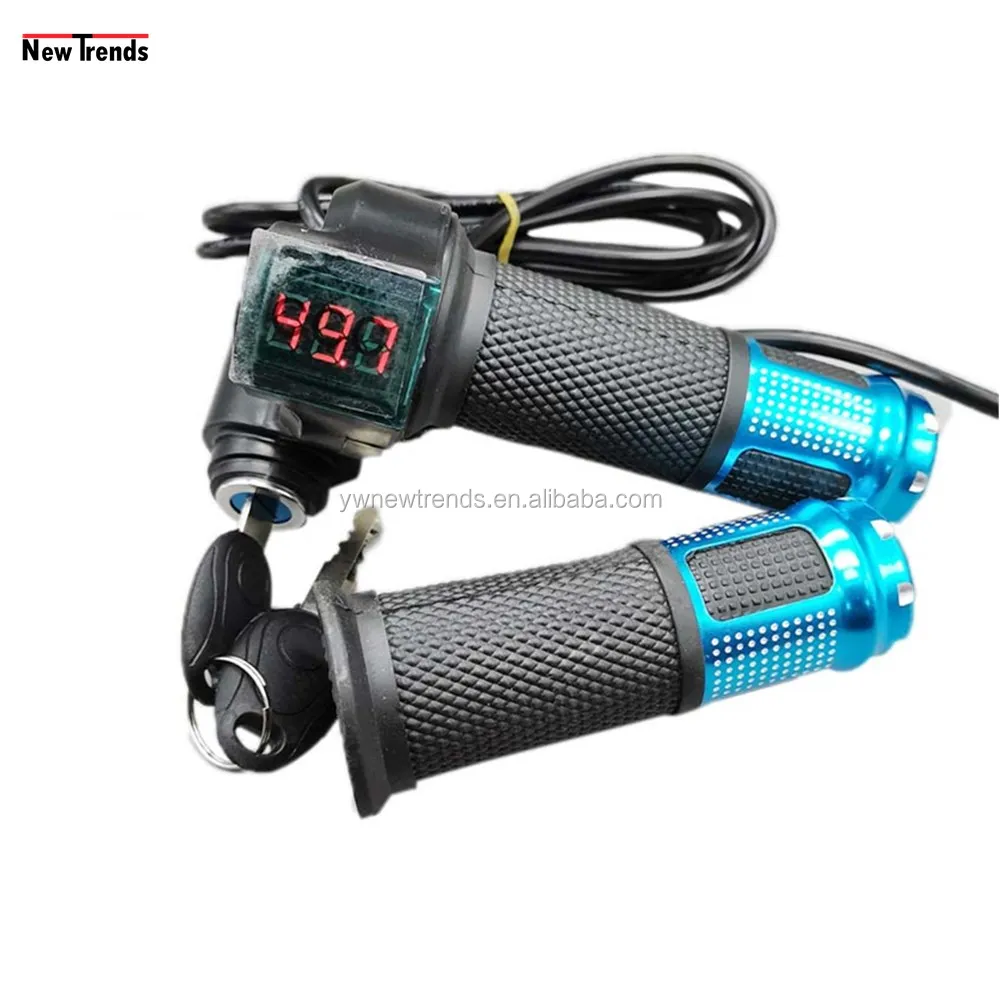

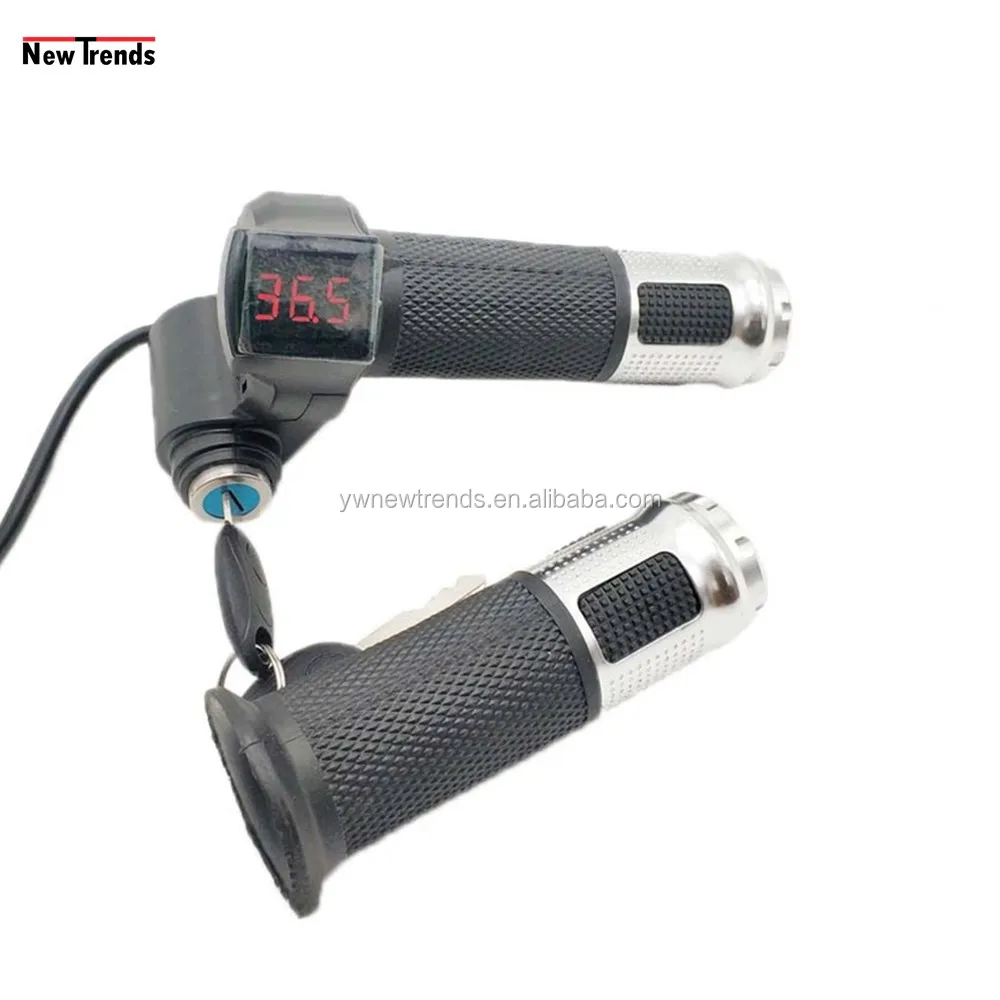

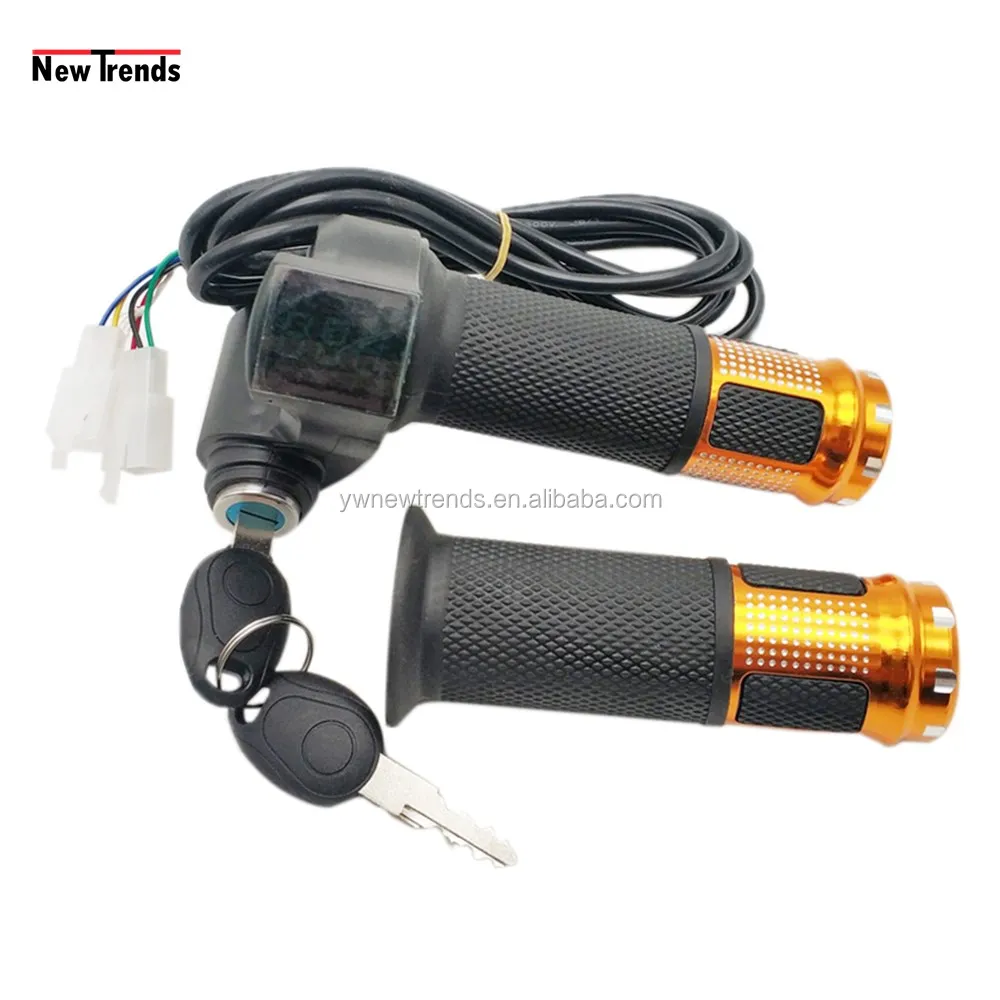

Electric Bike Motorcycle Throttle Driving Handle Bar Grip Handle with LED Display Indicator and Power Key Lock
Name | Voltage Display Throttle |
Features | Speed regulation |
Function | Power Lock |
Application | Universal |
Battery | Lead Battery ,Lithium Battery water battery, dry batter and so on |
Color | Orange Red Blue Silver |
Usage | Electric bicycle, (electric cars, scooters, motorcycles) |
Wiring instructions
The above is common wiring way, if need made to order please connect with salesperson.
Battery common sense:
For this display Battery is measured by voltage. this throttle can work for any electric bike under 84v with lead acid battery,lithium battery, water battery, dry batter and so on. The throttle with automatically identify voltage. Due to the difference of battery material, battery conditions ( new or old, ),controller data , the battery voltage reaction will be different, so the data bellow will have deviation. Customers please check according to your battery to get your battery data.
For 12v electric bike, max voltage is about 12.6v, mini is about 9v or higher
For 24 electric bike, max voltage is about 29.4v, mini is about 21v or higher
For 36v electric bike, max voltage is about 42v, mini is about 29v or higher
For 48v electric bike, max voltage is about 54.6v, /58.8v, mini is about 40v or higher
For 60v electric bike, max voltage is about 72v, mini is about 49v or higher
For 72v electric bike, max voltage is about 84v, mini is about 60v or higher
For other electric bike with higher voltage there should be a voltmeter installed.
How to maintain the lithium battery:
Since lithium battery has different materials (The ternary lithium battery, lithium manganate battery, lithium iron phosphate battery) so we cannot give exact number to measure the balance battery level. Customers please measure the remaining battery level according to your battery indication and max voltage number. Usually please charge when there is 30% left, and please finish charging when reach to 80% of battery. This is best for battery. Any lithium battery has no memory, you can charge anytime, use
anytime, that will not influence the life of battery. Please donot overcharge or overdischarge. Please totally charge and discharge for every two month, that will maintain the battery at max.
Green is for throttle hall signal, red wire is for throttle +5v, black is negative wire; (please connect according to controller function wire, can not just match same color wire, if wrong connected that will damage your controller and throttle.)
4 wires : yellow is for voltage display wire, connect with electric bike power positive.
5 wires: blue wire connect with controller power lock output wire, yellow wire connected with controller electric switch input wire power positive.
6 wires ; yellow connected with power positive, blue wire and white is is function wire(can work as reverse switch, horn switch,cruise switch, power lock and so on)
7 wires: yellow connected with power positive, blue is share wire, middle gear for 3 gears , white is high gear, brown is low gear.
4 wires : yellow is for voltage display wire, connect with electric bike power positive.
5 wires: blue wire connect with controller power lock output wire, yellow wire connected with controller electric switch input wire power positive.
6 wires ; yellow connected with power positive, blue wire and white is is function wire(can work as reverse switch, horn switch,cruise switch, power lock and so on)
7 wires: yellow connected with power positive, blue is share wire, middle gear for 3 gears , white is high gear, brown is low gear.
The above is common wiring way, if need made to order please connect with salesperson.
Battery common sense:
For this display Battery is measured by voltage. this throttle can work for any electric bike under 84v with lead acid battery,lithium battery, water battery, dry batter and so on. The throttle with automatically identify voltage. Due to the difference of battery material, battery conditions ( new or old, ),controller data , the battery voltage reaction will be different, so the data bellow will have deviation. Customers please check according to your battery to get your battery data.
For 12v electric bike, max voltage is about 12.6v, mini is about 9v or higher
For 24 electric bike, max voltage is about 29.4v, mini is about 21v or higher
For 36v electric bike, max voltage is about 42v, mini is about 29v or higher
For 48v electric bike, max voltage is about 54.6v, /58.8v, mini is about 40v or higher
For 60v electric bike, max voltage is about 72v, mini is about 49v or higher
For 72v electric bike, max voltage is about 84v, mini is about 60v or higher
For other electric bike with higher voltage there should be a voltmeter installed.
How to maintain the lithium battery:
Since lithium battery has different materials (The ternary lithium battery, lithium manganate battery, lithium iron phosphate battery) so we cannot give exact number to measure the balance battery level. Customers please measure the remaining battery level according to your battery indication and max voltage number. Usually please charge when there is 30% left, and please finish charging when reach to 80% of battery. This is best for battery. Any lithium battery has no memory, you can charge anytime, use
anytime, that will not influence the life of battery. Please donot overcharge or overdischarge. Please totally charge and discharge for every two month, that will maintain the battery at max.
FAQ
Q: What is your payment terms?
A1: When order amount less 5000USD, 100% TT Advance.
A2: When above 5000USD, 50% deposit,balance before shipment by TT.
A3: Except the TT, we also accept L/C,Western union, paypal, moneygram.
Q: What is your delivery time?
A1: For stock items, delivery time around 7days;
A2: For small order common item, delivery time around 7-15days;
A3: For Mass order common item, delivery time around 20-30days;
A4: For special making item, per the real situations discussed with our sales person.
Q: Can you offer OEM or ODM?
A:Yes,we can! But we need client offer clear drawing or sample.
Q: Can you company offer door to door service?
A:Yes,we can offer the door to door service not only express,also sea shipment.
A1: When order amount less 5000USD, 100% TT Advance.
A2: When above 5000USD, 50% deposit,balance before shipment by TT.
A3: Except the TT, we also accept L/C,Western union, paypal, moneygram.
Q: What is your delivery time?
A1: For stock items, delivery time around 7days;
A2: For small order common item, delivery time around 7-15days;
A3: For Mass order common item, delivery time around 20-30days;
A4: For special making item, per the real situations discussed with our sales person.
Q: Can you offer OEM or ODM?
A:Yes,we can! But we need client offer clear drawing or sample.
Q: Can you company offer door to door service?
A:Yes,we can offer the door to door service not only express,also sea shipment.
