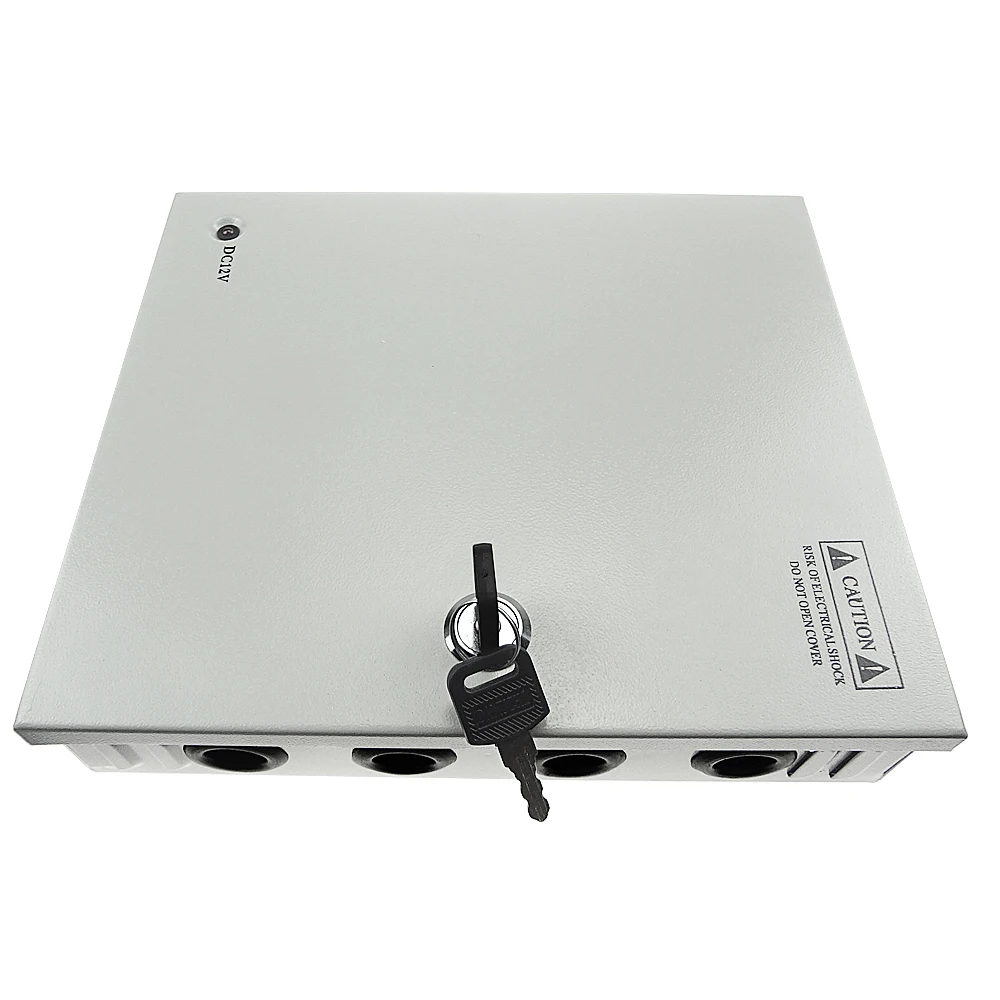

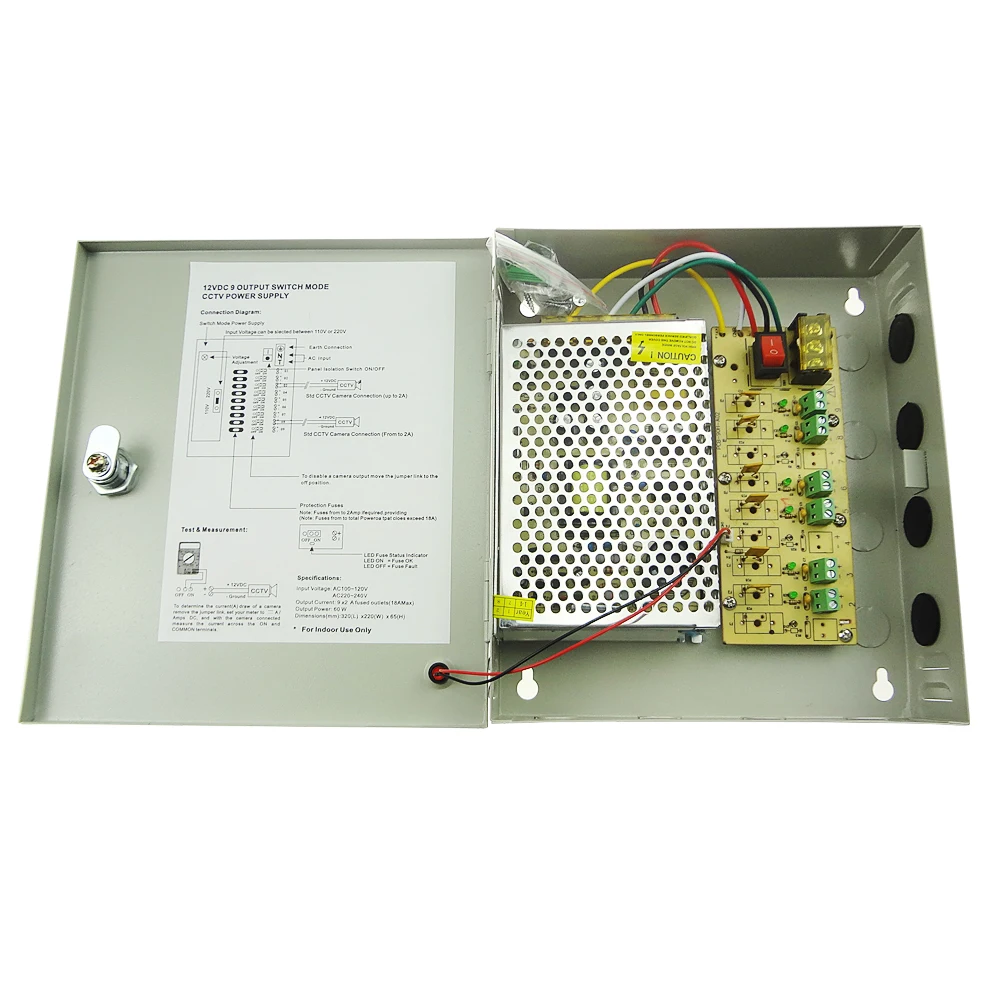

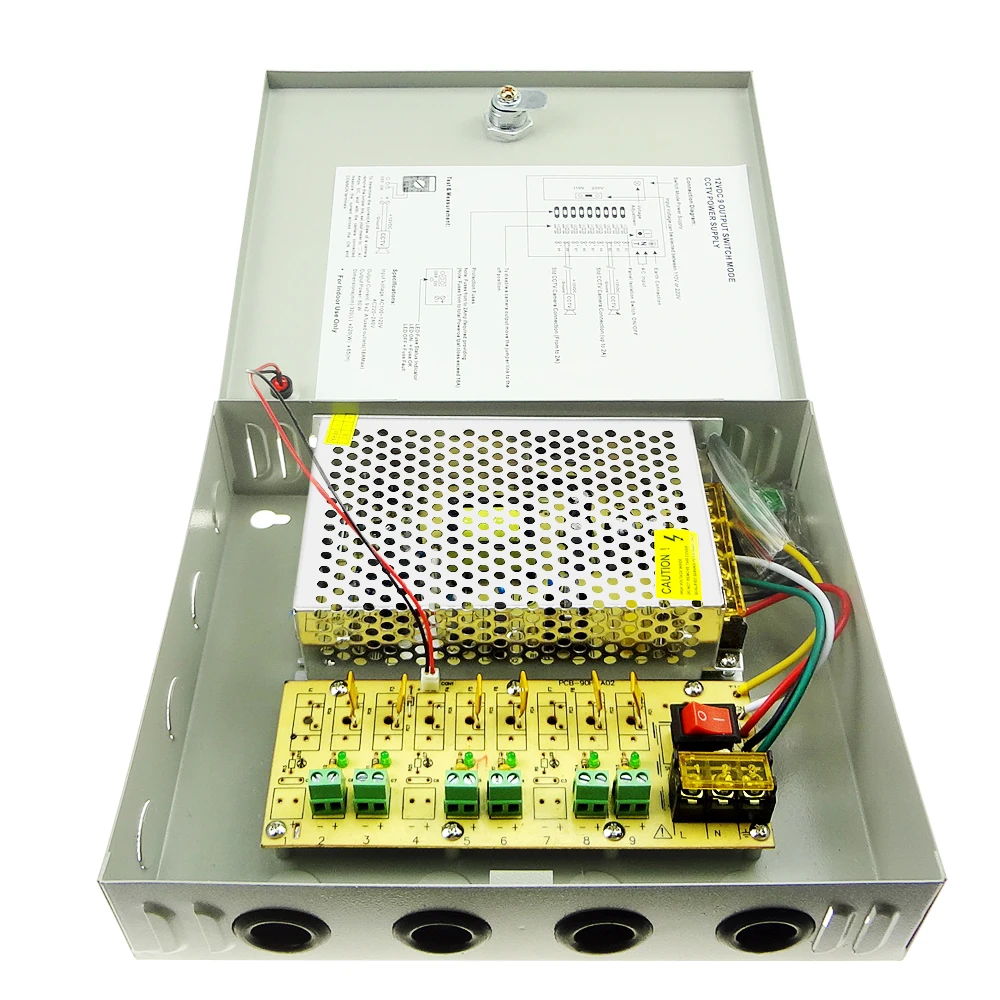

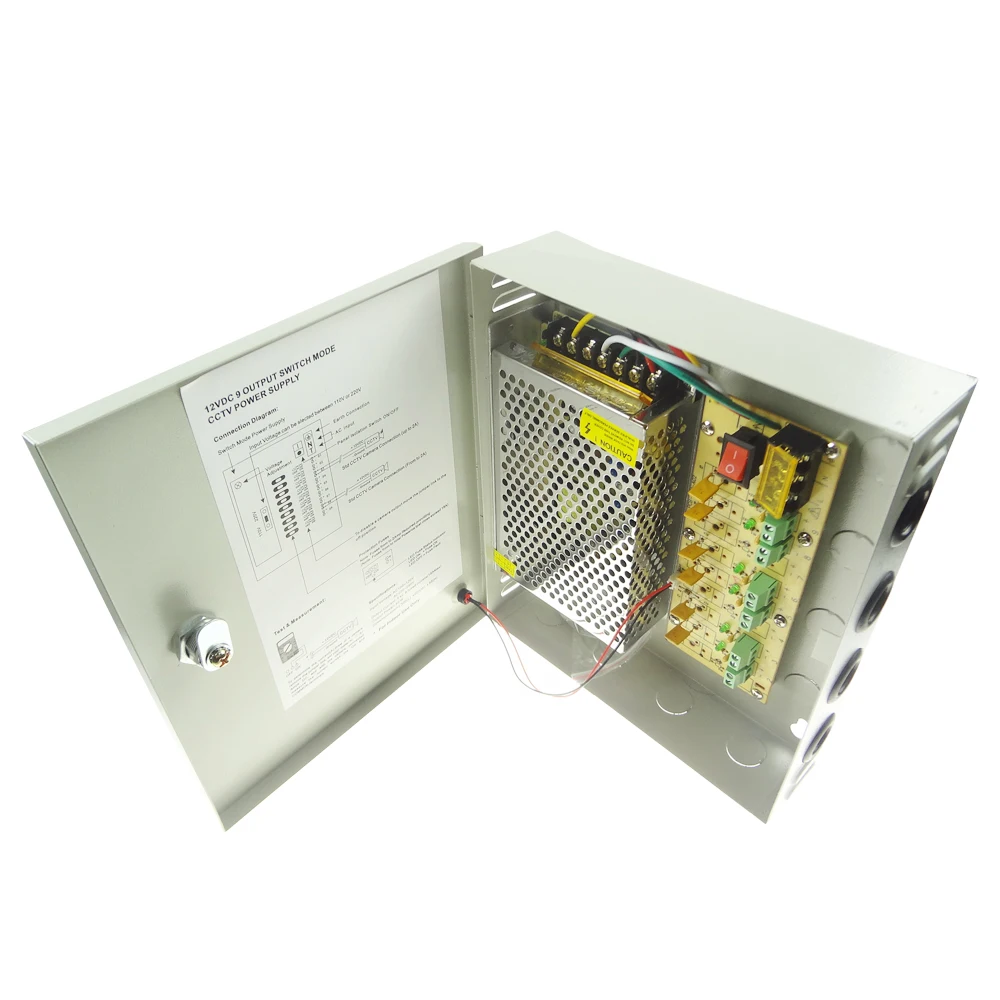

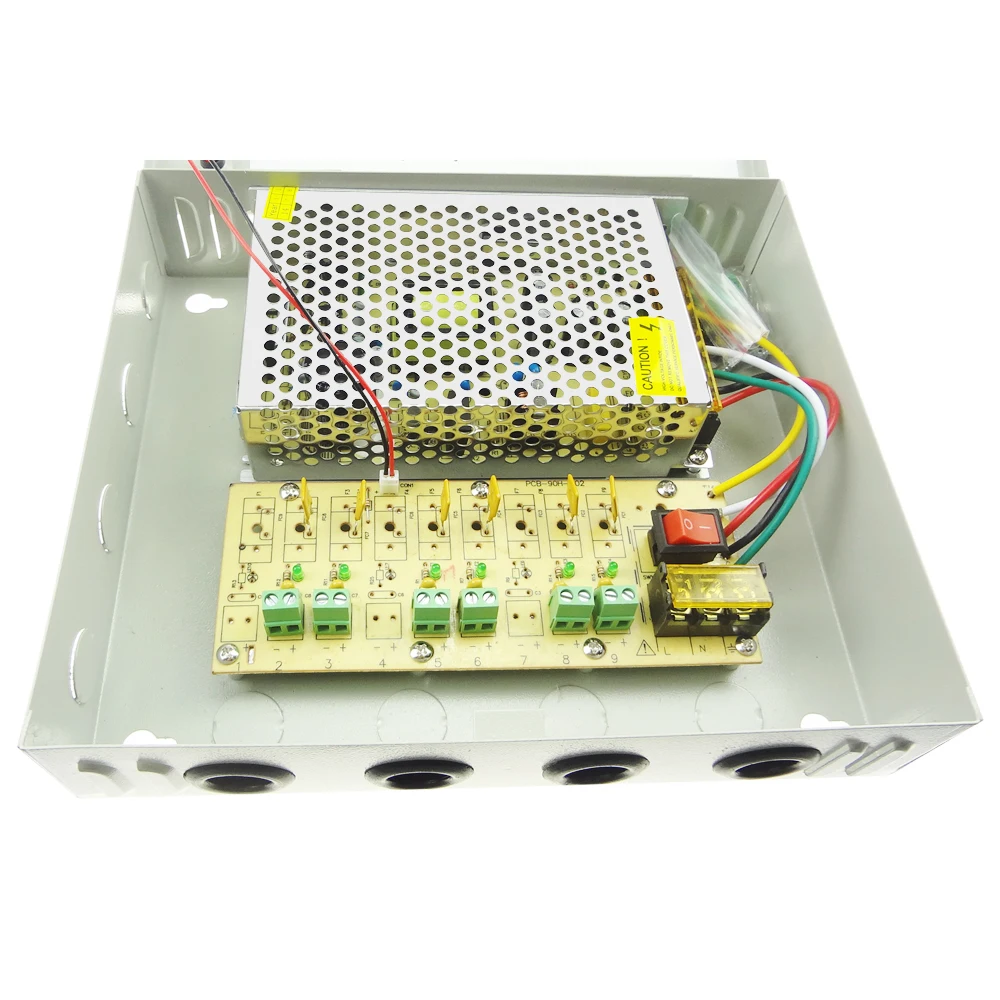

Блок питания для камеры видеонаблюдения, 60 Вт, 12 В постоянного тока, 5 А, 6 каналов

Specifications

Features:
>> 110V/220V ON/OFF switch, Lockable
>> Each channel with fuse or PTC for protection, spare fuses included
>> Stable performance, high efficiency, low power consumption
>> AC power LED indicator
>> Cooling by free air convection
>> 100% full loading burn-in test
>> Unit maintains camera synchronization
>> Easy installation saves time and eliminates costly labor
>> 1 year warranty

MODEL NO

YDSBOX12-60-6

YDSBOX12-180-9

YDSBOX12-360-18

Input& Output

Input Voltage: AC 100~120V/AC 220~240V

DC VOLTAGE

12V

12V

12V

OUTPUT POWER

60W

180W

360W

Channels

6CH

9CH

18CH

Output Current

6*2 A fused outlets(18A Max)

9*2 A fused outlets(18AMax)

18*1.5ma Fused outlets (30A Max)

Max. Ripple & Noise

250mV

Load Regulation

±5%

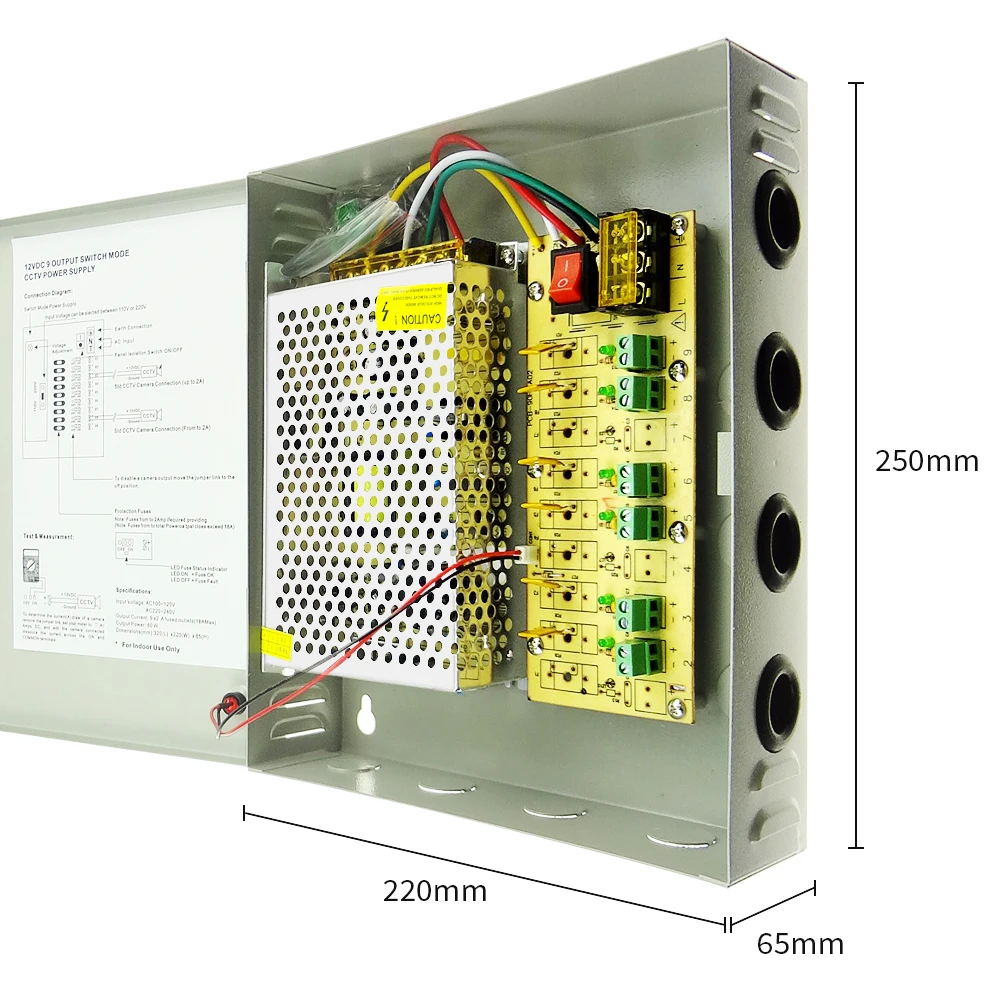

Dimensions(mm)

250(L)*220(W)*65(H)

250(L)*220(W)*65(H)

335(L)*235(W)*75(H)

Weight(KG)

1.4

1.62

2.3

Environment

Operating Temperature

0°C~40°C

Storage Temperature

(-)20°C~+85°C

Operating Relative Humidity

5%~95%RH

Protection:

Circuit Short Protection, High Voltage Protection, Over Current Protection, Over load Protection

SAFTY & EMC

Safety Standards

EN55015/EN61000-3-2/EN61000-3-3

Notes:

For Indoor Use Only!

Application

1.Digital and electronic products

2.LED, CCTV supervisory system

3.CCTV monitoring camera
