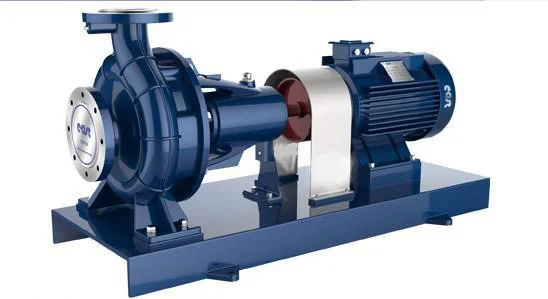

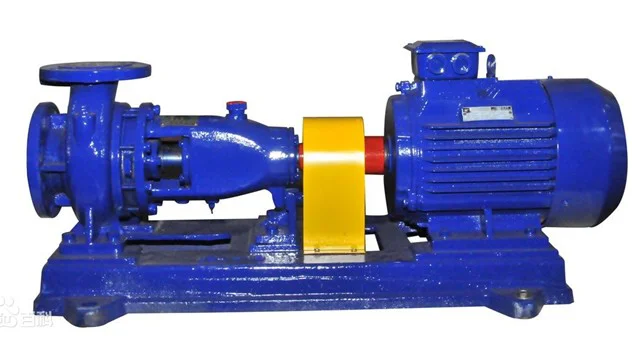

Я S Горизонтальный одноступенчатый одновсасывающий центробежный насос

 I S horizontal single - stage single - suction centrifugal pump

Product overview:

IS single-stage single-suction (axial suction) centrifugal pump, IS a national joint design of energy-saving pump, it IS the BA type B type and other single-stage single-suction centrifugal pump more new single-stage single-suction centrifugal pump advantages: full series of hydraulic performance layout reasonable, wide user selection range, easy maintenance;This type of pump is suitable for industrial and urban water supply and drainage, also can be used for agricultural irrigation and drainage and for conveying clean water or other liquids with similar physical and chemical properties. The temperature is not high 80 degree

IS, IR pump IS horizontal single - stage single - suction clean water centrifugal pump, used for industry, agriculture and urban, drainage, fire water supply, etc.For suction and delivery of clean water and similar physical and chemical properties of water without solid particles of liquid.It is widely used in industry, agriculture, urban drainage, fire water supply and so on.The IS and IR pumps are designed according to the performance and dimensions stipulated in the international standard IS02858, and their technical standards are close to the international standard, reaching the international advanced level.It is one of the energy-saving pump products popularized in China.This pump has simple structure, reliable performance, small volume, light weight, good cavitation resistance, low power consumption, easy to use and maintain.IS and IR pumps have wide versatility. The whole series has 140 specifications, but only four shafts.The shaft, bearing and shaft seal of the same specification can be interchangeable;There are only four kinds of suspension for the whole series of pumps.Pump speed is divided into 2900 and 1450 RPM two kinds.The performance is as follows: 2900 RPM/min 1450 RPM large flow rate: 240 m 3 / min 400 m 3 / min high total head: 125 m 55 m high speed: 3500 RPM (for 60 wave adjusting power supply, the impeller diameter is reduced) High working temperature: 80℃ allowed suction line pressure 0.3MPa, the pump high working pressure 1.6MPa.

Product features:

1.IS type single stage single suction centrifugal pump according to the international standard ISO2858 specified performance and size design, mainly by the pump body pump cover impeller shaft seal ring shaft sleeve and suspension bearing, etc

2. IS type single-stage single-suction centrifugal pump, the pump body and pump cover part of the from dissection of the impeller, known as the door structure form its advantages are simple maintenance, repair the pump body, suction pipe, the discharge line and motor, simply remove the lengthened coupling in the middle of the connecting parts, to withdraw from the rotor parts for maintenance

3. Pump housing (that is, the pump body and the pump cover) pump impeller shaft and rolling bearing for the pump rotor suspension bearing components supporting the pump rotor part, rolling bearing by the pump radial force and axial force

4. In order to balance the axial force of the pump, most of the impeller front and rear are equipped with a seal ring, and in the impeller rear cover with a balance hole, because some pump axial force is not big, impeller back without a seal ring and balance hole

5. Pump axial sealing ring is made by packing gland, packing ring and packing, etc, in order to prevent the air intake or a large number of water pump impeller balance, if any, is equipped with soft packing cavity and impeller inlet are interlinked, such as the entrance to the impeller liquid in the vacuum state, then it is easy to along the inlet shaft sleeve surface, therefore in the packing chamber equipped with packing ring through the small hole on the pump cover, the interior pressure water pump to packing ring seal of pump impeller, such as no balance hole, due to the liquid pressure is greater than the atmospheric pressure on the back of the impeller, so there is no leak problem, so don't put packing ring

6. In order to avoid shaft wear, a shaft sleeve is installed at the part of the shaft passing through the packing chamber. There is a quasi-O-ring between the shaft sleeve and the shaft to prevent air intake or water leakage along the matching surface

7. The driving mode of the pump is connected with the motor by an extended elastic coupling. The rotation direction of the pump is clockwise from the driving end

Model significance:

For example:IS80-65-160A

IS- single stage single suction clean water centrifugal pump

80-  Suction diameter (mm)

65- Outlet diameter (mm)

160-Nominal diameter of impeller (mm)

 A- Impeller cutting mark

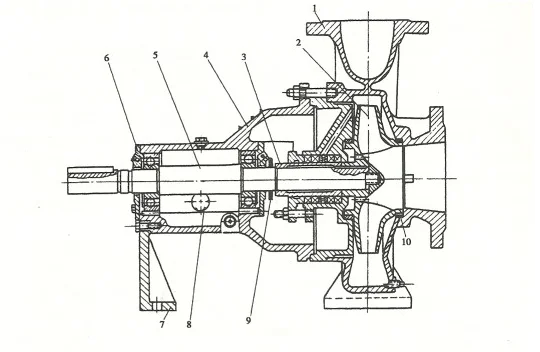

1—Pump body  2--- The impeller  3---Shaft sleeve   4---Bearing body  5---shaft

6---Bearing end cover  7---stents  8---Oil standard  9---Against hydrosphere  10---Sealing ring

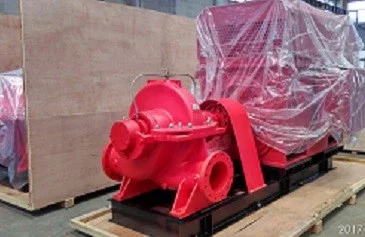

1. All of our Shrek pump are packed by the standards plywood box complied with the exportation requirement;
