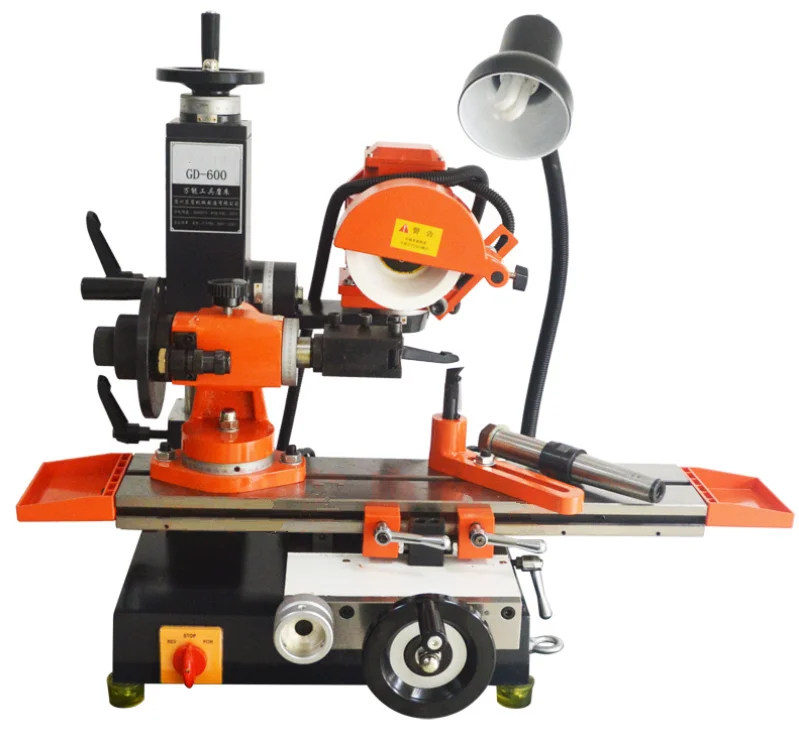

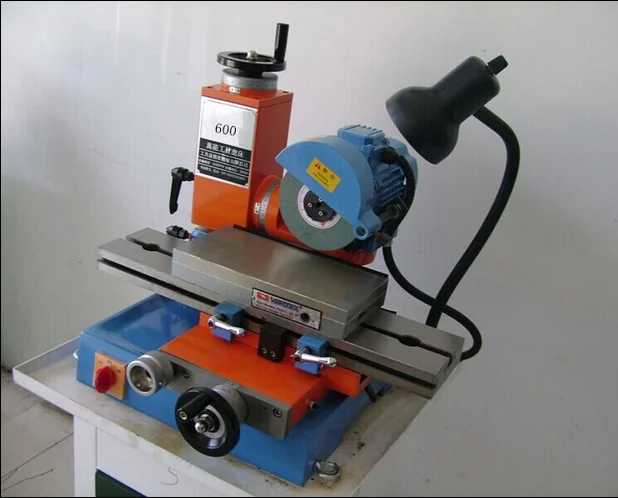

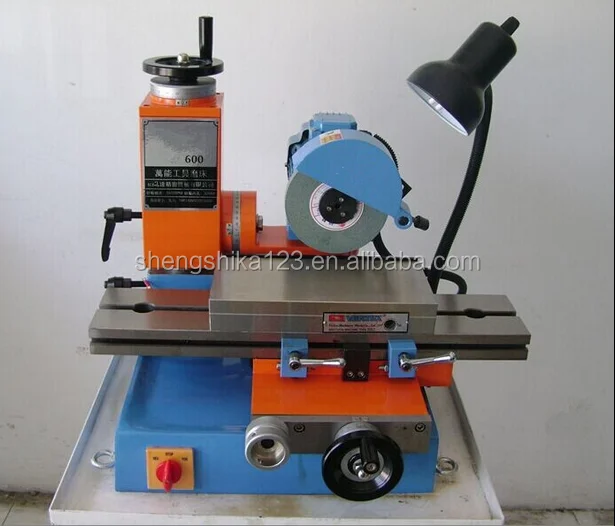

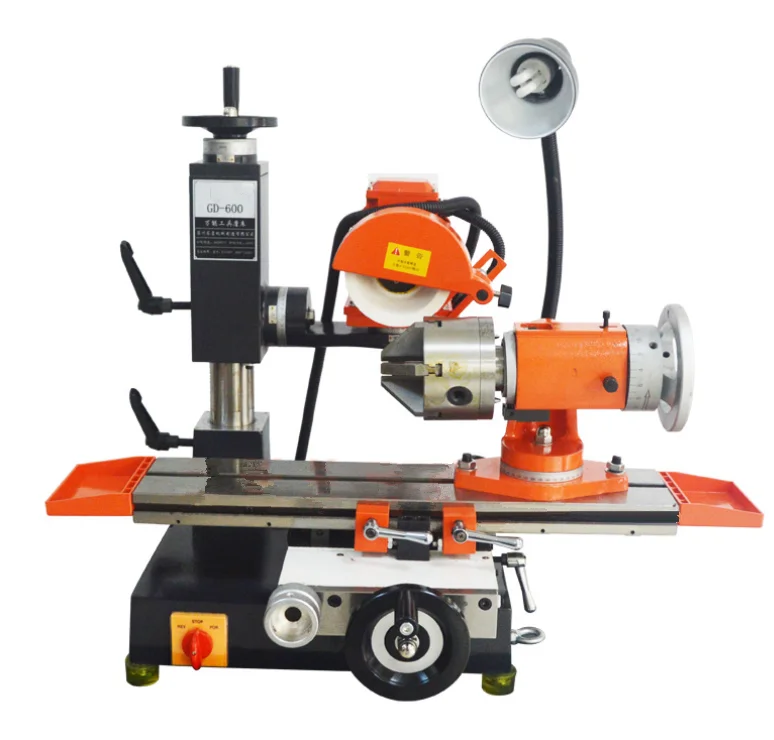

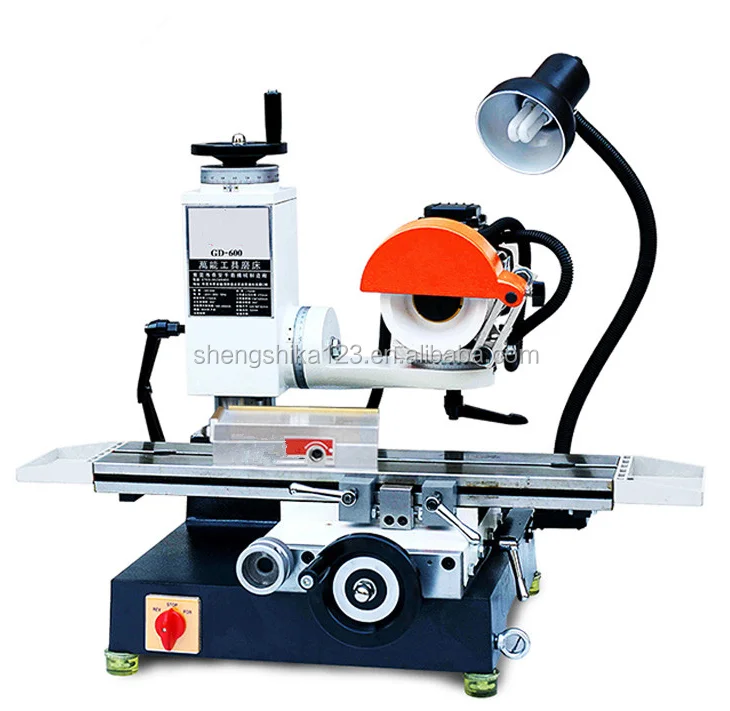

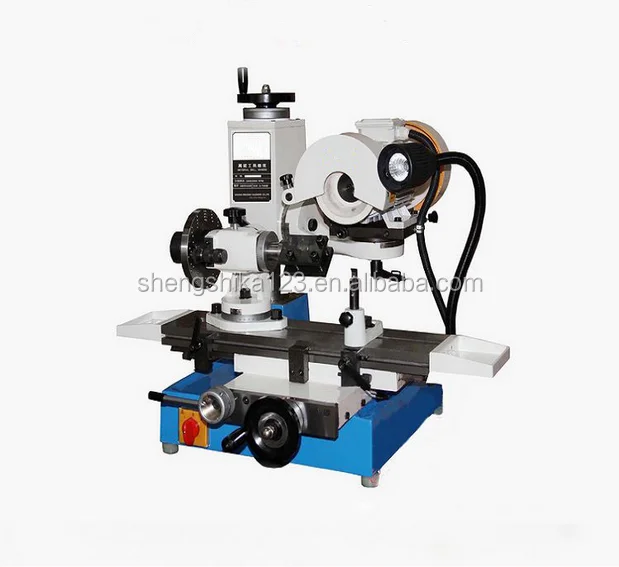

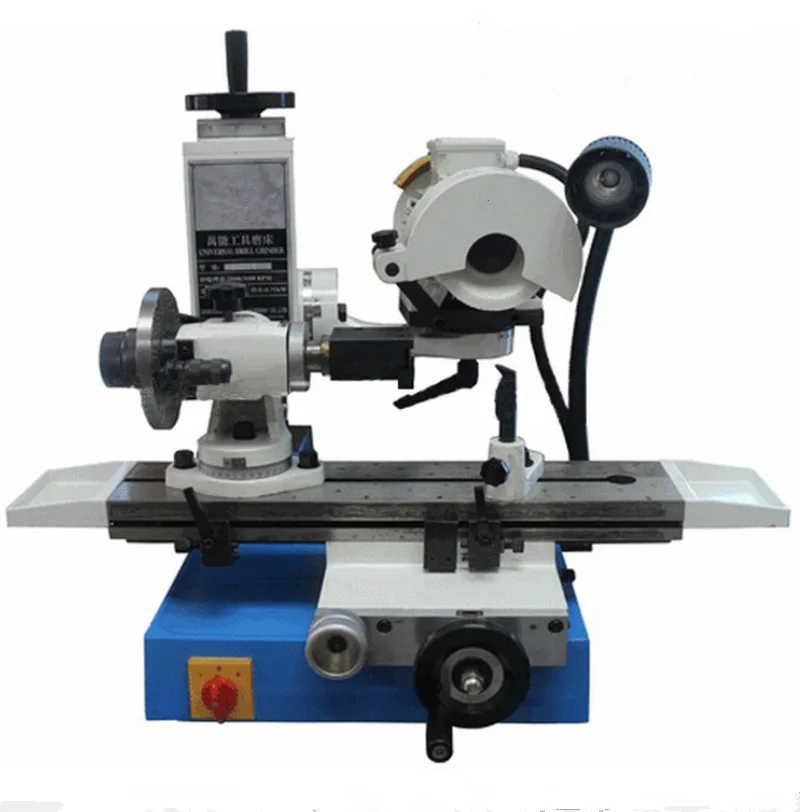

160 кг 220/380 В шлифовальный станок с максимальным диаметром шлифования 120 мм
- Категория товара: Внутренние шлифовальные станки >>>
- Поставщик (Оптовый магазин): Shenzhen,Shengmingfa,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
1.This machine applies to grind high-speed steel, carbide cutting tools and other materials.
2.With variety of accessories, can be used to grind: forming tools, end mills, face mills, R-type cutter, cylindrical milling cutter, cutter blade on three sides, single angle of milling cutter, reamer, cutters, R-type sharper, rolling cutter, drill, tap, engrave powerful cutting tools, chamfer knife, round cutters, cylindrical, face grooves, forming noodles.
3.The operating table adopts the imported high precision liner ball side rail which can ensure the table stabilization and easy to operate.
4.Motor can be rotated 360°.
5.High FC30 cast iron, to maintain a permanent mechanical precision.
6.The maximum linear speed of grind wheel is 40m/s.
Model | GD-600 |
Horizontal travel of the operating table | 270mm |
Longitudinal travel of the operating table | 170mm |
Area of the operating table | 130*520mm |
Elevating distance of wheel head | 120mm |
Rotating angle of wheel head | 360° |
Grinding wheel size | 125*50*32mm |
Speed of grinding wheel | 3600rpm |
Horse Power and voltage of motor | 220V,380V/50Hz,60Hz |
Packing size | 700*630*630mm |
G.W | 160kg |
Company Information
Shenshika is Located in Shenzhen City of China, we are the exclusive sole representative agent in China for Injection Machine, CNC, Grinding Machine, Milling Machine,EDM spark machine and Drilling Machine etc.. And selling the same second-hand machines to over 30 countries with 100% guaranteed quality and good reputation since 2010. We usually buy in secondhand machines from bankcrupt/ closed-down factories. We have a mature and stable supply chain in China and Hongkong. We exam machines and control quality very strictly. We swear that every machine you'll receive from us can work well in good condition..
