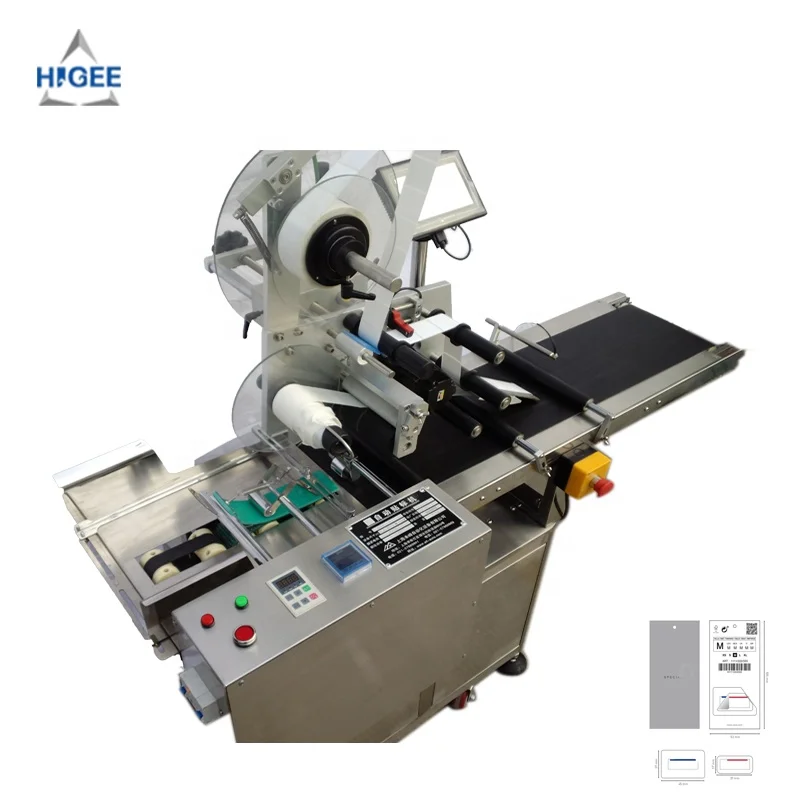

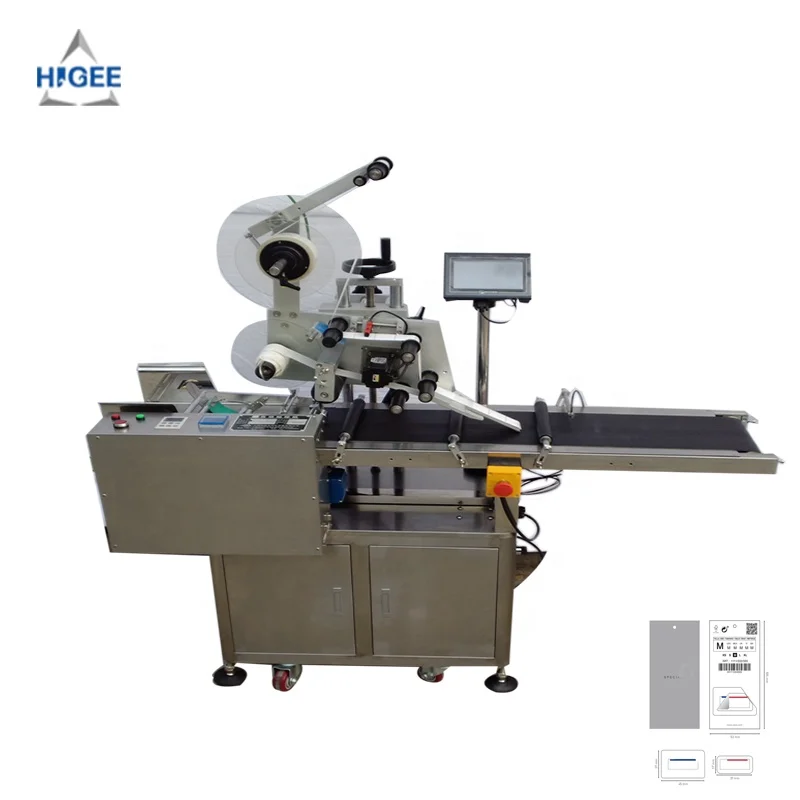

Аппарат для нанесения этикеток на Плоские наклейки аппарат царапины аппликатор Верхнюю
- Категория товара: Машины для этикеток >>>
- Поставщик (Оптовый магазин): Higee,Machinery,(Shanghai),Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Automatic tag sticker labeling machine card label applicator |
| Product Description |
Model HAP200-03 sticker labeling machine labels stickers on the top of card. Double-headed piggy back label machine labels two stickers on the tag. Match 1 head labeling, 2 heads of labeler, or 3 heads, Then label 1 sticker, 2 stickers or 3stickers on the bag, top sides etc.
Application
This Siemens PLC HAP200 20-200pcs per minute plastic bag self adhesive sticker labeling machine with CE certification is applicable for all kinds of flat objects such as food, chemical, pharmaceutical, cosmetic, stationery, CD disc, carton, box and various oil kettles etc. This Siemens PLC HAP200 20-200pcs per minute plastic bag self adhesive sticker labeling machine with CE certification is for flat side labeling. Automatic cap labeling machine.
Features
| Operation | PLC control system makes labeling machine easy to operate |
| Material | Labeling machine's main body is made of SUS304 stainless steel |
| Configuration | Our labeling machines adopt well known Japanese, German, American, Korean or Taiwan brand parts |
| Flexibility | Client can chose to add printer and code machine; can chose to connect with converyer or not. |
Technical Parameters
| Name | Automatic sticker labeling machine. |
| Labeling Speed | 100pcs/min |
| Height of Object | 30-200mm |
| Thickness of Object | 20-200mm |
| Height of Label | 15-110mm |
| Length of Label | 25-300mm |
| Label Roller Inside Diameter | 76mm |
| Label Roller Outside Diameter | 350mm |
| Accuracy of Labeling | ±0.8mm |
| Power Supply | 220V 50/60HZ 0.75KW |
| Gas Consumption of Printer | 5Kg/m2(if add coding machine) |
| Size of Labeling Machine | 1600(L)×550(W)×1600(H)mm |
| Weight of Labeling Machine | 150kg |

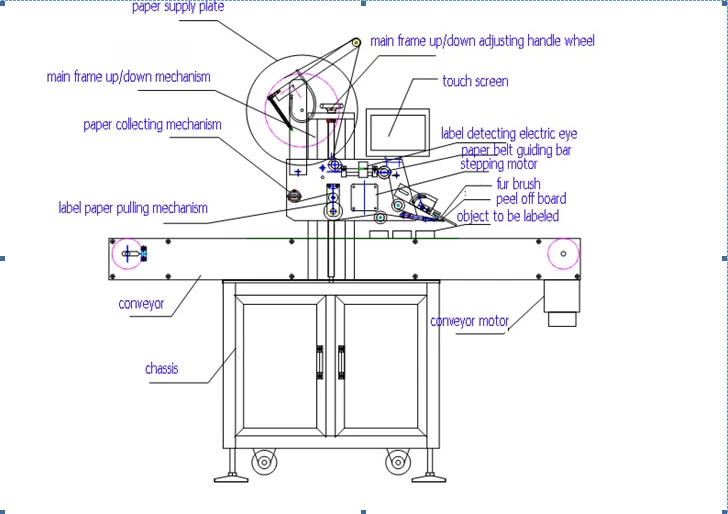

Apperance figure
Circuit diagram
Details show

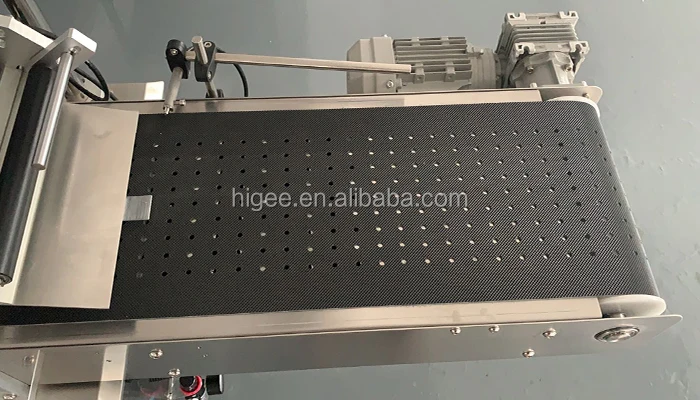

Suction conveyor for to side labeling machine

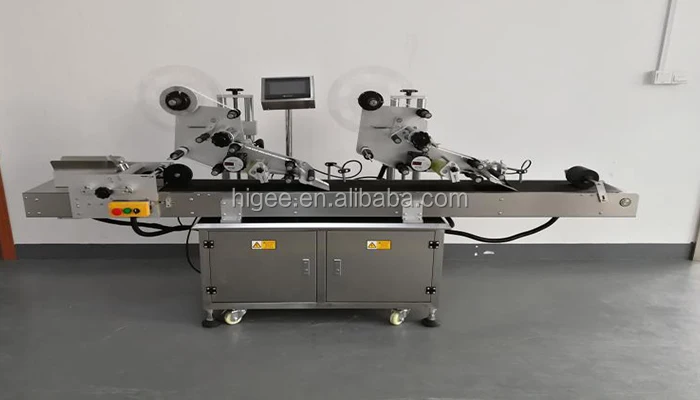

Double-headed piggy back label machine

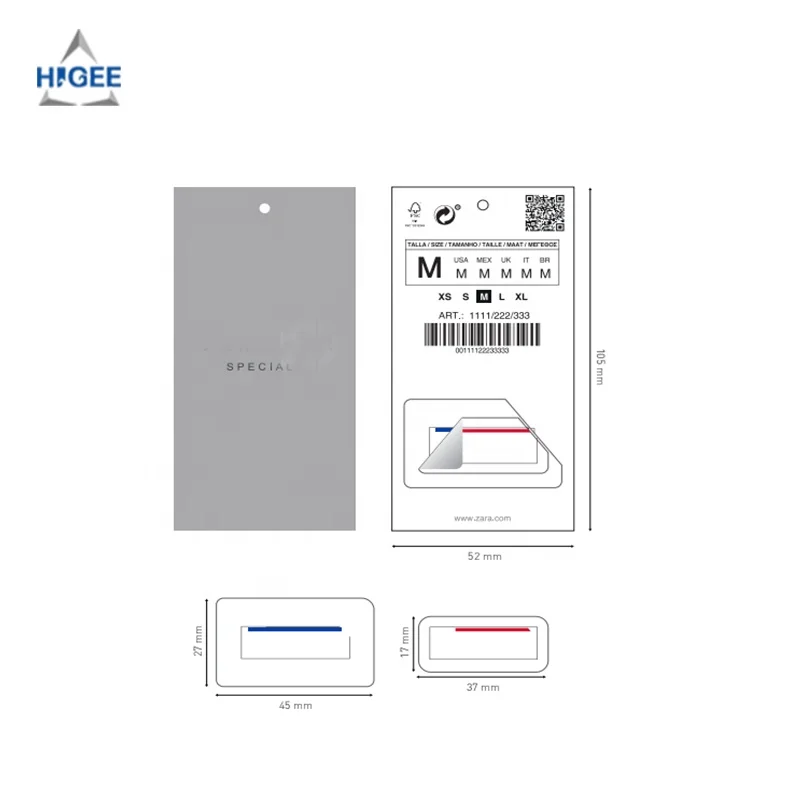

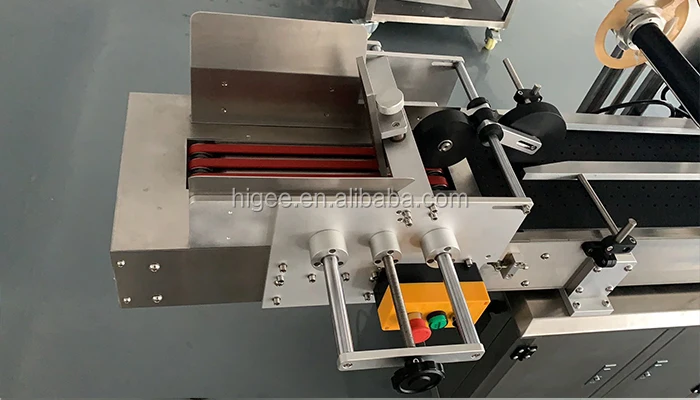

Tag feeding for double stickers labeling applicator

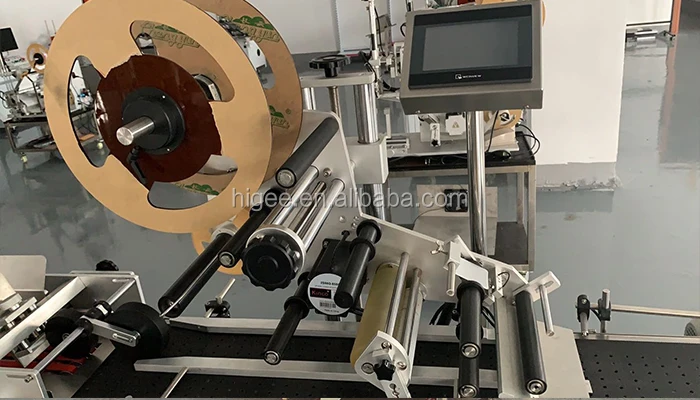

Label head
- Port: Shanghai
- Packaging details: wooden case export packing
- Delivery detail: Normally 12-15 days after receipt of payment
Company Information
Higee Machinery- Labeling Machine Manufacture! Labeler solution expert!
We are not only servo motor economy automatic cap labeling machine manufacture in providing different function Labeling Machine with good experience for many years, but also the professional solution provider to give the most suitable labeling proposal according to client’s product shape or size either regular or irregular, either use adhesive paper label or plastic sticker label. Our machine is mainly made of good quality SUS304 stainless steel and equipped with well known Japanese, German, American, Korean or Taiwan brand parts. Either the automatic or semi-automatic Labeling machine is smart and durable labeling equipment which is quite easy for your operation and maintenance. This servo motor economy automatic cap labeling machine is widely used in such industries as food, medicine, cosmetics, electronics, chemical etc.Automatic cap labeling machine.
Trust us, Higee Labeling Machinery, Your good choice! Quick response to your request!
Our Services
1. Offer you professional labeling sulution according to your specific labeling requirements.
2. Supply you high quality labeling machine after placing order.
3. Try to make the delivery time as short to meet your needs.
4. Provide you lifelong free technial support after you receiving our machine.
Related products

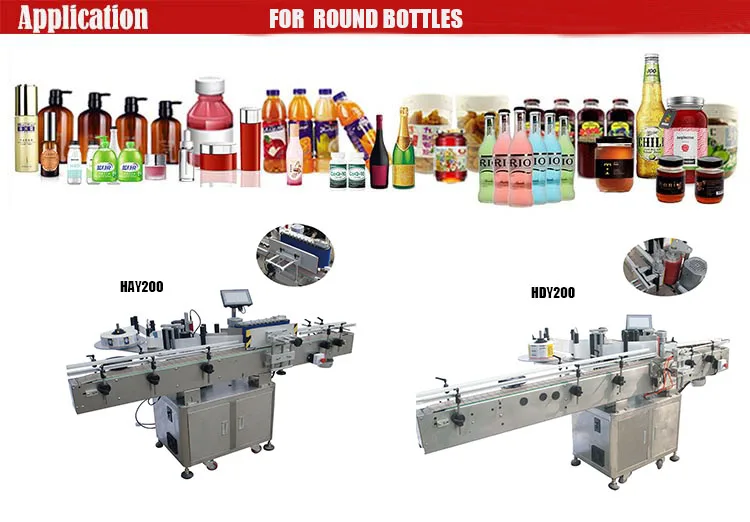

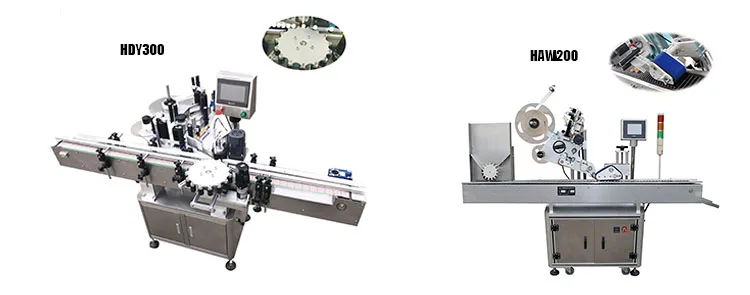

High speed round bottles labeling Higee accuracy fixed position round bottle labeling
High speed high accuracy rotary fixed-point labeling Horizontal high speed vials labeling

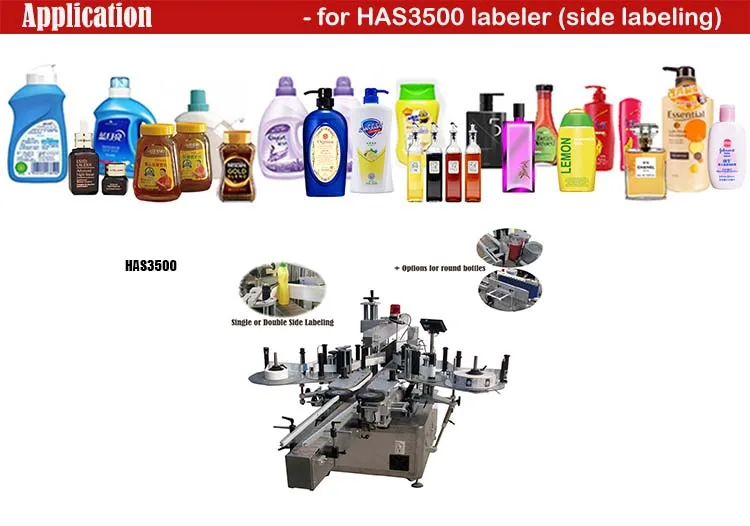

One side or two sides labeling machine

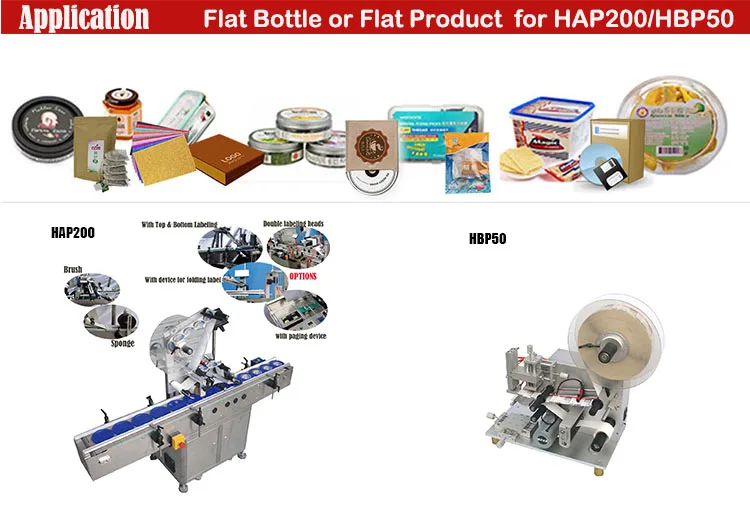

Top side labeling machine Manual Flat surface Labeling
