Оптовая цена гидравлический пресс тормозные инструменты шарнирные
- Категория товара: Moulds >>>
- Поставщик (Оптовый магазин): Nanjing,Rongwin,Machinery,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

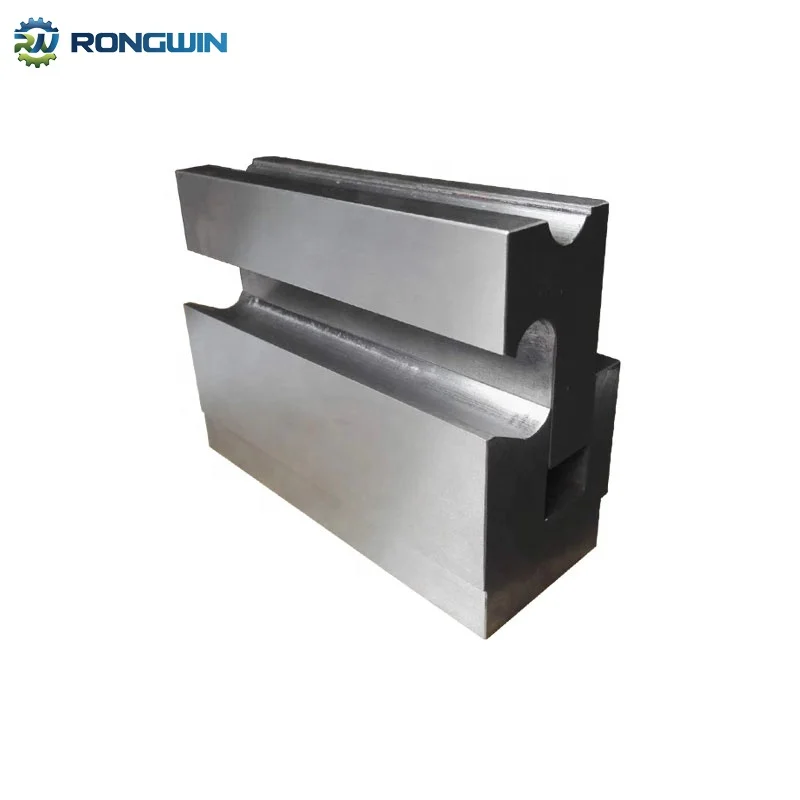

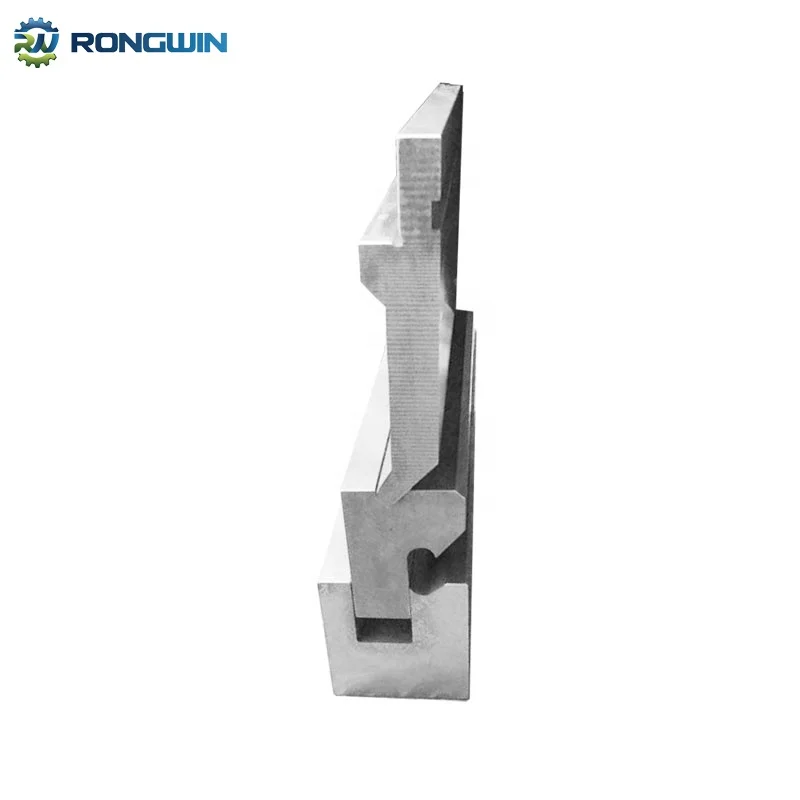

Wholesale price hydraulic press brake tools used by bending machine to process forming sheet metal. Its main requirements are high strength, high toughness and good wear resistance. Under the pressure of the bending machine, the shape of the steel is processed by changing the physical state of the formed material, so that the blank becomes a tool with a specific shape and size. According to the shape of the bending product, adjust the pressure of the bending machine and change the shape of the mold. The technology of the folding can process various shapes.Like hinge dies, hemming dies, step dies, roller dies and so on.
Press Break Specification | Upper Mould Size(mm) | Down Mould Size(mm) |
40T/2000 | 2000X70X18 | 2000X55X55 |
40T/2000 | 2000X80X18 | 2000X75X75 |
40T/2000 | 2000X90X30 | 2000X55X55 |
40T/2000 | 2000X150X26 | 2000X55X50 |
63T/2500 | 2000X85X28 | 2500X70X70 |
63T/2500 | 2500X150X25 | 2500X65X65 |
63T/2500 | 2500X85X28 | 2500X55X55 |
63T/2500 | 2500X100X20.5 | 2500X70X70 |
80T/3200 | 3200X80X18 | 3200X95X95 |
100T/3200 | 3200X150X26 | 3200X95X95 |
100T/3200 | 3250X86X28 | 3250X75X75 |
100T/3200 | 3200X70X30 | 3200X100X100 |
100T/3200 | 3250X80X25 | 3250X95X95 |
100T/3200 | 3200X85X25 | 3200X75X75 |
100T/3200 | 3200X80X25 | 3200X95X95 |
160T/3200 | 3200X90X56 | 3200X110X110 |
160T/4000 | 4000X80X25 | 4000X110X110 |
160T/4000 | 4000X90X30 | 4000X110X110 |
160T/4000 | 4000X134X34 | 4000X120X120 |
Product Paramenters
Product parameters
●Material: 42CrMo
●Processing equipment: gantry milling machine, planer, plane grinder, horizontal milling machine,
multifunctional milling machine, high-precision grinder
multifunctional milling machine, high-precision grinder
●Tolerance: ± 0.002
●Overall heat treatment: 835mm 800mm 550mm 508mm
●Standard CNC bending machine mould is available from stock, non-standard specification can be customized processing and production according to customer's drawings, workpiece samples, size specifications, HRC value, mould materials and other requirements.
●Standard CNC bending machine mould is available from stock, non-standard specification can be customized processing and production according to customer's drawings, workpiece samples, size specifications, HRC value, mould materials and other requirements.
Die selection:
According to the different requirements of customers, choose the best mold design, to the fastest time, the best quality to meet
customer requirements. In addition, if there is any difficulty in selecting the mold, please consult our company, and then please
provide the following contents:
A. general drawing of bending shape finished product and partial detail drawing of bending part (bending radius, tolerance range
of internal and external contour dimensions, etc.) B. material and thickness of bending plate C. requirements of bending products
for indentation, scratch, etc. D. bending is the type and model of mechanical equipment used (maximum processing pressure, table
length, clamping mode of upper and lower dies)
customer requirements. In addition, if there is any difficulty in selecting the mold, please consult our company, and then please
provide the following contents:
A. general drawing of bending shape finished product and partial detail drawing of bending part (bending radius, tolerance range
of internal and external contour dimensions, etc.) B. material and thickness of bending plate C. requirements of bending products
for indentation, scratch, etc. D. bending is the type and model of mechanical equipment used (maximum processing pressure, table
length, clamping mode of upper and lower dies)
General segments:
Mold section 1 Upper die of CNC bending machine: 100 (left), 10, 15, 20, 40, 50, 200, 300, 100 (right) = 835mm (one set) CNC
bending machine lower die: 10, 15, 20, 40, 50, 100, 200, 400 = 835mm Mold section 2 NC bending upper die: 100 (left), 10, 15, 20,
40, 50, 165, 300, 100 (right) = 800mm
bending machine lower die: 10, 15, 20, 40, 50, 100, 200, 400 = 835mm Mold section 2 NC bending upper die: 100 (left), 10, 15, 20,
40, 50, 165, 300, 100 (right) = 800mm
Detailed Images
Related Products
Packing&Shipping
1.PE film or Kraft paper - keep air/water/humid away,thus rust-proofing.
2.Bubble Wrap - increases the impact resistance ability.
3.Rubber Slip or Corrugated Angle - gives special care to knife edges.
3.Rubber Slip or Corrugated Angle - gives special care to knife edges.
4.Wood Screws crates - makes opening easier without damaging the crates.
5.Corrugated boxes or Wooden crates - provide superior protection & stack ability.
Company Introduction
Nanjing Rongwin machinery technology co.,ltd is located in Zijin Technology Center, Lishui Economic Development
Zone,Nanjing,Jiangsu,China (Mainland). Our company is a comprehensive enterprise integrating production and sales. The main products are bending machine and other mechanical equipment, longitudinal shear blades, hobbing scissors, rubber-coated spacers, carbide blades, bending machine die, etc.It is widely used in metallurgy, paper making, printing, forestry hardware, plastics, rubber, metal and other industries.The company's products have won high praise from customers all over the world with high quality and preferential prices. Our company has a strong research and design force, constantly absorbing advanced technology and experience at home and abroad. After years of development, the company with strong technical force, excellent management system, excellent equipment, perfect testing methods, to bring customers real benefits, earlier delivery date and quality assurance. Our company's consistent pursuit is to improve product quality, take science and technology as the spirit, take quality as the guarantee, seek development with products, survive with reputation, perfect quality management system and excellent and thoughtful after-sales service to serve you wholeheartedly.
Zone,Nanjing,Jiangsu,China (Mainland). Our company is a comprehensive enterprise integrating production and sales. The main products are bending machine and other mechanical equipment, longitudinal shear blades, hobbing scissors, rubber-coated spacers, carbide blades, bending machine die, etc.It is widely used in metallurgy, paper making, printing, forestry hardware, plastics, rubber, metal and other industries.The company's products have won high praise from customers all over the world with high quality and preferential prices. Our company has a strong research and design force, constantly absorbing advanced technology and experience at home and abroad. After years of development, the company with strong technical force, excellent management system, excellent equipment, perfect testing methods, to bring customers real benefits, earlier delivery date and quality assurance. Our company's consistent pursuit is to improve product quality, take science and technology as the spirit, take quality as the guarantee, seek development with products, survive with reputation, perfect quality management system and excellent and thoughtful after-sales service to serve you wholeheartedly.
Why Choose Us
FAQ
Q: Are you factory or manufacture?
A: YES.We are group factories agent exporting company.We have more than 10 directly factories
Q: What's your delivery time?
A: 30 days for machine and 20 days for tools and blades,and spare parts after confirmed order with payment
Q: What's kinds of shipping you choose after order?
A: Usually we choose FCL,Or LCL by sea.We also can supply door to door shipping service by air or intermational express.
Q: Which kinds of Payment and MOQ？
A: We can accept TT,LC or Trade assurance.MOQ:1 set for machine order
Q: What's your packing?
A: Fumigation-free plywood case for small machine in LCL Shipment by sea,and blades and tools and spar parts.
If FCL shipping by sea we just professional fixed in container without cover.
Q: What's your Warranty Time?
A: THREE Year Warranty for machine,Lifelong maintenance.
During warranty time which the broken parts and spares caused by quality can be Offered free.
Q: Can you support overseas commissioning or traning service?
A: YES.We CAN.But the buyer need to afford this cost,tickets and foods,hotel etc.
Q: What's your delivery time?
A: 30 days for machine and 20 days for tools and blades,and spare parts after confirmed order with payment
Q: What's kinds of shipping you choose after order?
A: Usually we choose FCL,Or LCL by sea.We also can supply door to door shipping service by air or intermational express.
Q: Which kinds of Payment and MOQ？
A: We can accept TT,LC or Trade assurance.MOQ:1 set for machine order
Q: What's your packing?
A: Fumigation-free plywood case for small machine in LCL Shipment by sea,and blades and tools and spar parts.
If FCL shipping by sea we just professional fixed in container without cover.
Q: What's your Warranty Time?
A: THREE Year Warranty for machine,Lifelong maintenance.
During warranty time which the broken parts and spares caused by quality can be Offered free.
Q: Can you support overseas commissioning or traning service?
A: YES.We CAN.But the buyer need to afford this cost,tickets and foods,hotel etc.
