LONGI solar LR5 PV модуль 182 мм солнечные элементы 530 Вт 535 Вт 540 Вт 545 Вт 550 Вт двойная стеклянная Двусторонняя солнечная панель
- Категория товара: Solar Panels >>>
- Поставщик (Оптовый магазин): Nanjing,Moge,New,Energy,Co.,Ltd.Nanjing,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Introduction
Parameter
Original Longi solar Hi-MO5m, Grade A
144 cells solar panel 545w 550w 555w 560w

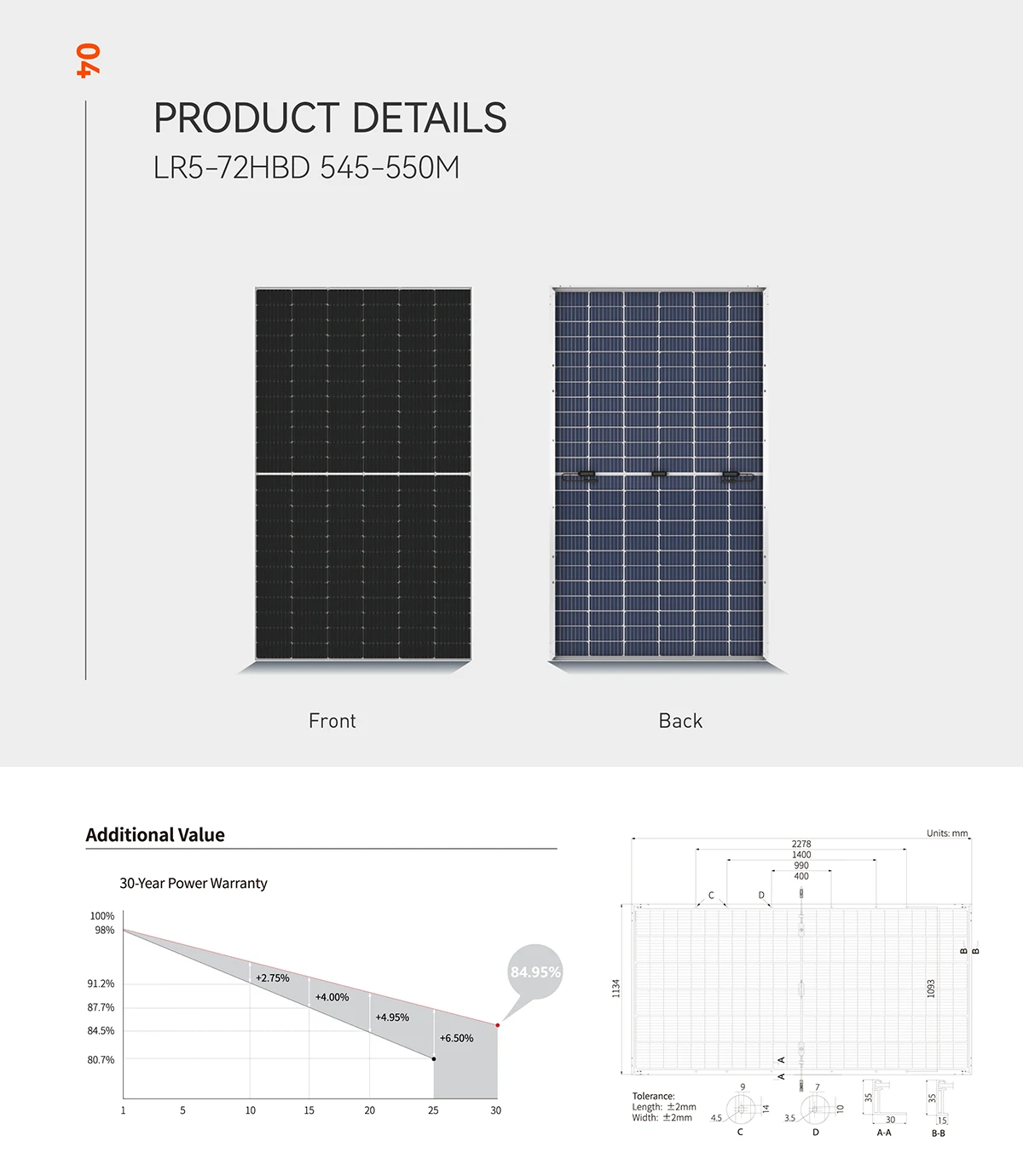

MECHANICAL DATA | ||||||
Module Dimensions | 2278*1134mm*35mm | |||||
Weight | 32.3kg | |||||
Glass | 3.2 mm (0.13 inches), High Transmission, AR Coated Tempered Glass | |||||
Junction-Box | IP 68, three diodes | |||||
Cables | 4mm2, positive 400 / negative 200mm, length can be customized | |||||
Cell Orientation | 144cells(6*24) | |||||
Electrical Characteristics | ||||||
Model Number | LR5-72HBD-540M | LR5-72HBD-545M | LR5-72HBD-550M | |||
Maximum Power (Pmax/W) | 540 | 545 | 550 | |||
Open Circuit Voltage (Voc/V) | 49.50 | 49.65 | 49.80 | |||
Short Circuit Current (Isc/A) | 13.85 | 13.92 | 13.99 | |||
Voltage at Maximum Power (Vmp/V) | 41.65 | 41.80 | 41.95 | |||
Current at Maximum Power (Imp/A) | 12.97 | 13.04 | 13.12 | |||
Module Efficiency (%) | 21.1 | 21.3 | 21.5 | |||
STC (Standard Testing Conditions): Irradiance 1000W/m2, Cell Temperature 25 ℃， Spectra at AM1.5 | ||||||

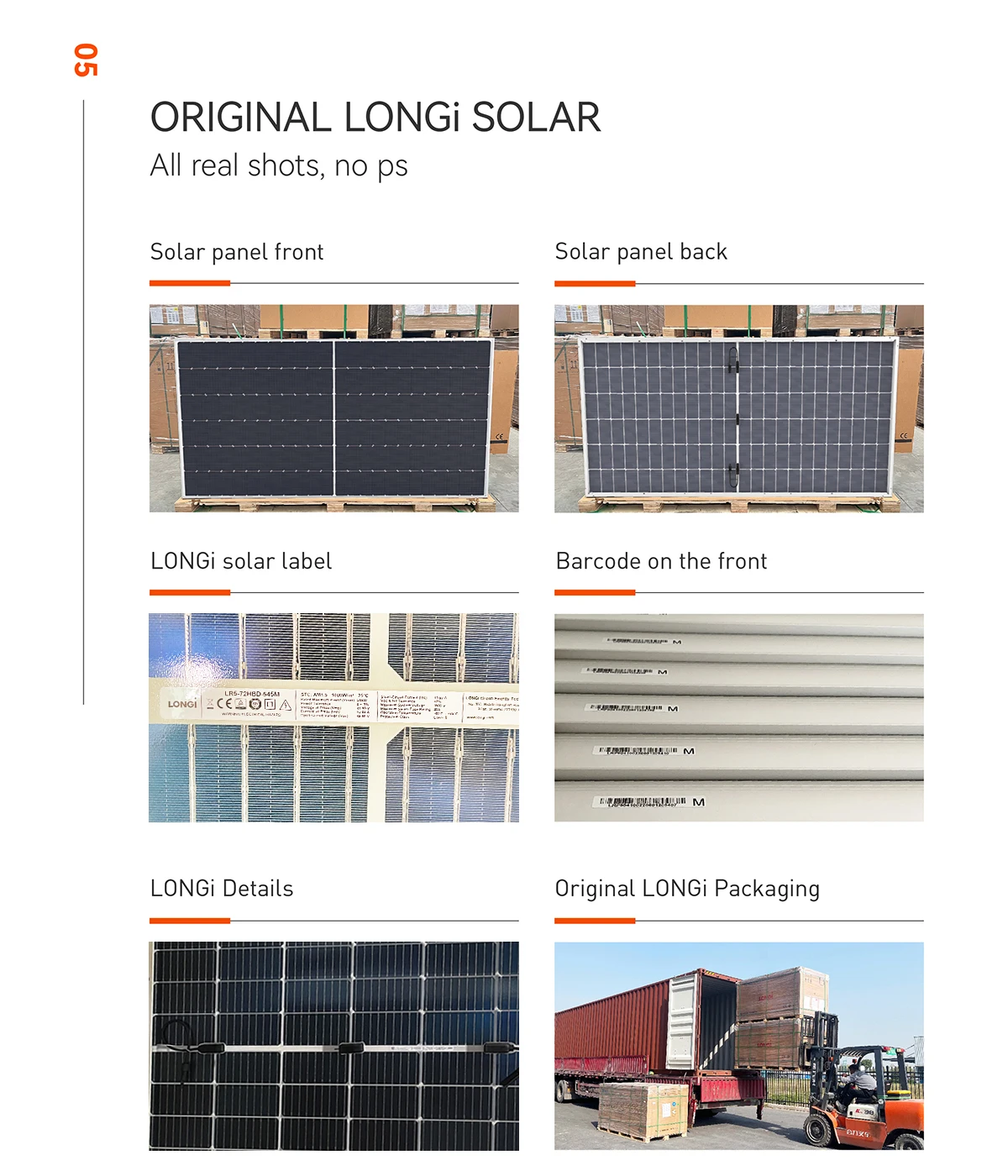

Longi solar Genuine
