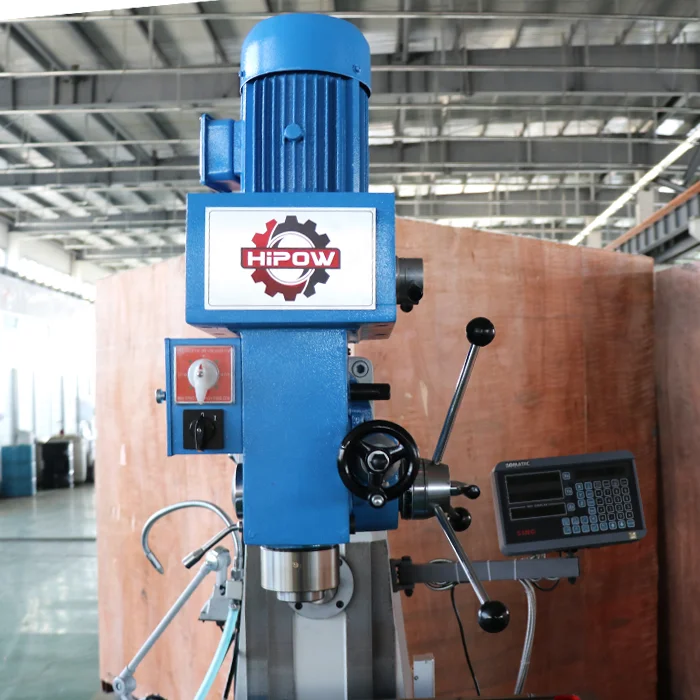

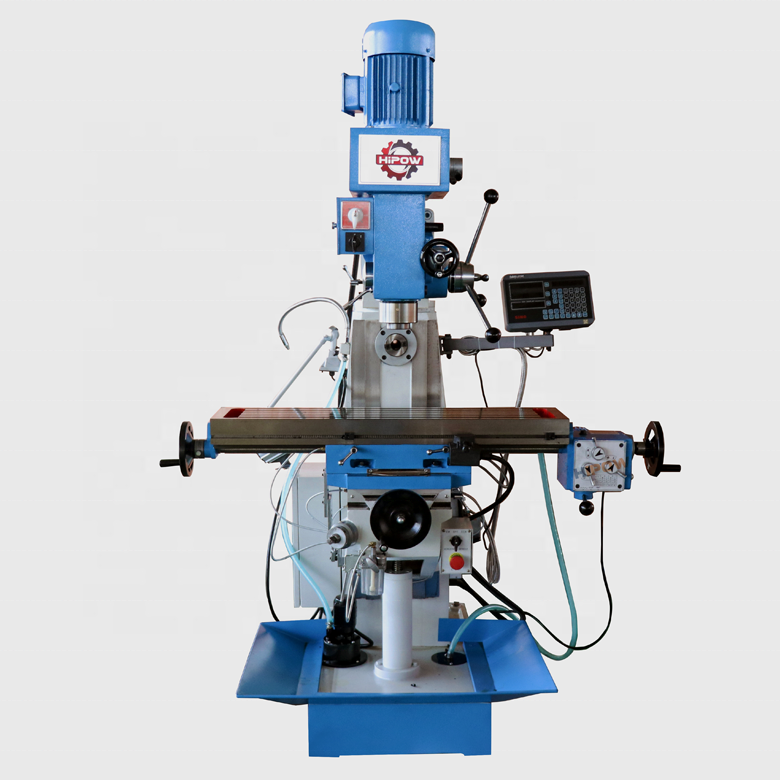

Мини Вертикальный и горизонтальный сверлильный фрезерный станок zx7550cw
- Категория товара: Manual Mills >>>
- Поставщик (Оптовый магазин): Tengzhou,Hipow,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
 |

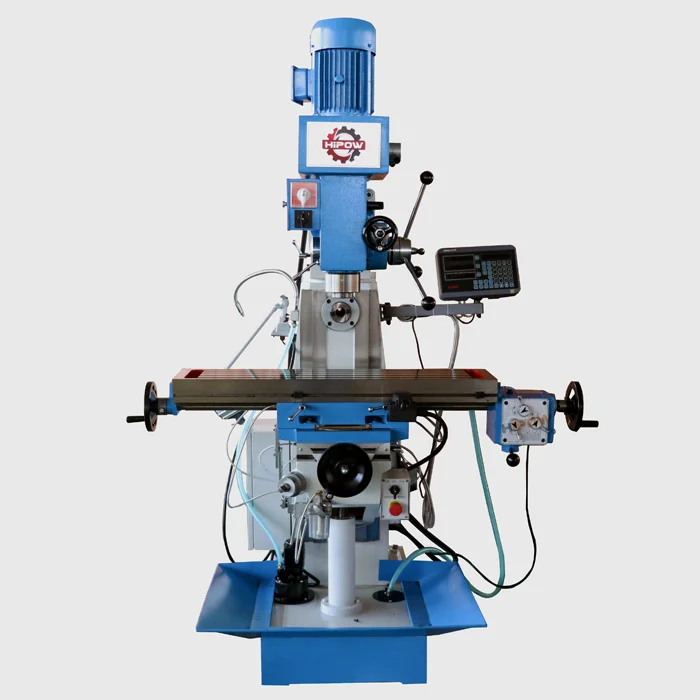

mini vertical and horzontal drilling milling machine zx7550cw |
 |
Main Feature 1.Milling head has automtic drilling function and swivels ±45 2.Universal Milling Machine has Milling and tapping function 3.Machine Worktable is equipped with the gear transmission power feed, 4.Full-featured and flexible 5.The Universal Milling Machine Can be add plug and swivel table 6.Work Table Surface and Guide ways Hardened by Supersonic Frequency Quenching 7.Work Table Made by HT200-250 High Strength Cast Iron 8.Dovetail Table Guide ways Withstand Larger Overturning Moment 9.Vertical Milling Spindle Auto-Feeding 10.Gear Drive Milling Head
|

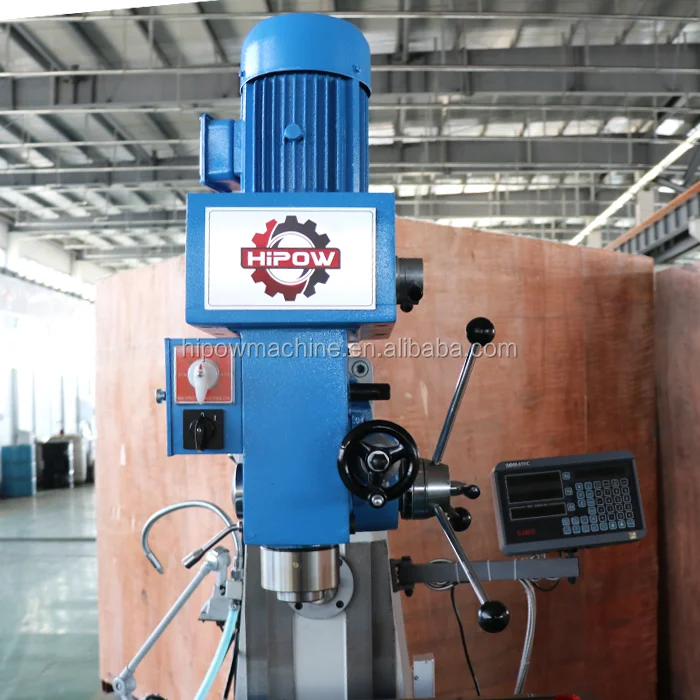

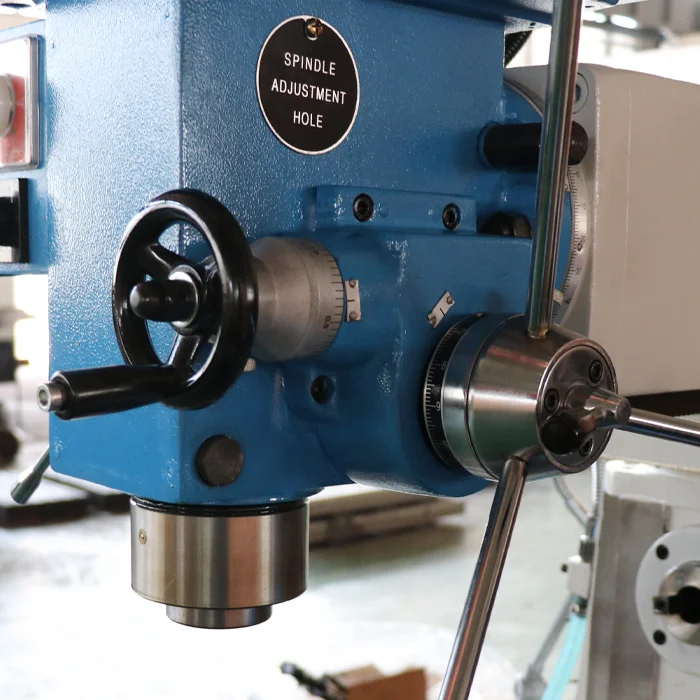

1. 2HP ,ISO40 ,1750rpm High Precision Milling Head

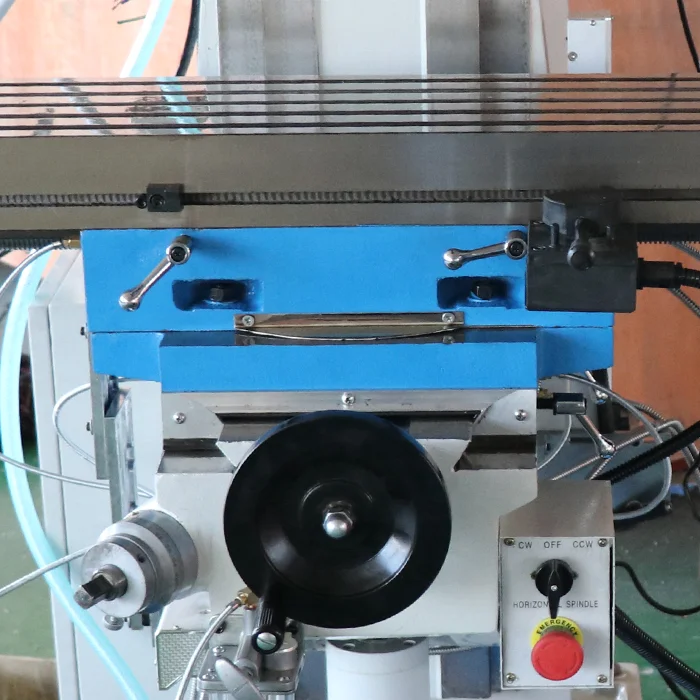

2. X axis can install Mechanical Feed or Power Feed

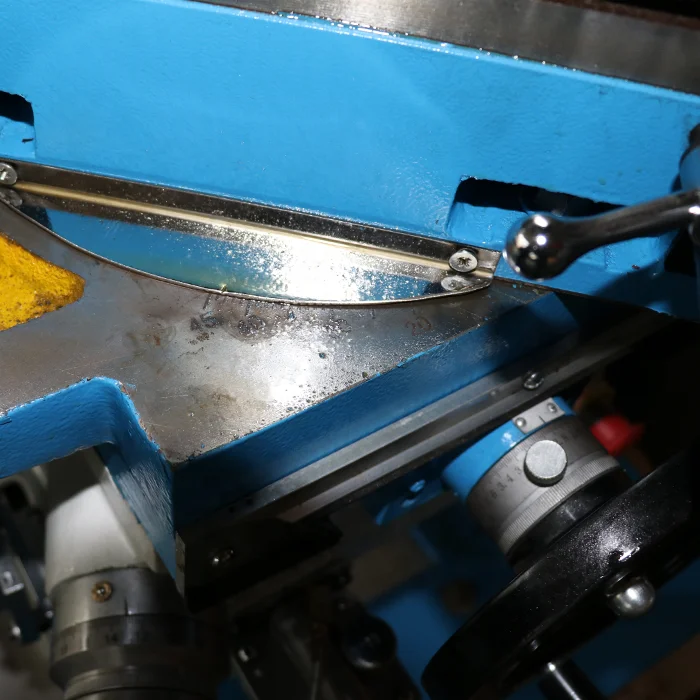

3. 1000x240mm Swivel Table
4. The machine can install rotary table and dividing head
1)Φ250mm vertical horizontal rotary table can be installed
2) Φ100,Φ125mm dividing head can be installed
5. Combined Control Panel can be customized

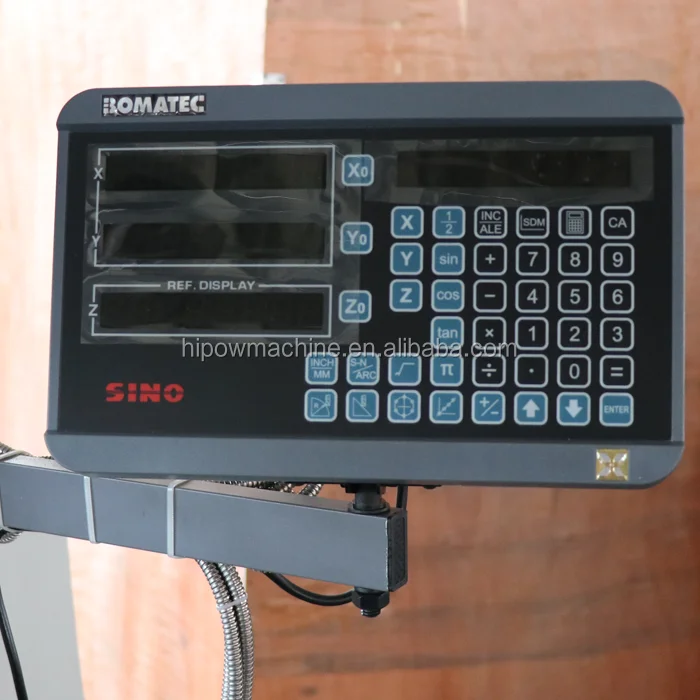

1) DRO and switchs are intergrated in one panel makes the machine easy to operate .
2) X,Y,Z axis DRO is opitonal
 |
Item | ZX7550CW |
Table Size(mm) | 1000*240mm |
Table Travel (mm) | 600*230*350 |
Max End Milling Dia (mm) | 100 |
Max Vertical Milling Dia(mm) | 25 |
Max Tapping Dia(mm) | M16 |
Spindle Speed Rang( r.p.m) | 115-1750(V)/ 60-1350(H) |
T-slot No,Size | 3*14*60 |
Max Drilling Dia (mm) | 50 |
Distance Spindle to Table (mm) | 380 |
Spindle Taper | ISO30/R8/MT4 |
Spindle Travel (mm) | 120mm |
Overall Demension(mm) | 1290*1220*2100 |
Main Motor (KW) | 0.85/1.5(V),1.5KW(H) |
Milling Head Swivel | 45° |
Net /Gross Weight (KG) | 970/1120 |
Company Information
 |
Packaging & Shipping
 |
| Packing of exported CNC machine is usually in wooden case. Small CNC machine can be packed in wooden case in whole. |
FAQ
 | |
| Q1. | How can I get a quotation? |
| A. | Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone. |
| Q2. | Can you provide customized machine or SPM (Special purpose machine)? |
| A. | Yes, we provide smart CNC solutions for our customer, in order to increase efficiency. |
| Q3. | Can you provide training for operation CNC machines? |
| A. | Yes, free training in our factory is available. |
| Q4. | How about your price? |
| A. | Send me details about what you need, you will get the best price in China. The price is competitive over the world. |
| Q5. | What’s the delivery time, and what’s the package? |
| A. | Normally the delivery time is about 30-45 days. All our CNC machines are packed with sea worthy package. |
