Product Description

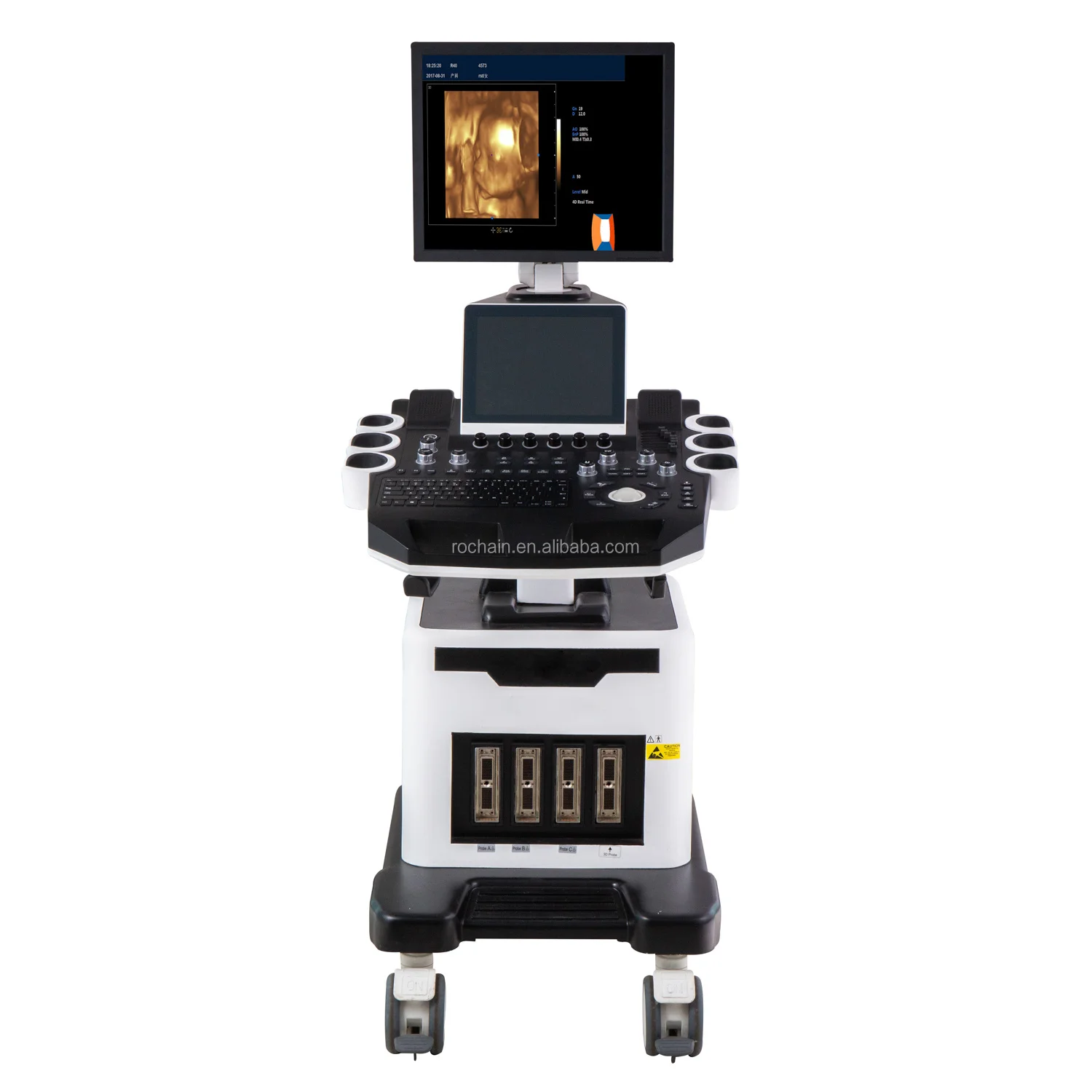

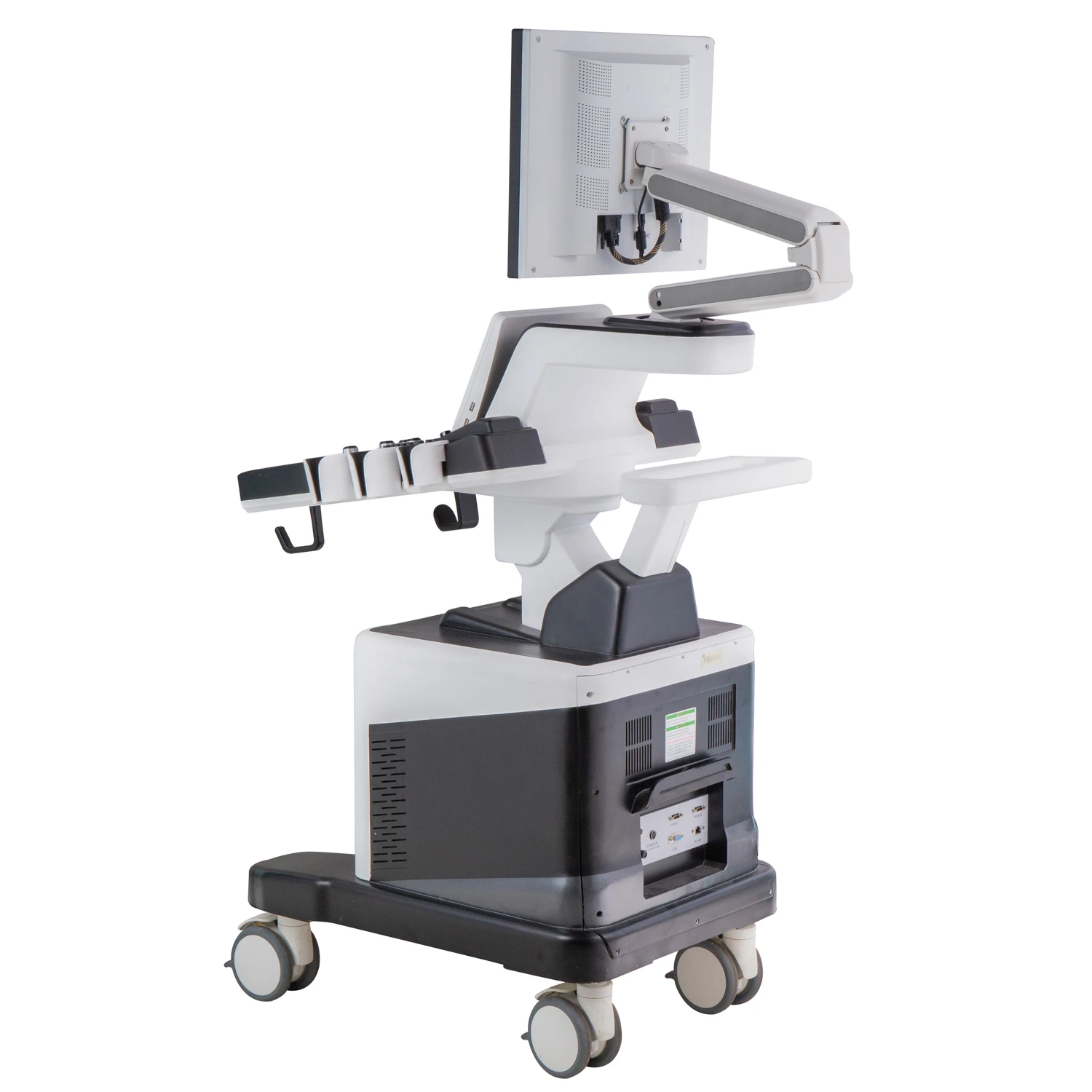

Double screen 4D High-end 3d 4d Color
doppler ultrasound scan machine of trolley type
Model :RC-T6
Product Specification of Double screen 4D High-end 3d 4d Color doppler ultrasound scan machine of trolley type
Summary of main specifications and system of cart type color Doppler ultrasound
Cart type all digital color Doppler ultrasonic mainframe
Ultrasonic host operating system: Windows 8 operating system
Spectrum pulse Doppler
Direction energy Doppler
Real time three synchronization
Space composite imaging: the requirement is 3 level, visual adjustable.
Organized harmonic imaging technology
4B imaging mode
One key intelligent optimization
Chinese and English interface, Chinese and English input, optional.
Monitor: 19 inches, high definition ultrasonic display liquid crystal display.
10 inches touch screen
Physical clipboard: save the image on the left side of the screen, which can be directly saved or deleted.
The system has the function of on-the-spot upgrade
Presupposition: for different inspection of the viscera, preset the inspection conditions for the best image, reduce the adjustment of the operation, and the commonly used external adjustment and combination regulation.
Support real-time 3D imaging function
The probe interface is 4
Cart type all digital color Doppler ultrasonic mainframe
Ultrasonic host operating system: Windows 8 operating system
Spectrum pulse Doppler
Direction energy Doppler
Real time three synchronization
Space composite imaging: the requirement is 3 level, visual adjustable.
Organized harmonic imaging technology
4B imaging mode
One key intelligent optimization
Chinese and English interface, Chinese and English input, optional.
Monitor: 19 inches, high definition ultrasonic display liquid crystal display.
10 inches touch screen
Physical clipboard: save the image on the left side of the screen, which can be directly saved or deleted.
The system has the function of on-the-spot upgrade
Presupposition: for different inspection of the viscera, preset the inspection conditions for the best image, reduce the adjustment of the operation, and the commonly used external adjustment and combination regulation.
Support real-time 3D imaging function
The probe interface is 4

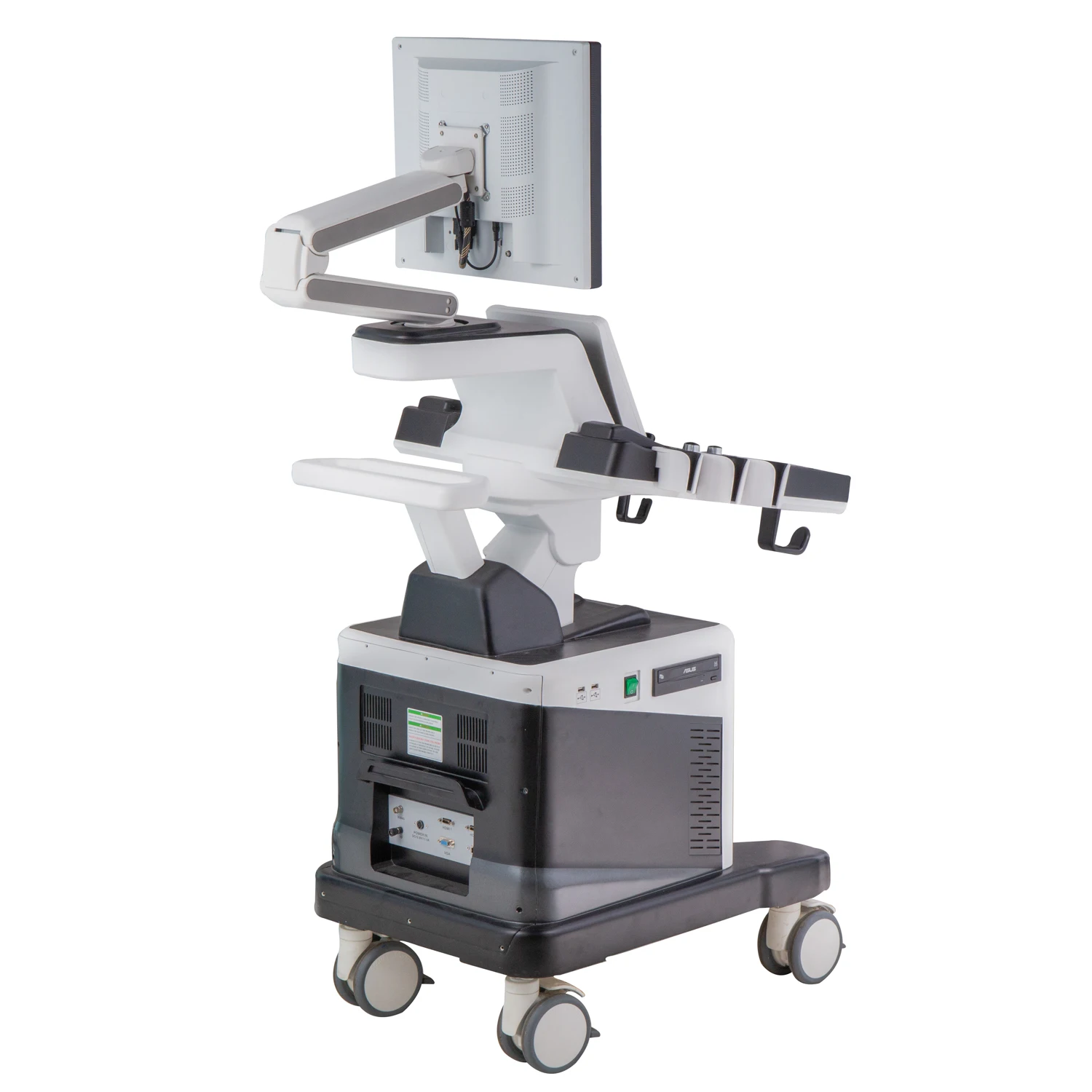

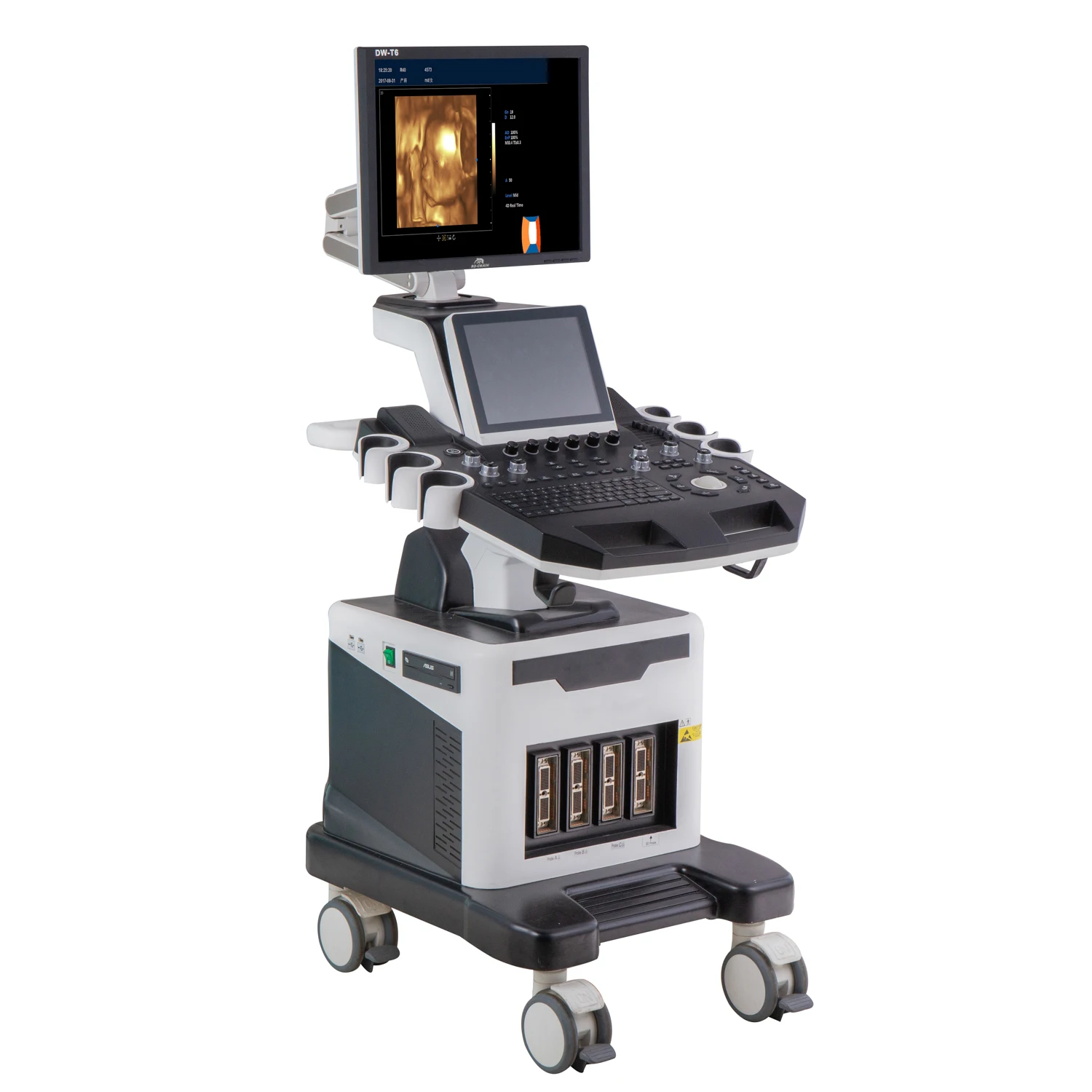

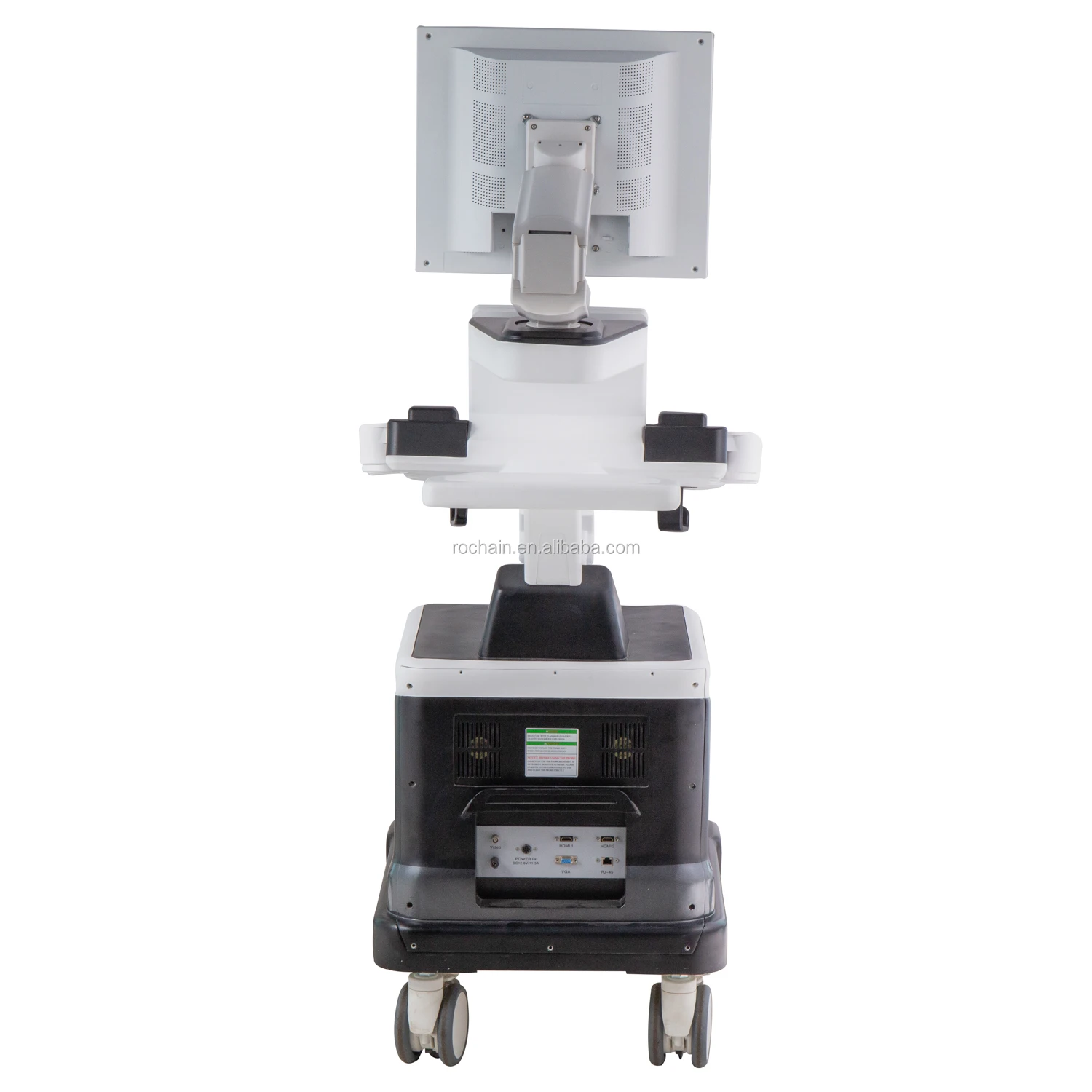

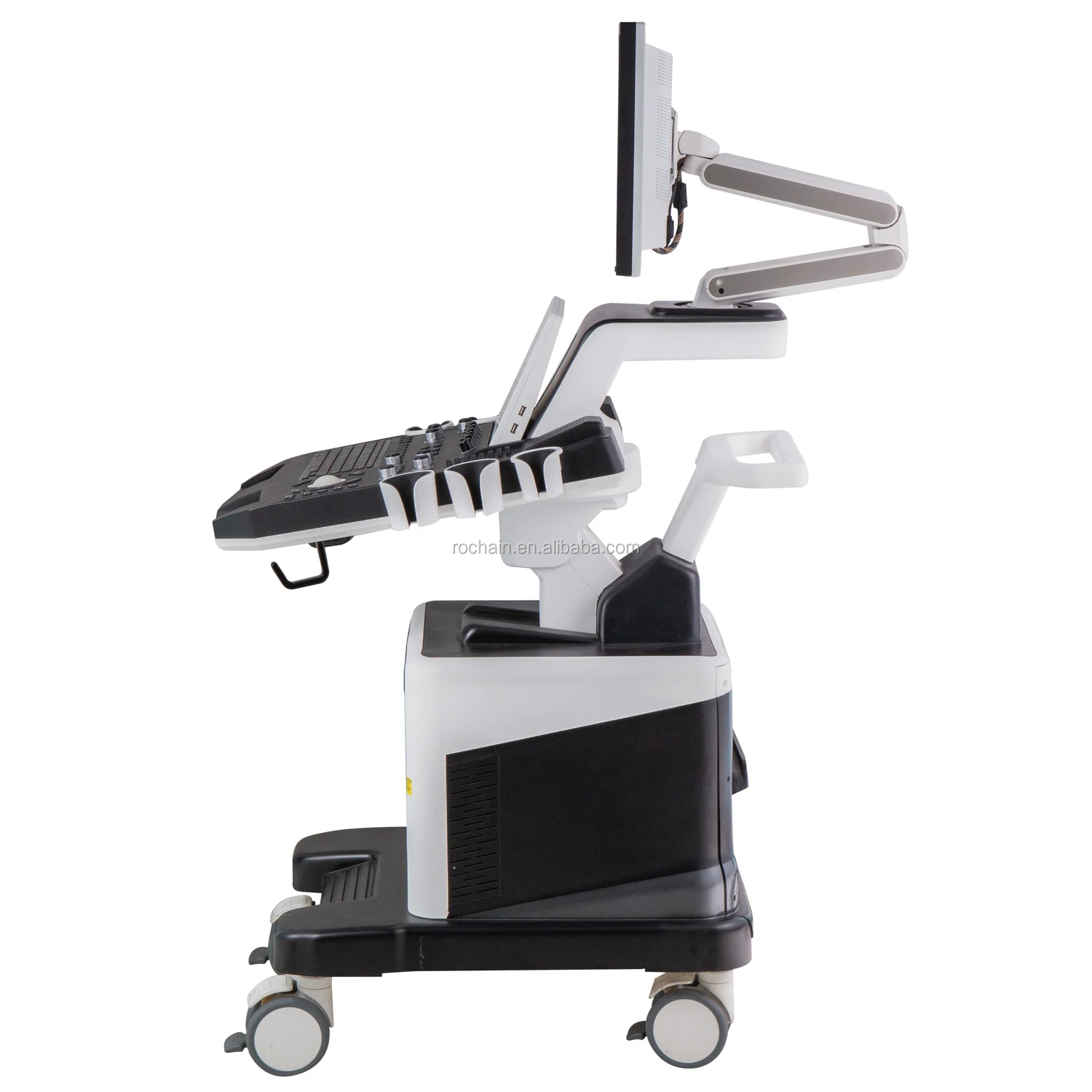

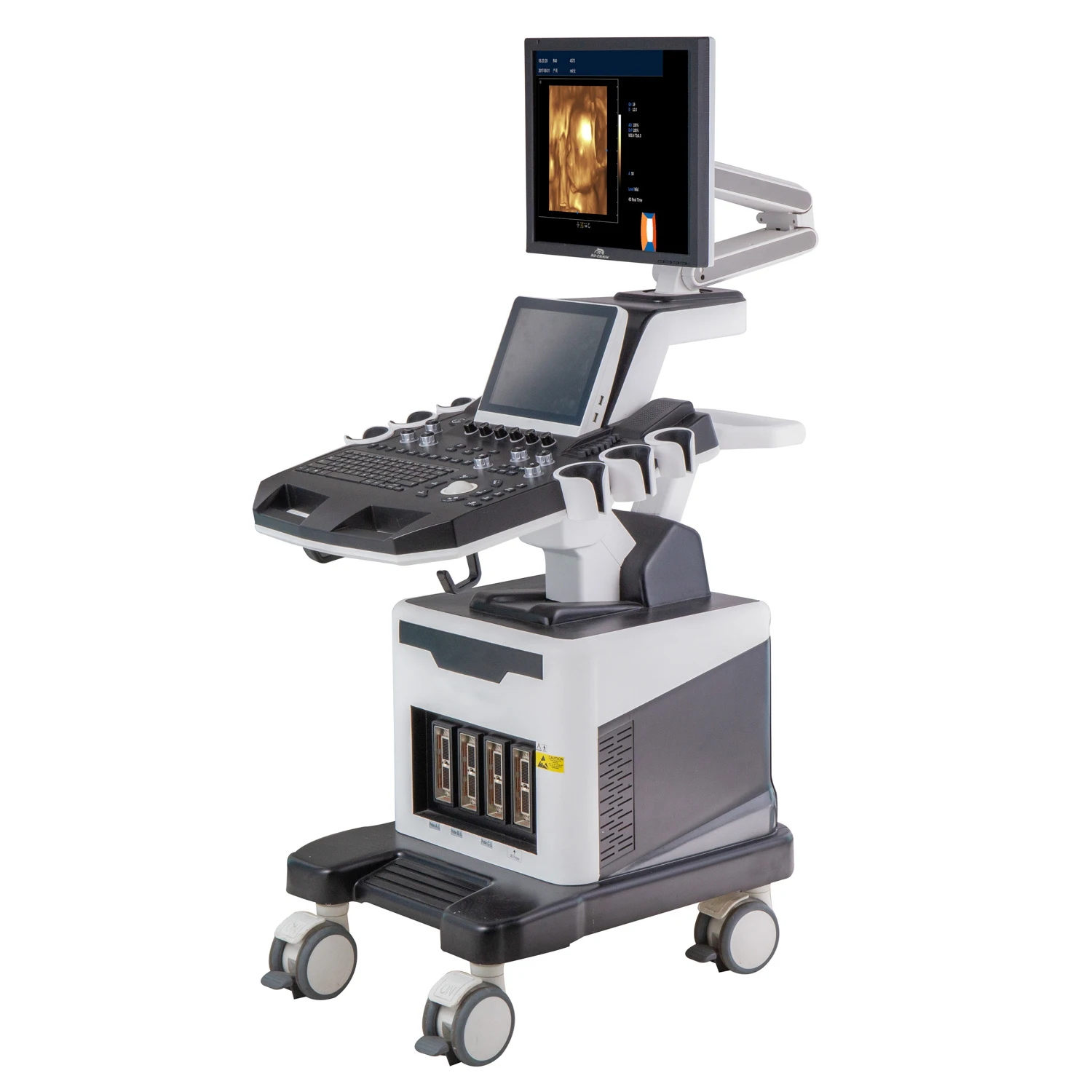

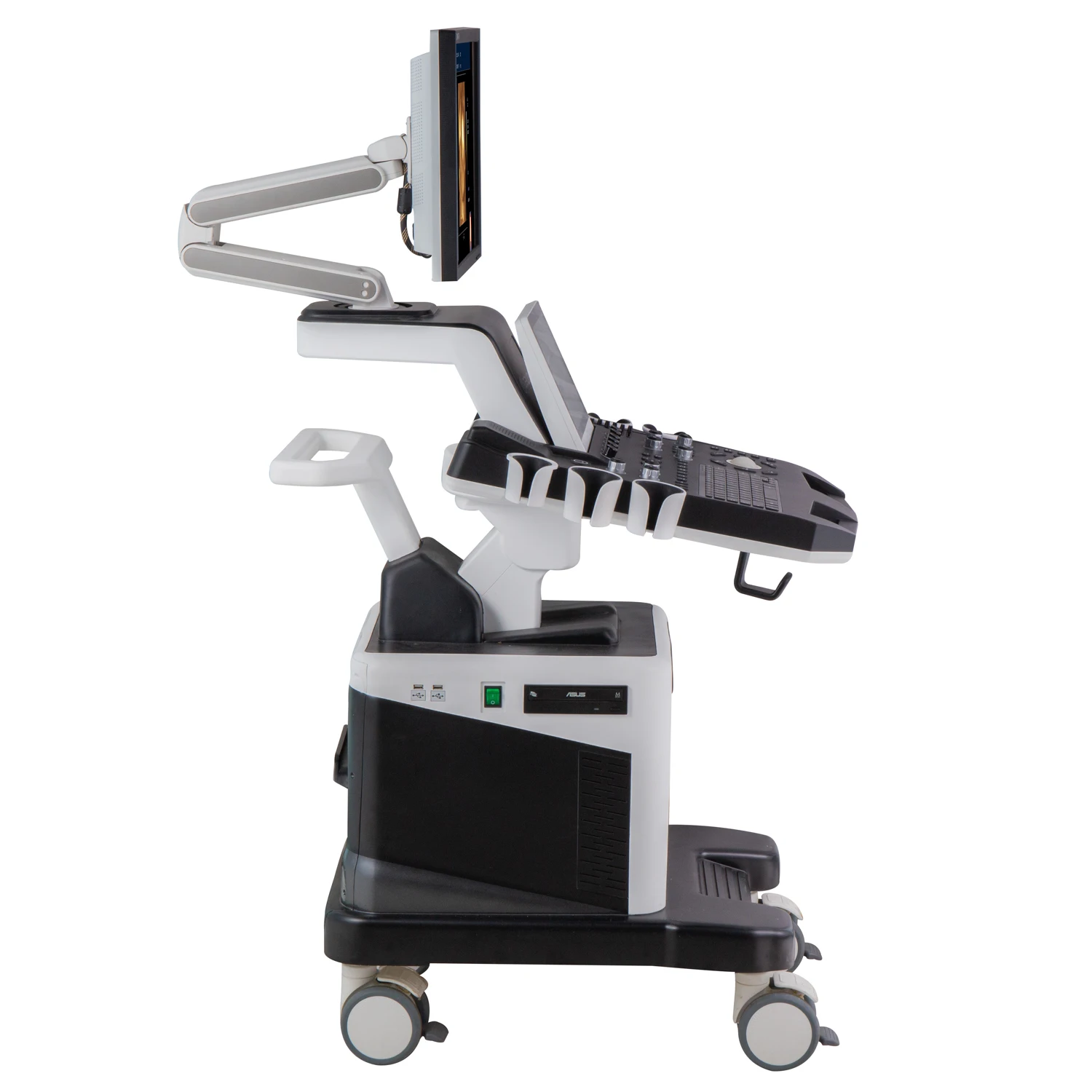

Product Bulk Production Photos of Double screen 4D High-end 3d 4d Color doppler ultrasound scan machine of trolley type
Technical specification
probe
Convex array probe: 2.5MHz/3.0MHz/3.5MHz/4.0MHz/H4.0MHz/H5.0MHz, six stage frequency conversion
Linear array probe: 6.0MHz/7.5MHz/8.5MHz/10.0MHz/H10.0MHz, five stage frequency conversion
Transvaginal probe: 4.5MHz/6.0MHz/7.0MHz/9.0MHz/H8.0MHz, five stage frequency conversion
Phased array probe: 2.5MHz/3.0MHz/3.5MHz/4.0MHz/H3.0MHz/H4.0MHz, six stage frequency conversion
Micro convex probe: 4.5MHz/6.0MHz/7.0MHz/9.0MHz/H8.0MHz five stage frequency conversion
Volume probe: 2.0MHz/3.0MHz/4.5MHz/6.0MHz/H5.0MHz, five stage frequency conversion
The above probe has harmonic frequency
It can be selected according to customer needs: convex array probe, linear array probe, transrectal probe, micro convex probe, phased array probe, volume probe.
Under each probe, there is a selection of specialist and viscera mode and rapid entry detection.
Two-dimensional imaging mode
Gain: 0-100, step 1 visible adjustable
TGC:8 segment adjustable
Image optimization: visible and adjustable over 7 levels
Dynamic range: 20-280dB 20 level visual adjustable
False color: 12, visible and adjustable
Smooth treatment: 8, visible and adjustable
Edge enhancement: 8, visible and adjustable
Sound power: 5% to 100%, step 5%, visible and adjustable
Display depth: greater than 317mm, less than 20mm, cardiac probe 371mm
Maximum focus number: 6 focal points, which can be moved throughout the whole process.
Scan line density more than 256 visible tunable
Gray scale: 0-7 level visible visible and adjustable
Filtering, 5 kinds
Scanning range, 50%-100%
Frame correlation, 0-4 level, visible and adjustable
The screen has real-time display of voice power, probe frequency, dynamic range, pseudo color, gray scale and other 14 parameters can be adjusted
Color imaging mode
Color frequency: 8 frequency conversion, visible adjustable
Color deflection: equipped with
Color frame correlation 12 levels, visible and adjustable
Color map: 7, visible and adjustable
Color reversal: adjustable
B/C split screen synchronous display function: equipped with
Color baseline: 7, visible and adjustable
Color line density: adjustable
Spectrum Doppler mode
Sampling volume angle correction: -80 degree to 80 degree adjustable
Sample volume: 0.5mm-20mm visually adjustable
Frequency: ≥5, visible and adjustable
Baseline: 8 adjustable
Smooth: 8 files can be adjusted
Display layout: 4 visible tunable
False color: 7 kinds of adjustable
Speed scale: 3-2288cm/s visibility adjustable
Spectrum envelope function: real time automatic spectrum envelope, manual spectrum envelope, and other modes. The system automatically analyses and displays various data such as PSV, EDV, RI, PI, S/D, ACC, HR and so on.
Measurement and analysis function:
General measurement distance, area, angle, time, slope, heart rate, velocity, acceleration, neck hyaline layer, spectrum tracing, resistance index / pulsatility index, etc.
Obstetric measurement: weight measurement formula more than 8 options
The color and line type of the measuring line can be adjusted at will (including activating the color and completing the color).
The measurement results show that the location and font size can be adjusted according to needs.
Professional software package: abdomen, volume, ratio, obstetrics and Gynecology, small organs, carotid artery, Urology, orthopedics, peripheral blood vessels, heart.
Graphic and text management system
Host built in ≥128G solid state hard disk to start fast and stable
Movie playback: 1200 frames
Internal file information management system: can record patient number, name, check number, check date and so on, and can be searched and managed by numbering, checking number, name and so on.
The type of report is 16
One key fast report graphic and text management
Interface
USB interface: 4
VGA interface: 1
RJ-45 interface: 1
VIDEO interface: 1
Grounding wire interface: 1
To configure
Trolley type full digital color Doppler ultrasound diagnostic system host 1 sets
Probe: convex array probe (standard), high frequency probe (optional), Overcast probe (matching), cardiac probe (matching), volume probe (matching)
13 quick adjusting knobs
Technology, after-sales service and other requirements
After acceptance, the warranty is free for two years
Manufacturer has ISO13485 certification and EU CE certification.
Convex array probe: 2.5MHz/3.0MHz/3.5MHz/4.0MHz/H4.0MHz/H5.0MHz, six stage frequency conversion
Linear array probe: 6.0MHz/7.5MHz/8.5MHz/10.0MHz/H10.0MHz, five stage frequency conversion
Transvaginal probe: 4.5MHz/6.0MHz/7.0MHz/9.0MHz/H8.0MHz, five stage frequency conversion
Phased array probe: 2.5MHz/3.0MHz/3.5MHz/4.0MHz/H3.0MHz/H4.0MHz, six stage frequency conversion
Micro convex probe: 4.5MHz/6.0MHz/7.0MHz/9.0MHz/H8.0MHz five stage frequency conversion
Volume probe: 2.0MHz/3.0MHz/4.5MHz/6.0MHz/H5.0MHz, five stage frequency conversion
The above probe has harmonic frequency
It can be selected according to customer needs: convex array probe, linear array probe, transrectal probe, micro convex probe, phased array probe, volume probe.
Under each probe, there is a selection of specialist and viscera mode and rapid entry detection.
Two-dimensional imaging mode
Gain: 0-100, step 1 visible adjustable
TGC:8 segment adjustable
Image optimization: visible and adjustable over 7 levels
Dynamic range: 20-280dB 20 level visual adjustable
False color: 12, visible and adjustable
Smooth treatment: 8, visible and adjustable
Edge enhancement: 8, visible and adjustable
Sound power: 5% to 100%, step 5%, visible and adjustable
Display depth: greater than 317mm, less than 20mm, cardiac probe 371mm
Maximum focus number: 6 focal points, which can be moved throughout the whole process.
Scan line density more than 256 visible tunable
Gray scale: 0-7 level visible visible and adjustable
Filtering, 5 kinds
Scanning range, 50%-100%
Frame correlation, 0-4 level, visible and adjustable
The screen has real-time display of voice power, probe frequency, dynamic range, pseudo color, gray scale and other 14 parameters can be adjusted
Color imaging mode
Color frequency: 8 frequency conversion, visible adjustable
Color deflection: equipped with
Color frame correlation 12 levels, visible and adjustable
Color map: 7, visible and adjustable
Color reversal: adjustable
B/C split screen synchronous display function: equipped with
Color baseline: 7, visible and adjustable
Color line density: adjustable
Spectrum Doppler mode
Sampling volume angle correction: -80 degree to 80 degree adjustable
Sample volume: 0.5mm-20mm visually adjustable
Frequency: ≥5, visible and adjustable
Baseline: 8 adjustable
Smooth: 8 files can be adjusted
Display layout: 4 visible tunable
False color: 7 kinds of adjustable
Speed scale: 3-2288cm/s visibility adjustable
Spectrum envelope function: real time automatic spectrum envelope, manual spectrum envelope, and other modes. The system automatically analyses and displays various data such as PSV, EDV, RI, PI, S/D, ACC, HR and so on.
Measurement and analysis function:
General measurement distance, area, angle, time, slope, heart rate, velocity, acceleration, neck hyaline layer, spectrum tracing, resistance index / pulsatility index, etc.
Obstetric measurement: weight measurement formula more than 8 options
The color and line type of the measuring line can be adjusted at will (including activating the color and completing the color).
The measurement results show that the location and font size can be adjusted according to needs.
Professional software package: abdomen, volume, ratio, obstetrics and Gynecology, small organs, carotid artery, Urology, orthopedics, peripheral blood vessels, heart.
Graphic and text management system
Host built in ≥128G solid state hard disk to start fast and stable
Movie playback: 1200 frames
Internal file information management system: can record patient number, name, check number, check date and so on, and can be searched and managed by numbering, checking number, name and so on.
The type of report is 16
One key fast report graphic and text management
Interface
USB interface: 4
VGA interface: 1
RJ-45 interface: 1
VIDEO interface: 1
Grounding wire interface: 1
To configure
Trolley type full digital color Doppler ultrasound diagnostic system host 1 sets
Probe: convex array probe (standard), high frequency probe (optional), Overcast probe (matching), cardiac probe (matching), volume probe (matching)
13 quick adjusting knobs
Technology, after-sales service and other requirements
After acceptance, the warranty is free for two years
Manufacturer has ISO13485 certification and EU CE certification.

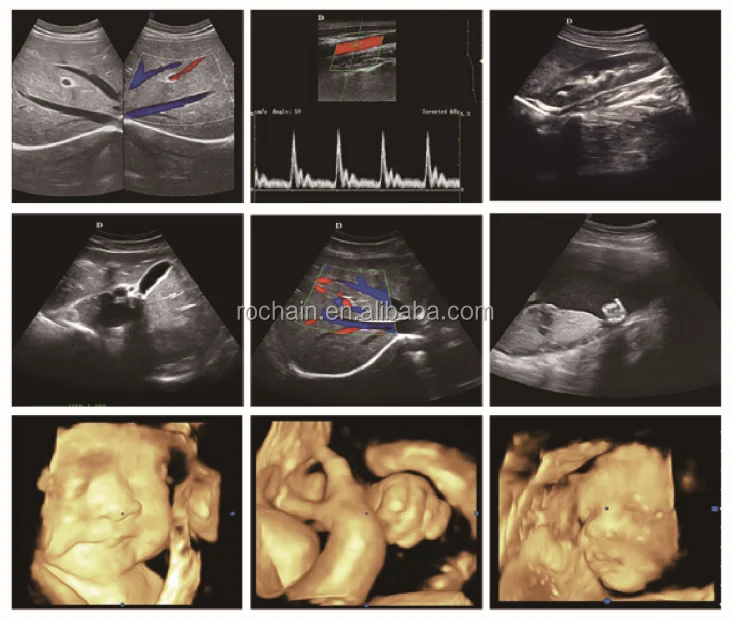

Product Imaging Photos of Double screen 4D High-end 3d 4d Color doppler ultrasound scan machine of trolley type
