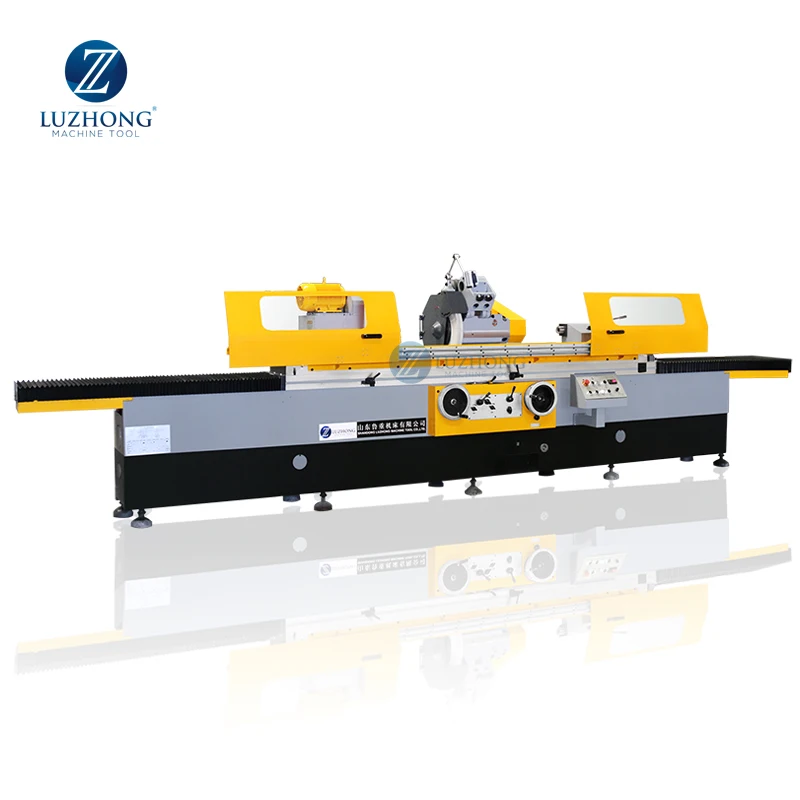

Китайский цилиндрический шлифовальный станок M1450
- Категория товара: Круглошлифовальные станки >>>
- Поставщик (Оптовый магазин): Shandong,Luzhong,Machine,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Specifications | Units | M1450 | ||
Distance between centers | mm | 1500/2000/3000/4000 (3000. 4000) | ||
Center height | mm | 270 | ||
Dia. Ground(O.D) | mm | 25-500 | ||
Dia. Ground(I.D) | mm | 30-200 | ||
Max. length ground(O.D) | mm | 1500/2000/3000/4000 (3000、4000) | ||
Max. length ground(I.D) | mm | 320 | ||
Max. weight of work piece | kg | 1000 (2000) | ||
Work head swiveling angle | ° | +90° | ||
Work head Center taper | MT | 6 | ||
Work head Spindle speed | r/min | 50HZ:20~224 Stepless | ||
Wheel head spindle speed | r/min | 1330/665 | ||
Work head rapid travel | mm | 100 | ||
Work head max. travel | mm | 370 | ||
Work head swiveling angle | ° | -30° | ||
Work head hand feed per rev | mm/rev | rough: 4 precision: 0.5 | ||
Work head hand feed per gra | mm/gra | rough: 0.02 precision: 0.0025 | ||
Wheel size (ODxWxID) | mm | 500*75*305 | ||
Peripheral velocity | m/s | 35/17.5 | ||
Internal Grinding Spindle speed | r/min | 10000 | ||
Internal Grinding Wheel size (OD*W*ID) | mm | Max.: 175*32*32 Min.: 30*25*10 | ||
Table hand feed per rev | mm/rev | 5 | ||
Max. swiveling angle of table (Clockwise) | ° | 3° (1500) 7° (2000/3000) 1° (4000) 2° (3000) 1° (4000) | ||
Max. swiveling angle of table (Anticlockwise °) | ° | 6° (1500) 5° (2000) 3° (3000) 2° (4000) | ||
Longitudinal speed range of table | m/min | 0.1-3 | ||
Tailstock Center taper | MT | 6 | ||
Tailstock Quill travel | mm | 70 | ||
Wheel head motor power | kw | 5/7.5 | ||
Internal grinding motor power | kw | 1.5 | ||
Workhead motor power | kw | 4 (7.5) | ||
Machine weight | kg | 100000 (1500) 110000 (2000) 150000 (3000) 170000 (4000) | ||
Overall dimension(L * W * H) | mm | 4560*2090*2100 (1500) 5460*2090*2100 (2000) 7460*2090*2100 (3000) 9460*2090*2100 (4000) |

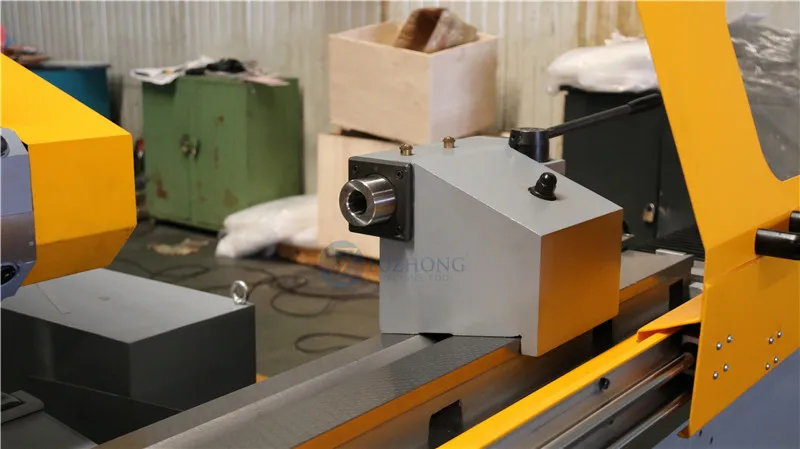

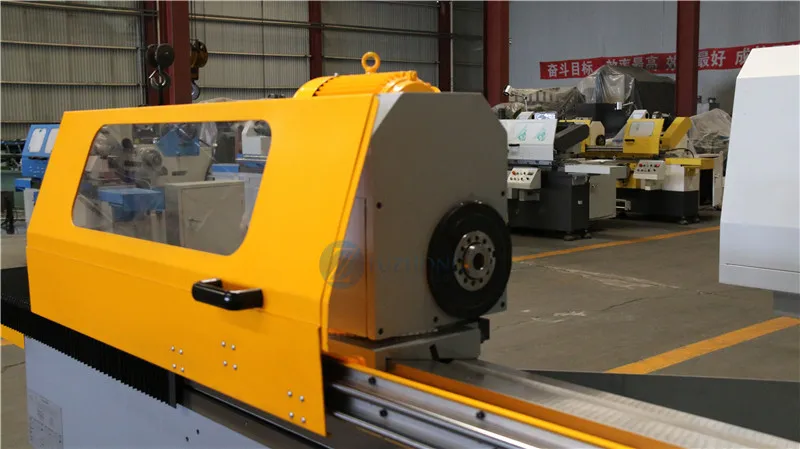

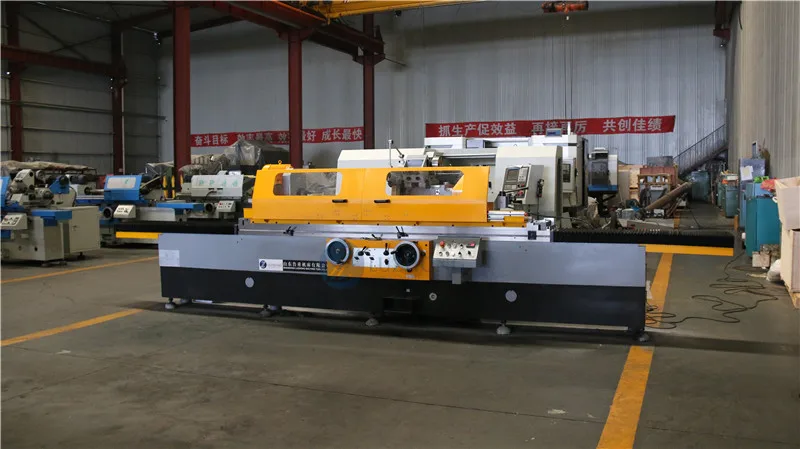

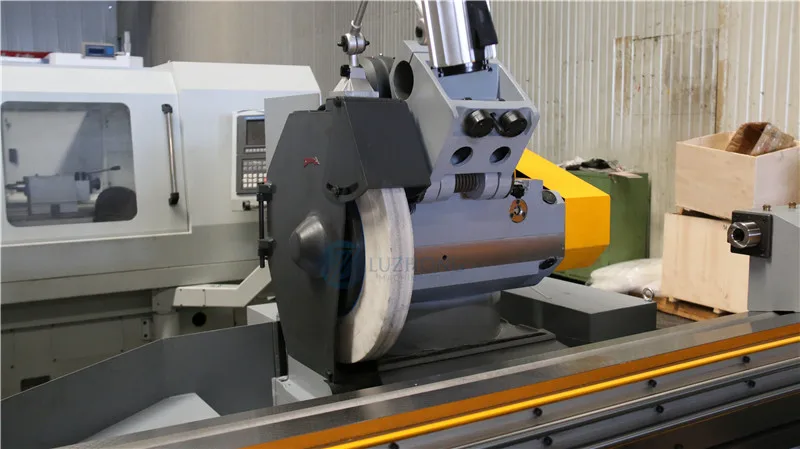

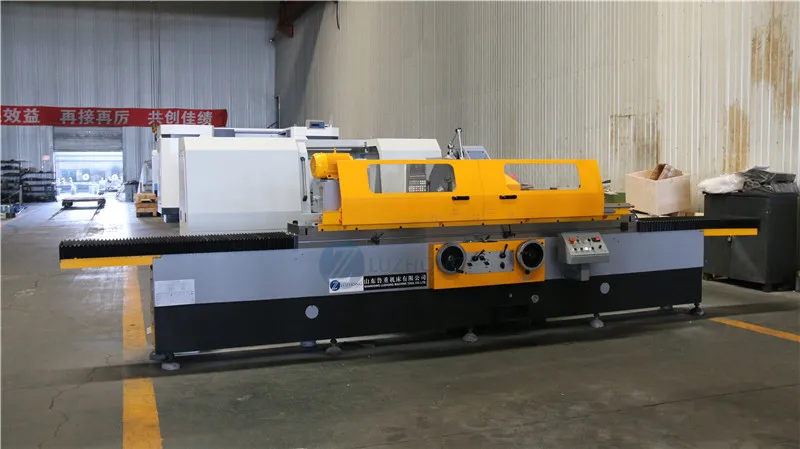

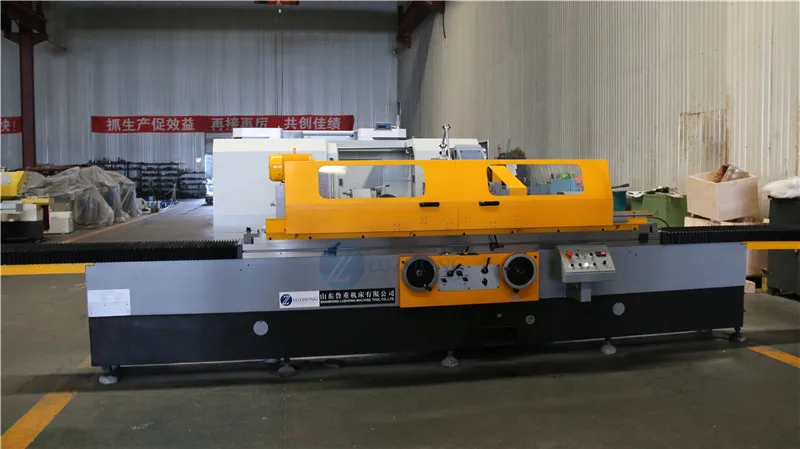

Details Display
Recommend Products
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
