Погружной водяной мини-насос 12/24 В постоянного тока с быстроразъемным соединением
- Категория товара: Насосы и запчасти >>>
- Поставщик (Оптовый магазин): Jetmaker,(Xiamen)Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Welcome To Jetmaker
FEATURES & BENEFITS
* Submersible pump can be connected to power supply of car, 12V battery can work, easy to move.
* This pump is a submersible pump, not a self suction pump and land pump. Water temperature should not exceed 60 °C.
* Low noise, less than 40dB within 0.5M.
* The pump is a brush water pump, please don't always operate 24 hours a day.
* Applications: Mainly used for soilless cultivation of rockery water pump.
* CE, RoHS certified.
* This pump is a submersible pump, not a self suction pump and land pump. Water temperature should not exceed 60 °C.
* Low noise, less than 40dB within 0.5M.
* The pump is a brush water pump, please don't always operate 24 hours a day.
* Applications: Mainly used for soilless cultivation of rockery water pump.
* CE, RoHS certified.
NOTE
* Please allow 1-2cm error due to manual measurement. Thanks for your understanding.
* Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
* It means height the water can arrive if the u connect a plastic pipe with the pump.
* Don’t use more than provide voltage.
* The temperature of the water cannot be over 40 Degrees.
* The Brown cable connects the Positive Pole "+".
* The Blue cable connects Negative Pole "-".
* The Yellow cable is GND, don't need to connect.
* It means height the water can arrive if the u connect a plastic pipe with the pump.
* Don’t use more than provide voltage.
* The temperature of the water cannot be over 40 Degrees.
* The Brown cable connects the Positive Pole "+".
* The Blue cable connects Negative Pole "-".
* The Yellow cable is GND, don't need to connect.
型号/Model | JK-500 | 电线长度/Cable Length | 150mm | ||
额定电压/Rated Voltage | DC 5V/12V/24V | 电线直径/Cable Diameter | 5.7mm | ||
额定电流/Rated Current | 1.2A/0.75A | 寿命/Rated Life | ≥2000H | ||
额定功率/Rated Power | 14.5W/18W | 噪音/Noisy | 40dB | ||
流量/Max Flow Rated | 600L/H | 电机/Motor | 碳刷电机/Carbon brush motor | ||
扬程/Max Lift Rated | 5M | 材质/Material | ABS壳体/ABS Plastic | ||
防水等级/Waterproofing Grade | IP68 | 尺寸/Size | 105.9mm(height)*33.43mm(diameter) | ||
电线类型/Cable Type | 快充/Quick connection;USB插头/USB plug;裸线/Pure wire | ||||
TECHNICAL DATA
When the maximum head is reached, the flow is minimal; when the maximum flow is reached, the head is the smallest. The parameters are tested in the laboratory according to international standards. The actual use effect will vary depending on the scene.
*Input voltage: DC 12V/ 24V
*Working Current: 750-1900MA
*Maximum head: 350-500CM
*Maximum flow rate:600-1000L/H
*Working Current: 750-1900MA
*Maximum head: 350-500CM
*Maximum flow rate:600-1000L/H
Details Images
CABLE TYPE
Three cable Type,Cable Length is 150CM.
For customers' convenient, you can buy AC-DC adapter , Cell phone charger plug and Charging treasure directly with pump.

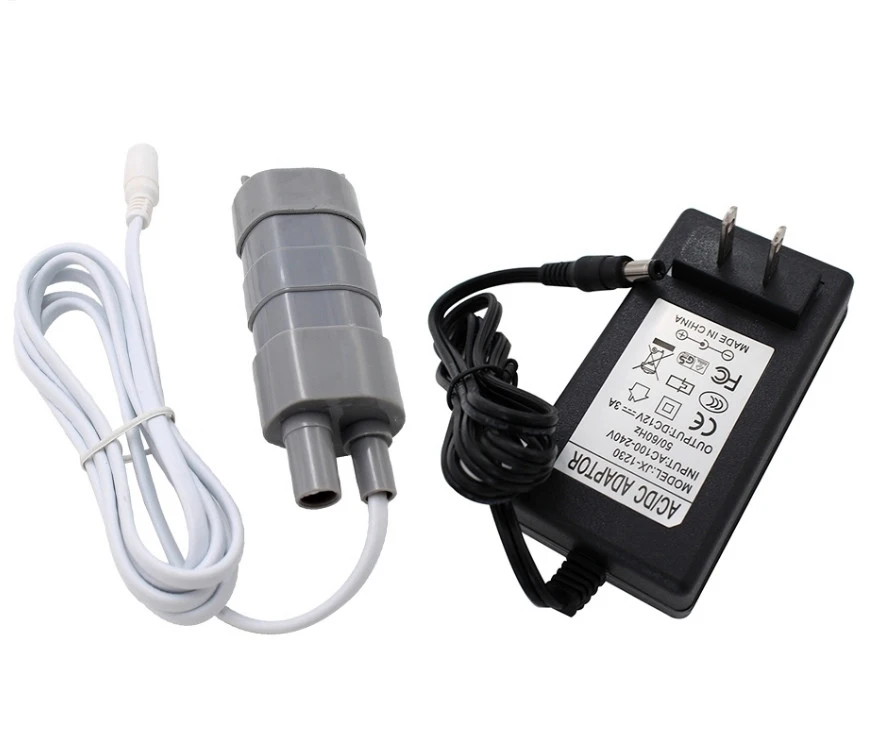

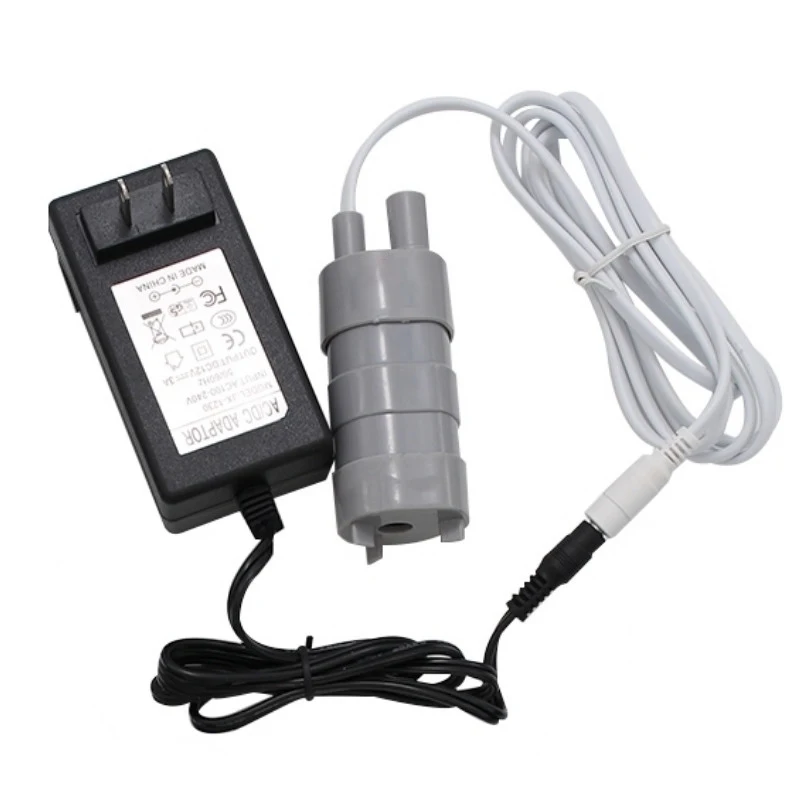

*AC-DC Adapter:Quick connection plug pump dedicated.

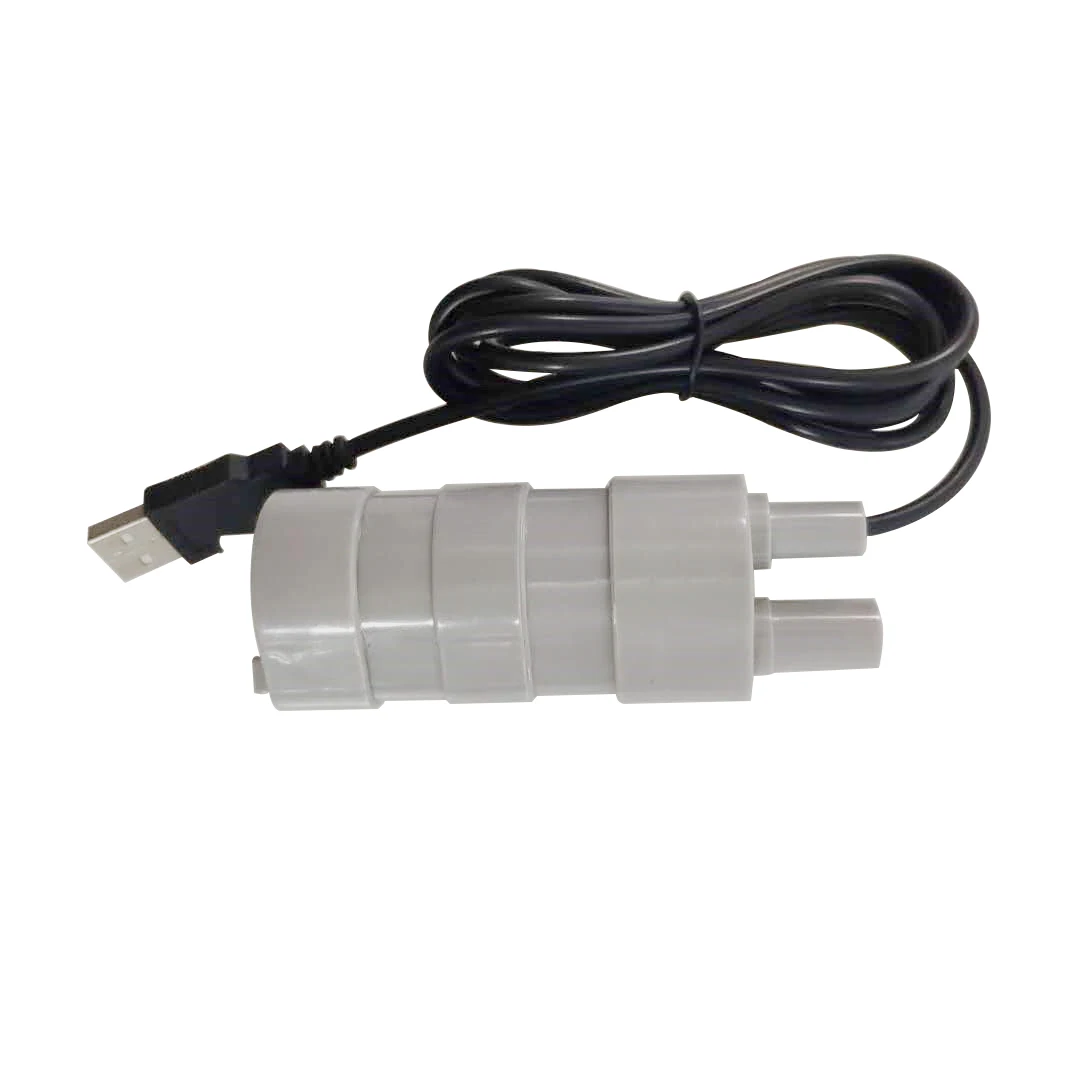

*Cell phone charger plug and Charging treasure:USB plug pump dedicated.
*AC-DC Adapter:Quick connection plug pump dedicated.
*Cell phone charger plug and Charging treasure:USB plug pump dedicated.
We supply Quick Connection ,USB Plug, Pure Wire version, if need.
Application
Company Profile
Why Choose Us
FAQ
Q1.Can I have a sample order for it?
A: Warmly welcome of sample order to test and check quality. Mixed samples are acceptable.
A: Warmly welcome of sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks, if bulk qty need about 20-25workdays.
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4. How to proceed an order?
A:Firstly, let us know your requirements or application.
Secondly, We quote according to your requirements /our recommend model with suggestions.
Thirdly,customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you have ability to do ODM service?
A1: Warmly welcome your ODM requirement based on our production line and our R&D team with more than 20 years experience on pump &
motors.
A2: ODM service based on offered sample.
A3:Modify & creative new function based on our product series.
Q6: What's your payment terms?
A: T/T & LC, small amount accept paypal. Big amount ok for 30% down payment & balance against copy bill of loading.
For more need, please just contact us and we will reply within 24hours on working days.
A:Sample needs 3-5 days, mass production time needs 1-2 weeks, if bulk qty need about 20-25workdays.
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4. How to proceed an order?
A:Firstly, let us know your requirements or application.
Secondly, We quote according to your requirements /our recommend model with suggestions.
Thirdly,customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you have ability to do ODM service?
A1: Warmly welcome your ODM requirement based on our production line and our R&D team with more than 20 years experience on pump &
motors.
A2: ODM service based on offered sample.
A3:Modify & creative new function based on our product series.
Q6: What's your payment terms?
A: T/T & LC, small amount accept paypal. Big amount ok for 30% down payment & balance against copy bill of loading.
For more need, please just contact us and we will reply within 24hours on working days.
if you have any needs or questions,please contact me.
