Product Description
Laboratory Horizontal Planetary Ball Mill Grinder For Powder Making
This is a video link to our product.
https://www.youtube.com/watch?v=iA4cz2atjsI&feature=youtu.be
Product introduction

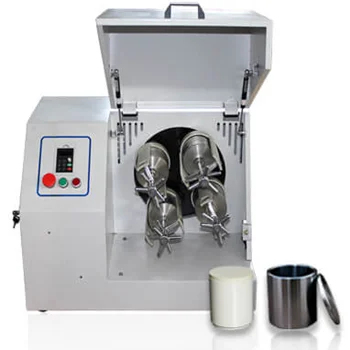

series planetary ball mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements and the balls in the tanks grinds and mixes samples in high speed movement. The product can smash and blend various products of different materials and granularity with dry or wet methods. Minimum granularity of grinded products can be as small as 0.1 micron (i.e.) 1.0×10-4mm).
1. Fast grinding with variable speeds up to 900 rpm
2. Minimum granularity can be reached to 0.1 micron meter
3. Convenient to operate,safe and reliable

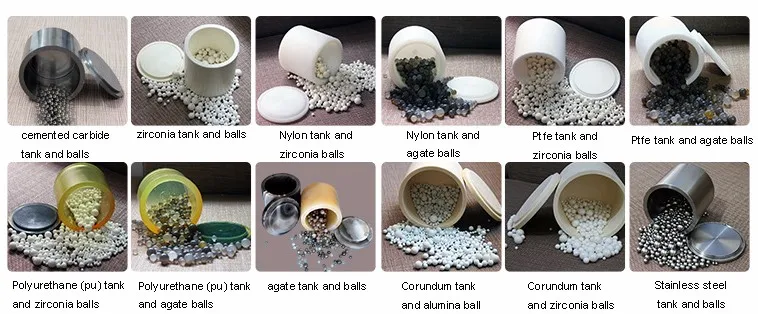

4. Grinding jars and balls in different materials to suit the property of your material
5. Ultrafine grinding
6. Mixing
7. Small sample preparing
8. New product development
9. Small volume high-tech material production
Technical parameters
Drive Mode: gear drive and belt drive
Operation Mode: two or four grinding tanks working together
Maximum Loading Capacity: 2/3 of the capacity of milling tank
Feeding Granularity: soil material ≤10mm, other materials ≤3mm
Output Granularity: Minimum 0.1um
Rotational speed ratio (revolution: rotation): 1:2 (0.4L,2L,4L);1:1.5(12L,20L)
Rotation Speed: 0.4L:0~600rounds/min; 2L:0~580rounds/min 4L:0~530rounds/min 20L:0-280 rounds/min
Speed Regulation Mode: variable-frequency-control-type and program-control-type stepless speed regulation; manual or automatic timed positive or negative revolving
Max. continuous operating time (full-load): 72 hours
Technical Parameters of Horizontal Planetary Ball Mill
| Parameters of Horizontal Planetary Ball Mill (Light Type) | |||||||
| Model No. | Power (kw) | Voltage | Dimension (mm) | Revolution Speed (rpm) | RotationSpeed (rpm) | Total Timing (min) | Alternating Run Time of Forward & Reversal Rotation (min) |
| LITH-0.4 | 0.75 | 220V-50Hz | 700*510*570 | 35-335 | 70-670 | 1-9999 | 1-999 |
| LITH-1 | 0.75 | 220V-50Hz | 700*510*570 | 35-335 | 70-670 | 1-9999 | 1-999 |
| LITH-2 | 0.75 | 220V-50Hz | 700*510*570 | 35-335 | 70-670 | 1-9999 | 1-999 |
| LITH-4 | 0.75 | 220V-50Hz | 700*510*570 | 35-335 | 70-670 | 1-9999 | 1-999 |
| LITH-6 | 0.75 | 220V-50Hz | 700*510*570 | 35-335 | 70-670 | 1-9999 | 1-999 |
Certifications
Company Information
Cooperative Partners
FAQ
Q. Are you a manufacturer or a trading company?
A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.
Q. Our country's power supply and plug are different. How do you solve it?
A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.
Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.
Q. How to pay?
A.T / T, L / C, D / P, etc., it is recommended to use Alibaba Trade Guarantee.
Q. How is the package of goods? Delivery methods?
A.1. Standard export fumigation sign wooden box packaging
2. Express, air, sea shipping according to customer requirements, find the most suitable way.also accept LC at sight.
Packaging & Shipping
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
