Product Description
hang electroplating line plastic silver plating machine hard chrome plating machine

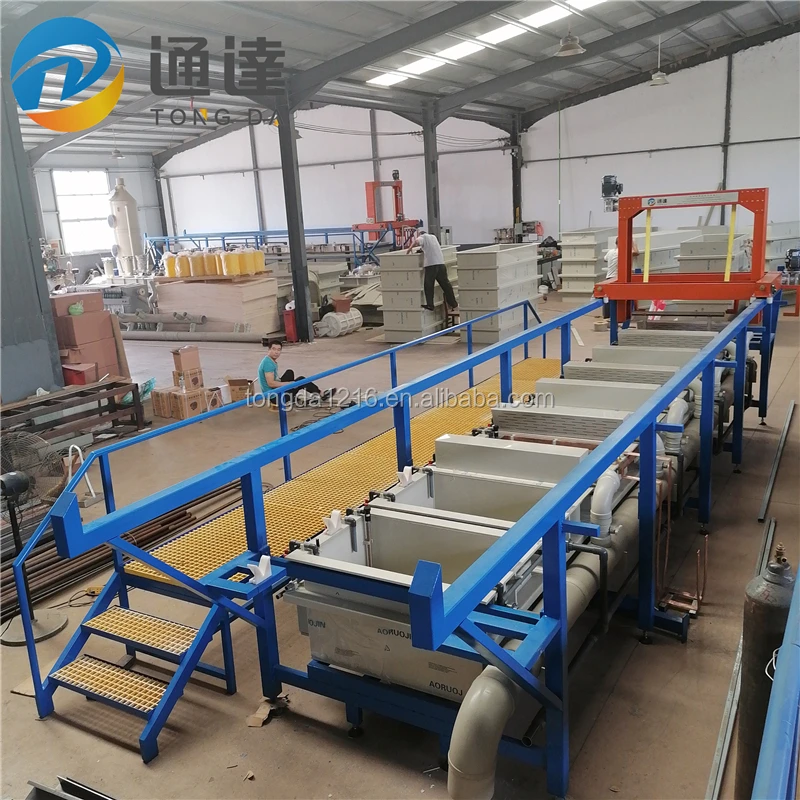

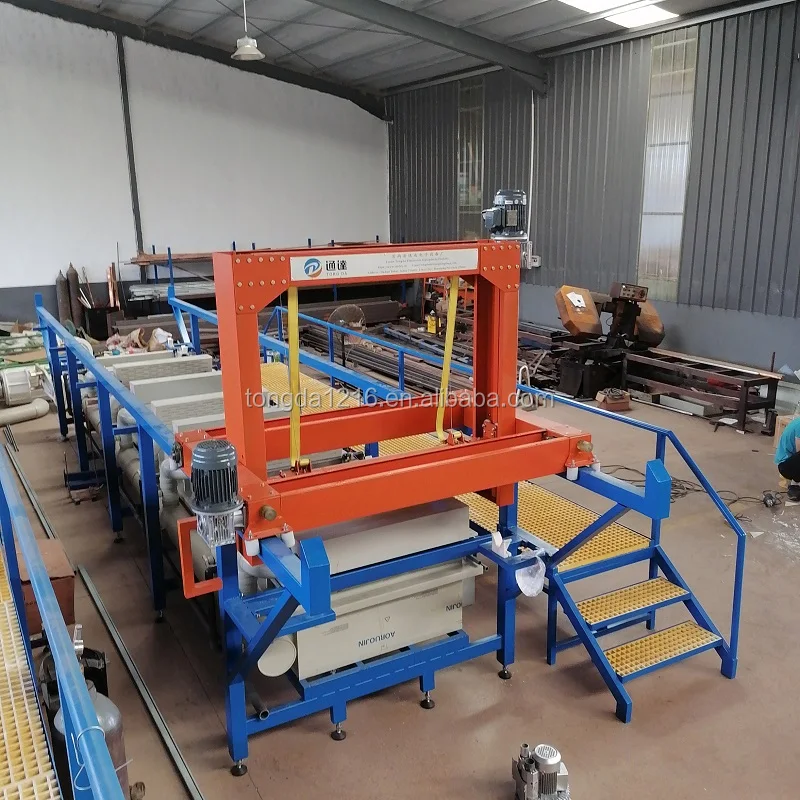

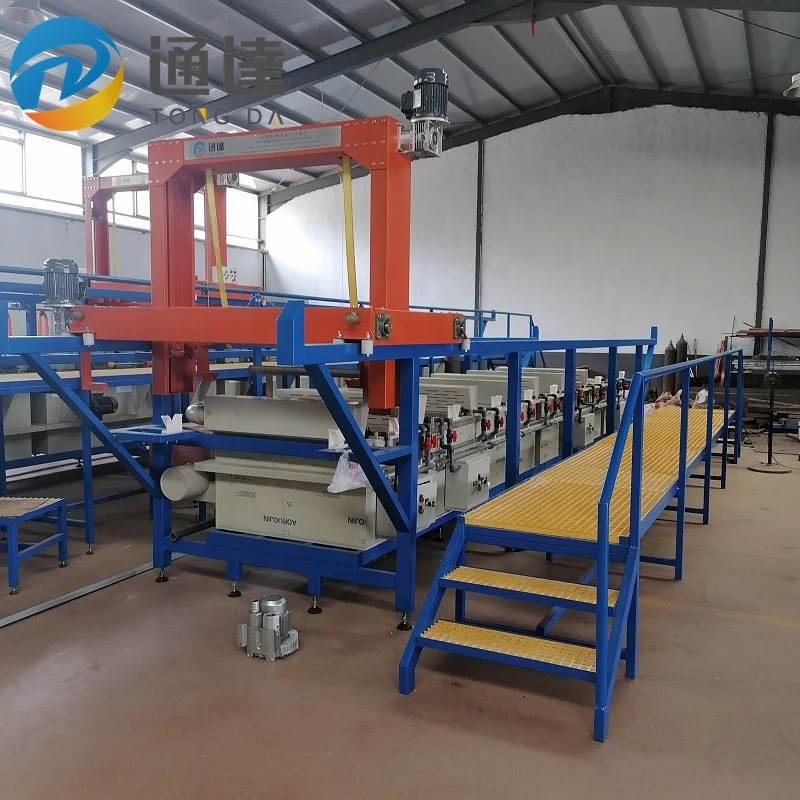

Automatic Gantry Hang Electroplating Line
1.Its has mix function with full-automatic and semi-automatic, with degree of automation .
2.High Productivity ,stable quality ,saving time ,human and area
3.Intelligent operating System:Controlled by PLC .Using the Man-Machine touched interface controlling panel,can monitor and adjust the every process and data.
4.Suitable for the large mass production of large parts .
1. High quality raw material : 10--15mm PP / PVC plate (Welcome customized )
2. Anti-corrosion and resistant machinery frame and Crane lifting : Steel body and Epoxy painting.
3. Main equipment model :
(1) According to plating method : Barrel plating and Hang plating
(2) According to Control system : Portable equipment ; Manual plating line ; Semi-automatic plating line ; Full-automatic line .
(3) According to application : Zinc plating ; Nickel plating ; Chrome plating ; Copper plating ; Gold plating ; Anodizing and etc.
4. Welcome customized : the electroplating line is non-standard , it is designed according to your products information .
5. Testing before delivery :
(1) Anti-leakage testing : We will fill the tanks with water after welding and before installation , the testing time last 72 hours .
(2) Running testing : We will installed the equipment and operate it . Meantime , we will take the testing videos to the customer to confirm it .
6. Our service: Comprehensive after-sales service
(1) Detailed Installation Manual: we will make the detailed Installation Manual according to your customized equipment , it can
help you to understand and know how to install the machine more clearly .
(2) Guide on-line : If customer need , we can have a meeting on Wechat , Whatsapp or Skype , then solve customers doubts face to
face .
(3) Guide on-site : According to customers' requirement , we can send our engineers and workers to go to customers plant to do
guide on site and training your workers how to operate it .
6. Guarantee : one year ( We will replace the external equipment for free except the human damaged )
7. We are factory lied in Linyi city , Shandong province , China . We have the best price .
8. We have Export license , we can export to your area directly .
9. Surrounding equipments :
Pre-treatment equipment | Ultrasonic degreasing equipment , Washing machine , Vibrating polishing machine |
After-treatment equipment | Oven , Dryer |
External equipment | Rectifier , Filter , Chiller |

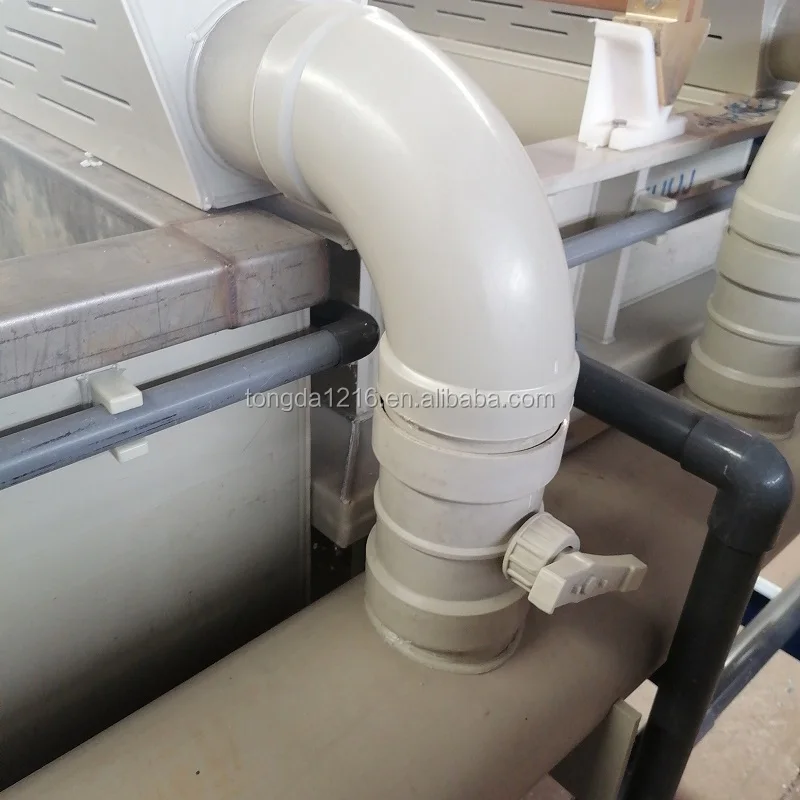

Water cycle system | Input and output plastic pipes and value |
Exhaust system | Air cover, ventilation pipe, Exhaust fan , Acid mist tower, Air box |
Detailed Images

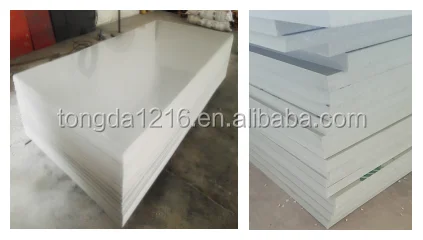

PP / PVC plate
Our standard PP /PVC plate thickness is 15mm , after serioiusly testing and market research , this is the most cost-effect thickness , there will have a good balance for price and quality .
Besides , we also welcome the customized of its thickness , please note .

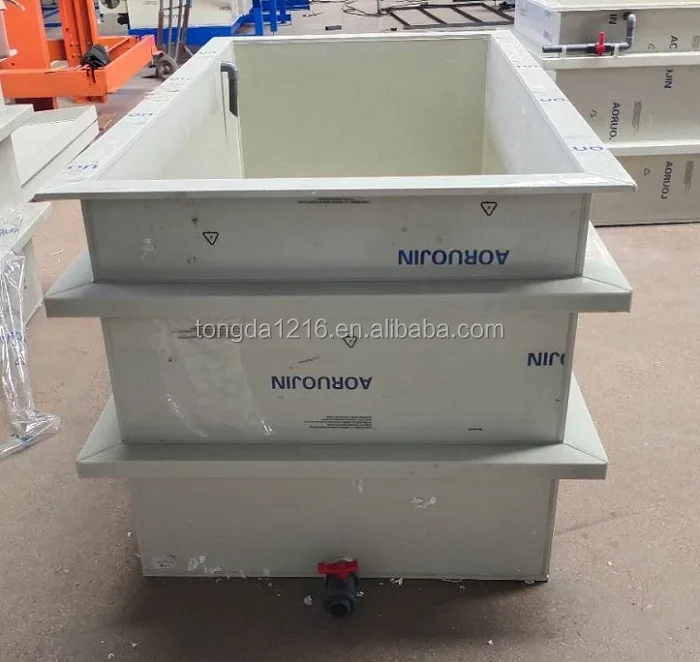

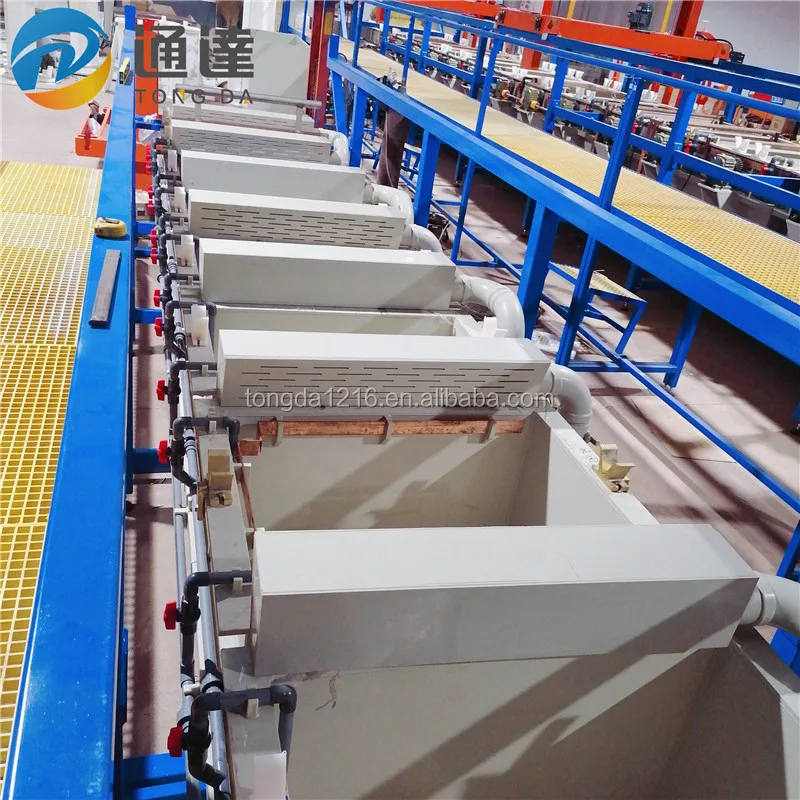

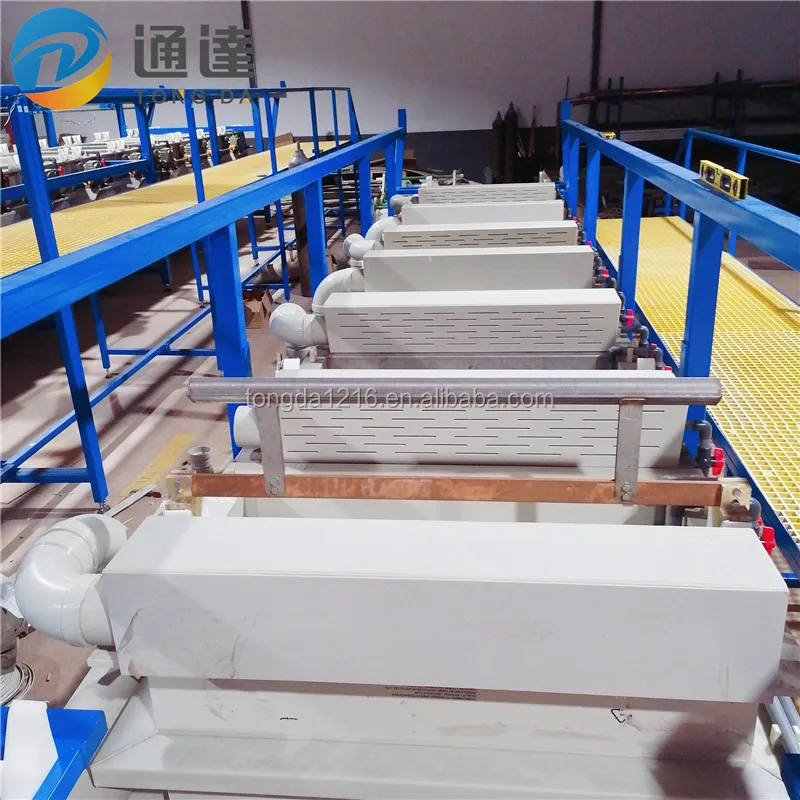

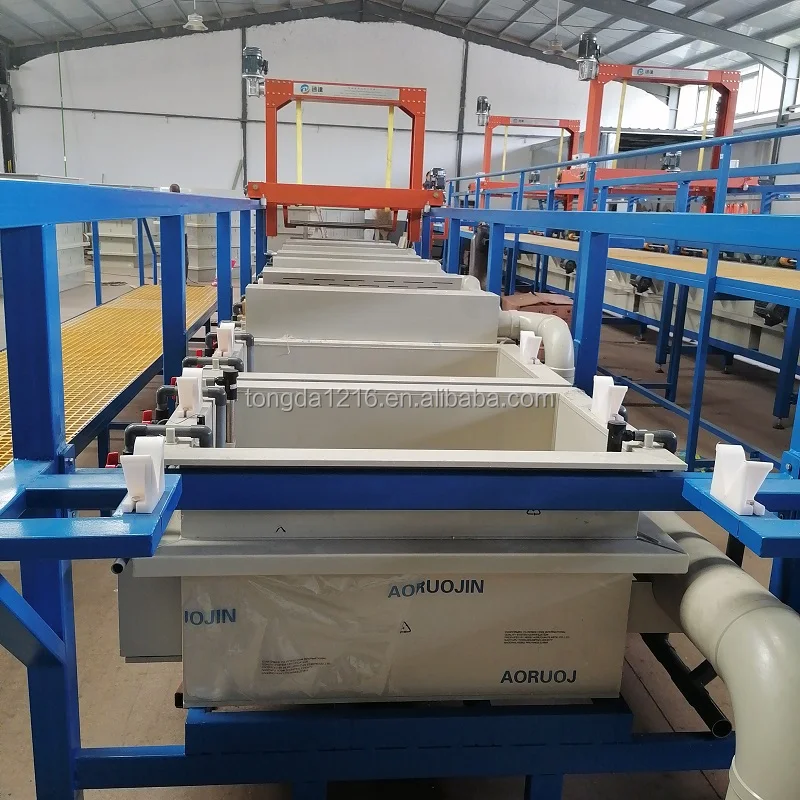

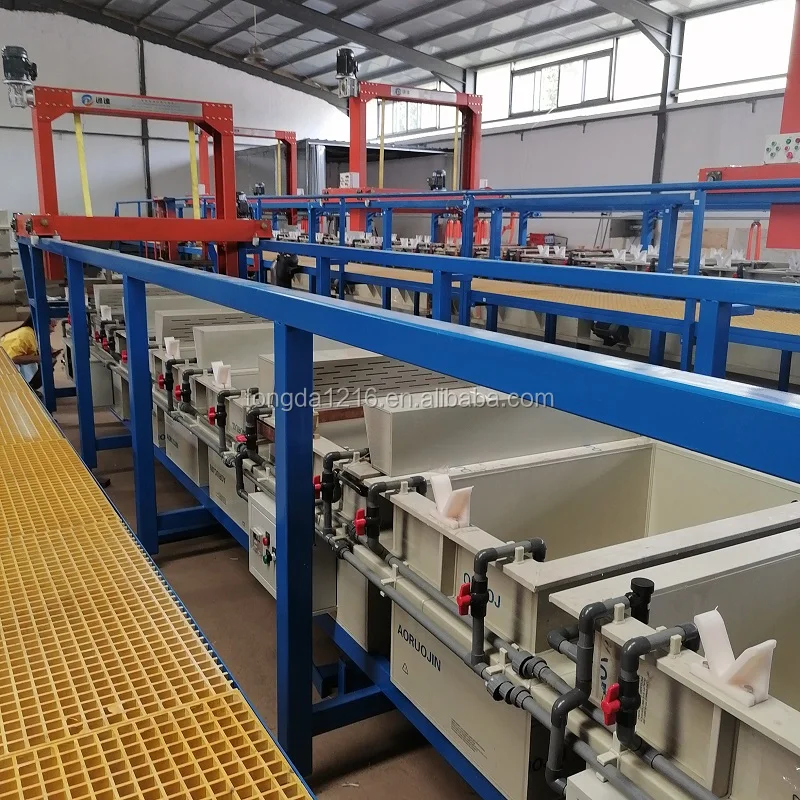

PP / PVC welding plating tank
Our plating tanks with the whole strengthen (0.5m/ bar) and details strengthen .
The importance : The strengthen is square iron pipe with PP plate outer welding .
Please note .

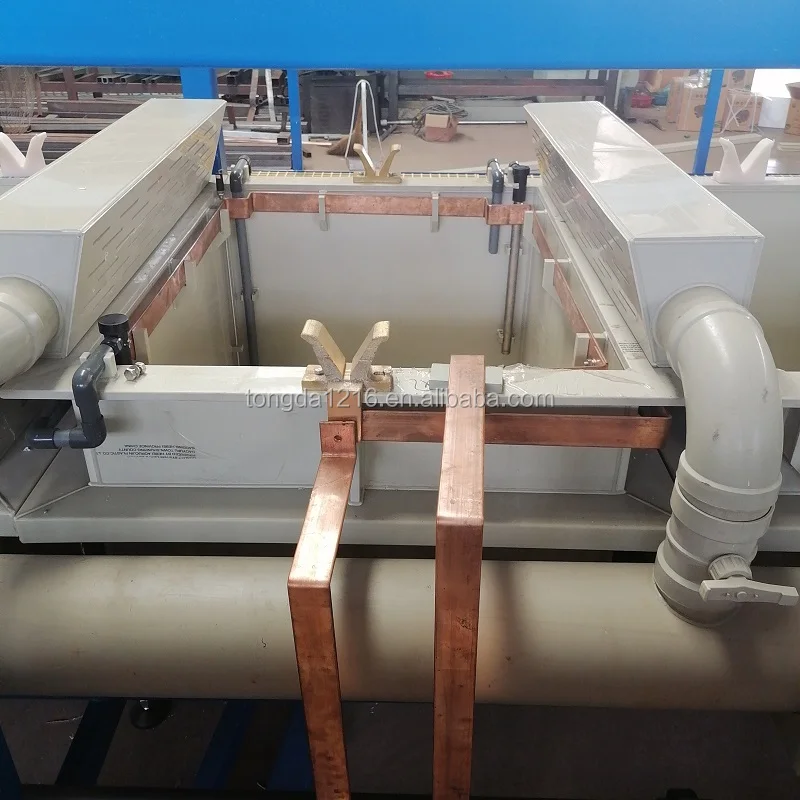

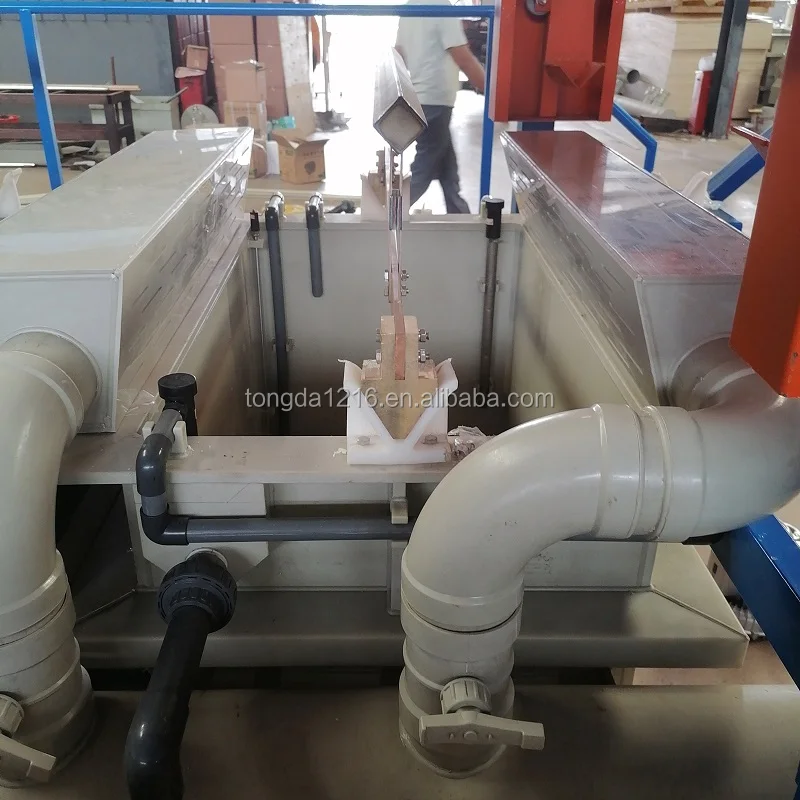

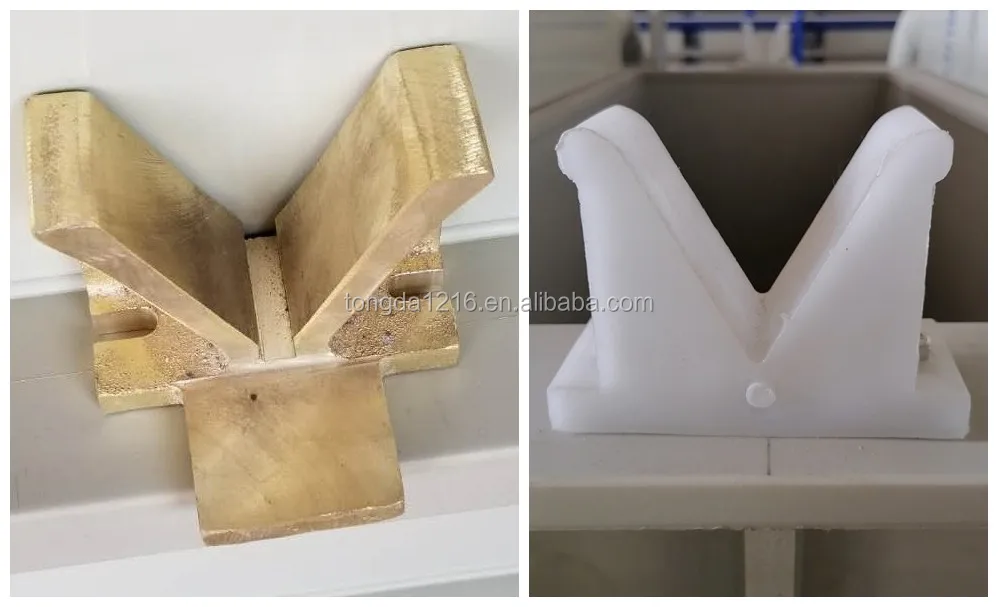

Brass/PP V-holder
V-holder for support.
For the brass V-holder , it also used for conductive

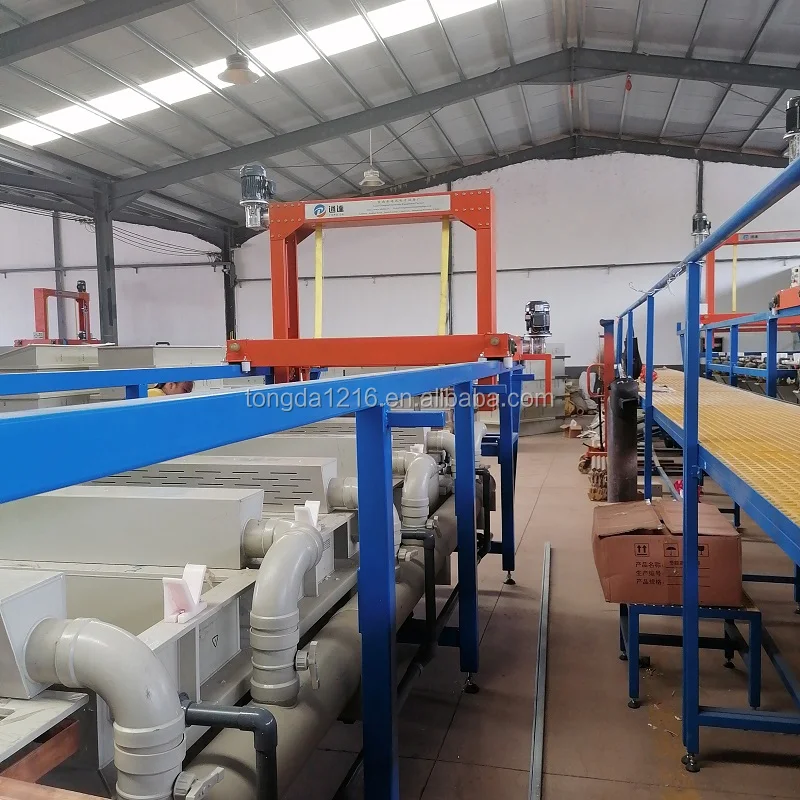

Machinery structure
80*80*5mm Epoxy Resin Paint square steel
Machinery frame : 80*80*5mm square steel
Horizontal support : 60*40*5mm square steel
Cable track bracket : 40*40*3mm square steel
Flat cable chute : 30*30*3mm
Track of positioning pieces : 30*30”C”steel
Leveling device : Stainless steel adjustable foot.
Three-layer epoxy paint protection,
strong corrosion resistance

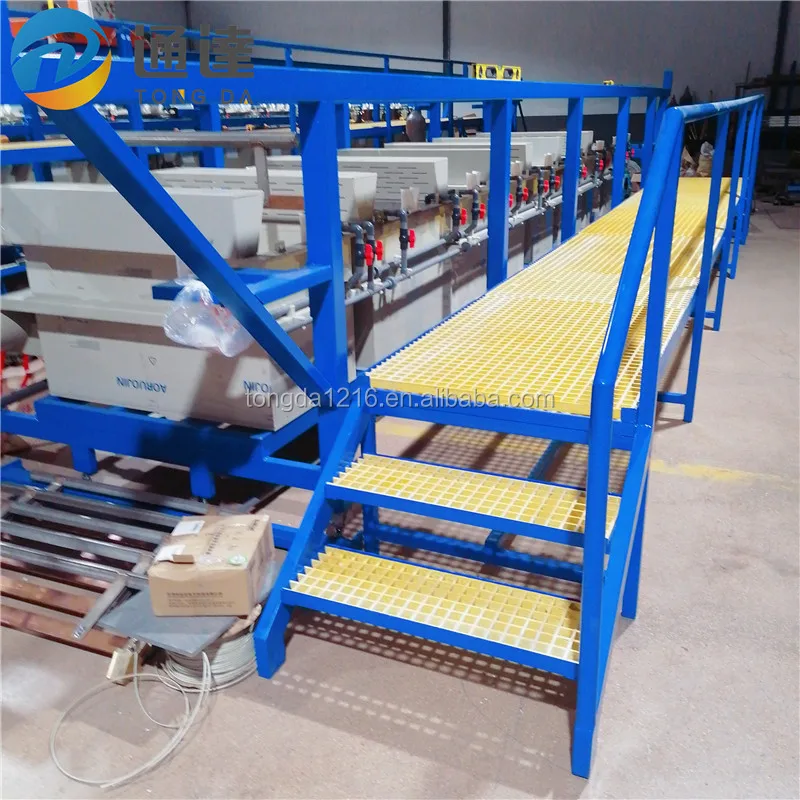

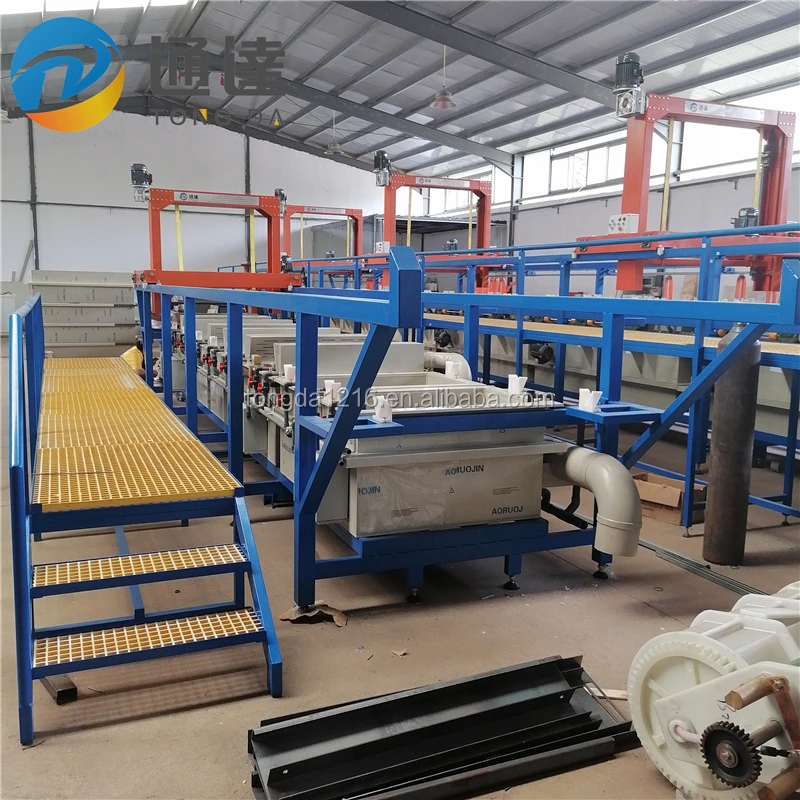

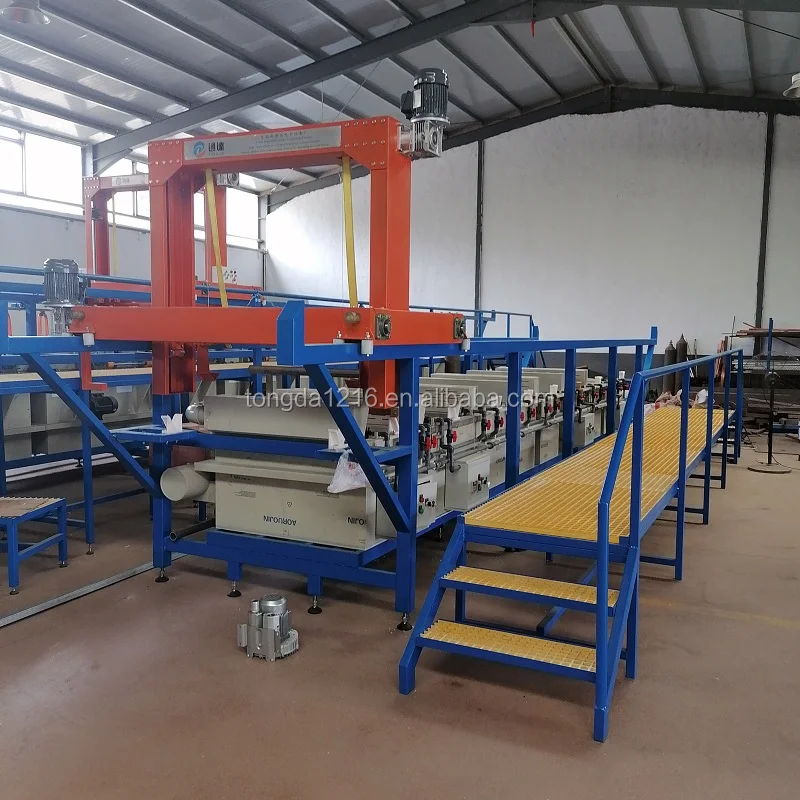

Walking area/Operate platform
A3 steel with epoxy paint protection
FRP grille support for walking .

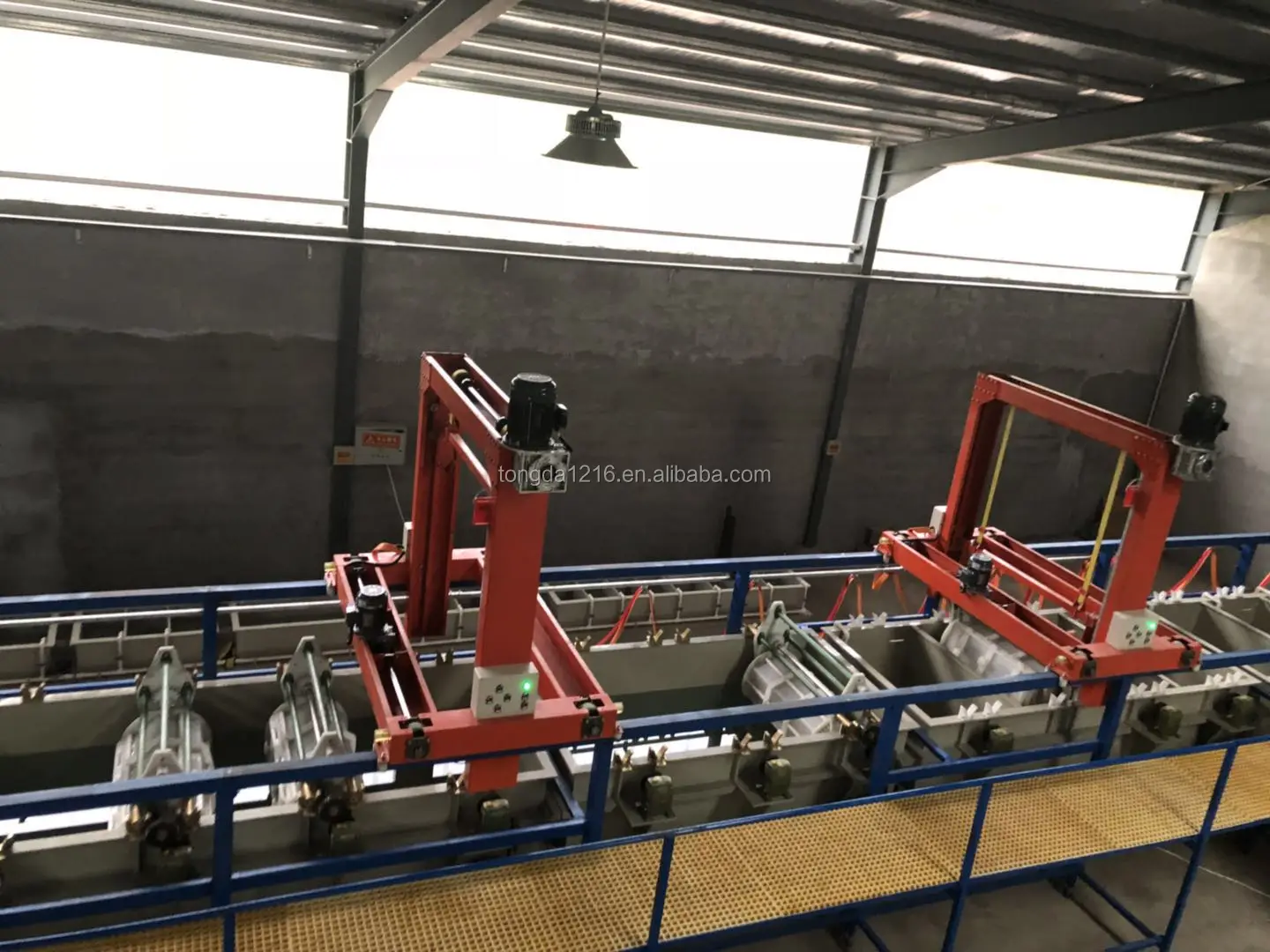

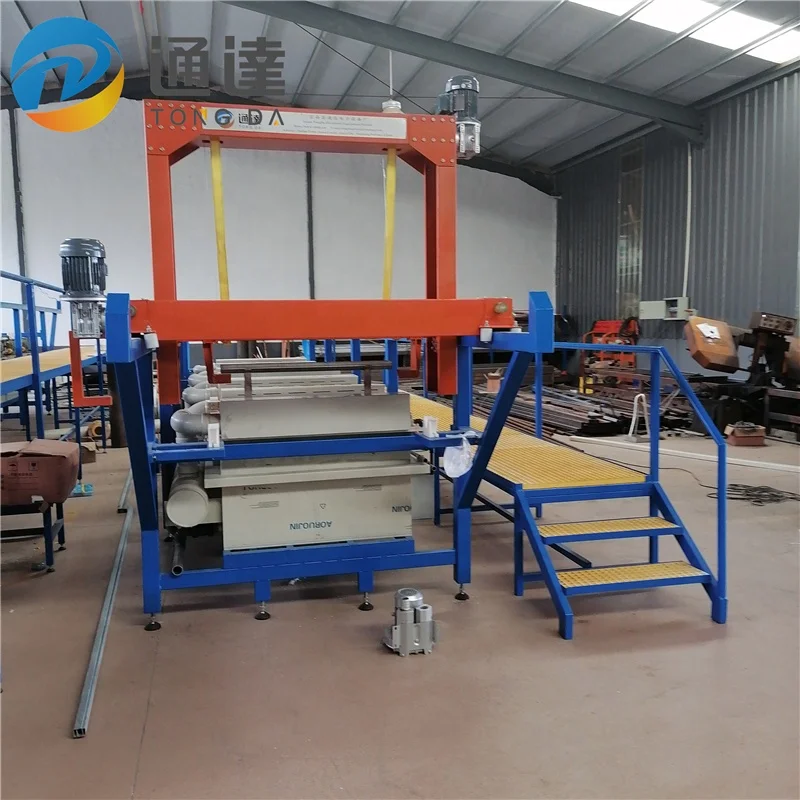

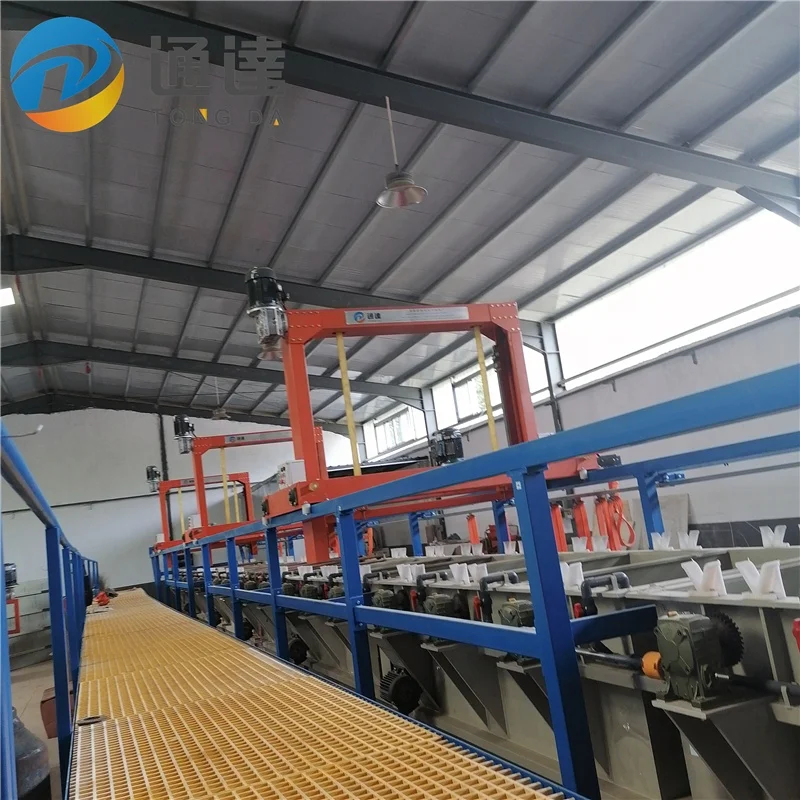

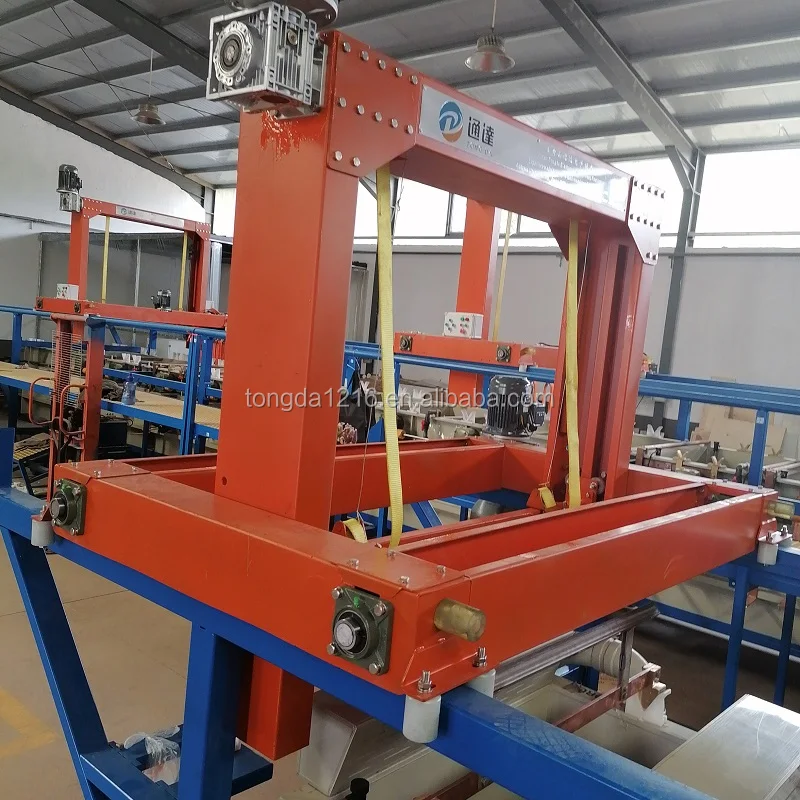

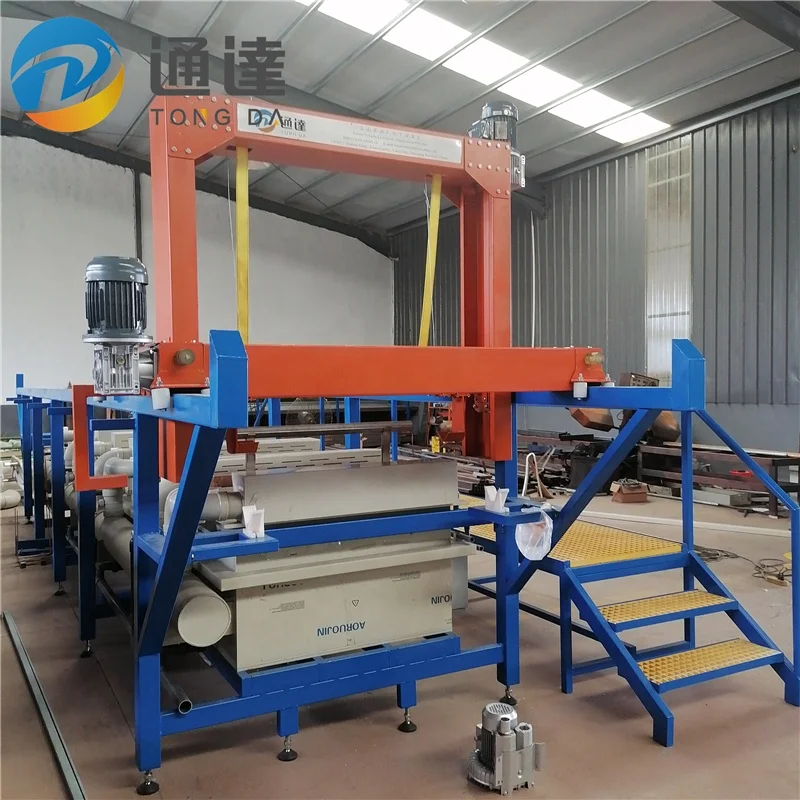

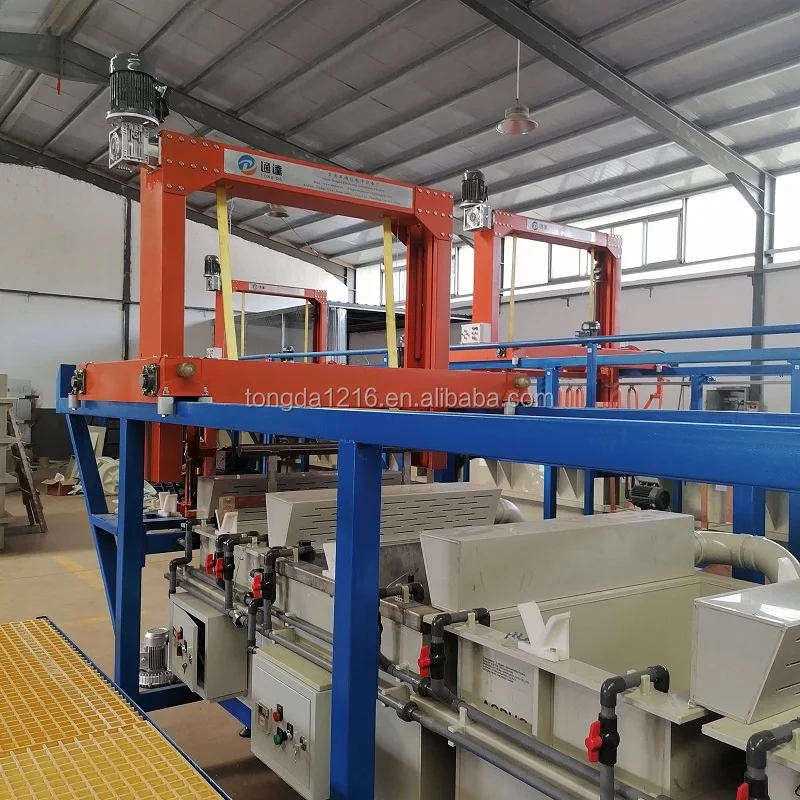

Crane lifting
There are two types of crane lifting ,
First for Manual , it have to push by workers .
Second for Semi/Full-automatic .

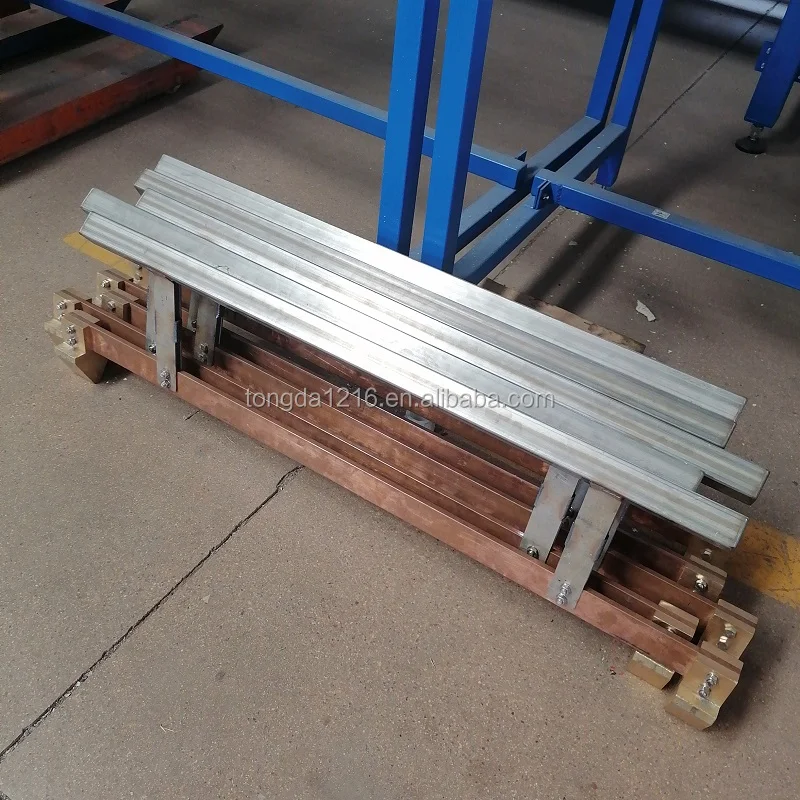

Plating palladium
Copper and steel palladium
customized according to tanks and products
Equipment testing before delivery
First testing : Plating tanks testing
First of all , we will test the tanks first . Pour the water into tanks , and stay 72 hours , then check it whether if the tanks will be not seepage , otherwise , the tanks will be given up .
Second testing: Equipment running testing
After tanks testing confirmation , then we will install and running it . After running it one day continuous , the machine is successful . We can deliver it .

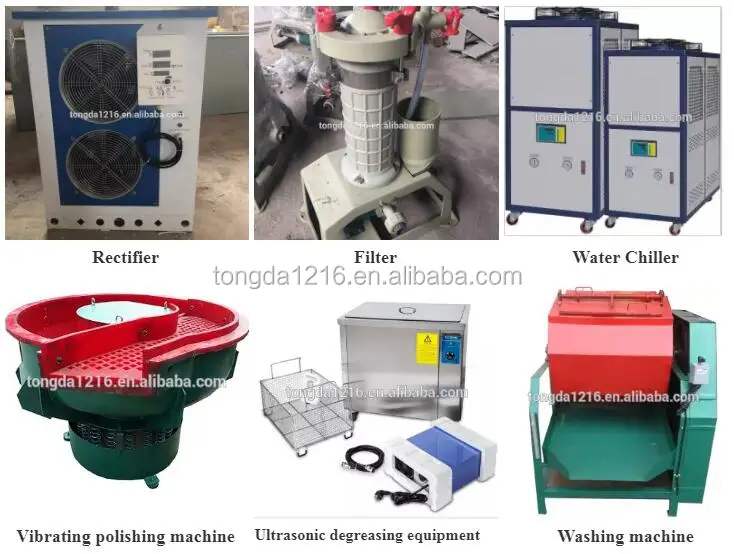

Extrenal equipment

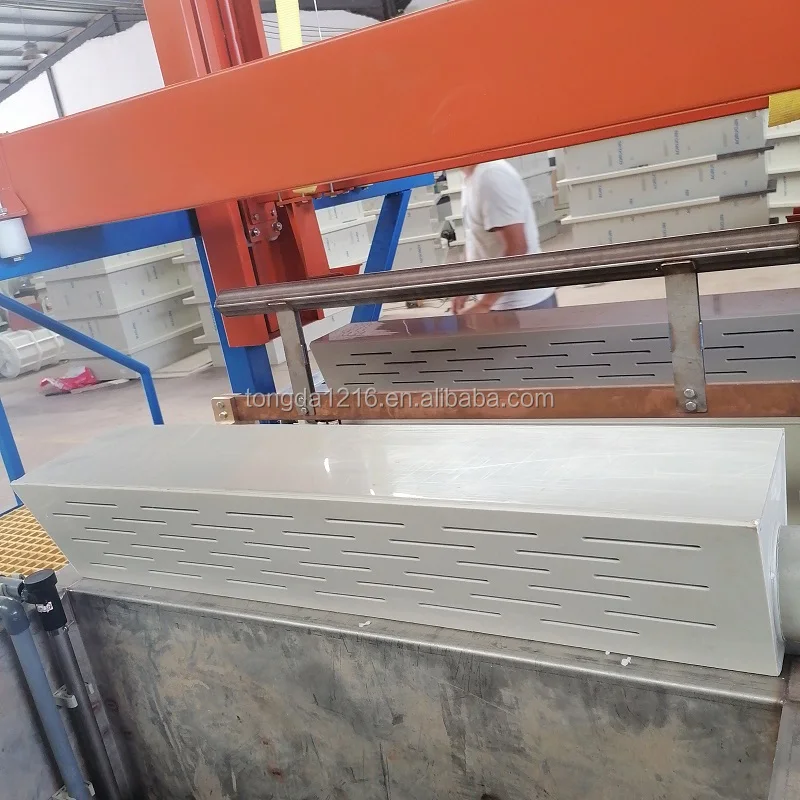

Exhaust System

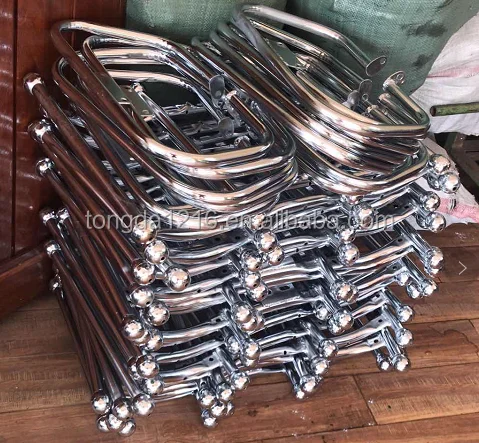

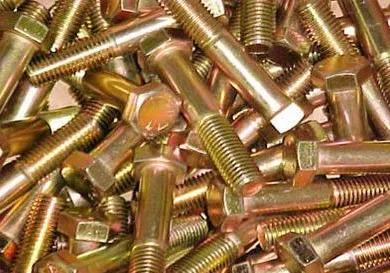

Plating products
Packing & Delivery
Collect messages
Please confirm the following information :
1.What's the products you want to plate ? Please give me some pictures .
2. Which coating do you want to plating ?
3.What the product size and unit weight ? Max and Min size please .
4.How many do you want to plate one day for each coating ? (8 hours or longer time you request )
5.Do you have a budget about this project ?

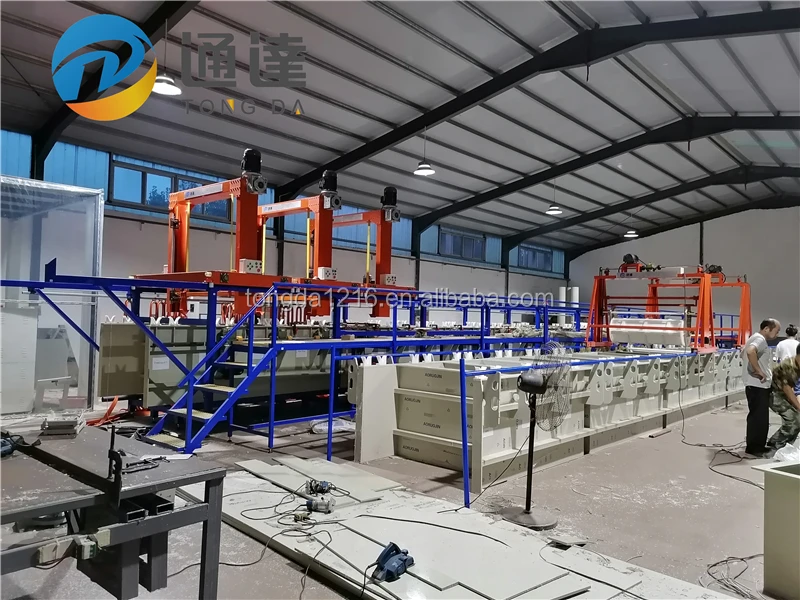

Factory
This is our factory JUNAN TONGDA ELECTRONIC EQUIPMENT FACTORY which lie in Junan County , Linyi City , Shandong province . We are professional electroplating equipment manufacturer , zinc , nickel , chrome , copper, gold and etc. plating equipment , welcome your inquiry .
