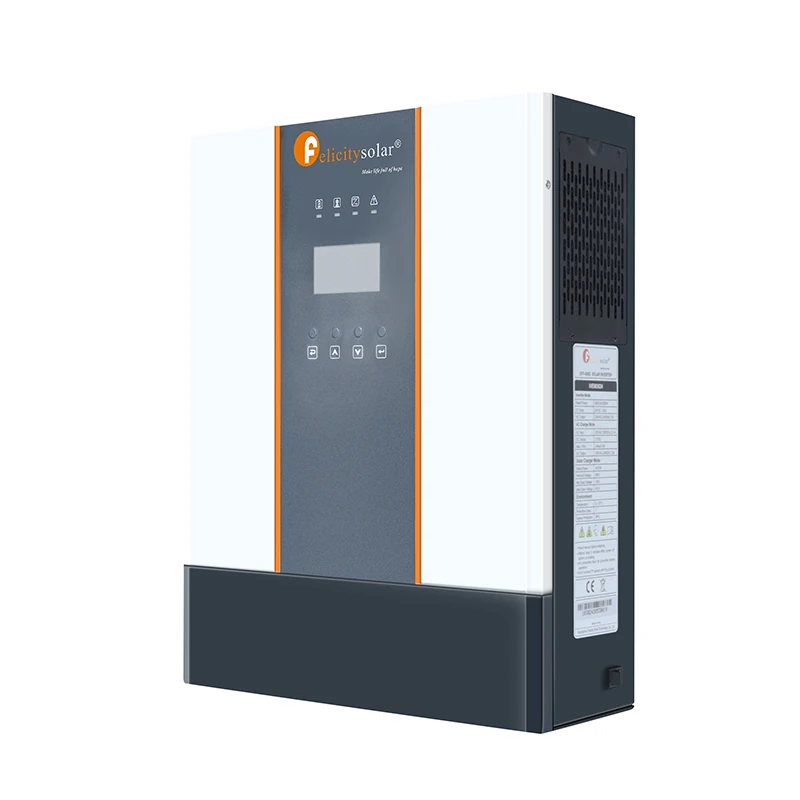

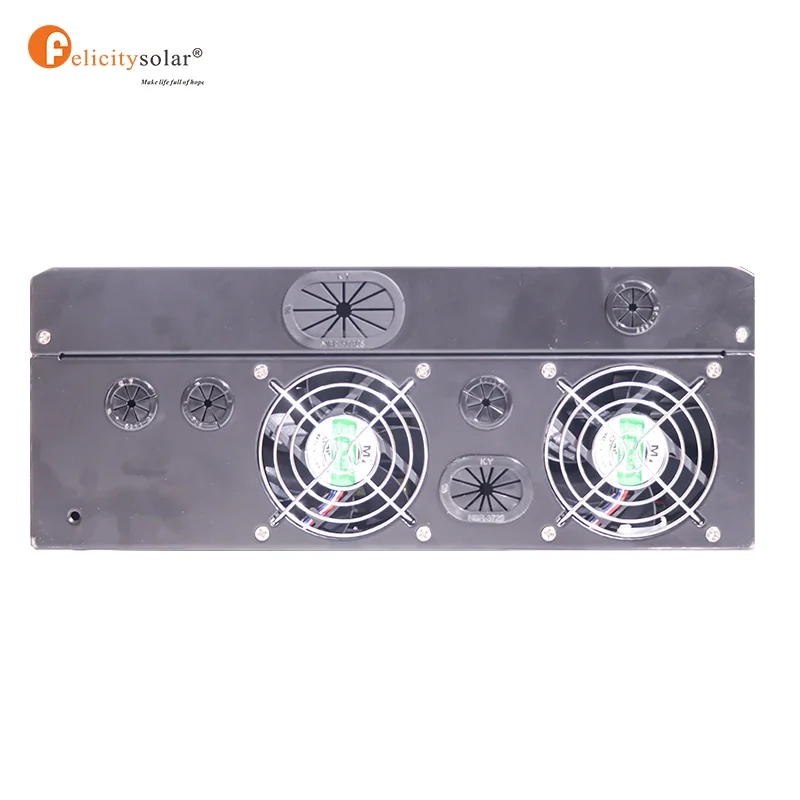

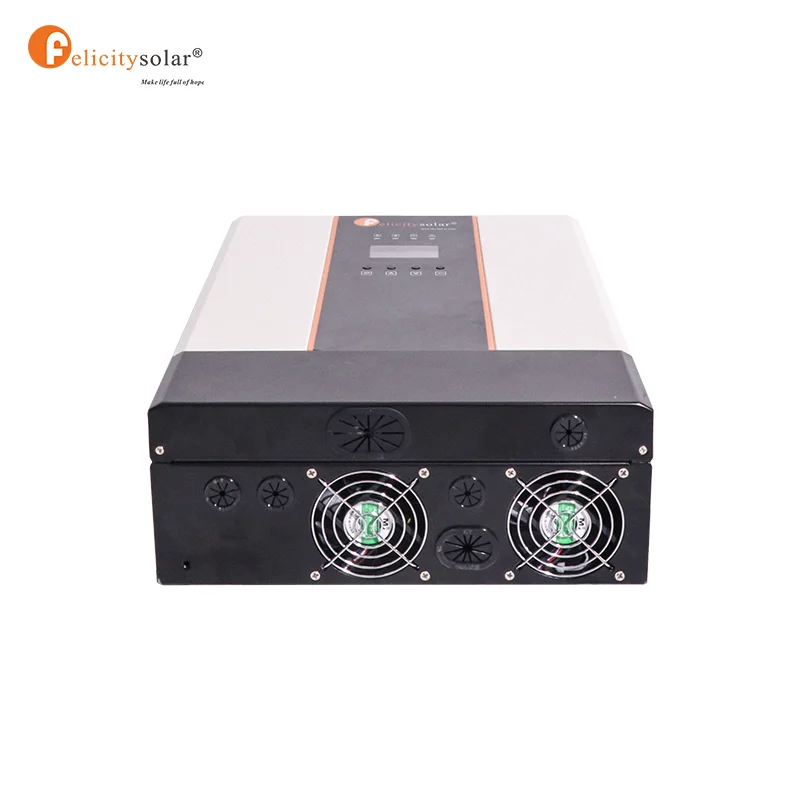

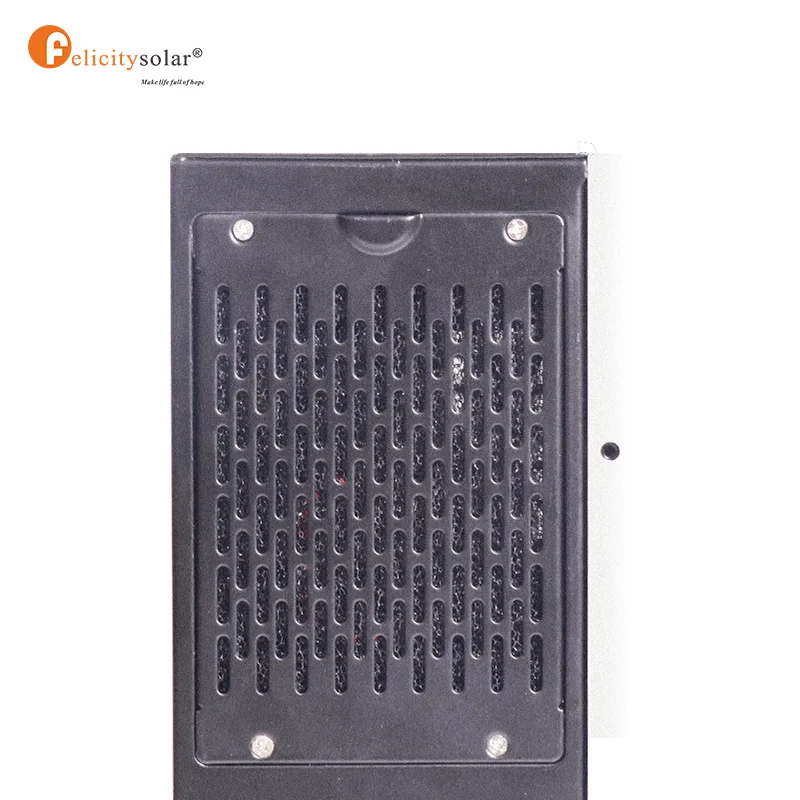

5 кВт 10 кВт солнечный инвертор решетки инвертор солнечная система питания 5 кВт 10 кВт солнечный инвертор цена
- Категория товара: Solar Inverter >>>
- Поставщик (Оптовый магазин): Guangzhou,Felicity,Solar,Technology,Company,Limited
Поделиться:
Описание и отзывы
Характеристики
Products Description
Product Application
Model | IVEM3024 | IVEM5048 | ||||||||
Rated Output Power(VA) | 3000VA | 5000VA | ||||||||
Rated Output Power(W) | 3000W | 5000W | ||||||||
Nominal DC Input Voltage | 24V | 48V | ||||||||
Input Voltage Waveform | Sinusoidal(Utility or generator) | Sinusoidal(Utility or generator) | ||||||||
Nominal Input Voltage | 230Vac | 230Vac | ||||||||
Low Line Disconnect | 170Vac±7(UPS); 90Vac±7Vac(Appliances) | 170Vac±7(UPS); 90Vac±7Vac(Appliances) | ||||||||
Low Line Re-connect AC Input Range | 180Vac±7(UPS); 100Vac±7Vac(Appliances) | 180Vac±7(UPS); 100Vac±7Vac(Appliances) | ||||||||
High Line Disconnect | 280Vac±7Vac | 280Vac±7Vac | ||||||||
High Line Re-connect | 270Vac±7Vac | 270Vac±7Vac | ||||||||
Max AC Input Voltage | 280Vrms | 280Vrms | ||||||||
Nominal Input Frequency | 50Hz/60Hz(Auto detection) | 50Hz/60Hz(Auto detection) | ||||||||
Max PV Open Circuit Voltage | 450V | 450V | ||||||||
PV Voltage Working Range | 120V~450V | 120V~450V | ||||||||
Max Input Power | 4000W | 6000W | ||||||||
Max Solar Charging Current | 100A | 100A | ||||||||
Max Charging current(Utility + Solar) | 100A | 100A | ||||||||
Max Input Current | 15A | 20A | ||||||||
Min Start Up Voltage | 125V | 125V | ||||||||
Pure sine wave
Built-in MPPT solar charge controlller
Configurable solar input voltage up to 450V Maximum
Configurable input voltage range for home appliances and personal computers via LCD setting
Configurable battery charging current based on applications via LCD setting
Configurable AC/Solar Charger priority via LCD setting
Compatible to mains voltage or generator power
Auto restart while AC or Solar is recovering
Capable working without battery connection
Capable suppling power to AC output with solar and utility at same time
Capable suppling AC output with solar input only
Overload/ Over temperature/ short circuit protection
Cold start function
Parallel operation with up to 9 units only available for 5KVA model
Built-in MPPT solar charge controlller
Configurable solar input voltage up to 450V Maximum
Configurable input voltage range for home appliances and personal computers via LCD setting
Configurable battery charging current based on applications via LCD setting
Configurable AC/Solar Charger priority via LCD setting
Compatible to mains voltage or generator power
Auto restart while AC or Solar is recovering
Capable working without battery connection
Capable suppling power to AC output with solar and utility at same time
Capable suppling AC output with solar input only
Overload/ Over temperature/ short circuit protection
Cold start function
Parallel operation with up to 9 units only available for 5KVA model

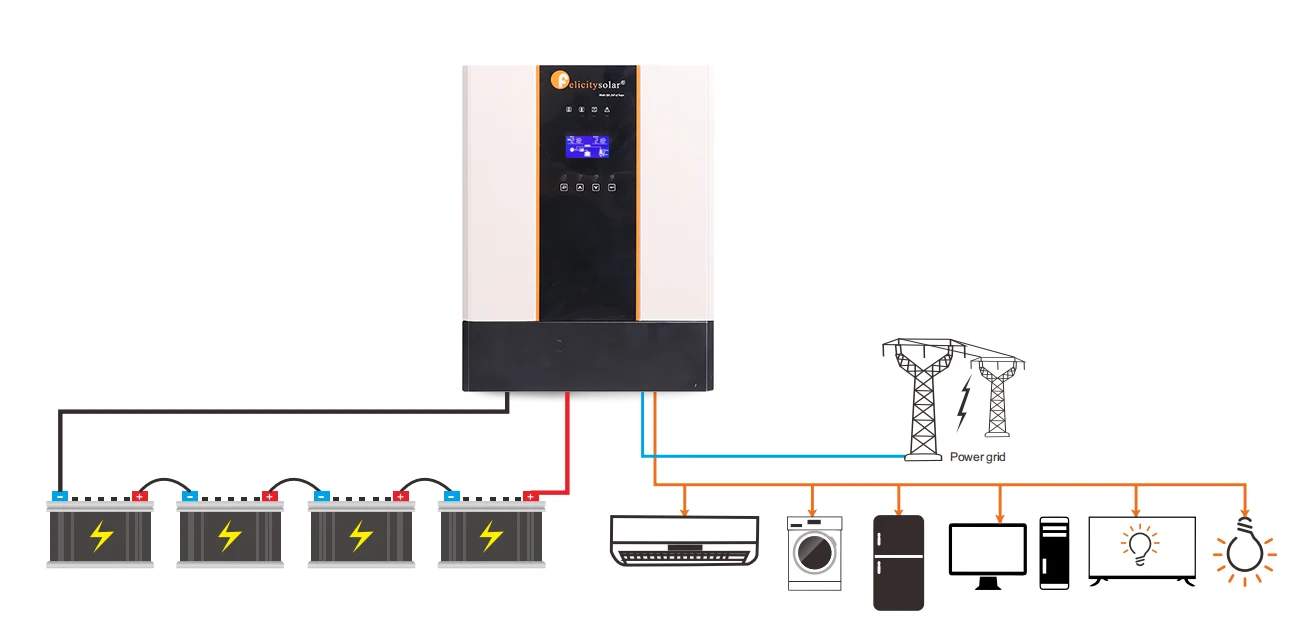

Product Applications
Certificate & Payments
We support wide range of secure & reliable payment methods like T/T, L/C, West Union, E-checking, Paypal and so on. Please choose your preferred payment method from those listed below.
Company Profile
Felicity Solar Limited was founded in 2007, located in Guangzhou, China. We have specialized in the solar field for 7 years and made great achievements in overseas markets, For the past 7 years, we have developing rapidly and become a leading enterprise in this field.
Our major products are solar power system, solar street light and other applicable products such as solar rechargeable lamp, solar kit and so on. We enjoy our company with high technology, experienced engineer, skilled staff and high efficient production line. Taking Customers as Our Orientation, we have been providing perfect technical guidance and after- sales service.
To strengthen our competency, we improve the quality of our products by optimizing our production process. Thus, we have been approved by ISO9001, CE, ROHS, SONCAP and other authoritative international certification. Currently we have cooperated with partners from more than 40 countries and regional markets from Australia, Turkey, UAE, Singapore, Nigeria and so on and set up more than 10 branch offices in domestic and oversea markets. We are devoted to a low-carbon, energy-saving, environment-friendly life and hope that you can join us and contribute a better life for people in the world.
