Banatton OEM хорошая цена 50 Вт солнечные поли панели монокристаллические модули Фотоэлектрические поликристаллические
- Категория товара: Солнечные панели >>>
- Поставщик (Оптовый магазин): Banatton,Technologies,(Beijing),Co.,Ltd.Banatton,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Product Parameters
| PRODUCT PARAMETERS | |||||||||||
| Item | Model | Pm(W) | Voa(V) | Isc(A) | Vm(V) | Ip(A) | Size(MM) | Size(MM) | N.W(KG) | G.W(KG) | (Pcs/ctn) |
| 1 | BT5-12P | 9V/5W | 10.70V | 0.62 | 9V | 0.56 | 250*180*18 | 260*190*370 | 20 | 21.5 | 20 |
| 2 | BT20-12P | 18V/20W | 21.24V | 1.24 | 18V | 1.11 | 420*350*20 | 430*360*210 | 16.2 | 18.4 | 10 |
| 3 | BT30-12P | 18V/30W | 21.24V | 1.87 | 18V | 1.67 | 535*450*25 | 545*460*260 | 23.7 | 27.85 | 10 |
| 4 | BT50-12P | 18V/50W | 21.24V | 3.11 | 18V | 2.78 | 670*540*30 | 680*550*160 | 18.9 | 21.3 | 5 |
| 5 | BT80-12P | 18V/80W | 21.24V | 4.98 | 18V | 4.4 | 1000*510*30 | 1010*520*160 | 25.75 | 29.05 | 5 |
| 6 | BT100-12P | 18V/100W | 21.24V | 6.22 | 18V | 5.56 | 1000*670*30 | 1010*680*70 | 12.88 | 14.88 | 2 |
| 7 | BT150-24P | 18V/150W | 21.24V | 9.33 | 18V | 8.33 | 1470*670*35 | 1480*680*80 | 20.18 | 22.52 | 2 |
| 8 | BT200-24P | 36V/200W | 48.84V | 6.22 | 36V | 5.56 | 1580*808*40 | 1590*818*90 | 25.95 | 27.95 | 2 |
| 9 | BT250-24P | 30V/250W | 35.70V | 9.33 | 30V | 8.33 | 1640*990*40 | 1650*1000*90 | 30 | 36 | 2 |
| 10 | BT300-24P | 36V/300W | 48.84V | 9.33 | 36V | 8.33 | 1950*990*40 | 1960*1100*90 | 40 | 43 | 2 |
| 11 | BT370-72P | 38V/370W | 48.09V | 10.07 | 38V | 9.56 | 1950*990*40 | 1960*1100*90 | 22 | 25 | 2 |

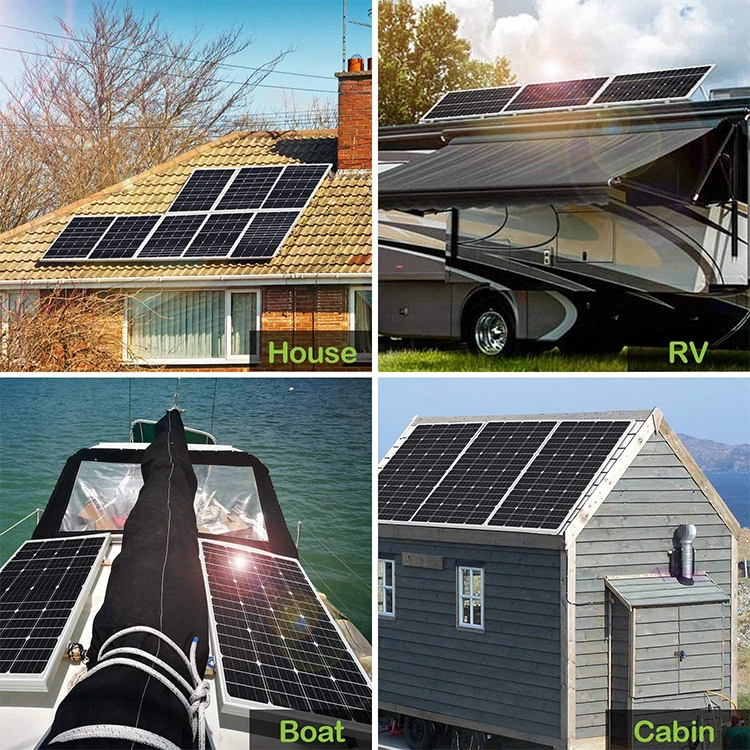

Mounting Structure
lResidential Roof (Pitched Roof) lCommercial Roof (Flat roof & workshop roof)
lGround Solar Mounting system lVertical wall solar mounting system
lAll aluminum structure solar mounting system lCar parking solar mounting system

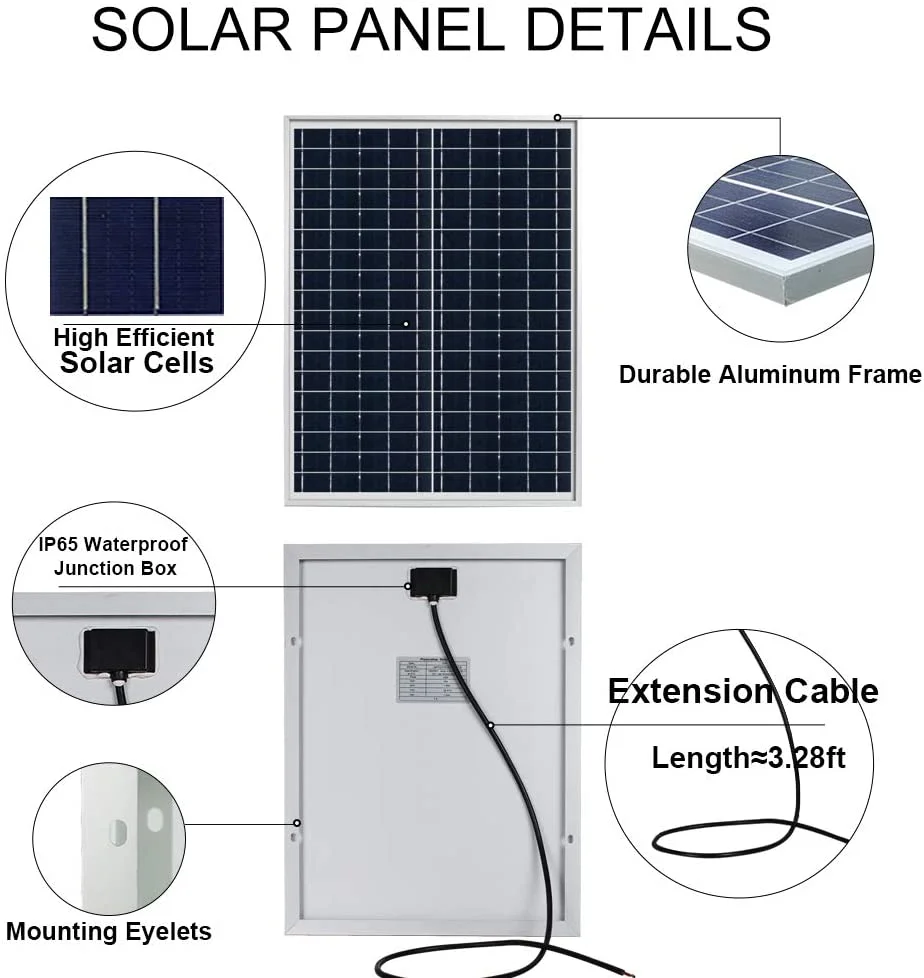

Product Details
Company Introduction
Certifications
Product Packing
For more information, Welcome contact us now
25 Years Warranty !
Click on the customer service on the right side >>>
