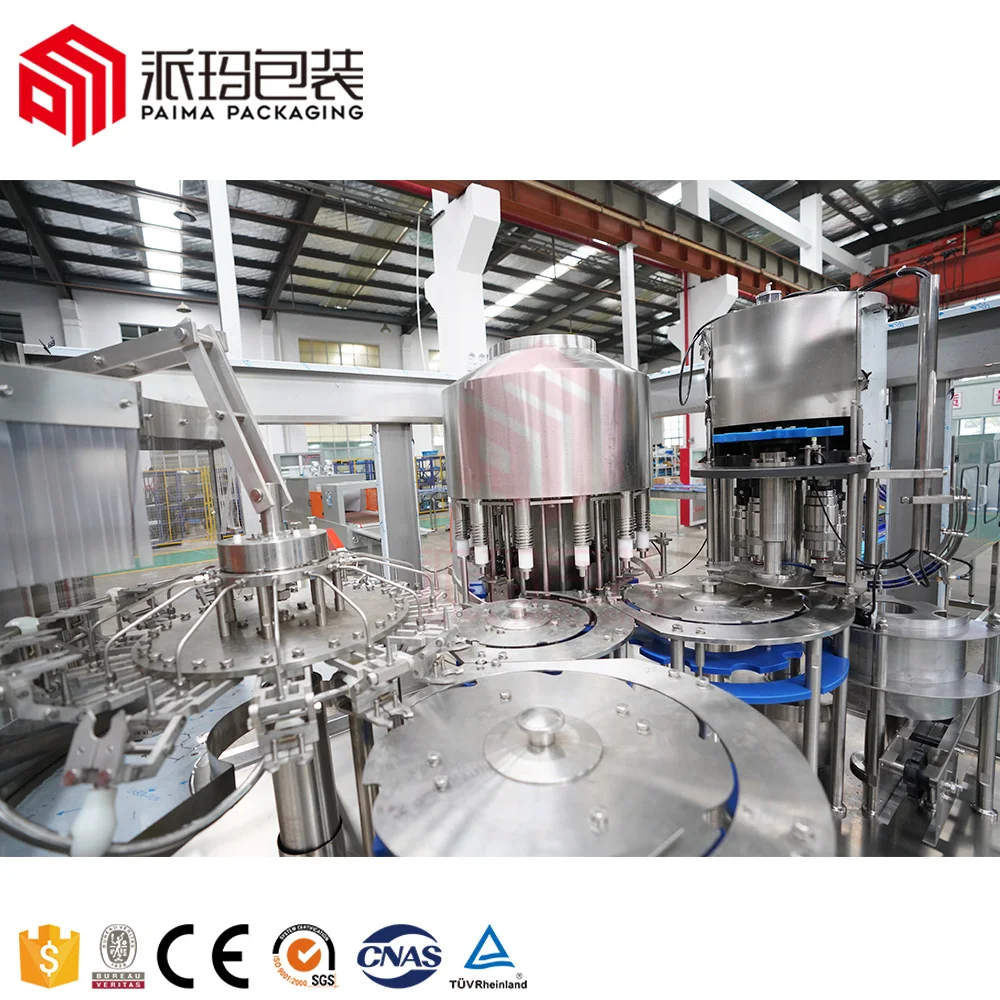

Моноблок три в одном завод по розливу минеральной питьевой воды для производства бутилированной воды

Поделиться:


Цена:11 500,00 $ - 13 000,00 $
Стоимость в USD:Узнать цену

Количество:

Купить

Описание и отзывы


Характеристики





Product Overview

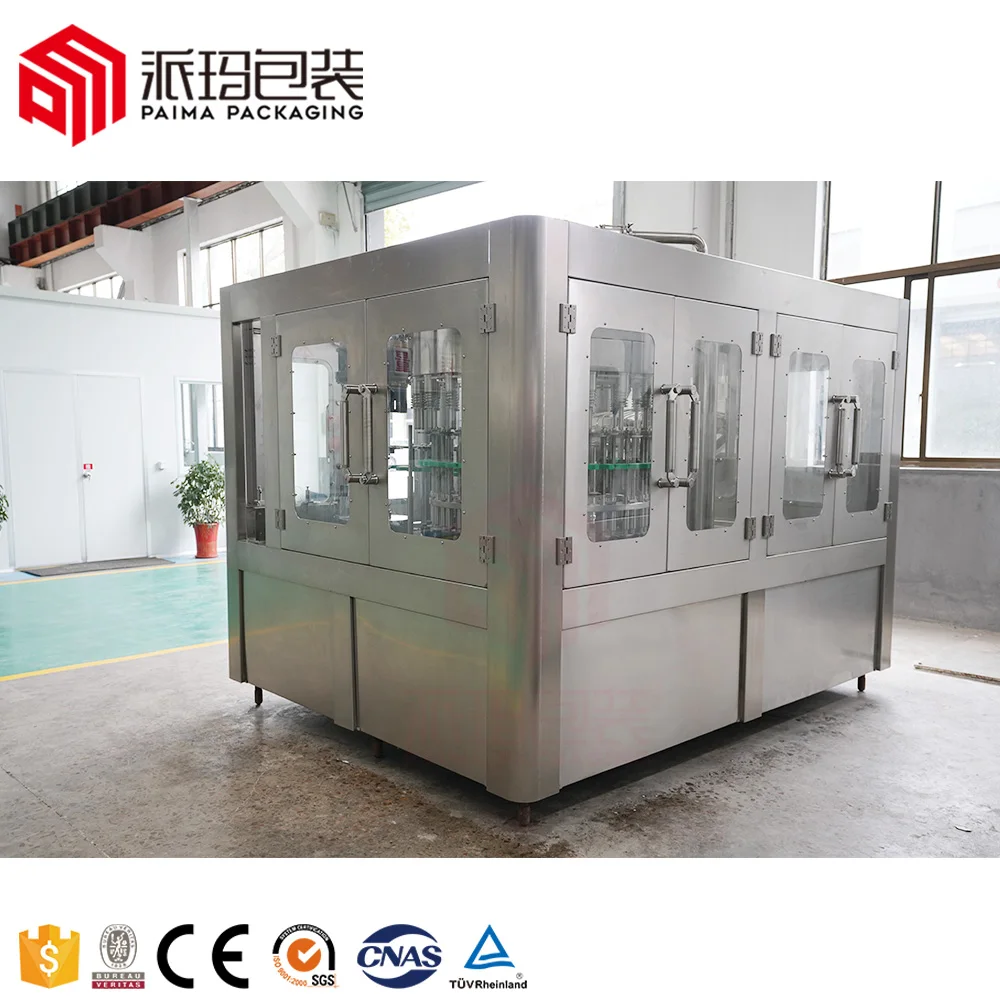

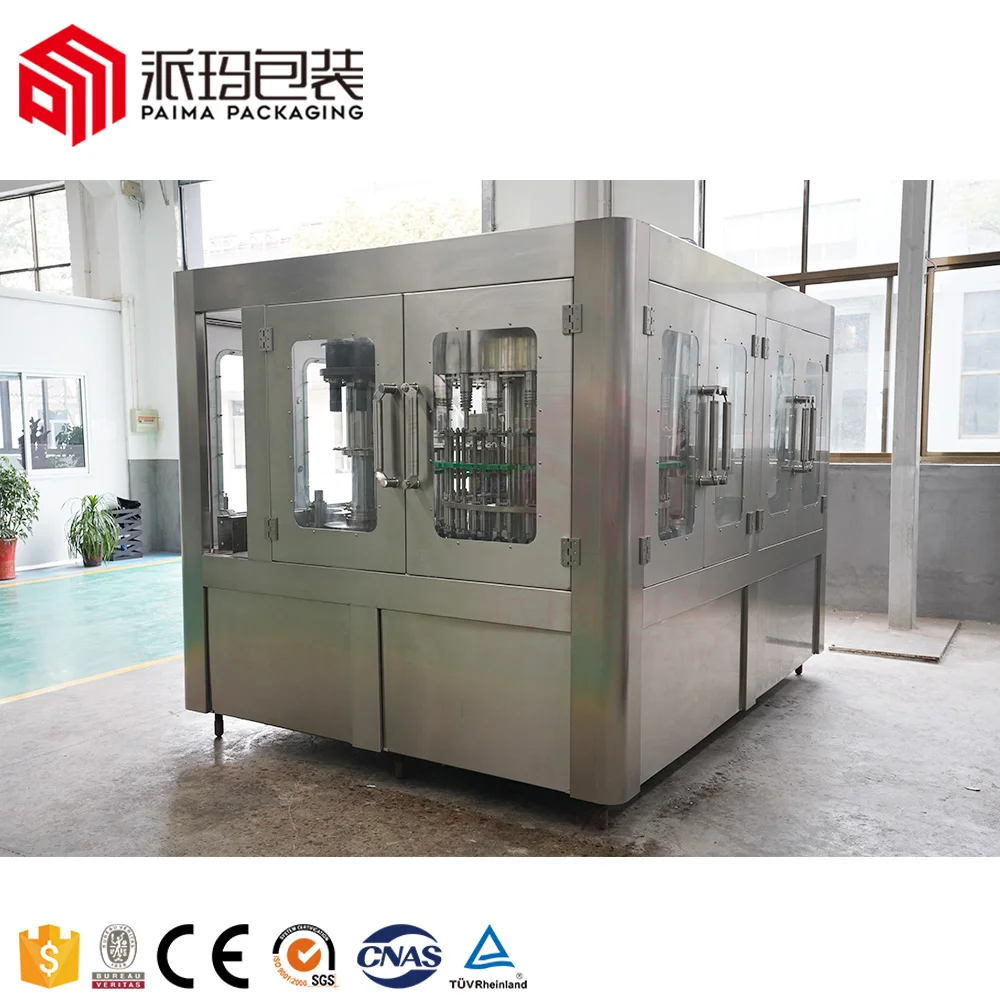

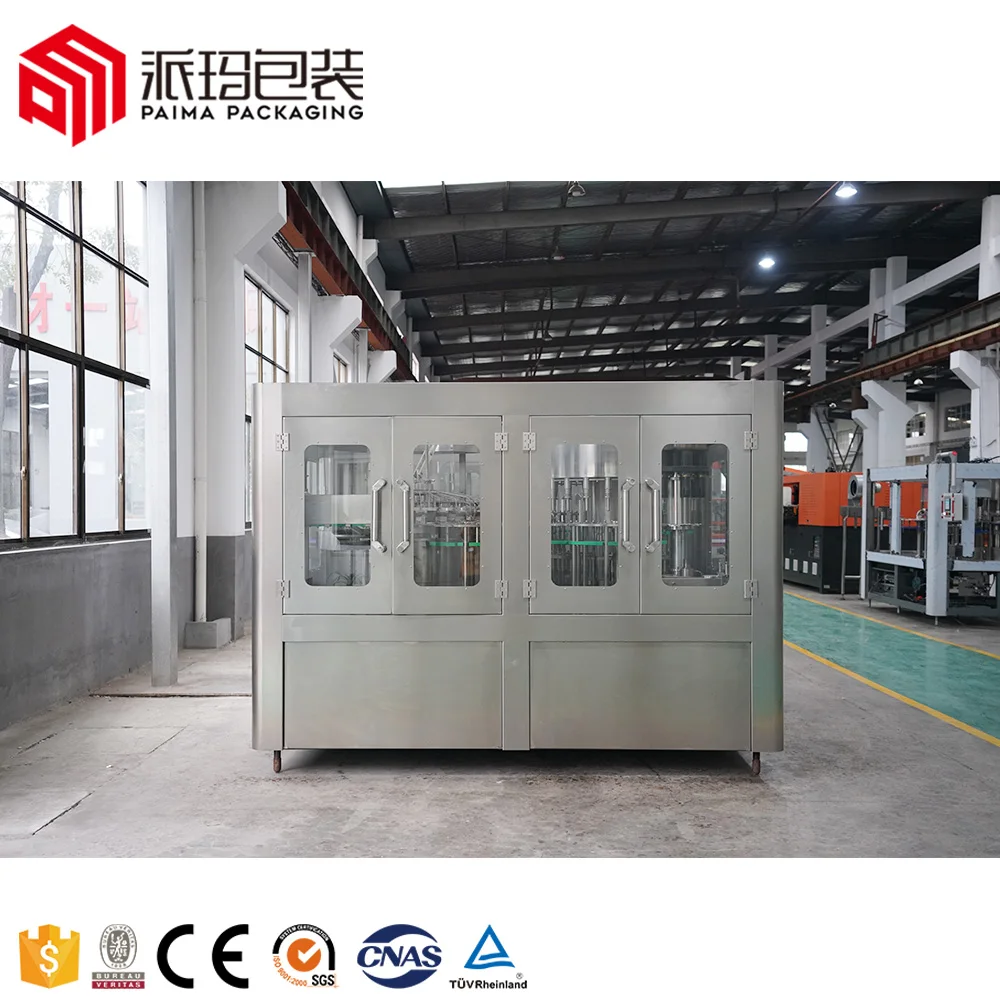

3 in 1 water bottling machine
CGF series Wash-filling-capping 3-in-1unit: Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
The Complete Bottled Mineral Water / Pure Water Production Line used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.




FEATURES AT A GLANCE


Technical Features:
1. It is adopted that direct connection between air conveyor and inlet starwheel instead of screw and conveyor chains, which is easier for bottle changing.

2. There is no need to adjust the height of equipment through neck holding tech for bottle transportation.And what is only to change some spare parts.

3. By 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle changing is easier.

4. High speed filling line is of clamp transferring technology.Bottle shapes are more varied, and the working table inside the machine is more laconic.

5. Specially designed stainless steel bottle clamp dose not contact the thread parts of the bottle neck, avoiding the second contamination.

6. The bottle-out starwheel is of screwdown shape.When bottle size is changed, there is no need to adjust the transferring chain's height.

7. High speed and large flow filling valve assures the high filling speed and exact fluid level.

8. Parts contact with the liquid are all of excellent stainless steel or food level plastic.The electric system is of international brand and achieves the national food sanitary standard.




PRODUCT CONFIGURATION

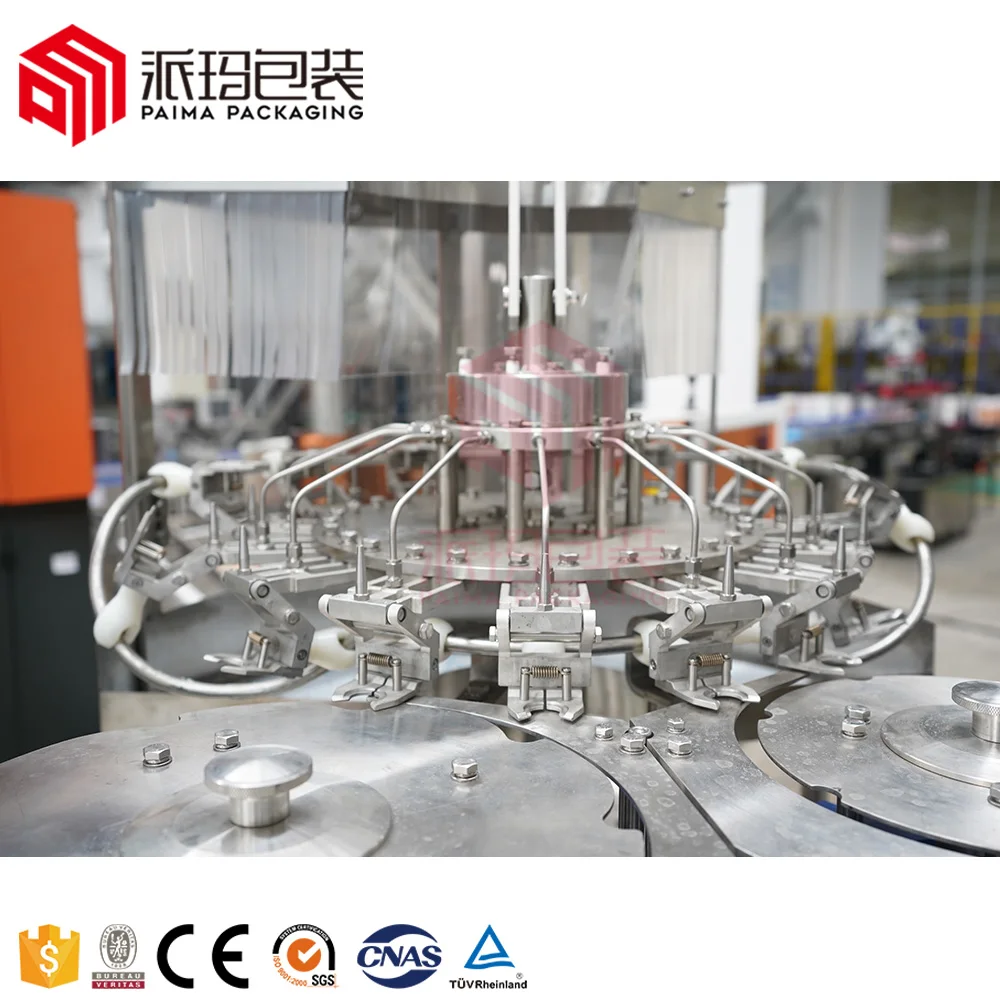

WASHING PARTS
The rotary disk is fully made of SUS304 stainless steel.
Using imported special efficient spray nozzle, the washing water will be sprayed in a particular angle, can wash any part of the inner wall, rinse with water thoroughly and save flush bottle.
Bottle clamp and lifting mechanism of sliding sleeve adopts Germany Igus corrosion resistant bearing without maintenance.
Washing part moves by a frame in the transmission system through the gear transmission.

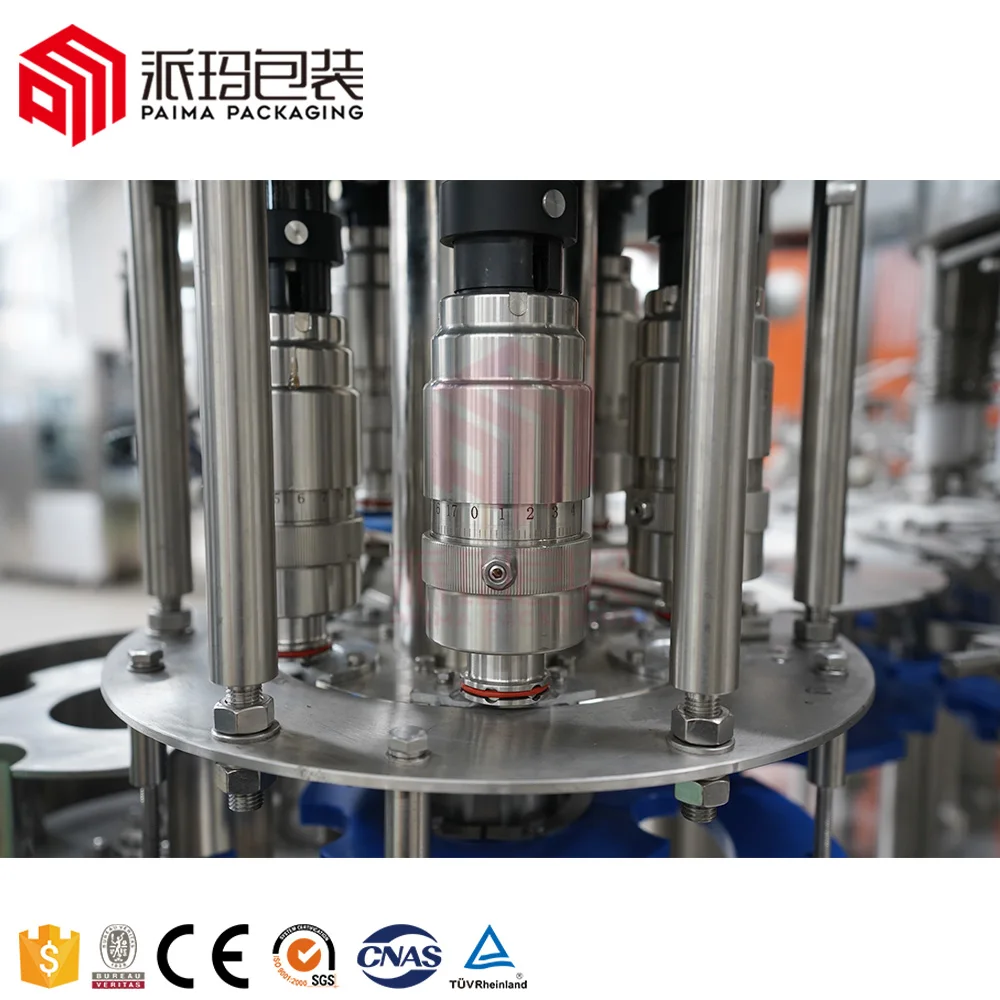

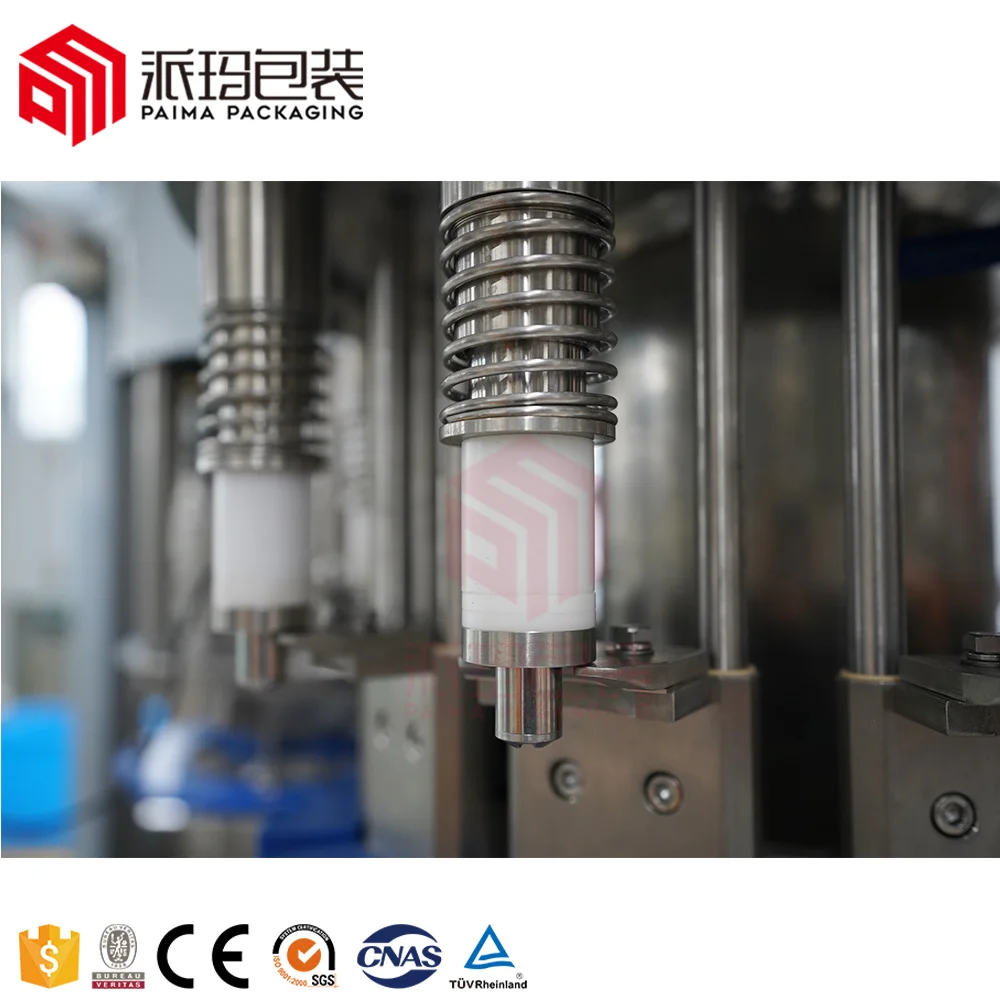

FILLING PARTS
The filling part is manly composed of a filling valve and filling transmission parts. The washed bottle reaches the filling position via the bottle shifting wheel. In the mean time, the bottle clamping plate of the filling machine will clamp the bottle and move up to seal the bottle, filling valve will open, send the liquid into the bottle. When the liquid level of the bottle reaches the trachea of the filling valve, the filling
will stop.


CAPPING PARTS
The capping machine is the highest precision in 3-in-1 unit machine, on the reliability of equipment operation, has enormous influence on the defective rate of the product.Introduced the world's most advanced Italian AROL capping machine technology, combining with the filling machine production experience improvement, and ask college of Shanghai Jiao Tong university mechanical engineering institute of electrical and mechanical design and automation technology of experts and professors to help design.


PRODUCT SPECIFICATIONS


Project
Water bottling machine
Data
Model
CGF
8-8-3
CGF
14-12-5
CGF
18-18-6
CGF
24-24-8
CGF
32-32-10
CGF
40-40-12
CGF
50-50-16
Capacity
2000
14000
8000
12000
14000
18000
20000
Bottle shapes
PET circular or square bottles
125Ton
Bottle height (mm)
160-320
96kN
Bottle diameter(mm)
Dia50-115mm
Compressor air pressure(Mpa)
0.3-0.7Mpa
60kN
Washing meidum
Aseptic water
6750ml
Rinsing pressure(Mpa)
>0.06Mpa <0.2Mpa
500N.m
Application
 Mineral/pure/drink water bottling production line
Total power (KW)
4.4
4.4
4.4
5.2
6.2
7.8
8.6
Overall dimensions
(L*W*H)
2300*1900*2300
2500*1900*2500
2800*2150*2500
3100*2500*2500
3800*2800*2500
4500*3300*2600
4850*3800*2750
Weight(kg)
2500
3200
4000
4500
6000
8000
9500


Devices
Brand
Origins
PLC




SIEMENS




Germany
Inverter
Touch Screen
Switch
Contactor
Relayer
Solenoid Valve
AIRTAC
Taiwan, China
Drive motor
FEITUO
Swiss
Reducer
CNP
China
Water Pump
SKF
China
Main Bearing
AUTONICS
Sweden
Sensor
AIRTAC
Korea
Air component
ABB
Taiwan, China


Successful Project


Project in Ethiopia
Project in Yemen
Project in India


Product packaging

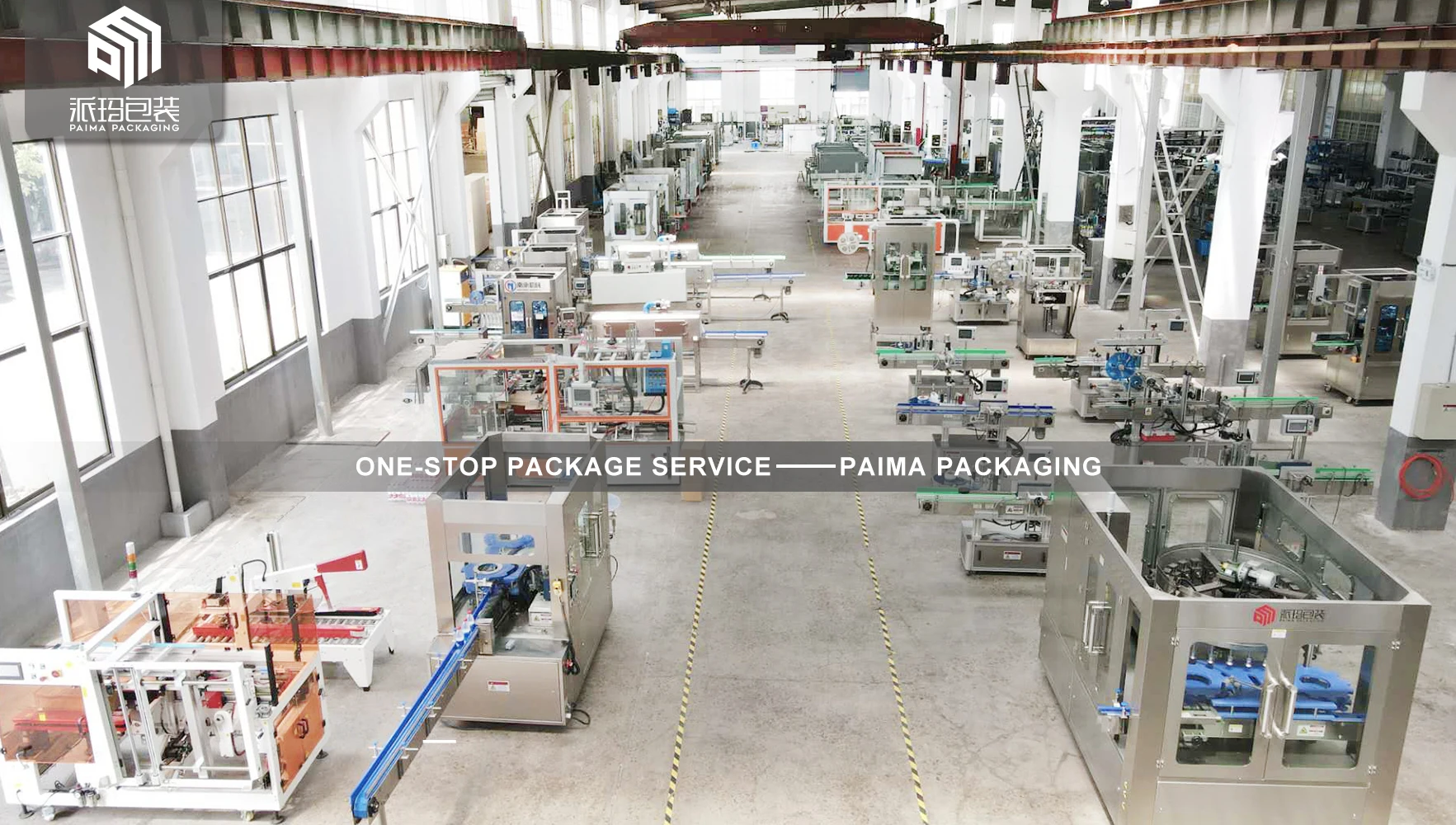

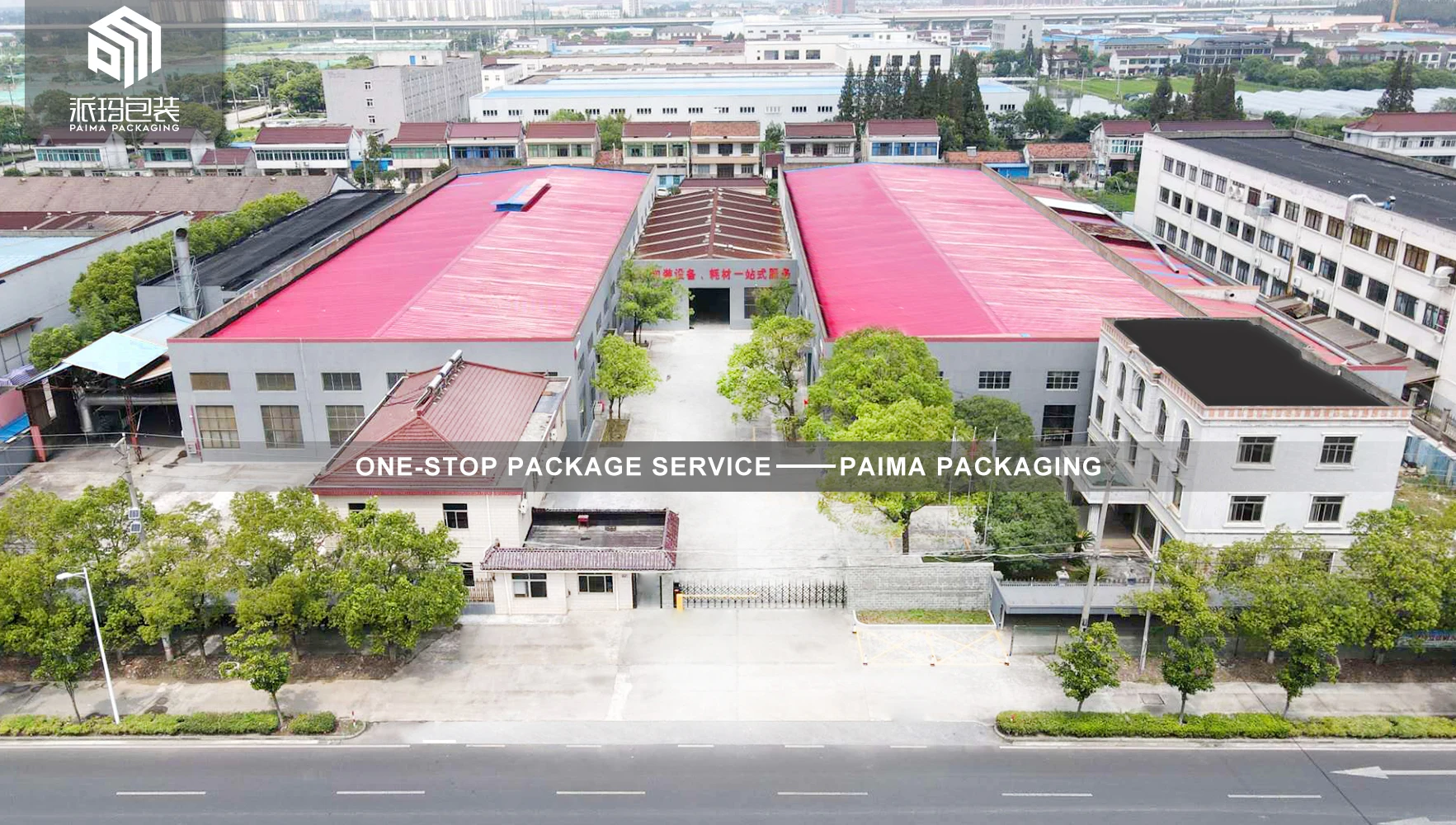

Company Profile




Zhangjiagang Paima Packaging Machinery Co., Ltd

Zhangjiagang Paima Packaging Machinery Co., Ltd, established in 2009, is a professional manufacturer engaged in the research, development, sale, and after-sales service of water treatment, beverage filling machines, shrink sleeve labeling machine, sticker labeling machine, opp labeling machine, PE film wrapping machine, case packing machine and printing labels. Paima located in the national sanitary city-Zhangjiagang and has a convenient transport network that is close to Shanghai. We have been adhering to the creed of integrity, practicality, and pursuing excellent service since established, which made us one of the tops in this industry.
With decent technic and equipment reserves, we can offer customers one-stop filling and packaging service to cut the unnecessary expenses including water and beverage products from water treatment to case packing. Water gets purified by water treatment system and inserts into bottles by filling machines, after going through the drier, the bottles can be labeled by different labeling machines, and finally get well packaged by case packing machine or PE film wrapping machine. We have obtained CE certificates to ensure the quality and service we provide.
Except selling well in the domestic market, our products are also famous in regions like Southeast Asia, middle east, Africa, Europe, and America. We attend foreign exhibitions every year, our footsteps are all over several states. We appreciate every order from any corner of the world. We always willing and waiting to be your first assistance and honest supplier in the future.
