Product Description

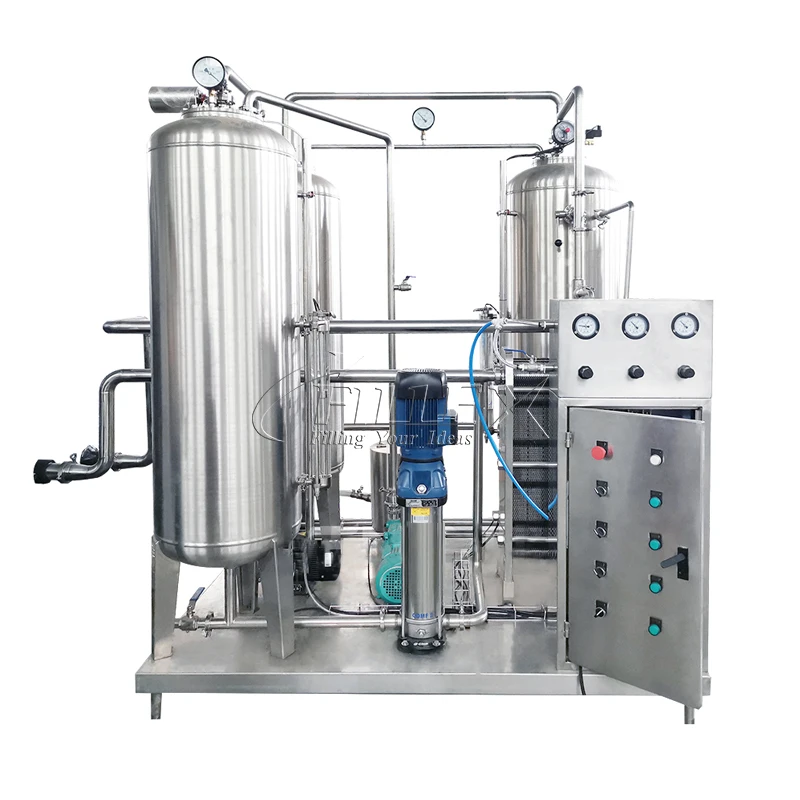

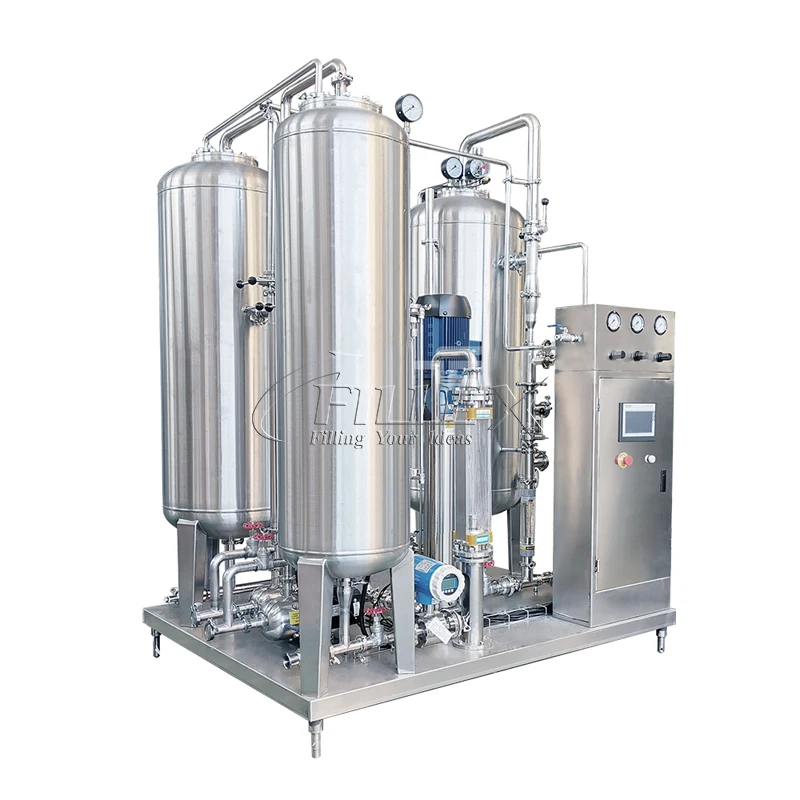

Automatic Carbonated Drink CO2 Mixing Machine
Application:
This mixer adopts advances gas-liquid mixing device,can mix syrup,water and CO2 gas at the same time for filling machine. Also it can apply to thin beer,aerate for beer and produce sparking wine.This mixer is advances in technology, even in mixing,reliable in performance, compact in structure,easy in operation. It adopts foreign advanced technology-static mixer to lighten water layer, increase carbonizing time, assure mixing result and deoxying. It adopts high-quality water pump and SEIMENS electrical equipment and other parts to form complete automatic control system. It has coordinating action, beautiful appearance, convenient washing, high automatic level and other advantages. It is suitable for mixing all kinds of drink, such as soda water, fruit juice, cola and other soft and hard drink. It is suitable for aerated beverage firm of large,middle or small scale.
Characteristics:
— Be designed and made for improving the proportion of water, syrup and carbon dioxide.
— It adopts foreign advanced technology-static mixer to lighten water layer, increase carbonizing time, ensure mixing efficiency.
— Adopting carbon dioxide backflow deoxidization, which can save carbon dioxide and deoxidize.

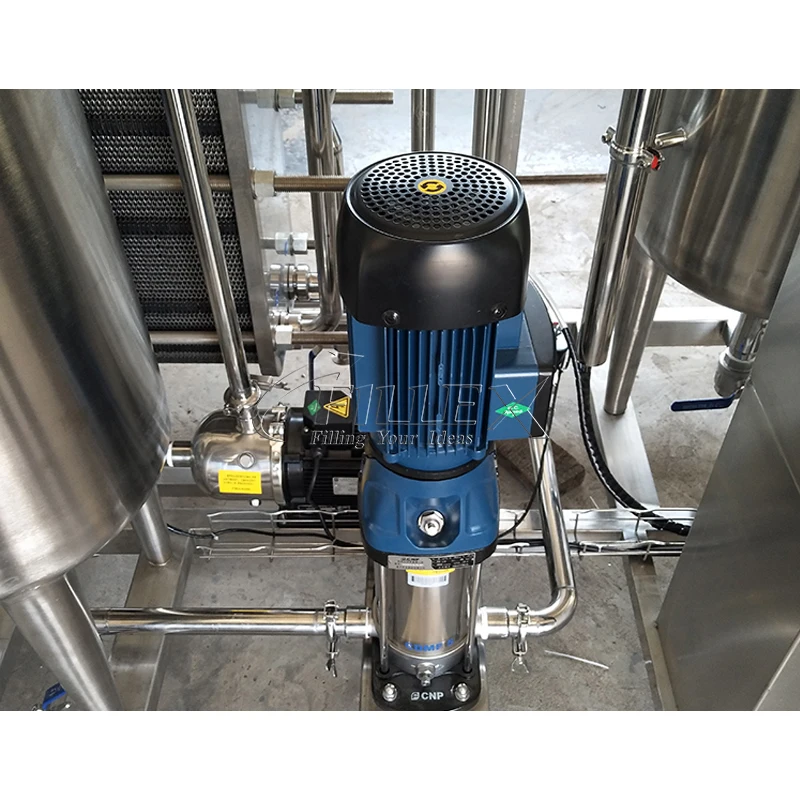

— High quality water pump and SEIMENS electrical equipment and other parts make up a complete automatic control system.
— It has coordinating action, beautiful appearance, convenient washing, high automatic level and other advantages.
— It is suitable for mixing all kinds of drinks, such as soda water, fruit juice, cola and soft and hard drinks.
— It adopts foreign advanced technology-static mixer to lighten water layer, increase carbonizing time, ensure mixing efficiency.
— Adopting carbon dioxide backflow deoxidization, which can save carbon dioxide and deoxidize.
— High quality water pump and SEIMENS electrical equipment and other parts make up a complete automatic control system.
— It has coordinating action, beautiful appearance, convenient washing, high automatic level and other advantages.
— It is suitable for mixing all kinds of drinks, such as soda water, fruit juice, cola and soft and hard drinks.
Product Paramenters
1 | Suitable beverage types | Cola and lemon |
2 | Mixing ratio range | 3:1 - 6:1 |
3 | CO2 content | 4 times |
4 | Volume | CO2 consumption of about 4 M3/h |
5 | CO2 supply pressure | 0.8-1 Mpa |
6 | CO2 Purity | 99.9% |
7 | Consumption of ethylene glycol solution | Water=30M3/h |
8 | Ethylene glycol solution pressure | 1.0Mpa |
9 | Ethylene glycol solution inlet temperature | -2 C |
Main technical standards: | ||||||||||
Model | QHS-1000 | QHS-2000 | QHS-3000 | QHS-5000 | QHS-8000 | |||||
Capacity (L/H) | 1000 | 2000 | 3000 | 5000 | 8000 | |||||
Content of co2 | 3.2-4 | 3.2-4 | 3.2-4 | 3.2-4 | 3.2-4 | |||||
Mixing temperature | <4℃ | <4℃ | <4℃ | <4℃ | <4℃ | |||||
Power (KW) | 1.5 | 2.97 | 3 | 5.9 | 7.2 | |||||
Beverage Processing System
Function: to preparing the syrup
With 8kw thermal system to heat the production water
Come with 0.55Kw speed-adjustable blending motor
Tank Size: φ1500*1500mm
Food Grade 304stainless steel construction, fine polish
2. Beverage Pump
Food Grade 304 stainless steel pump
3. Blending Tank
Function: Preparing the tea, water together
304 stainless steel construction
In-build thermal system
With blend function, come with 0.55Kw speed-adjustable blending motor
4.Heating And Cooling Crock
Asepsis heating and cooling crock is a necessary device for heating, cooling, deeping hot and sterilizing scale deposit, and
preserving plasm. It has many advantages, such as economization, noise elimination, corrosion-resistance, anticracking,
convenience in washing and operation.
Production Capacity: 2000L/h
Quantity: 1set
With 8kw thermal system to heat the production water
Come with 0.55Kw speed-adjustable blending motor
Tank Size: φ1500*1500mm
Food Grade 304stainless steel construction, fine polish
2. Beverage Pump
Food Grade 304 stainless steel pump
3. Blending Tank
Function: Preparing the tea, water together
304 stainless steel construction
In-build thermal system
With blend function, come with 0.55Kw speed-adjustable blending motor
4.Heating And Cooling Crock
Asepsis heating and cooling crock is a necessary device for heating, cooling, deeping hot and sterilizing scale deposit, and
preserving plasm. It has many advantages, such as economization, noise elimination, corrosion-resistance, anticracking,
convenience in washing and operation.
Production Capacity: 2000L/h
Quantity: 1set
5. Double Heads Filter
Function: The Filter is used to filter the melted syrup from the Syrup Melt Tank, after filtration, the melted sugar become clear without any impurity.
Working Pressure: <0.2Mpa
Size: φ320*700
Inlet pipeline diameter: 25
Food Grade 304stainless steel construction, fine polish
CIP pipeline in-build
Function: The Filter is used to filter the melted syrup from the Syrup Melt Tank, after filtration, the melted sugar become clear without any impurity.
Working Pressure: <0.2Mpa
Size: φ320*700
Inlet pipeline diameter: 25
Food Grade 304stainless steel construction, fine polish
CIP pipeline in-build
6. Vacuum Deaerator
Function: to remove the oxygen in the tea through vacuum method, prevent the juice oxygenation easily; keep the juice in longer term in the bottles
All 304 stainless steel contact part, fine polish, no death corner
CIP sideway pipeline, easy clean
Function: to remove the oxygen in the tea through vacuum method, prevent the juice oxygenation easily; keep the juice in longer term in the bottles
All 304 stainless steel contact part, fine polish, no death corner
CIP sideway pipeline, easy clean
7. Homogenizer
Function: to homogenize and emulsification the juice and the flavor, syrup together, make them in good taste
All 304 stainless steel contact parts, fine polish, no death corner
CIP sideway pipeline, easy clean
Function: to homogenize and emulsification the juice and the flavor, syrup together, make them in good taste
All 304 stainless steel contact parts, fine polish, no death corner
CIP sideway pipeline, easy clean
8. CIP Cleaning System
Working pressure : M pa normal pressure in tank, in steam pipe 0.3－0.7Mpa
l Working temperature :In acid and alkaline tank ,water pipe,steam pipe 60－138℃
l Material name: 2%acid and alkaline liquid tank,2%nitric acid, caustic soda liquid, steam pipe, steam
Working pressure : M pa normal pressure in tank, in steam pipe 0.3－0.7Mpa
l Working temperature :In acid and alkaline tank ,water pipe,steam pipe 60－138℃
l Material name: 2%acid and alkaline liquid tank,2%nitric acid, caustic soda liquid, steam pipe, steam
Related Product

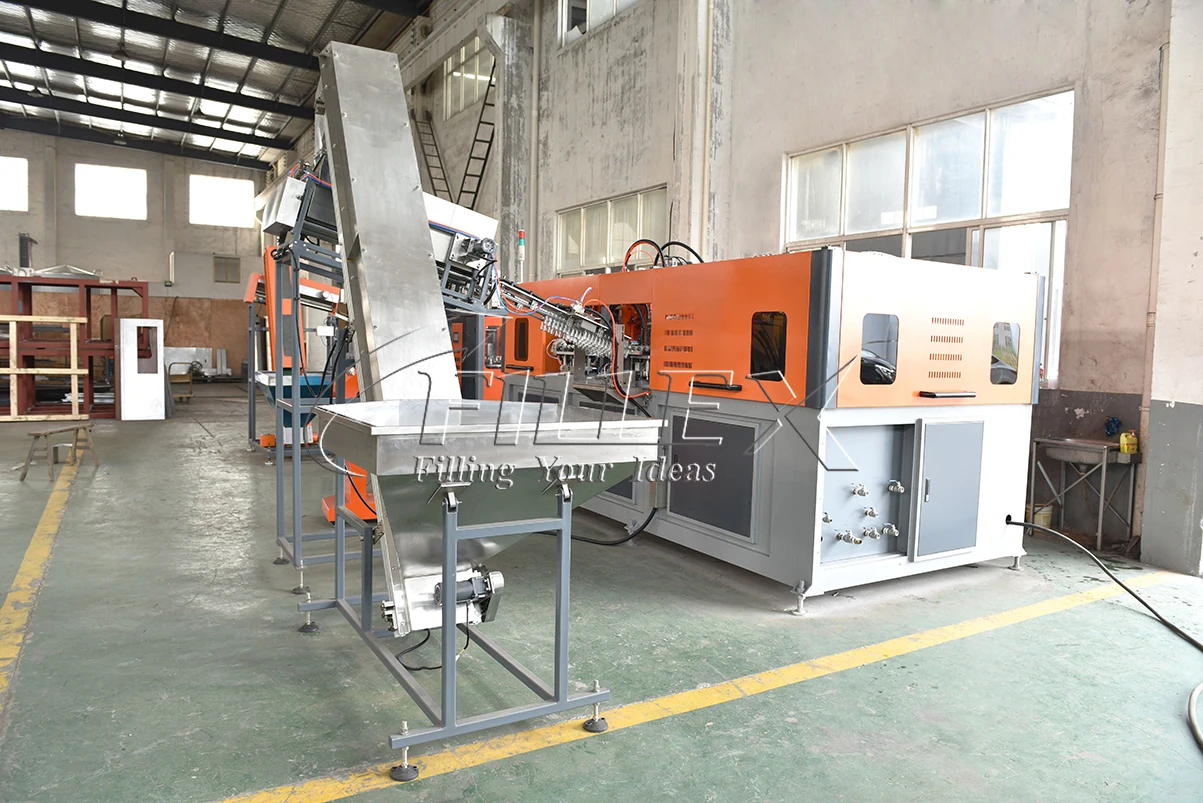

Bottle Blow Molding Machine
