Автоматическая машина для обжарки арахиса по хорошей цене
US $300.00-$1000
Непрерывная промышленная конвейерная сетка GQX ленточная сушилка для фруктов овощей морских водорослей перца трав Чили
- Категория товара: Other Food Processing Machinery >>>
- Поставщик (Оптовый магазин): Jiangyin,Lingling,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
MAIN APPLICATION

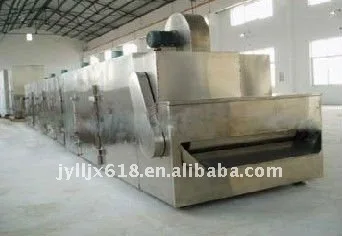

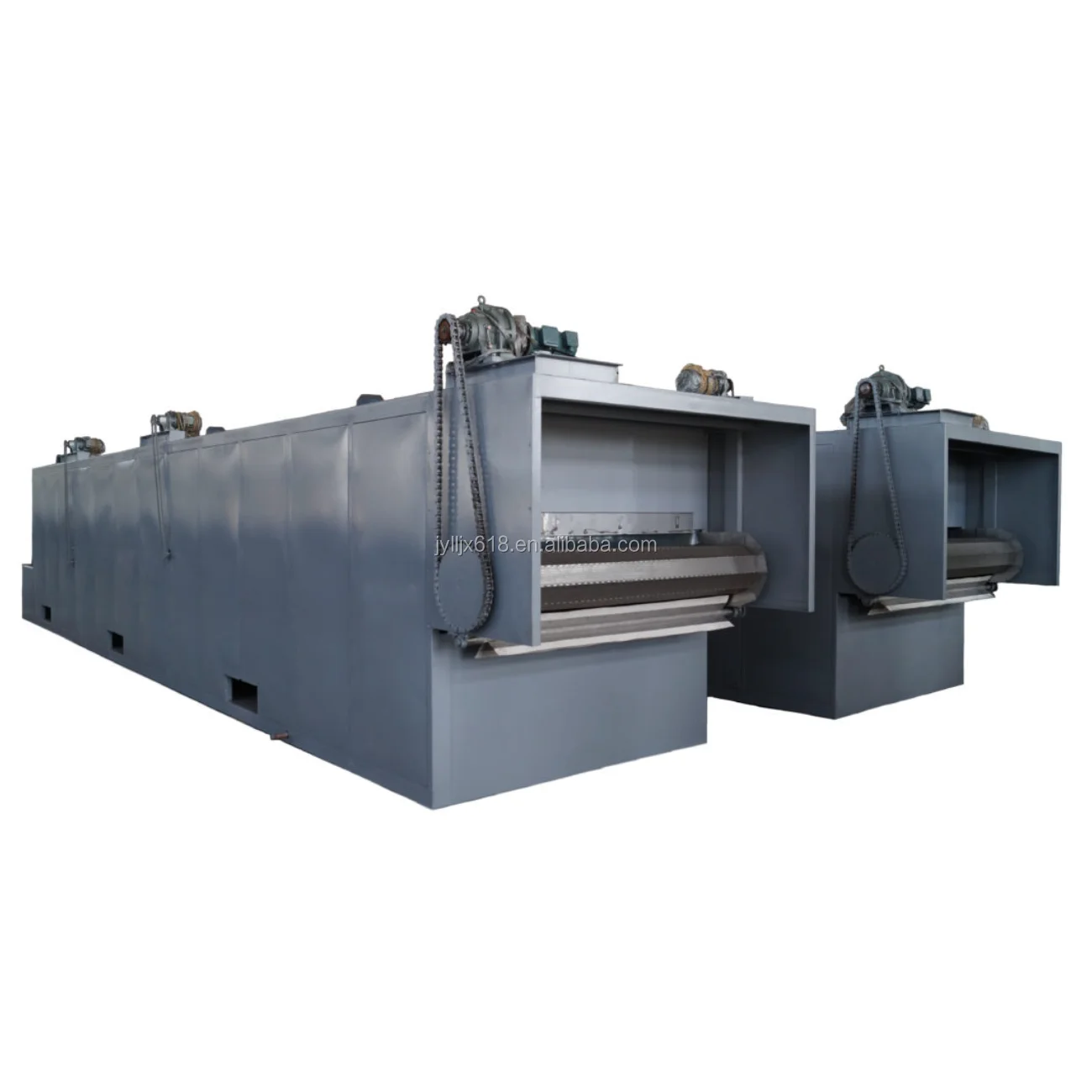

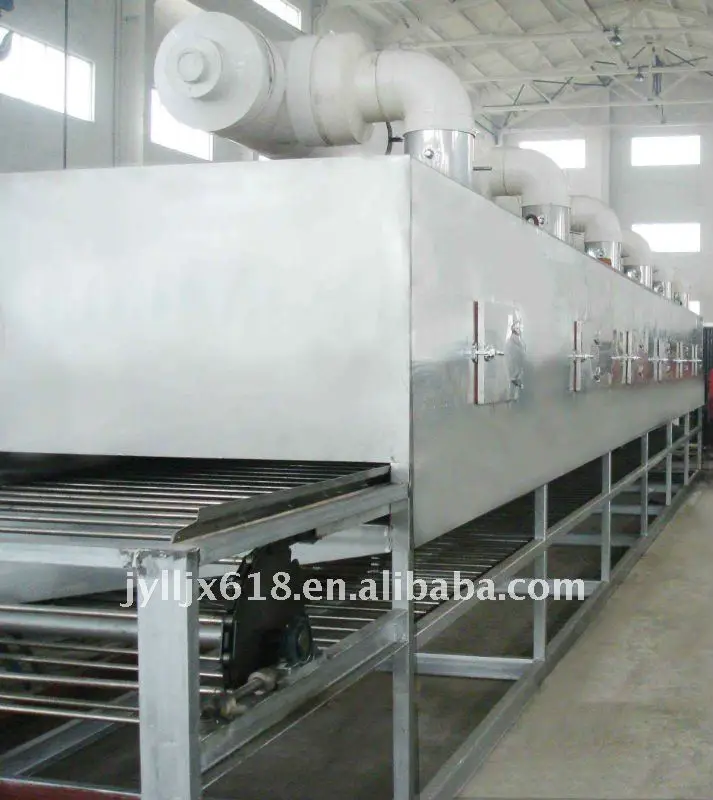

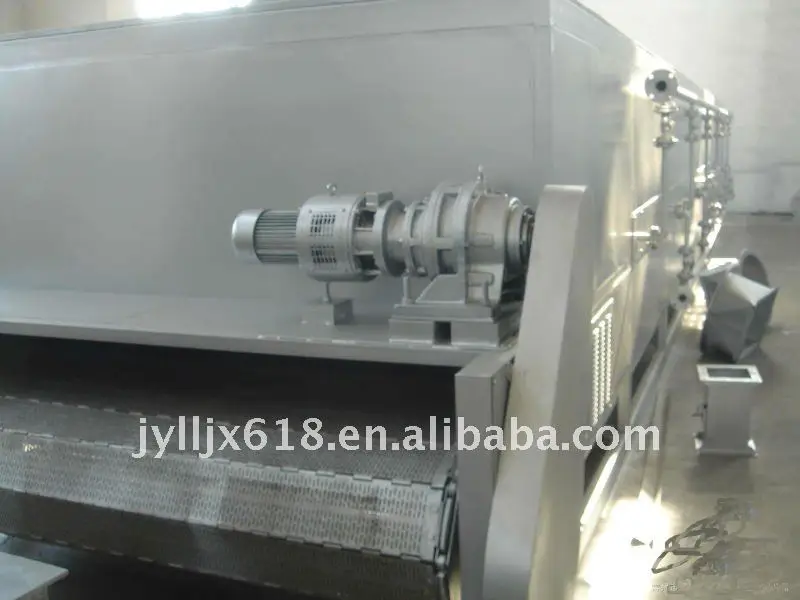

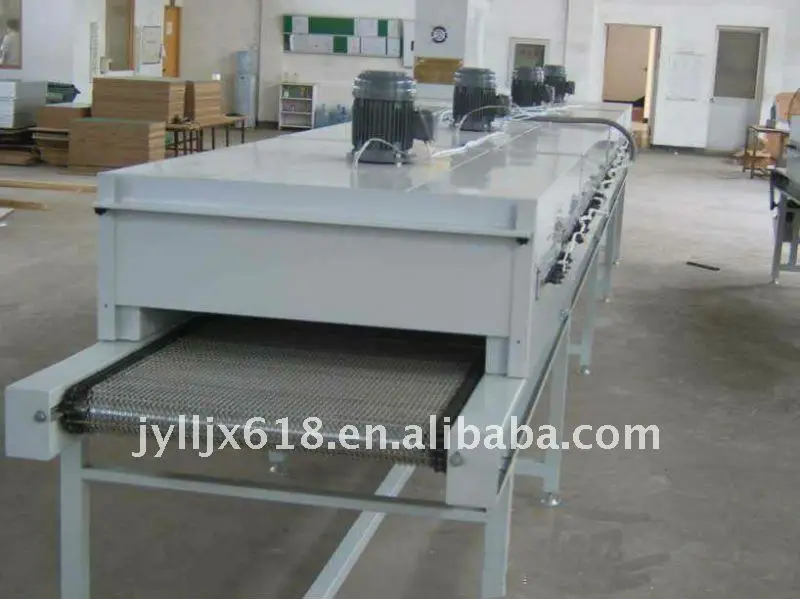

Mesh Belt Dryer machine is a continuous penetrating flow drying equipment applied for drying pieces strip and particles state materials with good ventilation. The machine is suitable for the materials such as dewatering vegetable, herbal medicine of Traditional Chinese medicine and others, for which the water contents are high and high drying temperature is not allowed. The machine owns the advantages, of fast drying speed, high evaporation capacity and good product quality. The de-watered & altered cake state paste material should be made into particles or strips before drying process. Mainly Used in Medicine, Foodstuff, Pharmaceutical Industries.
WHY CHOOSE YOU?
1: this machine is made up of stainless steel( we also can do as consumer requirement)
2; this machine meeting ISO 9001 and CE and SGS certificate
3: the volatge: 220V or 380V or as consumer requirement
4; guarantee: 1 year
5: payment: 30% TT in advance, 70% need to pay us before deliver the goods
6: deliver time: 25 days
7: export port: shanghai port
2; this machine meeting ISO 9001 and CE and SGS certificate
3: the volatge: 220V or 380V or as consumer requirement
4; guarantee: 1 year
5: payment: 30% TT in advance, 70% need to pay us before deliver the goods
6: deliver time: 25 days
7: export port: shanghai port
TECHNICAL DATA:
Note: All parameters are indicated conditionally. The drying intensity is set in accordance with the physical and chemical properties of the material and the operating temperature
Model | DW-1.2-8 | DW-1.2-10 | DW-1.6-8 | DW-1.6-10 | DW-2-8 | DW-2-10 | DW-2-20 | ||||||
quantity of unit | 4 | 5 | 4 | 5 | 4 | 5 | 10 | ||||||
width of belt (m) | 1.2 | 1.2 | 1.6 | 1.6 | 2 | 2 | 2 | ||||||
length of dry section (m) | 8 | 10 | 8 | 10 | 8 | 10 | 20 | ||||||
thickness of raw material spreading(mm) | 10-80 | 40 | 25 | 0~12 | 1.1 | 1000*1400*1100 | 300 | ||||||
operation temperature ( °C ) | 50-140 | 80 | 50 | 0~12 | 1.5 | 1200*1700*1200 | 500 | ||||||
steam pressure (MPa) | 0.2-0.8 | 160 | 100 | 0~12 | 2.2 | 1400*1800*1500 | 800 | ||||||
steam consumption (kg/h) | 120-300 | 150-375 | 150-400 | 180-500 | 180-500 | 225-600 | 450-1200 | ||||||
dry time (h) | 0.2-1.2 | 1.25-1.5 | 0.2-1.2 | 0.25-1.5 | 0.2-1.2 | 0.25-1.5 | 0.5-3 | ||||||
dry capacity kg water/h | 60-160 | 80-200 | 85-220 | 100-260 | 100-260 | 120-300 | 240-600 | ||||||
total equipped power (kw) | 11.4 | 13.6 | 14.6 | 18.7 | 19.7 | 24.5 | 51 | ||||||
L(m) | 9.56 | 11.56 | 9.56 | 11.56 | 9.56 | 11.56 | 21.56 | ||||||
overall dimensions W(m) | 1.49 | 1.49 | 1.9 | 1.9 | 2.32 | 2.32 | 2.32 | ||||||
H(m) | 2.3 | 2.3 | 2.4 | 2.4 | 2.5 | 2.5 | 2.5 | ||||||
weight kg | 4500 | 5600 | 5300 | 6400 | 6200 | 7500 | 14000 | ||||||
Related Products
Packing&Shipping
Company Introduction
Jiangyin City Lingling Machinery Manufacturing Co., Ltd. (Jiangyin City BOND drug of mechanical equipment factory) is the ISO9001 (2000) international quality system certification enterprises. In recent years the Chinese authorities granted the”National Quality Inspection Standards Enterprise", "Chinese famous brand shredders Top Ten", "Top Ten Chinese famous brand mixer", "National customer satisfaction with product quality, service and satisfaction the top ten enterprises. "
