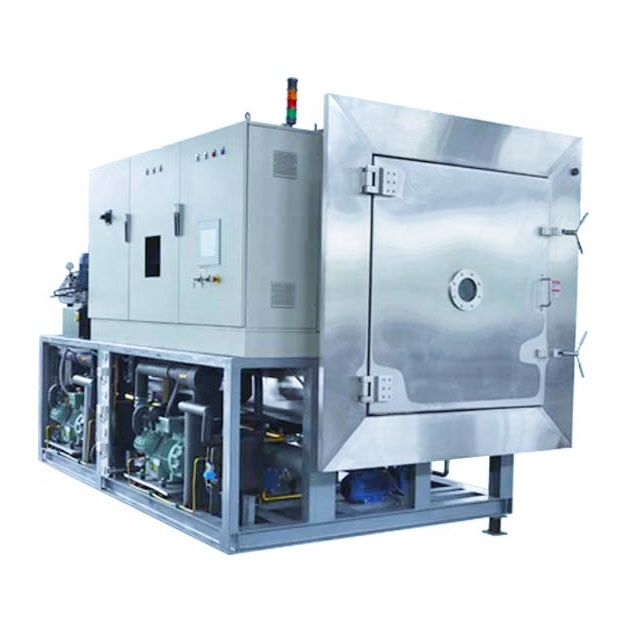

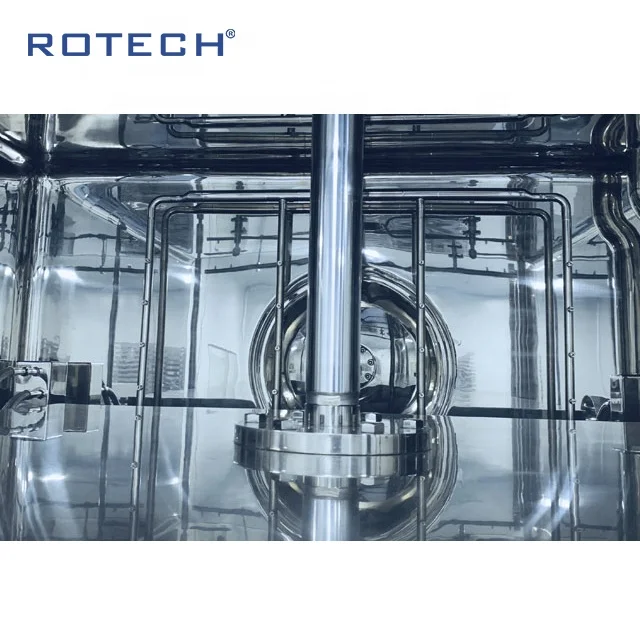

Lyophilizer for pharmaceutical industry with cip sip system

Описание и отзывы

Характеристики

0.1(6-8bar)

Product description

1.Our freeze drying machine is used in the field of optimized freezing and drying process.

2.The frozen and dried products have the high value, hence, the design of the freezing drying is in terms of safety to the greatest extent. The humanity design applied in the freeze drying machine ensures the safety of the user and environment .

3.The mature design technology is put into the freeze drying machine which is produced with the high quality material and component accepted in the world widely. At the same time, the advanced high-tech process is utilized in the freeze drying machine.

4.Our freeze drying machine design and manufacture Under FDA&cGMP Standard.



Working principle

The vacuum freezing and drying machine is a drying method which can sublime the moisture in hydrous materials from solid state to gas state, under low temperature freezing and vacuum condition, after the materials are subjected to the pre-treatment, so as to remove the moisture and preserve the materials.

Detailed description





Technical parameters

LYO-	Unit	0.4	1	2	3	5	8
Usable shelf area	Square meters	0.4	1.08	2.16	3.24	5.67	8.64
Ice capacity	kg	10	22	45	65	100	160
Shelf Dimensions (L×W)	mm	450*300	600*450	600*600	900*600	900*900	1200*900
Number of shelves	Pcs	3	4	6	6	7	8
Shelf spacing	mm	100
Shelf Temperature	℃	-55℃+80℃
Condenser Max Temperature	℃	-75℃
Max. vacuum	Pa	1
Steam consumption	kg/h	30	30	40	50	80	100
Washing water consumption	L/min	50	60	80	160	210	300
Power	Kw	10	15	18	30	36	55
Cooling water consumption	T/h	2	3	4	6	8	15
Compress air	M³/min	0.1(6-8bar)
Dimensions(L×W×H)	mm	1500× 900×1900	2500× 1000×2300	3800× 1500×2900	4500× 1800×3000	4900× 1800×3300	5500× 2000×3310
Weight	T	1	2.2	3.8	5	7	9
Electric heating	kw	3	4.5	4.5	7.5	12	15
Main valve diameter	Mm	150	200	250	300	300	400
Vial capacity OD=16mm	Unit	2200	4800	8900	15000	22000	36000
Vial capacity OD=22mm		1260	2450	4500	7500	11000	18000
Vial capacity OD=28mm	Unit	820	1800	2800	4300	6100	12200





LYO-MAX	Unit	10	15	20	25	30	40
Usable shelf area	Square meters	10.8	15.8	21.6	26.24	29.7	42
Ice capacity	kg	220	300	420	530	620	850
Shelf Dimensions (L×W)	mm	1200× 900	1200× 1200	1500× 1200	1500× 1500	1800× 1500	2000× 1500
Number of shelves	Pcs	10	11	11	11	11	14
Shelf spacing	mm	100
Shelf Temperature	℃	-55℃+80℃
Condenser Max Temperature	℃	-75℃
Max. vacuum	Pa	1
Steam consumption	kg/h	150	200	260	280	320	460
Washing water consumption	L/min	320	360	500	600	620	690
Power	Kw	65	80	120	130	138	190
Cooling water consumption	T/h	20	26	35	40	45	50
Compress air	M³/min	0.1(6-8bar)
Dimensions(L×W×H)	mm	5600×200×3500	5800× 2200× 4000	6800× 2300× 4100	8200× 2500× 4100	8500× 2400× 4200	8800× 2400× 4500
Weight	T	10	13	16	18	23	26
Electric heating	kw	15	18	3	45	48	90
Main valve diameter	Mm	400	500	500	600	600	700
Vial capacity OD=16mm	Unit	40000	63000	86000	106500	120000	168000
Vial capacity OD=22mm		20000	33200	43200	55000	60000	82000
Vial capacity OD=28mm	Unit	13600	16000	22000	35000	38000	51000
