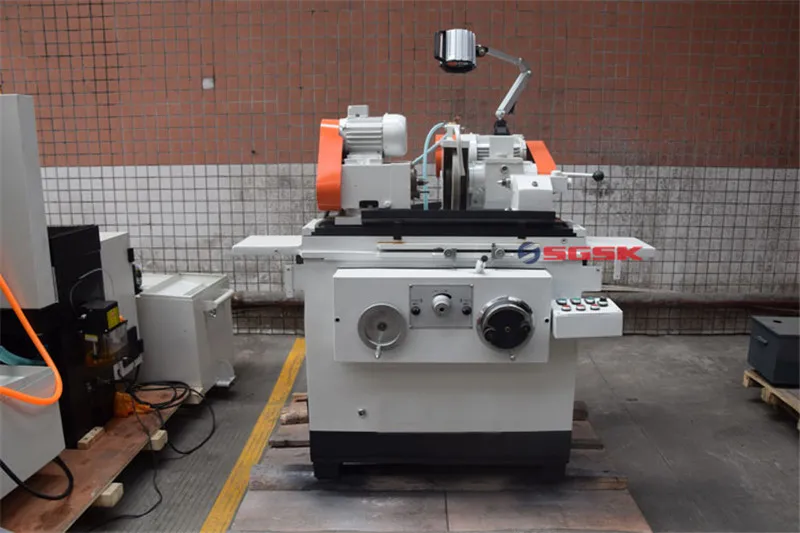

cylinder head surface grinding machine M1408 cylinder grinding machine
Products Description
Details Display
Title goes here.
This machine is mainly used for grinding cylindrical and conical surfaces of small shafts, round sleeves, needle valves, plungers, etc.

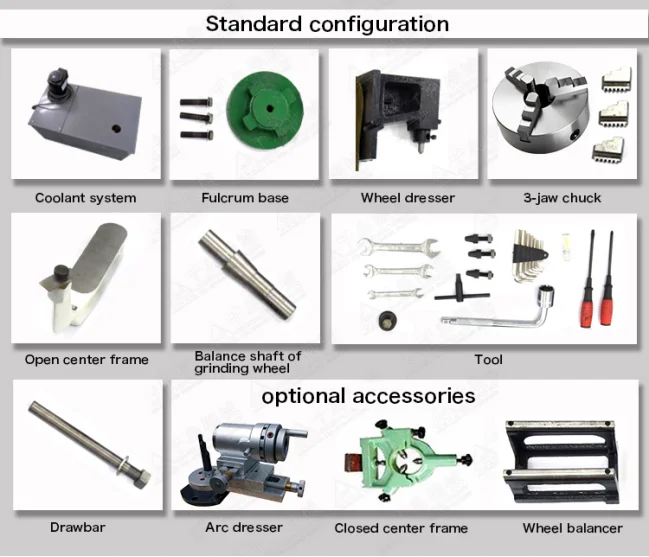

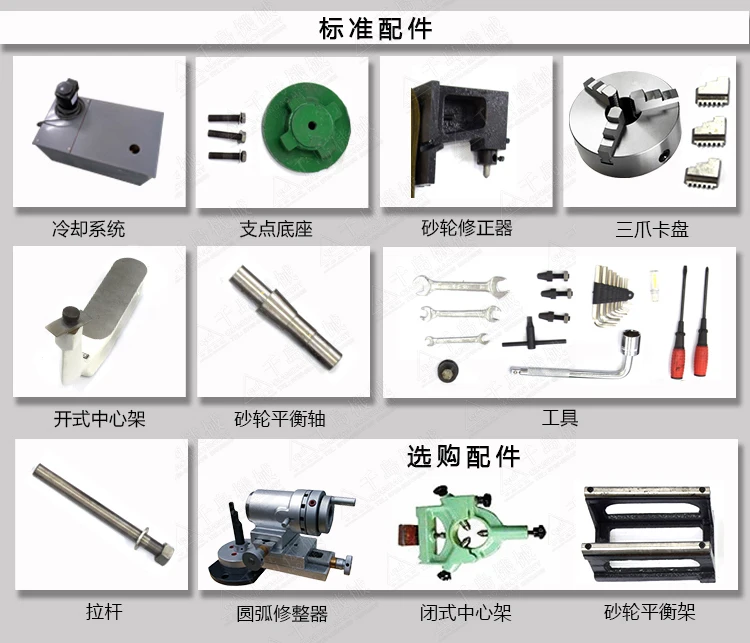

The tooling method can be realized by a top, a three-jaw chuck, a spring chuck and a special fixture;
Suitable for processing small parts in instruments, automobiles, electro mechanical, bearings, textiles, ships, sewing machines, machinery and other industries;

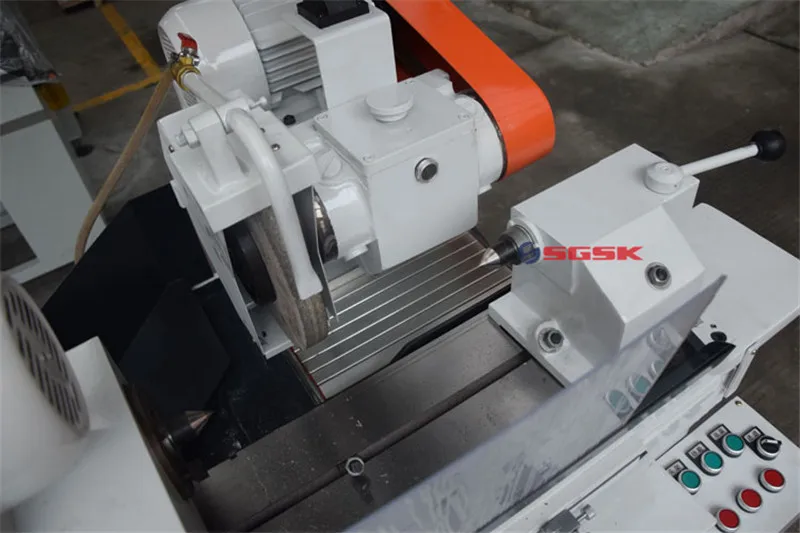

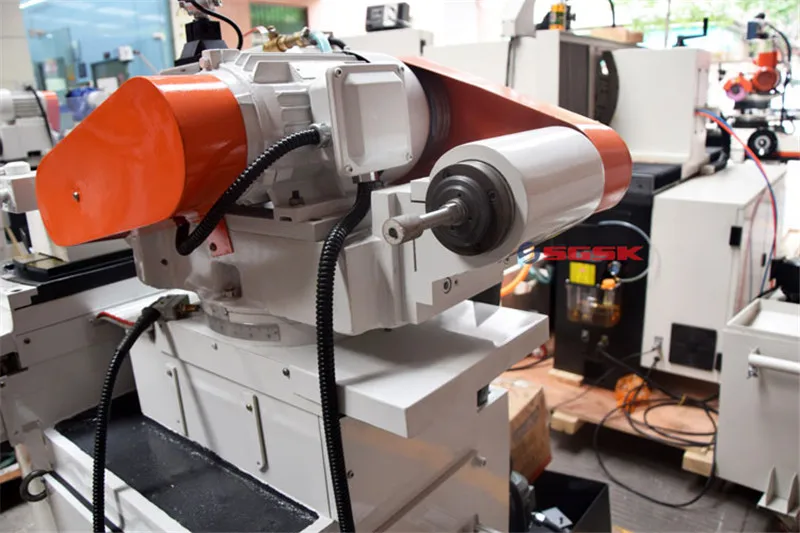

The longitudinal movement of the table of the machine tool is hydraulic and manual, the wheel frame and the head frame can be rotated, and the hydraulic system adopts a gear with good performance;
This machine is suitable for workshops in tools, machine repair workshops and small and medium batch production;
The machine is divided into 300 mm by the tip distance.
The tooling method can be realized by a top, a three-jaw chuck, a spring chuck and a special fixture;
Suitable for processing small parts in instruments, automobiles, electro mechanical, bearings, textiles, ships, sewing machines, machinery and other industries;
The longitudinal movement of the table of the machine tool is hydraulic and manual, the wheel frame and the head frame can be rotated, and the hydraulic system adopts a gear with good performance;
This machine is suitable for workshops in tools, machine repair workshops and small and medium batch production;
The machine is divided into 300 mm by the tip distance.
Parameters | M1408 |
Diameter of grinding | Φ2-Φ80mm |
Maximum grinding length | 300mm |
Center height | 115mm |
Maximum weight of workpiece | 10kg |
Speed of work table | 0.1~4m/min |
Linear speed of grinding wheel | 35m/sec |
Maximum travel of work table | 340mm |
Rotary angel of work table | -5°~+9° |
Grinding wheel size | MaxΦ250x25xΦ75mm MinΦ180x25xΦ75mm |
Internal spindle speed | ----- |
Head and tail frame centre | NO.3 morse |
Roundness(outer circle/inner circle) | 0.002/0.005mm（O.D/I.D） |
Surface roughness | Ra0.25/0.63µm（O.D/I.D） |
External size (L * w * h) | 1360x1240x1000mm |
Machine weight | 950kg |
Motor power | 2.5kw |
