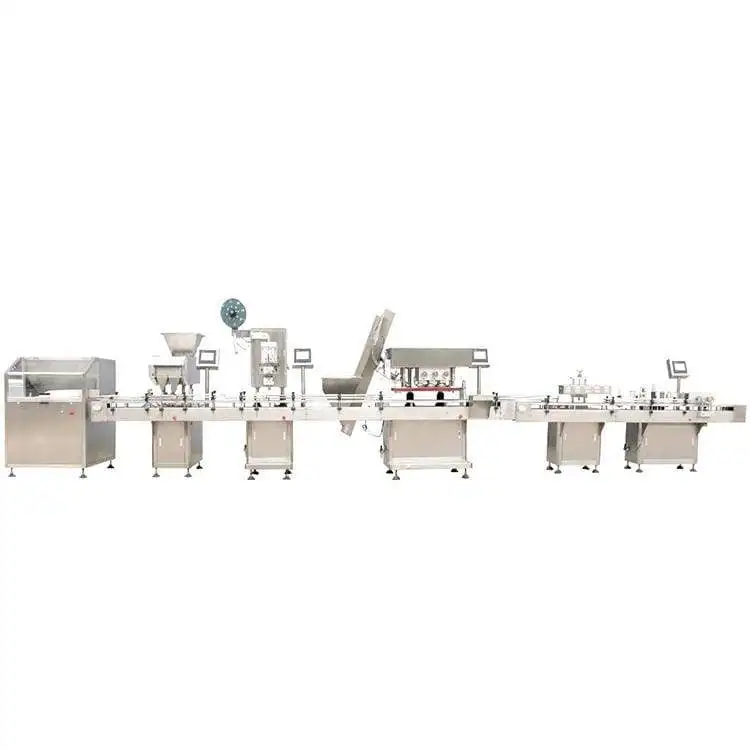

Высокоскоростная полностью автоматическая линия подсчета и заполнения капсул и таблеток

Описание и отзывы

Характеристики

The counter and filler adopts advanced vibration and multi-channel feeder, computer control, dynamic
scan counting, transfer the bottle automatically, system test automatically. With Error alarm, stop automatically and other advanced technology. This machine designed with GMP requirement. Compose the light, electric machinery to one set, which is suitable for tablet, capsule counting and filling in pharmaceutical or food business.
The machine can be widely used for all kinds of different tablets, capsules, pills in different shape and size. The capacity and accuracy of counting and filling reach the advanced level. The character of the machine is

1. Ordering bottle Machine

This automatic ordering machine is mainly suitable for round or square bottle, is corollary equipment of automatic product ling in common usage, to satisfying many kinds of bottle, if  adjust, you need only adjust the position and height of baffle. The machine is equipped with steeples governing frequency conversion.

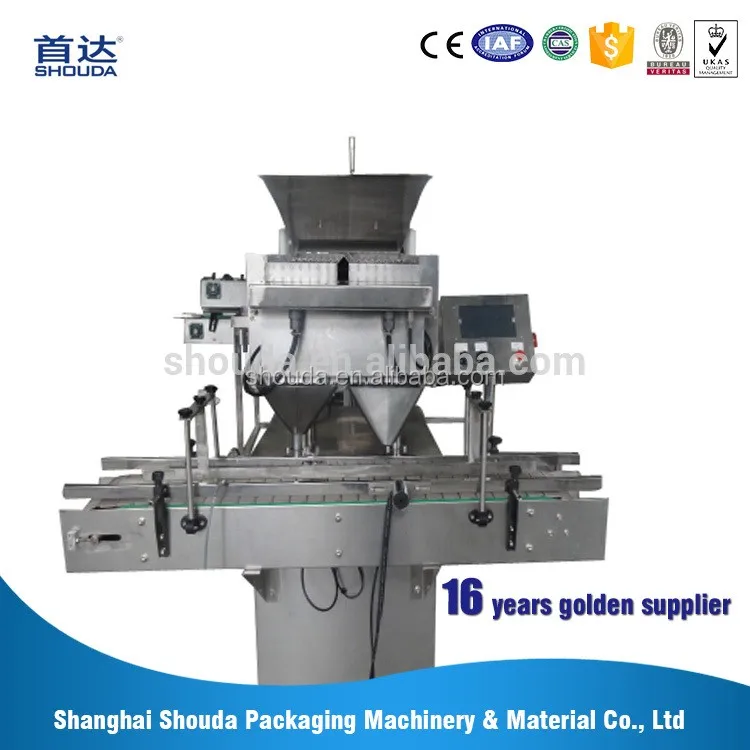

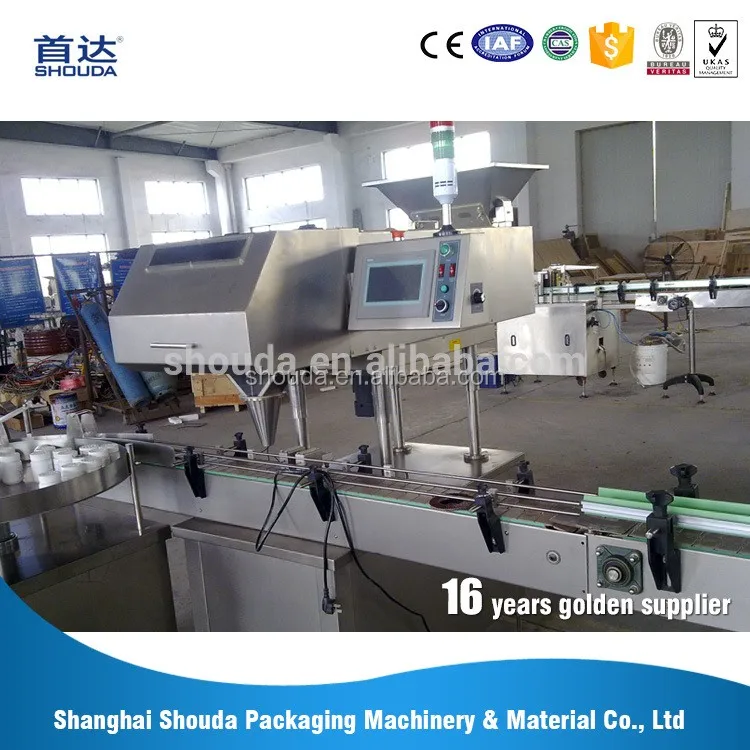

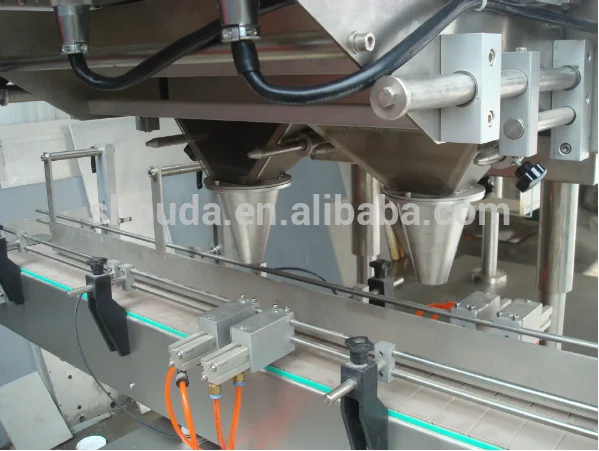

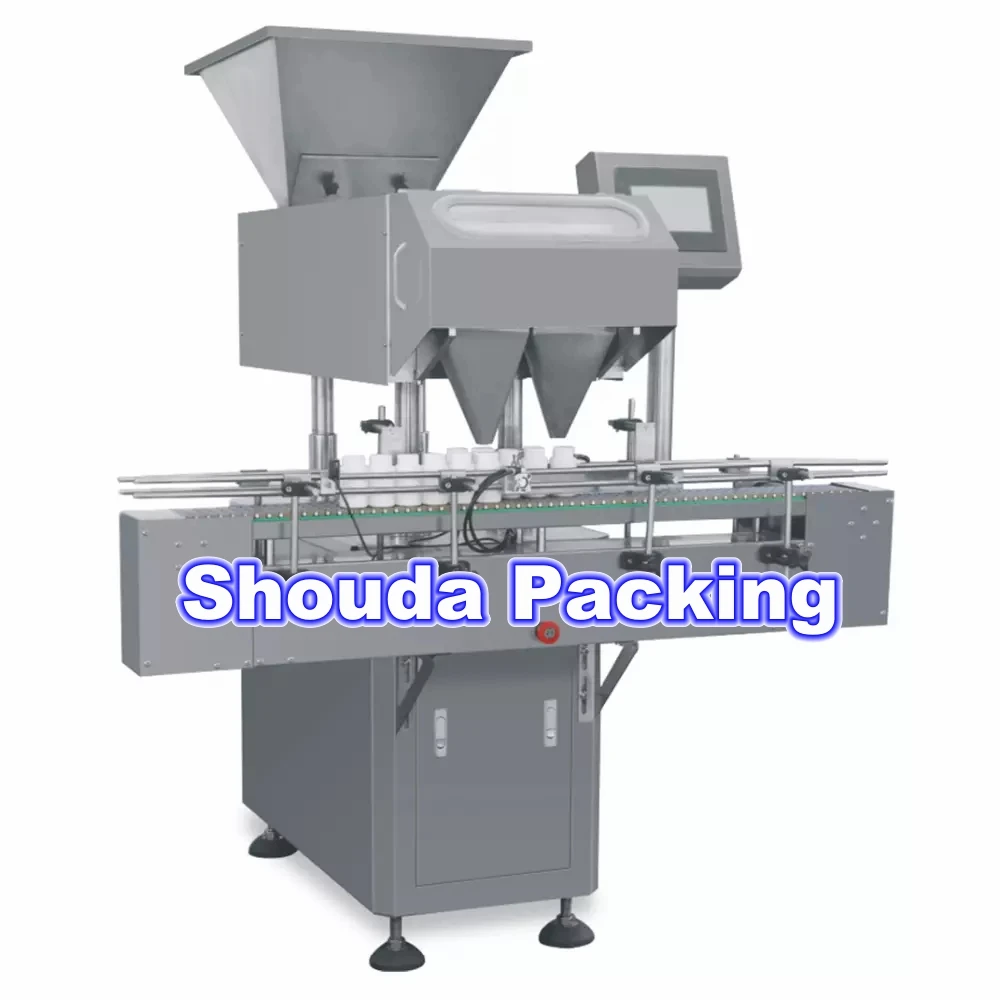

2. Counter and filler

3.  2 heads capping machine

Cap applicable:φ12-φ100mm(can be made according to customers requirement)

Production ability:5000 bottles/hour based on 1L

Qualified rate:≥99%

Voltage:220V 50/60Hz

Power :≤2.2Kw

Speed control: Frequency conversion adjusting speed

Single machine noise:≤70dB

Weight:Apr.1000Kg

Overall dimension:1650×1000×1500(mm)

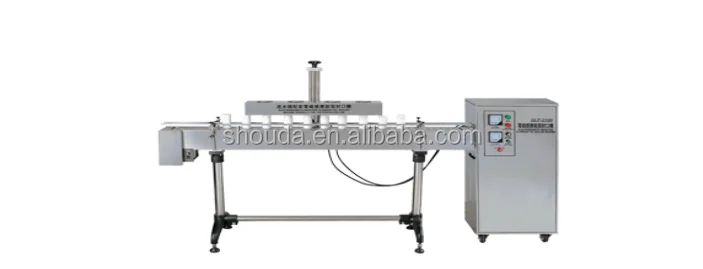

4. Automatic Aluminum Induction Sealing Machine

Introduction:

This machine take the electromagnetic induction principle as a basis, the aluminum foil makes bow wave and become heat. Then the membrane will melt and adhesion to the opening of the PE*PET bottles,and then to make bottles sealed. The high stress resistance components are quite reliable and the specifications are wide. It can be widely used for the sealing of abnormal bottles and big size Mouth bottles. The circulating water makes cooling. The machine dont need touch the Bottle caps just cowling outsidewhile sealing, GMP audit requirement be conformed.

Main parameter:

1. Power supply: AC 200V 50HZ .

2. Power: 2.5KW

3. Suitable bottle cap: Diameter: Φ10mm---Φ60mm

4. Suitable bottle height: 40mm to 245mm

5. Production Capacity: 0----22Meter /Minute

6. Machine Weight: 200kg

7. Machine Dimension: 1000mm x960mm x1500mm.

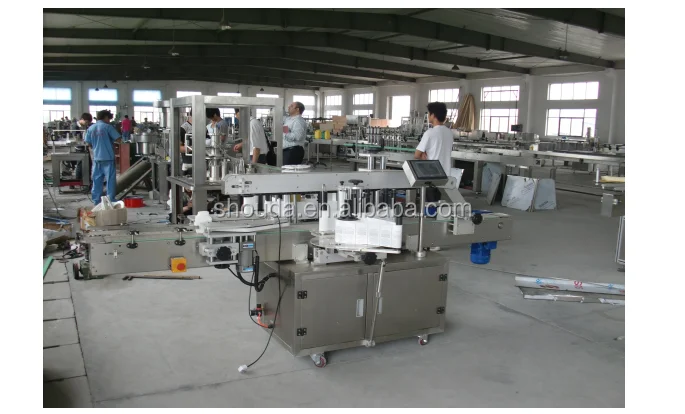

5. Multifunctional Labeling Machine (for both round and square bottles)

Summary:

Model SD-TB-J1 Multi-function Labeler for flat part is used for the labeling for flat part of an object such

as box, card or similar things in food, chemical, and medicine industry. It can realize the automatic bottle-conveying, label-separation, attaching and so on series.  The whole machine can be controlled

by micro- instruments, which will be automatic control and check. The label and flat
object will be at the same step. Code printing system can also be matched according to customer’s requirement. It is precise and easy to adjust and operate without causing much noises, part of the spareparts can be made according to customer’s requirement.

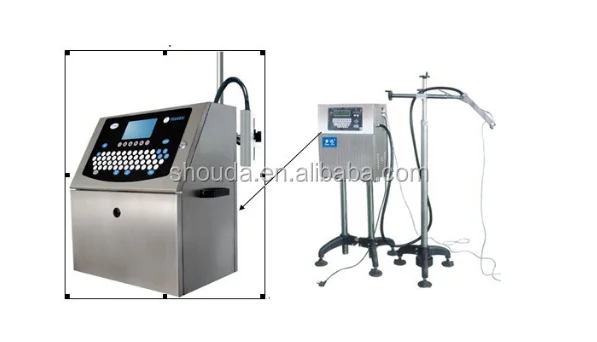

6. Inkjet Code Machine

7. Packing table

Main parts:

 (1)stainless steel table (2)rail (3)motor Finished bottle are carried to table by conveyor to packing

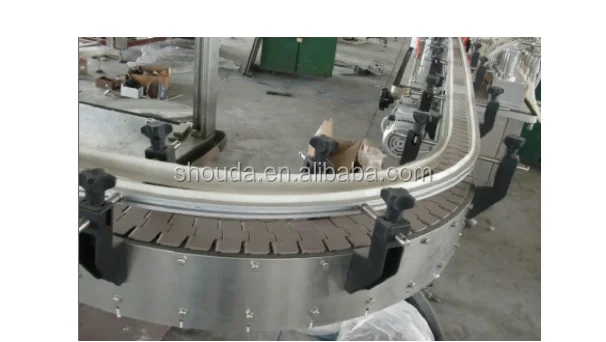

8. Conveyor

Main parts:

 (1)stainless steel chain(2)holder(3) interior paneling(4)mounting bracker(5)drive shaft

Application package with Chinese special cases, the immune standard for long distance transportation, moisture, rust and shock, prevent rough handling, and pleasant to sea, land transportation and integral lifting
