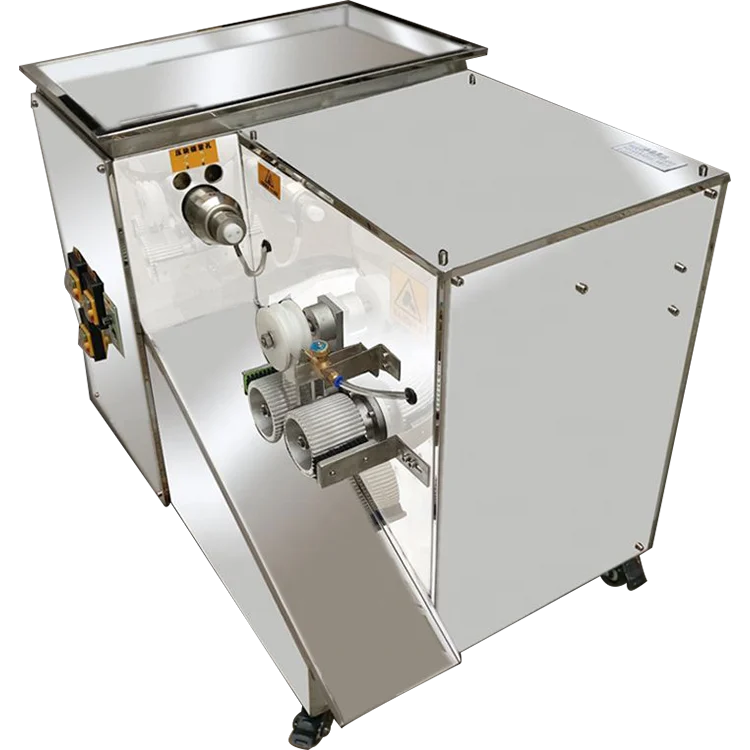

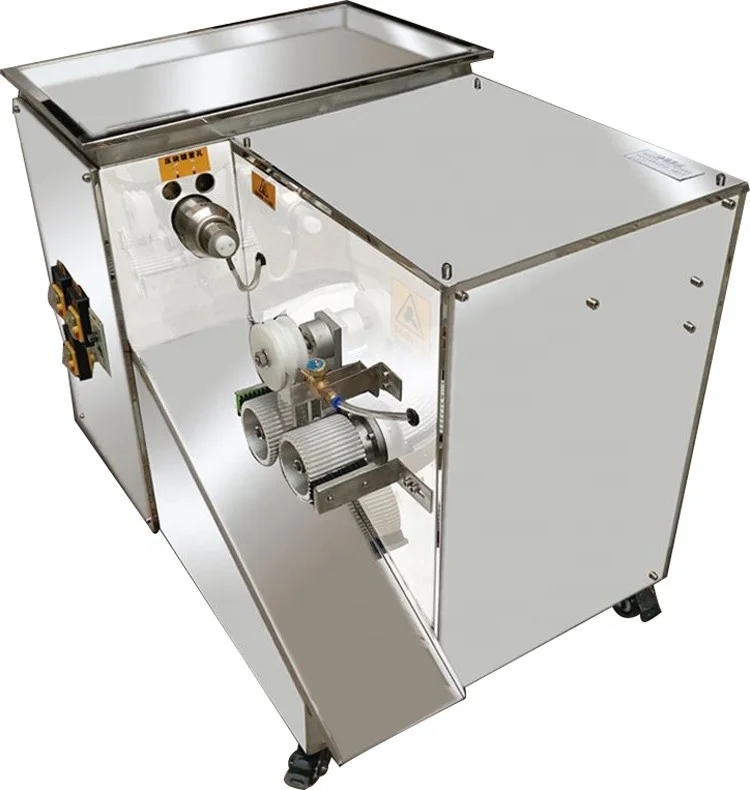

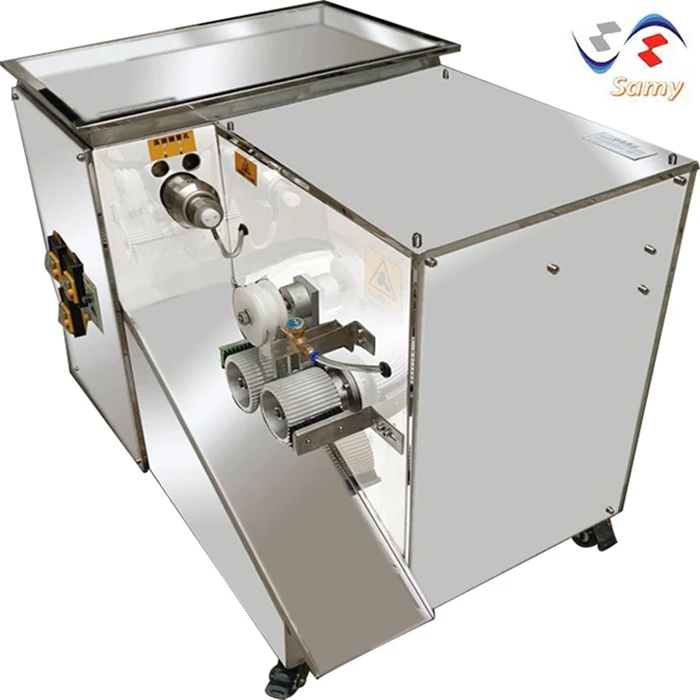

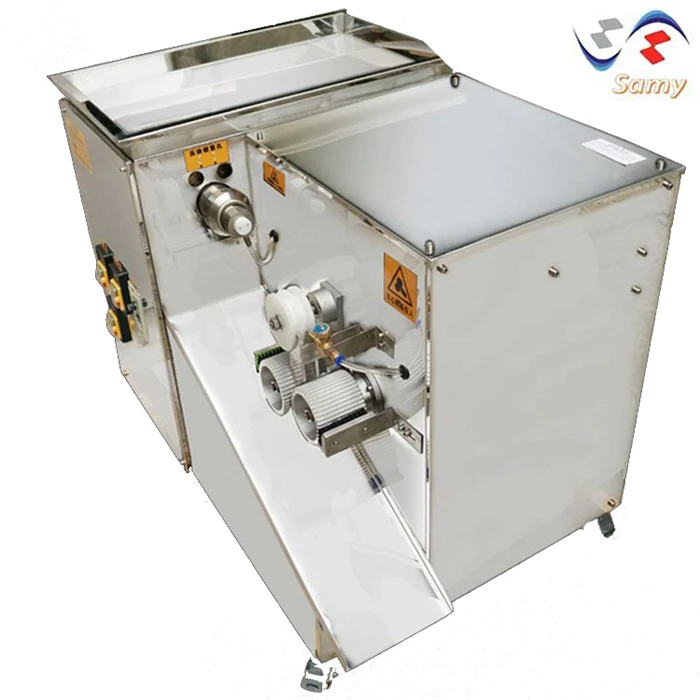

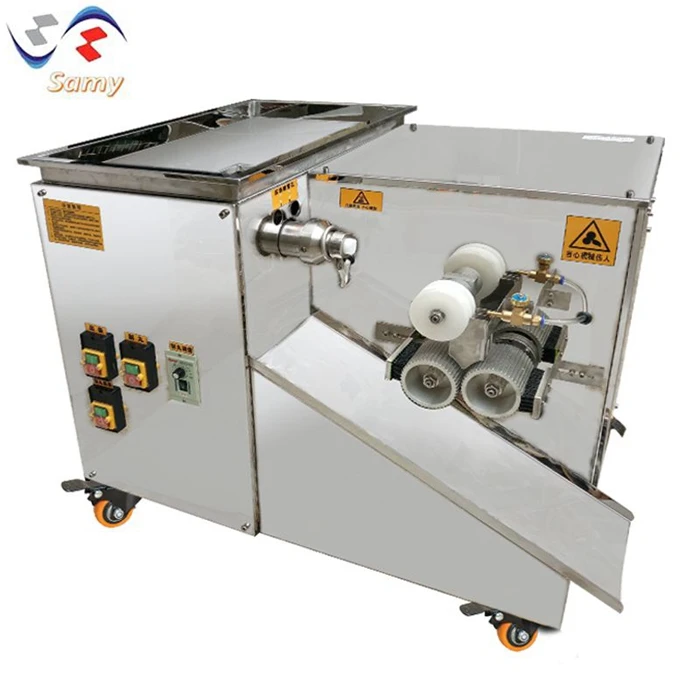

DZ-2C Factory Full automatic 4mm~10mm Chinese medicine pill making machine
Specification
Model | DZ-2C Factory Full automatic 4mm~10mm Chinese medicine pill making machine |
Pill size | 4-10mm (Can be customized) |
Production capacity | 10-15kg/h |
Voltage | 220V |
Outside dimension | 1100 x 600 x 700mm |
Weight | 120kg |
Want more details? Contact us now!
WhatsApp: +86 15273177384 Skype: Joy Lee
Tel/WeChat: 15874199500 Facebook: Joy Li
Product Description

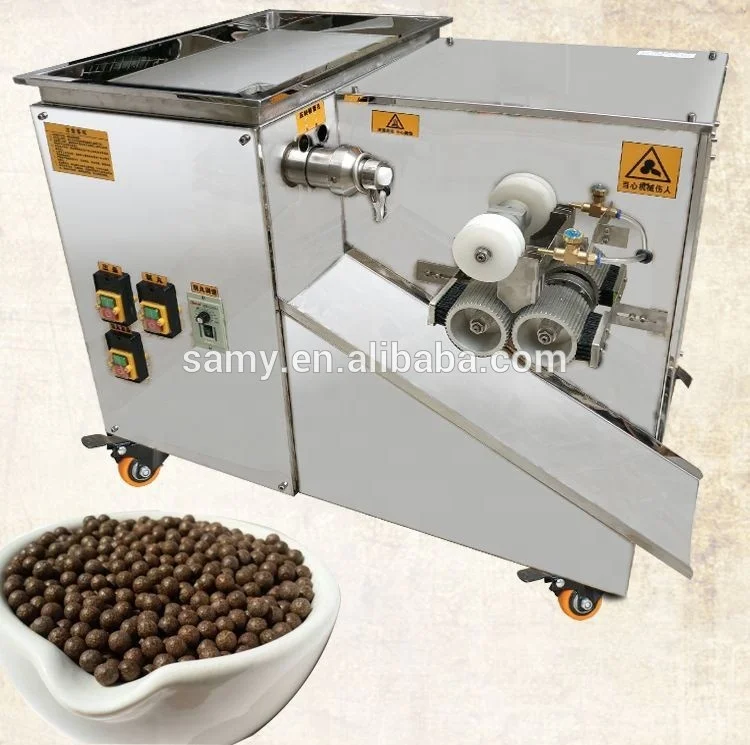

DZ-2C automatic pill machine is mainly used for small pharmaceutical factory and research department of hospitals and small batch production. It can produce honeyed pill, starched pill, watered pill, concentrated pill, water-honeyed pill and wax pill and other pills.
Advantages of desktop structure, small size, light weight, smooth operation. Stainless steel material is used for contacting parts of drugs and surfaces, no dead ends in the working face, good tightness, easy to remove and clean, comply with GMP requirements.
Operation procedure
Working principle:

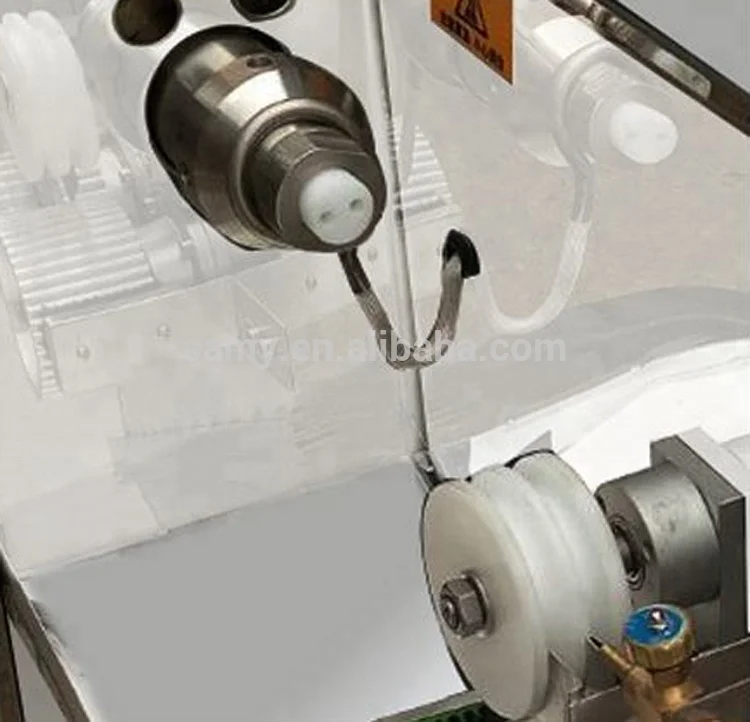

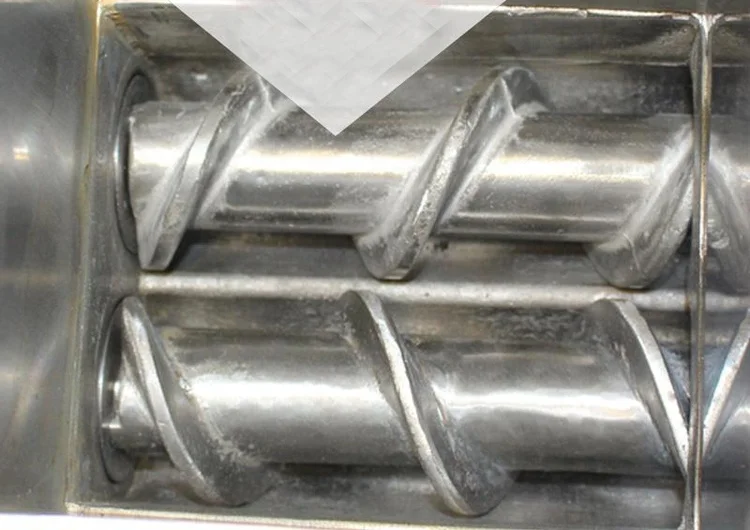

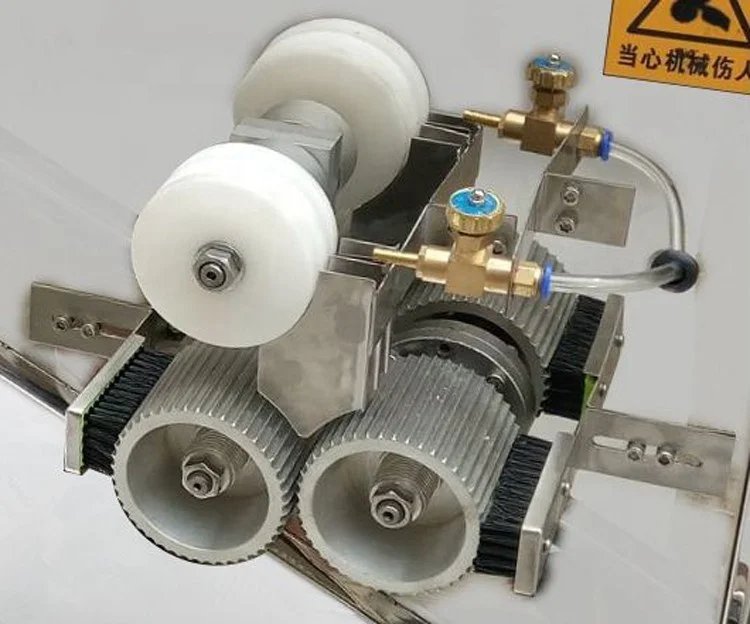

Let the mixed or refining spices into the hopper, the feed blade internal rotation, make the same dimension drugs under the extrusion of the screw propeller, pass idler groove, The bar former is synchronized into the pill wheel, after the quick discussion by double rubbing wheel, make uniform size pills.
1. Knead the drug powder to water pill group.
2. Put the water pill group into charging port.
3. Wait for the drug strip out from the extruder.
4. Place the strip on the rolling track.
5. Make the pill by the synchronous operation of sliver delivery device and roller device.
6. Finished pills.
Related Products

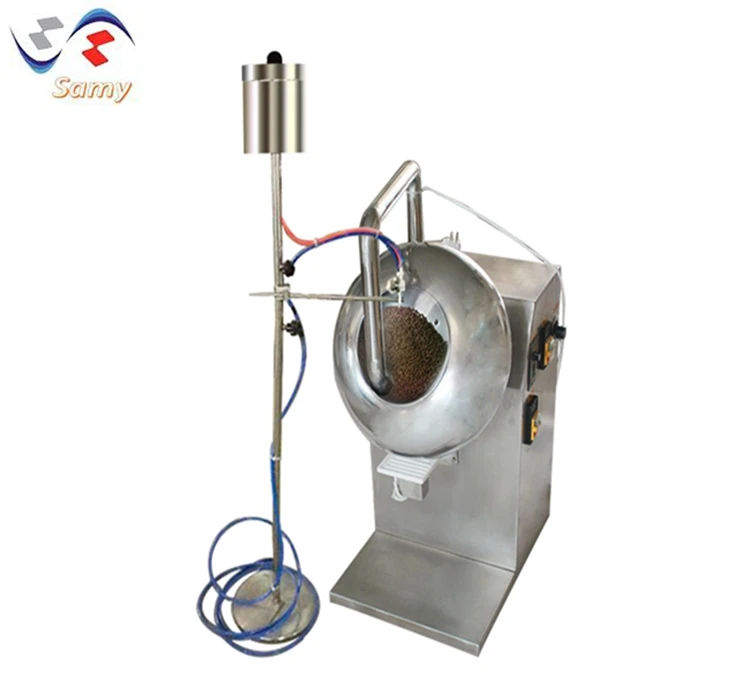

After the pills are made, you can put them into the pill coating machine to coat them or just polish and dry them.
Model | BY-300 pill/tablet/candy/nut coating machine |
Coating pan diameter | 300mm |
Coating capacity | 2-4kg/h |
Motor power | 120W |
Hot air temperature | 30-80℃ |
Dimension(L*W*H) | 56*30*85cm |
N.W. | 30kg |
We have several models of coating machine for you to choose from.

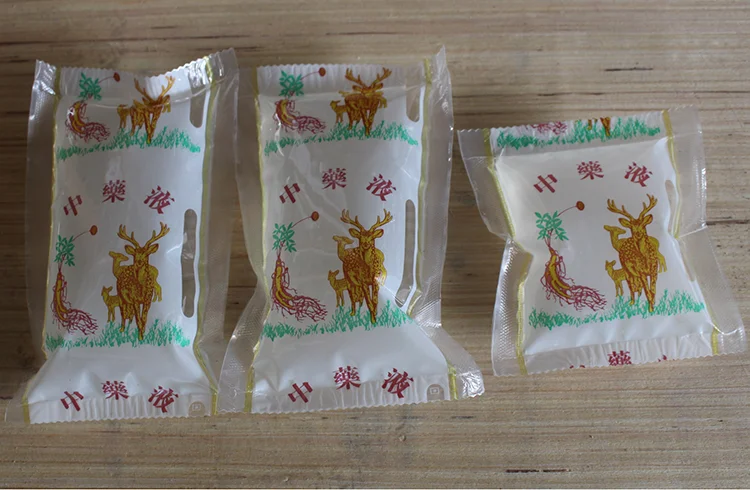

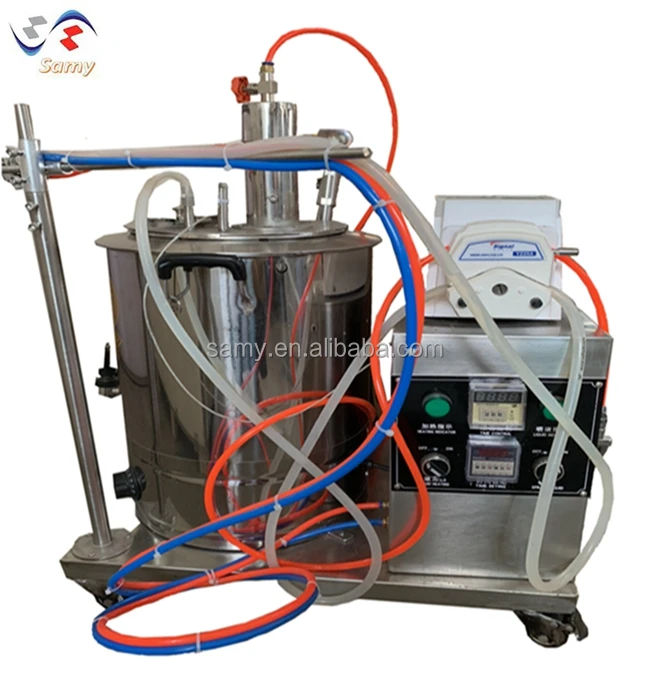

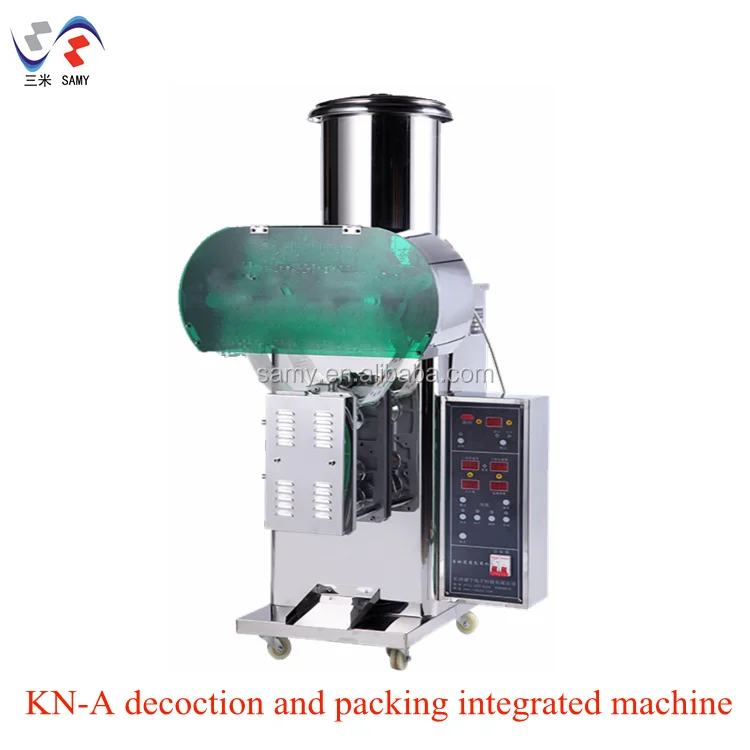

KN-A Automatic decoction and packing integrated machine

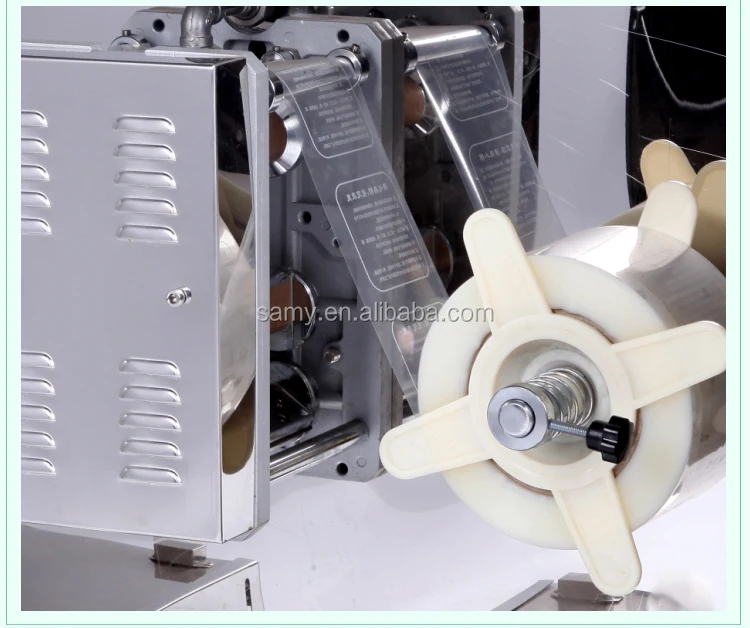

Using precision mechanical drive and electrical control system, the Chinese herbal medicine with appropriate water for heating, fried into liquid, after equipment packaging system of bag making, measuring, filling, sealing, cutting through continuous working to complete the whole process of liquid decocting to packaging.
Model | KN-A | Dimension（L*W*H） | 640*530*1120mm |
Packaging production capacity | 8 -9 bag/min | Weight | 65kg |
Making bag size（L*W） | 70*100-185*100mm | Tank capacity | 20L*1 |
Bag pack capacity | 70-300ml | Package qty set range | 0-100 circulate |
We have several models of coating machine for you to choose from.
Pharmaceutical products are often bought together for different process uses.
This series products include powder grinding machine, decoction machine, pill/tablet making machine, pill/tablet polishing machine, pill/tablet/candy coating machine, etc.
Our factory provides all the series products with different specifications and cheap prices for you to choose from.
If you are interested, don't hesitate to contact us now!
Our Company
Why We Choose Samy?
1. Established in 2010, we have 10 years' experience and certificates like CE and ISO9001, ISO13485.2. Our products are of high quality and cheap prices.
3. Multiple models of pill making machine. There must be one that can meet your needs.
4. Professional team from production to sale. Sales team 24 hrs online.
5. High reputation among customers worldwide.
6. We have distributors in some countries.
7. Fast delivery within 15 days. Always have products in stock.
Our Service
24/7 online service and technical support.
FAQ
1. Q: What size pills can DZ-2C make?
A: DZ-2C can make 4-10mm spherical pills.

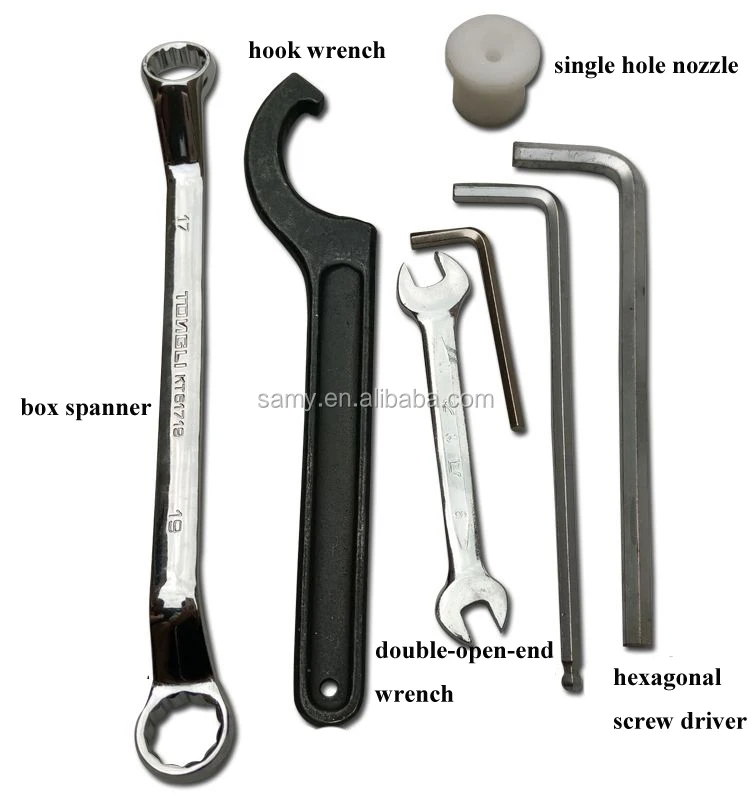

2. Which size mold you send for free?
A: Any one set of size mold from 4mm to 10mm according to your needs.
3. Q: What are the payment terms?
A: You can pay through Alibaba Trade Assurance, T/T, Western Union, Master Card, PayPal, etc.
4. Q: What are the shipping methods?
A: You can choose shipping by air, by sea or by Express door to door.
5. Q: Do you have MOQ request?
A: MOQ is 1set.
6. Q: How many days can you delivery?
A: Within 15 days after we got the payment.
A: You can pay through Alibaba Trade Assurance, T/T, Western Union, Master Card, PayPal, etc.
4. Q: What are the shipping methods?
A: You can choose shipping by air, by sea or by Express door to door.
5. Q: Do you have MOQ request?
A: MOQ is 1set.
6. Q: How many days can you delivery?
A: Within 15 days after we got the payment.
