Carbon steel firewood rotary drum trommel screen
Hot Products
Product Description
Carbon steel firewood rotary drum trommel screen is mainly composed of several circular screen clothes, and is in a tilt state with ground on the whole, the screening drum rotates under certain rotation speed through deceleration system, the materials are screened from top to down through screening drum, fine materials are discharged from bottom of screening drum front, and coarse materials are discharged from tail of screening drum bottom.
Specification
There are many different models and layers for Carbon steel firewood rotary drum trommel screen, we will choose a suitable model according to the specific material and application that you want to screen.
Model | Length range (m) | Number of segments of screen cloth | Scope of screen cloth (mm) | Motor power (KW) | Angle of inclination (degree) | Maximum material (mm) | Rotation speed of drum (rpm) | Handling capacity (m³/h) | External dimensions |
YTSΦ600 | 2-4 | 1-3 | 5-35 | 2.2-3 | 7° | 35 | 20 | 10 | 5400*1150*1200 |
YTSΦ800 | 2-4 | 1-3 | 5-40 | 2.2-5.5 | 7° | 45 | 18 | 14 | 5600*1300*1500 |
YTSΦ1000 | 1-4 | 1-4 | 5-45 | 3-7.5 | 7° | 60 | 16 | 16 | 7400*1400*2240 |
YTSΦ1200 | 2-8 | 1-4 | 5-50 | 4-11 | 7° | 70 | 15 | 20 | 9480*1580*3400 |
YTSΦ1500 | 2-8 | 1-4 | 5-55 | 4-15 | 7° | 80 | 12 | 32 | 9700*1860*3700 |
Detail Pictures

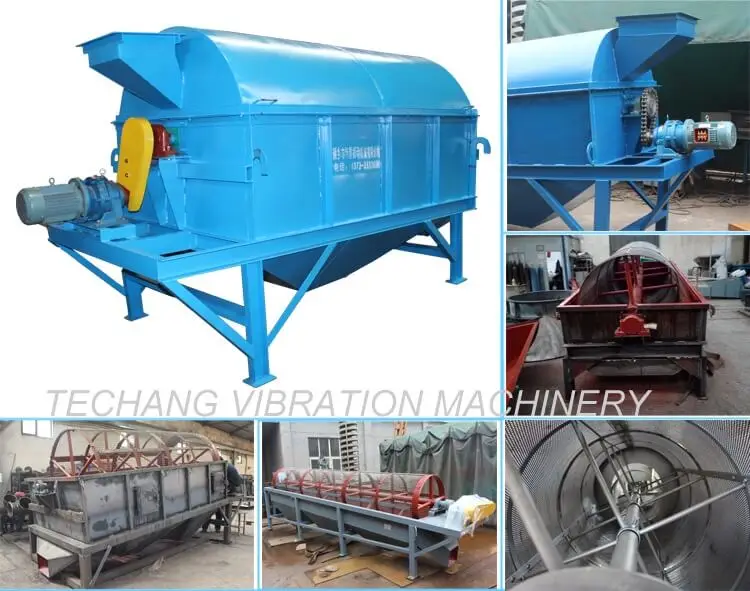

Carbon steel firewood rotary drum trommel screen composed of motor, reducer, inlet, outlet, screen frame, screen mesh, support base and so on. The following detailed pictures will help you to know more about it.
Product Show
There are different types and materials for Carbon steel firewood rotary drum trommel screen.

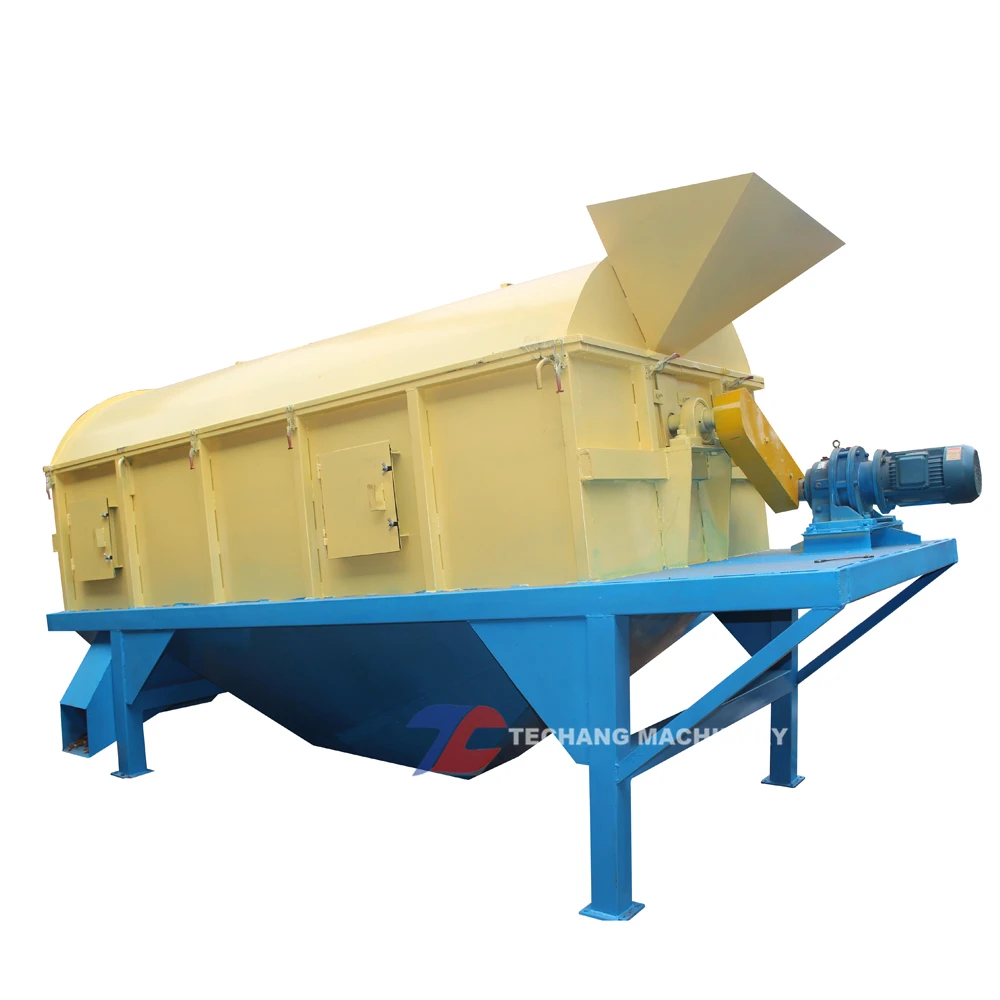

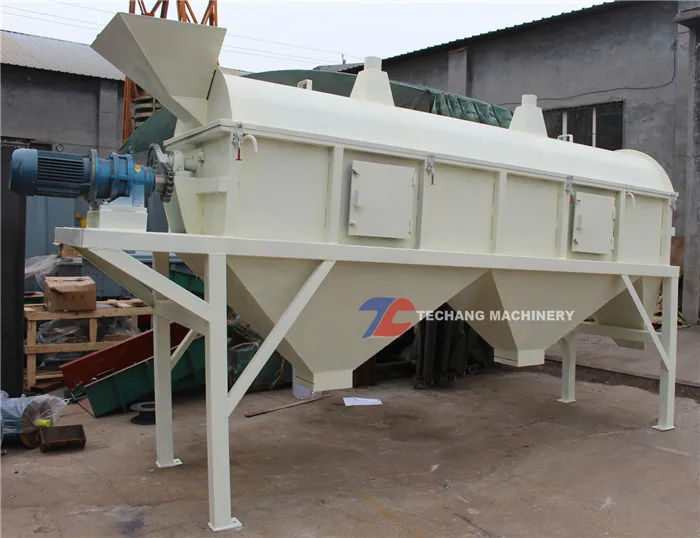

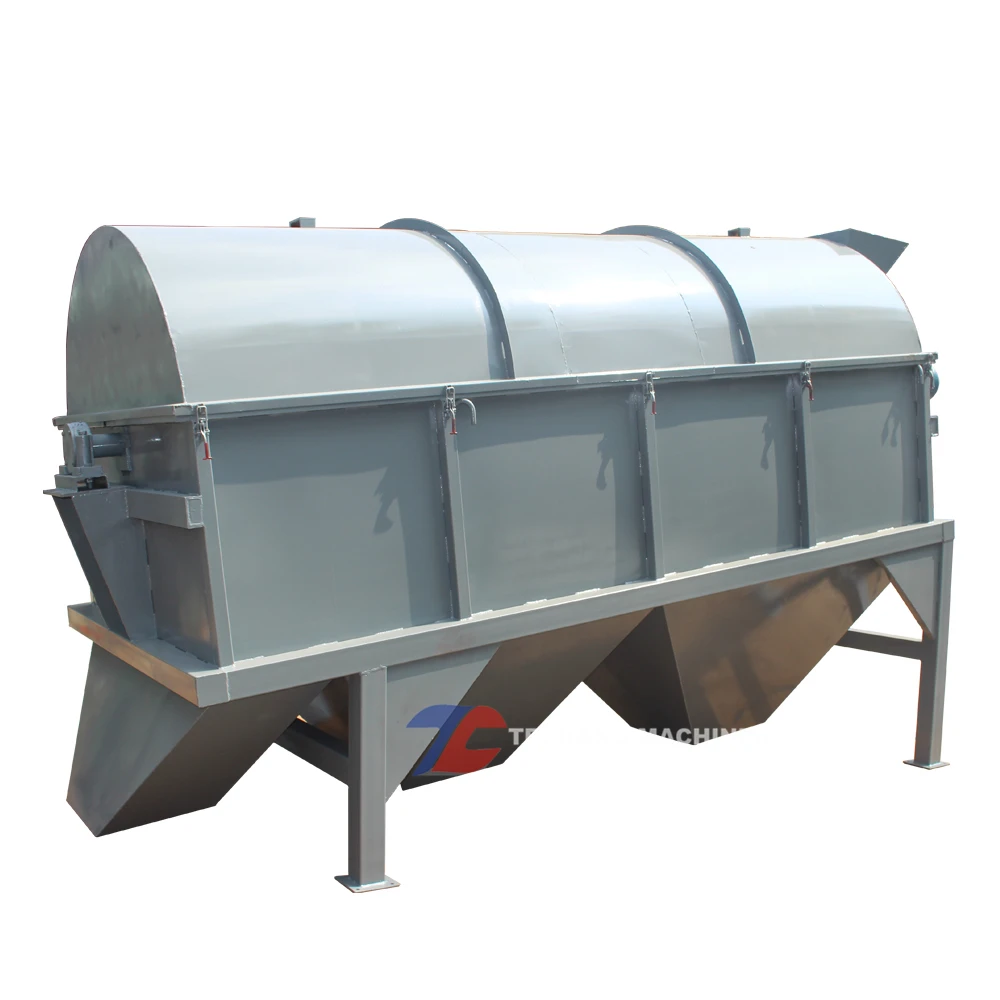

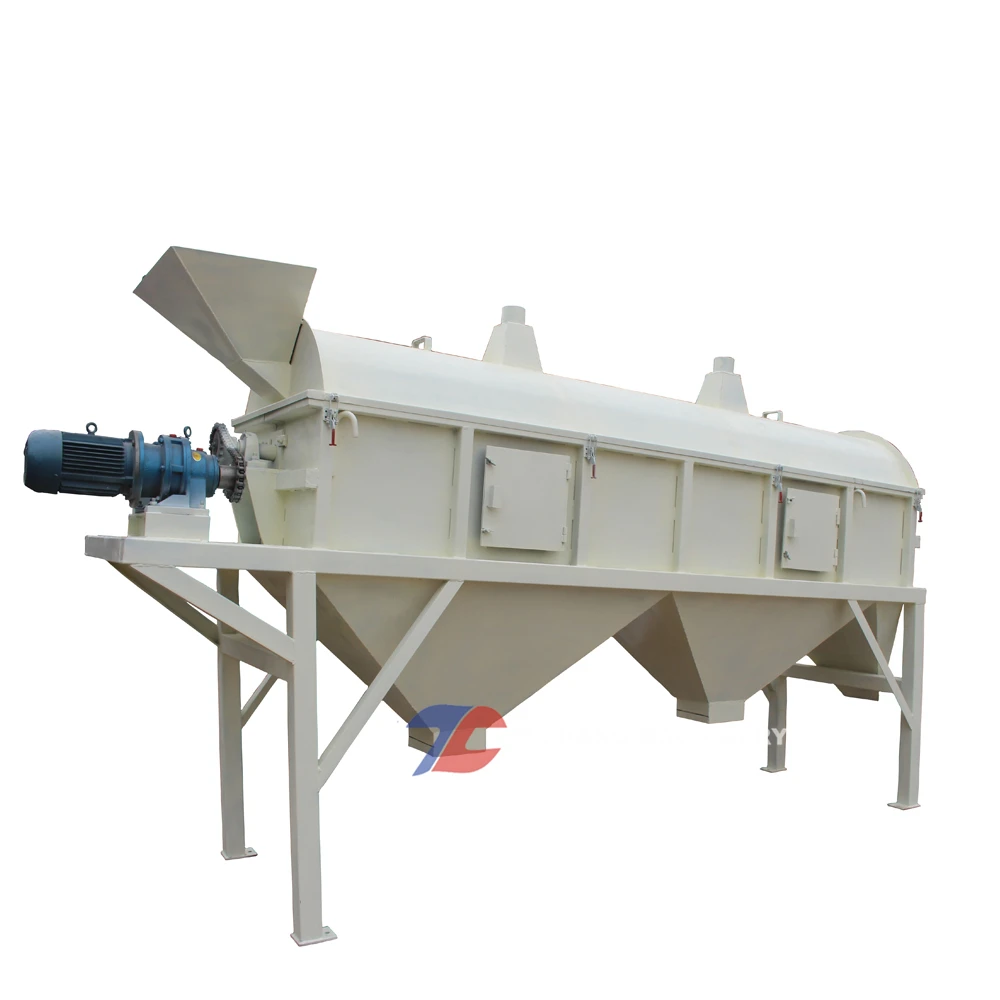

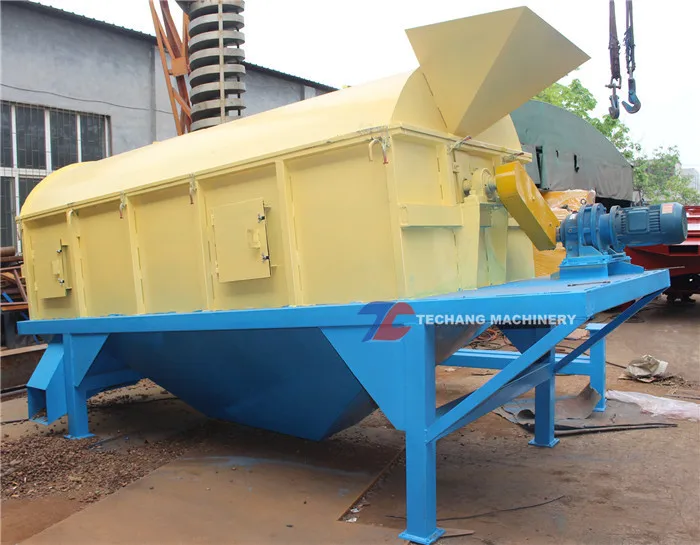

Carbon steel closed type trommel screen

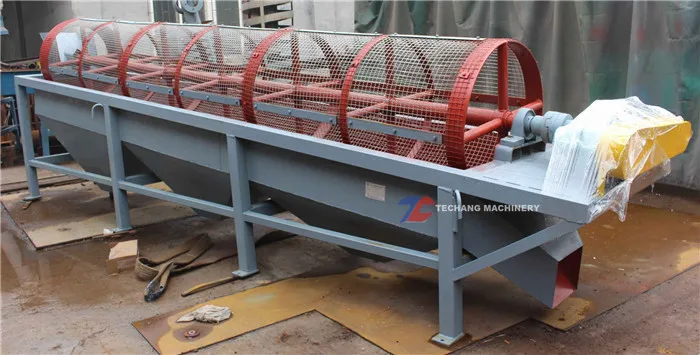

Carbon steel open type trommel screen

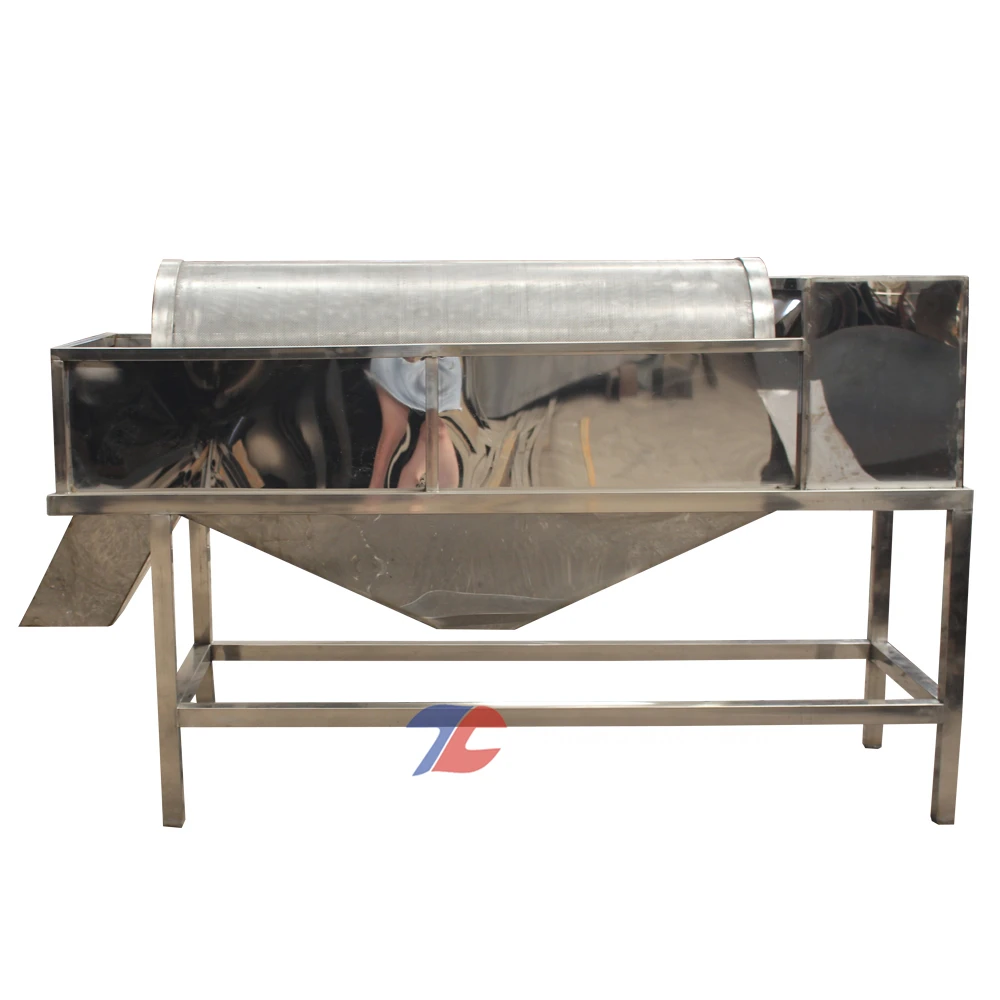

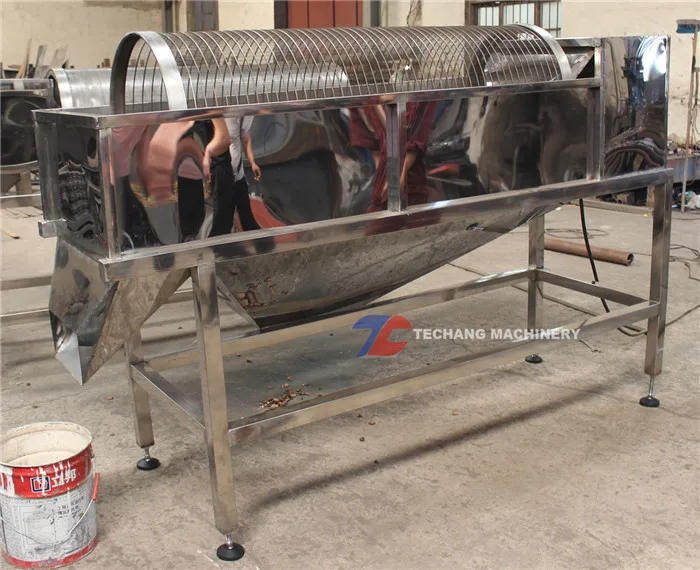

Stainless steel trommel screen
Application
Carbon steel firewood rotary drum trommel screen is widely used in gold mining, food industry, gravel, soil, sand, coal mining industry, building industry, agriculture, etc. Main functions are classification, screening and grading.
Company Information
Xinxiang Techang Vibration Machinery Co.,Ltd is located in the north central city of Xinxiang Sizhuangding industrial park, adjacent to Beijing Guangzhou railway, 107 national highway, the transportation is convenient, Techang Vibration Machinery is a high-tech enterprise which is an integration of design, research & development, production and marketing, the main products are Carbon steel firewood rotary drum trommel screen, vibrating screen, conveying machine (screw conveyor, belt conveyor, scraper conveyor), feeding machines (motor vibration feeder, electromagnetic feeder), elevating machine (bucket elevator, vibration elevator), mixer, hybrid machine, mine fittings and other nine items of hundreds of products for you to choose, we can also base users' requirements to design and manufacture all kinds of mine mechanical products.
FAQ
Q: What information do I need to provide for getting an accurate quotation for Carbon steel firewood rotary drum trommel screen?
1. Material’s name, bulk density, and water content
2. Capacity you required___kg/h
3. What’s the purpose for our machine? Filtering, removing impurities or classification?
4. How many layers do you need?
5. The mesh size for each layer
6. Voltage and frequency
Q: How long for the delivery time?
A: 5-10 working days for conventional products.
Q: How long for warranty time?
A: 12 months from the shipping date.
Q: Can your engineer come to the construction site to guide the installation?
A: Yes, we can arrange our engineer to guide your installation, and salary is 150USD per day for one person, the air ticket/ visa/ local accommodation/ local traffic is in charge of customer.
Generally there is no need to send our engineer to guide, because we will provide detailed installation drawings to the customer, the customer only need to find special installation team to execute.
