100L дистиллированный, Самогонный аппарат дома дистилляции SS304 виски дистиллятор алкоголя оборудование для дистилляции
- Категория товара: Other Beverage & Wine Machines >>>
- Поставщик (Оптовый магазин): Daeyoo,Tech.,Co.,Ltd.,Wenzhou
Поделиться:
Описание и отзывы
Характеристики
1. 50l with 4 plates 2. 100l with 6plates 3. 100l with 6 plates 4. 200l with 4 plates
Product Description

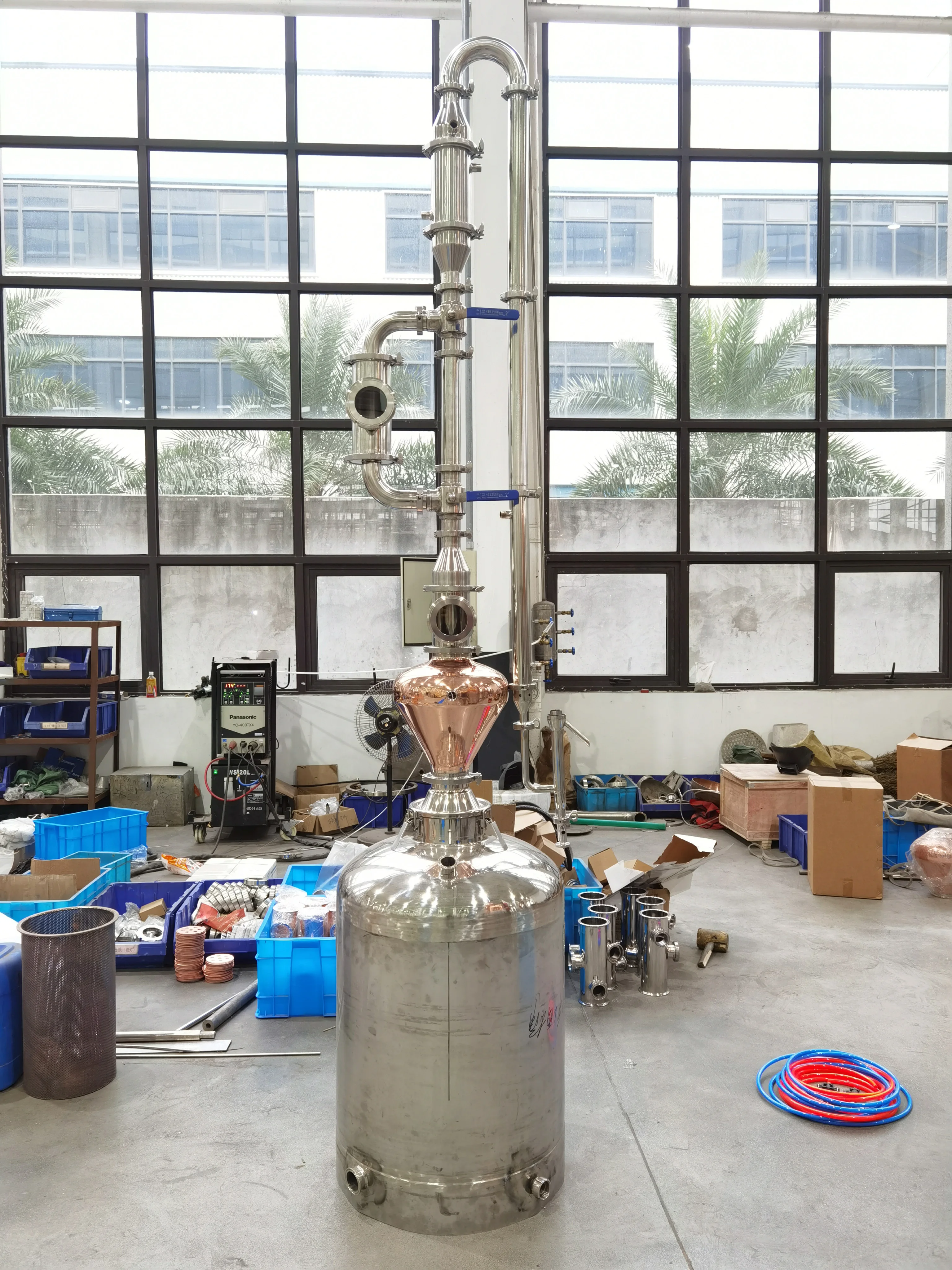

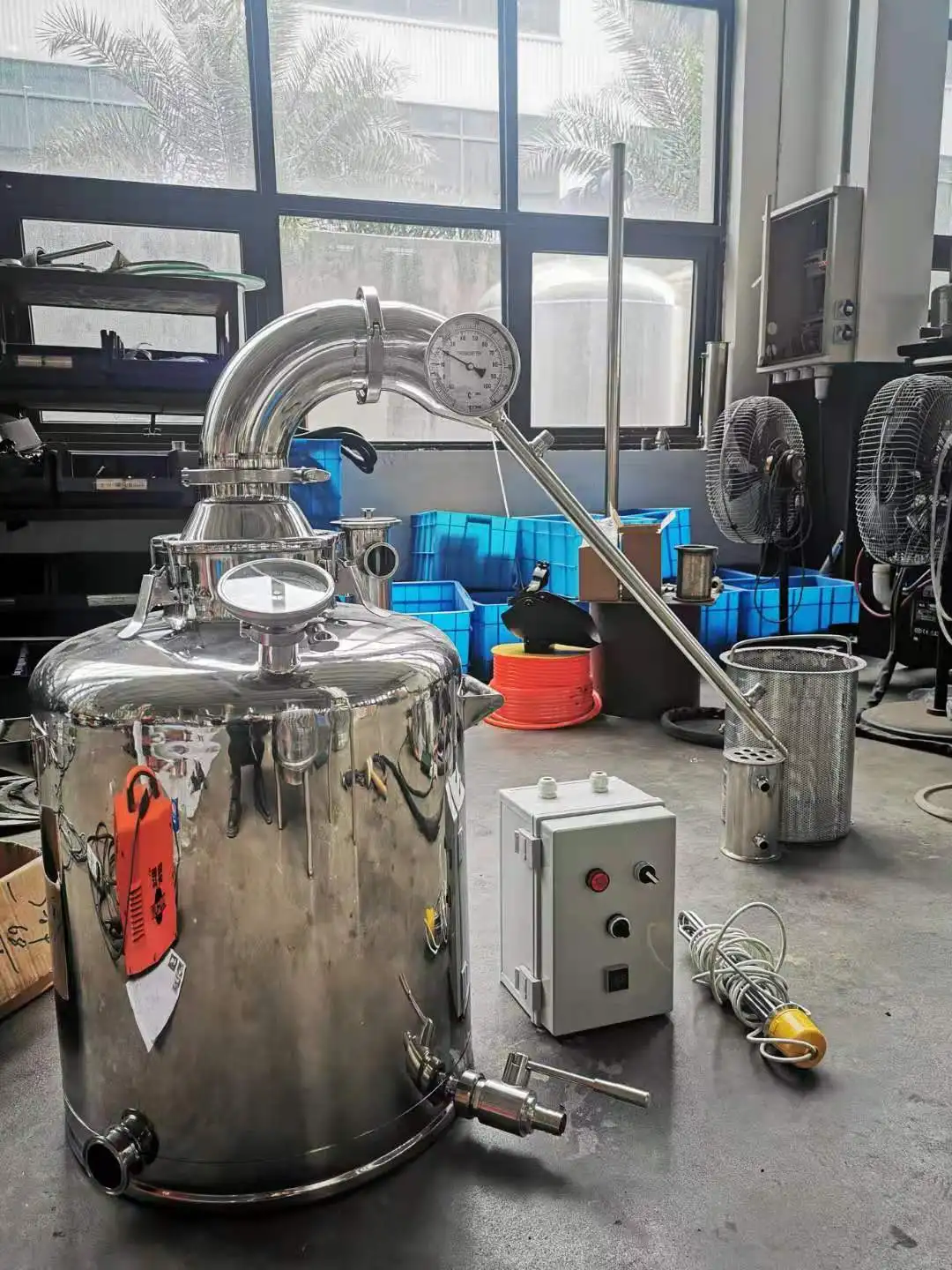

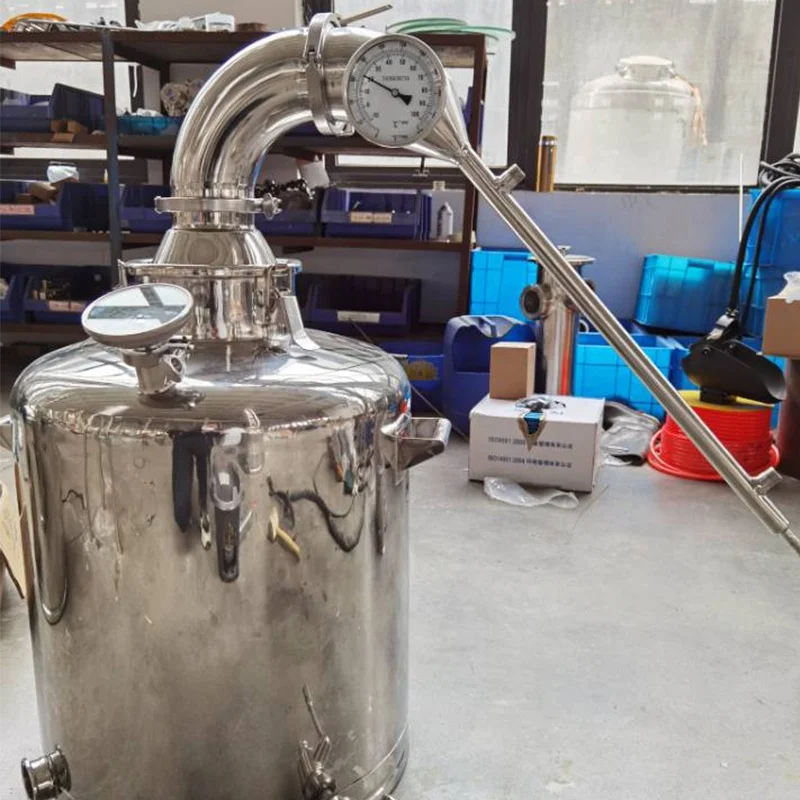

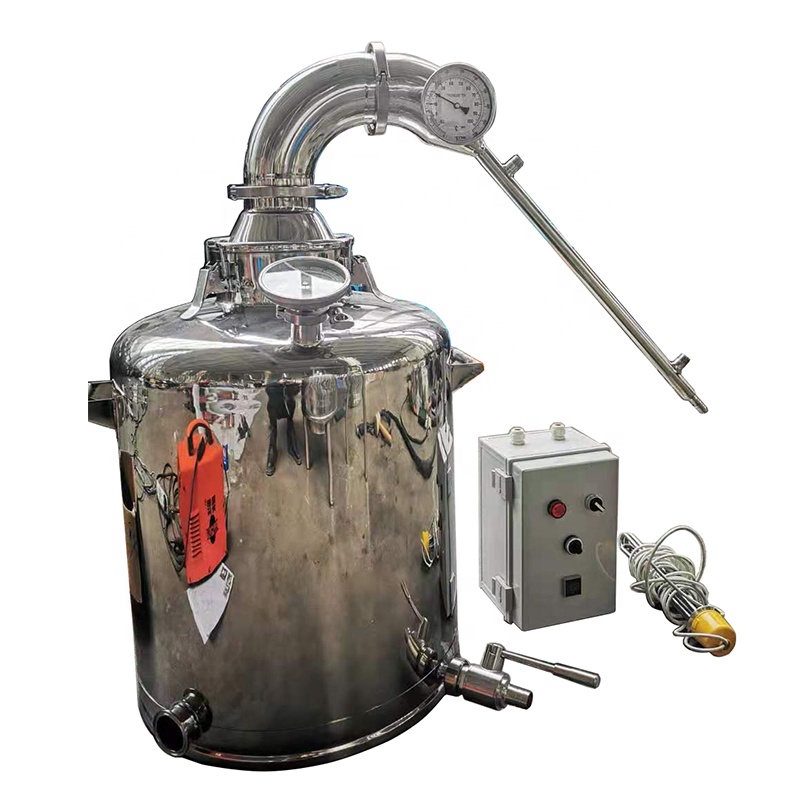

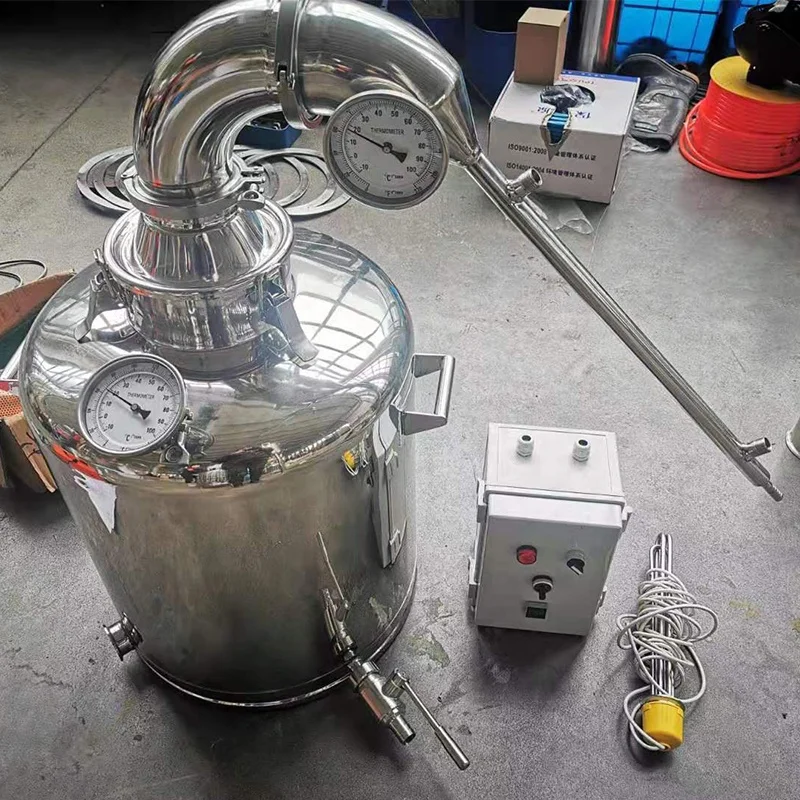

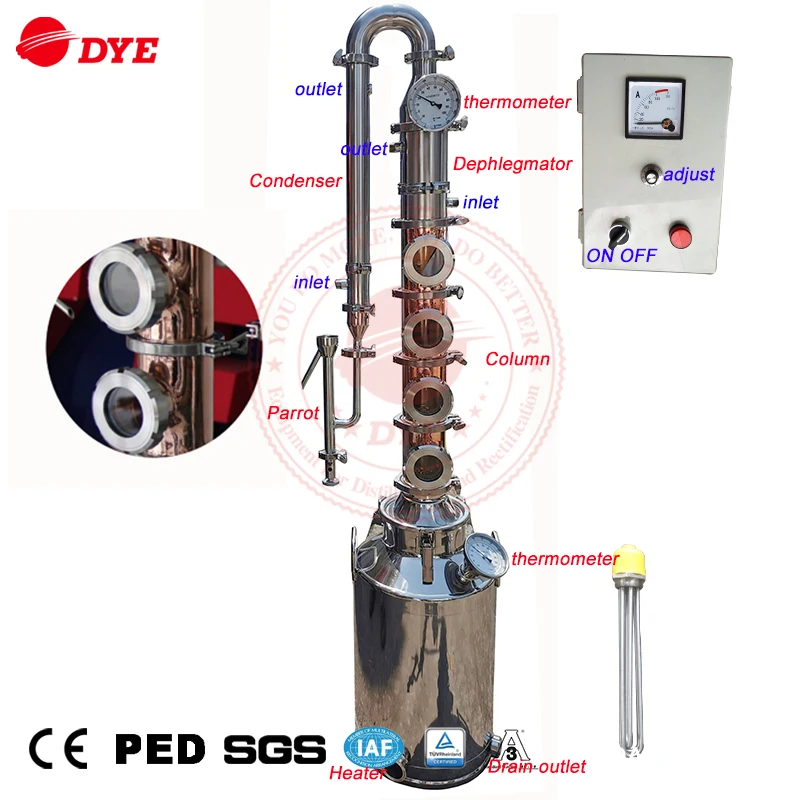

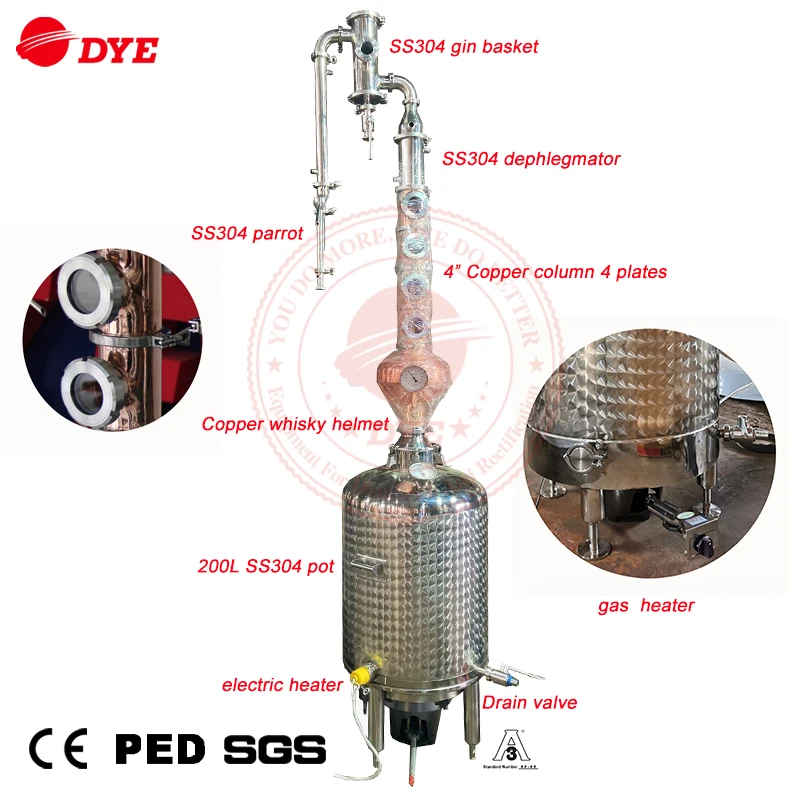

100l pot still for whisky, gin, rum, brandy home/pub used
Product models we have

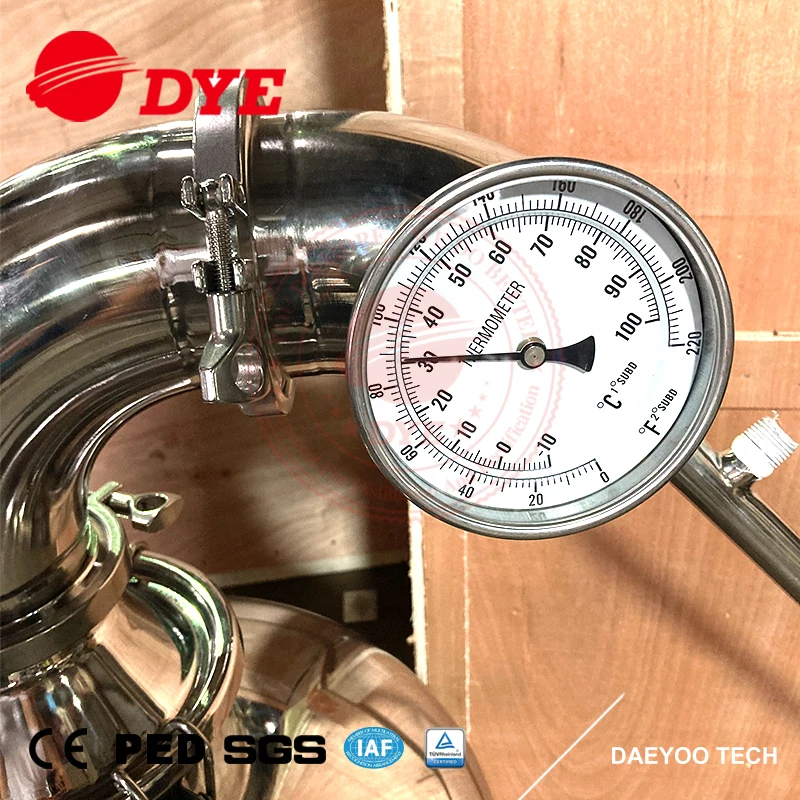

SS304 made dephlegamtor, top with thermometer. Shell and tube type.
SS304 made gin basket, with sieve plate, sight glass and drain valve.

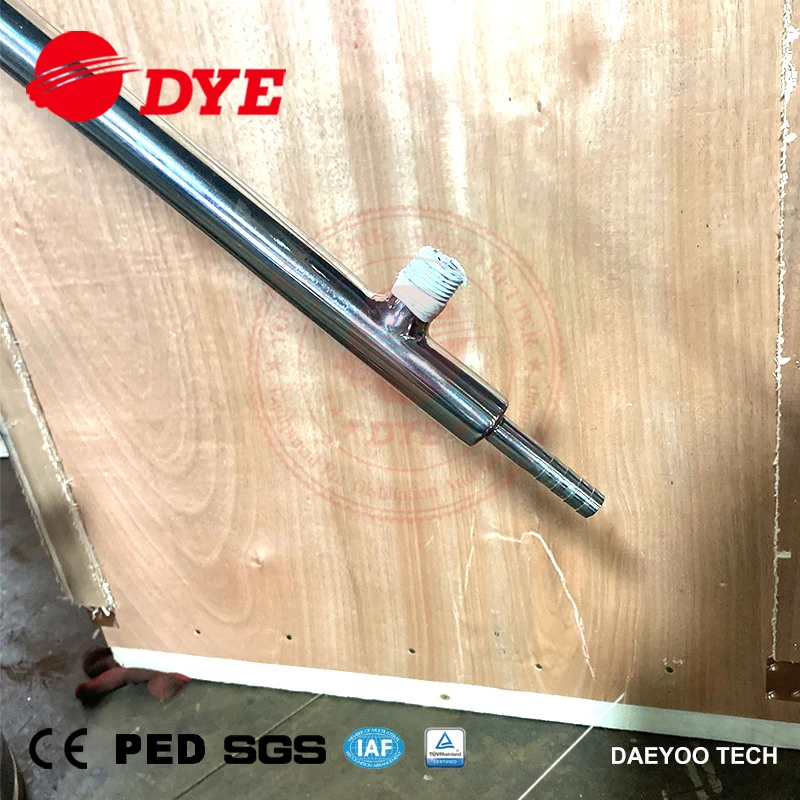

SS304 made parrot, with drain valve
Machine Parts

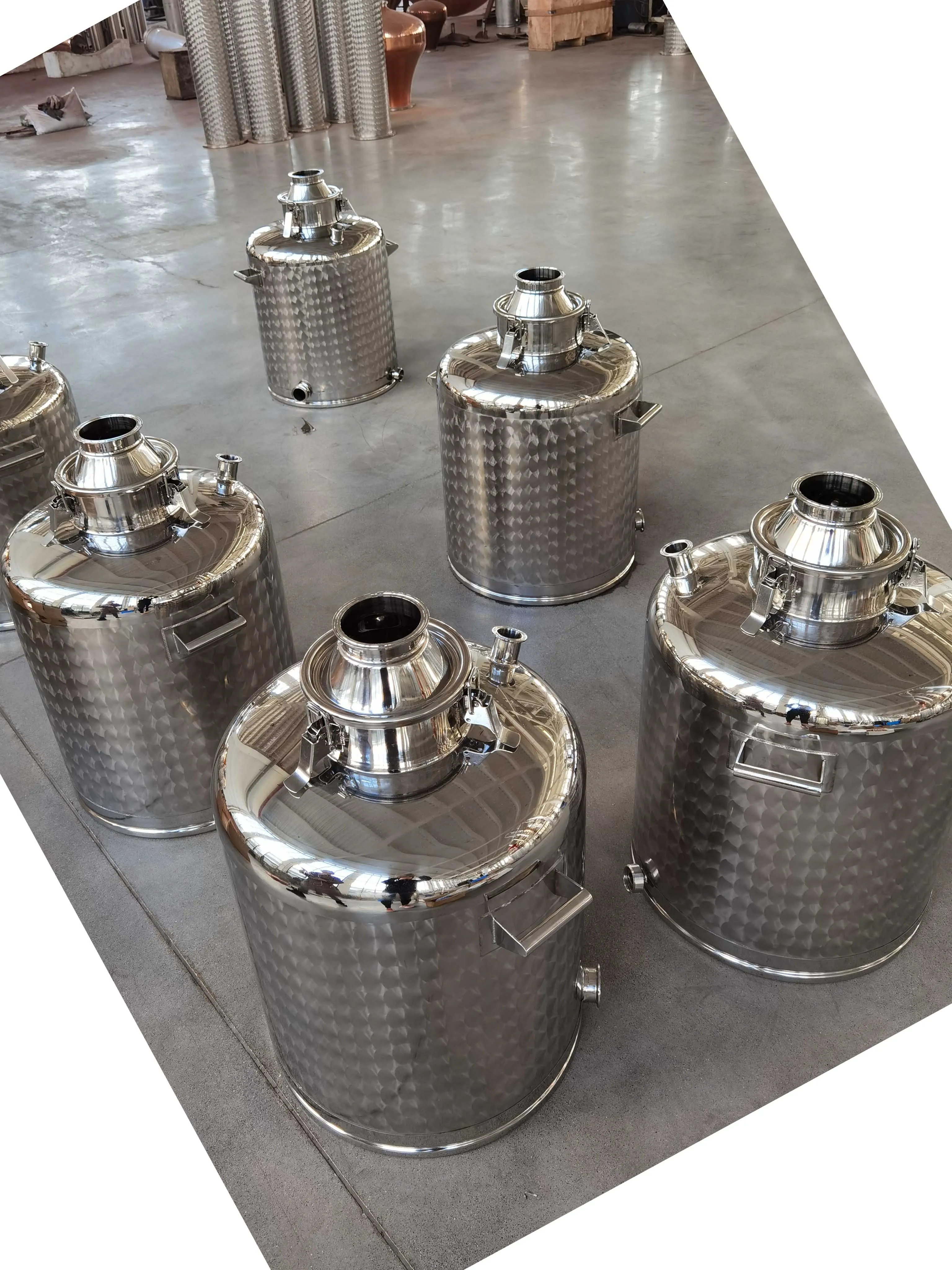

Name: Pot
Brand:DYE
Original:China

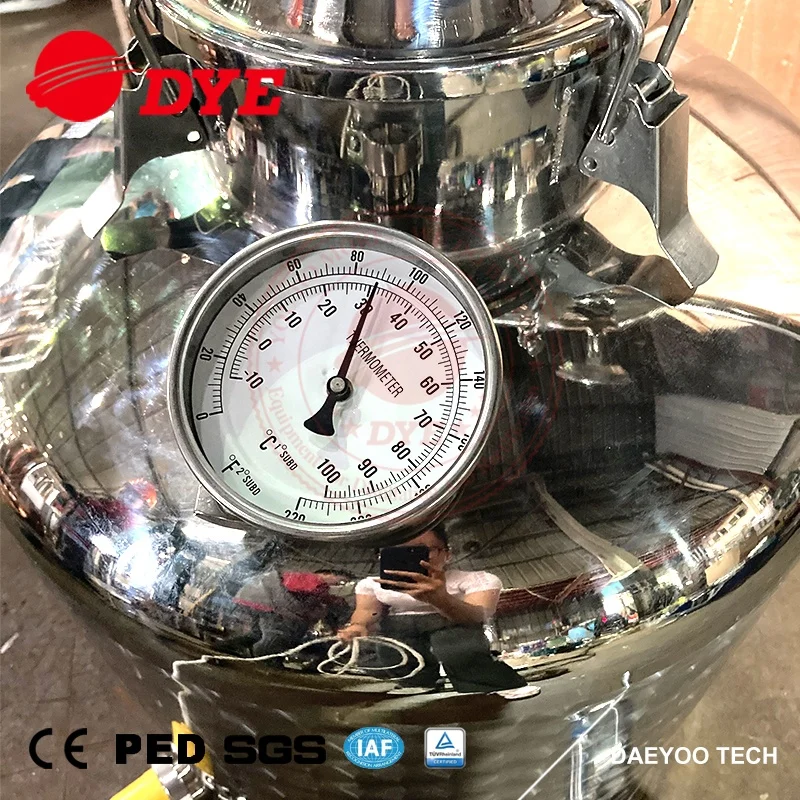

With thermometer, drain valve, port for 5KW electric heater and handles.
Main Features

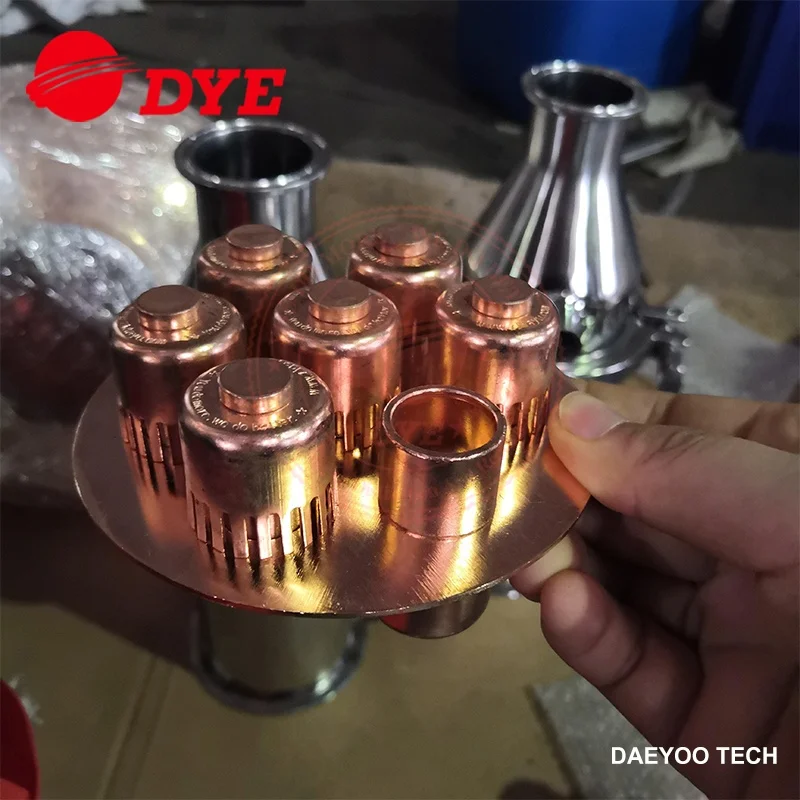

Name: Bubble caps and trays
Brand: DYE
Original: China
The trays of distillation column we have improve it like photo, it's easy to gat bubble trays off and wash it. All bubble caps and screw are made of T2 grade red copper,the screw design is by our company,no dead corner,it can 100% meet sanitary stand.
Machine Parts

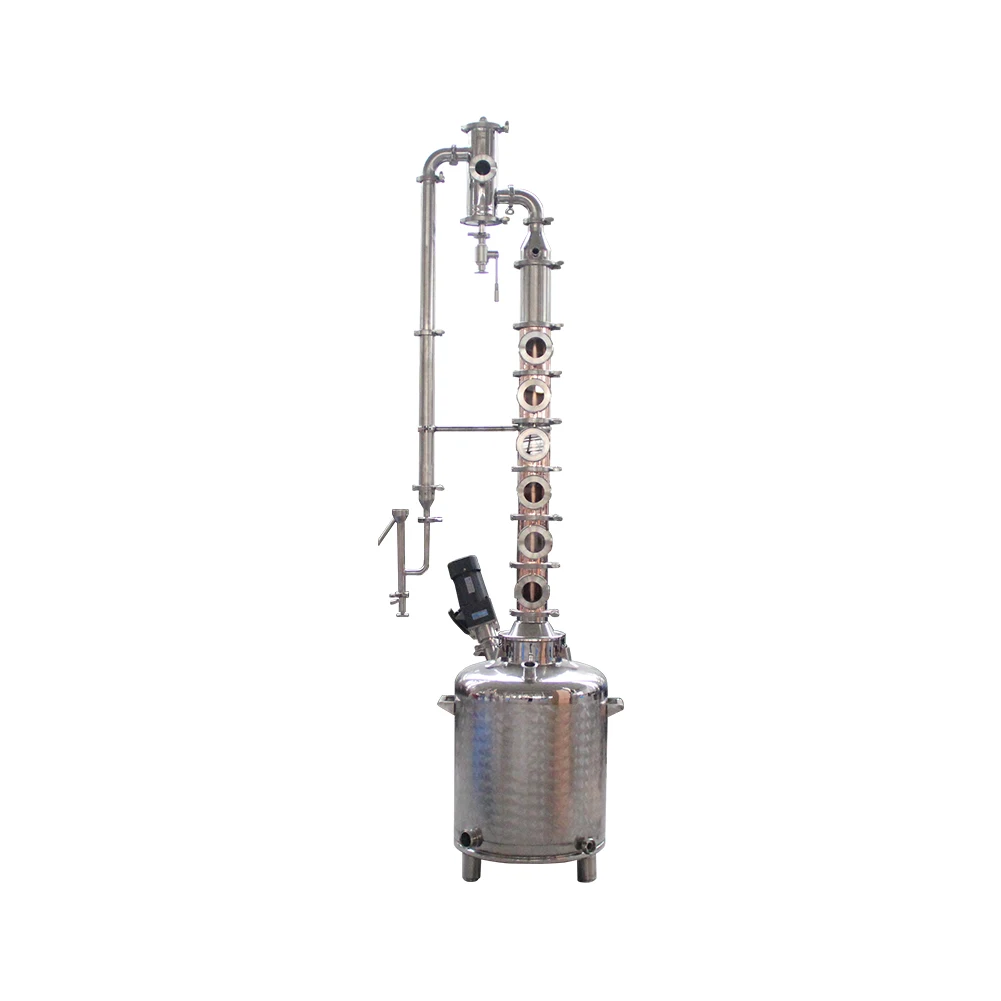

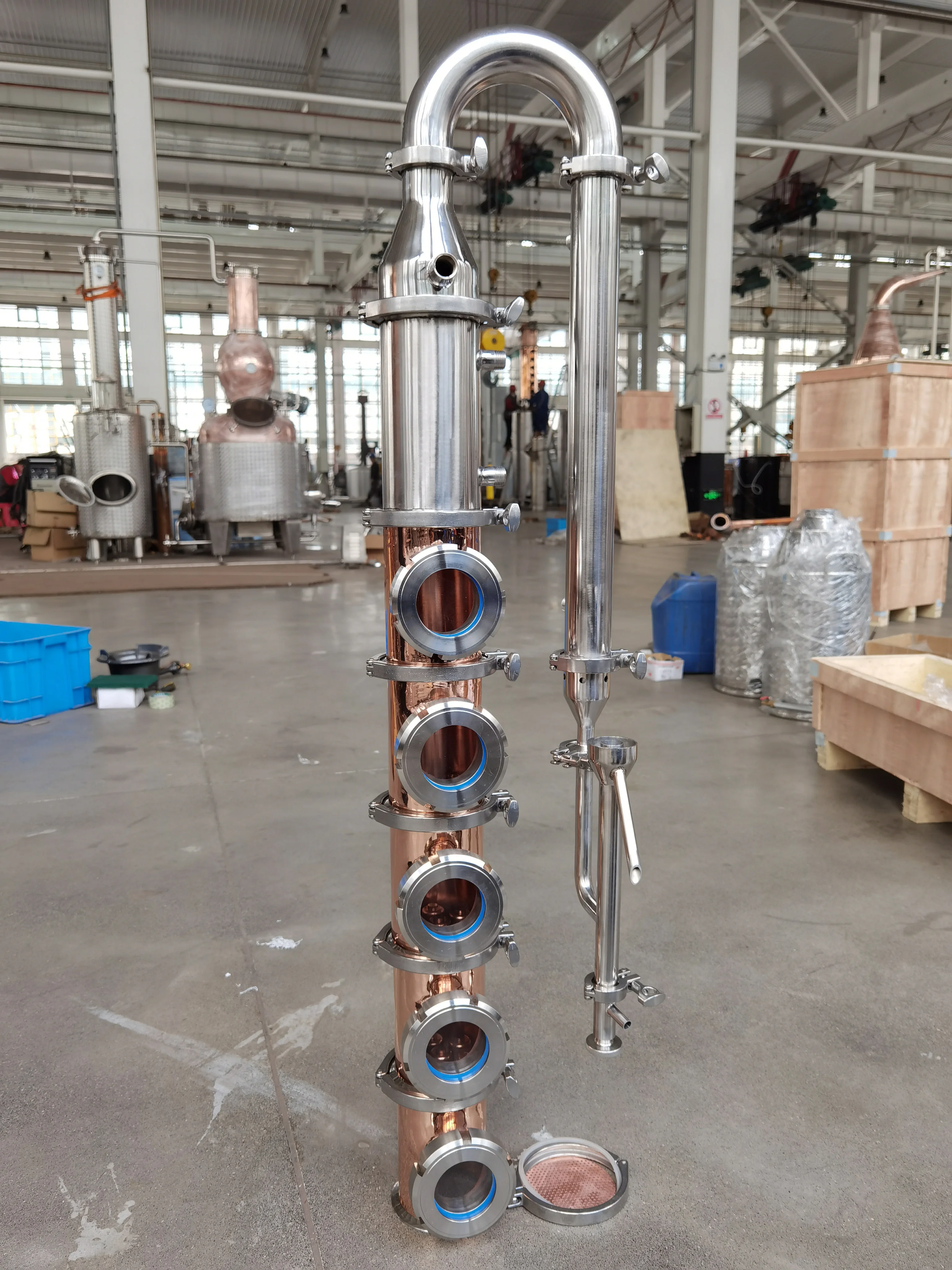

Name: Distillation column
Brand: DYE
Original: China
One section of copper column consists of bubble plate, bubble cap, overflow cap, red copper screw.
Height of each colum is 155mm, with DIN sight glass, seals, tri-clamps.
High proof spirits could use 8-12 plates column, could reach 92-96%abv.
How proof spirits could use 4-6 plates column, could reach 70-92%abv.
Optional items

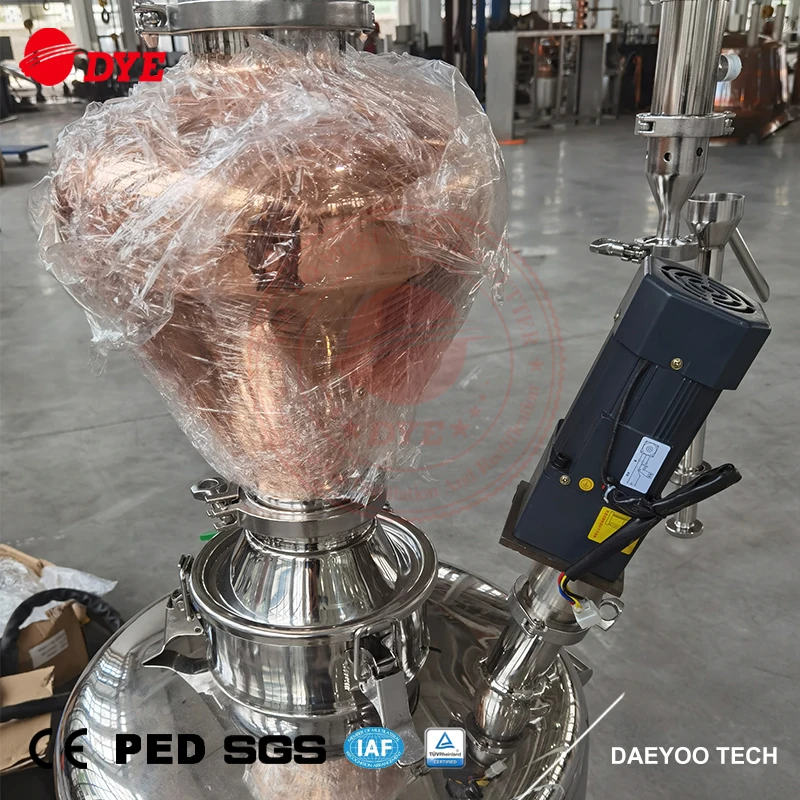

Name: Mini agiator
Size: 0.17KW
Original: China
Use for mixing/blending wash in pot, helping wash to be heated evenly.
It's tri-clamp connection to the pot.
Total weight is about 3KG.
Single phase motor, suits for 200-380V power.
Optional items
Name: Whisky helmet
Size: diameter 300mm
Original: China
With a thermometer.
Size: diameter 300mm
Original: China
With a thermometer.
Thickness of helmet is 3mm.
It's tri-clamp connection.
Bring special aroma to your spirits.
Optional items

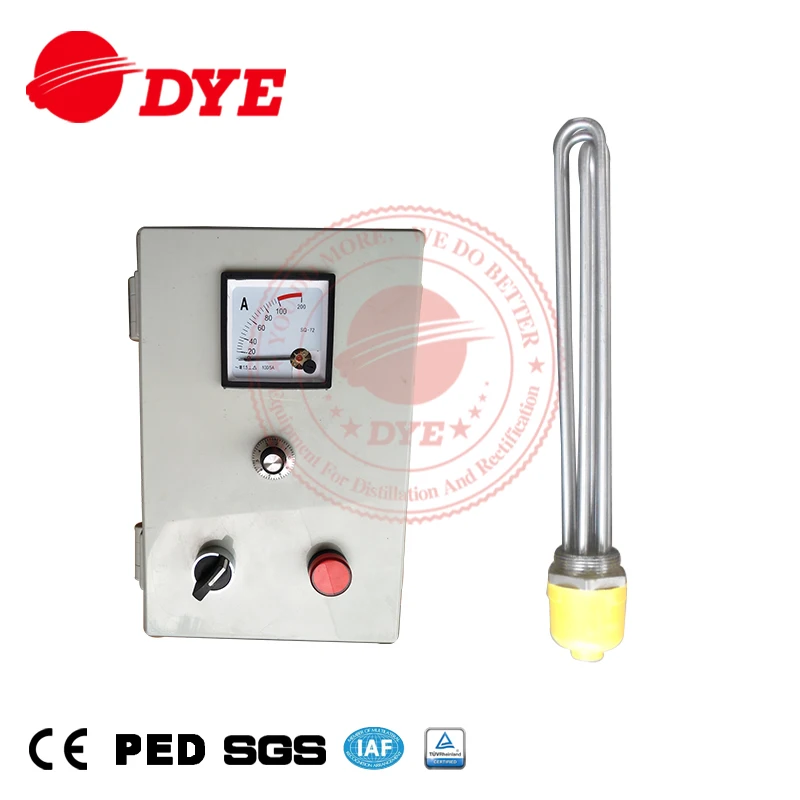

Name: Electric heater and control box
Size: 5KW
Original: China
5KW heater and control box
Size: 5KW
Original: China
5KW heater and control box
Heater is tri-clamp connection, the control box with ON/OFF buttom and heater could be adjust from 0-5KW.
Optional items

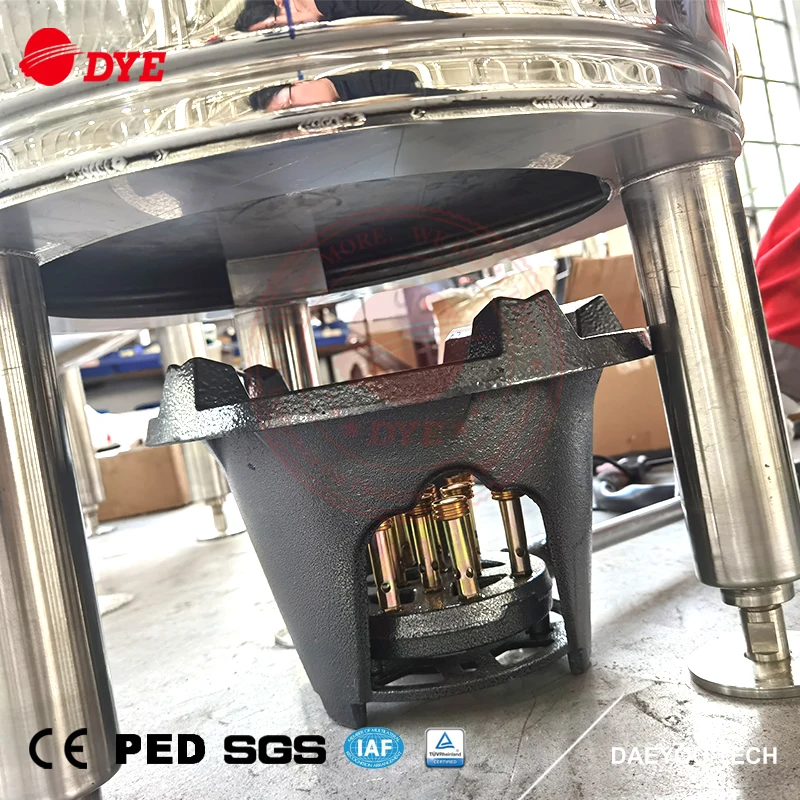

Name: gas heater
Size: 10KW
Original: China
10KW gas heater with hood ring, could be adjust flame from 0-10KW.
Size: 10KW
Original: China
10KW gas heater with hood ring, could be adjust flame from 0-10KW.
Packing & Delivery
LCL WITH WOODEN BOX PACKAGE
When delivered by LCL (Less Container Loading), the tank will be covered by plastic film and EPE foam, then packed in Wooden case!

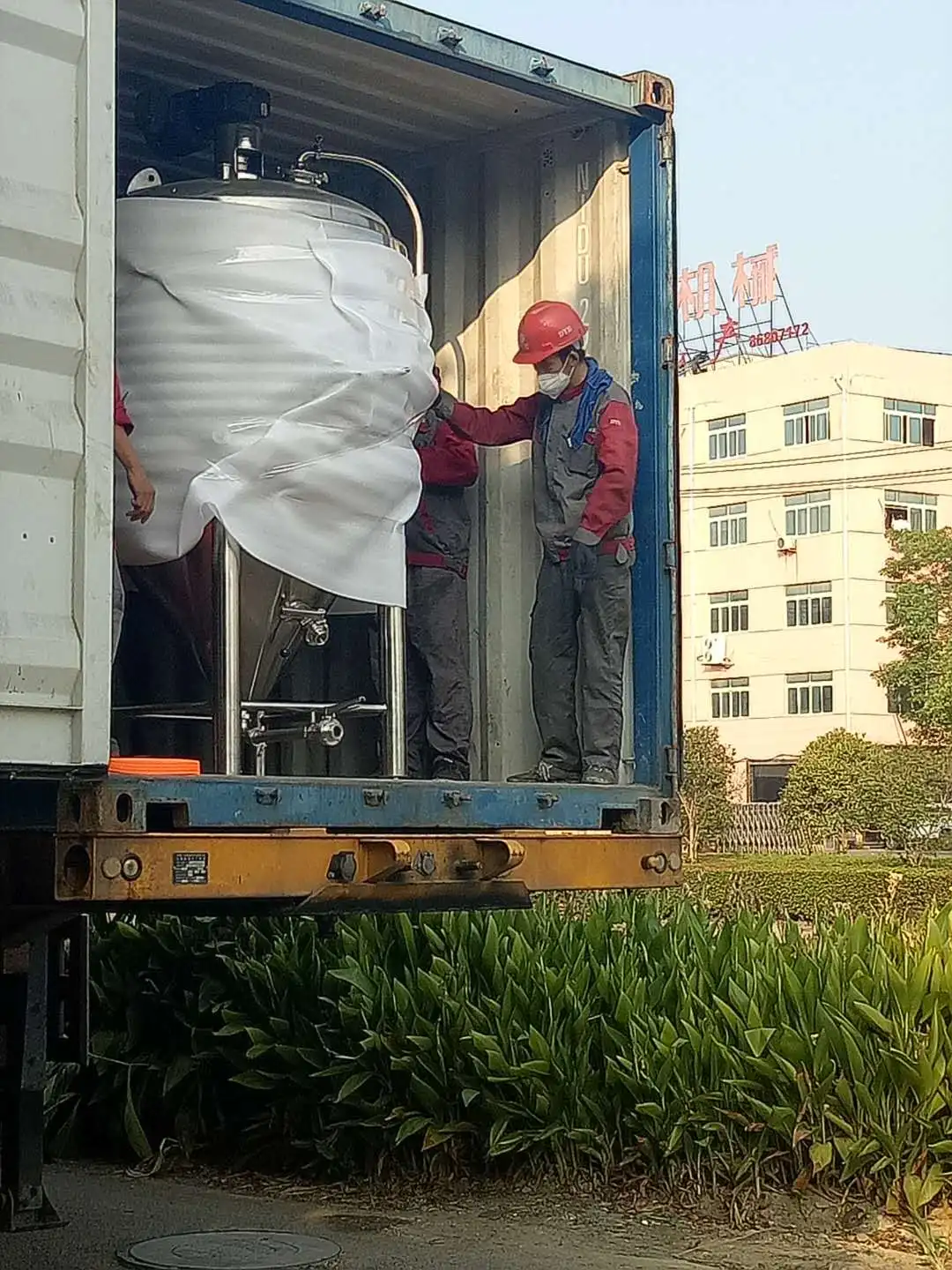

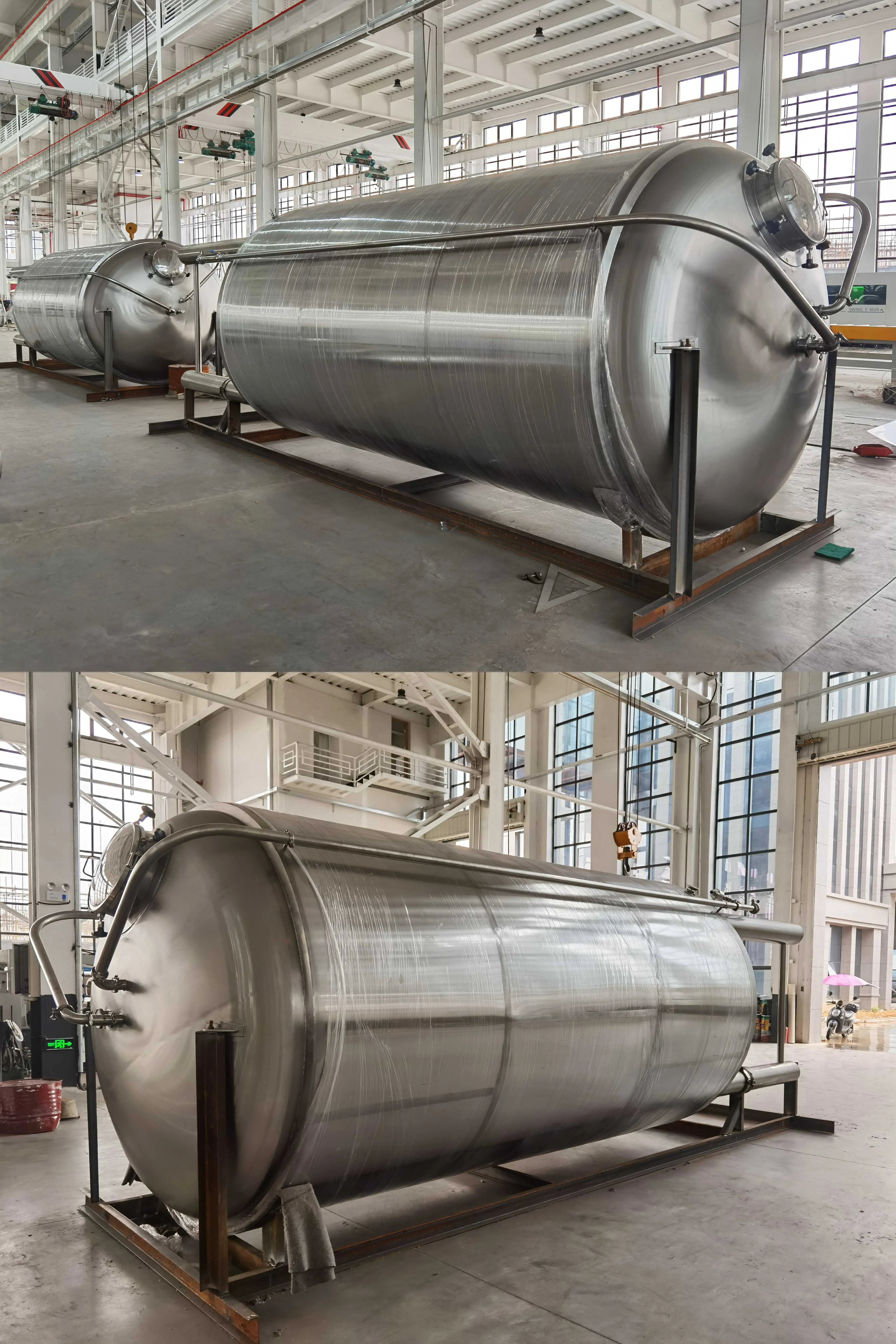

FULL CONTAINER SHIPPING
When Loaded in Whole Container, the tank will be covered by plastic film and EPE foam, Lay down & fixed on a Iron frame, finally the whole tank will be fixed in the container !
Quality control:
Spectrometer
We have the Spectrometer(from Germany.) and CMM, which ensures the raw and furnace material elements testing, and the precision of machining products. The company has passed the ISO9001.
surface roughometer
Strictly manufacture in accordance with standards Roughness is less than 0.22 μm. Adopt international standards of high quality stainless steel tanks tank 304 stainless steel material, high pressure polyurethane foam insulation, sheath according to customer requirements, can adopt stainless steel polishing, inferior smooth, carbon steel, such as spray form.
thickness measuring meter
thickness of steel plates
super quality with competitive price, adopt the SUS304 as material, CE certificate and ISO certificate.equipment 3 year's warranty, all life service.
Our company's customer segmentation:
Our customer segmentation is mainly focused on the Euramerican developed countries such as the USA, Canada, the United Kingdom, Australia and Russia, etc. At present, we have no formal foreign agents but we are looking for superior agents to create a brilliant future.
FAQ:
Will application of distillation equipment continue to expand in the future?
Although the pace of development of distillation equipment is rapid in recent years, there are many problems in the process, such as the enterprises are not many, product quality is not high and so on. These problems will more or less restrict the development of rectifying equipment. Thus seizing the opportunity is very important. If can seize the opportunity, the development space of distillation equipment industry will be great.
Do distillation equipment companies have to expand sales channels to improve the competitiveness?
At present, although the distillation equipment is used widely, high aroma and highly efficient products are not many; and low level of products is also common. Brand marketing lags behind others. To enhance competitiveness, Distillation equipment companies have to expand sales channels and develop high-end products.
What benefits does the network bring to distillation equipment market?
In recent years, the development of network marketing is very quick, also got more and more applications. It mainly exists in the base of network, breaking through the traditional sense of the sale, making sales more effective and also well achieving interactive communication. We can complete the transaction online. It is very convenient.
Is self-positioning very important to capture the distillation equipment market?
Different industries, only giving their products a right position, can better capture the majority of the market share. The development of distillation equipment is no exception. Although having certain development potential, it also needs a good location, thus, it can be in line with the market trends. However, how should we locate the distillation equipment better? Choosing high reputation, excellent product quality enterprises is the right way.
Certifications
Models of Distiller
Model | Structure | Useage |
DYE-Home distiller | 50~200L still pot+4~10 plate red copper/ stainless 304/glass distillation column+dephlegmator+condenser+ parrot outlet+control box | Economy for lower budget.Application to small sized plant.Alcohol content 80%±10%, such as whiskey,brandy,rum and vodka. |
DYE-I | still pot+goose neck+4plate distillation column+dephlegmater+condenser+parrot outlet | Suitable for low alcohol concentration to get high quality taste spirit.Alcohol content 80%±10%,such as whiskey,brandy,rum etc. |
DYE-II | still pot+goose neck+gin basket+4plate distillation column+dephlegmater+ condenser+parrot outlet | Suitable for low alcohol concentration and available for fruitful flavor with spices to get high quality taste spirit.Alcohol content 80%±10%,such as whiskey,brandy,rum +spices. |
DYE-III | still pot+goose neck+gin basket+4plate distillation column+16~20plates distillation column+dephlegmater+condenser+parrot outlet | Alcohol content 80%±15%,such as whiskey,brandy,rum,gin and vodka. |
DYE-IV | still pot+goose neck+4plate distillation column+16~20plates distillation column +dephlegmater+condenser+parrot outlet | Suitable for both low and high alcohol concentration to get high quality taste spirit.Alcohol content . |
DYE-H | still pot+4plate distillation column+ dephlegmater+condenser+parrot outlet | Economy for lower budget.Application to small sized plant.Alcohol content 80%±10%,such as whiskey,brandy,rum and vodka. |
POT Still | still pot+goose neck+condenser+parrot outlet | General taste and low alcohol concentration (usually,using together with column still.Crude distilled spirit≤65%. |
Our Service
Pre-Sales Service
1. Free of making offers, craft and technical guidance.
2. We can provide company's qualification certification and the drawings.
3. We can also make customized products according to customer's needs.
2. We can provide company's qualification certification and the drawings.
3. We can also make customized products according to customer's needs.
After-Sales Service
1. We provide long-term after-sale service.
2. Owing to the quotation of our equipment is FOB price which excluded charges of door-to-door service. Thus, if necessary, we can appoint our technician to debug the machine with air ticket, visa, accommodation and labor cost provided by your party. Or you can send your technician to our company to learn techniques.
3. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.
2. Owing to the quotation of our equipment is FOB price which excluded charges of door-to-door service. Thus, if necessary, we can appoint our technician to debug the machine with air ticket, visa, accommodation and labor cost provided by your party. Or you can send your technician to our company to learn techniques.
3. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.
