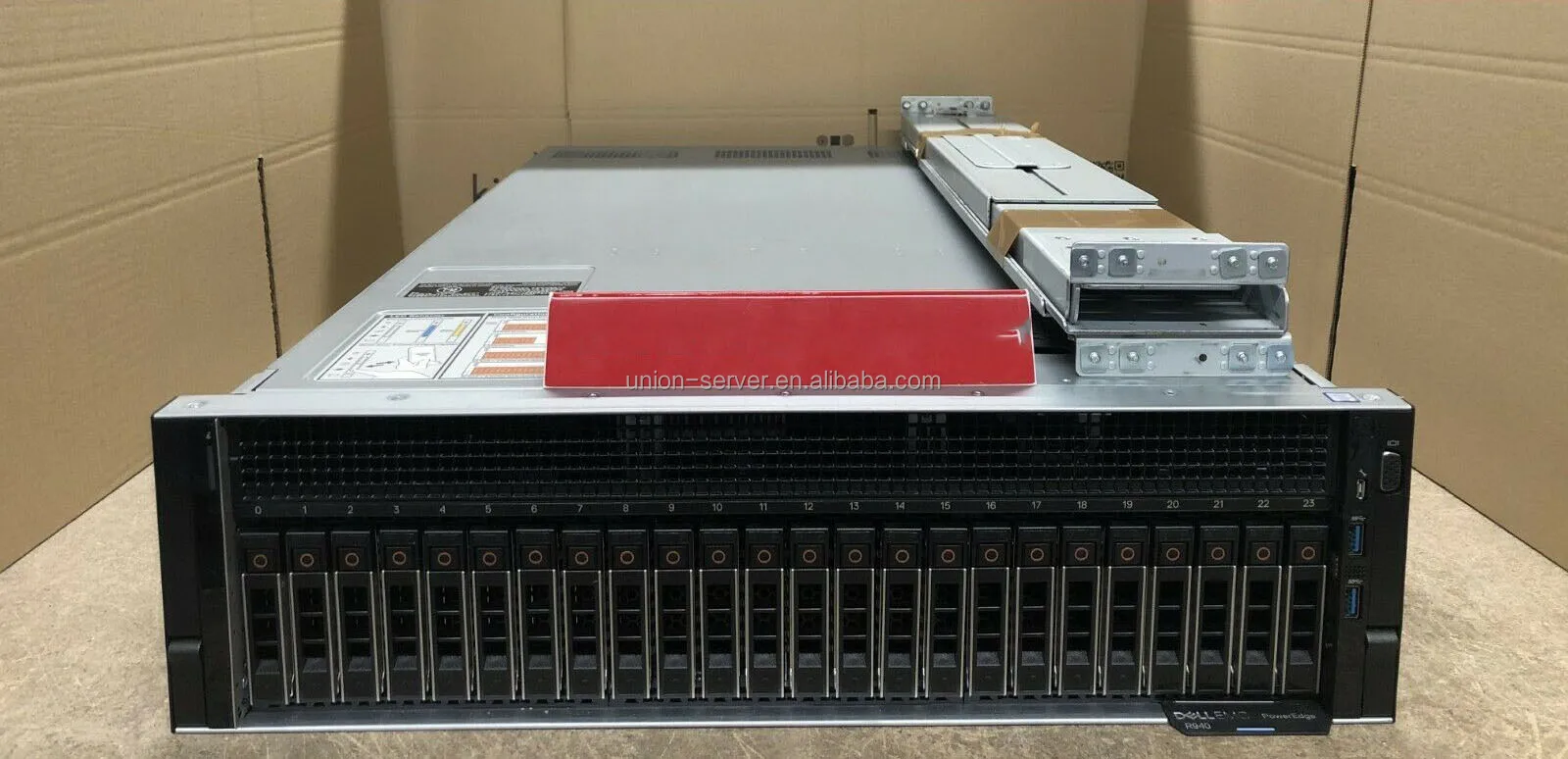

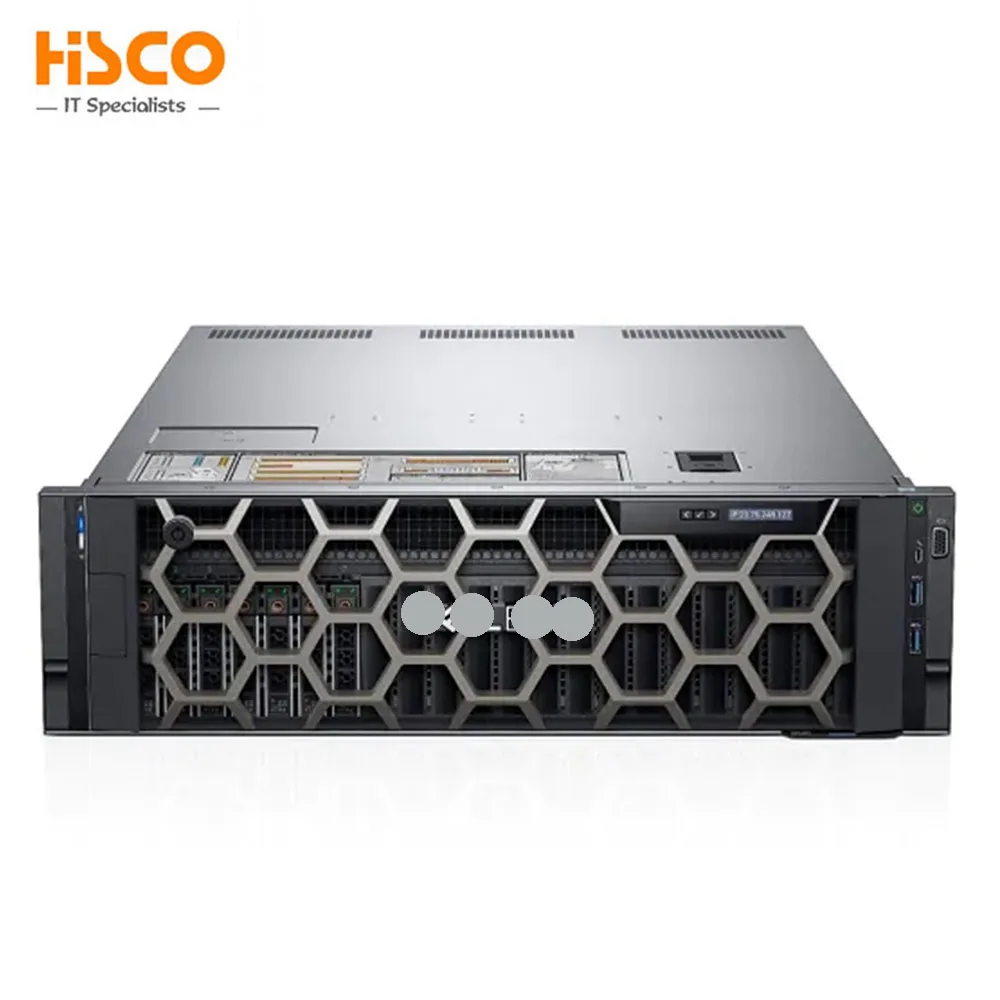

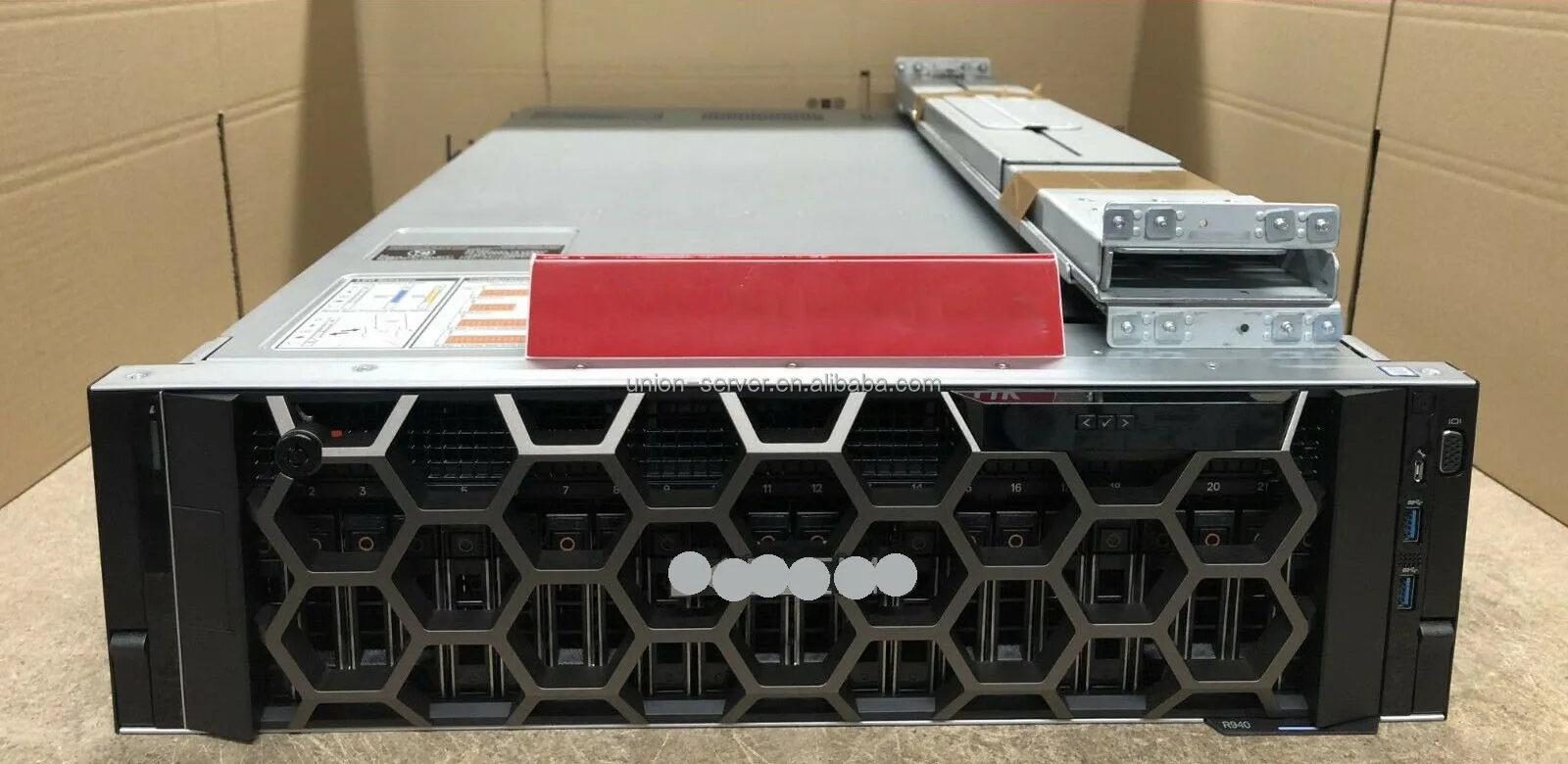

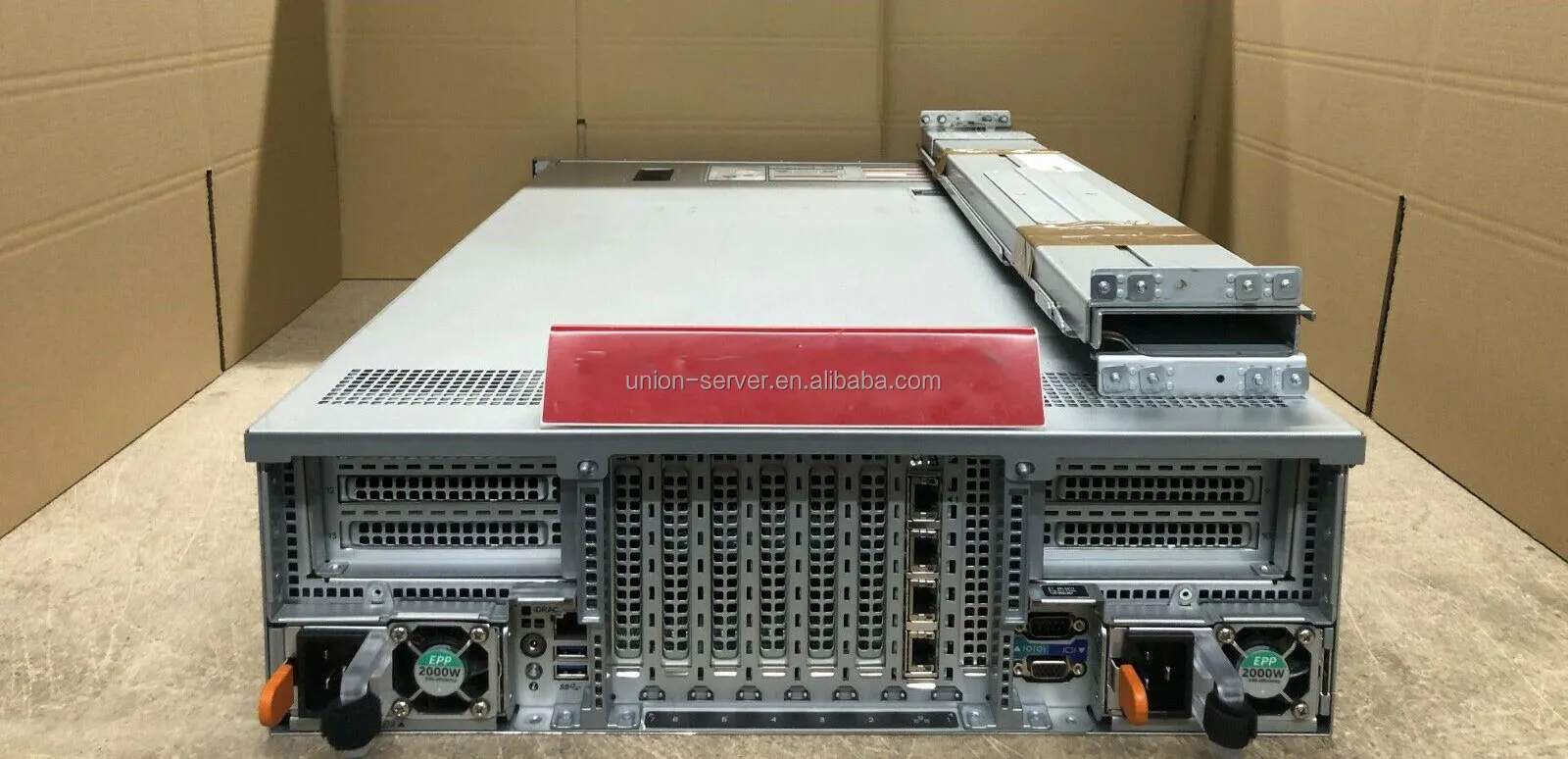

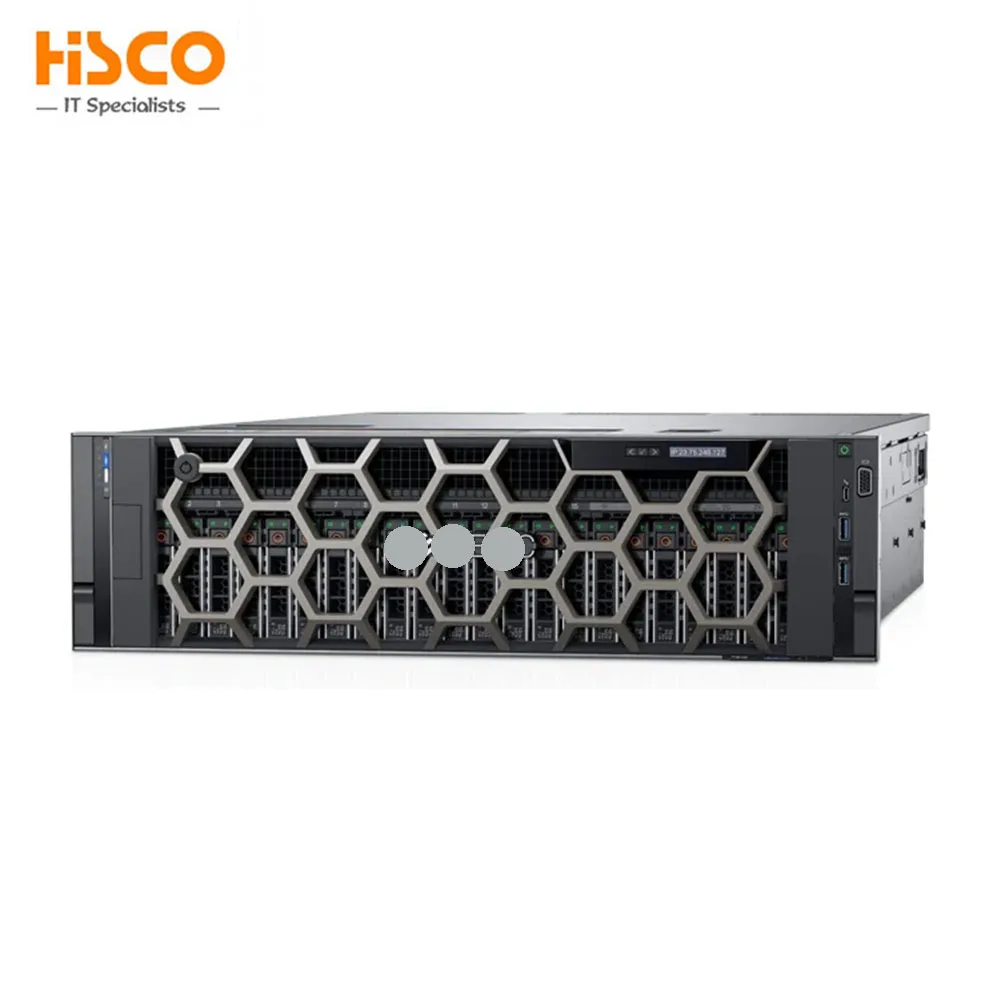

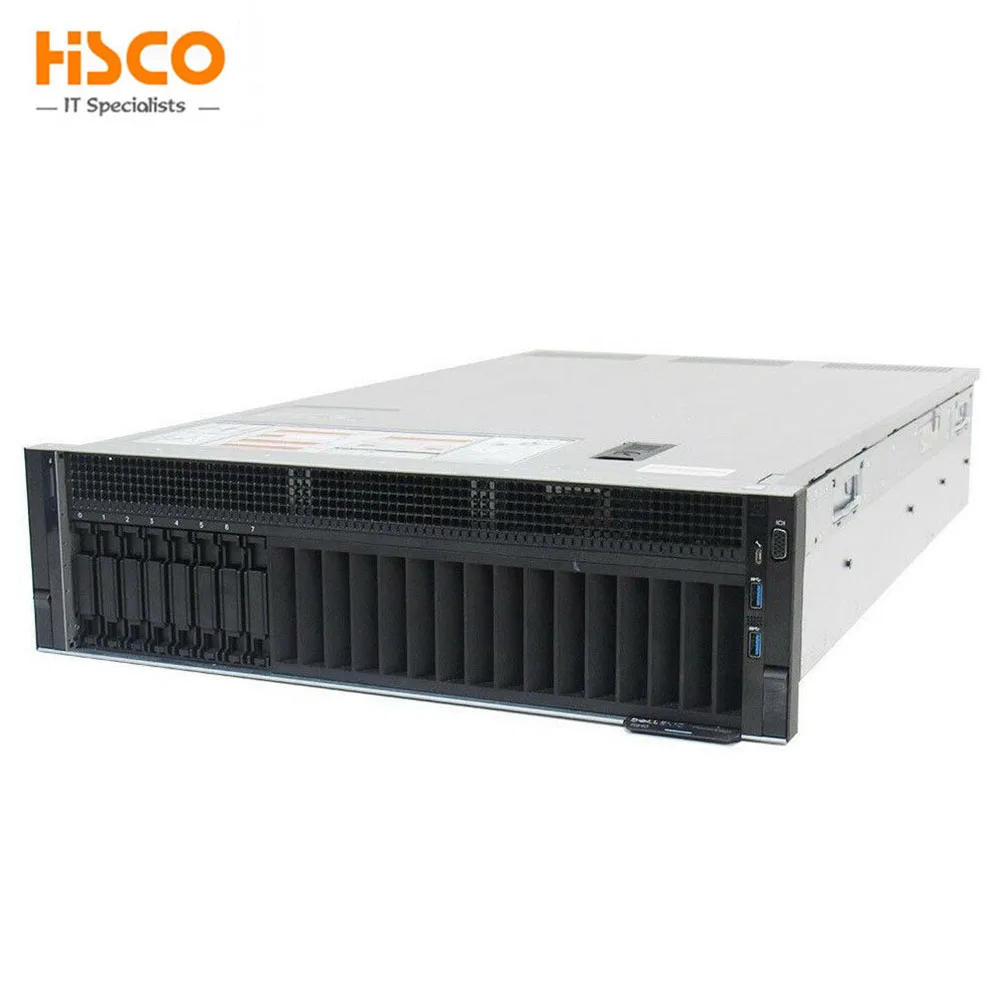

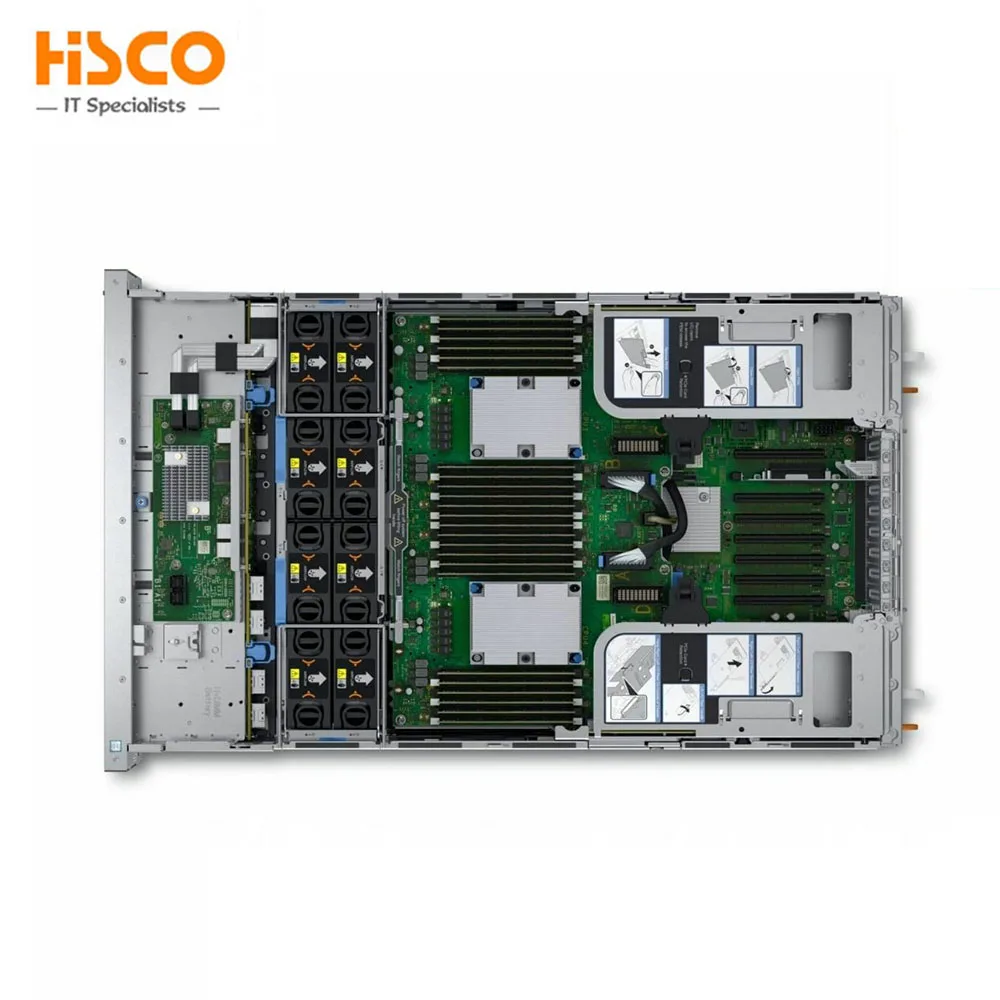

PowerEdge R940 4x Gold 6140 72 core 768GB H740P 28 8 ТБ SAS 3U Rack
- Категория товара: Servers >>>
- Поставщик (Оптовый магазин): Shenzhen,Chengdaxin,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Overviews
Prodcut Description.
Processor
- Up to four 2nd Generation Intel® Xeon® Scalable processors
with up to 28 cores per processor
Operating System
- Canonical® Ubuntu® LTS
Citrix® XenServer®
Microsoft Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi
- DIMM Speed
Up to 2933MT/s
Memory Type
RDIMM
LRDIMM
DCPMM (Intel® Optane™ DC persistent memory)
Memory Module Slots
48 DDR4 DIMM slots (12 NVDIMM or 24 DCPMM slots)
Supports registered ECC DDR4 DIMMs only
Maximum RAM
RDIMM 3TB
LRDIMM 6TB
NVDIMM 384GB
DCPMM 12.28TB (15.36 with LRDIMM)
Storage
- Front Bays
Up to 24 x 2.5” drives with up to 12NVMe PCie SSDs max 184.32TB
Storage Controllers
- Internal Controllers
PERC H730P, H740P, H330, HBA330
External Controllers
12Gbps SAS HBA
Software RAID
S140
Internal Boot
Boot Optimized Storage Subsystem (BOSS):
HWRAID 2 x M.2 SSDs 240GB, 480GB
Internal Dual SD Module
Security
- Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires OpenManage Enterprise)
TPM 1.2/2.0, TCM 2.0 optional
Management
- Embedded / At-the-Server
iDRAC9
iDRAC RESTful API with Redfish
iDRAC Direct
Intel® Standard Manageability
Quick Sync 2 BLE/wireless module
Power Supplies
- 1100W -48VDC Gold
1100W Platinum
1100W 380VDC Platinum
1600W Platinum
2000W Platinum
2400W Platinum
Hot plug power supplies with full redundancy option
Up to 8 hot plugs fans with full redundancy
Ports
- Network Options
4 x 1GbE
4 x 10GbE,
2 x 10GbE + 2x 1GbE
2 x 25GbE
Slots
- PCIe
13 x Gen3 slots (3 x 8 slots + 10x 16 slots)
Video Card
1 x VGA
Bezel
- Optional LCD bezel or security bezel
Form Factor
- 3U Rack Server
Dimensions & Weight
- Height
130.3mm (5.13")
Width
434.mm (17.08")
Depth
784.2mm (30.8”)
Weight
49.9kg (110lbs.)
*Dimensions do not include bezel
Rack Support
- ReadyRails™ sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks).
