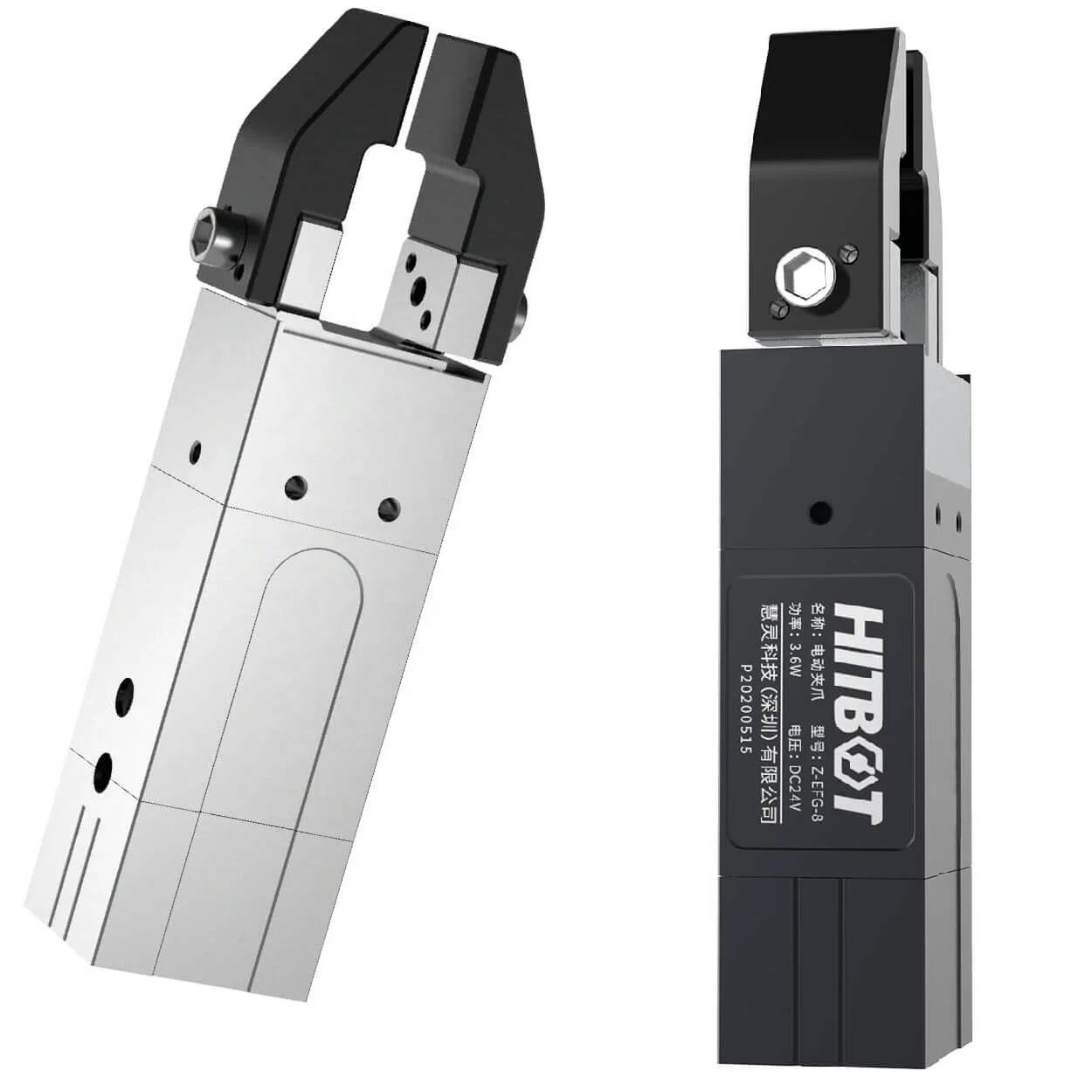

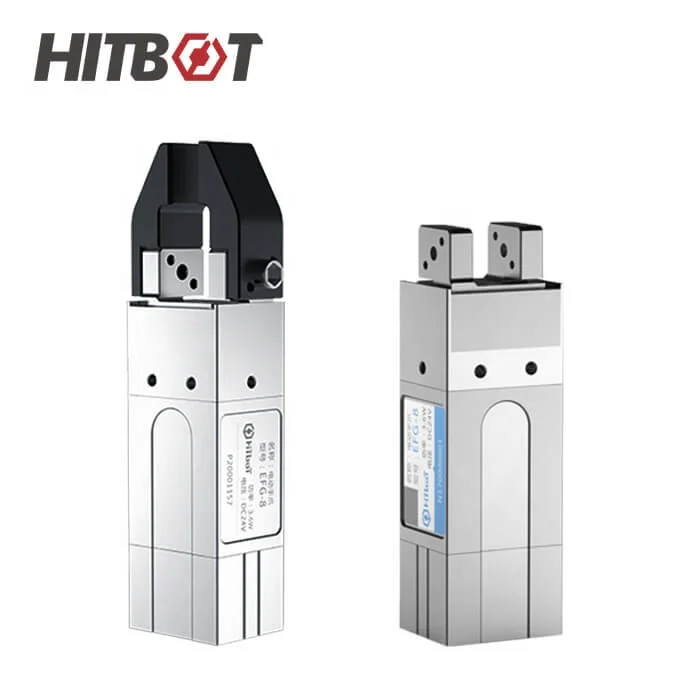

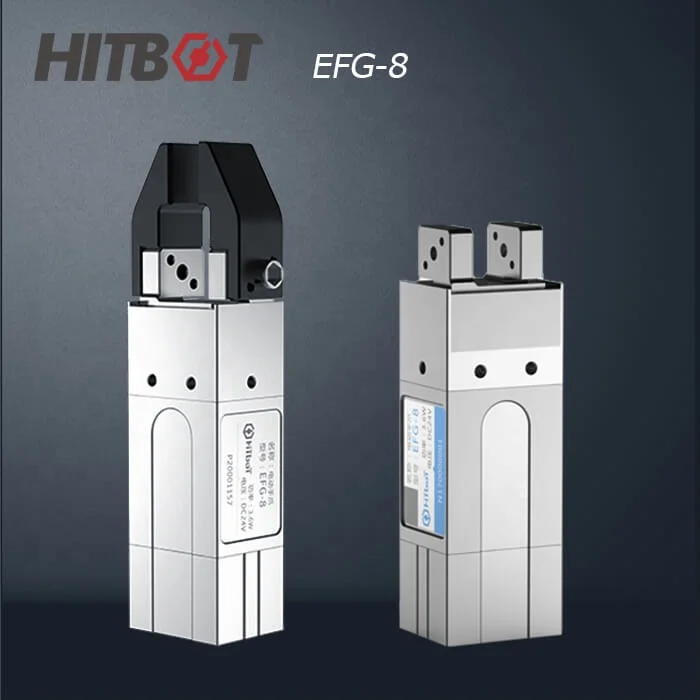

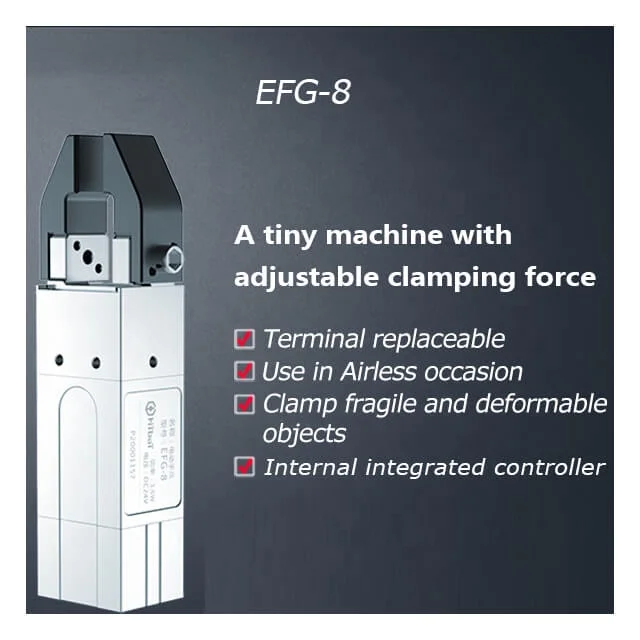

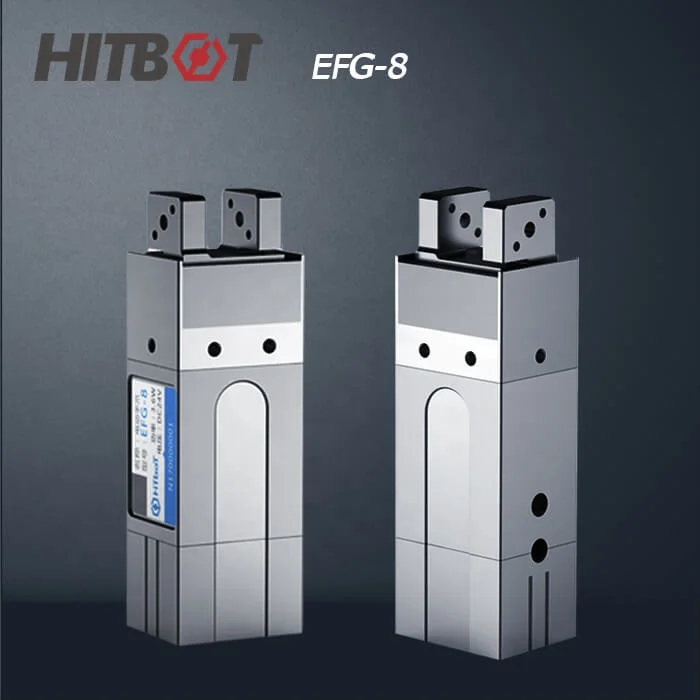

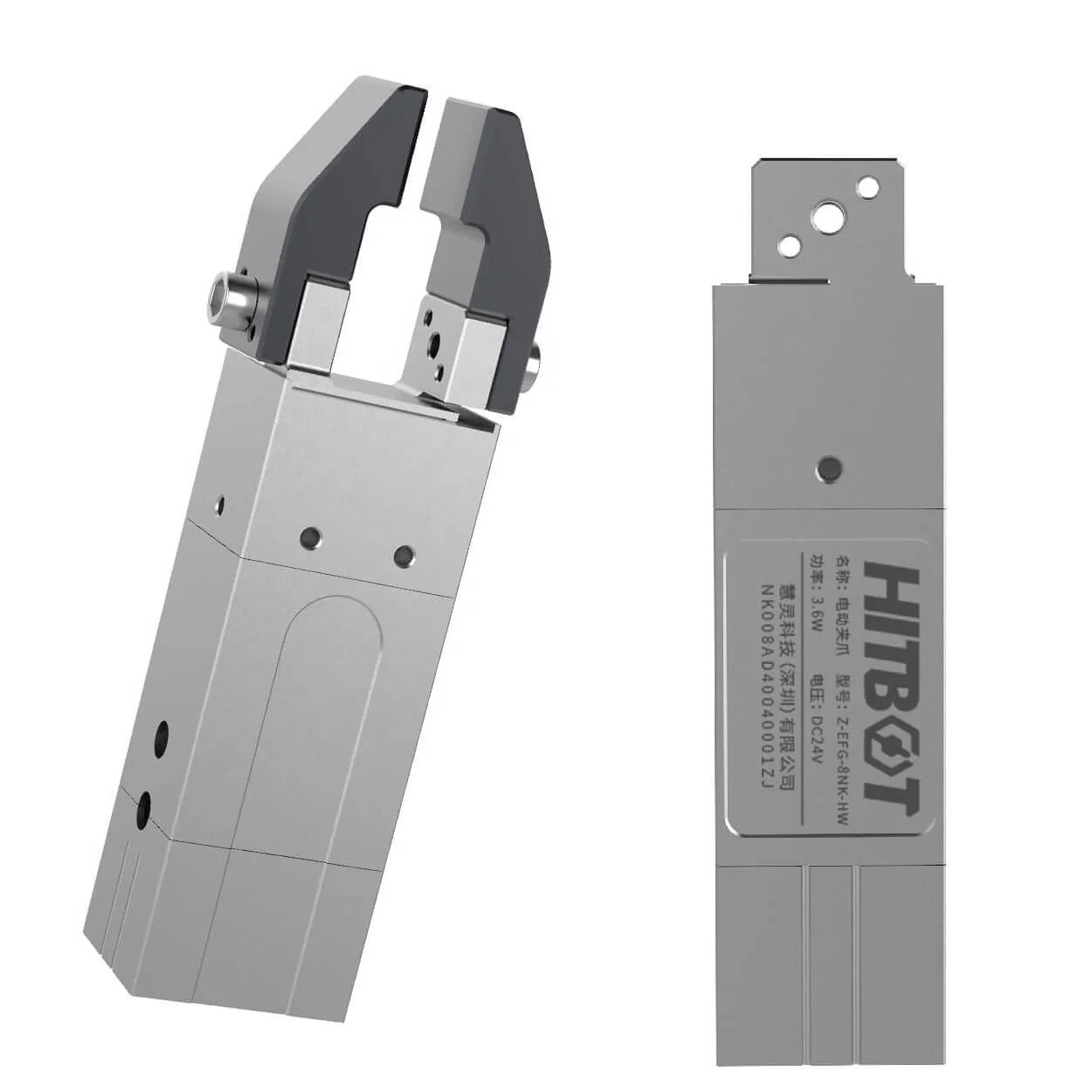

EFG-8 ручной Электрический захватчик для совместных Роботизированная рука от китайского
- Категория товара: Other Machinery & Industrial Equipment >>>
- Поставщик (Оптовый магазин): Sinolink,Engineering,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Specification
item | value |
Place of Origin | China |
Brand Name | HITBOT |
Condition | New |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | Ordinary Product |
Warranty of core components | 1 Year |
Core Components | Motor |
Warranty | 1 Year |
Online support | |
After Warranty Service | Online support |
Local Service Location | India |
Applicable Industries | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company |
Showroom Location | Japan |
Items | Z-EFG-8 |
Total Travel (Effective | 8 mm |
Gripping force | 5-30 N |
Maximum gripping weight | ≤300 g |
Size specification | 30*24*94 mm |
Motor type | DC brushless |
Body weight | 0.235 kg |
Gripping force adjustable | adjustable |
The motor diameter | 17 mm |
Rated voltage | 24 V |
Technical Parameters
Product advantages
Applications
FAQ
1.Rotation Requires Concentricity, So The Two Sides Are Close. Will The Two Sides Stop At The Middle Position Every Time?
Yes, there is a symmetry error of less than 0.1mm, and the repeatability is ±0.02mm.
2.Does The Robot Gripper Include The Front End Fixture?
No. Users need to design the fixture by themselves according to the actual application demands. In addition, HITBOT can also provide a few fixture for reference. Users can contact Sales Directors for detail information.
No. Users need to design the fixture by themselves according to the actual application demands. In addition, HITBOT can also provide a few fixture for reference. Users can contact Sales Directors for detail information.
3.Where Is The Drive Controller And Do I Need To Pay Extra?
The drive controller is default built-in, so users don’t need to pay extra.
The drive controller is default built-in, so users don’t need to pay extra.
4.Can The HITBOT Z-EFG Grippers Do Single-Finger Motion?
No. Grippers for single-finger motion is under development.
No. Grippers for single-finger motion is under development.
5.If The Robot Gripper Works For Long Time, Will The Motor Go Overheated?
Z-EFG-8 can keep working in a temperature environment of about 30℃, and the surface temperature of the robot gripper will notexceed 50℃.
Z-EFG-8 can keep working in a temperature environment of about 30℃, and the surface temperature of the robot gripper will notexceed 50℃.
