M1408 дешевый маленький цилиндрический шлифовальный станок, шлифовальный станок OD и ID цилиндрический шлифовальный станок
- Категория товара: Круглошлифовальные станки >>>
- Поставщик (Оптовый магазин): Tengzhou,Borui,CNC,Machine,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

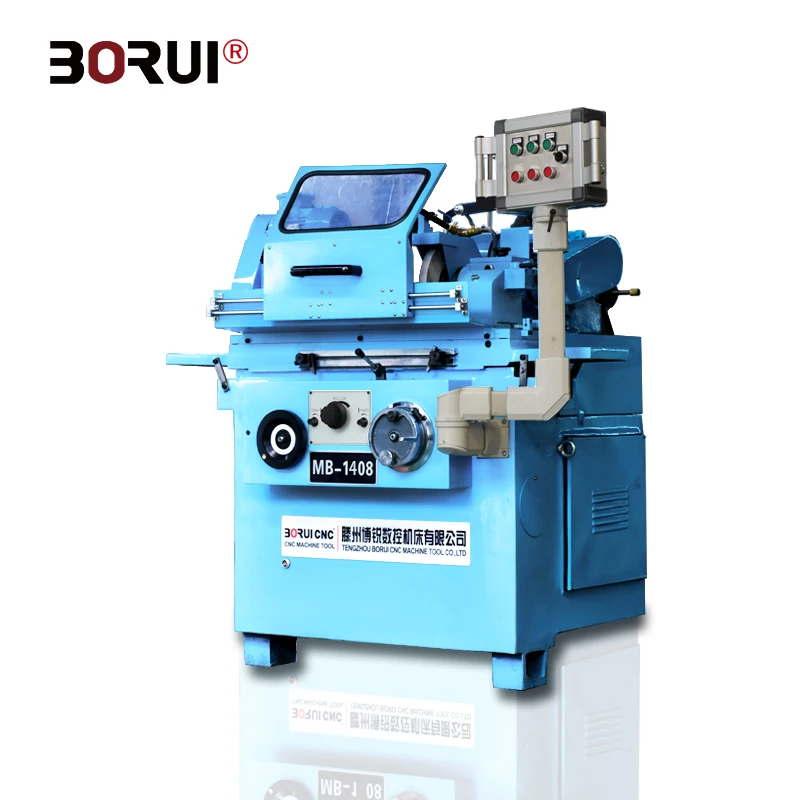

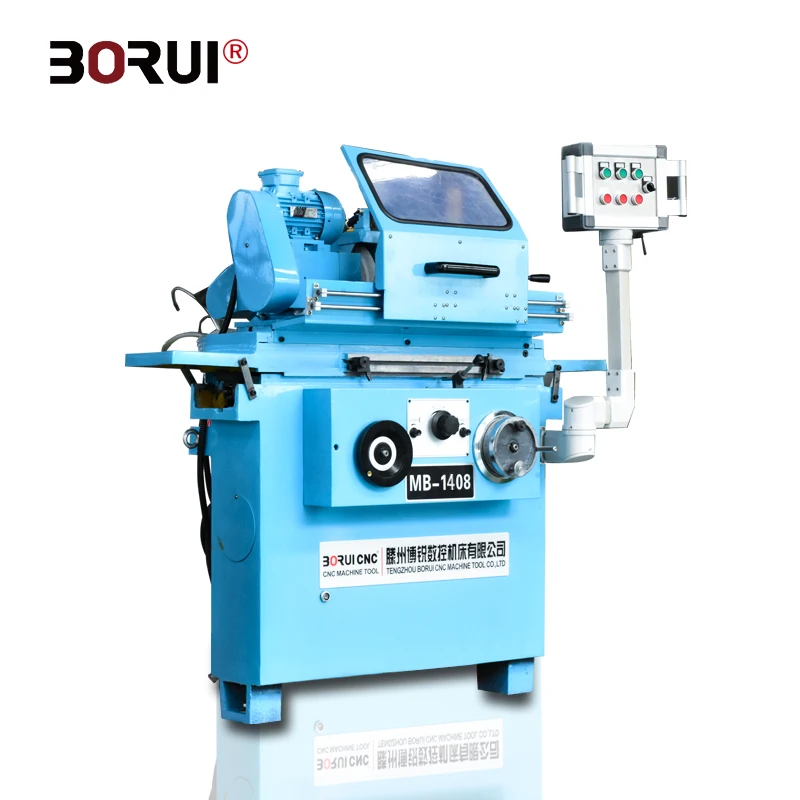

M1308 M1408 cylinder grinding machine
Product Description
Application:
Features:

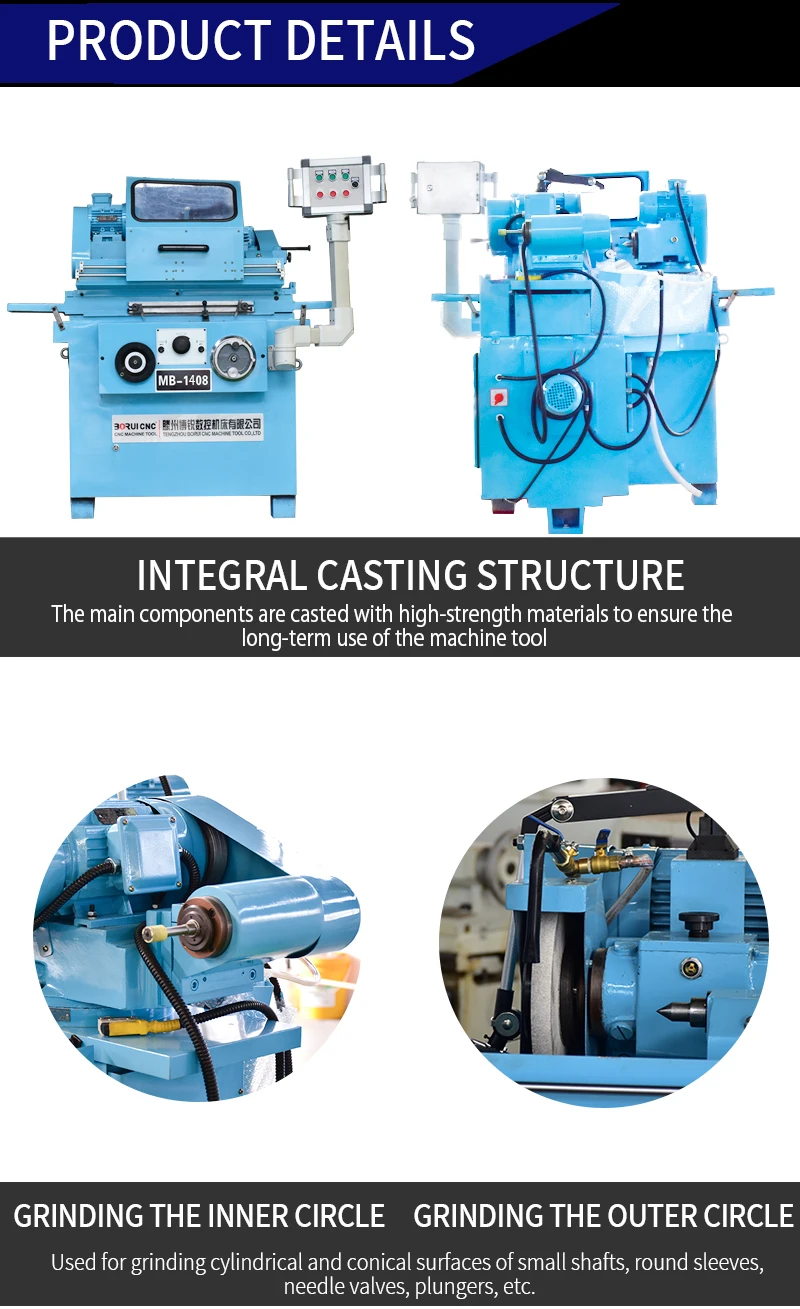

1, mainly used for grinding small shaft, circle, needle valve, plunger set of cylinder and cone surface
2, tooling way available top, three jaw chuck, and special fixture of spring clip;
3, apply to instrumentation, automotive electrical and mechanical, bearings, textile, Marine, sewing
machines, machinery and other industries processing small parts,
4, vertical moving workbench hydraulic and manual, grinding wheel rack and head are rotating,
hydraulic system USES the good performance of the gear,
5, suitable for tools, machine shop and workshop for medium and small batch production,
6, the machine according to the top is divided into 300 mm.
1, mainly used for grinding small shaft, circle, needle valve, plunger set of cylinder and cone surface
2, tooling way available top, three jaw chuck, and special fixture of spring clip;
3, apply to instrumentation, automotive electrical and mechanical, bearings, textile, Marine, sewing
machines, machinery and other industries processing small parts,
4, vertical moving workbench hydraulic and manual, grinding wheel rack and head are rotating,
hydraulic system USES the good performance of the gear,
5, suitable for tools, machine shop and workshop for medium and small batch production,
6, the machine according to the top is divided into 300 mm.
Product main technical parameters:
Model | Unit | M1308x300 | M1408x300 |
Grinding Dia. (O.D) | mm | 2-80 | 2-80/10-60 |
Grinding length (O.D) | mm | 300 | 300/125 |
Center height | mm | 115 | 115 |
Max.workpiece weight | kg | 10 | 10 |
Worktable speed | m/min | 0.1-4 | 0.1-4 |
Wheel peripheral velocity | m/s | 35 | 35 |
Max.travel of worktable | mm | 340 | 340 |
Swivel range of worktable | degree | -3~ +7 | -3~ +7 |
External grinding wheel size | mm | Max.250*25*75, Min.180*25*75 | Max.250*25*75, Min.180*25*75 |
Headstock taper | morse | No.3 | No.3 |
Tailstock taper | morse | No.3 | No.3 |
Machine motor power | kw | 2.34 | 2.34 |

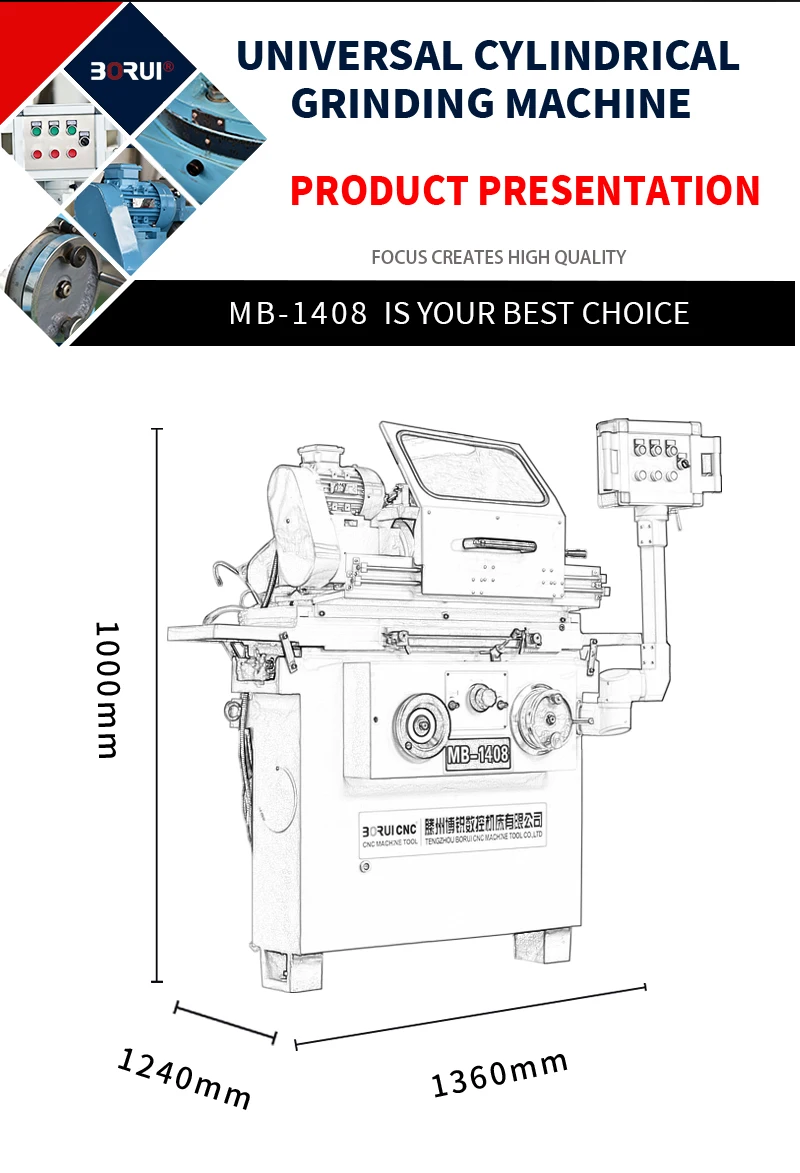

Overall dimension | mm | 1360*1240*1000 | 1360*1240*1000 |
Machine weight | kg | 1500 | 1500 |
Roundness (O.D/I.D) | μm | 1.5/2.5 | 1.5/2.5 |
Uniformity of dia. In longitudinal section | μm | 5/8 | 5/8 |
Surface roughness (O.D/I.D) | μm | Ra.0.25/0.63 | Ra.0.25/0.63 |

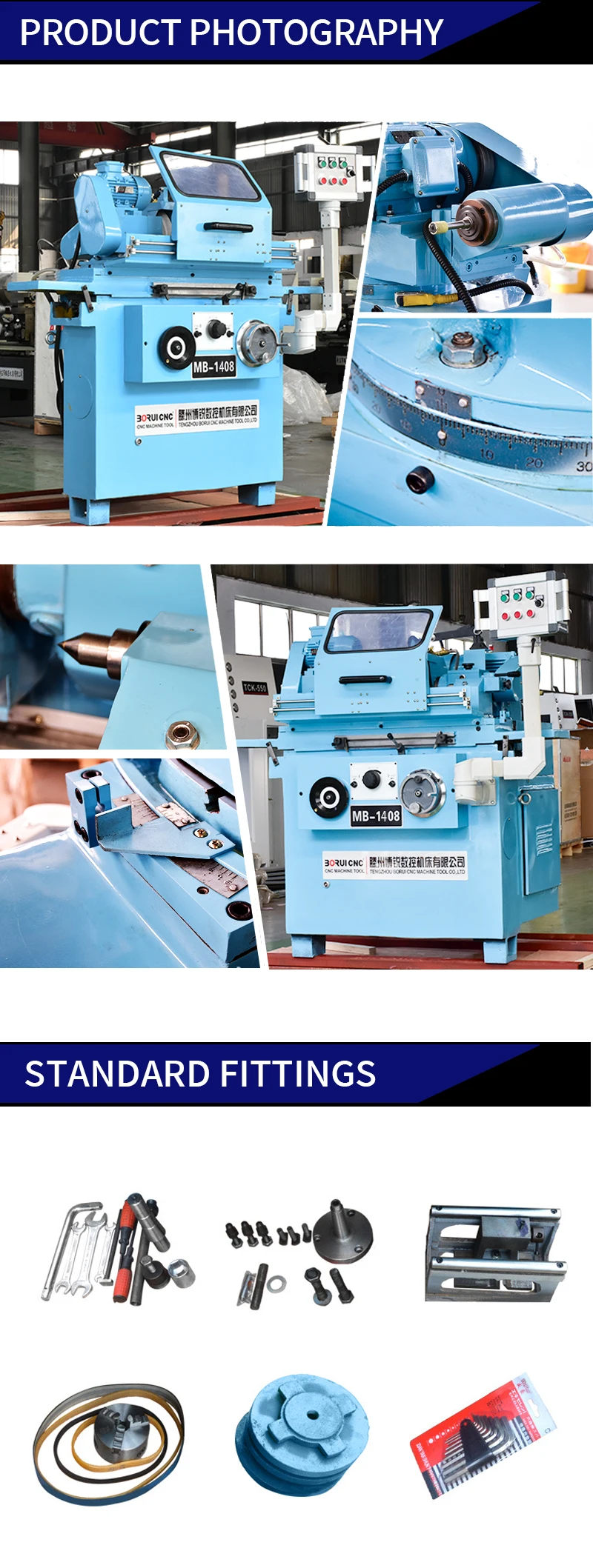

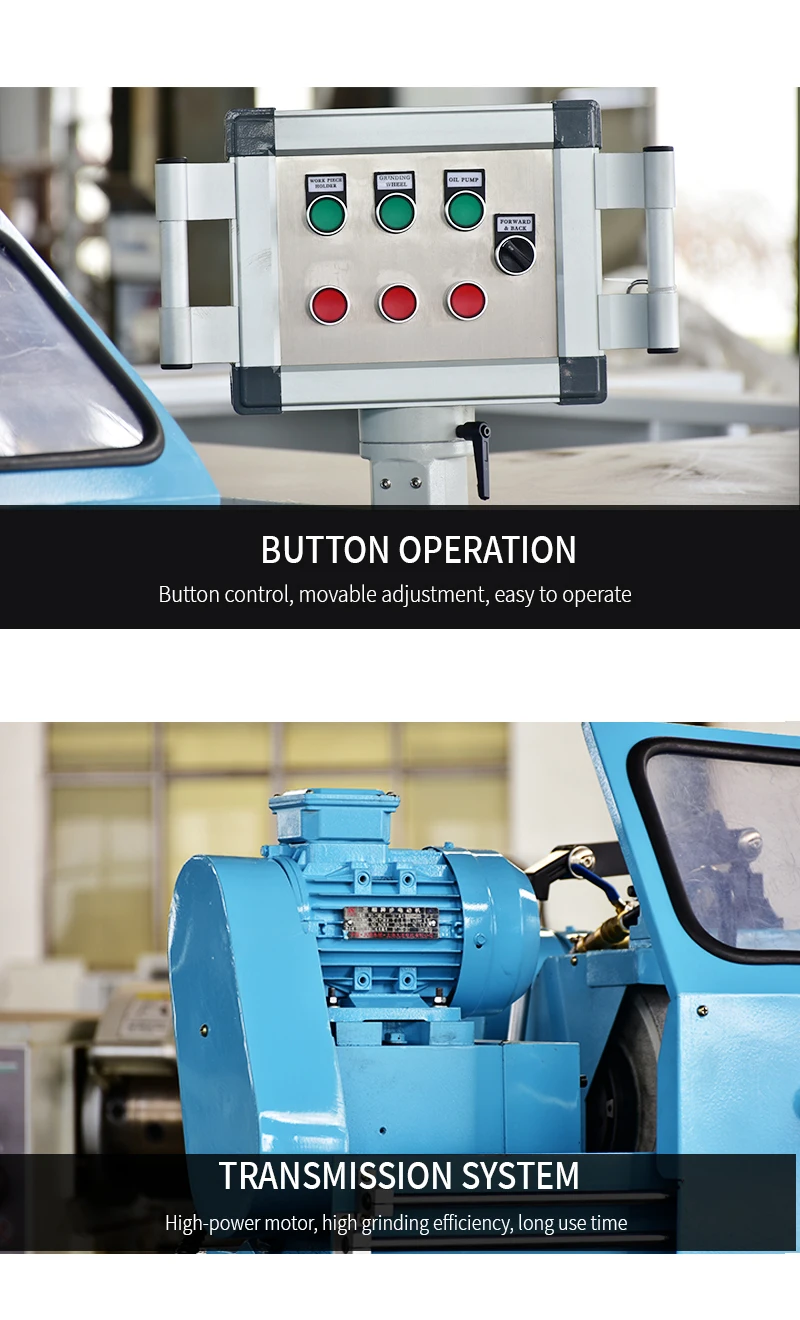

Details Display
Recommend Products
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
