Products Description
QJRCY-L Overband Magnetic Separator designed with strong and stable magnetic strength is used for separation of tramp iron from belt conveyed material stream. The advanced design and construction make it ideal for use in waste recycling, shredding, mining, wood chips and demolition applications.
Features:
• Applicable for conveyor width from 500mm to 2000mm.
• Deep reaching magnetic circuit design to penetrate heavy product burdens.
• Stainless steel support frame.
• Special sealed bearing block ensure the stable working in harsh environment.
• Easy belt deviation adjustment with screw fasten.
• Magnetic force will not decrease more than 5% within 10 years.
• Deep reaching magnetic circuit design to penetrate heavy product burdens.
• Stainless steel support frame.
• Special sealed bearing block ensure the stable working in harsh environment.
• Easy belt deviation adjustment with screw fasten.
• Magnetic force will not decrease more than 5% within 10 years.
Optional Configuration:
• Electric or Hydraulic Driven Motor.
• Ferrite Or Rare Earth Magnet System.
• Protection Cover for Belt Running.
• Stainless Steel Armed Belt.
• Ferrite Or Rare Earth Magnet System.
• Protection Cover for Belt Running.
• Stainless Steel Armed Belt.

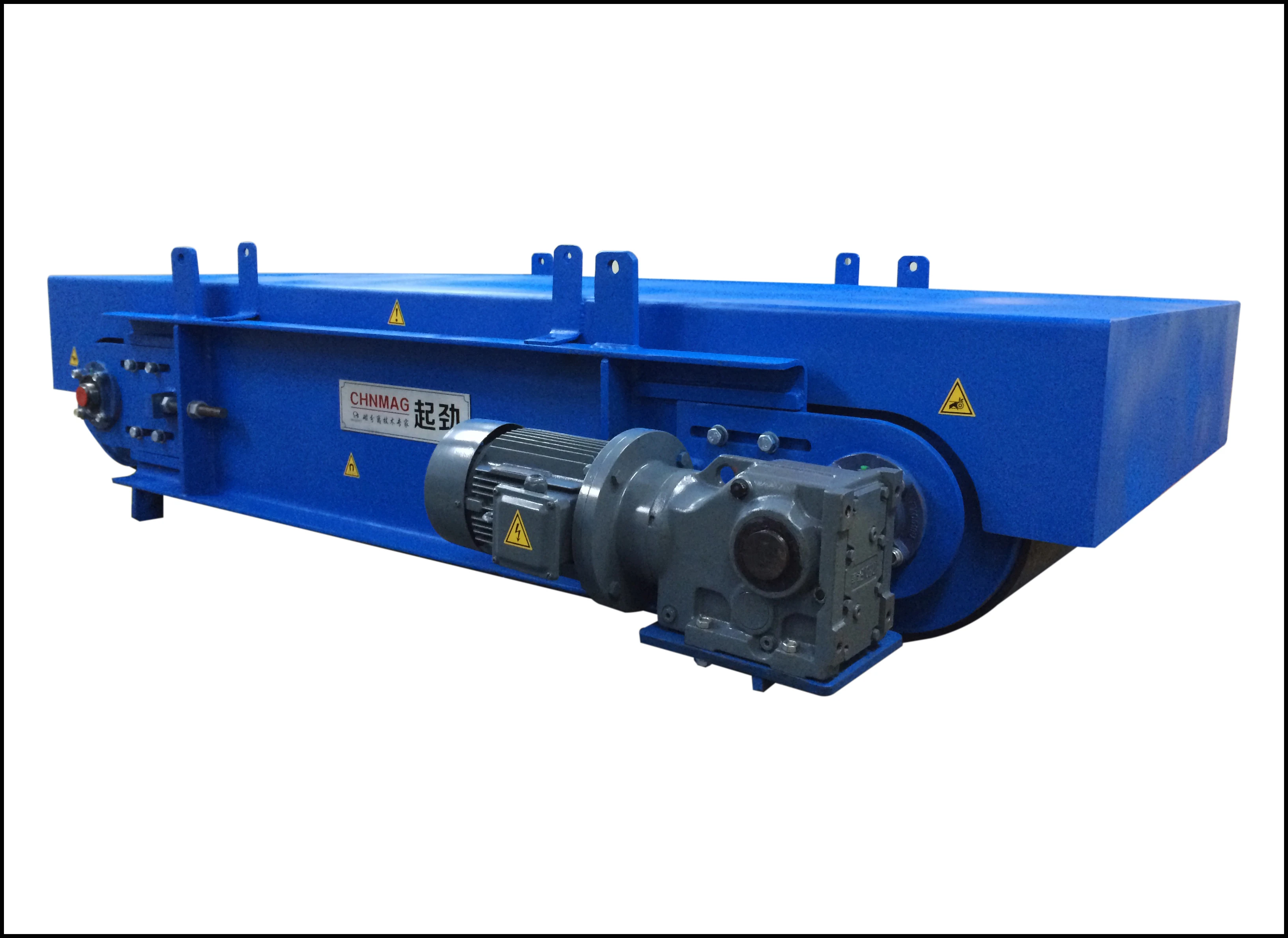

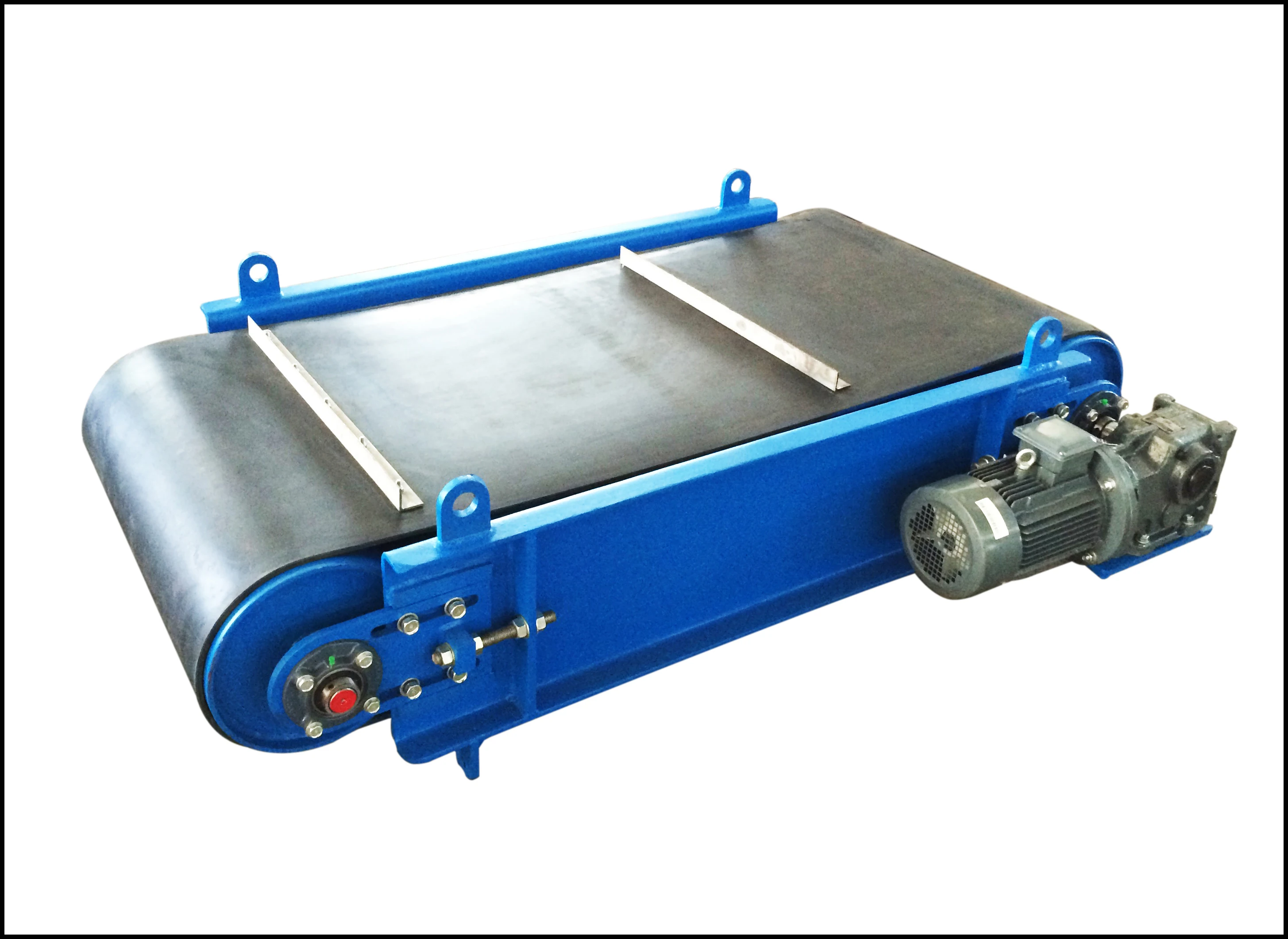

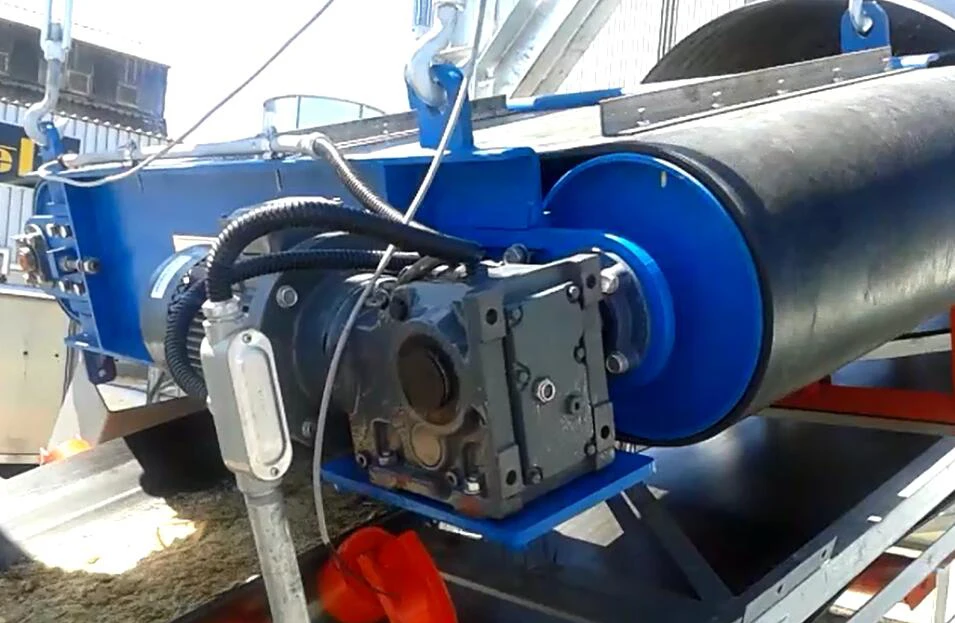

Details Images
Magnet System | Permanent Magnet |
Frame Material | Stainless Steel 304 |
Drum Bearing | UCFC |
Discharge Belt | EP100 10mm thickness |
Belt Cleats | Vacunized Rubber or SS 304 |
Gearbox | KA helical-bevel gear units |
Motor | IP 55 |
Standard Color | RAL 5015 |
Power Supply | Client's Site Specs |

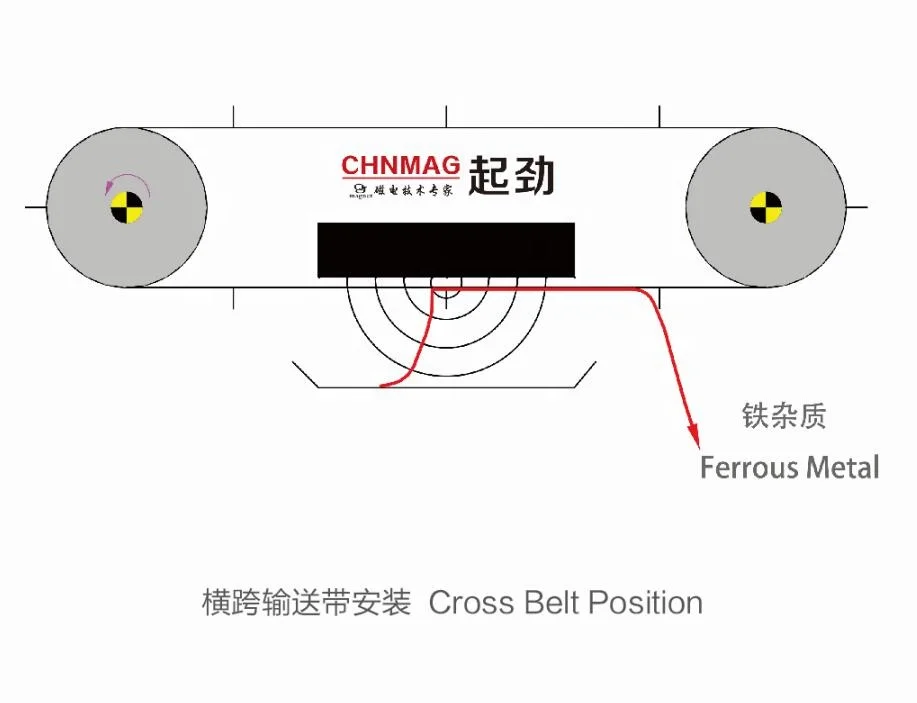

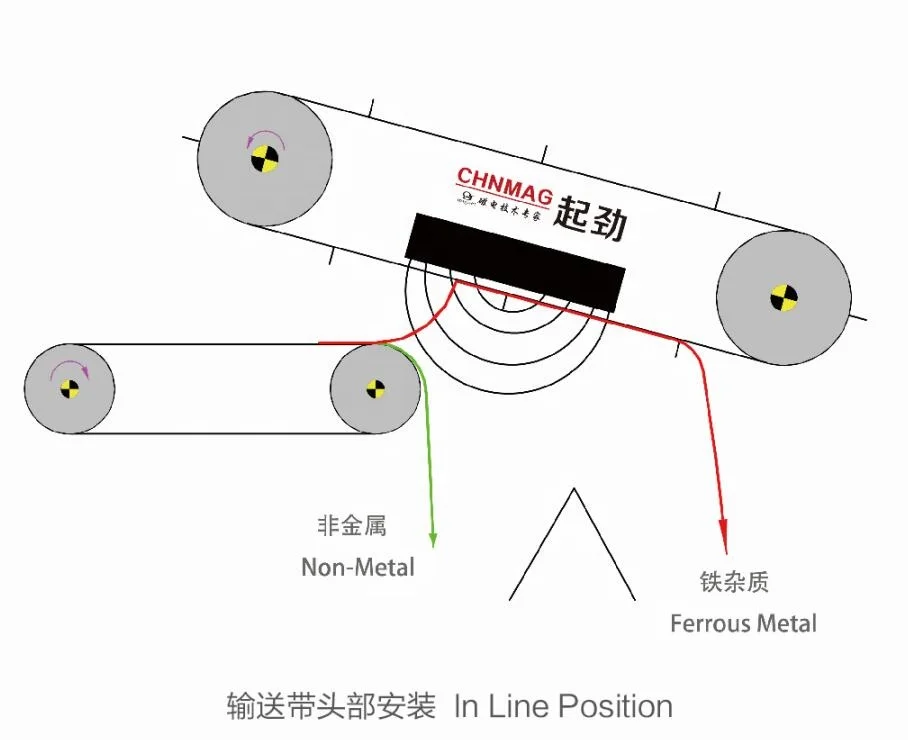

Installation Instructions
Product Paramenters
Model | Applicable Conveyor Width | Applicable Conveyor Speed | Material Burden Depth | Rated Suspended Height | Motor Power | |||||
QJRCY-L-50 | 500mm | ≤4.5m/s | ≤100 | 180mm | 1.5kw | |||||
QJRCY-L-65 | 650mm | ≤150 | 200mm | 1.5kw | ||||||
QJRCY-L-80 | 800mm | ≤200 | 250mm | 2.2kw | ||||||
QJRCY-L-100 | 1000mm | ≤250 | 300mm | 3.0kw | ||||||
QJRCY-L-120 | 1200mm | ≤300 | 350mm | 4.0kw | ||||||
QJRCY-L-140 | 1400mm | ≤350 | 350/400mm | 4.0kw | ||||||
QJRCY-L-160 | 1600mm | ≤400 | 350/400/450mm | 5.5kw | ||||||
Optional：T series applicable for the high materials thickness and high material density application. T1-700Gauss/T2-900Gauss/T3-1200Gauss. | ||||||||||

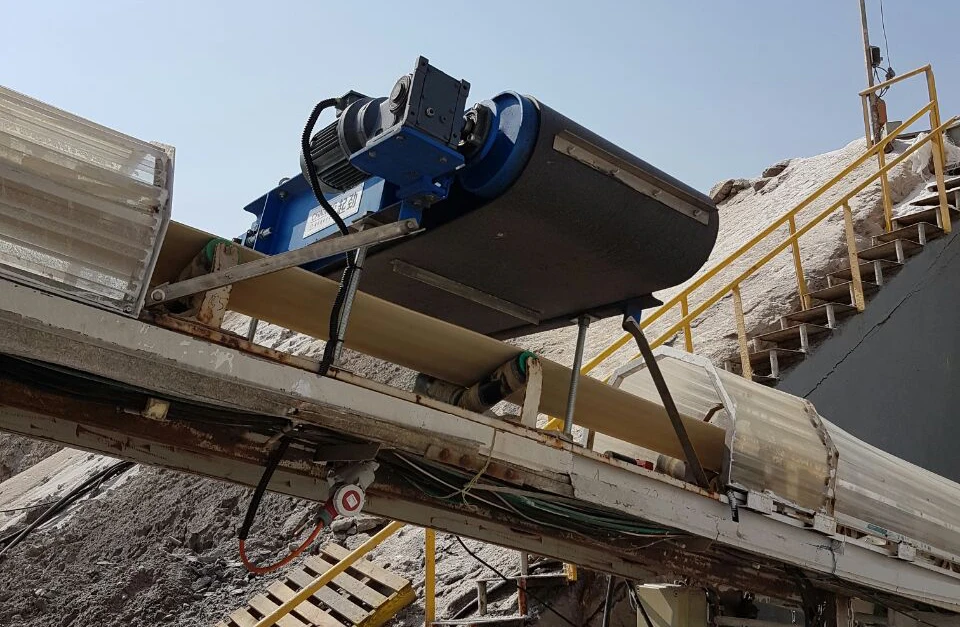

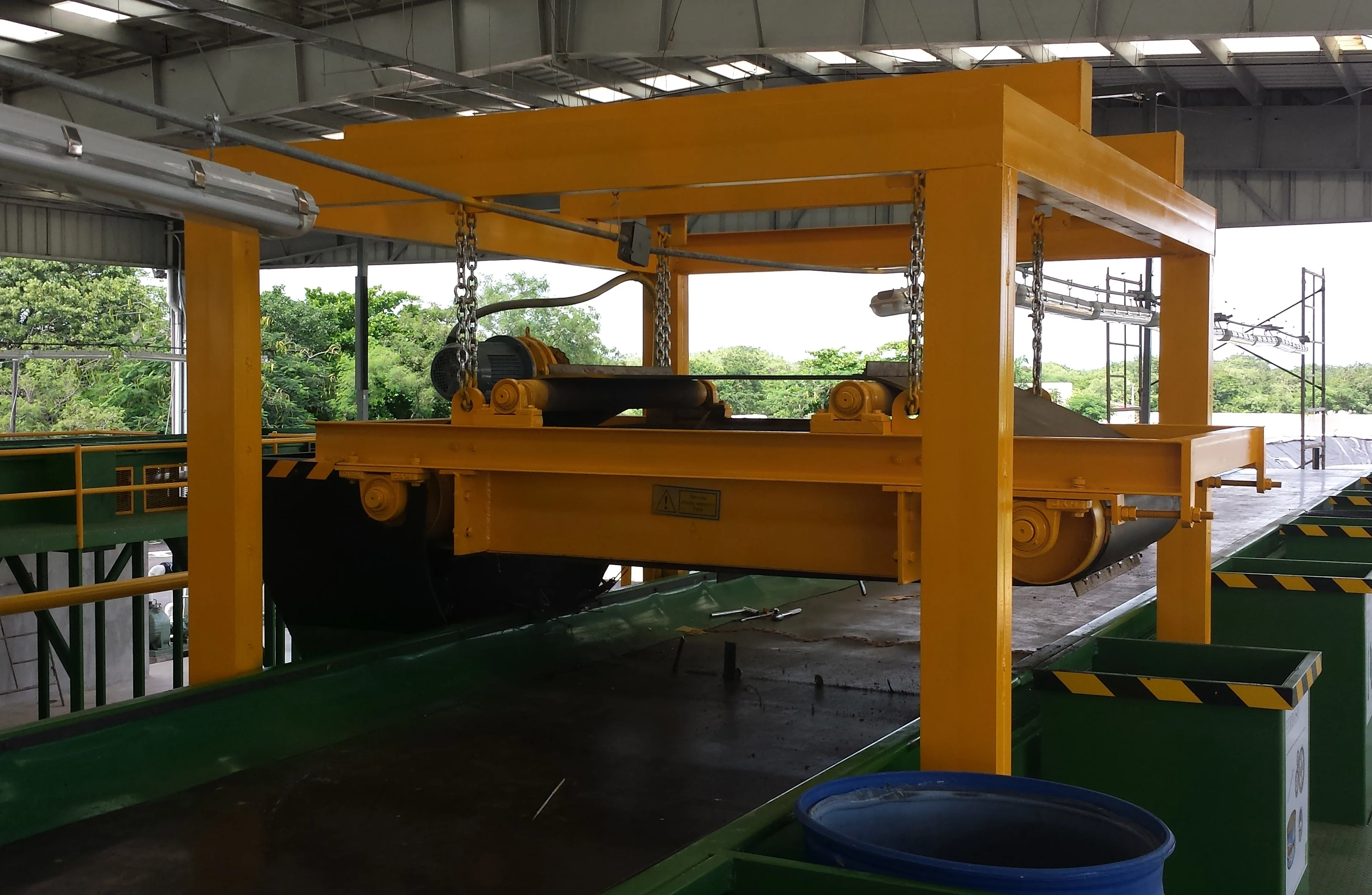

Customer Photos
