Product Overview

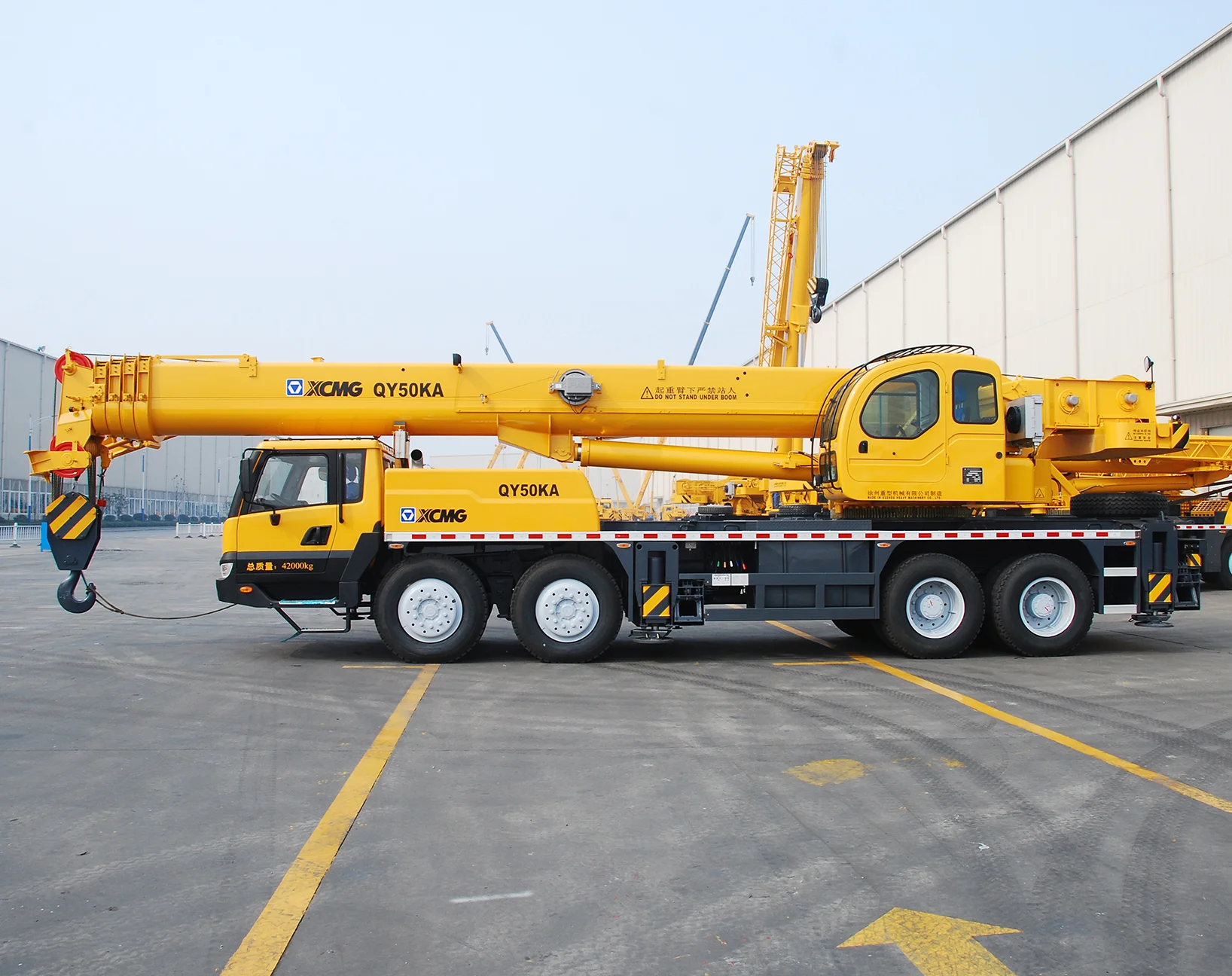

High Quality China Made XCMG QY50K QY50K-I QY50KA QY50K-II 50tons Used Crane Price

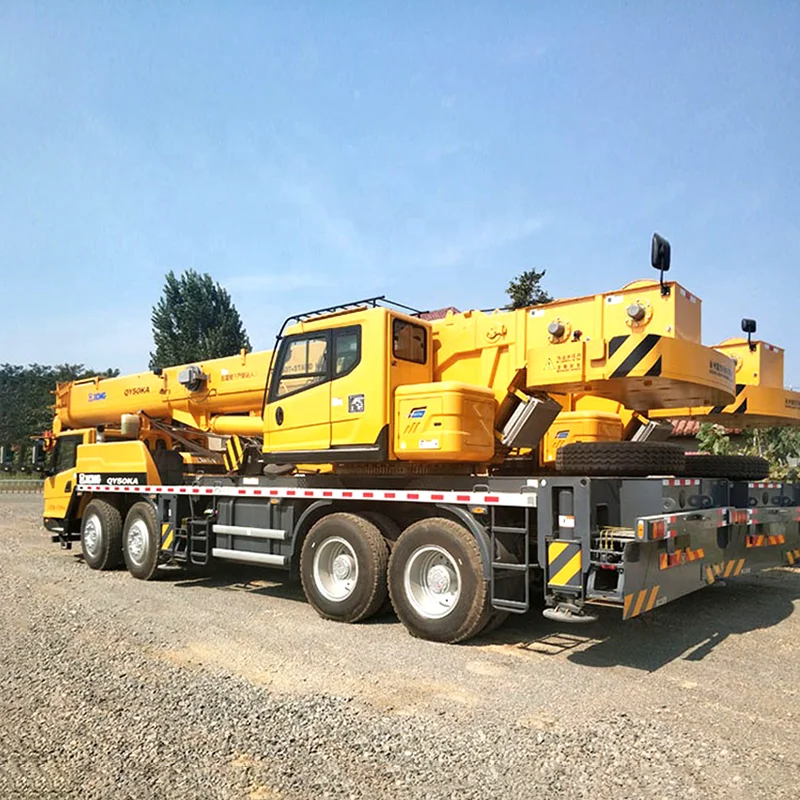

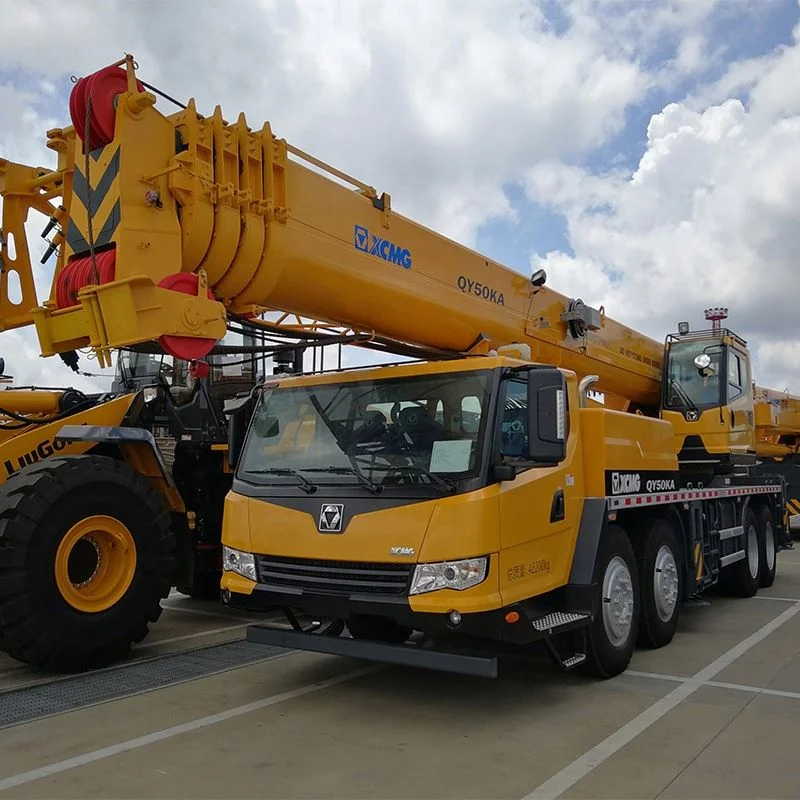

XCMG QY50KA boom arm crane truck 50 ton.
XCMG QY50KA truck crane's structure is compact, the industry operating performance is the highest. Lifting performance and driving performance of a comprehensive upgrade, leading competitors.
Advantages and highlights:
1. Five section U-type booms. The boom length is 11.4m-43.5m with strong lifting performance, leading 5%-10% ahead of products with the same tonnages in the same industry.High-power engine with good dynamic performance, strong gradeability and superior trafficability. The maximum gradeability and maximum travel speed respectively are 42% and 85km/h.
2. Waterproof connector clip is equipped with rubber sheath inside with excellent water impervious and level of protection reaches to IP65. The air-conditioning condenser is separately installed, the heat-sinking capability is sharply improved and the environment temperature reached to more than 45℃.
3. The boost system will work only by stepping on the clutch that effectively avoids gearbox damaging gears when shifting. Compared with the same industry, 100mm distance of shift gears and 45% of shifting force are respectively reduced.
XCMG QY50KA truck crane's structure is compact, the industry operating performance is the highest. Lifting performance and driving performance of a comprehensive upgrade, leading competitors.
Advantages and highlights:
1. Five section U-type booms. The boom length is 11.4m-43.5m with strong lifting performance, leading 5%-10% ahead of products with the same tonnages in the same industry.High-power engine with good dynamic performance, strong gradeability and superior trafficability. The maximum gradeability and maximum travel speed respectively are 42% and 85km/h.
2. Waterproof connector clip is equipped with rubber sheath inside with excellent water impervious and level of protection reaches to IP65. The air-conditioning condenser is separately installed, the heat-sinking capability is sharply improved and the environment temperature reached to more than 45℃.
3. The boost system will work only by stepping on the clutch that effectively avoids gearbox damaging gears when shifting. Compared with the same industry, 100mm distance of shift gears and 45% of shifting force are respectively reduced.
Description | Unit | Parameter value | |
Overall length | / | mm | 13930 |
Overall width | / | mm | 2780 |
Overall Height | / | mm | 3630 |
Axle base | 1st ,2nd axle | mm | 1470 |
2nd ,3rd axle | 4300 | ||
3rd ,4th axle | 1350 | ||
Wheel Base | / | mm | 2304+2075 |
Front overhang/rear overhang | / | mm | 2389/2064or 2376/2064 |
Front extension/rear extension | / | mm | 2131/226 or 2144/226 |
Total vehicle mass in travel configuration | / | kg | 42200 |
Axle load | Front axle | kg | 16200 |
Rear axle | 26000 | ||
Engine Model | / | / | WD615.338 |
Engine rated power | / | kw/(r/min) | 276/2200 |
Engine rated torque | / | N.m/(r/min) | 1500/1300-1600 |
Max. travel speed | / | km/h | 85 |
Min. steady travel speed | / | km/h | 2～3 |
Min. turning diameter | / | m | 24 |
Min. ground clearance | / | mm | 327 |
Max. grade ability | / | % | 42 |
Approach angle | / | ° | 19 |
Departure angle | / | ° | 15 |
Braking distance (at 30 km/h, full load ) | / | m | ≤10 |
Oil consumption per 100km | / | L | 40 |
Exterior noise level during acceleration traveling | / | dB (A) | ≤88 |
Noise level at seated position | / | dB (A) | ≤90 |
Max. total rated lifting capacity | / | t | 50 |
Min. rated working radius | / | m | 3 |
Turning radius at turntable tail | / | mm | 3800 |
Max. load moment | Base boom | KN.m | 2009 |
Fully-extended boom | 1129 | ||
Outrigger span | Longitudinal | m | 6.1 |
Lateral | 7.1 | ||
Hoist height | Base boom | 11.9 | |
Fully-extended boom | 44 | ||
Fully-extended boom + Jib | 58.1 | ||
Boom length | Base boom | 11.4 | |
Fully-extended boom | 43.5 | ||
Fully-extended boom + Jib | 59.5 | ||
Jib offset angle | / | ° | 0, 15, 30 |
Time for boom raising | / | s | ≤40 |
Time for boom extending fully | / | s | ≤90 |
Max. slewing speed | / | r/min | ≥2.0 |
Exterior noise level | / | dB (A) | ≤118 |
Noise level at seated position | / | dB (A) | ≤90 |
FEATURES AT A GLANCE
Warranty
50ton China original XCMG QY50KA truck crane for sale :
● One year guarantee for whole machine main parts.
● 24 hours technical support by email.
● sending all filters and tool boxes for your maintainance spare
50ton China original XCMG QY50KA truck crane for sale :
● One year guarantee for whole machine main parts.
● 24 hours technical support by email.
● sending all filters and tool boxes for your maintainance spare
Our Yard Location In Shanghai China
Welcome to check and buy

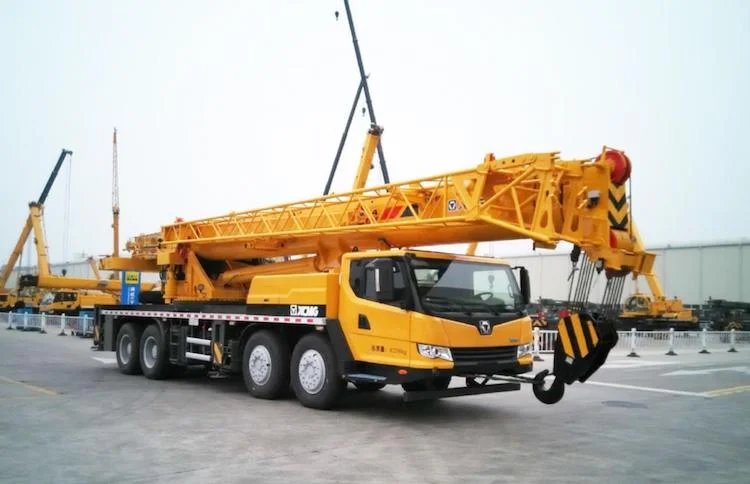

50ton truck crane

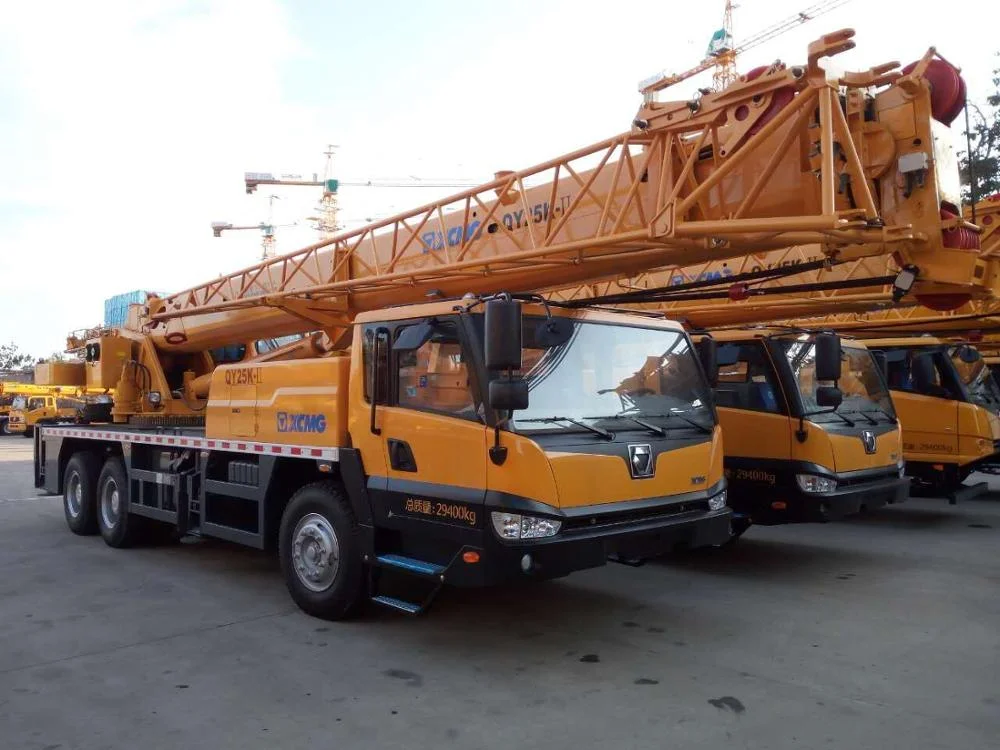

good used crane

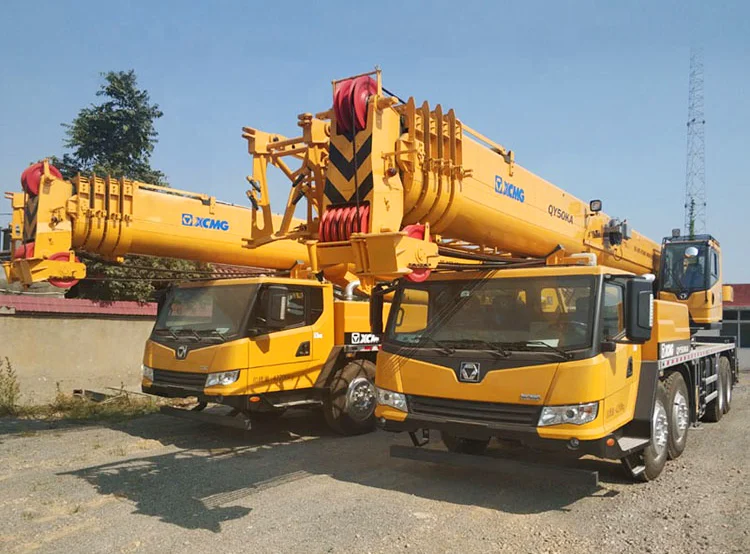

50ton qy50kA truck crane
PRODUCT SPECIFICATIONS
No | Item | Parameters |
1 | Brand | XCM G |
2 | Model | QY50KA |
3 | Operating weight | 42000KG |
4 | Load | 50000kg |
5 | Original | China |
6 | Location | Shanghai China |
7 | Type | 50ton China original XCMG QY50KA truck crane for sale |
8 | Price | Negotiable |
PRODUCT CONFIGURATION

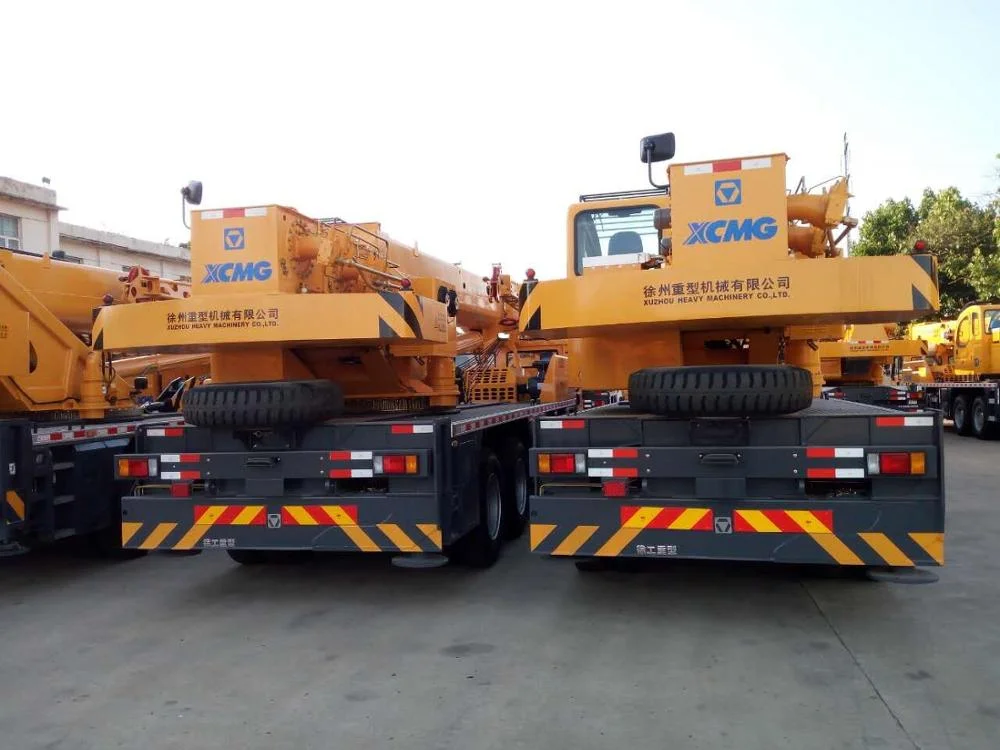

hight quality used truck crane

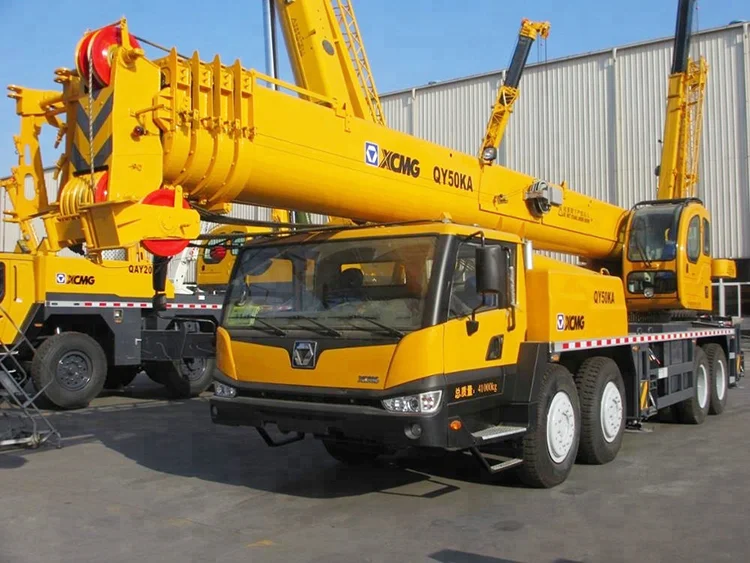

50tons QY50KA Truck crane
used crane 70tons
SALES AND SERVICE NETWORK
Pre-Sales Service
50ton China original XCMG QY50KA truck crane for sale :
● Inquiry and consulting support.
● Photos&Videos for your order before shipment.
● Factory visiting.
50ton China original XCMG QY50KA truck crane for sale :
● Inquiry and consulting support.
● Photos&Videos for your order before shipment.
● Factory visiting.
After-Sales Service
50ton China original XCMG QY50KA truck crane for sale :
● Training how to use the machine.
● Whole life-time supply for spare parts.
● User manual and details videos or CD if you requested.
● Overseas customer visiting.
50ton China original XCMG QY50KA truck crane for sale :
● Training how to use the machine.
● Whole life-time supply for spare parts.
● User manual and details videos or CD if you requested.
● Overseas customer visiting.

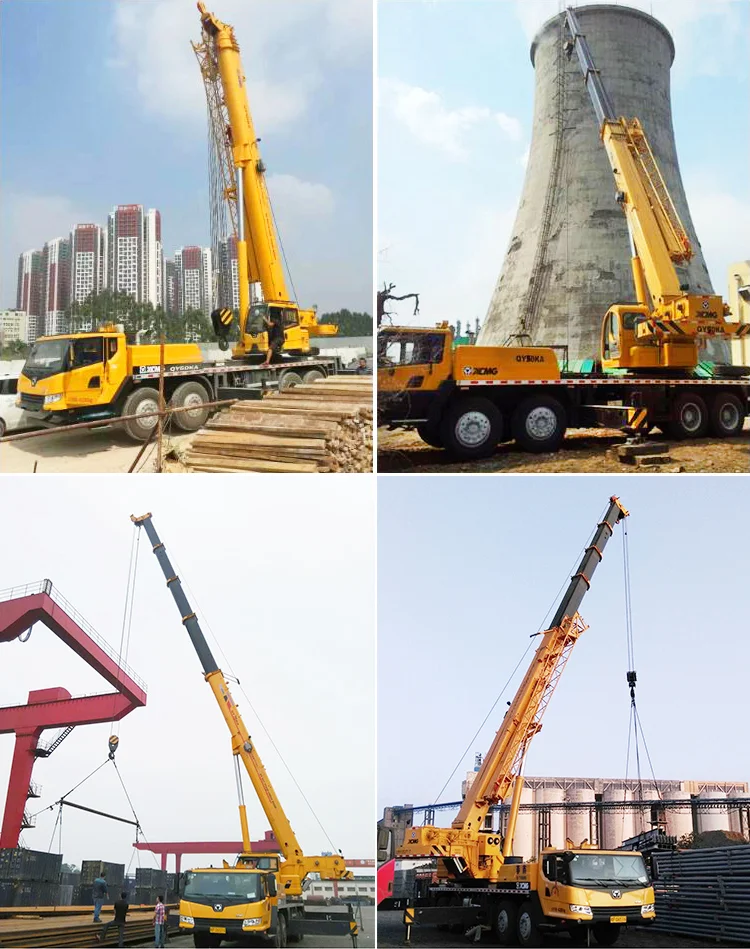

Successful Project
QY70K-I Truck crane
70tons truck crane
used truck crane xxcmg
SIMILAR PRODUCTS
FAQ
1. Q: Why choose our good China brand truck crane ?
A: We promise the quality of every crane and provide the most competitive price.
2. Q: Do you provide OEM Service for good China brand truck crane ?
A: Yes, we can provide OEM Service.
3. Q: Do you provide customized forging products?
A: Yes. Customers give us drawings and specifications, and we will manufacture accordingly.
4. Q: What is your payment term for China original truck crane for sale ?
A: We provide kinds of payment terms such as L/C, T/T, Trade Assurance, etc..
5. Q: How can you ensure the quality of China original truck crane for sale?
A: Don't worry, we have joined the Trade Assurance. If the products have quality problem when you received the goods, Alibaba can return you full payments.
A: We promise the quality of every crane and provide the most competitive price.
2. Q: Do you provide OEM Service for good China brand truck crane ?
A: Yes, we can provide OEM Service.
3. Q: Do you provide customized forging products?
A: Yes. Customers give us drawings and specifications, and we will manufacture accordingly.
4. Q: What is your payment term for China original truck crane for sale ?
A: We provide kinds of payment terms such as L/C, T/T, Trade Assurance, etc..
5. Q: How can you ensure the quality of China original truck crane for sale?
A: Don't worry, we have joined the Trade Assurance. If the products have quality problem when you received the goods, Alibaba can return you full payments.
