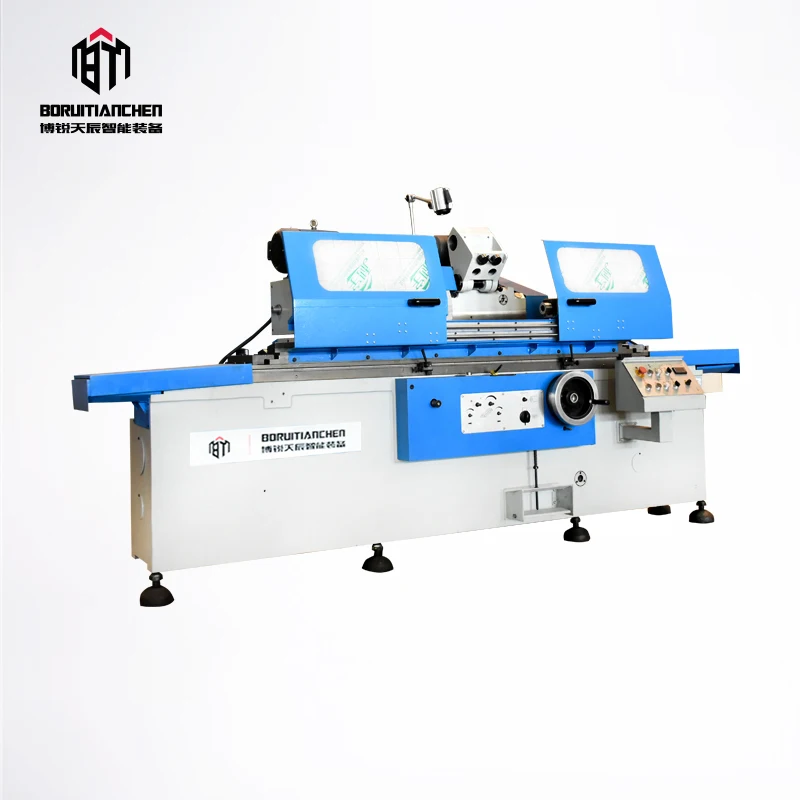

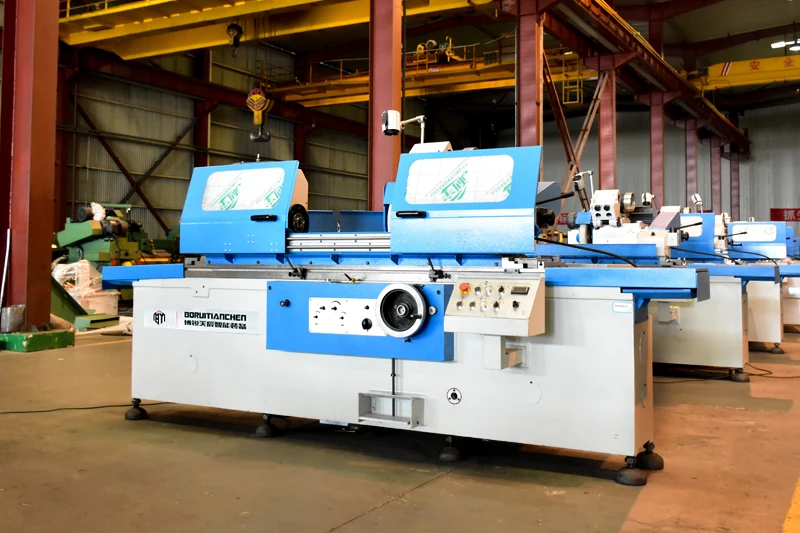

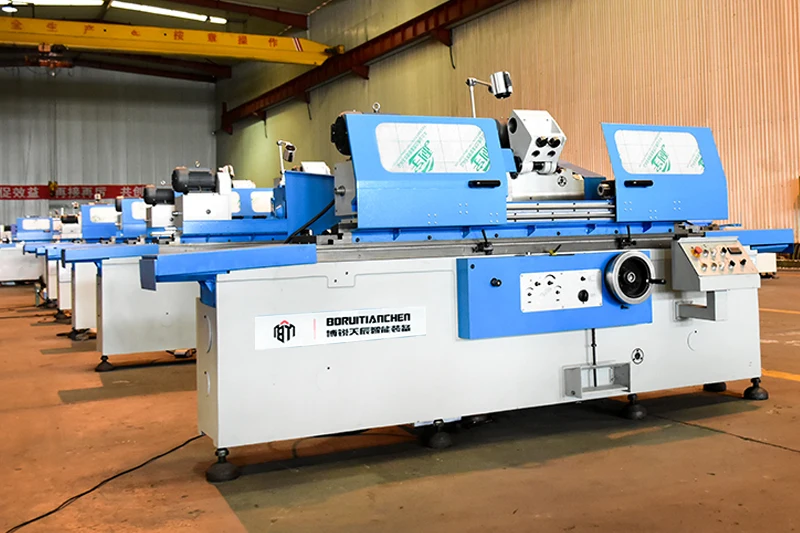

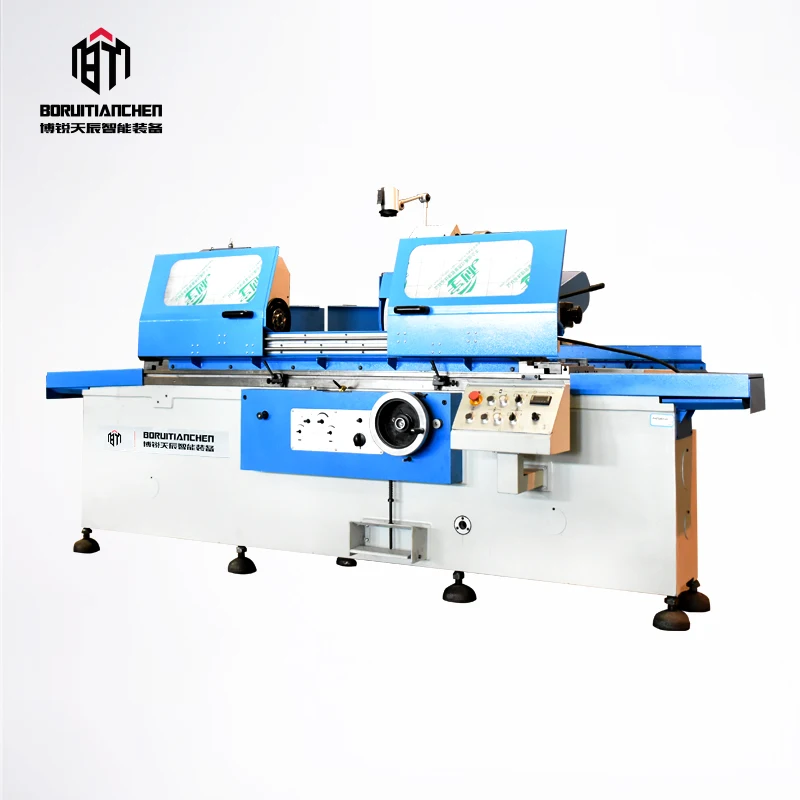

Китайский поставщик M1432 универсальный шлифовальный станок для продажи или универсальный цилиндрический шлифовальный станок
- Категория товара: Cylindrical Grinding Machines >>>
- Поставщик (Оптовый магазин): Bo,Rui,Tianchen,(Shandong),Intelligent,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

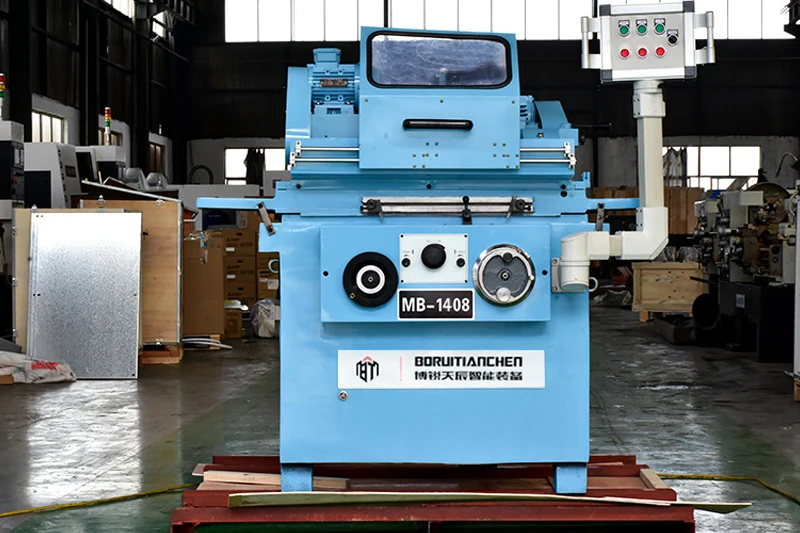

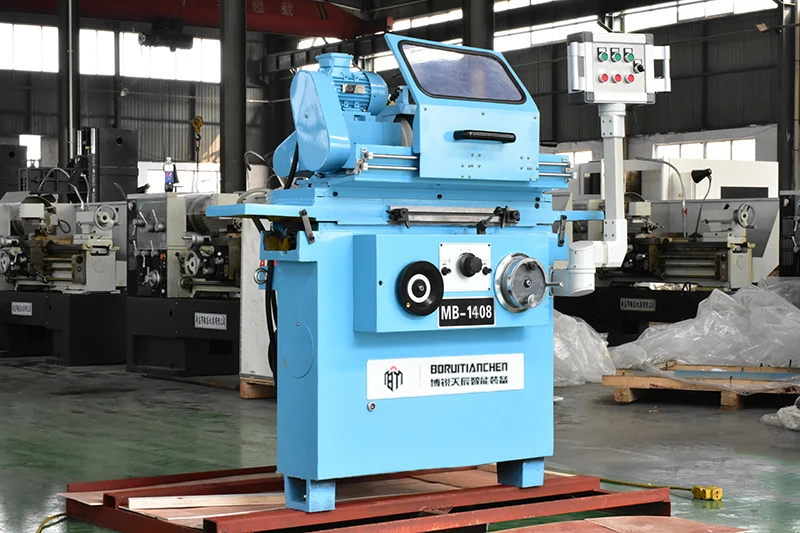

M1308 M1408 cylinder grinding machine
Products Description
Application:
Features:

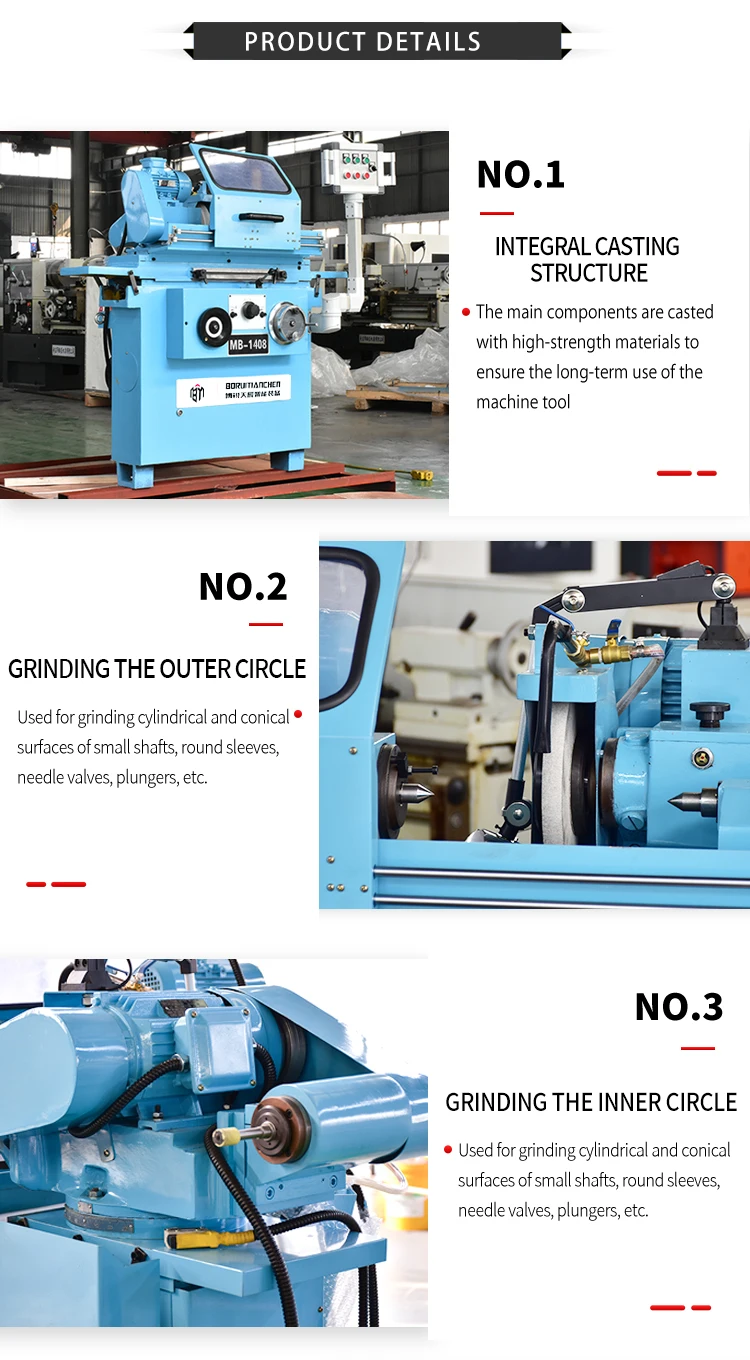

1, mainly used for grinding small shaft, circle, needle valve, plunger set of cylinder and cone surface
2, tooling way available top, three jaw chuck, and special fixture of spring clip;
3, apply to instrumentation, automotive electrical and mechanical, bearings, textile, Marine, sewing
machines, machinery and other industries processing small parts,
4, suitable for tools, machine shop and workshop for medium and small batch production,
5, the machine according to the top is divided into 300 mm.
1, mainly used for grinding small shaft, circle, needle valve, plunger set of cylinder and cone surface
2, tooling way available top, three jaw chuck, and special fixture of spring clip;
3, apply to instrumentation, automotive electrical and mechanical, bearings, textile, Marine, sewing
machines, machinery and other industries processing small parts,
4, suitable for tools, machine shop and workshop for medium and small batch production,
5, the machine according to the top is divided into 300 mm.
Product main technical parameters:
Model | Unit | M1308x300 | M1408x300 |
Grinding Dia. (O.D) | mm | 2-80 | 2-80/10-60 |
Grinding length (O.D) | mm | 300 | 300/125 |
Center height | mm | 115 | 115 |
Max.workpiece weight | kg | 10 | 10 |
Worktable speed | m/min | 0.1-4 | 0.1-4 |
Wheel peripheral velocity | m/s | 35 | 35 |
Max.travel of worktable | mm | 340 | 340 |
Swivel range of worktable | degree | -3~ +7 | -3~ +7 |
External grinding wheel size | mm | Max.250*25*75, Min.180*25*75 | Max.250*25*75, Min.180*25*75 |
Headstock taper | morse | No.3 | No.3 |
Tailstock taper | morse | No.3 | No.3 |
Machine motor power | kw | 2.34 | 2.34 |

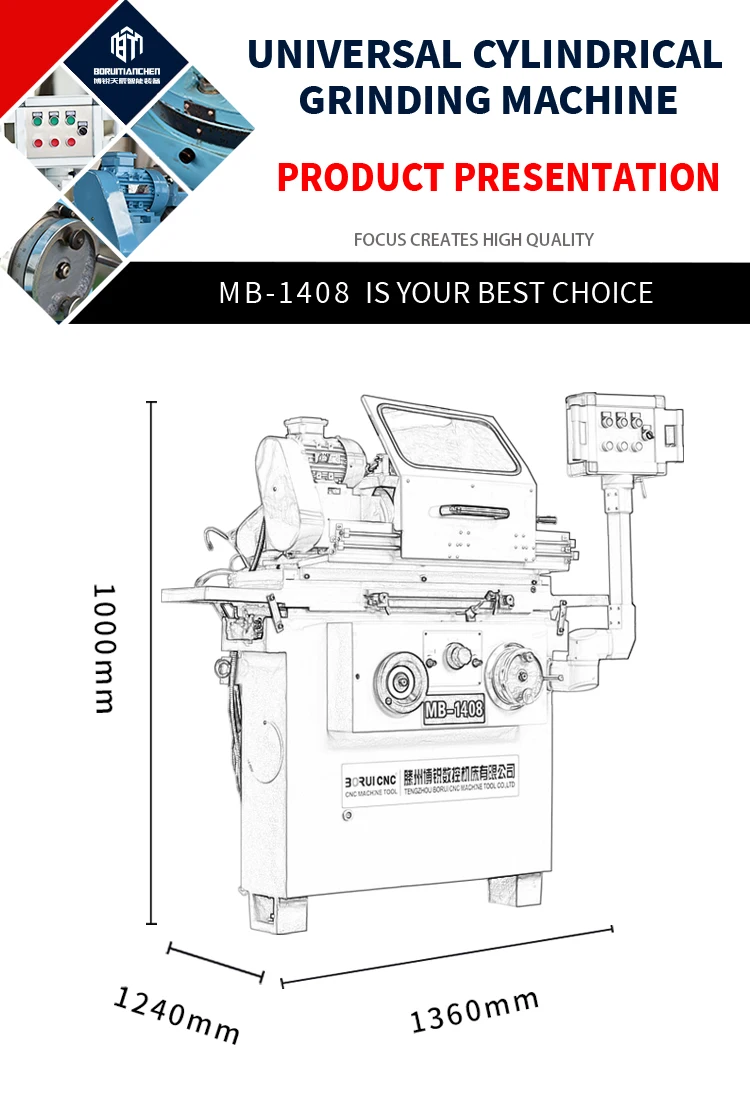

Overall dimension | mm | 1360*1240*1000 | 1360*1240*1000 |
Machine weight | kg | 1500 | 1500 |
Roundness (O.D/I.D) | μm | 1.5/2.5 | 1.5/2.5 |
Uniformity of dia. In longitudinal section | μm | 5/8 | 5/8 |
Surface roughness (O.D/I.D) | μm | Ra.0.25/0.63 | Ra.0.25/0.63 |

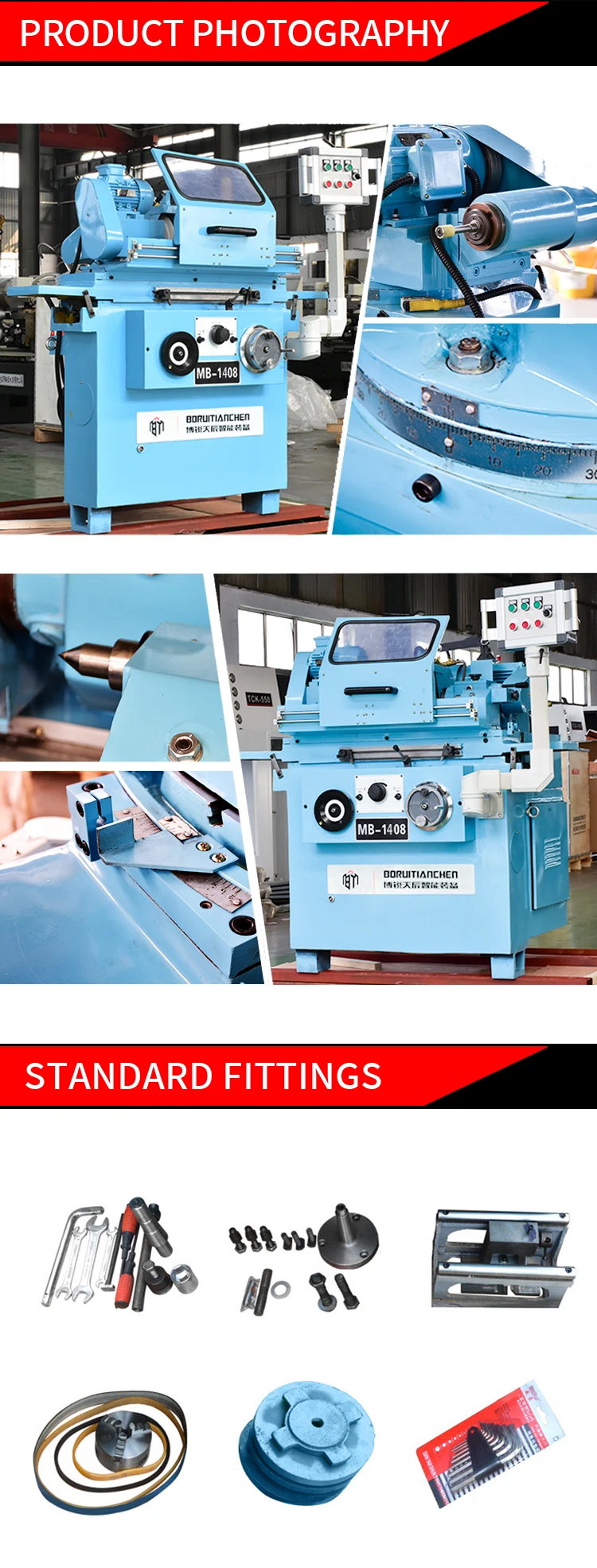

Details Display
