Тест-полоска для овуляции, 10 мин./25 мин., сделано в Китае
US $0.048-$0.29

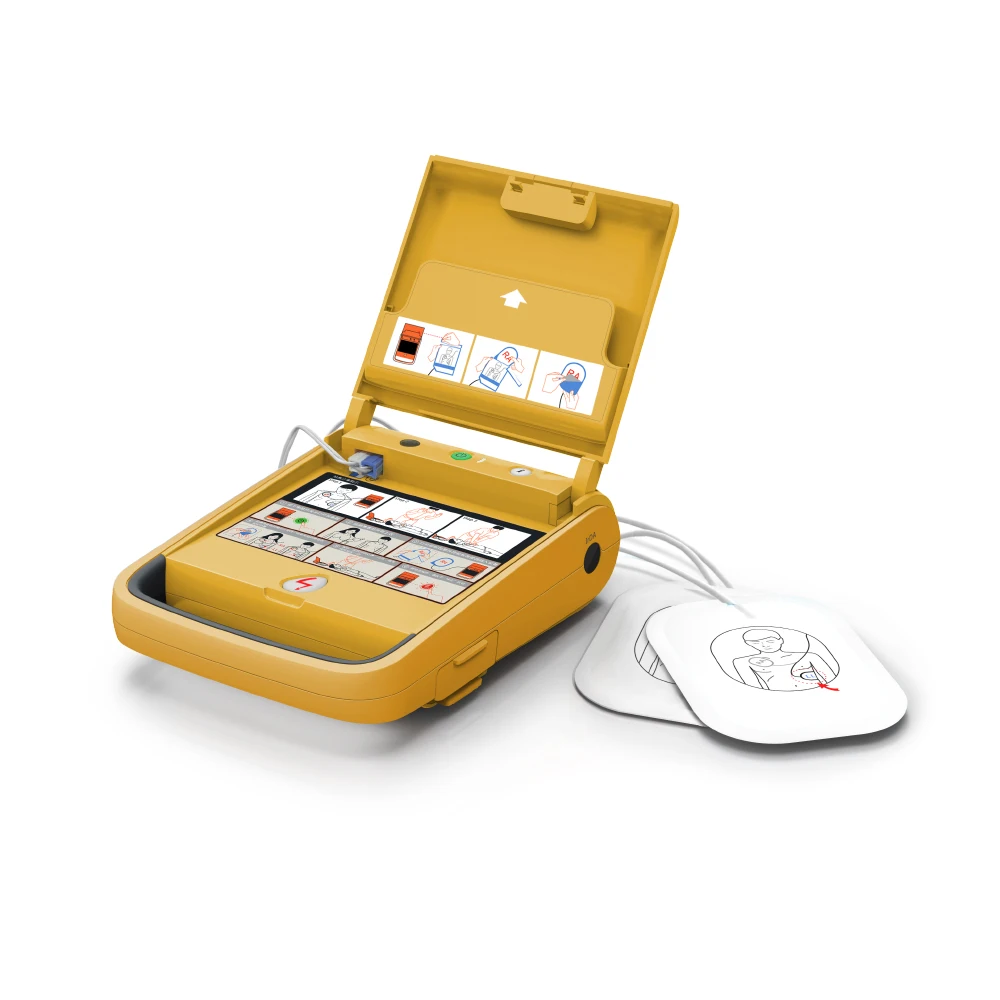

SINOHERO I3 портативный интуитивно понятный интерфейс дефибриллятор Первая помощь медицинское оборудование Автоматизированный внешний дефибриллятор
- Категория товара: Оборудование для патологического анализа >>>
- Поставщик (Оптовый магазин): Sino-Hero(shenzhen),Bio-Medical,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Specification
Product name: | SINOHERO I3 Portable Humanized Interface Defibrillator First Aid Medical Equipment |
Application: | Hospital Clinic College Ambulance subway station School |
Classification Nominal specification | Two-phase e-cube (attenuation index chopped wave type) |
Waveform | 50mm,20m, high-speed roll |
impedance compensation | Output energy See 8.6 |
Details Images
Product Description
Introduction:
Biphasic truncated exponential shock waveform featured with impedance compensation
Application：Hospital, ambulance, subway station, etc
Biphasic truncated exponential shock waveform featured with impedance compensation
Application：Hospital, ambulance, subway station, etc
High capacity and long-life lithium manganese dioxide battery,minimum 200 shocks, 5 years valid
Visualized status of battery and system

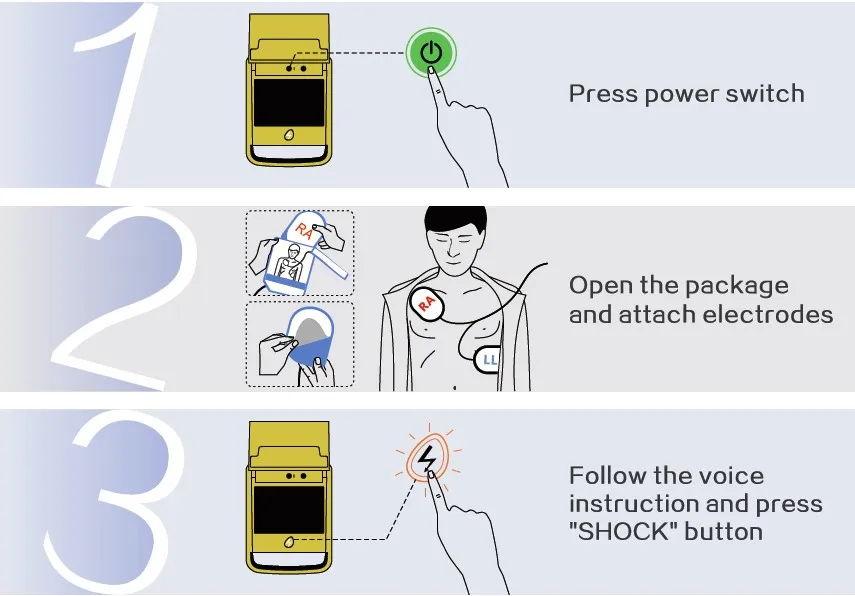

Detailed voice instructions and picture guidance
Data storage of 24 hrs ECG and up to 1000 events
Applicable to adults (200J) and children (50J)
Daily self-tests,report devices status in time
Performance：
minimum 200 shocks of 200JManagement category of medical equipment
Category Category IIb medical equipment according to 93/42/EEC Regulations
Dimension of complete machine
Outline
Battery specification
Type Parameter: DC 12V 4.5Ah Li-MnO2 battery Non-rechargeable
model: SZAB I3DC
Factory: Ambulanc (Shenzhen) Tech. Co., Ltd
Capacity At least 200 shocks or work for 4 hours
Temperature Operating state: 0℃-50℃
Storage state: -30℃-70℃
H-1.601.00197-A1.0
Defibrillator
Defibrillator
Classification Nominal specification
Operation mode Continuous operation
Waveform
Two-phase e-cube (attenuation index chopped wave type):
impedance compensation
Output energy See 8.6
Charging control
Automatic control of software (arrhythmia detection system and
charging control)
Heart rhythm analysis
time
Less than 8s. (temperature 20℃)
Energy storage and
charging time
Less than 10s Applicable
to fully-charged new battery.
(temperature 20℃)
12s
Applicable to fully-charged new battery after fully
discharged for 15 times.(temperature 20℃)
Time from analysis start
to shock preparation
Less than 15s Applicable
to fully-charged new
battery.(temperature 20℃)
17s
Applicable to fully-charged new battery after fully
discharged for 15 times.(temperature 20℃)
Time from startup to
shock preparation
Less than 32s
Applicable to fully-charged new
battery.(temperature 20℃)
35s
Applicable to fully-charged new battery after fully
discharged for 15 times.(temperature 20℃)
Charging completion
indication
• Voice prompt "Press flashing orange button for shock im
mediately."
• The backlight of "Shock" flashes.
• The buzzer buzzing continuously.
Time interval from CPR
to shock
The time from CPR completion to shock is 6s
Released
After charging, i3 can be released automatically in the following
cases:
• The heart rhythm of patient is changed into non-shockable
rhythm; or
• Fail to press "Shock" within 15s after charging; or
• Press "Start/shutdown" to shut down i3; or
• Remove the defibrillator electrode or electrode connector f
rom the patient to disconnect from i3.
Shock provision Provide shock when pressing "Shock" after starting i3.
Shock provision carrier Use adult defibrillation electrode in the front (Lead II) or use the
low-energy pediatric electrode in front and at back.
All parts
Patient isolation
Defibrillation electrode
BE (defibrillation)
Physical characteristic
Environmental specification
Working environment
Temperature 0℃-50℃
Humidity 5%-95% (no condensation)
Air pressure 70kPa-110kPa
Storage environment (Host machine)
Temperature -30℃-70℃
Humidity 5%-95% (no condensation)
Air pressure 70kPa-110kPa
Storage environment (electrode pads)
Temperature 0℃-50℃
Humidity 20%-80% (no condensation)
Package&Delivery
Package included:

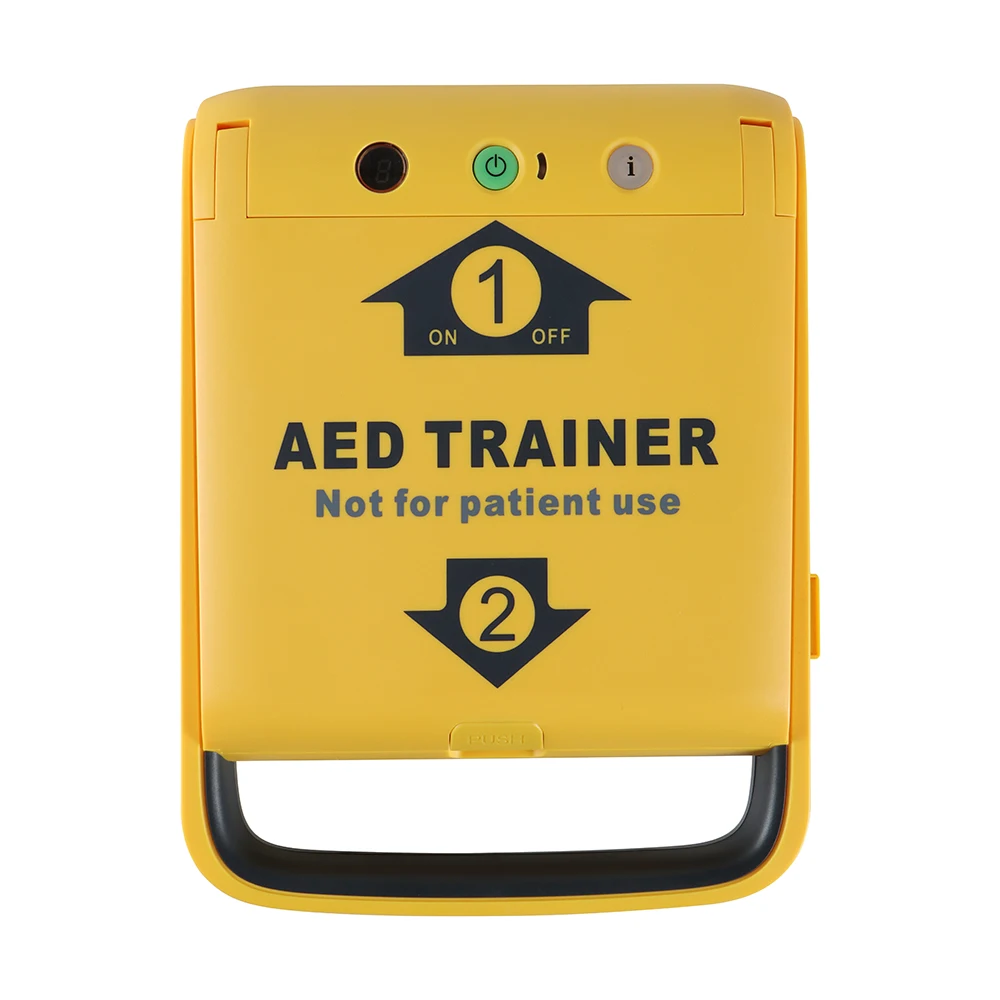

1XAED trainer
1BagXAdult electrode (disposable)
1XBattery (Built-in)
1XUser Manual
Optional:
1.AED electrode slice
2.Portable bag
Product Net Weight:2.5KG
Product Gross Weight:3KG
Product Size:28.9*21.7*10cm (L*W*H)
Packing Size:46*32*17cm (L*W*H)
