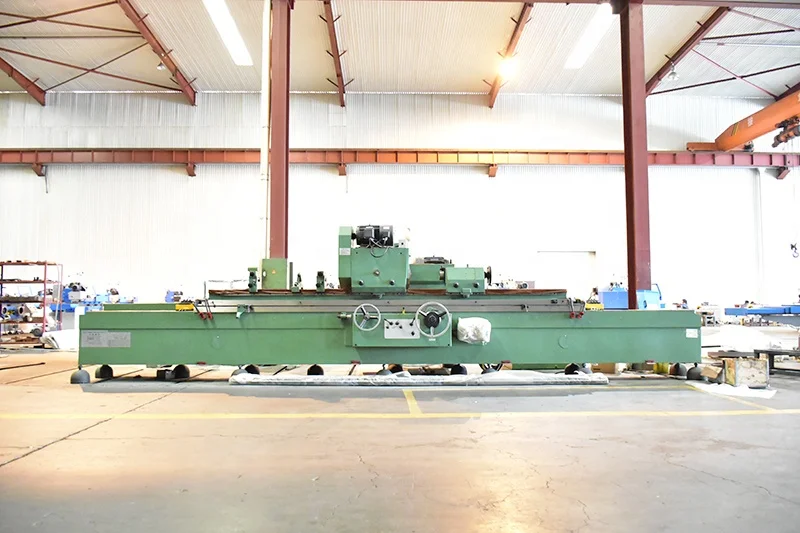

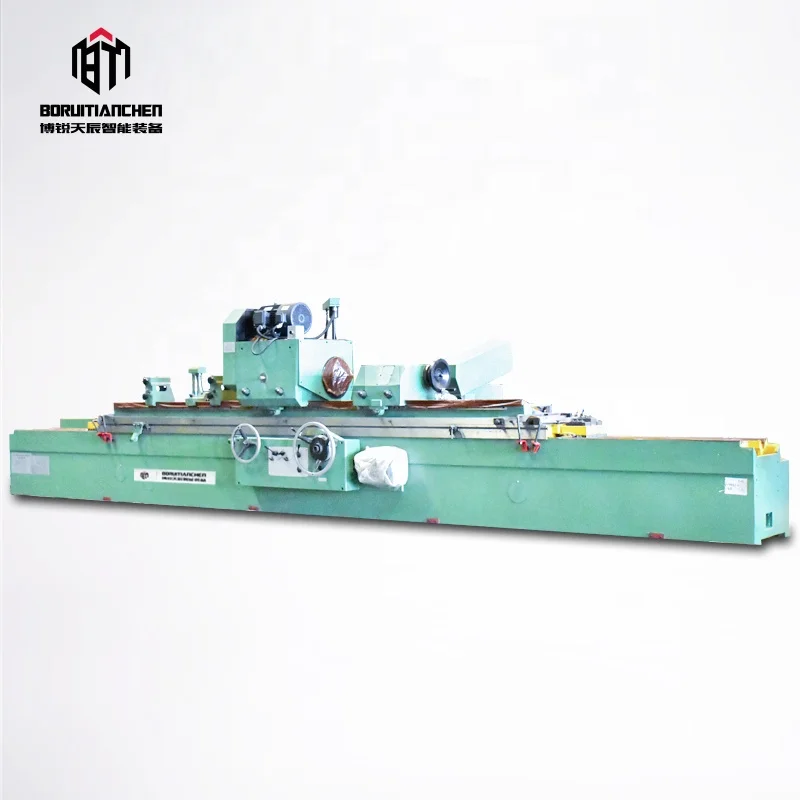

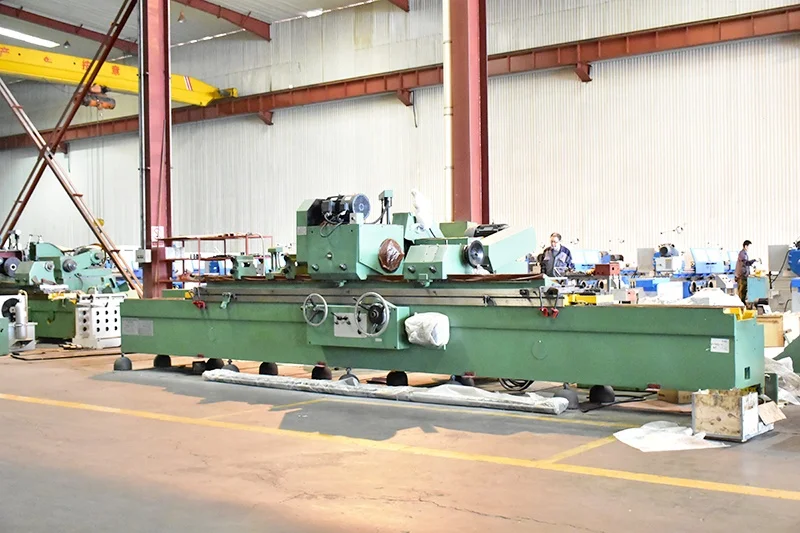

M1350 Universal Cylindrical Grinding Machine
Products Description
Application:
1. When conical grinding, the table can be swivelled to either side and exactly positioned by using the scale.
2. Oil film between bearing and spindle keeps vibrations ata minimum level, hence achieving outstanding results and top accuracy.
3. Precisely balanced spindle head and solid grinding head guarantee extraordinary results at any type of operation.
4. Strong reinforcements and solidly designed panels of the machine base makes it resistant to temperature fluctuations and deformations.
5. Spindle is mounted from both sides and features adjustable sliding bearings consisting of three segments.
6. Hydrodynamic bearing of spindle, therefore no contact between spindle and bearing.
7. Longitudinal table feed can be set to automatic mode -hydraulically driven or manual mode - by handwheel.
8. Stepless feed adjustments with the option of aprogrammable hold time at the end of each table movement.
9. Hydraulic or manual repositioning of grinding spindle stock.
10.Guideways in x- and y-axis are precisely constructed and hand-polished.
11.Longitudinal table guide and cross guide of grinding headstock each feature a V-guide and flat guide.
2. Oil film between bearing and spindle keeps vibrations ata minimum level, hence achieving outstanding results and top accuracy.
3. Precisely balanced spindle head and solid grinding head guarantee extraordinary results at any type of operation.
4. Strong reinforcements and solidly designed panels of the machine base makes it resistant to temperature fluctuations and deformations.
5. Spindle is mounted from both sides and features adjustable sliding bearings consisting of three segments.
6. Hydrodynamic bearing of spindle, therefore no contact between spindle and bearing.
7. Longitudinal table feed can be set to automatic mode -hydraulically driven or manual mode - by handwheel.
8. Stepless feed adjustments with the option of aprogrammable hold time at the end of each table movement.
9. Hydraulic or manual repositioning of grinding spindle stock.
10.Guideways in x- and y-axis are precisely constructed and hand-polished.
11.Longitudinal table guide and cross guide of grinding headstock each feature a V-guide and flat guide.
Product main technical specifications:
Model | MW1420 | M1432B | M1450 | M1463 | ||
Distance between centers | 500, 750mm | 1000, 1500, 2000 | 150,020,003,000 | 300,040,005,000 | ||
Center height | 135mm | 180 | 270 | 335 | ||
Dia. Ground (O.D) | 5~200mm | 8~320 | 25~500 | 30~630 | ||
Dia. Ground (I.D) | 25~100mm | 30~100 | 30~200 | 30~200 | ||
Max. Length ground (O.D) | 500, 750mm | 1000, 1500, 2000 | 1500,2000, 3000 | 3000,4000, 5000 | ||
Max. Length ground (I.D) | 100mm | 125 | 320 | 320 | ||
Max. weight of workpiece | 100kg | 150 | 1000 | 3000 | ||
Swiveling angle | +90 degree | +90 degree | +90 degree | +90 degree | ||
Center taper (MT) | 4MT | MT4 | MT6 | MT6 | ||
Spindle speed | 50HZ: 25 - 380r/min | 50HZ: 25-220r/min | 50HZ: 20 - 224r/min | 50HZ: 8 - 150r/min | ||
Wheel Spindle speed | 1670rpm | 1670 | 1330/665 | 740 | ||
Swiveling angle | +30 degree | +30 degree | +30 degree | +30 degree | ||
Wheel Size Max. dimension of wheel | 400 x 50 x203 | 400 x 50 x203 | 500x75x305 | 900x75x305 | ||
(OD x W x ID) | mm | mm | mm | mm | ||
Max. Swiveling angle | Clockwise | 3 degree | 3 degree | 3 degree | 2 degree | |
Anticlockwise | 7degree(1000) | 7degree(1000) 6degree(1500) | 6degree(1500) 5degree(2000) | 3degree(3000) | ||
6degree | 2degree(4000) | |||||
Roundness | 0.003mm | 0.003 | 0.005 | 0.005 | ||
Cylindricity | 0.005mm | 0.005 | 0.008 | 0.008 | ||
Roughness | 0.2Ra | 0.2 | 0.32 | 0.32 | ||
Details Display
Recommend Products
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
